WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the wheel nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in serious injury.

3. Lower the vehicle to the ground by turning the jack

handle counterclockwise.

4. Refer to “Torque Specifications” in “Technical Specifica-

tions” for proper lug nut torque.

5. After 25 miles (40 km), check the lug nut torque with a

torque wrench to ensure that all lug nuts are properly
seated against the wheel.

TIRE SERVICE KIT — IF EQUIPPED

Small punctures up to 1/4 inch (6 mm) in the tire tread can
be sealed with Tire Service Kit. Foreign objects (e.g., screws
or nails) should not be removed from the tire. Tire Service
Kit can be used in outside temperatures down to approxi-
mately -4°F (-20°C).

This kit will provide a temporary tire seal, allowing you to
drive your vehicle up to 100 miles (160 km) with a
maximum speed of 50 mph (80 km/h).

Tire Service Kit Storage

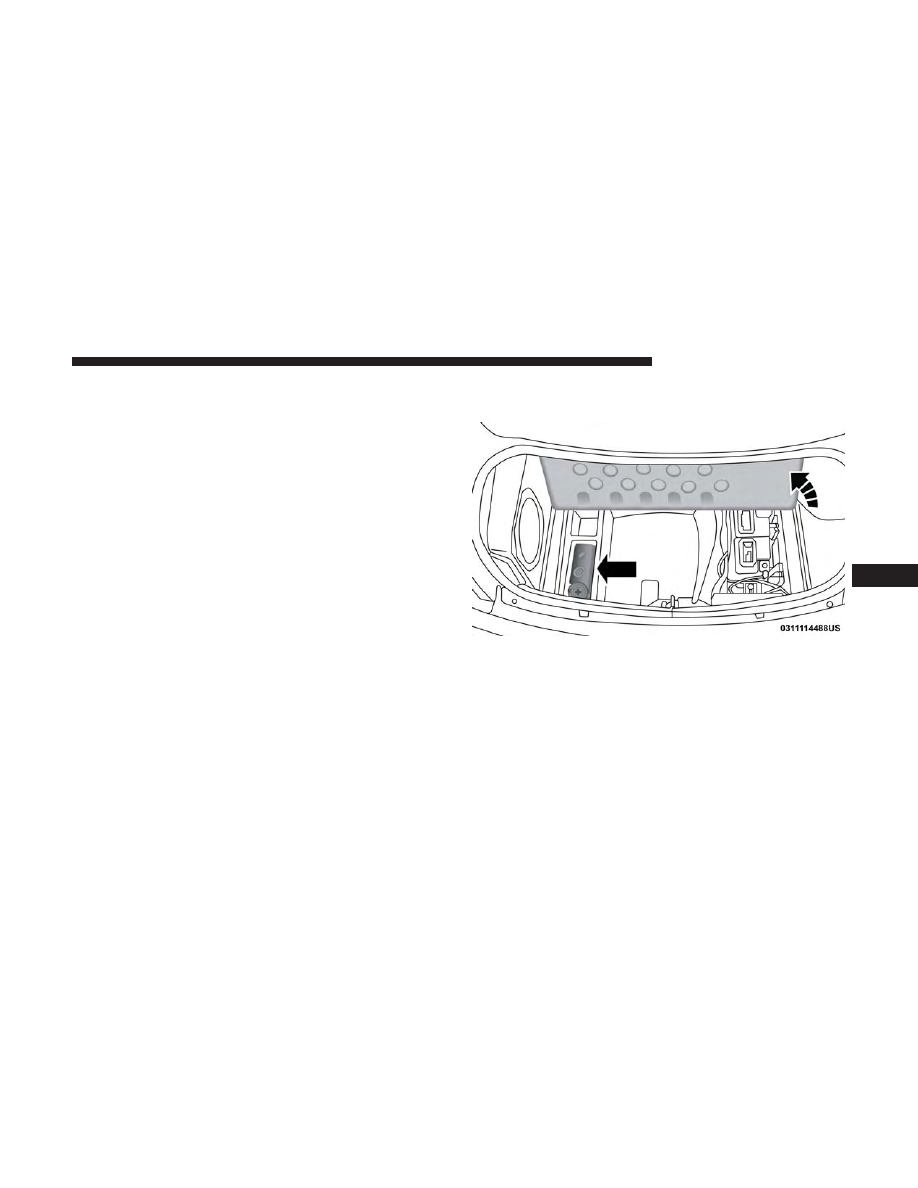

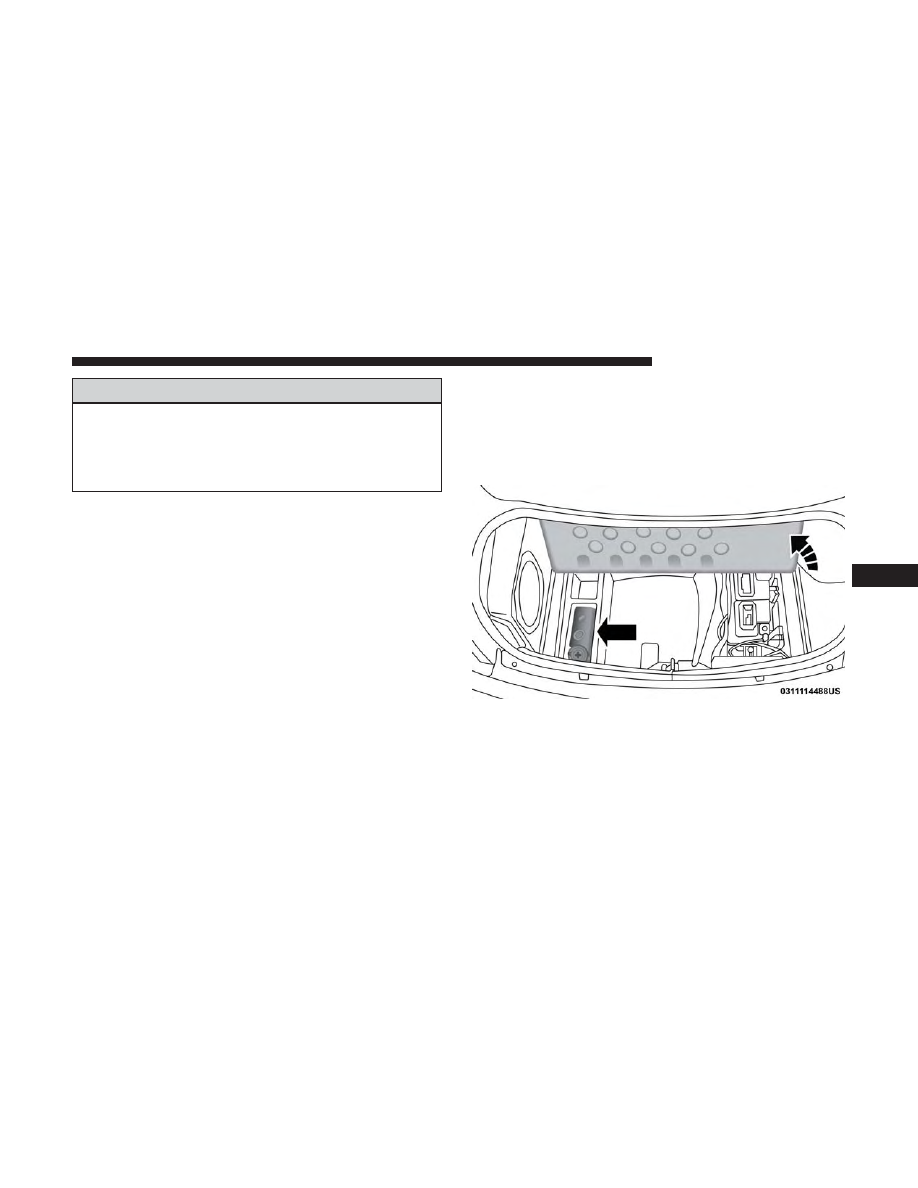

The Tire Service Kit is located in the trunk.

Tire Service Kit Location

IN CASE OF EMERGENCY

333

Tire Service Kit Components And Operation

Using The Mode Select Knob And Hoses

Your Tire Service Kit is equipped with the following
symbols to indicate the air or sealant mode.

Selecting Air Mode

Push in the Mode Select Knob (5) and turn to this
position for air pump operation only. Use the Black

Air Pump Hose (7) when selecting this mode.

Selecting Sealant Mode

Push in the Mode Select Knob (5) and turn to this
position to inject the Tire Service Kit Sealant and to

inflate the tire. Use the Sealant Hose (clear hose) (6) when
selecting this mode.

Using The Power Button

Push and release the Power Button (4) once to turn

on the Tire Service Kit. Push and release the Power Button
(4) again to turn Off the Tire Service Kit.

Using The Deflation Button

Push the Deflation Button (2) to reduce the air
pressure in the tire if it becomes over-inflated.

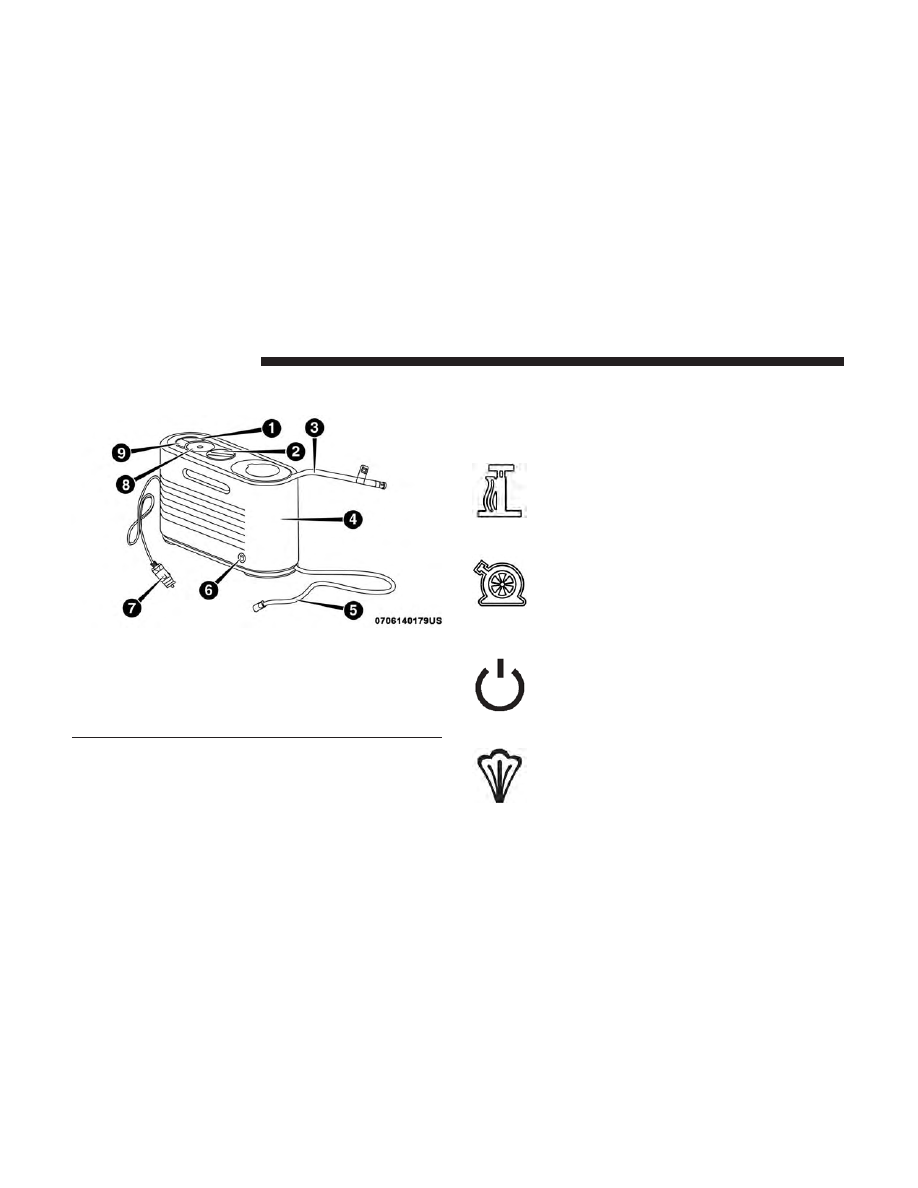

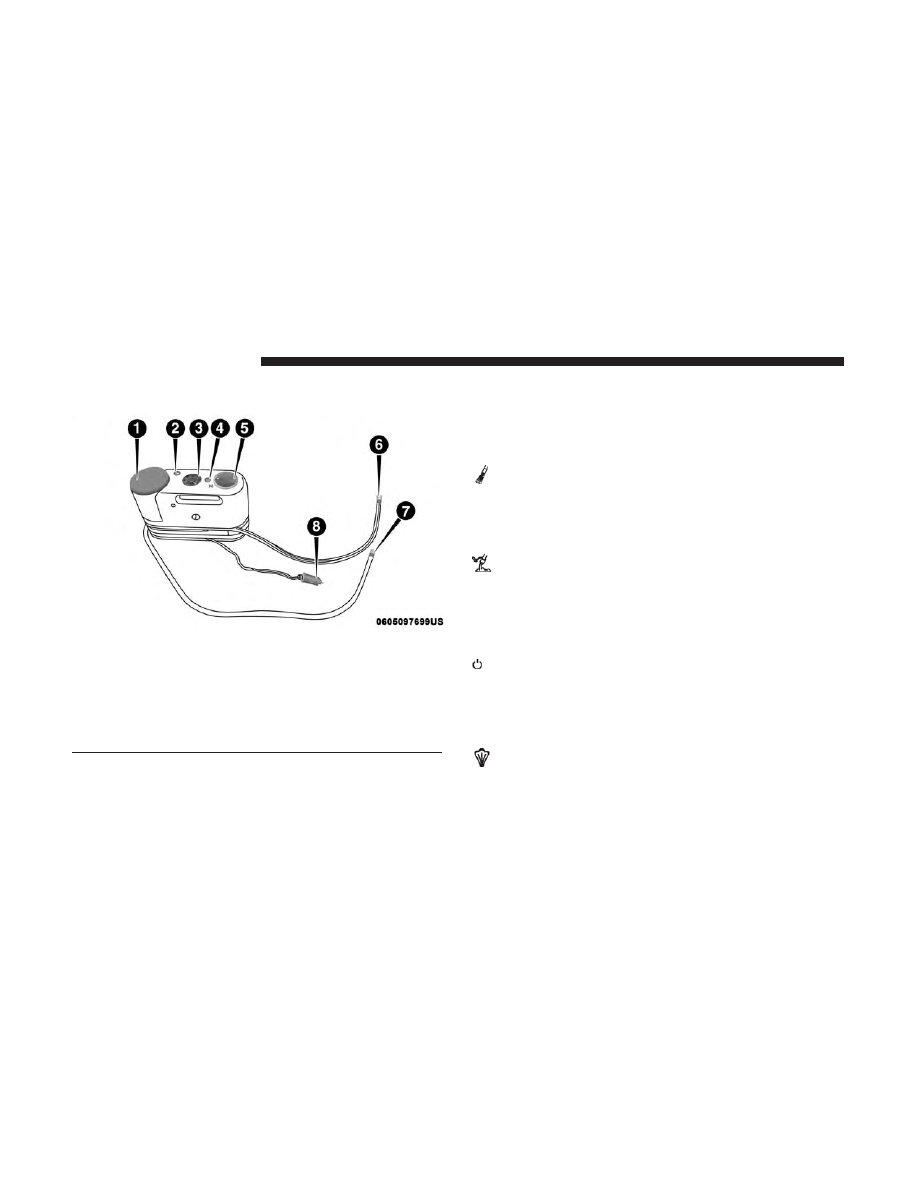

Tire Service Kit Components

1 — Sealant Bottle

5 — Mode Select Knob

2 — Deflation Button

6 — Sealant Hose (Clear)

3 — Pressure Gauge

7 — Air Pump Hose (Black)

4 — Power Button

8 — Power Plug (located on the
bottom side of the Tire Service
Kit)

334

IN CASE OF EMERGENCY

Tire Service Kit Usage Precautions
• Replace the Tire Service Kit Sealant Bottle (1) and Sealant

Hose (6) prior to the expiration date (printed at the
lower right hand corner on the bottle label) to assure
optimum operation of the system. Refer to “Sealing A
Tire With Tire Service Kit” section (F) “Sealant Bottle
And Hose Replacement”.

• The Sealant Bottle (1) and Sealant Hose (6) are a one tire

application use and need to be replaced after each use.
Always replace these components immediately at your
original equipment vehicle dealer.

• When the Tire Service Kit sealant is in a liquid form,

clean water and a damp cloth will remove the material
from the vehicle or tire and wheel components. Once the
sealant dries, it can easily be peeled off and properly
discarded.

• For optimum performance, make sure the valve stem on

the wheel is free of debris before connecting the Tire
Service Kit.

• You can use the Tire Service Kit air pump to inflate

bicycle tires. The kit also comes with two needles,
located in the Accessory Storage Compartment (on the
bottom of the air pump) for inflating sport balls, rafts, or
similar inflatable items. However, use only the Air Pump
Hose (7) and make sure the Mode Select Knob (5) is in
the Air Mode when inflating such items to avoid inject-
ing sealant into them. The Tire Service Kit Sealant is only
intended to seal punctures less than 1/4 inch (6 mm)
diameter in the tread of your tire.

• Do not lift or carry the Tire Service Kit by the hoses.

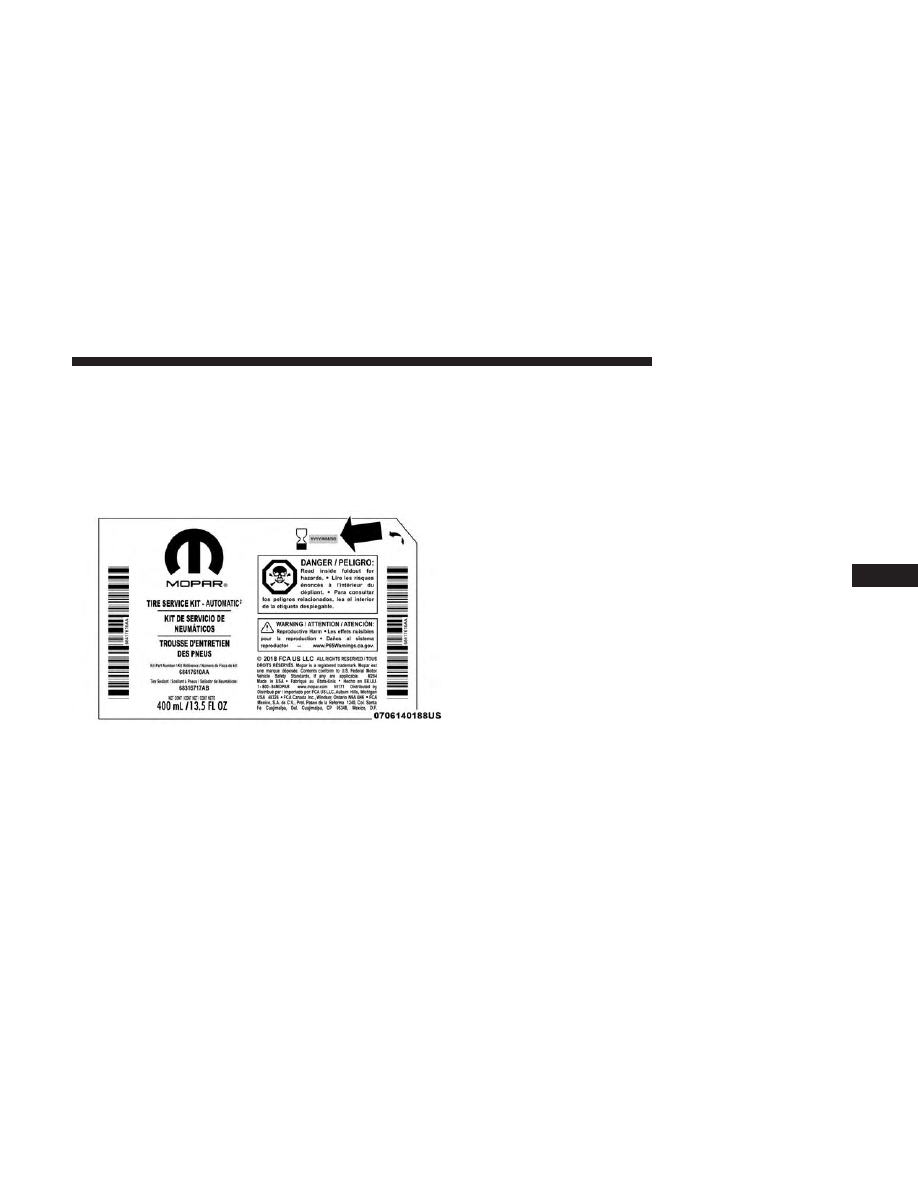

Tire Service Kit Expiration Date Location

IN CASE OF EMERGENCY

335

WARNING!

• Do not attempt to seal a tire on the side of the vehicle

closest to traffic. Pull far enough off the road to avoid
the danger of being hit when using the Tire Service
Kit.

• Do not use Tire Service Kit or drive the vehicle under

the following circumstances:

– If the puncture in the tire tread is approximately

1/4 inch (6 mm) or larger.

– If the tire has any sidewall damage.
– If the tire has any damage from driving with

extremely low tire pressure.

– If the tire has any damage from driving on a flat

tire.

– If the wheel has any damage.
– If you are unsure of the condition of the tire or the

wheel.

• Keep Tire Service Kit away from open flames or heat

source.

• A loose Tire Service Kit thrown forward in a collision

or hard stop could endanger the occupants of the
vehicle. Always stow the Tire Service Kit in the place

(Continued)

WARNING! (Continued)

provided. Failure to follow these warnings can result
in injuries that are serious or fatal to you, your
passengers, and others around you.

• Take care not to allow the contents of Tire Service Kit

to come in contact with hair, eyes, or clothing. Tire
Service Kit sealant is harmful if inhaled, swallowed,
or absorbed through the skin. It causes skin, eye, and
respiratory irritation. Flush immediately with plenty
of water if there is any contact with eyes or skin.
Change clothing as soon as possible, if there is any
contact with clothing.

• Tire Service Kit Sealant solution contains latex.

In case of an allergic reaction or rash, consult a
physician immediately. Keep Tire Service Kit out of
reach of children. If swallowed, rinse mouth imme-
diately with plenty of water and drink plenty of
water. Do not induce vomiting! Consult a physician
immediately.

336

IN CASE OF EMERGENCY

Sealing A Tire With Tire Service Kit

(A) Whenever You Stop To Use Tire Service Kit:

1. Pull over to a safe location and turn on the vehicle’s

Hazard Warning flashers.

2. Verify that the valve stem (on the wheel with the

deflated tire) is in a position that is near to the ground.
This will allow the Tire Service Kit Hoses (6) and (7) to
reach the valve stem and keep the Tire Service Kit flat on
the ground. This will provide the best positioning of the
kit when injecting the sealant into the deflated tire and
running the air pump. Move the vehicle as necessary to
place the valve stem in this position before proceeding.

3. Place the transmission in PARK (auto transmission) or in

Gear (manual transmission) and place the ignition in the
OFF position.

4. Apply the parking brake.

(B) Setting Up To Use Tire Service Kit:

1. Push in the Mode Select Knob (5) and turn to the Sealant

Mode position.

2. Uncoil the Sealant Hose (6) and then remove the cap

from the fitting at the end of the hose.

3. Place the Tire Service Kit flat on the ground next to the

deflated tire.

4. Remove the cap from the valve stem and then screw the

fitting at the end of the Sealant Hose (6) onto the valve
stem.

5. Uncoil the Power Plug (8) and insert the plug into the

vehicle’s 12 Volt power outlet.

NOTE:

Do not remove foreign objects (e.g., screws or

nails) from the tire.

Service Kit.

NOTE:

Manual transmission vehicles must have the park-

ing brake engaged and the gear selector in NEUTRAL.
• After pushing the Power Button (4), the sealant (white

fluid) will flow from the Sealant Bottle (1) through the
Sealant Hose (6) and into the tire.

NOTE:

Sealant may leak out through the puncture in the

tire.

IN CASE OF EMERGENCY

337

If the sealant (white fluid) does not flow within 0 – 10
seconds through the Sealant Hose (6):

1. Push the Power Button (4) to turn Off the Tire Service

Kit. Disconnect the Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of debris. Reconnect the
Sealant Hose (6) to the valve stem. Check that the Mode
Select Knob (5) is in the Sealant Mode position and not
Air Mode. Push the Power Button (4) to turn On the Tire
Service Kit.

2. Connect the Power Plug (8) to a different 12 Volt power

outlet in your vehicle or another vehicle, if available.
Make sure the engine is running before turning ON the
Tire Service Kit.

3. The Sealant Bottle (1) may be empty due to previous

use. Call for assistance.

NOTE:

If the Mode Select Knob (5) is on Air Mode and the

pump is operating, air will dispense from the Air Pump
Hose (7) only, not the Sealant Hose (6).

If the sealant (white fluid) does flow through the Sealant
Hose (6):

1. Continue to operate the pump until sealant is no longer

flowing through the hose (typically takes 30 - 70 sec-
onds). As the sealant flows through the Sealant Hose (6),
the Pressure Gauge (3) can read as high as 70 psi
(4.8 Bar). The Pressure Gauge (3) will decrease quickly
from approximately 70 psi (4.8 Bar) to the actual tire
pressure when the Sealant Bottle (1) is empty.

2. The pump will start to inject air into the tire immedi-

ately after the Sealant Bottle (1) is empty. Continue to
operate the pump and inflate the tire to the pressure
indicated on the tire pressure label on the driver-side
latch pillar (recommended pressure). Check the tire
pressure by looking at the Pressure Gauge (3).

If the tire does not inflate to at least 26 psi (1.8 Bar)
pressure within 15 minutes:
• The tire is too badly damaged. Do not attempt to drive

the vehicle further. Call for assistance.

NOTE:

If the tire becomes overinflated, push the Deflation

Button (2) to reduce the tire pressure to the recommended
inflation pressure before continuing.

338

IN CASE OF EMERGENCY

If the tire inflates to the recommended pressure or is at
least 26 psi (1.8 Bar) pressure within 15 minutes:

1. Push the Power Button (4) to turn off the Tire Service

Kit.

2. Remove the Speed Limit sticker from the top of the

Sealant Bottle (1) and place the sticker on the instrument
panel.

3. Immediately disconnect the Sealant Hose (6) from the

valve stem, reinstall the cap on the fitting at the end of the
hose, and place the Tire Service Kit in the vehicle storage
location. Quickly proceed to (D) “Drive Vehicle.”

CAUTION!

• The metal end fitting from Power Plug (8) may get

hot after use, so it should be handled carefully.

• Failure to reinstall the cap on the fitting at the end of

the Sealant Hose (6) can result in sealant contacting
your skin, clothing, and the vehicle’s interior. It can
also result in sealant contacting internal Tire Service
Kit components which may cause permanent damage
to the kit.

(D) Drive Vehicle:

Immediately after injecting sealant and inflating the tire,
drive the vehicle 5 miles (8 km) or ten minutes to ensure
distribution of the Tire Service Kit Sealant within the tire.
Do not exceed 50 mph (80 km/h).

WARNING!

Tire Service Kit is not a permanent flat tire repair. Have
the tire inspected and repaired or replaced after using
Tire Service Kit. Do not exceed 50 mph (80 km/h) until
the tire is repaired or replaced. Failure to follow this
warning can result in injuries that are serious or fatal
to you, your passengers, and others around you.

(E) After Driving:

Pull over to a safe location. Refer to “(A) Whenever You
Stop To Use Tire Service Kit” before continuing.

1. Push in the Mode Select Knob (5) and turn to the Air

Mode position.

2. Uncoil the power plug and insert the plug into the

vehicle’s 12 Volt power outlet.

IN CASE OF EMERGENCY

339

3. Uncoil the Air Pump Hose (7) (black in color) and screw

the fitting at the end of hose (7) onto the valve stem.

4. Check the pressure in the tire by reading the Pressure

Gauge (3).

If tire pressure is less than 19 psi (1.3 Bar):

The tire is too badly damaged. Do not attempt to drive the
vehicle further. Call for assistance.

If the tire pressure is 19 psi (1.3 Bar) or higher:

1. Push the Power Button (4) to turn on Tire Service Kit

and inflate the tire to the pressure indicated on the tire
and loading information label on the driver-side door
opening.

NOTE:

If the tire becomes over-inflated, push the Deflation

Button (2) to reduce the tire pressure to the recommended
inflation pressure before continuing.

2. Disconnect the Tire Service Kit from the valve stem,

reinstall the cap on the valve stem and unplug from 12
Volt outlet.

3. Place the Tire Service Kit in its proper storage area in the

vehicle.

4. Have the tire inspected and repaired or replaced at the

earliest opportunity at an authorized dealer or tire
service center.

5. Remove the Speed Limit sticker from the instrument

panel after the tire has been repaired.

6. Replace the Sealant Bottle (1) and Sealant Hose (6)

assembly at an authorized dealer as soon as possible.
Refer to “(F) Sealant Bottle And Hose Replacement”.

NOTE:

When having the tire serviced, advise the autho-

rized dealer or service center that the tire has been sealed
using the Tire Service Kit.

(F) Sealant Bottle And Hose Replacement:

1. Uncoil the Sealant Hose (6) (clear in color).

2. Locate the round Sealant Bottle release button in the

recessed area under the sealant bottle.

3. Push the Sealant Bottle release button. The Sealant Bottle

(1) will pop up. Remove the bottle and dispose of it
accordingly.

4. Clean any remaining sealant from the Tire Service Kit

housing.

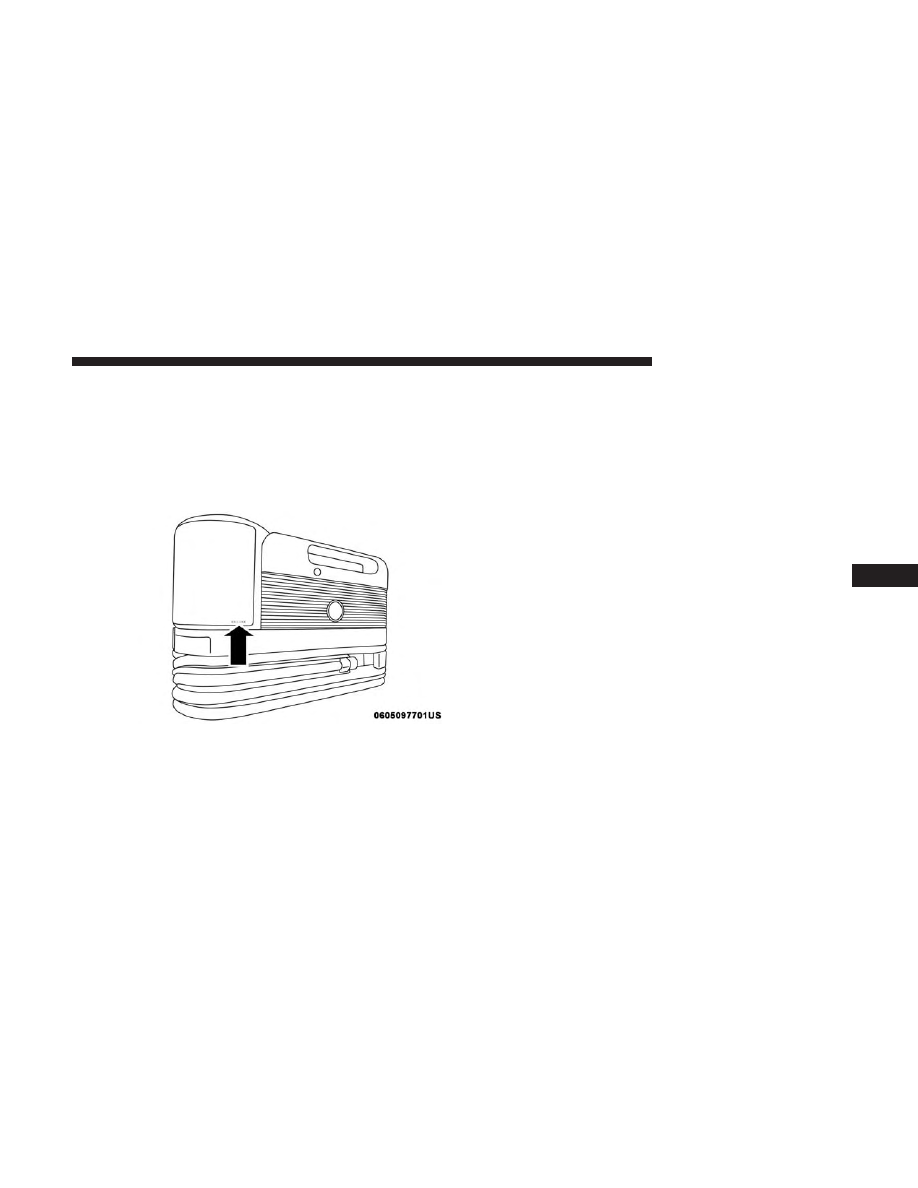

340

IN CASE OF EMERGENCY

5. Position the new Sealant Bottle (1) in the housing so that

the Sealant Hose (6) aligns with the hose slot in the front
of the housing. Push the bottle into the housing. An
audible click will be heard indicating the bottle is locked
into place.

6. Verify that the cap is installed on the fitting at the end of

the Sealant Hose (6) and return the hose to its storage
area (located on the bottom of the air pump).

7. Return the Tire Service Kit to its storage location in the

vehicle.

TIRE SERVICE KIT — IF EQUIPPED

This kit will provide a temporary tire seal, allowing you to
drive your vehicle up to 100 miles (160 km) with a
maximum speed of 50 mph (80 km/h).

Tire Service Kit Storage

The Tire Service Kit is located in the trunk.

Tire Service Kit Location

IN CASE OF EMERGENCY

341

Tire Service Kit Components And Operation

Using The Mode Select Knob And Hoses

Your Tire Service Kit is equipped with the following
symbols to indicate the air or sealant mode.

Selecting Air Mode

Push in the Mode Select Knob (2) and turn to this
position for air pump operation only. Use the Black
Air Pump Hose (5) when selecting this mode.

Selecting Sealant Mode

Push in the Mode Select Knob (2) and turn to this
position to inject the Tire Service Kit Sealant and
to inflate the tire. Use the Sealant Hose (clear
hose) (3) when selecting this mode.

Using The Power Button

Push and release the Power Button (1) once to turn
on the Tire Service Kit. Push and release the Power
Button (1) again to turn Off the Tire Service Kit.

Using The Deflation Button

Push the Deflation Button (9) to reduce the air
pressure in the tire if it becomes over-inflated.

Tire Service Kit Components

1 — Power Button

4 — Sealant Bottle

7 — Power Plug

2 — Mode Select
Knob

5 — Air Pump Hose
(Black)

8 — Pressure Gauge

3 — Sealant Hose
(Clear)

6 — Sealant Bottle
Release Button

9 — Deflation Button

342

IN CASE OF EMERGENCY

Tire Service Kit Usage Precautions
• Replace the Tire Service Kit Sealant Bottle (4) and Sealant

Hose (3) prior to the expiration date (printed at the
upper right hand corner on the bottle label) to assure
optimum operation of the system. Refer to “Sealing A
Tire With Tire Service Kit” section (F) “Sealant Bottle
And Hose Replacement”.

• The Sealant Bottle (4) and Sealant Hose (3) are a one tire

application use and need to be replaced after each use.
Always replace these components immediately at your
original equipment vehicle dealer.

• When the Tire Service Kit sealant is in a liquid form,

clean water and a damp cloth will remove the material
from the vehicle or tire and wheel components. Once the
sealant dries, it can easily be peeled off and properly
discarded.

• For optimum performance, make sure the valve stem on

the wheel is free of debris before connecting the Tire
Service Kit.

• You can use the Tire Service Kit air pump to inflate

bicycle tires. The kit also comes with two needles,
located in the Accessory Storage Compartment (on the
bottom of the air pump) for inflating sport balls, rafts, or
similar inflatable items. However, use only the Air Pump
Hose (5) and make sure the Mode Select Knob (2) is in
the Air Mode when inflating such items to avoid inject-
ing sealant into them. The Tire Service Kit Sealant is only
intended to seal punctures less than 1/4 inch (6 mm)
diameter in the tread of your tire.

• Do not lift or carry the Tire Service Kit by the hoses.

Tire Service Kit Sealant Expiration Date Location

IN CASE OF EMERGENCY

343

WARNING!

• Do not attempt to seal a tire on the side of the vehicle

closest to traffic. Pull far enough off the road to avoid
the danger of being hit when using the Tire Service
Kit.

• Do not use Tire Service Kit or drive the vehicle under

the following circumstances:

– If the puncture in the tire tread is approximately

1/4 inch (6 mm) or larger.

– If the tire has any sidewall damage.
– If the tire has any damage from driving with

extremely low tire pressure.

– If the tire has any damage from driving on a flat

tire.

– If the wheel has any damage.
– If you are unsure of the condition of the tire or the

wheel.

• Keep Tire Service Kit away from open flames or heat

source.

• A loose Tire Service Kit thrown forward in a collision

or hard stop could endanger the occupants of the
vehicle. Always stow the Tire Service Kit in the place

(Continued)

WARNING! (Continued)

provided. Failure to follow these warnings can result
in injuries that are serious or fatal to you, your
passengers, and others around you.

• Take care not to allow the contents of Tire Service Kit

• Tire Service Kit Sealant solution contains latex.

344

IN CASE OF EMERGENCY

Sealing A Tire With Tire Service Kit

(A) Whenever You Stop To Use Tire Service Kit:

1. Pull over to a safe location and turn on the vehicle’s

Hazard Warning flashers.

2. Verify that the valve stem (on the wheel with the

deflated tire) is in a position that is near to the ground.
This will allow the Tire Service Kit Hoses (3) and (5) to
reach the valve stem and keep the Tire Service Kit flat on
the ground. This will provide the best positioning of the
kit when injecting the sealant into the deflated tire and
running the air pump. Move the vehicle as necessary to
place the valve stem in this position before proceeding.

3. Place the transmission in PARK (auto transmission) or in

Gear (manual transmission) and place the ignition in the
OFF position.

4. Apply the parking brake.

(B) Setting Up To Use Tire Service Kit:

1. Push in the Mode Select Knob (2) and turn to the Sealant

Mode position.

2. Uncoil the Sealant Hose (3) and then remove the cap

from the fitting at the end of the hose.

3. Place the Tire Service Kit flat on the ground next to the

deflated tire.

4. Remove the cap from the valve stem and then screw the

fitting at the end of the Sealant Hose (3) onto the valve
stem.

5. Uncoil the Power Plug (7) and insert the plug into the

vehicle’s 12 Volt power outlet.

NOTE:

Do not remove foreign objects (e.g., screws or

nails) from the tire.

Service Kit.

NOTE:

Manual transmission vehicles must have the park-

ing brake engaged and the gear selector in NEUTRAL.
• After pushing the Power Button (1), the sealant (white

fluid) will flow from the Sealant Bottle (4) through the
Sealant Hose (3) and into the tire.

NOTE:

Sealant may leak out through the puncture in the

tire.

IN CASE OF EMERGENCY

345

If the sealant (white fluid) does not flow within 0 – 10
seconds through the Sealant Hose (3):

1. Push the Power Button (1) to turn Off the Tire Service

Kit. Disconnect the Sealant Hose (3) from the valve stem.
Make sure the valve stem is free of debris. Reconnect the
Sealant Hose (3) to the valve stem. Check that the Mode
Select Knob (2) is in the Sealant Mode position and not
Air Mode. Push the Power Button (1) to turn On the Tire
Service Kit.

2. Connect the Power Plug (7) to a different 12 Volt power

outlet in your vehicle or another vehicle, if available.
Make sure the engine is running before turning ON the
Tire Service Kit.

3. The Sealant Bottle (4) may be empty due to previous

use. Call for assistance.

NOTE:

If the Mode Select Knob (2) is on Air Mode and the

pump is operating, air will dispense from the Air Pump
Hose (5) only, not the Sealant Hose (3).

If the sealant (white fluid) does flow through the Sealant
Hose (3):

1. Continue to operate the pump until sealant is no longer

flowing through the hose (typically takes 30 - 70 sec-
onds). As the sealant flows through the Sealant Hose (3),
the Pressure Gauge (8) can read as high as 70 psi
(4.8 Bar). The Pressure Gauge (8) will decrease quickly
from approximately 70 psi (4.8 Bar) to the actual tire
pressure when the Sealant Bottle (4) is empty.

2. The pump will start to inject air into the tire immedi-

ately after the Sealant Bottle (4) is empty. Continue to
operate the pump and inflate the tire to the pressure
indicated on the tire pressure label on the driver-side
latch pillar (recommended pressure). Check the tire
pressure by looking at the Pressure Gauge (8).

If the tire does not inflate to at least 26 psi (1.8 Bar)
pressure within 15 minutes:
• The tire is too badly damaged. Do not attempt to drive

the vehicle further. Call for assistance.

NOTE:

If the tire becomes overinflated, push the Deflation

Button to reduce the tire pressure to the recommended
inflation pressure before continuing.

346

IN CASE OF EMERGENCY

If the tire inflates to the recommended pressure or is at
least 26 psi (1.8 Bar) pressure within 15 minutes:

1. Push the Power Button (1) to turn off the Tire Service

Kit.

2. Remove the Speed Limit sticker from the top of the

Sealant Bottle (4) and place the sticker on the instrument
panel.

3. Immediately disconnect the Sealant Hose (3) from the

valve stem, reinstall the cap on the fitting at the end of
the hose, and place the Tire Service Kit in the vehicle
storage location. Quickly proceed to (D) “Drive Ve-
hicle.”

CAUTION!

• The metal end fitting from Power Plug (8) may get

hot after use, so it should be handled carefully.

• Failure to reinstall the cap on the fitting at the end of

(D) Drive Vehicle:

WARNING!

(E) After Driving:

Pull over to a safe location. Refer to “(A) Whenever You
Stop To Use Tire Service Kit” before continuing.

1. Push in the Mode Select Knob (2) and turn to the Air

Mode position.

2. Uncoil the power plug and insert the plug into the

vehicle’s 12 Volt power outlet.

IN CASE OF EMERGENCY

347

3. Uncoil the Air Pump Hose (5) (black in color) and screw

the fitting at the end of hose onto the valve stem.

4. Check the pressure in the tire by reading the Pressure

Gauge (8).

If tire pressure is less than 19 psi (1.3 Bar):

The tire is too badly damaged. Do not attempt to drive the
vehicle further. Call for assistance.

If the tire pressure is 19 psi (1.3 Bar) or higher:

1. Push the Power Button (1) to turn on Tire Service Kit

and inflate the tire to the pressure indicated on the tire
and loading information label on the driver-side door
opening.

NOTE:

If the tire becomes over-inflated, push the Deflation

Button to reduce the tire pressure to the recommended
inflation pressure before continuing.

2. Disconnect the Tire Service Kit from the valve stem,

reinstall the cap on the valve stem and unplug from
12 Volt outlet.

3. Place the Tire Service Kit in its proper storage area in the

vehicle.

4. Have the tire inspected and repaired or replaced at the

earliest opportunity at an authorized dealer or tire
service center.

5. Remove the Speed Limit sticker from the instrument

panel after the tire has been repaired.

6. Replace the Sealant Bottle (4) and Sealant Hose (3)

assembly at an authorized dealer as soon as possible.
Refer to “(F) Sealant Bottle And Hose Replacement”.

NOTE:

When having the tire serviced, advise the autho-

rized dealer or service center that the tire has been sealed
using the Tire Service Kit.

(F) Sealant Bottle And Hose Replacement:

1. Uncoil the Sealant Hose (3) (clear in color).

2. Locate the red colored round Sealant Bottle release

button at the lower right hand corner of the kit.

3. Push and hold the Sealant Bottle release button, then

pull out the bottle holding the button.

4. Clean any remaining sealant from the Tire Service Kit

housing.

348

IN CASE OF EMERGENCY

Dodge Charger (2019 year). Manual - part 21
