successfully accepted the frequency signal. The indica-
tor light will flash slowly and then rapidly when fully
trained.

4. Watch for the HomeLink indicator to change flash rates.

When it changes, it is programmed. It may take up to
30 seconds or longer in rare cases. The garage door may
open and close while you are programming.

5. Press and hold the programmed HomeLink button and

observe the indicator light.

NOTE:

• If the indicator light stays on constantly, programming

is complete and the garage door/device should acti-
vate when the HomeLink button is pressed.

• To program the two remaining HomeLink buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Reprogramming A Single HomeLink Button
(Canadian/Gate Operator)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Press and hold the desired HomeLink button until the

indicator light begins to flash after 20 seconds. Do not
release the button.

3. Without releasing the button, proceed with “Canadian/

Gate Operator Programming” step 2 and follow all
remaining steps.

Using HomeLink

To operate, push and release the programmed HomeLink
button. Activation will now occur for the programmed
device (i.e. garage door opener, gate operator, security
system, entry door lock, home/office lighting, etc.). The
hand-held transmitter of the device may also be used at
any time.

3

GETTING TO KNOW YOUR VEHICLE

109

Security

It is advised to erase all channels before you sell or turn in
your vehicle.

To do this, push and hold the two outside buttons for
20 seconds until the orange indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.

The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink, here
are some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-

held transmitter.

• Push the LEARN button on the Garage Door Opener to

complete the training for a Rolling Code.

• Did you unplug the device for programming and re-

member to plug it back in?

If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.

WARNING!

• Vehicle exhaust contains carbon monoxide, a danger-

ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not
use a garage door opener without these safety fea-
tures. Call toll-free 1-800-355-3515 or, on the Internet
at HomeLink.com
for safety information or assis-
tance.

110

GETTING TO KNOW YOUR VEHICLE

General Information

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Innovation, Science and Economic Development
Canada license-exempt RSS standard(s). Operation is sub-
ject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

INTERNAL EQUIPMENT

Storage

Glove Compartment

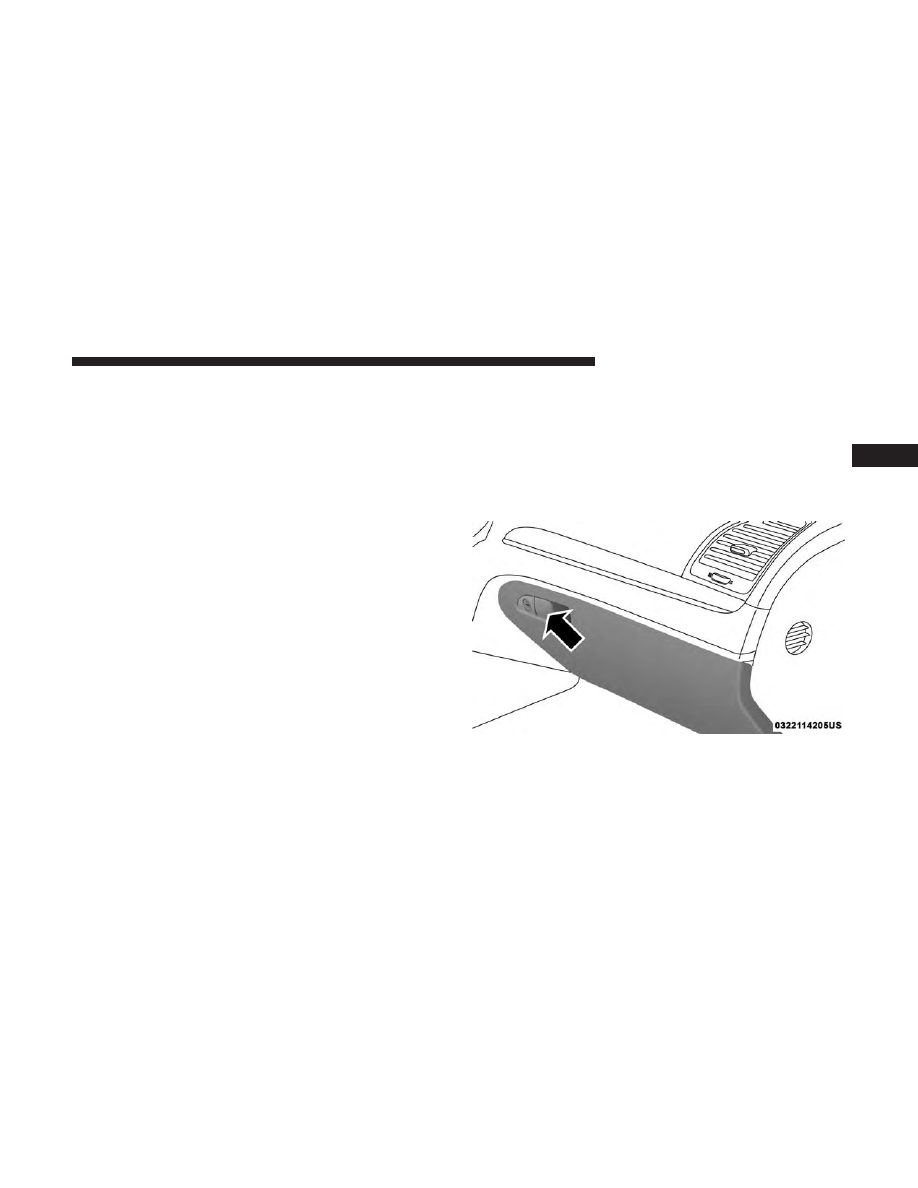

The glove compartment is located on the passenger side of
the instrument panel.

To open the glove compartment, pull the release handle.

Glove Compartment

3

GETTING TO KNOW YOUR VEHICLE

111

Console Features

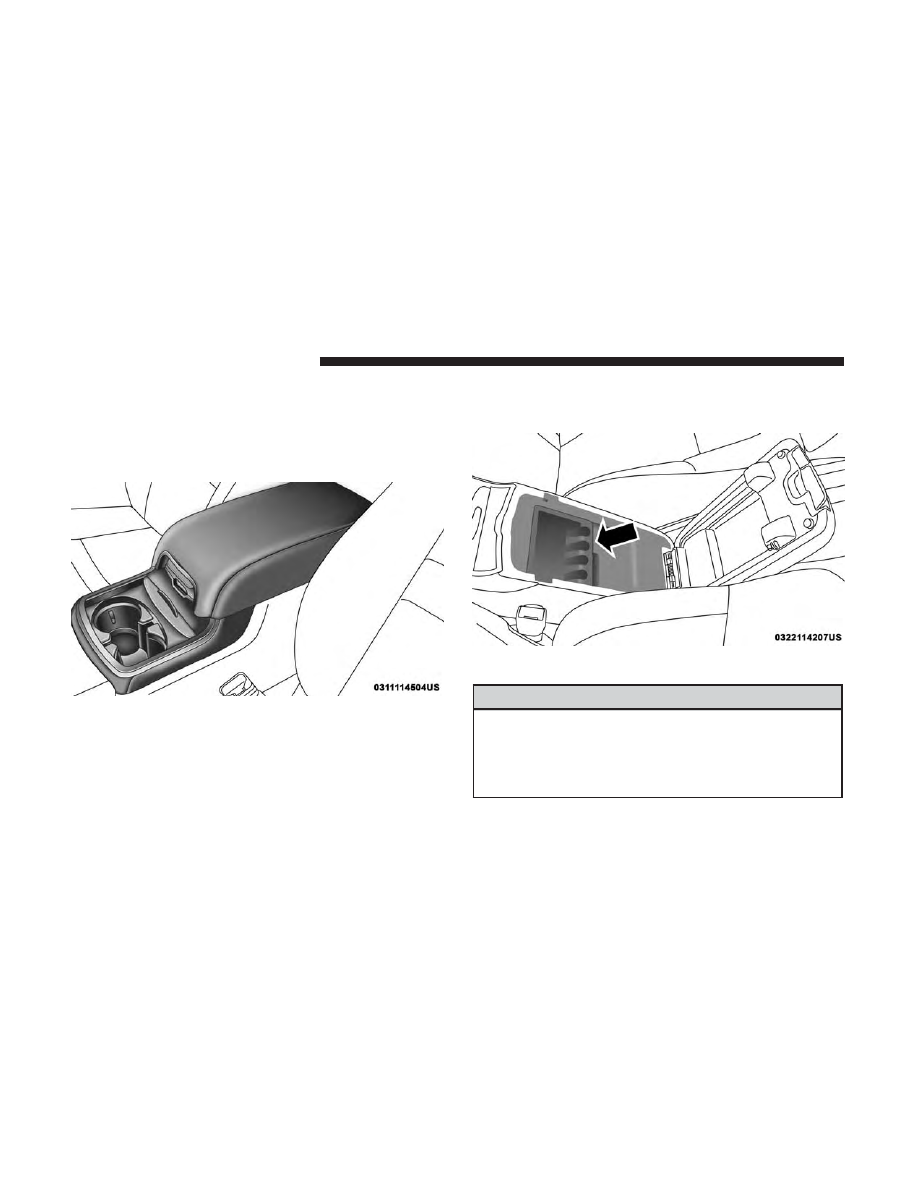

There is an open cubby bin located forward of the gear
selector.

Two separate storage compartments are also located un-
derneath the center console armrest.

Inside the center console armrest, there is a removable
upper storage tray that can be slid forward/rearward on
rails for access to the lower storage area. This tray has an
integrated coin holder, along with additional area for small
items and handheld devices. Below the upper tray, the

lower storage compartment is made for larger items, like
tissue boxes. In addition, the 12 volt power outlet, USB and
Aux jack are located here.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the console
compartment lid open may result in injury in a colli-
sion.

Center Console

Upper Storage Tray

112

GETTING TO KNOW YOUR VEHICLE

Door Storage

The door panels contain storage areas.

Cupholders

The cupholders are located in the forward edge of the
center console.

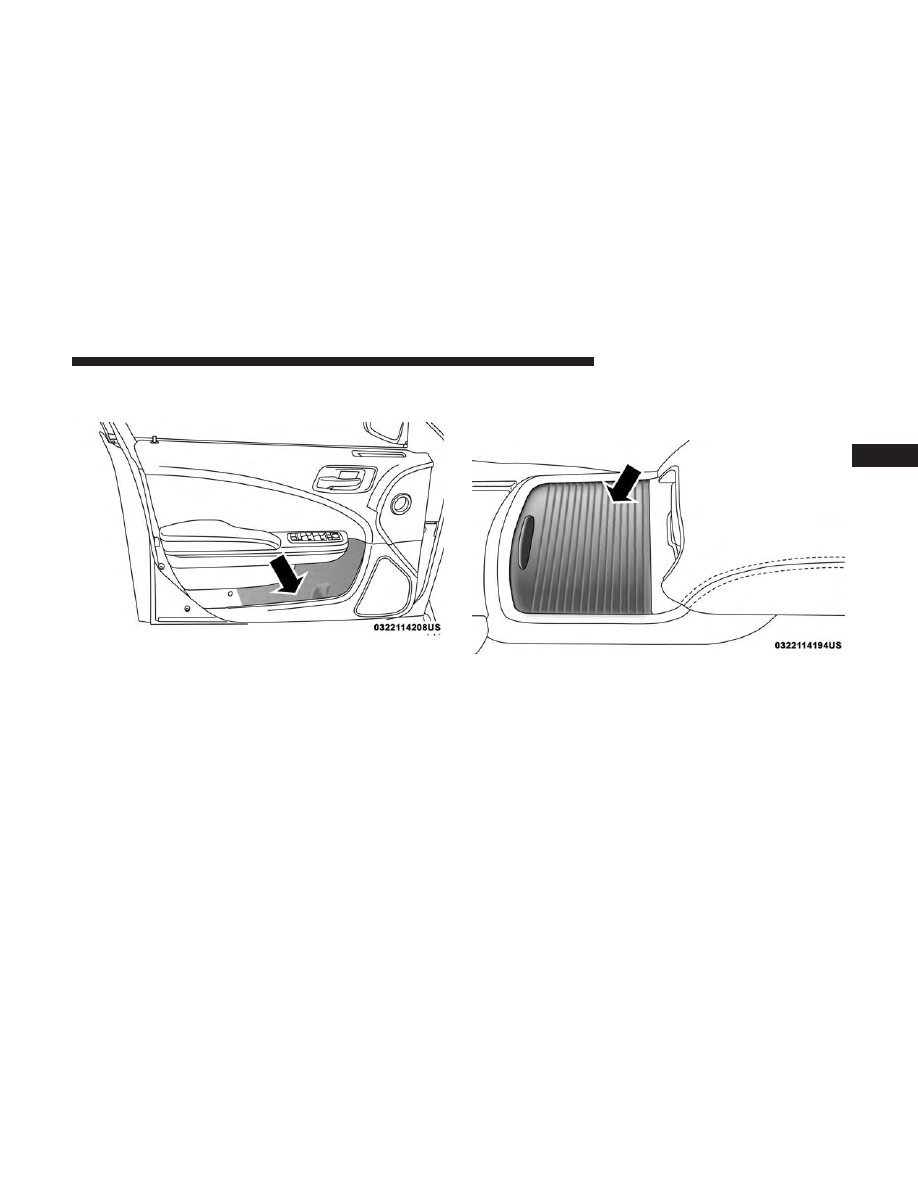

Front Door Trim Storage

Retractable Cover

3

GETTING TO KNOW YOUR VEHICLE

113

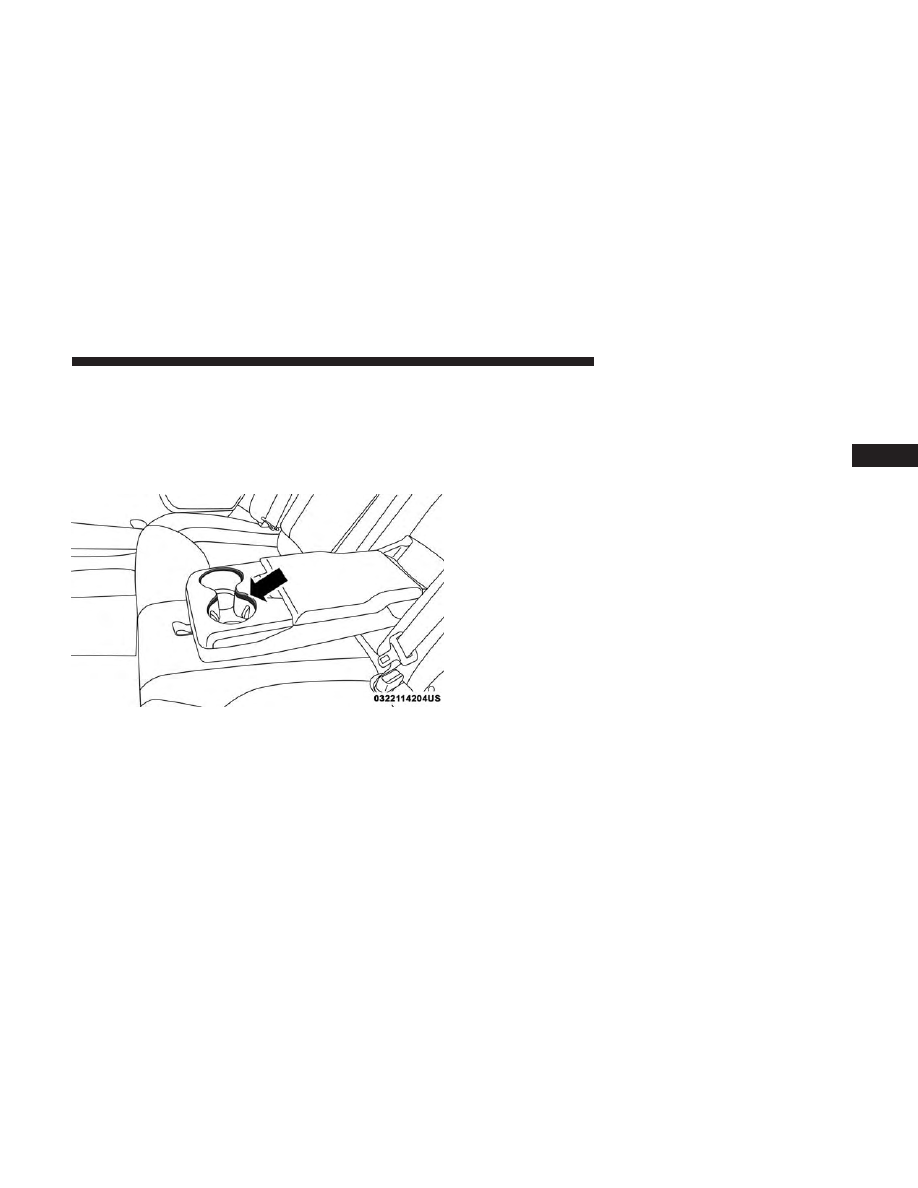

If equipped, the rear seat cupholders are located in the
center armrest between the rear seats. The cupholders are
positioned forward in the armrest and side-by-side to
provide convenient access to beverage cans or bottles while
maintaining a resting place for the rear occupant’s elbows.

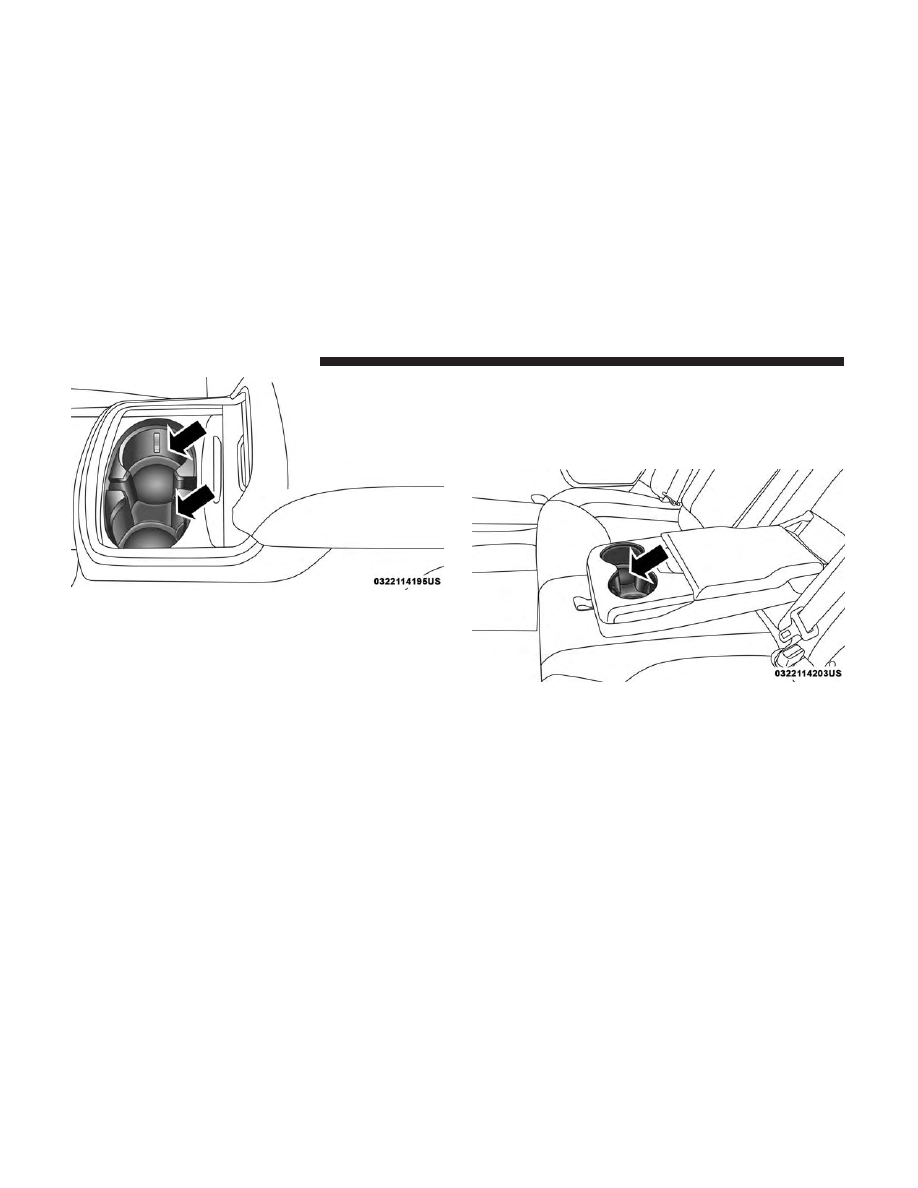

Front Cupholders

Rear Seat Cupholders

114

GETTING TO KNOW YOUR VEHICLE

Lighted Cupholders — If Equipped

On some vehicles the rear cupholders are equipped with a
light ring that illuminates the cupholders for the rear
passengers. The light ring is controlled by the Dimmer
Control. Refer to “Interior Lights” in “Getting To Know
Your Vehicle” for further information.

Electrical Power Outlets

Your vehicle is equipped with one 12 Volt (13 Amp) power
outlet on the instrument panel and one 12 Volt (13 Amp)
power outlet in the center console that can be used to
power cellular phones, small electronics and other low
powered electrical accessories. The power outlets are la-
beled with either a “key” or a “battery” symbol to indicate
how the outlet is powered. Power outlets labeled with a
“key” are powered when the ignition switch is in the ON or
ACC position, while the outlets labeled with a “battery”
are connected directly to the battery and powered at all
times.

NOTE:
• All accessories connected to the “battery” powered outlets

should be removed or turned off when the vehicle is not in
use to protect the battery against discharge.

Light Ring In Rear Cupholder

3

GETTING TO KNOW YOUR VEHICLE

115

The front power outlet is located inside the storage area on
the center stack of the instrument panel.

WARNING!

Do not place ashes inside the cubby bin located on the
center console on vehicles not equipped with the ash
receiver tray. A fire leading to bodily injury could result.

In addition to the front power outlet, there is also a power
outlet located in the storage area of the center console.

NOTE:

If the Media Hub is in use, do not exceed the

maximum power of 100 Watts (8 Amps) for the center
console power outlet. When the Media Hub is not in use,
the outlet can deliver up to 160 Watts (13 Amps). If the
power rating is exceeded, the fuse protecting the system
needs to be replaced.

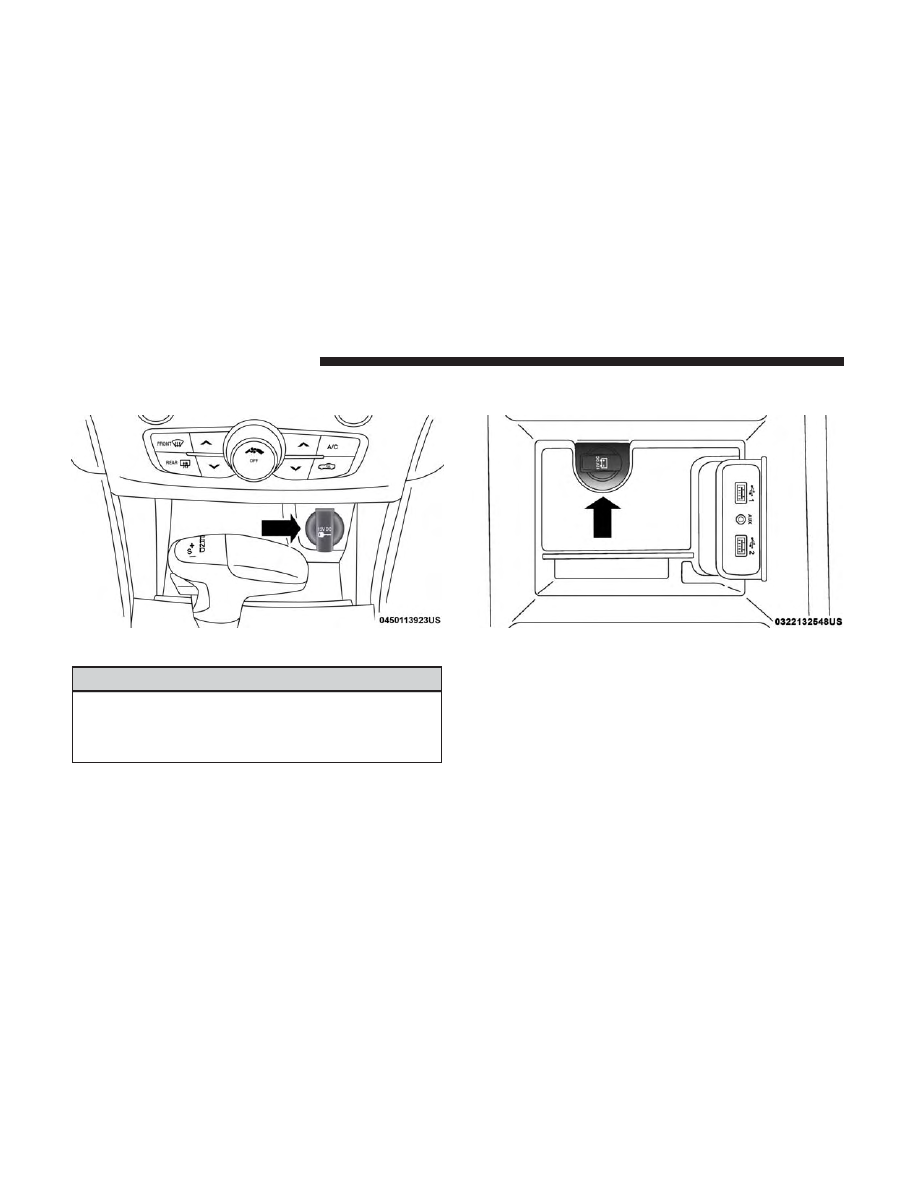

Front Power Outlet

Center Console Power Outlet

116

GETTING TO KNOW YOUR VEHICLE

NOTE:

The instrument panel power outlet and dual rear

console USB ports can be changed to “battery” powered all
the time by moving the #12 20 Amp fuse from “IGN” to
“B+”. Refer to “Fuses” in “In Case Of Emergency” for
further information.

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.

(Continued)

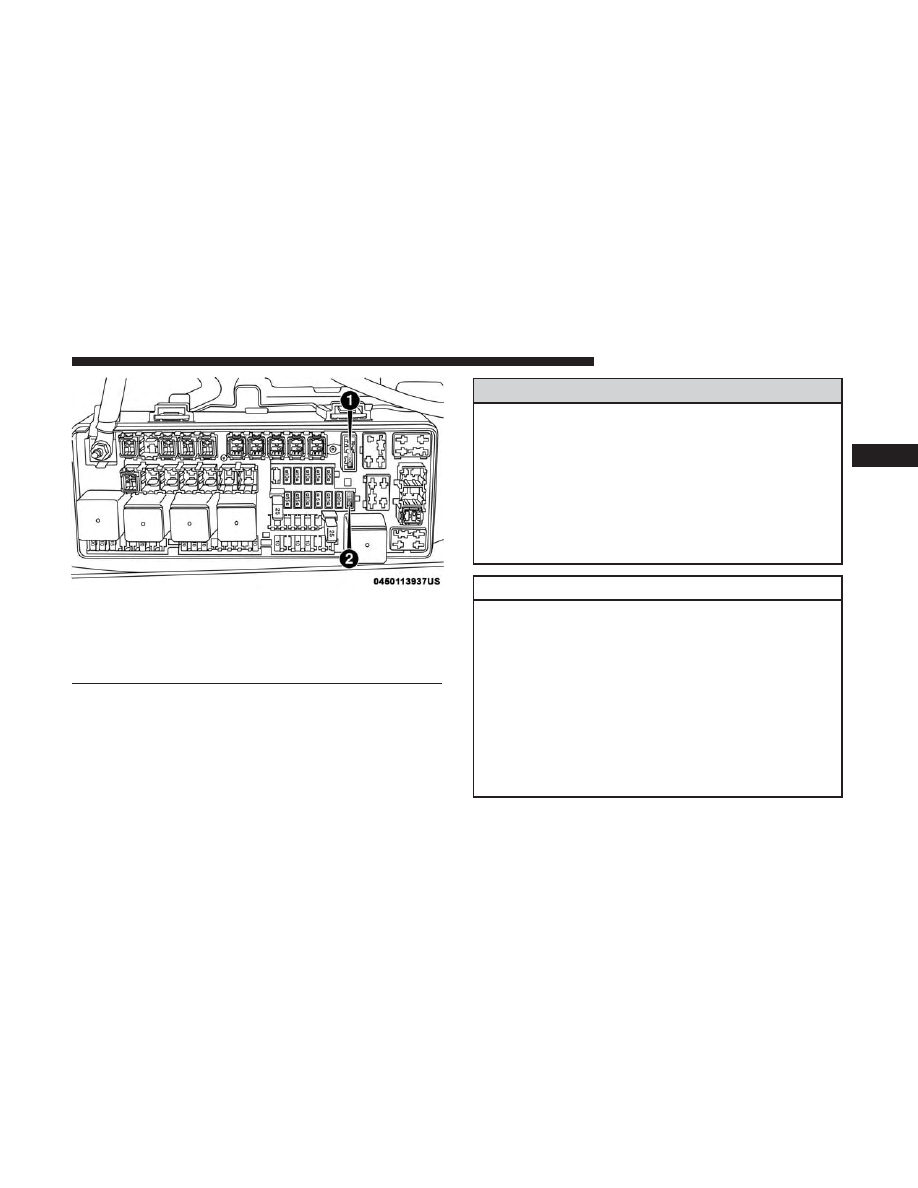

Power Outlet Fuse Locations

1 — #12 Fuse 20 Amp Yellow Instrument Panel Power Outlet/Dual
USB Charge Only Ports
2 — #38 Fuse 20 Amp Yellow Center Console Power Outlet/Media
Hub

3

GETTING TO KNOW YOUR VEHICLE

117

CAUTION! (Continued)

• After the use of high power draw accessories or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the alternator to
recharge the vehicle’s battery.

• Power outlets are designed for accessory plugs only.

Do not hang any type of accessory or accessory
bracket from the plug. Improper use of the power
outlet can cause damage.

Wireless Charging Pad — If Equipped

Your vehicle may be equipped with an Open Dots compat-
ible wire-free phone charging surface located in the center
console. The wireless charger features continuous wireless
charging during vehicle operation and allows for uninter-
rupted Bluetooth streaming to properly equipped vehicle
audio systems.

In order to enjoy the convenience of Open Dots wire-free
charging, you must obtain an aftermarket wireless-enabled
case and then install the case on your phone. Set the phone
on the wireless charging pad face up. The charging indi-
cator on your phone will light up indicating that your
phone is charging.

NOTE:

The charging pad is safe to the touch. However, if

metallic items are placed on the charging surface while in
use, the device will turn off. Clean all spills immediately
and allow to dry before using.

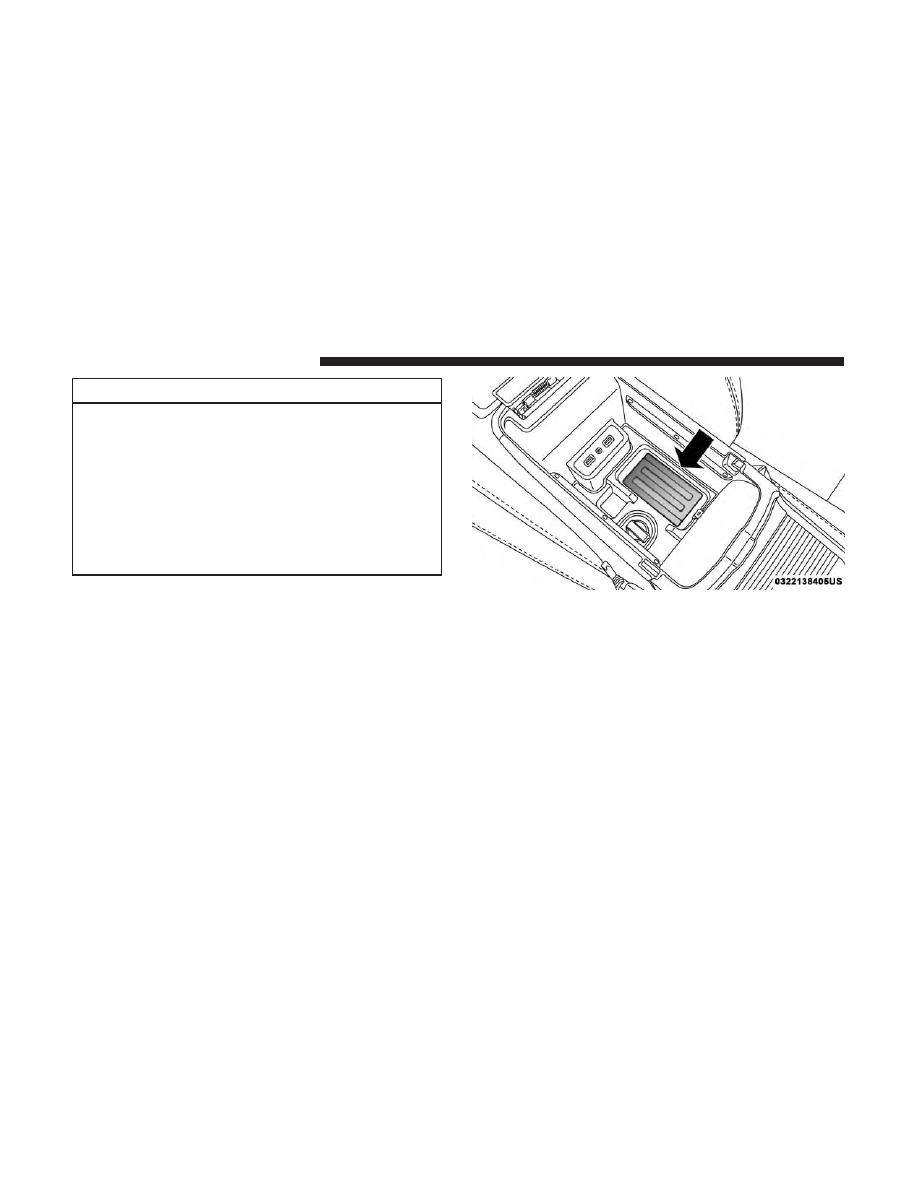

Wireless Charging Pad

118

GETTING TO KNOW YOUR VEHICLE

For phones that already have built-in wireless charging
capability (Samsung, Apple iPhone 8, 8 Plus and X Phones),
a Qi Adapter is available to charge your phone using the
Open Dot wire-free phone charging surface. Simply place the
Qi Adapter (dot side down) on the charging surface and then
place your built-in charging capable phone face up on top of
the Qi Adapter. This product may not be compatible with all
vehicle/Open Dots compatible wire-free phone charging
surface combinations.

CAUTION!

The key fob should not be placed on the charging pad
or within 15 cm (150 mm) of it. Doing so can cause
excessive heat buildup and damage to the fob. Placing
the fob in close proximity of the charging pad blocks
the fob from being detected by the vehicle and pre-
vents the vehicle from starting.

To get your free aftermarket phone case or Qi Adapter, go
to http://invehiclewirelesscharging.com. You will need
your vehicle/voucher identification number (located in
your vehicle’s glove box). If you have any questions or are
not sure if you need a phone case or the Qi Adapter, please
call our customer support line for assistance: 877–360–7702

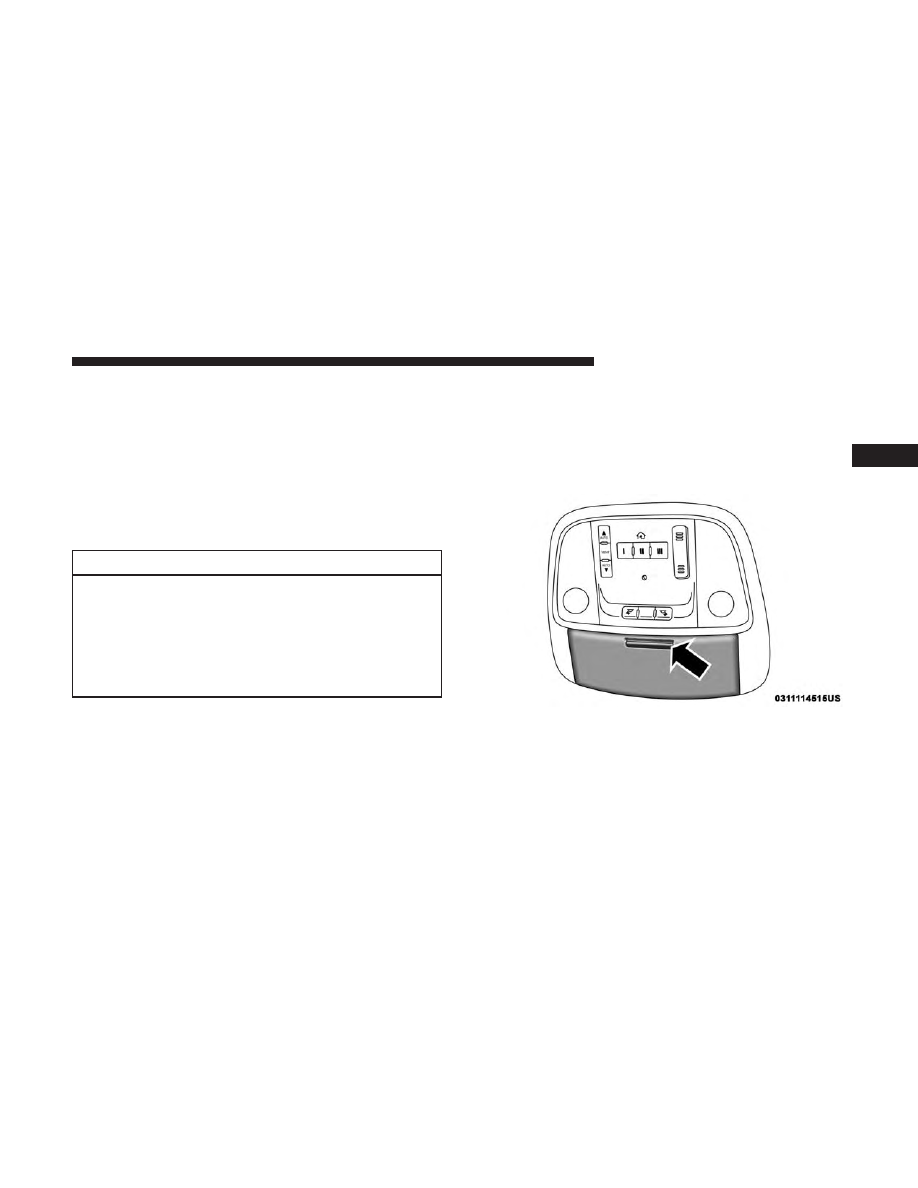

Sunglasses Bin Door

At the front of the console a compartment is provided for
the storage of a pair of sunglasses. The storage compart-
ment access is a “push/push” design. Push the chrome pad
on the door to open. Push the chrome pad on the door to
close.

Sunglasses Bin Door

3

GETTING TO KNOW YOUR VEHICLE

119

GETTING TO KNOW YOUR INSTRUMENT PANEL

CONTENTS

䡵 INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . . .122

▫ Instrument Cluster Descriptions . . . . . . . . . . . .125

䡵 INSTRUMENT CLUSTER DISPLAY . . . . . . . . . . .126

▫ Location And Controls . . . . . . . . . . . . . . . . . . .126
▫ Engine Oil Life Reset . . . . . . . . . . . . . . . . . . . .128
▫ Performance Shift Indicator (PSI) —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . .129

▫ Instrument Cluster Display Selectable Menu

Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

▫ Battery Saver On/Battery Saver Mode

Message — Electrical Load Reduction Actions —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . .134

䡵 WARNING LIGHTS AND MESSAGES . . . . . . . . .136

▫ Red Warning Lights . . . . . . . . . . . . . . . . . . . . .136
▫ Yellow Warning Lights . . . . . . . . . . . . . . . . . . .140
▫ Yellow Indicator Lights. . . . . . . . . . . . . . . . . . .145
▫ Green Indicator Lights . . . . . . . . . . . . . . . . . . .145
▫ White Indicator Lights . . . . . . . . . . . . . . . . . . .146
▫ Blue Indicator Lights . . . . . . . . . . . . . . . . . . . .146

䡵 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .147

▫ Onboard Diagnostic System (OBD II)

Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . .147

䡵 EMISSIONS INSPECTION AND MAINTENANCE

PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

4

INSTRUMENT CLUSTER

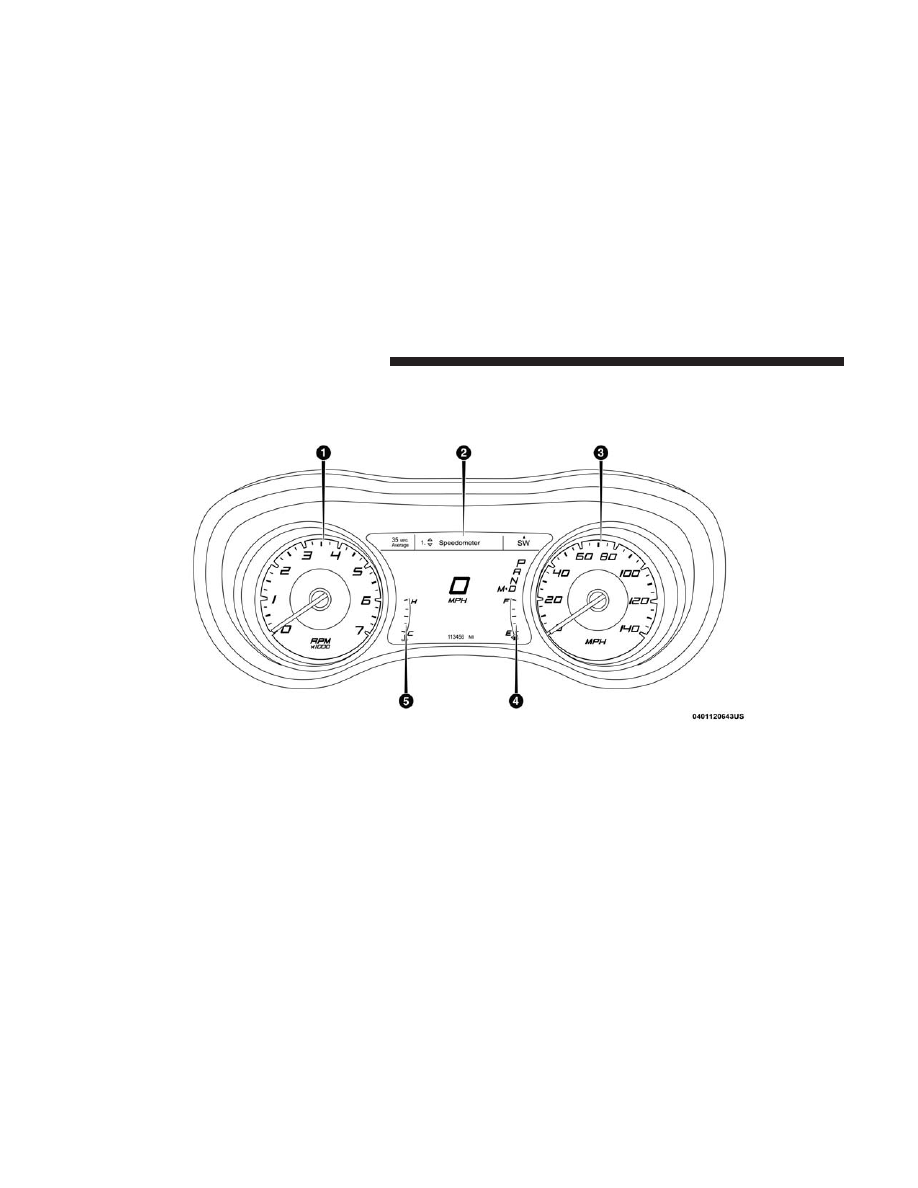

Instrument Cluster For 3.6L Engine

122

GETTING TO KNOW YOUR INSTRUMENT PANEL

Instrument Cluster For 5.7L Engine

4

GETTING TO KNOW YOUR INSTRUMENT PANEL

123

Instrument Cluster For 6.4L Engine

124

GETTING TO KNOW YOUR INSTRUMENT PANEL















Content      ..     5      6      7      8     ..
