Dodge Ram 2500 (2016 year). Manual

This system uses a lifting and lowering pattern which
keeps the headlights from incorrectly shining into on-
coming traffic. When raising the vehicle, the rear of the
vehicle will move up first and then the front. When
lowering the vehicle, the front will move down first and
then the rear.

After the engine is turned off, it may be noticed that the
air suspension system operates briefly, this is normal. The
system is correcting the position of the vehicle to ensure
a proper appearance.

To assist with changing a spare tire, the air suspension
system has a feature which allows the automatic leveling
to be disabled. Refer to “Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.

NOTE:

If equipped with a touch screen radio all

enabling/disabling of air suspension features must be
done through the radio. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.

WARNING!

The air suspension system uses a high pressure
volume of air to operate the system. To avoid per-
sonal injury or damage to the system, see your
authorized dealer for service.

Air Suspension Modes

The Air Suspension system has multiple modes to protect
the system in unique situations:

Tire/Jack Mode

To assist with changing a spare tire, the air suspension
system has a feature which allows the automatic leveling

556

STARTING AND OPERATING

to be disabled. Refer to “Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID)” in
“Understanding Your Instrument Panel” or “Uconnect
Settings” in “Understanding Your Instrument Panel” if
equipped with a touch screen radio for further informa-
tion.

NOTE:

This mode is intended to be enabled with engine

running.

Transport Mode

To assist with flat bed towing, the air suspension system
has a feature which will put the vehicle into Entry/Exit
height and disable the automatic load leveling system.
Refer to “Electronic Vehicle Information Center (EVIC) or
Driver Information Display (DID)” in “Understanding
Your Instrument Panel” or “Uconnect Settings” in “Un-
derstanding Your Instrument Panel” if equipped with a
touch screen radio for further information.

NOTE:

This mode is intended to be enabled with engine

running.

Wheel Alignment Mode

Before performing a wheel alignment, this mode must be
enabled. Refer to “Electronic Vehicle Information Center
(EVIC) or Driver Information Display (DID)” in “Under-
standing Your Instrument Panel” or “Uconnect Settings”
in “Understanding Your Instrument Panel” if equipped
with a touch screen radio for further information.

NOTE:

This mode is intended to be enabled with engine

running.

STARTING AND OPERATING

557

Protection Mode

In order to “protect” the air suspension system, the
vehicle will enter Protection Mode when load leveling
cannot be achieved. Some driving may be required to
clear the protection mode telltale in the EVIC/DID. Refer
to “Electronic Vehicle Information Center (EVIC) or
Driver Information Display (DID)” in “Understanding
Your Instrument Panel” or “Uconnect Settings” in “Un-
derstanding Your Instrument Panel” if equipped with a
touch screen radio for further information.

NOTE:

If equipped with a touch screen radio all

enabling/disabling of air suspension features must be
done through the radio. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.

Electronic Vehicle Information Center
(EVIC)/Driver Information Display (DID) Display
Messages

When the appropriate conditions exist, a message will
appear in the EVIC/DID display. Refer to “Electronic
Vehicle Information Center (EVIC) or Driver Information
Display (DID)” in “Understanding Your Instrument
Panel” for further information.

An audible chime will be heard whenever a system error
has been detected.

558

STARTING AND OPERATING

Operation

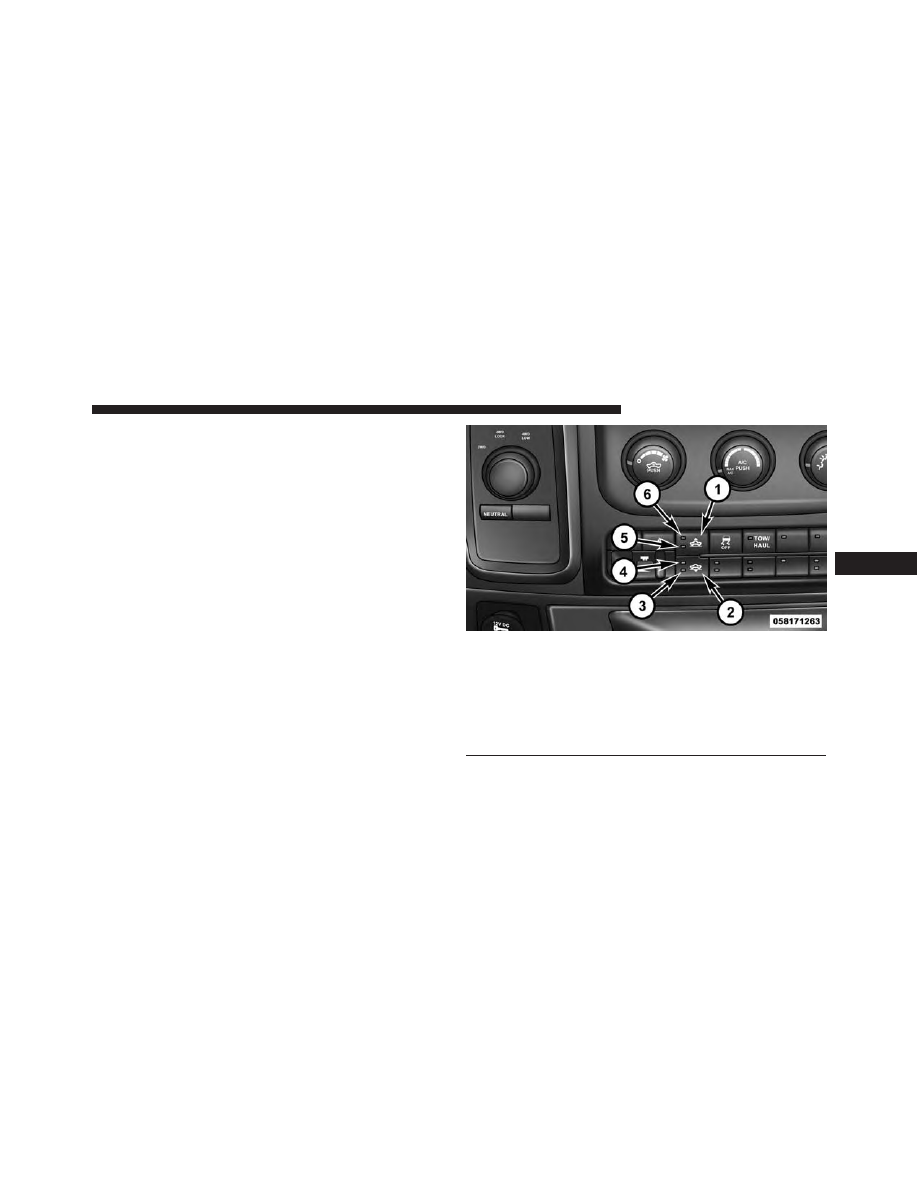

1 — Up Button

2 — Down Button
3 — Entry/Exit Mode Indicator (Customer selectable)
4 — Normal Ride Height Indicator (Customer selectable)
5 — Off-Road 1 Indicator (Customer selectable)
6 — Off-Road 2 Indicator (Customer selectable)

The indicator lamps 3 through 6 will illuminate to show
the current position of the vehicle. Flashing indicator
lamps will show a position which the system is working
to achieve. When raising, if multiple indicator lamps are
flashing, the highest flashing indicator lamp is the posi-
tion the system is working to achieve. When lowering, if
multiple indicators are flashing, the lowest solid indica-
tor lamp is the position the system is working to achieve.

Pushing the “UP” button once will move the suspension
one position higher from the current position, assuming
all conditions are met (i.e. key in ON/RUN position,
engine running, speed below threshold, etc). The “UP”
button can be pushed multiple times, each push will raise
the requested level by one position up to a maximum
position of OR2 or the highest position allowed based on
current conditions (i.e. vehicle speed, etc).

Pushing the “DOWN” button once will move the suspen-
sion one position lower from the current level, assuming
all conditions are met (i.e. key in ON/RUN position,

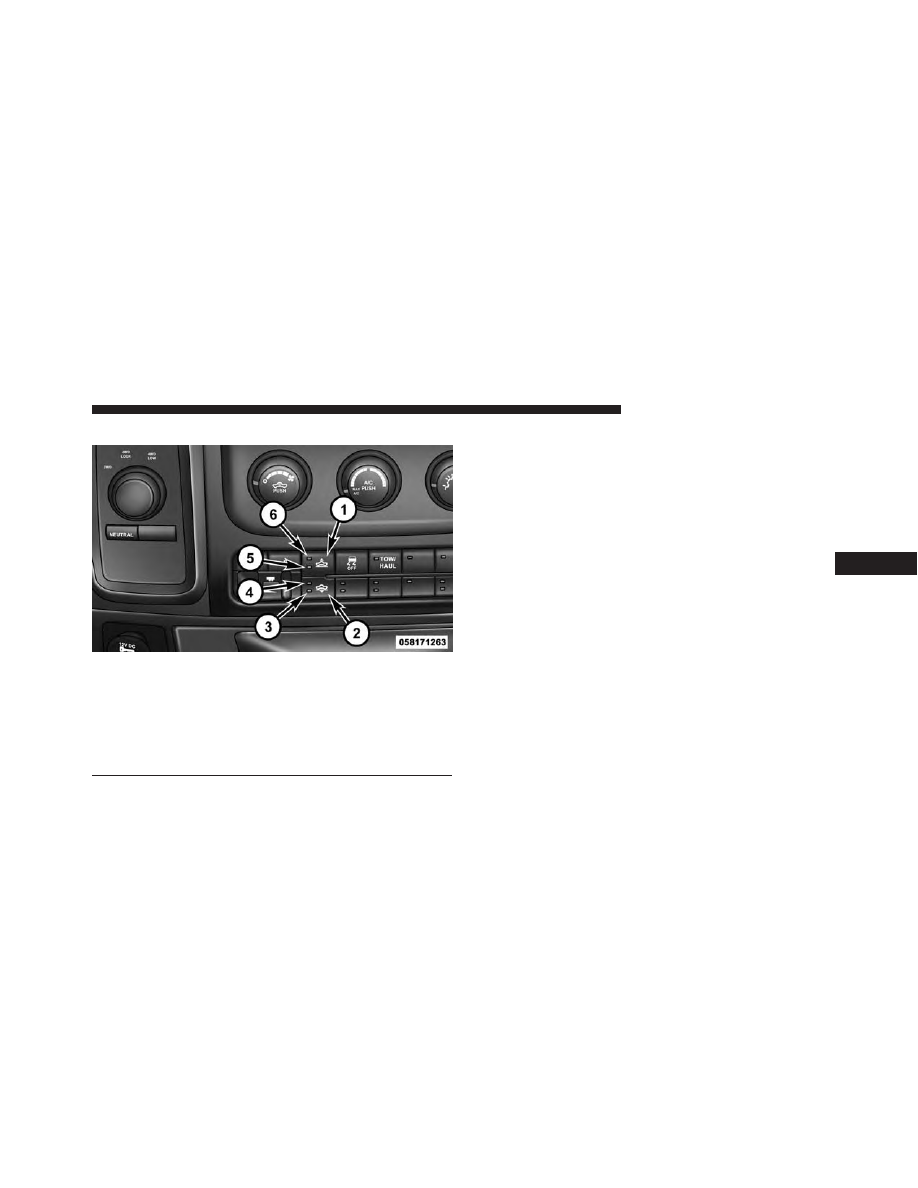

Air Suspension Switch

STARTING AND OPERATING

559

engine running, doors closed, speed below threshold,
etc). The “DOWN” button can be pushed multiple times,
each push will lower the requested level by one position
down to a minimum of Entry/Exit Mode or the lowest
position allowed based on current conditions (i.e. vehicle
speed, etc.)

Automatic height changes will occur based on vehicle
speed and the current vehicle height. The indicator lamps
and EVIC/DID messages will operate the same for
automatic changes and user requested changes.

• Off-Road 2 (OR2) – Indicator lamps 3, 4, 5 and 6 will be

illuminated when the vehicle is in OR2.

• Off-Road 1 (OR1) – Indicator lamps 3, 4 and 5 will be

illuminated when the vehicle is in OR1.

• Normal Ride Height (NRH)/Aero Mode – Indicator

lamps 3 and 4 will be illuminated when the vehicle is
in this position.

• Entry/Exit Mode – Indicator lamp 3 will be illumi-

nated when the vehicle is in Entry Exit Mode. Entry/
Exit mode can be requested up to 33 mph (53 km/h).
If vehicle speed is reduced to, and kept below, 15 mph
(24 km/h) indicator lamp 4 will flash and indicator
lamp 3 will remain solid until Entry/Exit Mode is
achieved at which point indicator lamp 4 will turn off.

• Transport Mode – No indicator lamps will be illumi-

nated. Transport Mode is disabled by driving the
vehicle.

• Tire/Jack Mode – Indicator lamps 3 and 6 will be

illuminated. Tire/Jack Mode is disabled by driving the
vehicle.

• Wheel Alignment Mode – Indicator lamps 3 and 4 will

be illuminated. Wheel Alignment Mode is disabled by
driving the vehicle.

560

STARTING AND OPERATING

AIR SUSPENSION SYSTEM (2500/3500 MODELS)
— IF EQUIPPED

Description

The air suspension system is a rear leveling ride height
system. The main purpose of this system is to maintain
the truck’s rear ride height level.

Normal Ride Height (NRH)

– This is the standard

position of the suspension and is meant for normal
driving.

Trailer Mode (Lowers the vehicle approximately 1 in
(25 mm)

– This position will lower the rear suspension

and provide load leveling for all loading conditions

Rear Leveling Ride Height Switch

STARTING AND OPERATING

561

including towing a trailer. After the “ALT TRAILER
HEIGHT” button has been pushed, it will blink continu-
ously until the trailer height has been achieved.

The system requires that the ignition be in ON/RUN
position or the engine running with zero vehicle speed
for all user requested changes.

After the engine is turned off, it may be noticed that the
air suspension system operates briefly, this is normal. The
system is correcting the position of the vehicle to ensure
a proper appearance.

NOTE:

If equipped with a touch screen radio all

enabling/disabling of air suspension features must be
done through the radio. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.

WARNING!

The air suspension system uses a high pressure
volume of air to operate the system. To avoid per-
sonal injury or damage to the system, see your
authorized dealer for service.

Air Suspension Modes

The Air Suspension system has multiple modes to protect
the system in unique situations:

Tire/Jack Mode

To assist with changing a spare tire, the air suspension
system has a feature which allows the automatic leveling
to be disabled. This mode is intended to be used with
engine running. Refer to “Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID)” in
“Understanding Your Instrument Panel” or “Uconnect

562

STARTING AND OPERATING

Settings” in “Understanding Your Instrument Panel” if
equipped with a touch screen radio for further informa-
tion.

NOTE:

This mode is intended to be enabled with engine

running.

Transport Mode

To assist with flat bed towing, the air suspension system
has a feature which will put the vehicle below Normal
Ride Height (NRH) and disable the automatic load
leveling system. This mode is intended to be used with
engine running. Refer to “Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID)” in
“Understanding Your Instrument Panel” or “Uconnect
Settings” in “Understanding Your Instrument Panel” if
equipped with a touch screen radio for further informa-
tion.

NOTE:

This mode is intended to be enabled with engine

running.

Wheel Alignment Mode

Before performing a wheel alignment this mode must be
enabled. Refer to “Electronic Vehicle Information Center
(EVIC) or Driver Information Display (DID)” in “Under-
standing Your Instrument Panel” or “Uconnect Settings”
in “Understanding Your Instrument Panel” if equipped
with a touch screen radio for further information.

NOTE:

This mode is intended to be enabled with engine

running.

Protection Mode

STARTING AND OPERATING

563

Your Instrument Panel” or “Uconnect Settings” in “Un-
derstanding Your Instrument Panel” if equipped with a
touch screen radio for further information.

NOTE:

If equipped with a touch screen radio all

enabling/disabling of air suspension features must be
done through the radio. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.

Electronic Vehicle Information Center
(EVIC)/Driver Information Display (DID) Display
Messages

An audible chime will be heard whenever a system error
has been detected.

Operation

Pushing the Trailer Mode button once, while at Normal
Ride Height (NRH) will lower the vehicle to trailer level.

NOTE:

The LED will continuously blink until vehicle

trailer level that been achieved.

Pushing the Trailer Mode again will raise the vehicle to
Normal Ride Height (NRH).

NOTE:

The LED will continuously blink until Normal

Ride Height (NRH) has been achieved.

• Transport Mode – No indicator lamps will be illumi-

nated. Transport Mode is disabled by driving the
vehicle.

• Tire/Jack Mode – No indicator lamps will be illumi-

nated. Tire/Jack Mode is disabled by driving the
vehicle.

564

STARTING AND OPERATING

• Wheel Alignment Mode – No indicator lamps will be

illuminated. Wheel Alignment Mode is disabled by
driving the vehicle.

AIR SUSPENSION SYSTEM (REBEL MODELS
ONLY) — IF EQUIPPED

Description

The air suspension system provides full time load level-
ing capability along with the benefit of being able to
adjust vehicle height by the push of a button.

Air Suspension Switch

1 — Up Button
2 — Down Button
3 — Entry/Exit Mode Indicator Lamp (Customer selectable)
4 — Aero Mode Indicator Lamp (Customer selectable)
5 — Normal Ride Height Indicator Lamp (Customer selectable)
6 — Off-Road Indicator Lamp (Customer selectable)

STARTING AND OPERATING

565

NOTE:

The vehicle will automatically enter Aero Mode

when the vehicle speed remains between 62 mph
(100 km/h) and 66 mph (106 km/h) for greater than 20
seconds or if the vehicle speed exceeds 66 mph
(106 km/h).

• Normal Ride Height (NRH) – This is the standard

position of the suspension and is meant for normal
driving.

• Off-Road (OR) (Raises the vehicle approximately 1 in

[26 mm])

– This position is intended for off-roading

use only where maximum ground clearance is re-
quired. To enter OR, push the “Up” button once from
the NRH position while vehicle speed is below 20 mph
(32 km/h). While in OR, if the vehicle speed exceeds
25 mph (40 km/h) the vehicle height will be automati-
cally lowered to NRH. Off-Road may not be available
due to vehicle payload, an EVIC/DID message will be

displayed when this occurs. Refer to “Electronic Ve-
hicle Information Center (EVIC) or Driver Information
Display (DID)” in “Understanding Your Instrument
Panel” for further information.

CAUTION!

If the vehicle is in Off-Road setting, be aware of your
surroundings, you may not have the clearance re-
quired for certain areas and vehicle damage may
occur.

• Aero Mode (Lowers the vehicle approximately .6 in

[15 mm])

– This position provides improved aerody-

namics by lowering the vehicle. The vehicle will
automatically enter Aero Mode when the vehicle
speed remains between 62 mph (100 km/h) and
66 mph (106 km/h) for greater than 20 seconds or if the
vehicle speed exceeds 66 mph (106 km/h). The vehicle
will return to NRH from Aero Mode if the vehicle

566

STARTING AND OPERATING

speed remains between 30 mph (48 km/h) and 35 mph
(56 km/h) for greater than 20 seconds or if the vehicle
speed falls below 30 mph (48 km/h).

NOTE:

Speed thresholds for raising the vehicle only

apply if Automatic Aero Mode is enabled.

• To enter Aero Mode manually push the down button

once from NRH at any vehicle speed. To return to
NRH push the up button once while vehicle speed is
less than 56 mph (90 km/h).

NOTE:

Automatic Aero Mode may be disabled through

vehicle settings on your Uconnect Radio when equipped
with UConnect 5.0, 8.4A, or 8.4AN. Refer to “Uconnect
Settings” in “Understanding Your Instrument Panel” for
further information.

• Entry/Exit Mode (Lowers the vehicle approximately

3 in [73 mm])

– This position lowers the vehicle for

easier passenger entry and exit as well as lowering the

rear of the vehicle for easier loading and unloading of
cargo. To enter Entry/Exit Mode, push the “Down”
button twice from the NRH while the vehicle speed is
below 33 mph (53 km/h). Once the vehicle speed goes
below 15 mph (24 km/h) the vehicle height will begin
to lower. If the vehicle speed remains between 15 mph
(24 km/h) and 25 mph (40 km/h) for greater than 60
seconds, or the vehicle speed exceeds 25 mph
(40 km/h) the Entry/Exit change will be cancelled. To
return to Normal Height Mode, push the “Up” button
twice while in Entry/Exit or drive the vehicle over
15 mph (24 km/h). Entry/Exit mode may not be
available due to vehicle payload, an EVIC/DID mes-
sage will be displayed when this occurs. Refer to
“Electronic Vehicle Information Center (EVIC) or
Driver Information Display (DID)” in “Understanding
Your Instrument Panel” for further information.

STARTING AND OPERATING

567

CAUTION!

When in ENTRY/EXIT setting, be aware of your
surroundings, you may not have the clearance re-
quired for certain areas and vehicle damage may
occur.

The system requires that the ignition be in ON/RUN
position or the engine running for all user requested
changes. When lowering the vehicle all of the doors,
must be closed. If a door is opened at any time while the
vehicle is lowering the change will not be completed
until the open door(s) is closed.

This system uses a lifting and lowering pattern which
keeps the headlights from incorrectly shining into on-
coming traffic. When raising the vehicle, the rear of the

vehicle will move up first and then the front. When
lowering the vehicle, the front will move down first and
then the rear.

After the engine is turned off, it may be noticed that the
air suspension system operates briefly, this is normal. The
system is correcting the position of the vehicle to ensure
a proper appearance.

568

STARTING AND OPERATING

NOTE:

If equipped with a touch screen radio all

enabling/disabling of air suspension features must be
done through the radio. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.

WARNING!

The air suspension system uses a high pressure
volume of air to operate the system. To avoid per-
sonal injury or damage to the system, see your
authorized dealer for service.

Air Suspension Modes

The Air Suspension system has multiple modes to protect
the system in unique situations:

Tire/Jack Mode

To assist with changing a spare tire, the air suspension
system has a feature which allows the automatic leveling

to be disabled. Refer to “Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.

NOTE:

This mode is intended to be enabled with engine

running.

Transport Mode

NOTE:

This mode is intended to be enabled with engine

running and all doors closed.

STARTING AND OPERATING

569

Wheel Alignment Mode

NOTE:

This mode is intended to be enabled with engine

running and all doors closed.

Protection Mode

NOTE:

If equipped with a touch screen radio all

enabling/disabling of air suspension features must be
done through the radio. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.

Electronic Vehicle Information Center
(EVIC)/Driver Infromation Display (DID) Display
Messages

An audible chime will be heard whenever a system error
has been detected.

570

STARTING AND OPERATING

Operation

Pushing the “UP” button once will move the suspension
one position higher from the current position, assuming
all conditions are met (i.e. key in ON/RUN position,
engine running, speed below threshold, etc). The “UP”
button can be pushed multiple times, each push will raise
the requested level by one position up to a maximum
position of OR or the highest position allowed based on
current conditions (i.e. vehicle speed, etc).

Pushing the “DOWN” button once will move the suspen-
sion one position lower from the current level, assuming
all conditions are met (i.e. key in ON/RUN position,

• Off-Road (OR) – Indicator lamps 3, 4, 5 and 6 will be

illuminated when the vehicle is in OR.

• Normal Ride Height (NRH) – Indicator lamps 3, 4 and

5 will be illuminated when the vehicle is in NRH.

• Aero Mode – Indicator lamps 3 and 4 will be illumi-

nated when the vehicle is in Aero Mode.

STARTING AND OPERATING

571

Dodge Ram 2500 (2016 year). Manual - part 35
