6. Modes

The airflow distribution mode can be adjusted so air
comes from the instrument panel outlets, floor outlets,
and demist outlets. The Mode settings are as follows:

• Panel Mode

Air comes from the outlets in the instrument
panel. Each of these outlets can be individu-
ally adjusted to direct the flow of air. The air

vanes of the center outlets and outboard outlets can
be moved up and down or side to side to regulate
airflow direction. There is a shut off wheel located
below the air vanes to shut off or adjust the amount
of airflow from these outlets.
• Bi-Level Mode

Air comes from the instrument panel outlets
and floor outlets. A slight amount of air is
directed through the defrost and side window

demister outlets.

NOTE:

BI-LEVEL mode is designed under comfort con-

ditions to provide cooler air out of the panel outlets and
warmer air from the floor outlets.

• Floor Mode

Air comes from the floor outlets. A slight
amount of air is directed through the defrost
and side window demister outlets.

• Mix Mode

Air comes from the floor, defrost and side
window demister outlets. This mode works
best in cold or snowy conditions.

NOTE:

The air conditioning compressor operates in MIX

and DEFROST modes even if the A/C button is not
pressed. This dehumidifies the air to help dry the wind-
shield. To improve fuel economy, utilize these modes
only when required.

428

UNDERSTANDING YOUR INSTRUMENT PANEL

7. Blower Control

Blower control is used to regulate the amount of air
forced through the climate system. There are seven
blower speeds available. Adjusting the blower will cause
automatic mode to switch to manual operation. The
speeds can be selected using either buttons on the
faceplate or buttons on the touchscreen as follows:

Blower Control Knob On The Faceplate

The blower speed increases as you turn the control
clockwise from the lowest blower setting. The blower
speed decreases as you turn the blower control knob
counterclockwise.

Buttons On The Touchscreen

Use the small blower icon to reduce the blower setting
and the large blower icon to increase the blower setting.
Blower can also be selected by pressing the blower bar
area between the icons.

8. Climate Control OFF Button

Press and release this button to turn the Climate Control
ON/OFF.

9. Temperature Control Down Button

Push the button on the faceplate for cooler temperature
settings. On the touchscreen, slide the temperature bar
towards the blue arrow button for cooler temperature
settings.

10. Temperature Control Up Button

Push the button on the faceplate for warmer temperature
settings. On the touchscreen, slide the temperature bar
towards the blue arrow button for cooler temperature
settings.

UNDERSTANDING YOUR INSTRUMENT PANEL

429

Recirculation Control

When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the RECIRCULATION control button.

Recirculation mode should only be used temporarily. The
recirculation LED will illuminate on the blower control
knob when this button is selected. Push the button a
second time to turn off the Recirculation mode LED and
allow outside air into the vehicle.

NOTE:

In cold weather, use of Recirculation mode may

lead to excessive window fogging. The Recirculation
mode is not allowed in Defrost mode to improve window
clearing operation. Recirculation will be disabled auto-
matically if these modes are selected.

Automatic Climate Controls With Touchscreen —
If Equipped

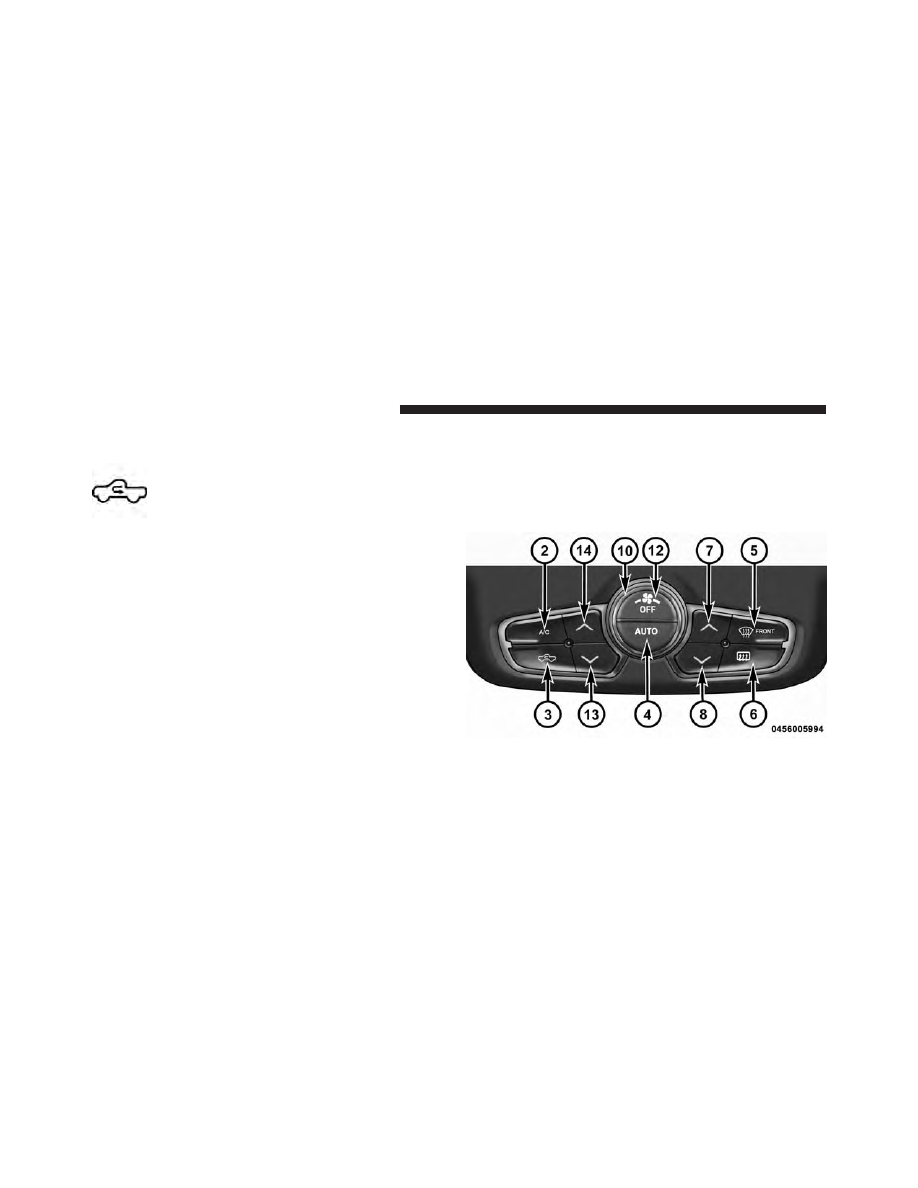

Buttons On The Faceplate

The buttons on the faceplate are located below the
Uconnect screen.

Automatic Climate Controls — Buttons On The

Faceplate

430

UNDERSTANDING YOUR INSTRUMENT PANEL

Buttons On The Touchscreen

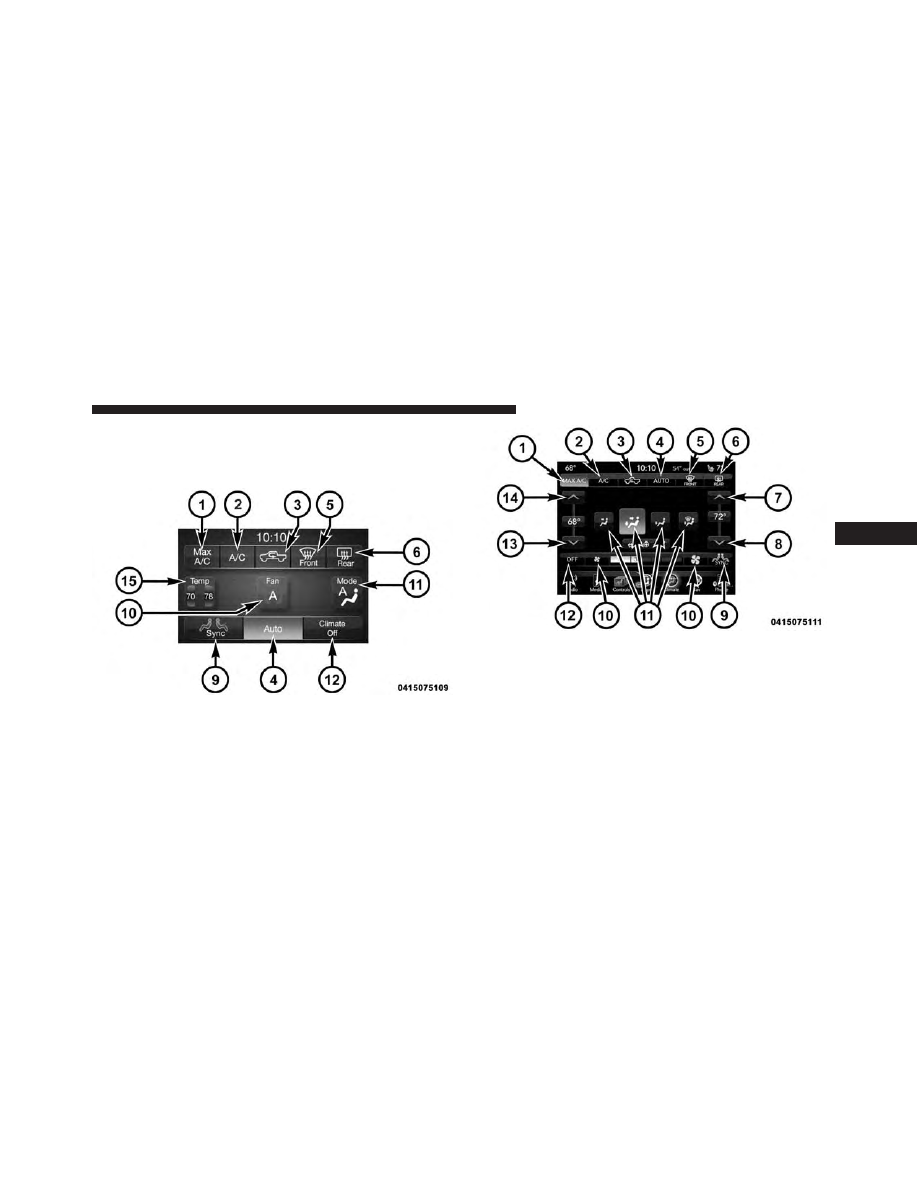

Buttons on the touchscreen are accessible on the
Uconnect system screen.

Button Descriptions (Applies To Both Buttons On The
Faceplate And Buttons On The Touchscreen)

1. MAX A/C Button

Press and release to change the current setting, the
indicator illuminates when MAX A/C is ON. Performing

Uconnect 5.0 Automatic Temperature Controls — Buttons

On The Touchscreen

Uconnect 8.4 Automatic Temperature Controls — Buttons

On The Touchscreen

UNDERSTANDING YOUR INSTRUMENT PANEL

431

this function again will cause the MAX A/C operation to
switch into manual mode and the MAX A/C indicator
will turn off.

2. A/C Button

Press and release to change the current setting, the
indicator illuminates when A/C is ON. Performing this
function again will cause the A/C operation to switch
into manual mode and the A/C indicator will turn off.

3. Recirculation Button

Press and release to change the current setting, the
indicator illuminates when ON.

4. AUTO Operation Button

Automatically controls the interior cabin temperature by
adjusting airflow distribution and amount. Performing
this function will cause the ATC to switch between
manual mode and automatic modes. Refer to “Automatic
Operation” for more information.

5. Front Defrost Button

Press and release to change the current airflow setting to
Defrost mode. The indicator illuminates when this fea-
ture is ON. Air comes from the windshield and side
window demist outlets. When the defrost button is
selected, the blower level will increase. Use Defrost mode
with maximum temperature settings for best windshield
and side window defrosting and defogging. Performing
this function will cause the ATC to switch into manual
mode. If the front defrost mode is turned off the climate
system will return the previous setting.

6. Rear Defrost Button

Press and release this button to turn on the rear window
defroster (if equipped) and the heated outside mirrors (if
equipped). An indicator will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after 10 minutes.

432

UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear

window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the
window.

• Keep all objects a safe distance from the window.

7. Passenger Temperature Control Up Button (Uconnect
8.4)

Provides the passenger with independent temperature
control. Push the button on the faceplate for warmer

temperature settings or on the touchscreen, press and
slide the temperature bar towards the red arrow for
warmer temperature settings.

NOTE:

Pressing this button while in Sync mode will

automatically exit Sync.

8. Passenger

Temperature

Control

Down

Button

(Uconnect 8.4)

Provides the passenger with independent temperature
control. Push the button on the faceplate for cooler
temperature settings or on the touchscreen, press and
slide the temperature bar towards the blue arrow for
cooler temperature settings.

NOTE:

Pressing this button while in Sync mode will

automatically exit Sync.

9. SYNC

Press the Sync button on the touchscreen to toggle the
Sync feature On/Off. The Sync indicator is illuminated

UNDERSTANDING YOUR INSTRUMENT PANEL

433

when this feature is enabled. Sync is used to synchronize
the passenger temperature setting with the driver tem-
perature setting. Changing the passenger temperature
setting while in Sync will automatically exit this feature.

10. Blower Control

Blower control is used to regulate the amount of air
forced through the climate system. There are seven
blower speeds available. Adjusting the blower will cause
automatic mode to switch to manual operation. The
speeds can be selected using either the blower control
knob on the faceplate or buttons on the touchscreen as
follows:

Blower Control Knob On The Faceplate

The blower speed increases as you turn the blower
control knob clockwise from the lowest blower setting.
The blower speed decreases as you turn the blower
control knob counterclockwise.

Button On The Touchscreen

Use the small blower icon to reduce the blower setting
and the large blower icon to increase the blower setting.
Blower can also be selected by pressing the blower bar
area between the icons.

11. Modes

The airflow distribution mode can be adjusted so air
comes from the instrument panel outlets, floor outlets,
demist outlets and defrost outlets. The Mode settings are
as follows:

• Panel Mode

Air comes from the outlets in the instrument
panel. Each of these outlets can be individu-

ally adjusted to direct the flow of air. The air vanes of
the center outlets and outboard outlets can be moved
up and down or side to side to regulate airflow

434

UNDERSTANDING YOUR INSTRUMENT PANEL

direction. There is a shut off wheel located below the
air vanes to shut off or adjust the amount of airflow
from these outlets.

• Bi-Level Mode

Air comes from the instrument panel outlets
and floor outlets. A slight amount of air is

directed through the defrost and side window demis-
ter outlets.

NOTE:

BI-LEVEL mode is designed under comfort con-

ditions to provide cooler air out of the panel outlets and
warmer air from the floor outlets.

• Floor Mode

Air comes from the floor outlets. A slight
amount of air is directed through the defrost

and side window demister outlets.

• Mix Mode

Air comes from the floor, defrost and side
window demist outlets. This mode works best
in cold or snowy conditions.

12. Climate Control OFF Button

Press and release this button to turn the Climate Control
ON/OFF.

13. Driver Temperature Control Down Button (Uconnect
8.4)

Provides the driver with independent temperature con-
trol. Push the button on the faceplate for cooler tempera-
ture settings or on the touchscreen, press and slide the
temperature bar towards the blue arrow for cooler tem-
perature settings.

NOTE:

In Sync mode, this button will also automatically

adjust the passenger temperature setting at the same
time.

UNDERSTANDING YOUR INSTRUMENT PANEL

435

14. Driver Temperature Control Up Button (Uconnect
8.4)

Provides the driver with independent temperature con-
trol. Push the button on the faceplate button for warmer
temperature settings or on the touchscreen, press and
slide the temperature bar towards the red arrow for
warmer temperature settings.

NOTE:

In Sync mode, this button will also automatically

adjust the passenger temperature setting at the same
time.

15. Temperature Control (Uconnect 5.0)

Press the temperature button on the touchscreen to
regulate the temperature of the air inside the passenger
compartment. Moving the temperature bar into the red
area, indicates warmer temperatures. Moving the tem-
perature bar into the blue area indicates cooler tempera-
tures.

Climate Control Functions

A/C (Air Conditioning)

The Air Conditioning (A/C) button allows the operator
to manually activate or deactivate the air conditioning
system. When the air conditioning system is turned on,
cool dehumidified air will flow through the outlets into
the cabin. For improved fuel economy, press the A/C
button to turn off the air conditioning and manually
adjust the blower and airflow mode settings. Also, make
sure to select only Panel, Bi-Level or Floor modes.

NOTE:

• For Manual Climate Controls, if the system is in Mix,

Floor or Defrost Mode, the A/C can be turned off, but
the A/C system shall remain active to prevent fogging
of the windows.

436

UNDERSTANDING YOUR INSTRUMENT PANEL

• If fog or mist appears on the windshield or side glass,

select Defrost mode and adjust blower speed if
needed.

• If your air conditioning performance seems lower than

expected, check the front of the A/C condenser (lo-
cated in front of the radiator), for an accumulation of
dirt or insects. Clean with a gentle water spray from
behind the radiator and through the condenser. Fabric
front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.

MAX A/C

MAX A/C sets the control for maximum cooling perfor-
mance.

Press and release to toggle between MAX A/C and the
prior settings. The button on the touchscreen illuminates
when MAX A/C is ON.

In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the prior
settings and the MAX A/C indicator will turn off.

Recirculation Control

When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the RECIRCULATION control button

on the touchscreen or faceplate. Recirculation mode
should only be used temporarily. The recirculation LED
button on the faceplate will illuminate when either
button is selected. Push either button a second time to
turn off the Recirculation mode LED and allow outside
air into the vehicle.

UNDERSTANDING YOUR INSTRUMENT PANEL

437

NOTE:

In cold weather, use of Recirculation mode may

lead to excessive window fogging. The recirculation
feature may be unavailable (button on the touchscreen
greyed out) if conditions exist that could create fogging
on the inside of the windshield. On systems with Manual
Climate Controls, the recirculation mode is not allowed
in Defrost mode to improve window clearing operation.
Recirculation will be disabled automatically if this mode
is selected. Attempting to use Recirculation while in this
mode will cause the LED in the control button on the
faceplate to blink and then turn off.

Automatic Temperature Control (ATC)

Automatic Operation

1. Push the AUTO button on the faceplate or press the

“AUTO” button on the touchscreen.

2. Adjust the temperature you would like the system to

maintain by adjusting the driver and passenger tem-
perature buttons on the faceplate or buttons on the
touchscreen. Once the desired temperature is dis-
played, the system will achieve and automatically
maintain that comfort level.

3. When the system is set up for your comfort level, it is

not necessary to change the temperature. You will
experience the greatest efficiency by simply allowing
the system to function automatically.

NOTE:

• It is not necessary to move the temperature settings.

The system automatically adjusts the temperature,
mode, and blower speed to provide comfort as quickly
as possible.

438

UNDERSTANDING YOUR INSTRUMENT PANEL

• The temperature can be displayed in U.S. or Metric

units

selecting

the

Uconnect

customer-

programmable feature. Refer to the “Uconnect Set-
tings” in this section of the manual.

To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain
on low until the engine warms up. The blower will
increase in speed and transition into Auto mode.

Manual Operation Override

The system allows for manual selection of blower speed,
air distribution mode, A/C status and recirculation con-
trol.

The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at
a fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode.

The operator can also select the direction of the airflow
by selecting one of the available mode settings. A/C
operation and Recirculation control can also be manually
selected in Manual operation.

NOTE:

Each of these features operates independently

from each other. If any feature is controlled manually,
temperature control will continue to operate automati-
cally.

Operating Tips

NOTE:

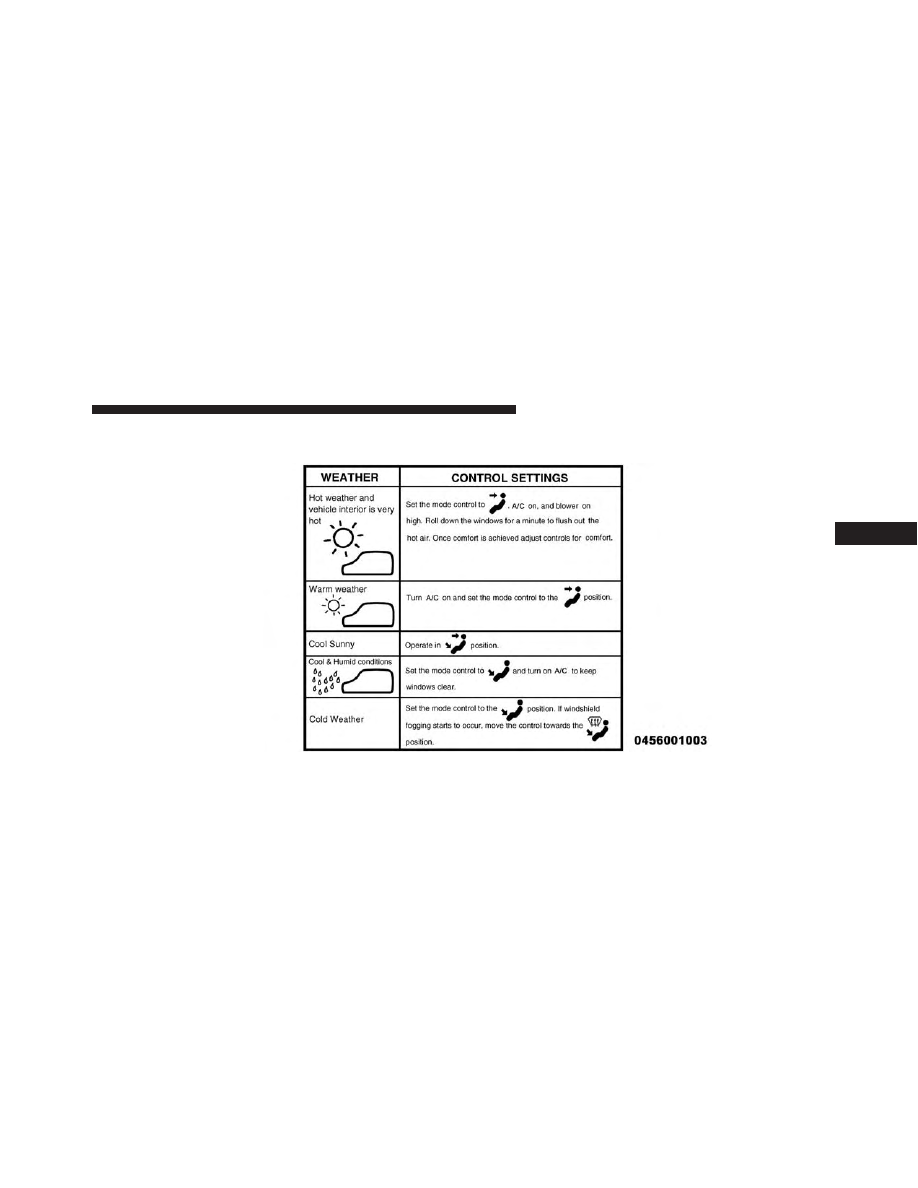

Refer to the chart at the end of this section for

suggested control settings for various weather condi-
tions.

Summer Operation

The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheating.

UNDERSTANDING YOUR INSTRUMENT PANEL

439

OAT coolant (conforming to MS.90032) is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.

Winter Operation

To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is function-
ing properly and the proper amount, type, and concen-
tration of coolant is used. Refer to “Maintenance
Procedures” in “Maintaining Your Vehicle” for proper
coolant selection. Use of the air Recirculation mode
during Winter months is not recommended because it
may cause window fogging.

Vacation/Storage

Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in
fresh air with the blower setting in high. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.

Window Fogging and Frosting

Vehicle windows tend to fog on the inside of the glass in
mild, rainy and/or humid weather. Windows may frost on
the inside of the glass in very cold weather. To clear the
windows, select Defrost or Mix mode and increase the front
blower speed. Do not use the Recirculation mode without
A/C for long periods, as fogging may occur.

NOTE:

Automatic Temperature Controls (ATC) will au-

tomatically adjust the climate control settings to reduce
or eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable.

Outside Air Intake

Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, can cause
odor, and if they enter the plenum they could plug the
water drains. In winter months, ensure the air intake is
clear of ice, slush and snow.

440

UNDERSTANDING YOUR INSTRUMENT PANEL

PERSONALIZED MENU BAR

The Uconnect features and services in the main menu bar
are easily changed for your convenience. Simply follow
these steps:

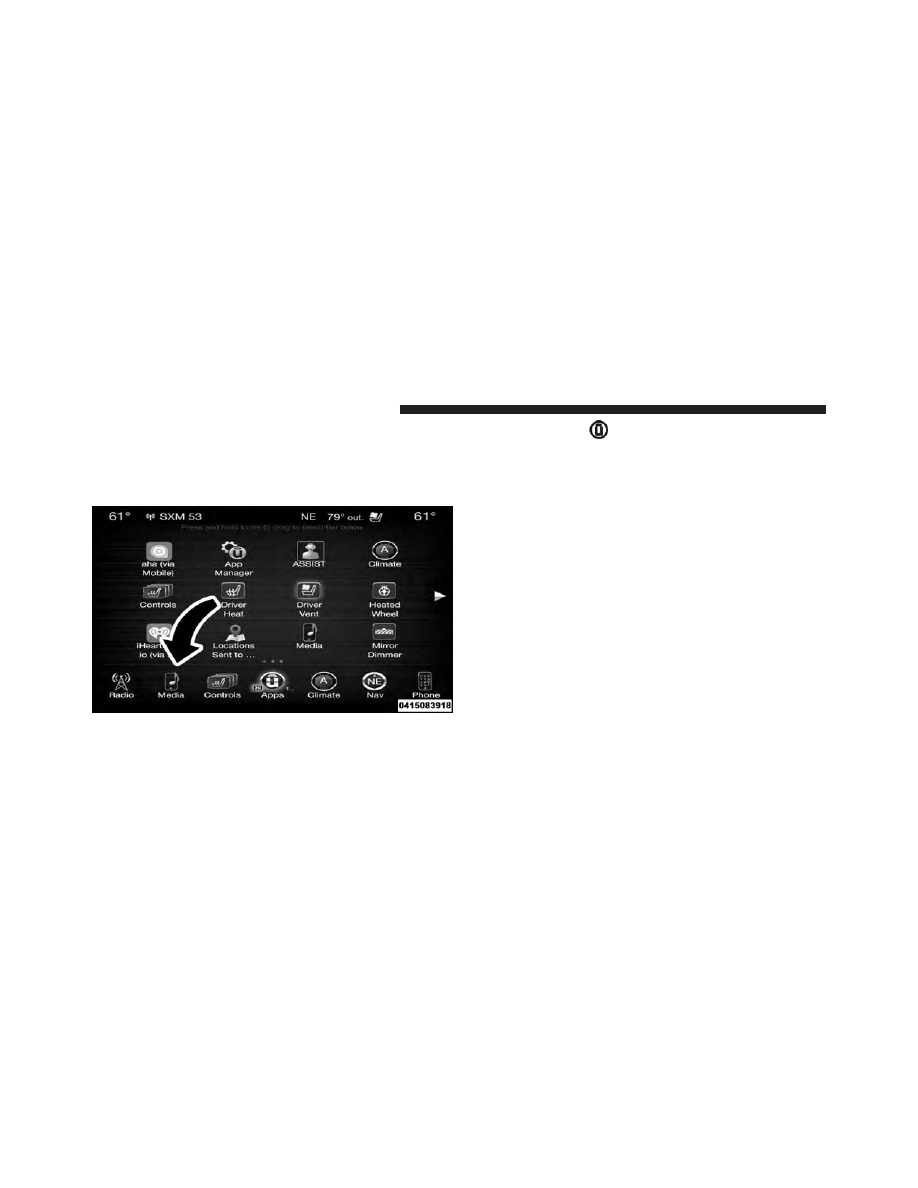

1. Press the “Apps

” button to open the App screen.

2. Press and hold, then drag the selected App to replace

an existing shortcut in the main menu bar.

The replaced shortcut will now be an active App/
shortcut on the main menu bar.

UCONNECT VOICE RECOGNITION

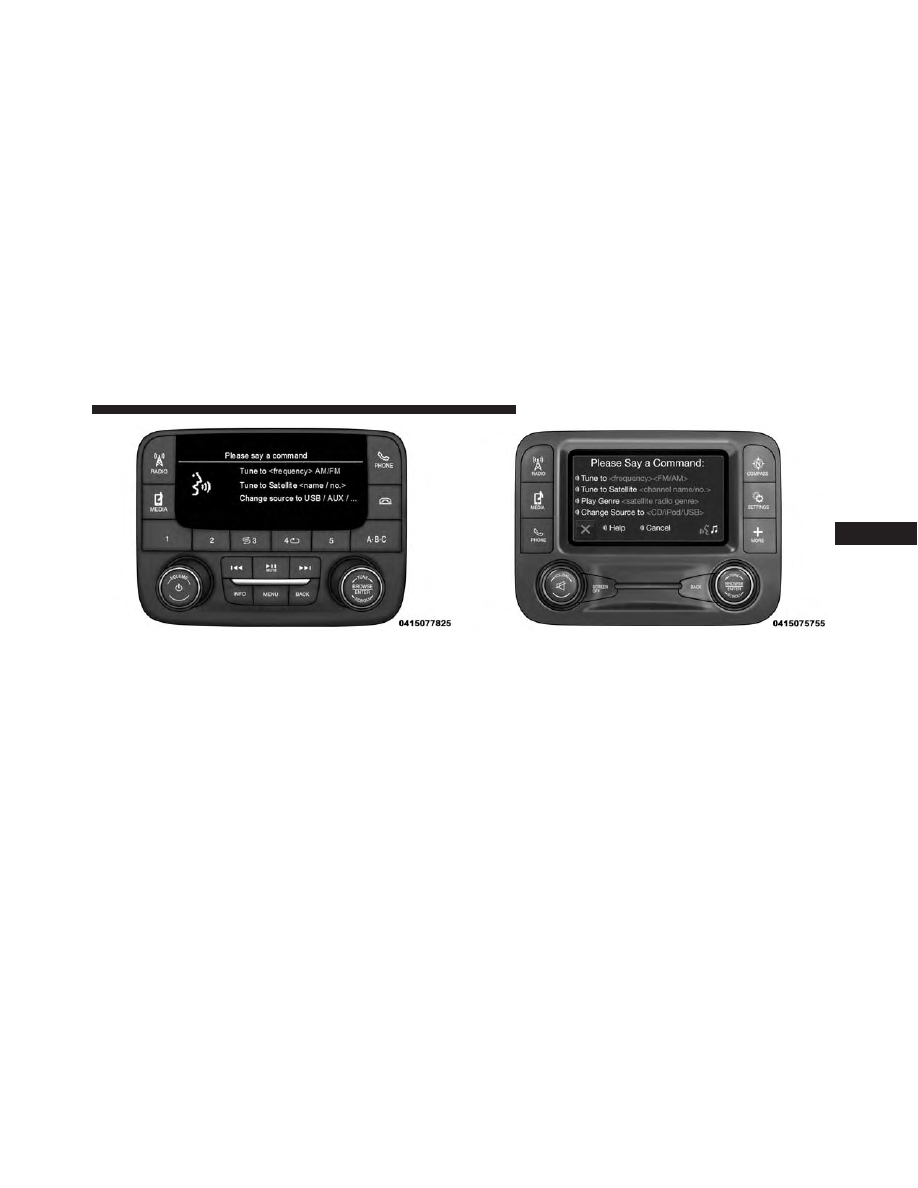

Introducing Uconnect

Start using Uconnect Voice Recognition with these help-
ful quick tips. It provides the key Voice Commands and
tips you need to know to control your Uconnect 3.0, 5.0 or
8.4A/8.4AN system.

Uconnect 8.4A/8.4AN Main Menu

442

UNDERSTANDING YOUR INSTRUMENT PANEL

Dodge Ram 2500 (2016 year). Manual - part 27
