SET Button — To Set the Pushbutton Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET button.
The symbol SET 1 will now show in the display window.
Select the button (1-6) you wish to lock onto this station
and press and release that button. If a button is not
selected within five seconds after pressing the SET but-
ton, the station will continue to play but will not be
stored into pushbutton memory.

You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2 in
both AM and FM. This allows a total of 12 AM, 12 FM,
and 12 Satellite (if equipped) stations to be stored into
pushbutton memory. The stations stored in SET 2
memory can be selected by pressing the pushbutton
twice.

Every time a preset button is used, a corresponding
button number will display.

Buttons 1 - 6
These buttons tune the radio to the stations that you
commit to pushbutton memory {12 AM, 12 FM, and 12
Satellite (if equipped) stations}.

DISC Button
Pressing the DISC button will allow you to switch from
AM/FM modes to Disc modes.

Operation Instructions - (DISC MODE for CD and
MP3/WMA Audio Play, DVD-VIDEO)

The radio DVD player and many DVD discs are coded by
geographic region. These region codes must match in
order for the disc to play. If the region code for the DVD
disc does not match the region code for the radio DVD
player, it will not play the disc. Customers may take their
vehicle to an authorized dealer to change the region code
of the player a maximum of five times.

260

UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION!

The radio may shut down during extremely hot
conditions. When this occurs, the radio will indicate
“Disc Hot” and shut off until a safe temperature is
reached. This shutdown is necessary to protect the
optics of the DVD player and other radio internal
components.

NOTE:

The ignition switch must be in the ON or ACC

position to operate the radio.

LOAD Button — Loading Compact Disc(s)
Press the LOAD button and the pushbutton with the
corresponding number (1-6) where the CD is being
loaded. The radio will display PLEASE WAIT and
prompt when to INSERT DISC. After the radio displays

9INSERT DISC,9 insert the CD into the player.

Radio display will show

9LOADING DISC9 when the disc

is loading and “READING DISC” when the radio is
reading the disc.

CAUTION!

This CD player will accept 4–3/4 in (12 cm) discs only.
The use of other sized discs may damage the CD
player mechanism.

Eject Button — Ejecting Compact Disc(s)

Press the EJECT button and the pushbutton
with the corresponding number (1-6) where the
CD was loaded and the disc will unload and
move to the entrance for easy removal. Radio

display will show

9EJECTING DISC9 when the disc is

being ejected and prompt the user to remove the disc.

UNDERSTANDING YOUR INSTRUMENT PANEL

261

Press and hold the EJECT button for five seconds and all
CDs will be ejected from the radio.

The disc can be ejected with the radio and ignition OFF.

SEEK Button (CD MODE)
Press the right SEEK button for the next selection on the
CD. Press the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of
the current selection. Pressing and holding the SEEK
button will allow you to scroll through the tracks faster in
CD, MP3/MWA modes.

SCAN Button (CD MODE)
Press the SCAN button to scan through each track on the
CD currently playing.

TIME Button (CD MODE)
Press this button to change the display from a large CD
playing time display to a small CD playing time display.

RW/FF (CD MODE)
Press and hold FF (Fast Forward) and the CD player will
begin to fast forward until FF is released, or RW or
another CD button is pressed. The RW (Rewind) button
works in a similar manner.

AM or FM Button (CD MODE)
Switches the radio to the Radio mode.

Notes On Playing MP3/WMA Files

The radio can play MP3/WMA files; however, acceptable
MP3/WMA file recording media and formats are limited.
When writing MP3/WMA files, pay attention to the
following restrictions.

Supported Media (Disc Types)
The MP3/WMA file recording media supported by the
radio are CDDA, CD-R, CD-RW, MP3,WMA, DVD Video,
DVD-R, DVD-RW, DVD+R, DVD+RW, and CDDA+MP3.

262

UNDERSTANDING YOUR INSTRUMENT PANEL

Supported Medium Formats (File Systems)
The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension.
When reading discs recorded using formats other than
ISO 9660 Level 1 and Level 2, the radio may fail to read
files properly and may be unable to play the file nor-
mally. UDF and Apple HFS formats are not supported.

The radio uses the following limits for file systems:

• Maximum number of directory levels: 8
• Maximum number of files: 255
• Maximum number of folders: 100
• Maximum number of characters in file/folder names:

• Level 1: 12 (including a separator 9.9 and a three-

character extension)

• Level 2: 31 (including a separator 9.9 and a three-

character extension)

Multisession disc formats are supported by the radio.
Multisession discs may contain combinations of normal
CD audio tracks and computer files (including MP3/
WMA files). Discs created with an option such as

9keep

disc open after writing

9 are most likely multisession

discs. The use of multisession for CD audio or MP3/
WMA playback may result in longer disc loading times.

If a disc contains multi-formats, such as CD audio and
MP3/WMA tracks, the radio will only play the MP3/
WMA tracks on that disc.

Supported MP3/WMA File Formats
The radio will recognize only files with the *.MP3/WMA
extension as MP3/WMA files. Non-MP3/WMA files
named with the *.MP3/WMA extension may cause play-
back problems. The radio is designed to recognize the file
as an invalid MP3/WMA and will not play the file.

UNDERSTANDING YOUR INSTRUMENT PANEL

263

When using the MP3/WMA encoder to compress audio
data to an MP3/WMA file, the bit rate and sampling
frequencies in the following table are supported. In
addition, Variable Bit Rates (VBR) are also supported.
The majority of MP3/WMA files use a 44.1 kHz sampling
rate and a 192, 160, 128, 96 or VBR bit rates.

MP3 File Format

MPEG

Specification

Sampling Fre-

quency (kHz)

Bit Rate (kbps)

MPEG-1 Audio

Layer 3

48, 44.1, 32

320, 256, 224,
192, 160, 128,

112, 96, 80, 64,

56, 48

MPEG-2 Audio

Layer 3

24, 22.05, 16

160, 128, 144,

112, 96, 80, 64,

56, 48

WMA File Format

WMA

Specification

Sampling Fre-

quency (kHz)

Bit Rate (kbps)

WMA

44.1 and 48

48, 64, 96, 128,

160, 192 VBR

ID3 Tag information for artist, song title, and album title
are supported for ID3 version 1 tags. ID3 version 2 is not
supported by the radios.

Playlist files are not supported. MP3 Pro files are not
supported.

Playback of MP3/WMA Files
When a medium containing MP3/WMA data is loaded,
the radio checks all files on the medium. If the medium
contains a lot of folders or files, the radio will take more
time to start playing the MP3/WMA files.

264

UNDERSTANDING YOUR INSTRUMENT PANEL

Loading times for playback of MP3/WMA files may be
affected by the following:

• Media - CD-RW media may take longer to load than

CD-R media

• Medium formats - Multisession discs may take longer

to load than non-multisession discs

• Number of files and folders - Loading times will

increase with more files and folders

To increase the speed of disc loading, it is recommended
to use CD-R media and single-session discs. To create a
single-session disc, enable the “Disc at Once” option
before writing to the disc.

LIST Button (DISC Mode for MP3/WMA Play)

Pressing the LIST button will bring up a list of all folders
on the disc. Scrolling up or down the list is done by
turning the Tune/Scroll control knob. Selecting a folder
by pressing the Tune/Scroll control knob will begin
playing the files contained in that folder (or the next
folder in sequence if the selection does not contain
playable files).

The folder list will time out after five seconds.

INFO Button (DISC Mode for MP3/WMA Play)

Pressing the INFO button repeatedly will scroll through
the following TAG information: Song Title, Artist, File
Name, and Folder Name (if available).

Press the INFO button once more to return to

9elapsed

time

9 priority mode.

Press and hold the INFO button for three seconds or
more and radio will display song titles for each file.

UNDERSTANDING YOUR INSTRUMENT PANEL

265

Press and hold the INFO button again for three seconds
to return to

9elapsed time9 display.

Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack, which
allows the user to plug in a portable device such as an
MP3/WMA player, cassette player, or microphone and
utilize the vehicle’s audio system to amplify the source
and play through the vehicle speakers.

Pressing the AUX button will change the mode to auxil-
iary device if the AUX jack is connected.

NOTE:

The AUX device must be turned on and the

device’s volume set to the proper level. If the AUX audio
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume
down.

SEEK Button (Auxiliary Mode)
No function.

SCAN Button (Auxiliary Mode)
No function.

EJECT Button (Auxiliary Mode)

No function.

TIME Button (Auxiliary Mode)
Press the TIME button to change the display from
elapsed playing time to time of day. The time of day will
display for five seconds.

RW/FF (Auxiliary Mode)
No function.

SET Button (Auxiliary Mode)
No function.

266

UNDERSTANDING YOUR INSTRUMENT PANEL

Operating Instructions — Voice Recognition
System (VR) (If Equipped)
For the radio, refer to “Voice Recognition System (VR)” in
Section 3.

For UConnect

t “Voice Recognition System (VR)” refer to

“Hands-Free Communication (UConnect

t)” in Section 3.

Operating Instructions - Hands-Free Phone
(UConnect

t) — If Equipped

Refer to “Hands-Free Communication (UConnect

t)” in

Section 3.

Operating Instructions - Satellite Radio Mode (If
Equipped)
Refer to “Satellite Radio” in this section.

Operating Instructions - Video Entertainment
System (VES

t) (If Equipped)

Refer to separate “Video Entertainment System (VES

Guide.”

Dolby

Manufactured under license from Dolby

t Laboratories.

9Dolbyt9 and the double-D symbol are trademarks of
Dolby

t Laboratories.

Macrovision
This product incorporates copyright protection technol-
ogy that is protected by U.S. patents and other intellec-
tual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is
intended for home and other limited viewing uses only,
unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited

DTS™

9DTS™9 and 9DTS™ 2.09 are trademarks of Digital The-
ater Systems, Inc.

UNDERSTANDING YOUR INSTRUMENT PANEL

267

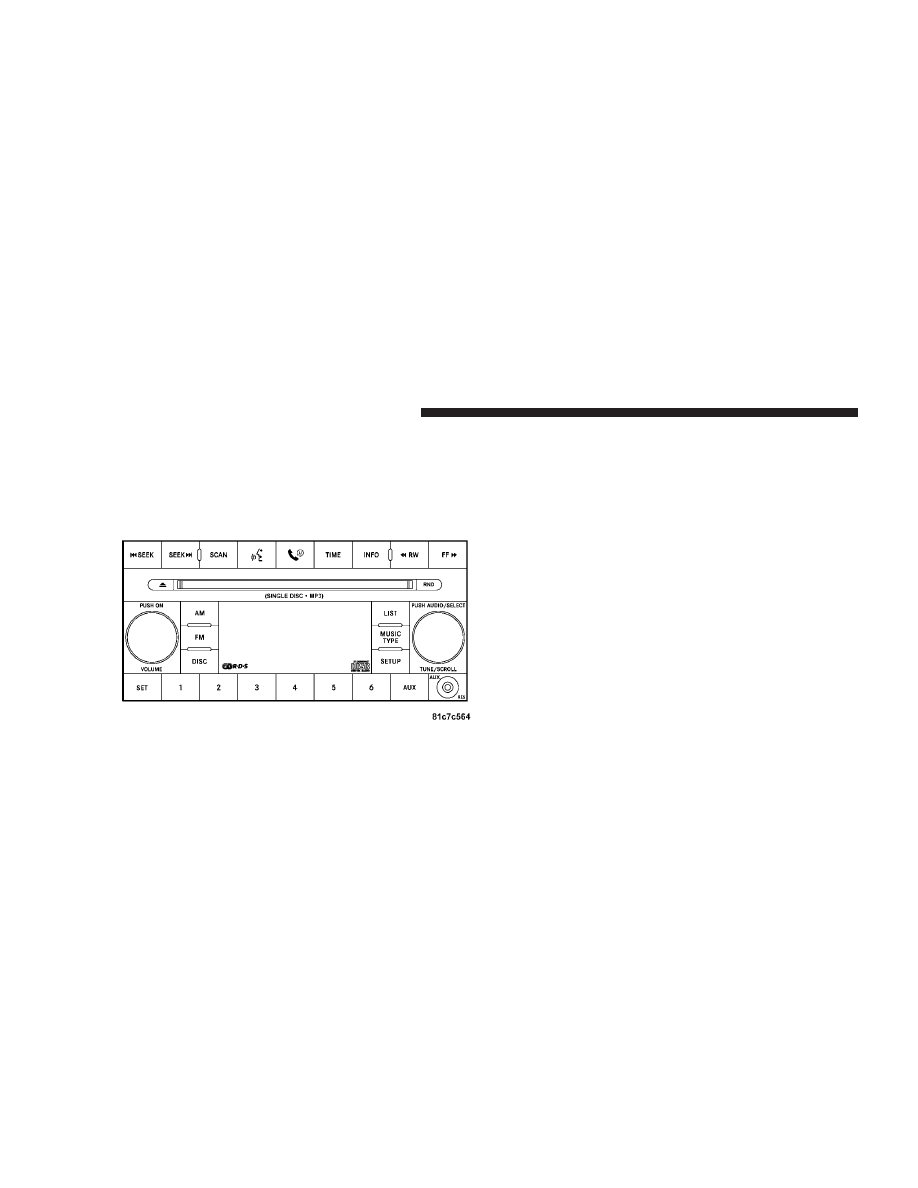

SALES CODE RES — AM/FM STEREO RADIO
WITH CD PLAYER (MP3 AUX JACK)

NOTE:

The radio sales code is located on the lower right

side of your radio faceplate.

Operating Instructions - Radio Mode

NOTE:

The ignition switch must be in the ON or ACC

position to operate the radio.

Power Switch/Volume Control (Rotary)
Push the On/Volume control knob to turn on the radio.
Push the On/Volume control knob a second time to turn
off the radio.

Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
On/Volume control knob to the right increases the vol-
ume and to the left decreases it.

When the audio system is turned on, the sound will be
set at the same volume level as last played.

SEEK Buttons
Press and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Press the right switch

RES Radio

(Non-Satellite Model Shown - With Satellite Similar)

268

UNDERSTANDING YOUR INSTRUMENT PANEL

to seek up and the left switch to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding either button will bypass
stations without stopping until you release it.

SCAN Button
Pressing the SCAN button causes the tuner to search for
the next listenable station in AM or FM frequencies,
pausing for five seconds at each listenable station before
continuing to the next. To stop the search, press the
SCAN button a second time.

Voice Recognition System (Radio) — If Equipped
Refer to “Voice Recognition System (VR)” in Section 3.

Voice Recognition Button (UConnect

t Hands-Free

Phone) — If Equipped
Press this button to operate the Hands-Free Phone
(UConnect

t) feature (if equipped). Refer to “Hands-Free

Communication (UConnect

t)” in Section 3.

If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With
UConnect” message will display on the radio screen.

Phone Button (UConnect

t Hands-Free Phone) — If

Equipped
Press this button to operate the Hands-Free Phone
(UConnect

t) feature (if equipped). Refer to “Hands-Free

Communication (UConnect

t)” in Section 3.

If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With
UConnect” message will display on the radio screen.

TIME Button
Press the TIME button and the time of day will display. In
AM or FM mode, pressing the TIME button will switch
between the time and frequency displays.

Clock Setting Procedure

1. Press and hold the TIME button, until the hours blink.

UNDERSTANDING YOUR INSTRUMENT PANEL

269

2. Adjust the hours by turning the right side Tune/Scroll
control knob.

3. After adjusting the hours, press the right side Tune/
Scroll control knob to set the minutes. The minutes will
begin to blink.

4. Adjust the minutes using the right side Tune/Scroll
control knob. Press the Tune/Scroll control knob to save
time change.

5. To exit, press any button/knob or wait five seconds.

The clock can also be set by pressing the SETUP button.
For vehicles equipped with satellite radio, press the
SETUP button, use the Tune/Scroll control to select SET
CLOCK, and then follow the above procedure, starting at
Step 2. For vehicles not equipped with satellite radio,
press the SETUP button and then follow the above
procedure, starting at Step 2.

INFO Button
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).

RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.

TUNE Control
Turn the rotary Tune/Scroll control knob clockwise to
increase or counterclockwise to decrease the frequency.

Setting the Tone, Balance, and Fade
Push the rotary Tune/Scroll control knob and BASS will
display. Turn the Tune/Scroll control knob to the right or
left to increase or decrease the bass tones.

270

UNDERSTANDING YOUR INSTRUMENT PANEL

Push the rotary Tune/Scroll control knob a second time
and MID will display. Turn the Tune/Scroll control knob
to the right or left to increase or decrease the mid-range
tones.

Push the rotary Tune/Scroll control knob a third time and
TREBLE will display. Turn the Tune/Scroll control knob
to the right or left to increase or decrease the treble tones.

Push the rotary Tune/Scroll control knob a fourth time
and BALANCE will display. Turn the Tune/Scroll control
knob to the right or left to adjust the sound level from the
right or left side speakers.

Push the rotary Tune/Scroll control knob a fifth time and
FADE will display. Turn the Tune/Scroll control knob to
the left or right to adjust the sound level between the
front and rear speakers.

Push the rotary Tune/Scroll control knob again to exit
setting tone, balance, and fade.

MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the Tune/Scroll control knob within five
seconds will allow the program format type to be se-
lected. Many radio stations do not currently broadcast
Music Type information.

Toggle the MUSIC TYPE button to select the following
format types:

Program Type

16-Digit Character

Display

No program type or un-

defined

None

Adult Hits

Adlt Hit

Classical

Classicl

Classic Rock

Cls Rock

College

Country

UNDERSTANDING YOUR INSTRUMENT PANEL

271

Program Type

16-Digit Character

Display

Foreign Language

Language

Information

Inform

Jazz

News

Nostalgia

Nostalga

Oldies

Personality

Persnlty

Public

Rhythm and Blues

R & B

Religious Music

Rel Musc

Religious Talk

Rel Talk

Rock

Soft

Soft Rock

Soft Rck

Soft Rhythm and Blues

Soft R & B

Program Type

16-Digit Character

Display

Sports

Talk

Top 40

Weather

By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency
station with the same selected Music Type name. The
Music Type function only operates when in the FM
mode.

If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.

272

UNDERSTANDING YOUR INSTRUMENT PANEL

SETUP Button
Pressing the SETUP button allows you to select between
the following items:

• Set Clock — Pressing the SELECT button will allow

you to set the clock. Turn the Tune/Scroll control knob
to adjust the hours and then press and turn the
Tune/Scroll control knob to adjust the minutes. Press
the Tune/Scroll control knob again to save changes.

AM and FM Buttons
Press the buttons to select AM or FM modes.

selected within five seconds after pressing the SET but-
ton, the station will continue to play but will not be
stored into pushbutton memory.

You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2 in
both AM and FM. This allows a total of 12 AM and 12 FM
stations to be stored into pushbutton memory. The sta-
tions stored in SET 2 memory can be selected by pressing
the pushbutton twice.

Every time a preset button is used, a corresponding
button number will display.

Buttons 1 - 6
These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM
stations).

UNDERSTANDING YOUR INSTRUMENT PANEL

273

DISC Button
Pressing the DISC button will allow you to switch from
AM/FM modes to Disc modes.

Operation Instructions - CD MODE for CD and
MP3 Audio Play

NOTE:

The ignition switch must be in the ON or ACC

position to operate the radio.

NOTE:

This radio is capable of playing compact discs

(CD), recordable compact discs (CD-R), rewritable com-
pact discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.

Inserting Compact Disc(s)
Gently insert one CD into the CD player with the CD
label facing up. The CD will automatically be pulled into
the CD player and the CD icon will illuminate on the
radio display. If a CD does not go into the slot more than
1.0 in (2.5 cm), a disc may already be loaded and must be
ejected before a new disc can be loaded.

If you insert a disc with the ignition ON and the radio
ON, the unit will switch from radio to CD mode and
begin to play when you insert the disc. The display will
show the disc number, the track number, and index time
in minutes and seconds. Play will begin at the start of
track 1.

274

UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION!

• This CD player will accept 4–3/4 in (12 cm) discs

only. The use of other sized discs may damage the
CD player mechanism.

• Do not use adhesive labels. These labels can peel

away and jam the player mechanism.

• RES is a single CD player. Do not attempt to insert

a second CD if one is already loaded.

• Dual-media disc types (one side is a DVD, the

other side is a CD) should not be used, and they
can cause damage to the player.

EJECT Button - Ejecting a CD

Press the EJECT button to eject the CD.

If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.

A disc can be ejected with the radio and ignition OFF.

NOTE:

Ejecting with ignition OFF is not allowed on

convertible or soft-top models (if equipped).

SEEK Button
Press the right SEEK button for the next selection on the
CD. Press the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of
the current selection. Pressing and holding the SEEK
button will allow faster scrolling through the tracks in
CD, MP3 modes.

SCAN Button
Press the SCAN button to scan through each track on the
CD currently playing.

UNDERSTANDING YOUR INSTRUMENT PANEL

275

Dodge Caravan (2008 year). Manual - part 17
