Dodge Caravan (2008 year). Manual

Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the Menu button. To reset the oil change indicator
system (after performing the scheduled maintenance)
refer to the following procedure.

1. Turn the ignition switch to the ON position (Do not
start the engine).

2. Fully depress the accelerator pedal slowly three times
within 10 seconds.

3. Turn the ignition switch to the OFF/LOCK position.

NOTE:

If the indicator message illuminates when you

start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.

TRIP FUNCTIONS

Press and release the MENU button until one of the
following Trip Functions displays in the EVIC:

Press the STEP button to scroll through all the Trip
Computer functions.

The Trip Functions mode displays the following informa-
tion:

Average Fuel Economy
Shows the average fuel economy since the last reset.
When the fuel economy is reset, the display will read
“RESET” or show dashes for two seconds. Then, the
history information will be erased, and the averaging will
continue from the last fuel average reading before the
reset.

244

UNDERSTANDING YOUR INSTRUMENT PANEL

Distance To Empty (DTE)
Shows the estimated distance that can be traveled with
the fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level.

NOTE:

Significant changes in driving style or vehicle

loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE displayed value.

When the DTE value is less than 30 miles (48 km)
estimated driving distance, the DTE display will change
to a text display of

9LOW FUEL.9 This display will

continue until the vehicle runs out of fuel. Adding a
significant amount of fuel to the vehicle will turn off the

9LOW FUEL9 text and a new DTE value will display.

Elapsed Time
Shows the total elapsed time of travel since the last reset
when the ignition switch is in the ACC position. Elapsed
time will increment when the ignition switch is in the ON
or START position.

Display Units of Measure in:
To make your selection, press and release the STEP
button until “US” or “METRIC” appears.

To Reset The Display
Reset will only occur while a resettable function is being
displayed. Press and release the RESET button once to
clear the resettable function being displayed. To reset all
resettable functions, press and release the RESET button
a second time within three seconds of resetting the
currently displayed function (Reset ALL will display
during this three-second window).

UNDERSTANDING YOUR INSTRUMENT PANEL

245

COMPASS DISPLAY

The compass readings indicate the direction
the vehicle is facing. Press and release the
compass button to display one of eight com-
pass readings and the outside temperature.

Automatic Compass Calibration
This compass is self-calibrating, which eliminates the
need to manually reset the compass. When the vehicle is
new, the compass may appear erratic and the EVIC will
display CAL until the compass is calibrated. You may
also calibrate the compass by completing one or more
360° turns (in an area free from large metal or metallic
objects) until the CAL indicator displayed in the EVIC
turns off. The compass will now function normally.

Manual Compass Calibration
If the compass appears erratic and the CAL indicator
does not appear in the EVIC display, you must put the
compass into the Calibration Mode manually as follows:

1. Turn on the ignition switch.

2. Press the MENU button until Personal Settings (Cus-
tomer Programmable Features) menu is reached.

3. Press the STEP button until “Calibrate Compass” is
displayed in the EVIC.

4. Press and release the RESET button to start the cali-
bration. The “CAL” indicator will be displayed in the
EVIC.

5. Complete one or more 360° turns (in an area free from
large metal or metallic objects) until the CAL indicator
turns off. The compass will now function normally.

246

UNDERSTANDING YOUR INSTRUMENT PANEL

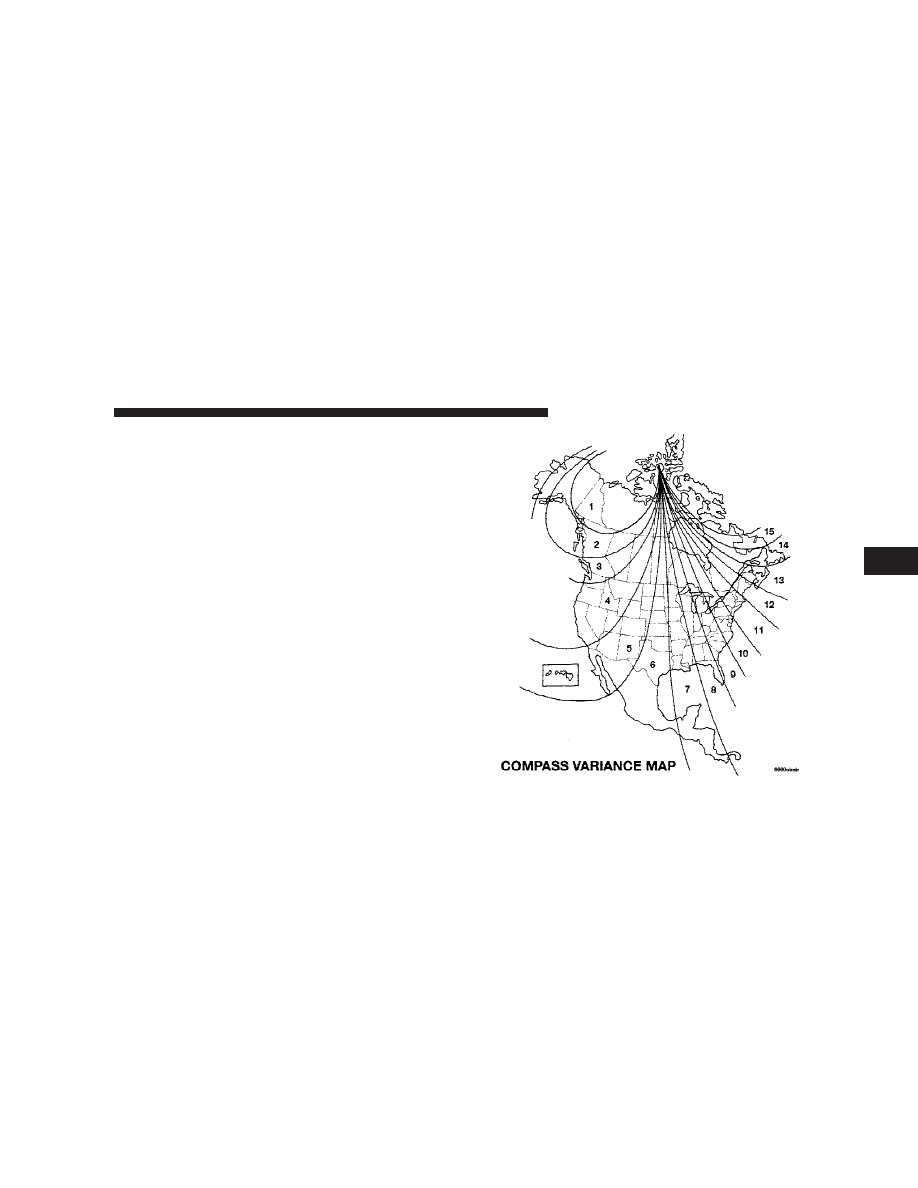

Compass Variance
Compass Variance is the difference between magnetic
North and Geographic North. In some areas of the
country, the difference between magnetic and geographic
North is great enough to cause the compass to give false
readings. For the most accurate compass performance,
the compass variance must be set using the following
procedure:

NOTE:

Magnetic materials should be kept away from

the top of the instrument panel. This is where the
compass sensor is located.

UNDERSTANDING YOUR INSTRUMENT PANEL

247

1. Turn the ignition switch ON.

2. Press and hold the compass button for approximately
two seconds.

3. Press the STEP button until “Compass Variance” mes-
sage and the last variance zone number displays in the
EVIC.

4. Press and release STEP button until the proper vari-
ance zone is selected according to the map.

5. Press and release the compass button to exit.

PERSONAL SETTINGS (CUSTOMER
PROGRAMMABLE FEATURES)

Personal Settings allows the driver to set and recall
features when the transmission is in PARK. If the trans-
mission is out of PARK or the vehicle begins moving, a
warning message PERSONAL SETTING NOT AVAIL-
ABLE

followed in three seconds by VEHICLE NOT IN

PARK

Press and release the MENU button until Personal Set-
tings displays in the EVIC.

Use the Step button to display one of the following
choices:

Language
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the reset button while in this display to select English,
Spanish (Español), French (Français), Italian (Italiano),
German (Deutsch), and Dutch (Nederlands). Then, as
you continue, the information will display in the selected
language.

Lock Doors Automatically at 15 mph (24 km/h)
When ON is selected, all doors will lock automatically
when the vehicle reaches a speed of 15 mph (24 km/h).
To make your selection, press and release the RESET
button until ON or OFF appears.

248

UNDERSTANDING YOUR INSTRUMENT PANEL

Unlock Doors Automatically on Exit
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the RESET button
until ON or OFF appears.

Remote Key Unlock
When Driver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the remote keyless
entry unlock button. When Driver Door 1st Press is
selected, you must press of the remote keyless entry
unlock button twice to unlock the passenger’s doors.
When All Doors 1st Press is selected, all of the doors will
unlock on the first press of the remote keyless entry
unlock button. To make your selection, press and release
the RESET button until “Driver Door 1st Press” or “All
Doors 1st Press” appears.

Sound Horn with Remote Key Lock
When ON is selected, a short horn sound will occur when
the remote keyless entry LOCK button is pressed. This
feature may be selected with or without the flash lights
on lock/unlock feature. To make your selection, press
and release the RESET button until ON or OFF appears.

Flash Lights with Remote Key Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
remote keyless entry transmitter. This feature may be
selected with or without the sound horn on lock feature
selected. To make your selection, press and release the
RESET button until ON or OFF appears.

Automatic High Beams — If Equipped
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, press and release the FUNCTION

UNDERSTANDING YOUR INSTRUMENT PANEL

249

SELECT button until YES (Y) or NO (N) appears. Refer to
“Lights/SmartBeams — If Equipped” in Section 3 of this
manual for more information.

Headlights On with Wipers (Available with Auto
Headlights Only)
When YES (Y) is selected, and the headlight switch is in
the AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make your
selection, press and release the FUNCTION SELECT
button until YES (Y) or NO (N) appears.

NOTE:

Turning the headlights on during the daytime

causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in Section 3 of this manual.

Delay Turning Headlights Off
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds

when exiting the vehicle. To make your selection, press
and release the RESET button until 0, 30, 60, or 90
appears.

Turn Headlights On with Remote Key Unlock
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the remote keyless entry transmitter. To
make your selection, press and release the RESET button
until OFF, 30 sec., 60 sec., or 90 sec. appears.

Delay Power Off to Accessories Until Exit
When this feature is selected, the power window
switches, radio, hands–free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned off. Opening a vehicle
door will cancel this feature. To make your selection,
press and release the RESET button until Off, 45 sec., 5
min., or 10 min. appears.

250

UNDERSTANDING YOUR INSTRUMENT PANEL

Rear Park Assist System — If Equipped
When ENABLE is selected, the Rear Park Assist System is
activated. When DISABLE is selected, the System is
deactivated and, the instrument cluster will display the

9PARK ASSIST DISABLED9 message.

Display Units of Measure in
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, press and
release the RESET button until US or METRIC appears.

RADIO GENERAL INFORMATION

RADIO BROADCAST SIGNALS

Your radio will provide excellent reception under most
operating conditions. Like any system, however, car
radios have performance limitations, due to mobile op-
eration and natural phenomena, which might lead you to
believe your sound system is malfunctioning. To help

you understand and save you concern about these “ap-
parent” malfunctions, you must understand a point or
two about the transmission and reception of radio sig-
nals.

Two Types of Signals
There are two basic types of radio signals:

1. AM or Amplitude Modulation, in which the transmit-
ted sound causes the amplitude, or height, of the radio
waves to vary.

2. FM or Frequency Modulation, in which the frequency
of the wave is varied to carry the sound.

AM Reception
AM sound is based on wave amplitude, so AM reception
can be disrupted by such things as lightning, power lines
and neon signs.

UNDERSTANDING YOUR INSTRUMENT PANEL

251

FM Reception
Because FM transmission is based on frequency varia-
tions, interference that consists of amplitude variations
can be filtered out, leaving the reception relatively clear,
which is the major feature of FM radio.

NOTE:

The radio, steering wheel radio controls (if

equipped), and six-disc CD/DVD changer (if equipped)
will remain active for up to 90 seconds after the ignition
switch has been turned OFF, depending upon the EVIC,
Accessory Delay setting. Opening a vehicle front door
will cancel this feature.

Electrical Disturbances
Radio waves may pick up electrical disturbances during
transmission. They mainly affect the wave amplitude,
and thus remain a part of the AM reception. They
interfere very little with the frequency variations that
carry the FM signal.

SALES CODE REQ — AM/FM STEREO RADIO
AND 6–DISC CD/DVD CHANGER (MP3/WMA AUX
JACK)

NOTE:

The radio sales code is located on the lower right

side of your radio faceplate.

Operating Instructions - Radio Mode

NOTE:

The ignition switch must be in the ON or ACC

position to operate the radio.

Power Switch/Volume Control (Rotary)
Push the On/Volume control knob to turn on the radio.
Press the control knob a second time to turn off the radio.

Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
On/Volume control knob to the right increases the vol-
ume and to the left decreases it.

252

UNDERSTANDING YOUR INSTRUMENT PANEL

When the audio system is turned on, the sound will be
set at the same volume level as last played.

SEEK Buttons
Press and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Press the right switch
to seek up and the left switch to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding either button will bypass
stations without stopping until you release it.

SCAN Button
Pressing the SCAN button causes the tuner to search for
the next listenable station, in AM, FM or Satellite (if
equipped) frequencies, pausing for five seconds at each
listenable station before continuing to the next. To stop
the search, press the SCAN button a second time.

Voice Recognition Button (UConnect

t Hands-Free

Phone) — If Equipped
Press this button to operate the Hands-Free Phone
(UConnect

t) feature (if equipped). Refer to “Hands-Free

Communication (UConnect

t)” in Section 3.

If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With
UConnect” message will display on the radio screen.

Phone Button (UConnect

t Hands-Free Phone) — If

Equipped
Press this button to operate the Hands-Free Phone
(UConnect

t) feature (if equipped). Refer to “Hands-Free

Communication (UConnect

t)” in Section 3.

If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With
UConnect” message will display on the radio screen.

UNDERSTANDING YOUR INSTRUMENT PANEL

253

TIME Button
Press the TIME button and the time of day will display. In
AM or FM mode, pressing the TIME button will switch
between the time and frequency displays.

Clock Setting Procedure

1. Press and hold the TIME button until the hours blink.

2. Adjust the hours by turning the right side Tune/Scroll
control knob.

3. After adjusting the hours, press the right side Tune/
Scroll control knob to set the minutes. The minutes will
begin to blink.

4. Adjust the minutes using the right side Tune/Scroll
control knob. Press the Tune/Scroll control knob to save
the time change.

5. To exit, press any button/knob or wait five seconds.

The clock can also be set by pressing the SETUP button
and selecting the “SET HOME CLOCK” entry. Once in
this display follow the above procedure, starting at Step
2.

INFO Button
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).

RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in AM, FM
or Satellite (if equipped) frequencies.

TUNE Control
Turn the rotary Tune/Scroll control knob clockwise to
increase or counterclockwise to decrease the frequency.

254

UNDERSTANDING YOUR INSTRUMENT PANEL

Setting the Tone, Balance, and Fade
Push the rotary Tune/Scroll control knob and BASS will
display. Turn the Tune/Scroll control knob to the right or
left to increase or decrease the bass tones.

Push the rotary Tune/Scroll control knob a second time
and MID will display. Turn the Tune/Scroll control knob
to the right or left to increase or decrease the mid-range
tones.

Push the rotary Tune/Scroll control knob a third time and
TREBLE will display. Turn the Tune/Scroll control knob
to the right or left to increase or decrease the treble tones.

Push the rotary Tune/Scroll control knob a fourth time
and BALANCE will display. Turn the Tune/Scroll control
knob to the right or left to adjust the sound level from the
right or left side speakers.

Push the rotary Tune/Scroll control knob a fifth time and
FADE will display. Turn the Tune/Scroll control knob to
the left or right to adjust the sound level between the
front and rear speakers.

Push the rotary Tune/Scroll control knob again to exit
setting tone, balance, and fade.

MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the Tune/Scroll control knob within five
seconds will allow the program format type to be se-
lected. Many radio stations do not currently broadcast
Music Type information.

Toggle the MUSIC TYPE button to select the following
format types:

UNDERSTANDING YOUR INSTRUMENT PANEL

255

Program Type

16-Digit Character

Display

No program type or

undefined

None

Adult Hits

Adlt Hit

Classical

Classicl

Classic Rock

Cls Rock

College

Country

Foreign Language

Language

Information

Inform

Jazz

News

Nostalgia

Nostalga

Oldies

Personality

Persnlty

Public

Program Type

16-Digit Character

Display

Rhythm and Blues

R & B

Religious Music

Rel Musc

Religious Talk

Rel Talk

Rock

Soft

Soft Rock

Soft Rck

Soft Rhythm and Blues

Soft R&B

Sports

Talk

Top 40

Weather

By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency

256

UNDERSTANDING YOUR INSTRUMENT PANEL

station with the same selected Music Type name. The
Music Type function only operates when in the FM
mode.

If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.

SETUP Button
Pressing the SETUP button allows you to select between
the following items:

NOTE:

Turn the Tune/Scroll control knob to scroll

through the entries. Push the AUDIO/SELECT button to
select an entry and make changes.

• DVD Enter - When the disc is in DVD Menu mode,

selecting DVD Enter will allow you to play the current
highlighted selection. Use the remote control to scroll
up and down the menu (if equipped).

• DISC Play/Pause - You can toggle between

playing the DVD and pausing the DVD by
pushing the SELECT button (if equipped).

• DVD Play Options - Selecting the DVD Play Options

will display the following:

• Subtitle – Repeatedly pressing SELECT will switch

subtitles to different subtitle languages that are
available on the disc (if equipped).

• Audio Stream – Repeatedly pressing SELECT will

switch to different audio languages (if supported on
the disc) (if equipped).

• Angle – Repeatedly pressing SELECT will change

the viewing angle if supported by the DVD disc (if
equipped).

NOTE:

The available selections for each of the above

entries varies depending upon the disc.

UNDERSTANDING YOUR INSTRUMENT PANEL

257

NOTE:

These selections can only be made while playing

a DVD.

• VESt Power - Allows you to turn VESt on and off (if

equipped).

• VESt Lock - Locks out rear VESt remote controls (if

equipped).

• VESt CH1/CH2 - Allows the user to change the mode

of either the IR1 or IR2, wireless headphones by
pressing the AUDIO/SELECT button (if equipped).

• Set Home Clock - Pressing the SELECT button allows

you to set the clock. Turn the Tune/Scroll control knob
to adjust the hours and then press and turn the
Tune/Scroll control knob to adjust the minutes. Press
the Tune/Scroll control knob again to save changes.

• Player Defaults - Selecting this item will allow the

user to scroll through the following items, and set
defaults according to customer preference.

Menu Language — If Equipped

Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if
language supported by disc). If you want to select a
language not listed, then scroll down and select

9other.9

Enter the four-digit country code using the Tune/Scroll
control knob to scroll up and down to select the number
and then push to select.

Audio Language — If Equipped

Selecting this item allows you to choose a default audio
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting

9other.9 Enter the country code using

the Tune/Scroll control knob to scroll up and down to
select the number and then push to select.

258

UNDERSTANDING YOUR INSTRUMENT PANEL

Subtitle Language — If Equipped

Selecting this item allows you to choose a default subtitle
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting

9other.9 Enter the country code using

the Tune/Scroll control knob to scroll up and down to
select the number and then push to select.

Subtitles — If Equipped

Selecting this item allows you to choose between subtitle
Off or On.

Audio DRC — If Equipped

Selecting this item allows you to limit maximum audio
dynamic range. The default is set to

9High,9 and under

this setting, dialogues will play at 11 db higher than if the
setting is

9Normal.9

Aspect Ratio — If Equipped

Selecting this item allows you to choose between wide
screen, pan scan, and letter box.

AutoPlay — If Equipped

When this is set to On and a DVD video is inserted, it will
bypass the DVD menu screen and automatically play the
movie. In some rare cases, the DVD player may not
auto-play the main title. In such cases, use the MENU
button on the remote control to select desired title to play.

NOTE:

The user will have to set these defaults before

loading a disc. If changes are made to these settings after
a disc is loaded, changes will not be effective. Also, the
defaults are effective only if the disc supports the
customer-preferred settings.

AM and FM Buttons
Press the buttons to select AM or FM Modes.

UNDERSTANDING YOUR INSTRUMENT PANEL

259

Dodge Caravan (2008 year). Manual - part 16
