Dodge Viper SRT-10 (ZB). Manual - part 458

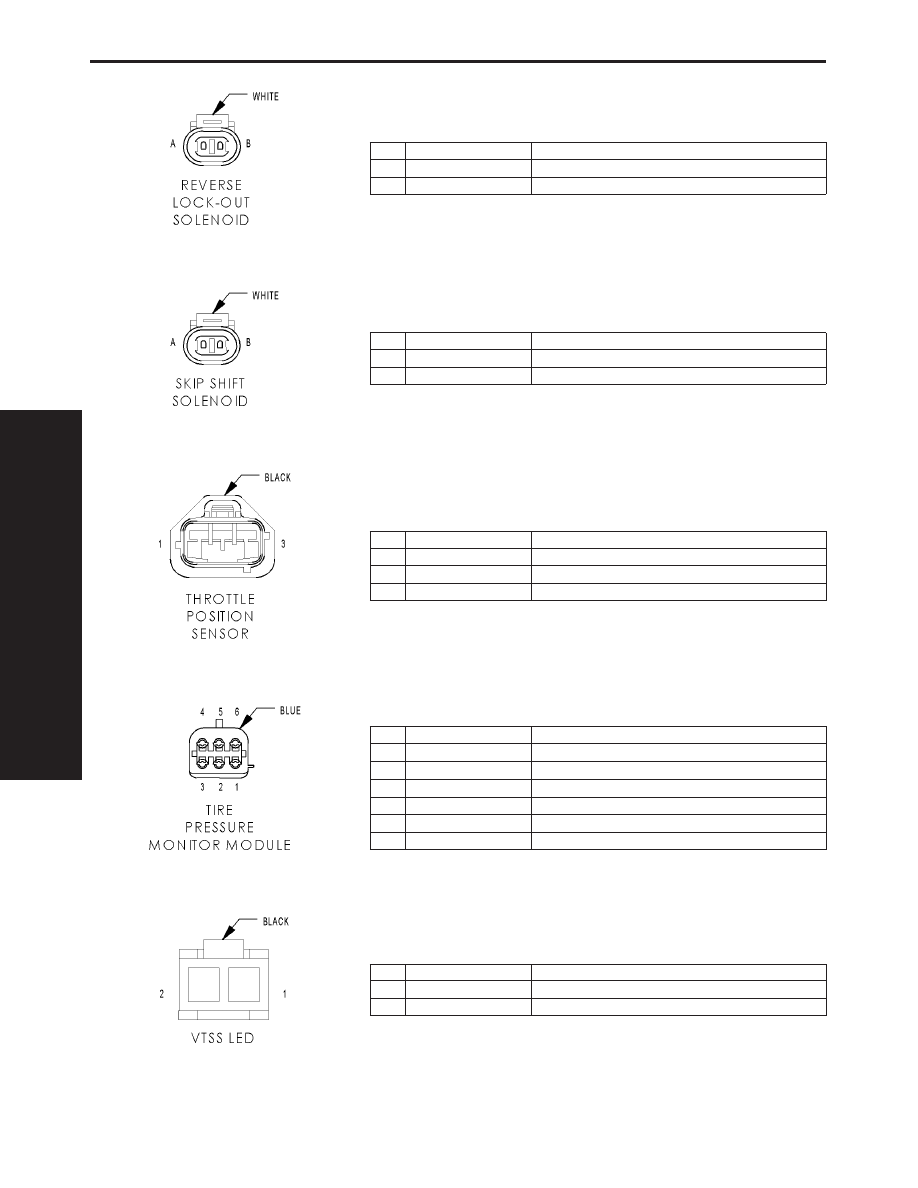

REVERSE LOCK-OUT SOLENOID - WHITE 2 WAY

CAV

CIRCUIT

FUNCTION

A

F202 20PK/GY

FUSED IGNITION SWITCH OUTPUT (RUN-START)

B

K136 20LB/BK

REVERSE LOCK-OUT SOLENOID CONTROL

SKIP SHIFT SOLENOID - WHITE 2 WAY

CAV

CIRCUIT

FUNCTION

A

F202 20PK/GY

FUSED IGNITION SWITCH OUTPUT (RUN-START)

B

K33 20GY/OR

SKIP SHIFT SOLENOID CONTROL

THROTTLE POSITION SENSOR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K900 20DB/DG

SENSOR GROUND

2

K22 18OR/DB

TP SIGNAL

3

K7 20OR

5V SUPPLY

TIRE PRESSURE MONITOR MODULE - BLUE 6 WAY

CAV

CIRCUIT

FUNCTION

1

D21 20PK

SCI TRANSMIT

2

-

-

3

Z2 20BK/LG

GROUND

4

G5 20DB/WT

FUSED IGNITION SWITCH OUTPUT (RUN-START)

5

-

-

6

G94 20LG

LOW TIRE PRESSURE SIGNAL

VTSS LED - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

G69 20BK/OR

VTSS INDICATOR DRIVER

2

Z1 20BK

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

240

CONNECTOR PINOUTS

10.0

SCHEMATIC DIAGRAMS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

241

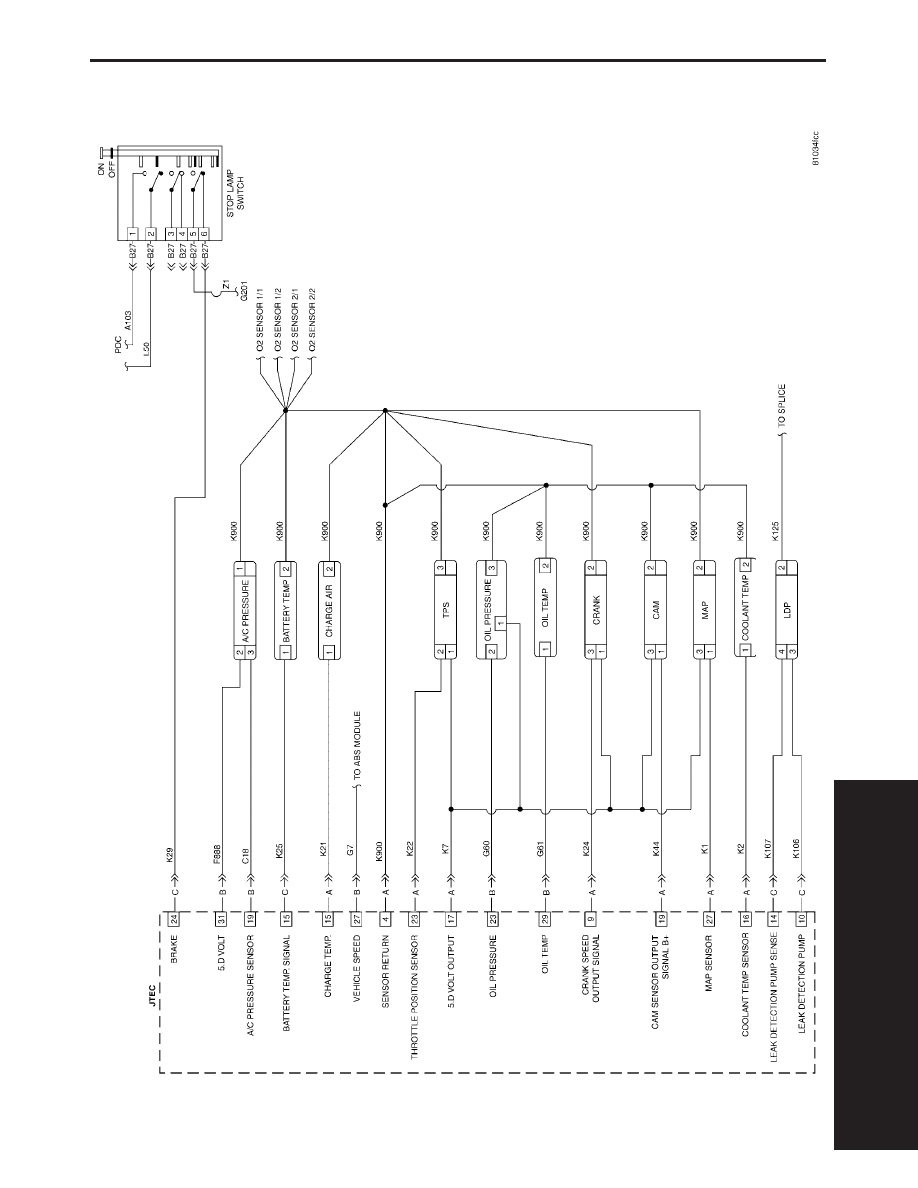

SCHEMATIC DIAGRAMS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

242

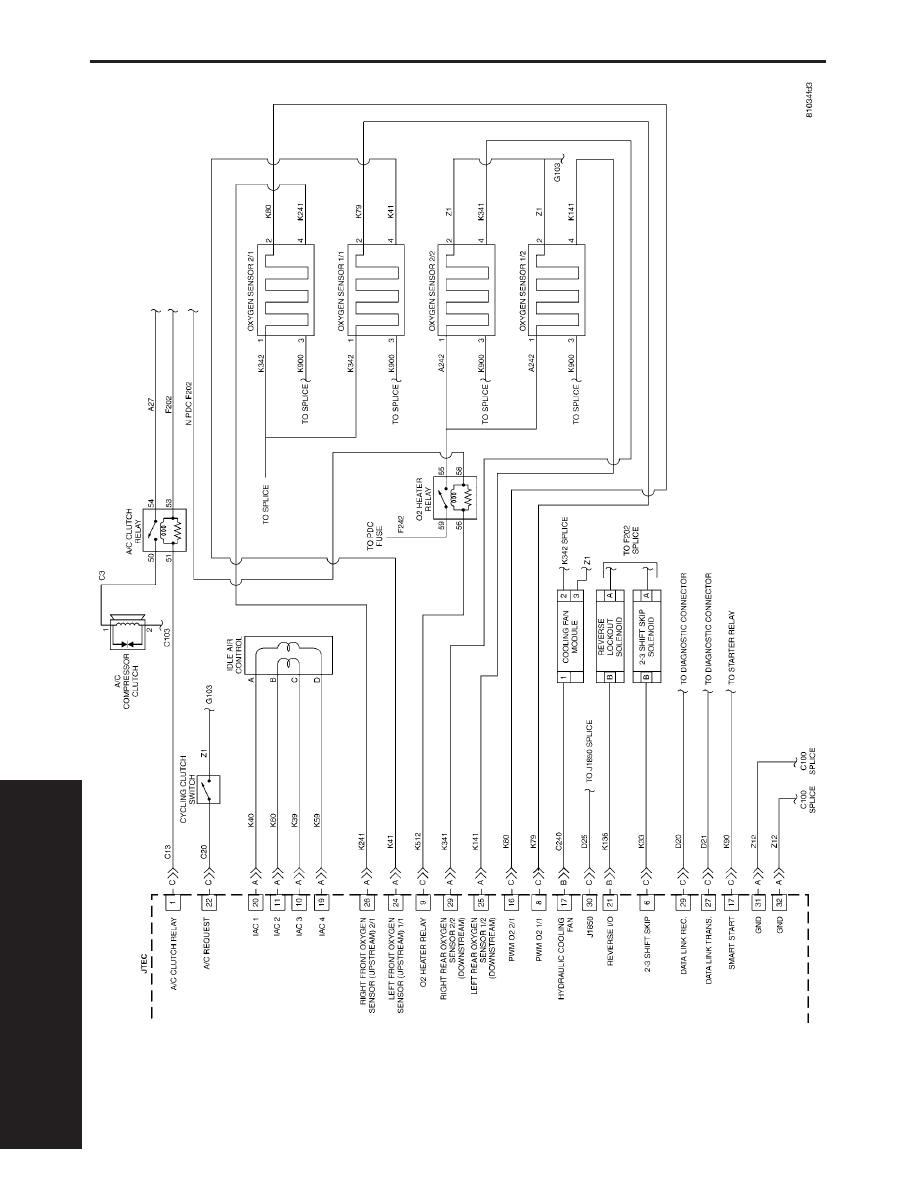

SCHEMATIC DIAGRAMS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

243

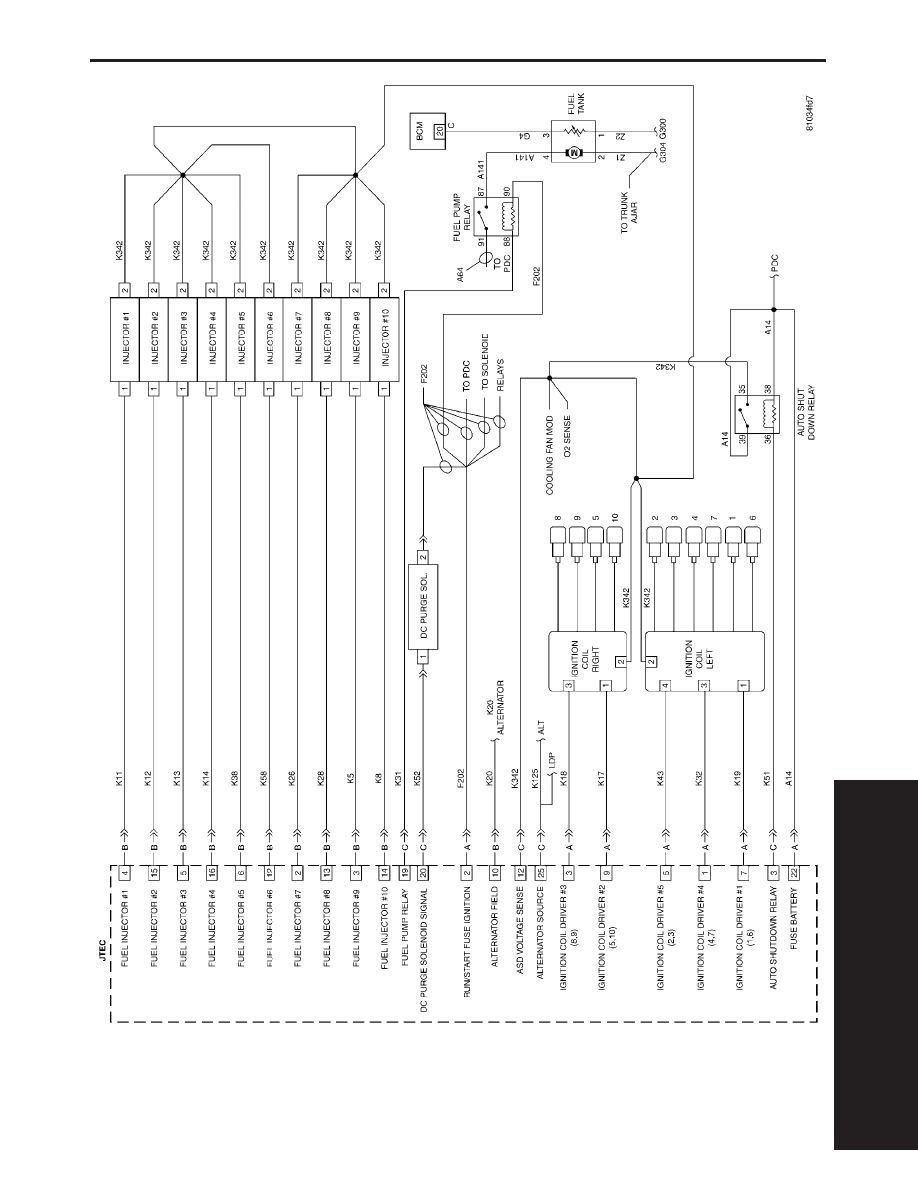

SCHEMATIC DIAGRAMS
