Dodge Viper SRT-10 (ZB). Manual - part 454

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

224

COMPONENT LOCATIONS

8.4

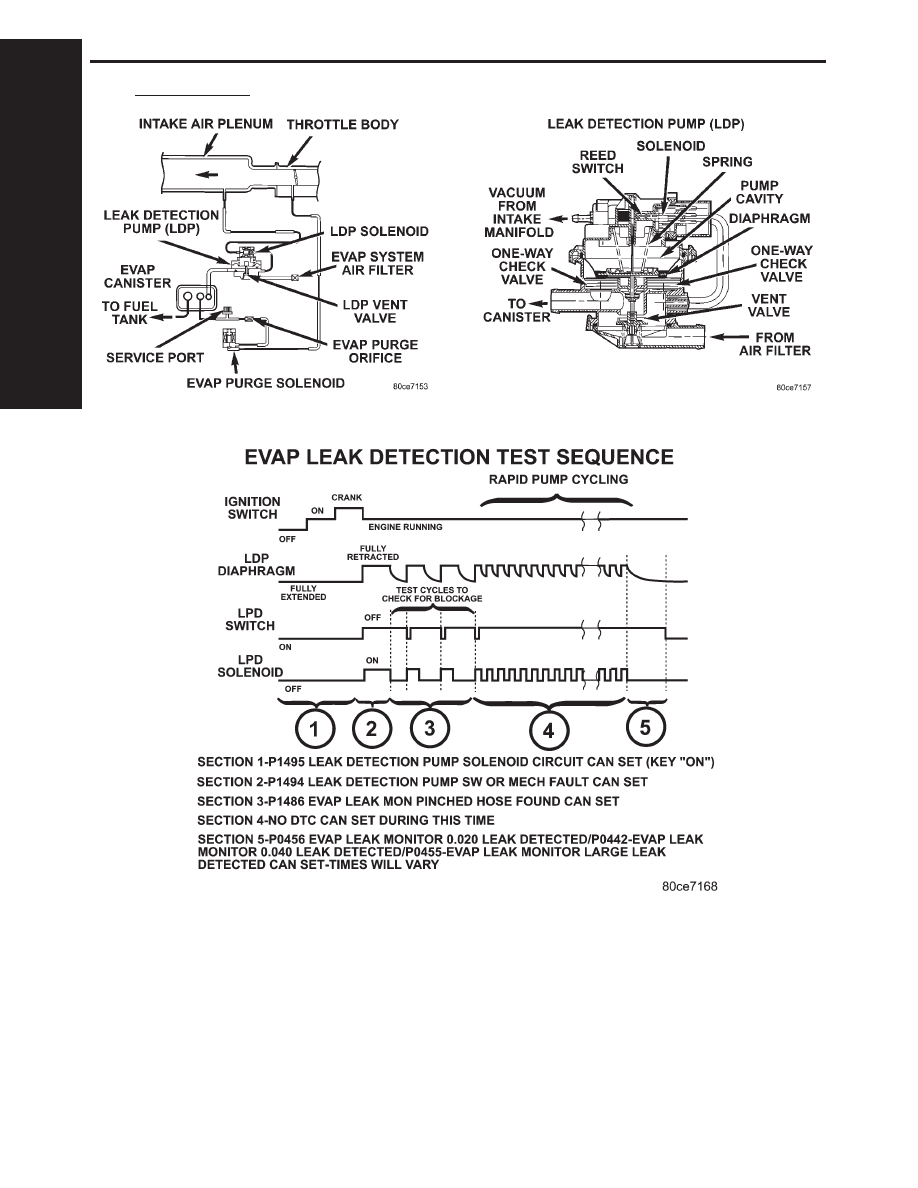

FUEL SYSTEM (Continued)

9.0

CONNECTOR PINOUTS

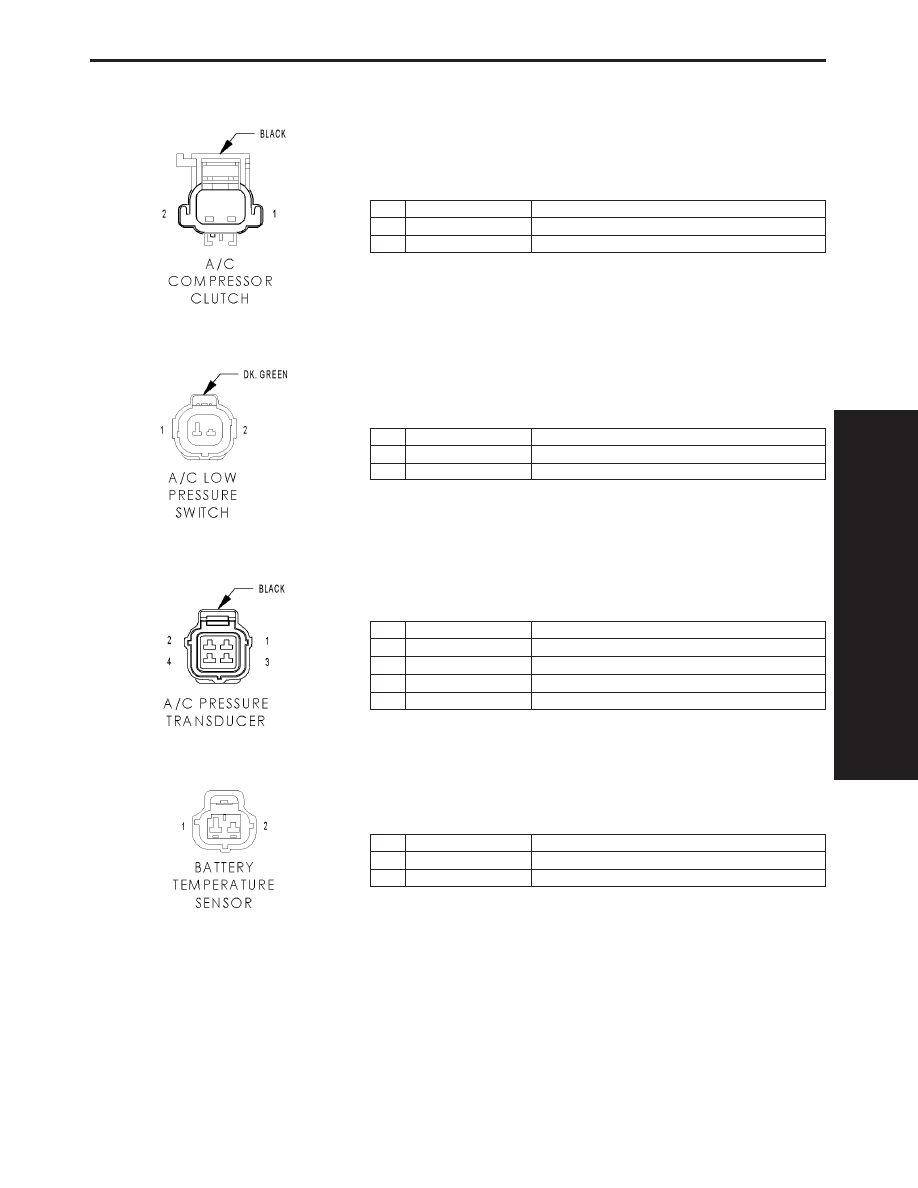

A/C COMPRESSOR CLUTCH - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

C3 18DB/BK

A/C CLUTCH RELAY OUTPUT

2

Z1 18BK

GROUND

A/C LOW PRESSURE SWITCH - DK. GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

C20 18BR

A/C SWITCH SENSE

2

Z1 20BK

GROUND

A/C PRESSURE TRANSDUCER - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

K900 20DB/DG

SENSOR GROUND

2

F888 20BR/PK

5V SUPPLY

3

C18 20DB

A/C PRESSURE SIGNAL

4

-

-

BATTERY TEMPERATURE SENSOR - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K25 20VT/LG

BATTERY TEMPERATURE SENSOR SIGNAL

2

K900 20DB/DG

SENSOR GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

225

CONNECTOR PINOUTS

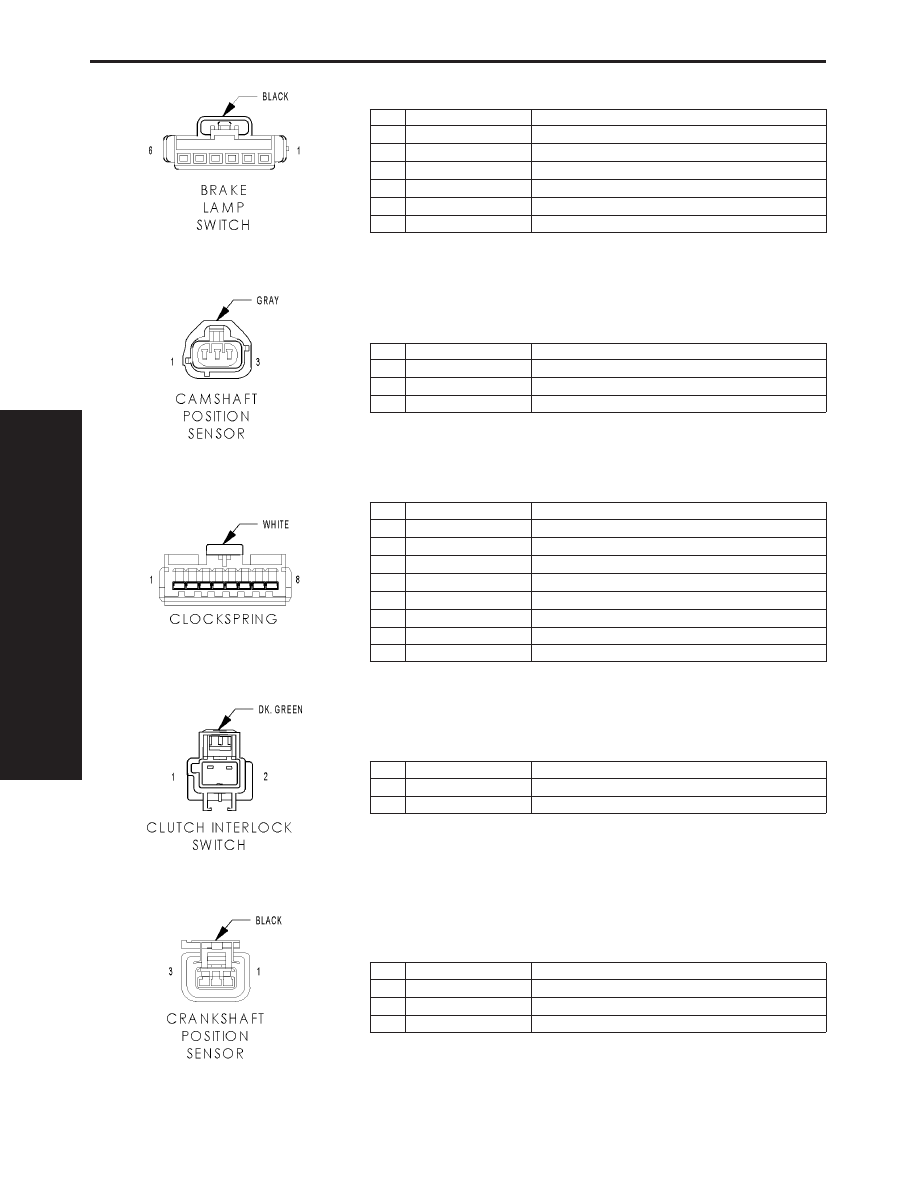

BRAKE LAMP SWITCH - BLACK 6 WAY

CAV

CIRCUIT

FUNCTION

1

A103 20GY/RD

FUSED B(+)

2

L50 20WT/TN

BRAKE LAMP SWITCH OUTPUT

3

-

-

4

-

-

5

Z1 20BK

GROUND

6

K29 20WT/PK

BRAKE LAMP SWITCH SENSE

CAMSHAFT POSITION SENSOR - GRAY 3 WAY

CAV

CIRCUIT

FUNCTION

1

K44 18TN/YL

CMP SIGNAL

2

K900 20DB/DG

SENSOR GROUND

3

K7 20OR

5V SUPPLY

CLOCKSPRING - WHITE 8 WAY

CAV

CIRCUIT

FUNCTION

1

R45 20DG/LB

DRIVER SQUIB 1 LINE 2

2

R43 20BK/LB

DRIVER SQUIB 1 LINE 1

3

R63 20TN/LB

DRIVER SQUIB 2 LINE 2

4

R61 20OR/LB

DRIVER SQUIB 2 LINE 1

5

-

-

6

X920 20GY/OR

RADIO CONTROL MUX RETURN

7

X20 20GY/WT

RADIO CONTROL MUX

8

X103 20GY/VT

HORN SWITCH SENSE

CLUTCH INTERLOCK SWITCH - DK.GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

F145 20YL/RD

STARTER SWITCH SENSE

2

F45 20YL/BK

FUSED IGNITION SWITCH OUTPUT (START)

CRANKSHAFT POSITION SENSOR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K7 20OR

5V SUPPLY

2

K900 20DB/DG

SENSOR GROUND

3

K24 18GY/BK

CKP SIGNAL

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

226

CONNECTOR PINOUTS

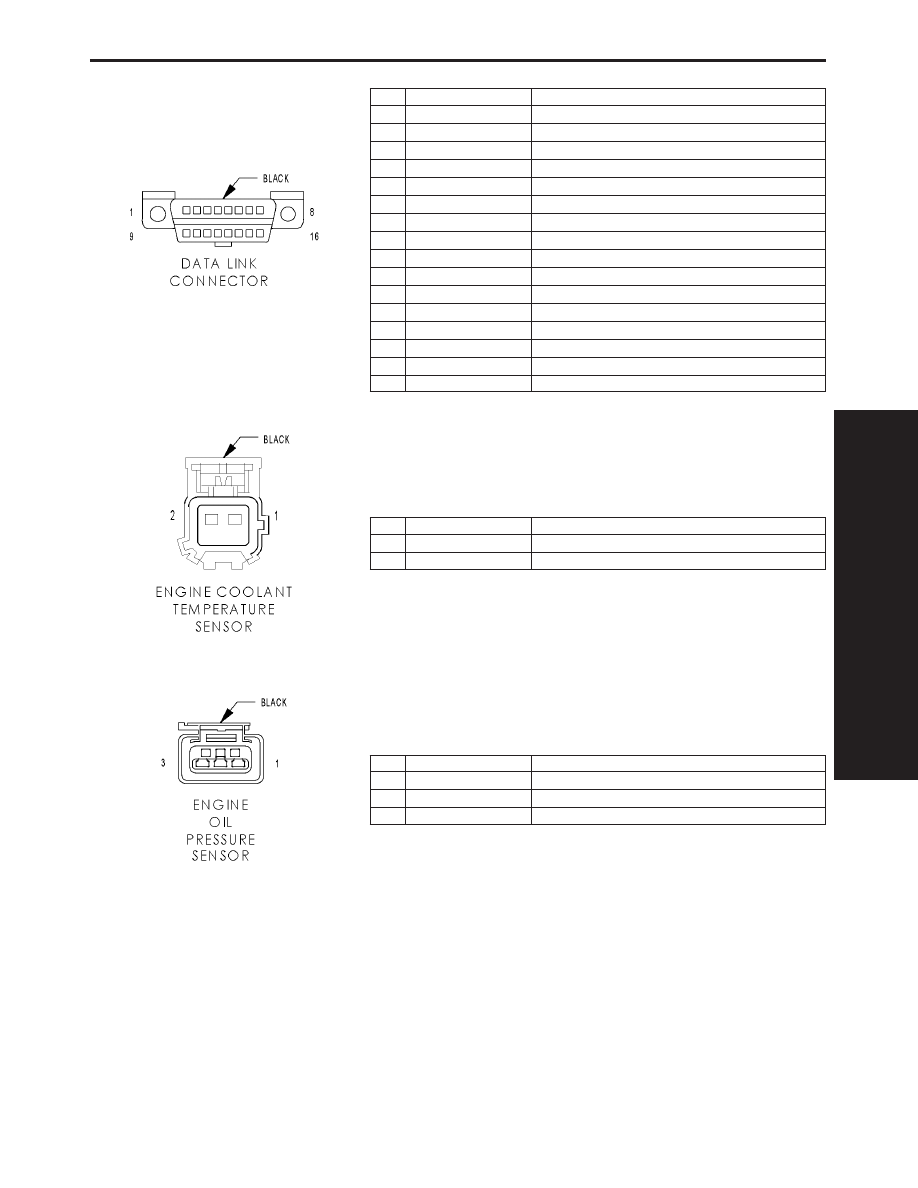

DATA LINK CONNECTOR - BLACK 16 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

D25 20VT/YL

PCI BUS

3

-

-

4

Z2 20BK/LG

GROUND

5

Z40 18BK/VT

GROUND

6

D20 20LG

SCI RECEIVE

7

D21 20PK

SCI TRANSMIT

8

-

-

9

D23 20WT/BR

FLASH PROGRAM ENABLE

10

D24 20WT/DG

FLASH ABS

11

-

-

12

-

-

13

-

-

14

-

-

15

-

-

16

A105 18DB/RD

FUSED B(+)

ENGINE COOLANT TEMPERATURE SENSOR - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K2 18TN/BK

ECT SIGNAL

2

K900 20DB/DG

SENSOR GROUND

ENGINE OIL PRESSURE SENSOR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K7 20OR

5V SUPPLY

2

G60 18GY/YL

OIL PRESSURE SENSOR SIGNAL

3

K900 20DB/DG

SENSOR GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

227

CONNECTOR PINOUTS
