DOOR OUTER BELT
WEATHERSTRIP

REMOVAL

(1) Remove the door glass. (Refer to 23 - BODY/

DOOR - FRONT/DOOR GLASS - REMOVAL)

(2) Remove the screws and remove the weather

strip. (Fig. 2)

INSTALLATION

(1) Install the weather strip and install the screws.
(2) Install the door glass. (Refer to 23 - BODY/

DOOR - FRONT/DOOR GLASS - INSTALLATION)

DOOR SECONDARY SEAL
WEATHERSTRIP

REMOVAL

(1) Remove the two rear push pin fasteners. (Fig.

3)

(2) Separate the weatherstrip push pin fasteners

and remove.

INSTALLATION

(1) Position the weatherstrip and install the rear

upper push pin fasteners.

(2) Starting at the rear, seat the remaining push

pin fasteners fully.

(3) Remove the protective tape at the front and

firmly seat the weatherstrip to the door.

WINDSHIELD HEADER &
A-PILLAR WEATHERSTRIP

REMOVAL

(1) Remove the a-pillar trim. (Refer to 23 - BODY/

INTERIOR/A-PILLAR TRIM - REMOVAL)

(2) Remove the nuts and push pins.
(3) Remove the weatherstrip. (Fig. 4)

INSTALLATION

(1) Clean the header with a suitable cleaner.
(2) Install the weatherstrip making sure a tight

joint to the primary weatherstrip exists.

(3) Install the weatherstrip push pins and the nuts

and tighten the nuts to 6 N·m (55 in. lbs.).

(4) Install the a-pillar trim. (Refer to 23 - BODY/

INTERIOR/A-PILLAR TRIM - INSTALLATION)

SIDE RAIL WEATHERSTRIP

REMOVAL

(1) Remove the weatherstrips and clean off the

adhesive with a suitable cleaner. (Fig. 5)

INSTALLATION

(1) Unlatch and partially lower the convertible top.
(2) Clean the ends of the retainer with suitable

cleaner.

(3) Install the weatherstrips in the correct posi-

tion.

Fig. 2 DOOR OUTER BELT WEATHERSTRIP

1 - DOOR OUTER BELT WEATHERSTRIP
2 - FRONT DOOR

Fig. 3 DOOR SECONDARY SEAL WEATHERSTRIP

1 - FRONT DOOR INNER BELT WEATHERSTRIP
2 - FRONT DOOR
3 - SECONDARY SEAL WEATHERSTRIP

23 - 92

WEATHERSTRIP/SEALS

ZB

(4) Remove the tape liner and wet out tape to

retainer.

DECKLID OPENING
WEATHERSTRIP

REMOVAL

(1) Open the decklid and Using a grease pencil or

equivalent, mark the position of the seal seam to aid
installation.

(2) Remove the weatherstrip. (Fig. 6)

INSTALLATION

(1) Position the weatherstrip and align the seam

with the mark made previously.

(2) Seat the weatherstrip along the flange fully.

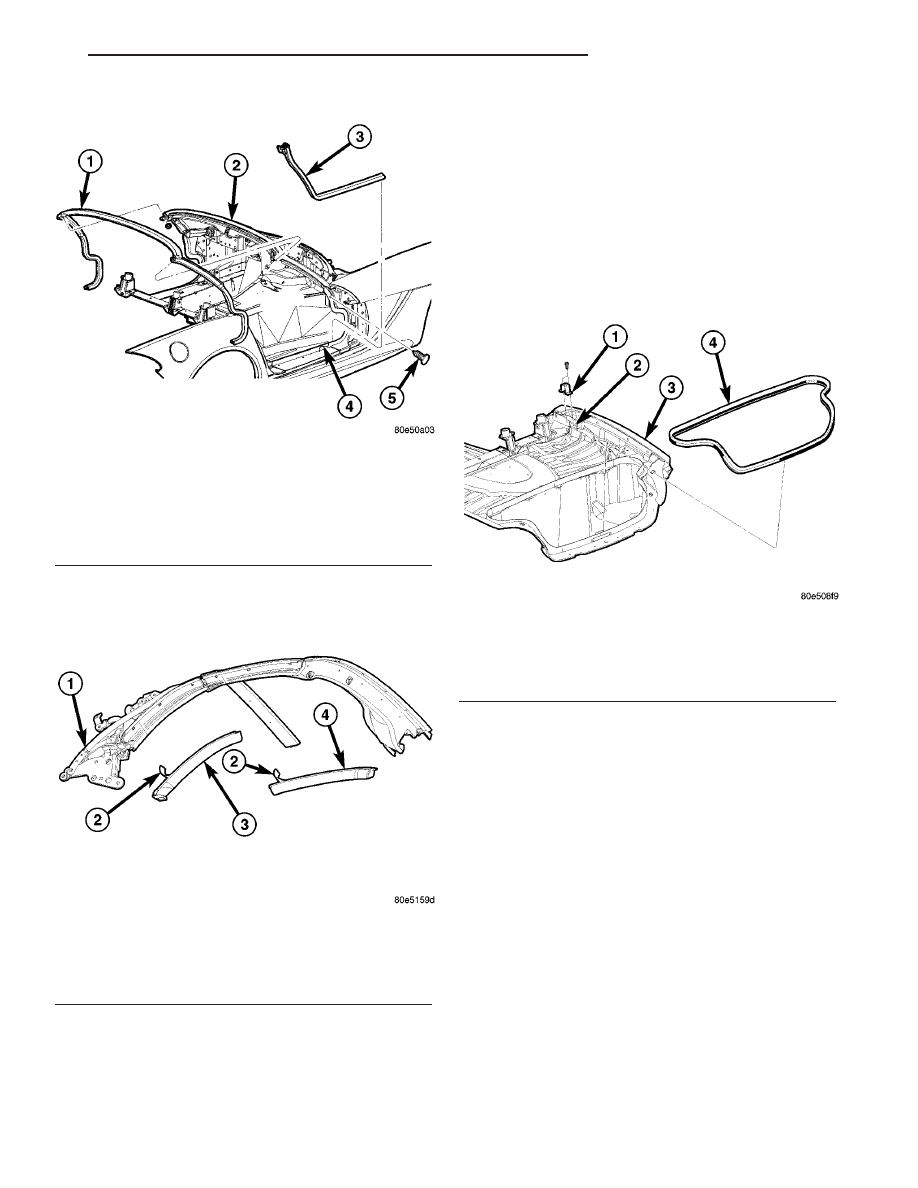

Fig. 4 WINDSHIELD HEADER & A-PILLAR

WEATHERSTRIP

1 - WINDSHIELD HEADER & A-PILLAR WEATHERSTRIP
2 - WINDSHIELD SURROUND
3 - DOOR OPENING PRIMARY SEAL WEATHERSTRIP
4 - DOOR SURROUND
5 - PUSH PIN

Fig. 5 FRONT/REAR SIDE RAIL WEATHERSTRIP

1 - TOP ASSEMBLY
2 - TAPE LINER
3 - REAR SIDE RAIL WEATHERSTRIP
4 - FRONT SIDE RAIL WEATHERSTRIP

Fig. 6 DECKLID OPENING WEATHERSTRIP

1 - OVERSLAM BUMPER BRACKET
2 - TRUNK PAN
3 - BODY ASSEMBLY
4 - DECKLID OPENING WEATHERSTRIP

ZB

WEATHERSTRIP/SEALS

23 - 93

SIDE RAIL WEATHERSTRIP (Continued)

BODY STRUCTURE

TABLE OF CONTENTS

page

page

GAP AND FLUSH

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . . 94

OPENING DIMENSIONS

SPECIFICATIONS

OPENING DIMENSIONS

. . . . . . . . . . . . . . . . 96

SEALER LOCATIONS

SPECIFICATIONS

SEALER LOCATIONS

. . . . . . . . . . . . . . . . . . 99

STRUCTURAL ADHESIVE LOCATIONS

SPECIFICATIONS

STRUCTURAL ADHESIVE LOCATIONS

. . . . 102

WELD LOCATIONS

SPECIFICATIONS

WELD LOCATIONS

. . . . . . . . . . . . . . . . . . . 103

GAP AND FLUSH

SPECIFICATIONS

GAP & FLUSH DIMENSIONS INDEX

DESCRIPTION

FIGURE

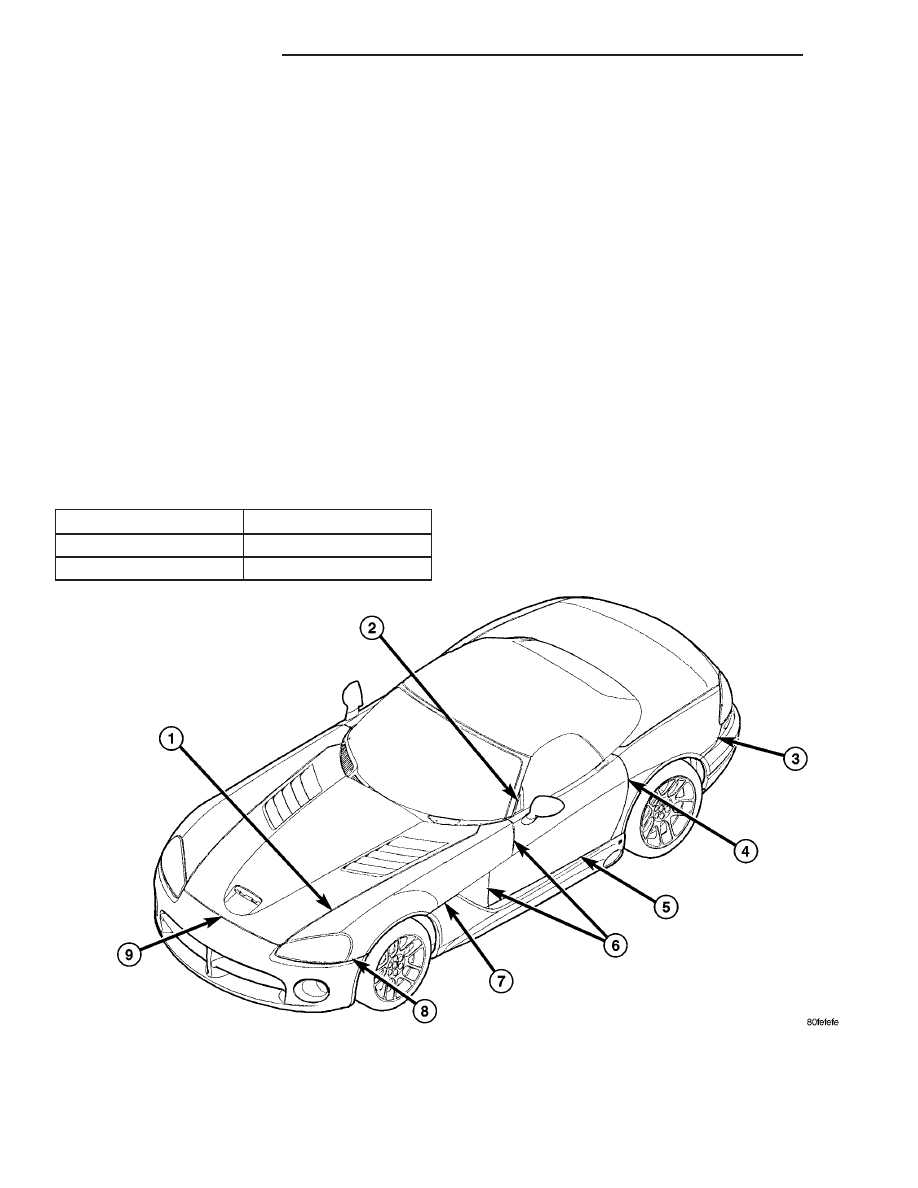

LEFT FRONT VIEW

1

RIGHT REAR VIEW

2

NOTE:
All measurements are in mm.

Fig. 1 LEFT FRONT VIEW

23 - 94

BODY STRUCTURE

ZB

O/F = Over Flush

U/F = Under Flush

LEFT FRONT GAP & FLUSH MEASUREMENTS

DIMEN-

SION

DESCRIP-

TION

GAP

FLUSH

1

Hood to

fender

5.0 ± 1.5

Parallel

within 2.0

0.0 ± 2.0

2

Door flag to

a-pillar

9.4 ± 2.0

0.0 ± 2.0

3

Quarter panel

to rear fascia

0.0 +1.0

/-0.0

0.0 ± 1.0

4

Door to quar-

ter panel

5.0 ± 1.5

0.0 ± 1.0

5

Door to sill

7.0 ± 1.5

6

Door to

fender

5.0 ± 1.5

0.0 +0.5

/-1.5

7

Fender to sill

0.75 +1.0

/-0.0

0.0 ± 1.0

8

Fascia to

fender

0.75 +1.0

/-0.0

0.0 ± 1.0

9

Hood to fas-

cia

4.5 ± 1.0

Parallel

within 1.0

1.0 ± 1.5

O/F

NOTE:
All measurements are in mm.

O/F = Over Flush

U/F = Under Flush

RIGHT REAR GAP & FLUSH MEASUREMENTS

DIMEN-

SION

DESCRIP-

TION

GAP

FLUSH

1

Decklid to

fascia

5.0 ± 1.5

1.0 ± 1.5

U/F

2

Tail lamp to

quarter/deck-

lid

5.0 ± 1.5

2.0 ± 1.5

O/F

3

Decklid to

quarter panel

5.0 ± 1.5

Parallel

within 2.0

1.0 ± 1.5

U/F

4

Fuel filler

door to quar-

ter panel

4.0 ± 1.0

± 1.0

5

Tail lamp to

fascia

5.0 ± 1.5

2.0 ± 2.0

O/F

6

Decklid to

fascia

Parallel

within 2.0

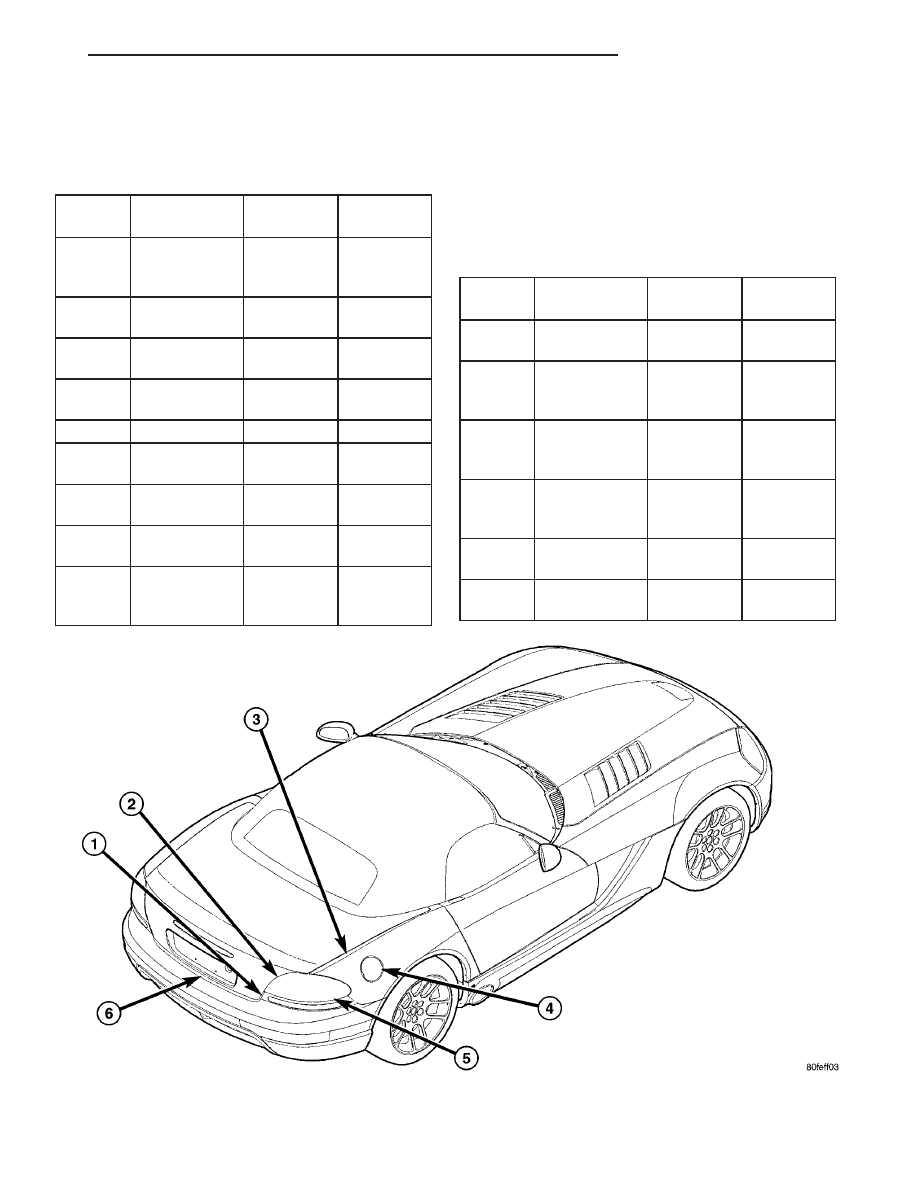

Fig. 2 RIGHT REAR VIEW

ZB

BODY STRUCTURE

23 - 95

GAP AND FLUSH (Continued)
