WITHIN 24 HOURS OF WINDSHIELD INSTALLATION.
IT TAKES AT LEAST 24 HOURS FOR URETHANE
ADHESIVE TO CURE. IF IT IS NOT CURED, THE
WINDSHIELD MAY NOT PERFORM PROPERLY IN
AN ACCIDENT.
URETHANE ADHESIVES ARE APPLIED AS A SYS-
TEM. USE GLASS CLEANER, GLASS PREP SOL-
VENT, GLASS PRIMER, PVC (VINYL) PRIMER AND
PINCH WELD (FENCE) PRIMER PROVIDED BY THE
ADHESIVE MANUFACTURER. IF NOT, STRUCTURAL
INTEGRITY COULD BE COMPROMISED.
DAIMLERCHRYSLER

DOES

NOT

RECOMMEND

GLASS

ADHESIVE

BRAND.

TECHNICIANS

SHOULD REVIEW PRODUCT LABELS AND TECHNI-
CAL DATA SHEETS, AND USE ONLY ADHESIVES
THAT THEIR MANUFACTURES WARRANT WILL
RESTORE A VEHICLE TO THE REQUIREMENTS OF
FMVSS 212. TECHNICIANS SHOULD ALSO INSURE
THAT PRIMERS AND CLEANERS ARE COMPATIBLE
WITH THE PARTICULAR ADHESIVE USED.
BE SURE TO REFER TO THE URETHANE MANU-
FACTURER’S

DIRECTIONS

FOR

CURING

TIME

SPECIFICATIONS, AND DO NOT USE ADHESIVE
AFTER ITS EXPIRATION DATE.
VAPORS THAT ARE EMITTED FROM THE URE-
THANE ADHESIVE OR PRIMER COULD CAUSE
PERSONAL INJURY. USE THEM IN A WELL-VENTI-
LATED AREA.
SKIN

CONTACT

WITH

URETHANE

ADHESIVE

SHOULD BE AVOIDED. PERSONAL INJURY MAY
RESULT.
ALWAYS WEAR EYE AND HAND PROTECTION
WHEN WORKING WITH GLASS.

CAUTION: Protect all painted and trimmed surfaces
from coming in contact with urethane or primers.

Be careful not to damage painted surfaces when
removing moldings or cutting urethane around
windshield.

REMOVAL

(1) Remove inside rear view mirror.
(2) Remove cowl cover. (Refer to 23 - BODY/EXTE-

RIOR/COWL GRILLE SCREEN - REMOVAL)

(3) Remove windshield molding. Pull outward on

molding at the bottom of A-pillars using pliers.

(4) Cut urethane bonding from around windshield

using a suitable sharp cold knife. A pneumatic cut-
ting device can be used if available.

(5) Separate windshield from vehicle.
(6) Disconnect the radio antenna from the glass.

(Fig. 1)

Fig. 1 RADIO ANTENNA WIRE CONNECTOR

1 - WINDSHIELD GLASS
2 - WINDSHIELD SURROUND ASSEMBLY
3 - RADIO ANTENNA WIRE CONNECTOR

23 - 88

STATIONARY GLASS

INSTALLATION

CAUTION: Allow the urethane at least 24 hours to
cure before returning the vehicle to use.
To avoid stressing the replacement windshield, the
urethane bonding material on the windshield fence
should be smooth and consistent to the shape of
the replacement windshield. The support spacers
should be cleaned and properly installed on the
lower supports at bottom of windshield opening.

(1) Place replacement windshield into windshield

opening and position glass in the center of the open-
ing against the support spacers. Mark the glass at
the support spacers with a grease pencil or pieces of
masking tape and ink pen to use as a reference for
installation. Remove replacement windshield from
windshield opening.

(2) Position the windshield inside up on a suitable

work surface with two padded, wood 10 cm by 10 cm
by 50 cm (4 in. by 4 in. by 20 in.) blocks, placed par-
allel 75 cm (2.5 ft.) apart.

(3) Clean inside of windshield with Mopar

t Glass

Cleaner and lint free cloth.

(4) Apply clear glass primer 25 mm (1 in.) wide

around perimeter of windshield and wipe with clean/
dry lint free cloth.

(5) Apply black out primer 15 mm (.75 in.) wide on

top and sides of windshield and 25 mm (1 in.) on bot-
tom of windshield. Allow at least three minutes dry-
ing time.

(6) Using a razor knife, remove as much original

urethane as possible. Do not damage paint on wind-
shield fence.

(7) Apply a bead of urethane on center line of

windshield fence. (Fig. 2)

(8) Position spacers on windshield opening fence as

indicated (Fig. 3).

(9) With the aid of a helper, position the wind-

shield over the windshield opening. Align the refer-
ence marks at the bottom of the windshield to the
support spacers.

(10) Slowly lower windshield glass to windshield

opening fence. Guide the top molding into proper
position if necessary. Push windshield inward to
fence spacers at bottom and until top molding is
flush to roof line.

(11) Clean excess urethane from exterior with

Mopar

t Super Kleen or equivalent.

(12) Apply 150 mm (6 in.) lengths of 50 mm (2 in.)

masking tape spaced 250 mm (10 in.) apart to hold
molding in place until urethane cures (Fig. 4).

(13) Install cowl cover and wipers.

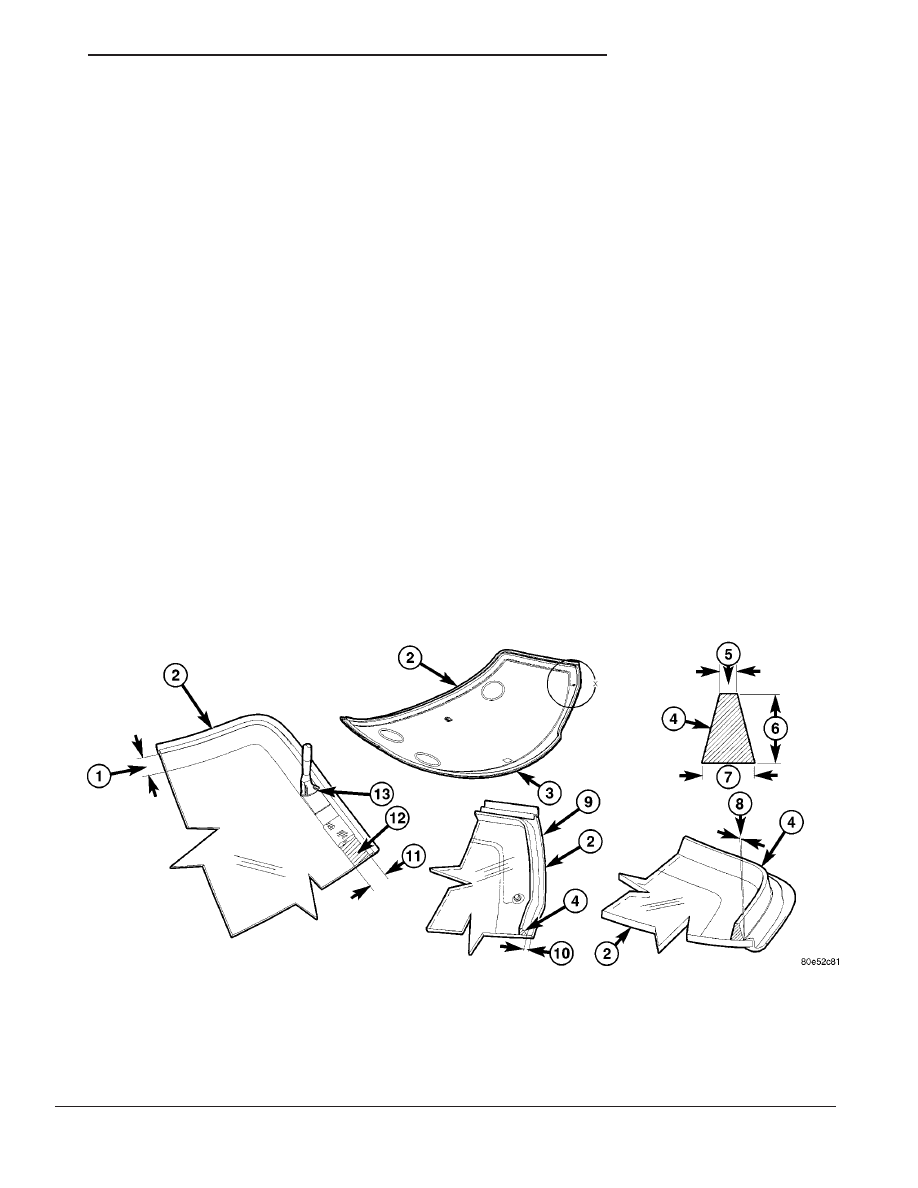

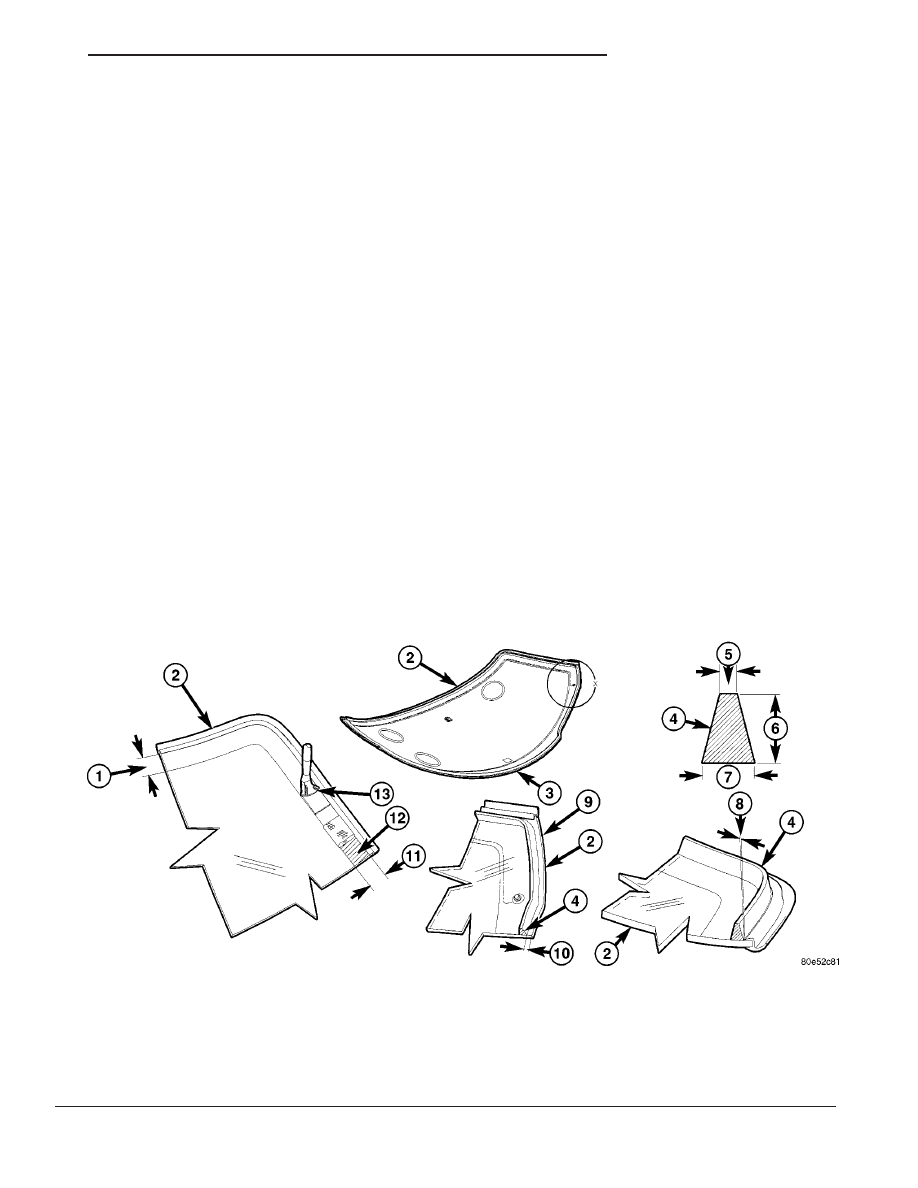

Fig. 2 PREPARING WINDSHIELD

1 - CLEAN 25 mm (1.0 in) MINIMUM
2 - WINDSHIELD GLASS
3 - BOTTOM EDGE OF GLASS
4 - ADHESIVE URETHANE BEAD SPECIFICATION
5 - 3 mm (0.19 in)
6 - 12.7 mm (0.5 in)
7 - 9.5 mm (0.37 in)

8 - 1.5 mm (0.06 in)
9 - BOTTOM EDGE OF GLASS
10 - 6.5 mm (0.25 in)
11 - CLEAN 25 mm (1.0 in) MINIMUM
12 - CLEANER
13 - PAINT PRIMER

STATIONARY GLASS

23 - 89

WINDSHIELD (Continued)

(14) Install inside rear view mirror.
(15) After urethane has cured, remove tape strips

and water test windshield to verify repair.

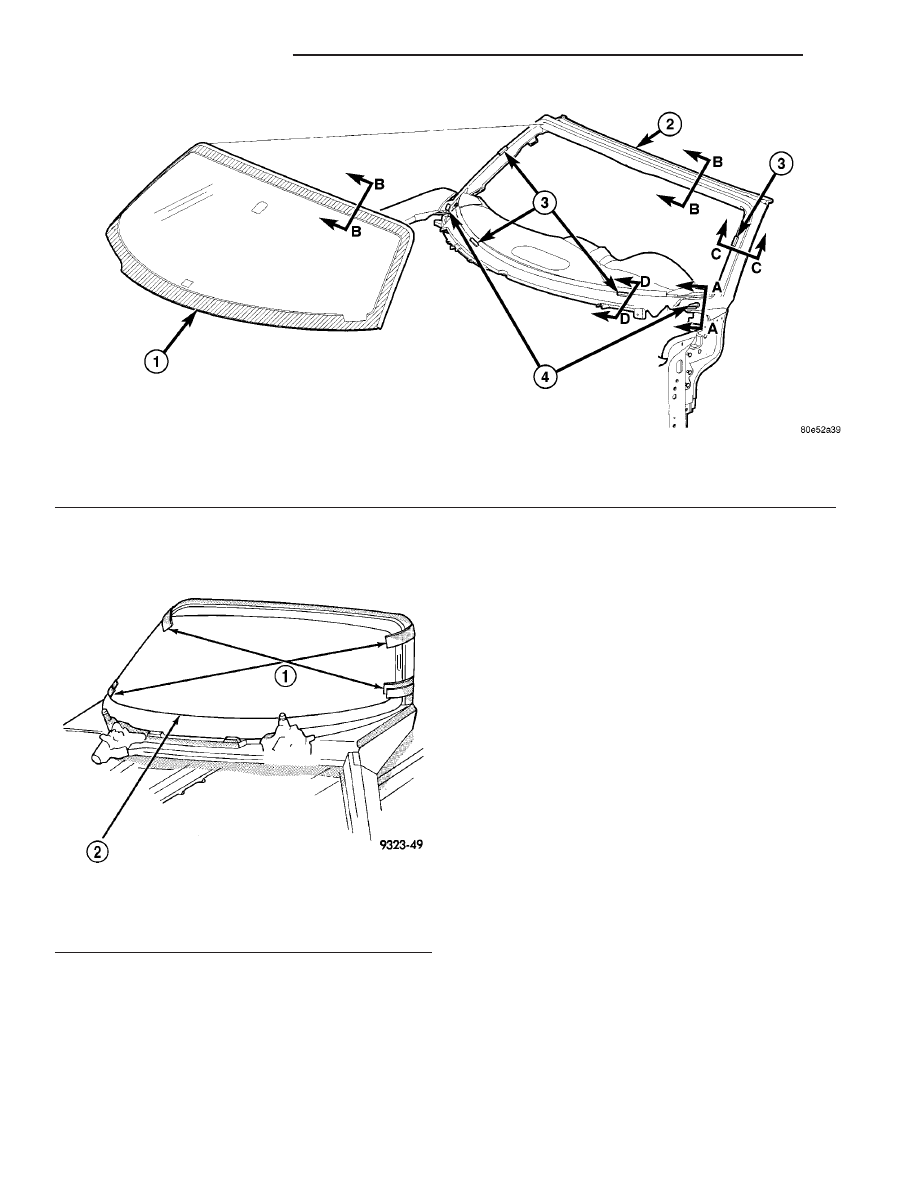

Fig. 3 WINDSHIELD

1 - WINDSHIELD GLASS
2 - WINDSHIELD SURROUND FRAME

3 - WINDSHIELD GLASS SPACERS
4 - WINDSHIELD GLASS SHIMS

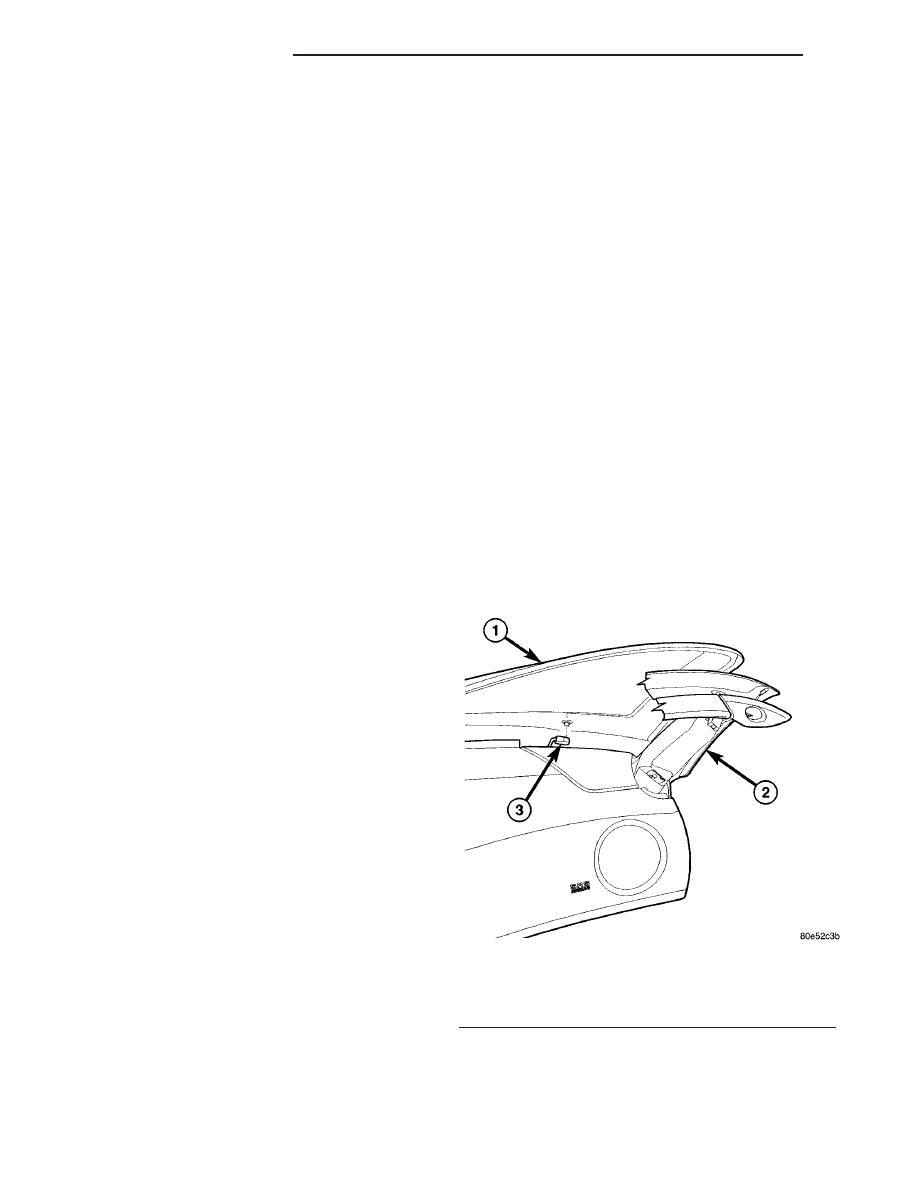

Fig. 4 APPLY TAPE TO RETAIN WINDSHIELD

MOLDING

1 - TAPE
2 - WINDSHIELD

23 - 90

STATIONARY GLASS

WINDSHIELD (Continued)

WEATHERSTRIP/SEALS

TABLE OF CONTENTS

page

DOOR INNER BELT WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 91

DOOR OPENING PRIMARY SEAL

WEATHERSTRIP
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 91

DOOR OUTER BELT WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 92

DOOR SECONDARY SEAL WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 92

WINDSHIELD HEADER & A-PILLAR

WEATHERSTRIP
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 92

SIDE RAIL WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 92

DECKLID OPENING WEATHERSTRIP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 93

DOOR INNER BELT
WEATHERSTRIP

REMOVAL

(1) Remove the door trim panel. (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - REMOVAL)

(2) Pull weatherstrip from the door panel.

INSTALLATION

(1) Install the weatherstrip onto the door panel.
(2) Install the door trim panel. (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - INSTALLA-
TION)

DOOR OPENING PRIMARY
SEAL WEATHERSTRIP

REMOVAL

(1) Using a trim stick C-4755 or equivalent,

remove the scuff plate.

(2) Open the convertible top.
(3) Remove the screw and push pin fasteners at

the top of the seal. (Fig. 1)

(4) Peal seal off of the door opening flange.

INSTALLATION

(1) Position the seal to the bottom of the door

opening, with bulb facing outboard, and install the
rear screw and push pin fasteners.

(2) Insert the tip of the seal into the a-pillar

weatherstrip and insure the seat butt together
tightly.

(3) Press the seal onto the sill flange and work

around the perimeter of the door opening until fully
seated.

(4) Install the door scuff plate and seat the spring

clips fully.

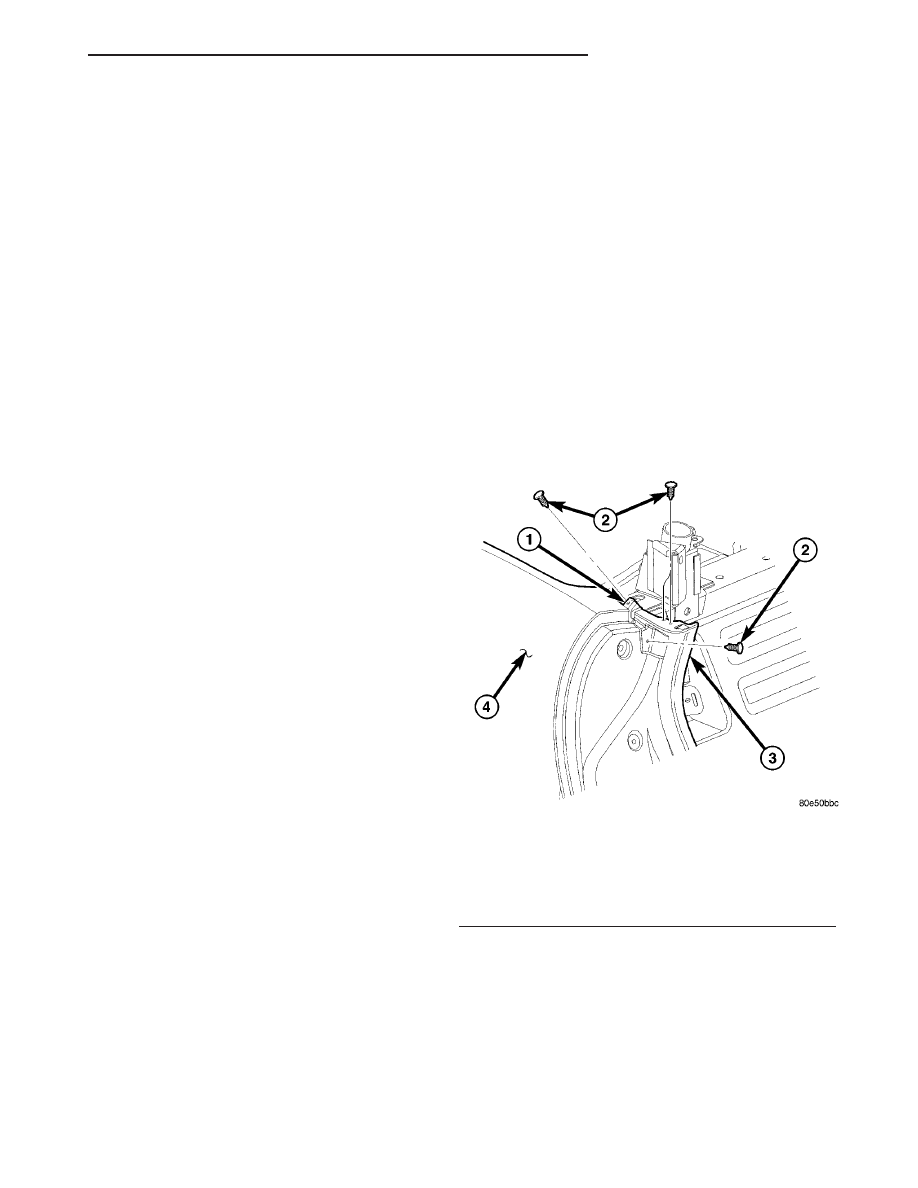

Fig. 1 DOOR OPENING PRIMARY SEAL TO REAR

QUARTER PANEL

1 - TRUNK CLOSE OUT PANEL
2 - PUSH PIN
3 - DOOR OPENING PRIMARY SEAL
4 - REAR QUARTER OUTER PANEL

WEATHERSTRIP/SEALS

23 - 91
