(1) Open the top.
(2) Move the drivers seat forward.
(3) Remove the lower seat belt anchor.
(4) Remove the sill plate.
(5) Remove the sport hoop fastener cover.
(6) Remove the two bolts and remove the sport

hoop. (Fig. 2)

(7) Remove the screw at the rear of the console.

(Fig. 3)

(8) Remove the two screws at the door edge.
(9) Pull back panel up and route the seat belt

through the panel.

(10) Move the passengers seat forward.
(11) Remove the lower seat belt anchor.
(12) Remove the sill plate.
(13) Remove the sport hoop fastener cover.
(14) Remove the two bolts and remove the sport

hoop.

(15) Remove the screw at the rear of the console.
(16) Remove the two screws at the door edge.

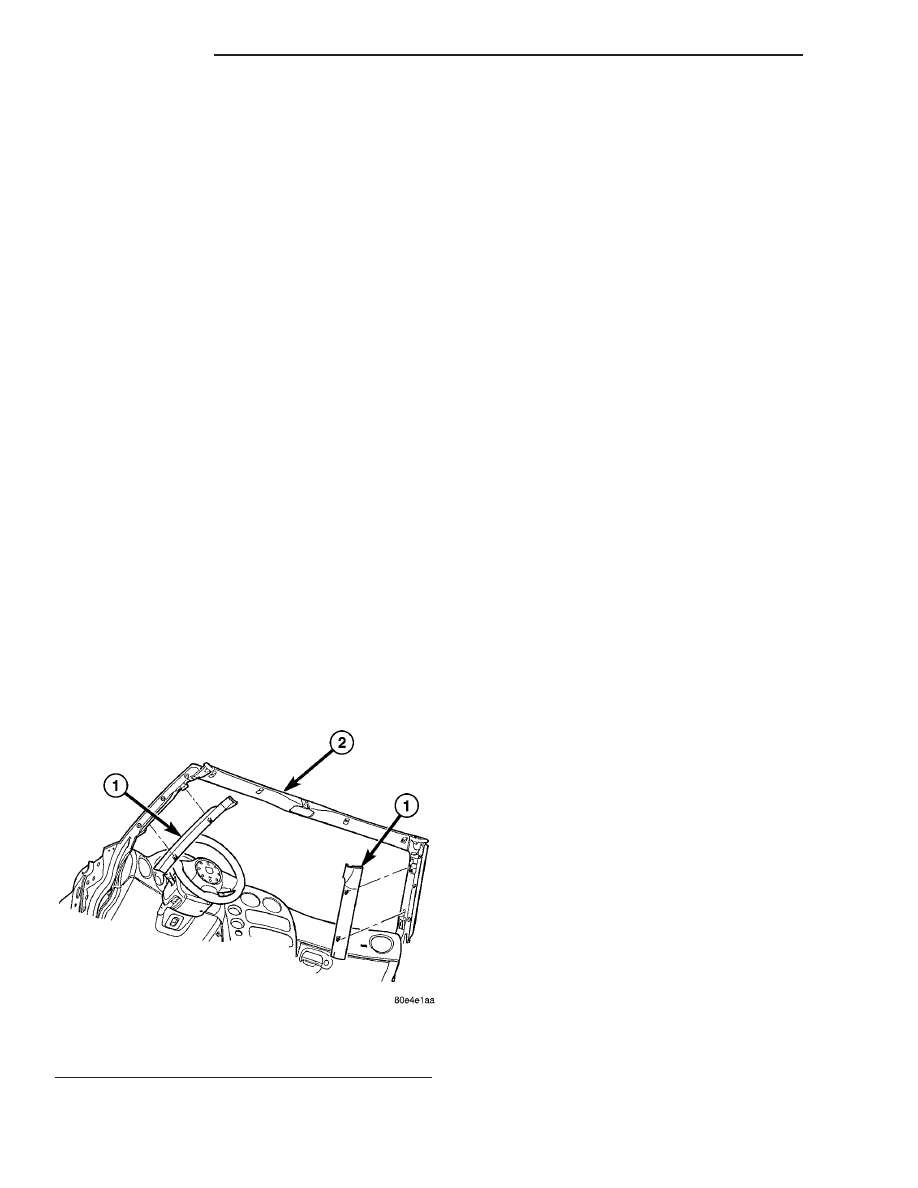

Fig. 1 A-PILLAR TRIM

1 - WINDSHIELD SIDE
2 - WINDSHIELD SURROUND FRAME

23 - 72

INTERIOR

(17) Pull back panel up and route the seat belt

through the panel.

(18) Remove the trim panel.
(19) Disconnect the speaker electrical connectors.
(20) Remove the nuts and remove the convertible

top latch assembly.

(21) Remove the four bolts in the front of the sup-

port panel.

(22) Remove the two nuts in the rear of the sup-

port panel and remove.

INSTALLATION

(1) Install the quarter trim support panel and

install the nuts.

(2) Tighten the nuts to 6 N·m (50 in. lbs.).
(3) Install the four front bolts and tighten to 6

N·m (50 in. lbs.).

(4) Install the convertible top latch and install the

nuts.

(5) Tighten the nuts to 10 N·m (85 in. lbs.).
(6) Install the trim panel.
(7) Route the seat belts through the panel.
(8) Install the two screws at the drivers door.
(9) Install the sill plate.
(10) Install the screw at the rear of the console.
(11) Install the sport hoop and install the bolts.
(12) Tighten the bolts to 28 N·m (21 ft. lbs.).
(13) Install the sport hoop fastener cover.
(14) Install the lower seat belt anchor.
(15) Install the two screws at the passenger door.

(16) Install the sill plate.
(17) Install the screw at the rear of the console.
(18) Install the sport hoop and install the bolts.
(19) Tighten the bolts to 28 N·m (21 ft. lbs.).
(20) Install the sport hoop fastener cover.
(21) Install the lower seat belt anchor.

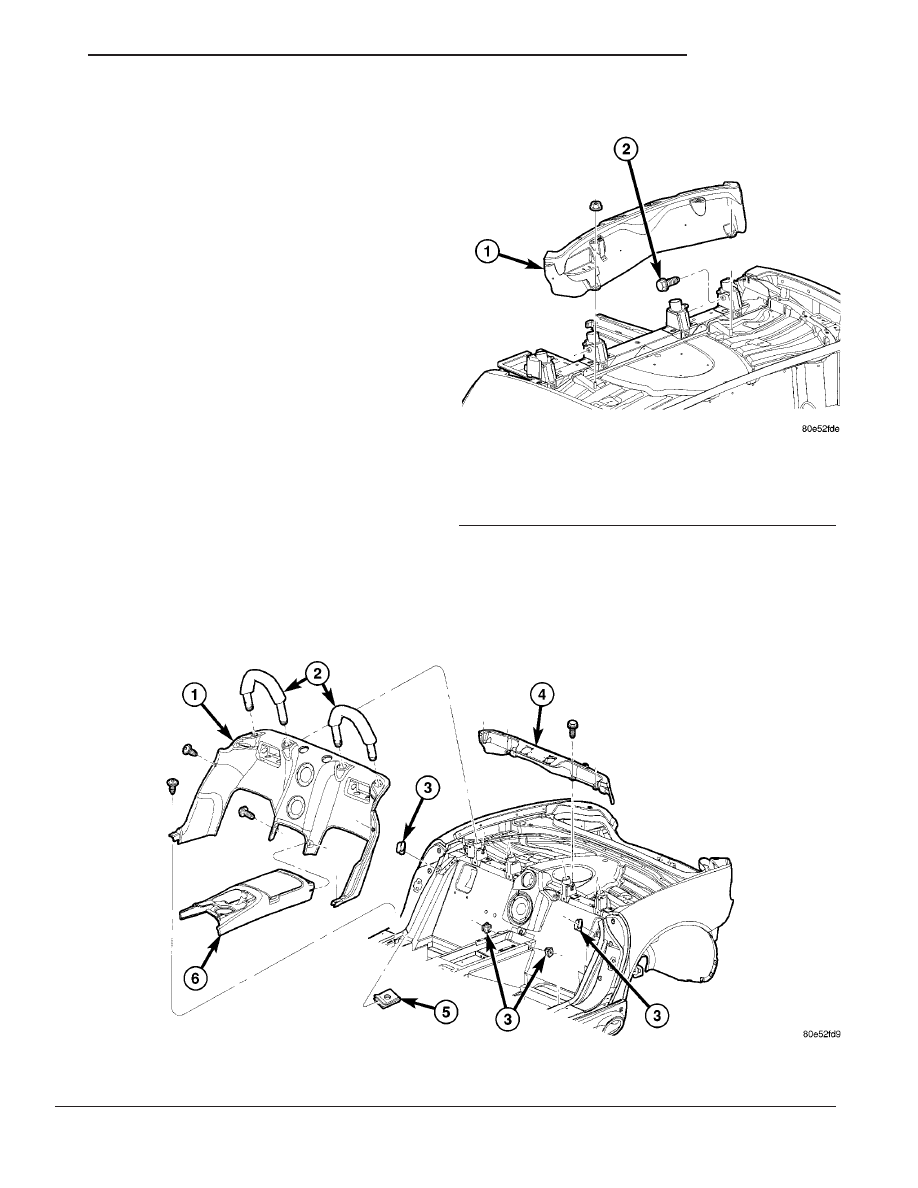

Fig. 3 BULKHEAD QUARTER TRIM PANEL REMOVAL

1 - BULKHEAD QUARTER TRIM PANEL
2 - SPORT HOOP
3 - PLASTIC SNAP IN NUT

4 - BULKHEAD QUARTER TRIM SUPPORT PANEL
5 - SPRING NUT
6 - CENTER CONSOLE

Fig. 2 BULKHEAD QUARTER TRIM SUPPORT

PANEL

1 - BULKHEAD QUARTER TRIM SUPPORT PANEL
2 - SPORT HOOP ATTACHING BELT

INTERIOR

23 - 73

BULKHEAD QUARTER TRIM PANEL (Continued)

CARPETS

REMOVAL

Floor Carpets

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the seat. (Refer to 23 - BODY/SEATS/

SEAT - REMOVAL)

(3) Remove the lower seat belt anchor.
(4) For the passenger side carpet, remove the radio

amplifier.

(5) For the drivers side carpet, remove the bolts

and remove the adjustable footrest. (Fig. 4)

(6) Remove the carpet. (Fig. 5)

Top Stack Carpet

(1) Remove the push pin fasteners and remove the

carpet. (Fig. 6)

INSTALLATION

Floor Carpets

(1) Install the carpet.
(2) For the passenger side carpet, install the radio

amplifier.

(3) For the drivers side carpet, insert the front of

the adjustable footrest into the slot and install the
rear bolts.

Tighten the footrest bolts to 11 N·m (8 ft. lbs.).
(4) Install the lower seat belt anchor.
(5) Install the seat. (Refer to 23 - BODY/SEATS/

SEAT - INSTALLATION)

(6) Connect the battery negative cable.

Top Stack Carpet

(1) Install the carpet and install the push pin fas-

teners.

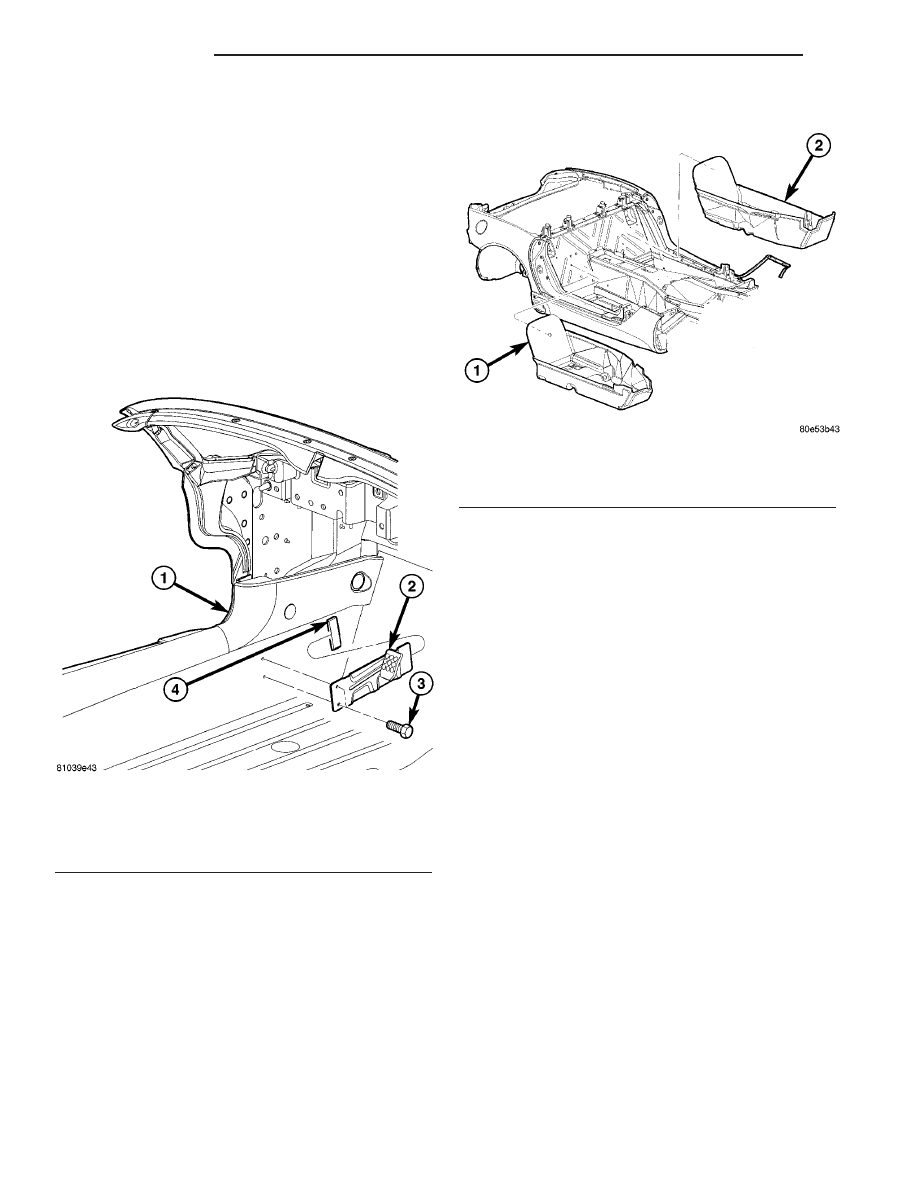

Fig. 4 ADJUSTABLE FOOTREST

1 - SIDE COWL TRIM PANEL
2 - ADJUSTABLE PEDAL ASSEMBLY
3 - BOLTS (2)
4 - FRONT MOUNTING SLOT

Fig. 5 CARPETS

1 - RIGHT FRONT FLOOR CARPET
2 - LEFT FRONT FLOOR CARPET

23 - 74

INTERIOR

CENTER CONSOLE BEZEL

REMOVAL

(1) Using a trim stick C-4755 or equivalent, pry up

the bezel. (Fig. 7)

(2) Loosen the shifter lock nut and unscrew the

shifter knob.

(3) Disconnect

the

electrical

connectors

and

remove the bezel.

INSTALLATION

(1) Connect the console bezel electrical connectors.
(2) Install the shift knob and tighten the lock nut

to 41 N·m (30 ft. lbs.).

(3) Position the bezel and seat the spring clips

fully.

Fig. 6 TOP STACK CARPET WELL

1 - BULKHEAD QUARTER TRIM
2 - TOP STACK CARPET WELL

3 - PUSH IN PIN

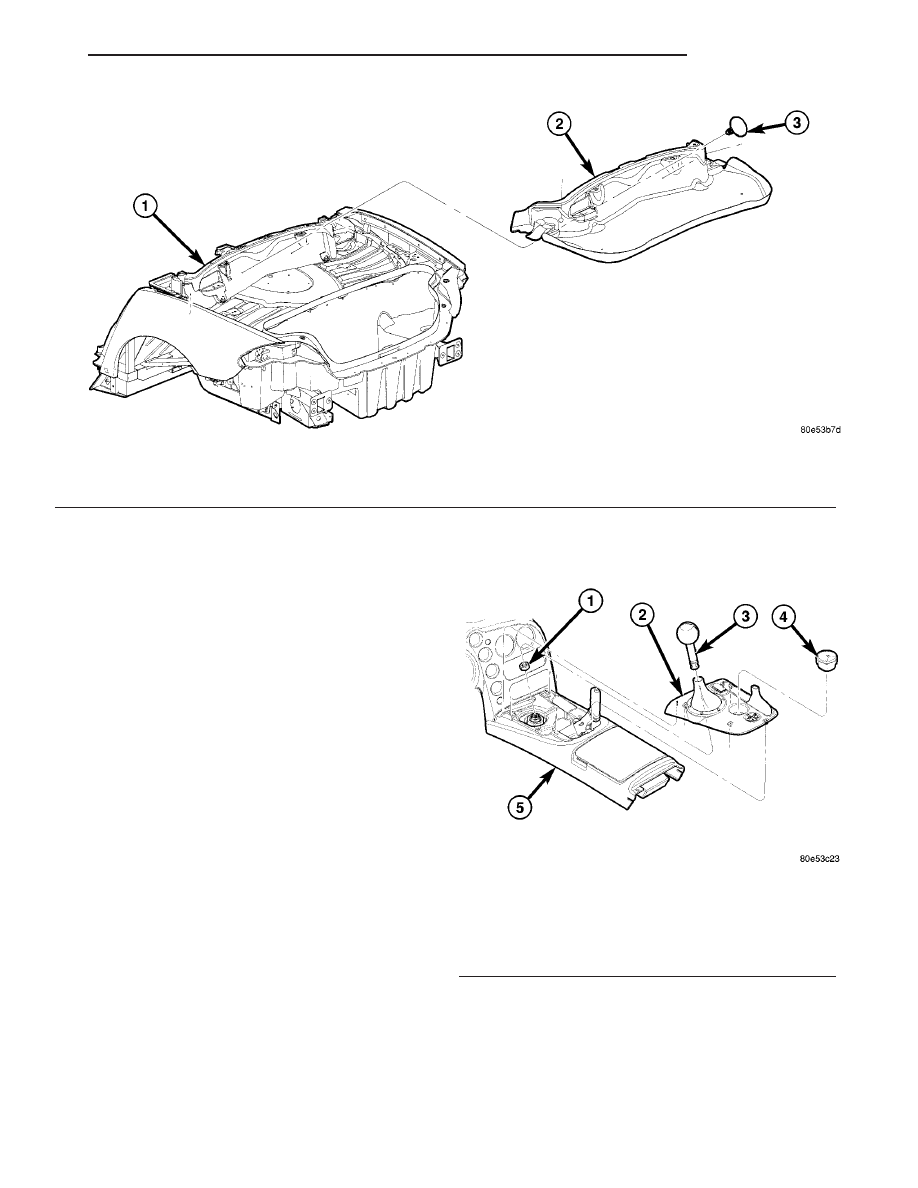

Fig. 7 CENTER CONSOLE BEZEL

1 - SHIFTER KNOB LOCK NUT
2 - CONSOLE BEZEL
3 - SHIFT KNOB
4 - ASH RECEIVER
5 - FRONT TUNNEL CONSOLE

INTERIOR

23 - 75

CARPETS (Continued)
