(5) Install the two screws hidden by the pull han-

dle cover (Fig. 26).

(6) Install the pull handle cover and install the

screw (Fig. 27).

(7) Install the interior release handle screw and

install the trim plug (Fig. 26).

(8) Install the three trim panel screws in the

speaker opening.

(9) Install the speaker.

(10) Install the two push pins at the rear of the

trim panel and one at the front of the trim panel
(Fig. 27). To install the push pin fastener, first push
the center pin back through the push pin to the open
position. Next install push pin fastener into the open-
ing and push the center pin in flush with the head of
the push pin to the lock position (Fig. 28).

(11) Connect the battery.

Fig. 22 SPRING CLIPS

1 - SPRING CLIPS
2 - DOOR TRIM PANEL

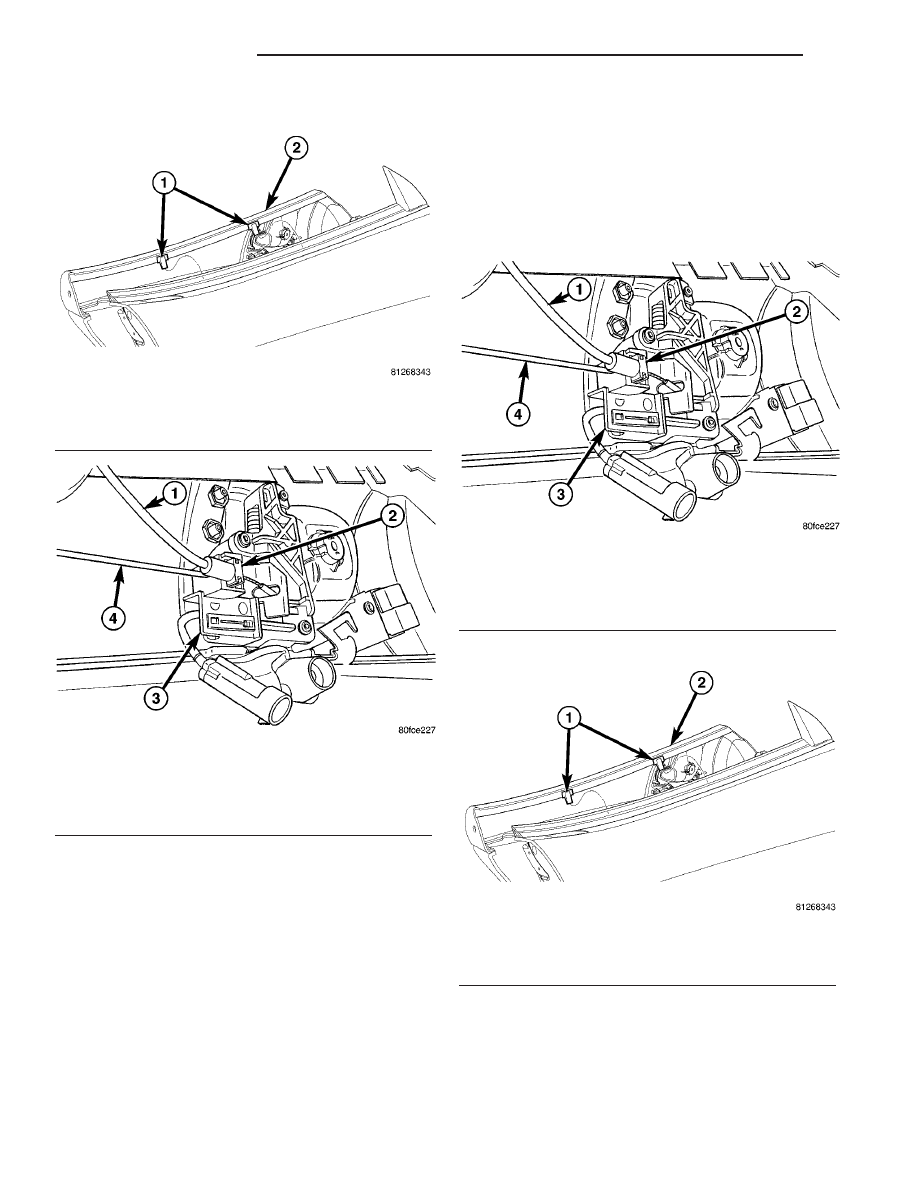

Fig. 23 INSIDE RELEASE HANDLE CABLE

1 - RELEASE HANDLE CABLE
2 - CABLE GROMMET
3 - RELEASE HANDLE ASSEMBLY
4 - FLAT BLADED TOOL (OR EQUIVALENT)

Fig. 24 INSIDE RELEASE HANDLE CABLE

1 - RELEASE HANDLE CABLE
2 - CABLE GROMMET
3 - RELEASE HANDLE ASSEMBLY
4 - FLAT BLADED TOOL (OR EQUIVALENT)

Fig. 25 SPRING CLIPS

1 - SPRING CLIPS
2 - DOOR TRIM PANEL

23 - 36

DOOR - FRONT

TRIM PANEL (Continued)

WINDOW REGULATOR

REMOVAL

(1) Remove the door glass. (Refer to 23 - BODY/

DOOR - FRONT/DOOR GLASS - REMOVAL)

(2) Disconnect the regulator electrical connector.

(Fig. 29)

(3) Remove the regulator nuts and remove the reg-

ulator.

Fig. 26 DOOR TRIM PANEL

1 - DOOR ASSEMBLY
2 - SPRING NUT
3 - DOOR TRIM PANEL
4 - TRIM PLUG SCREW CAP
5 - SCREW

Fig. 27 DOOR TRIM HANDLE APPLIQUE

1 - DOOR ASSEMBLY
2 - DOOR TRIM PANEL
3 - PUSH PIN FASTENER
4 - HANDLE SCREW
5 - DOOR TRIM HANDLE COVER

Fig. 28 PUSH PIN FASTENER

1 - OPEN POSITION
2 - LOCK POSITION
3 - RELEASE POSITION

Fig. 29 WINDOW REGULATOR

1 - POWER WINDOW REGULATOR
2 - DOOR ASSEMBLY
3 - WIRE HARNESS

DOOR - FRONT

23 - 37

TRIM PANEL (Continued)

INSTALLATION

(1) Install the regulator and install the nuts.
(2) Tighten the nuts to 12 N·m (9 ft. lbs.).
(3) Connect the electrical connector.
(4) Install the door glass. (Refer to 23 - BODY/

DOOR - FRONT/DOOR GLASS - INSTALLATION)

HINGE COVER - EXPORT

REMOVAL

(1) Remove the side repeater lamp (Refer to 8 -

ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/RE-
PEATER LAMP - REMOVAL).

(2) Remove the 3 screws and the hinge cover (Fig.

30).

INSTALLATION

(1) Cut a hole for the side repeater lamp using the

supplied template.

(2) Position the hinge cover and install the screws.
(3) Install the side repeater lamp (Refer to 8 -

ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/RE-
PEATER LAMP - INSTALLATION).

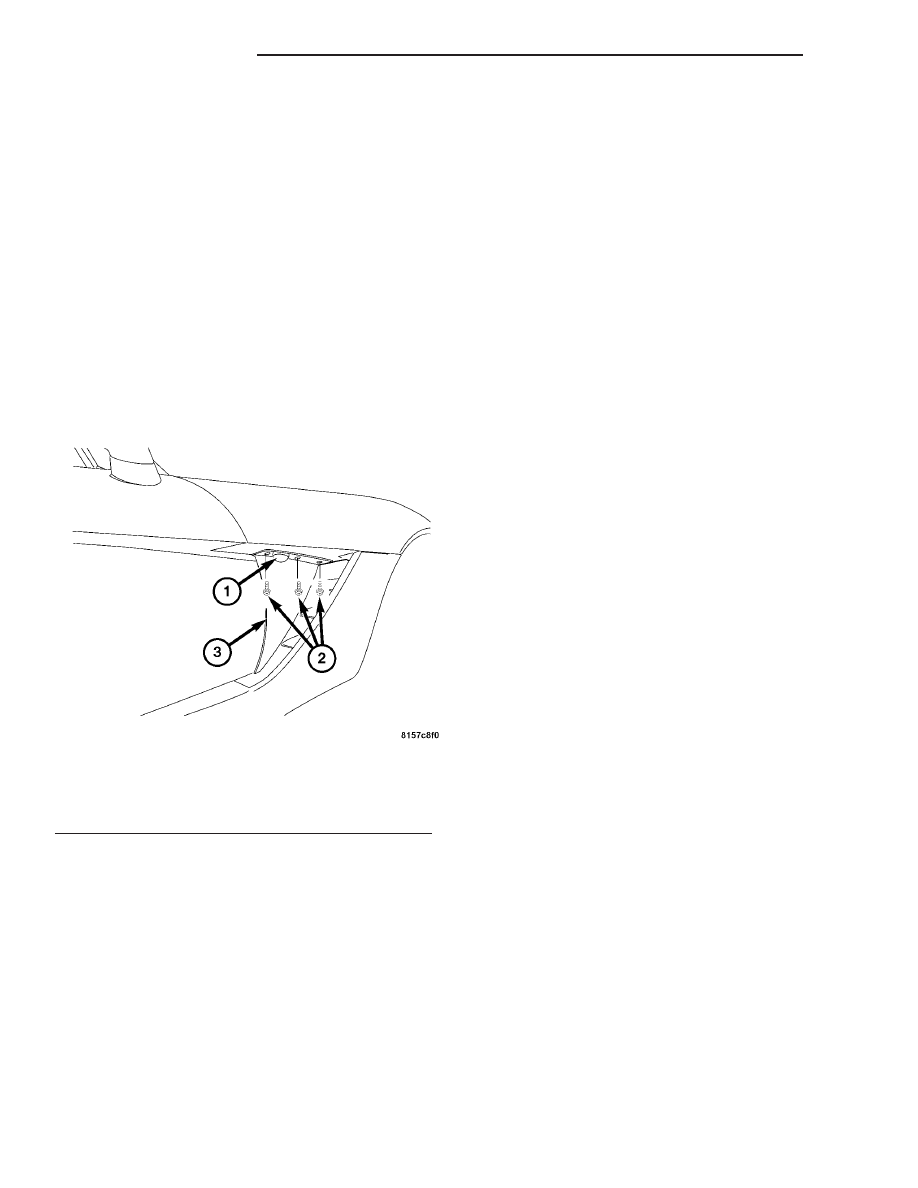

Fig. 30 HINGE COVER

1 - SIDE REPEATER LAMP
2 - SCREWS
3 - HINGE COVER

23 - 38

DOOR - FRONT

WINDOW REGULATOR (Continued)
