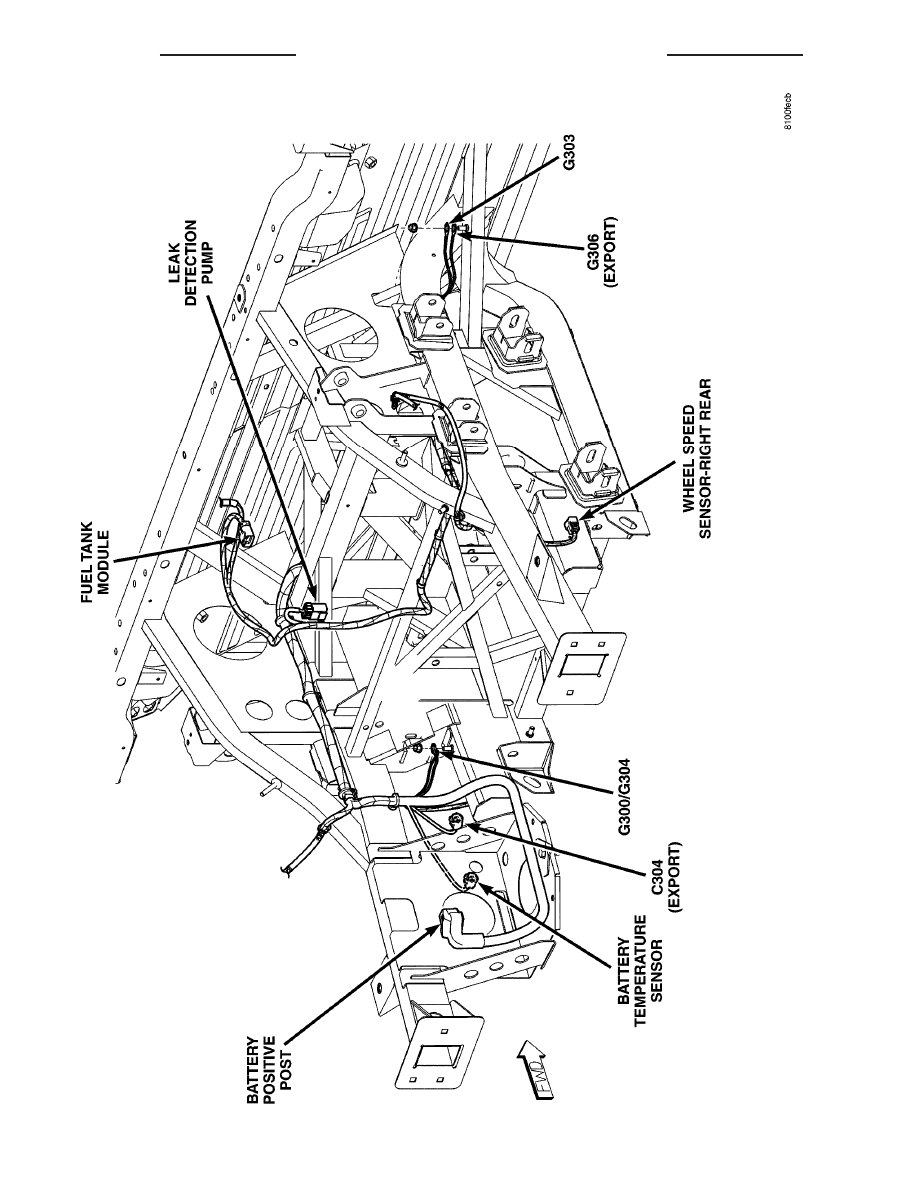

Fig.

28

RIGHT

REAR

CHASSIS

8W - 91 - 30

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

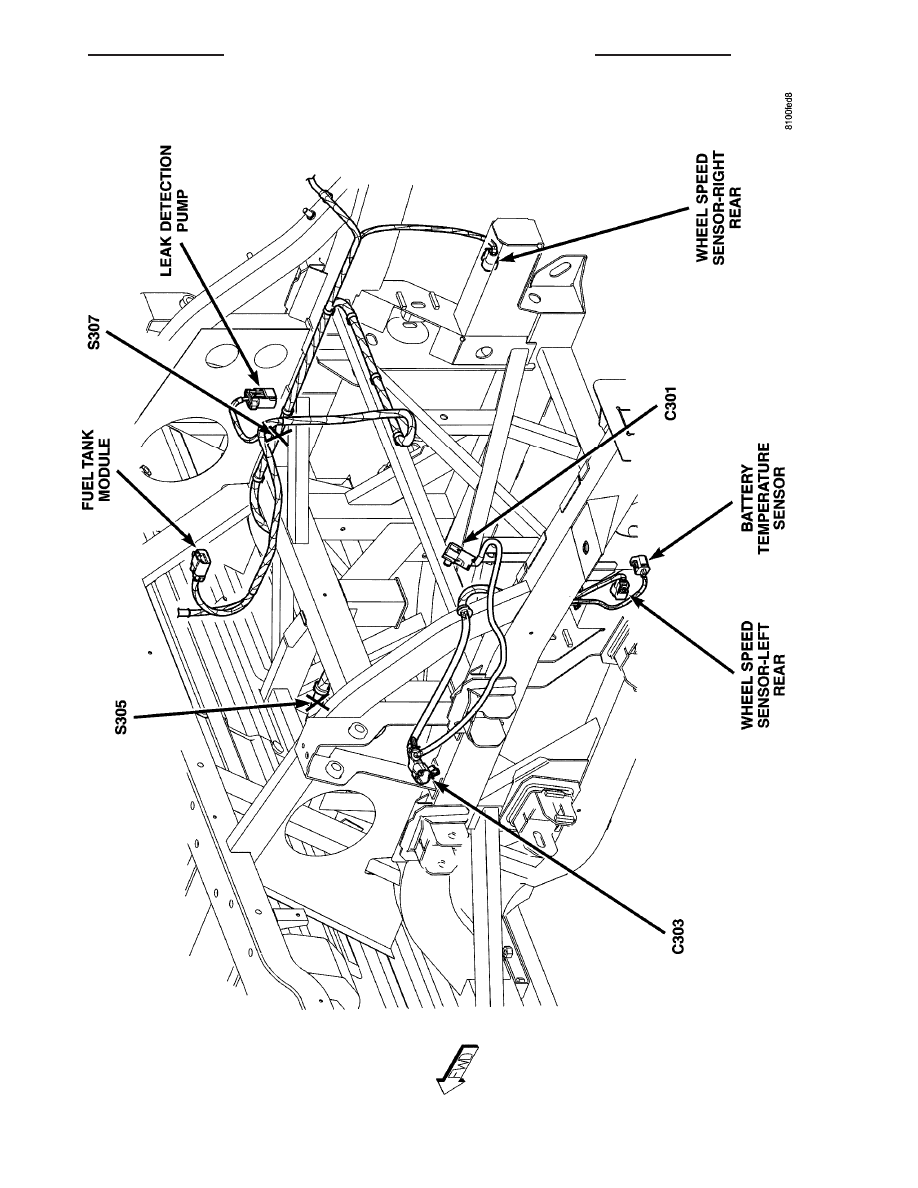

Fig.

29

LEFT

REAR

CHASSIS

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 31

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

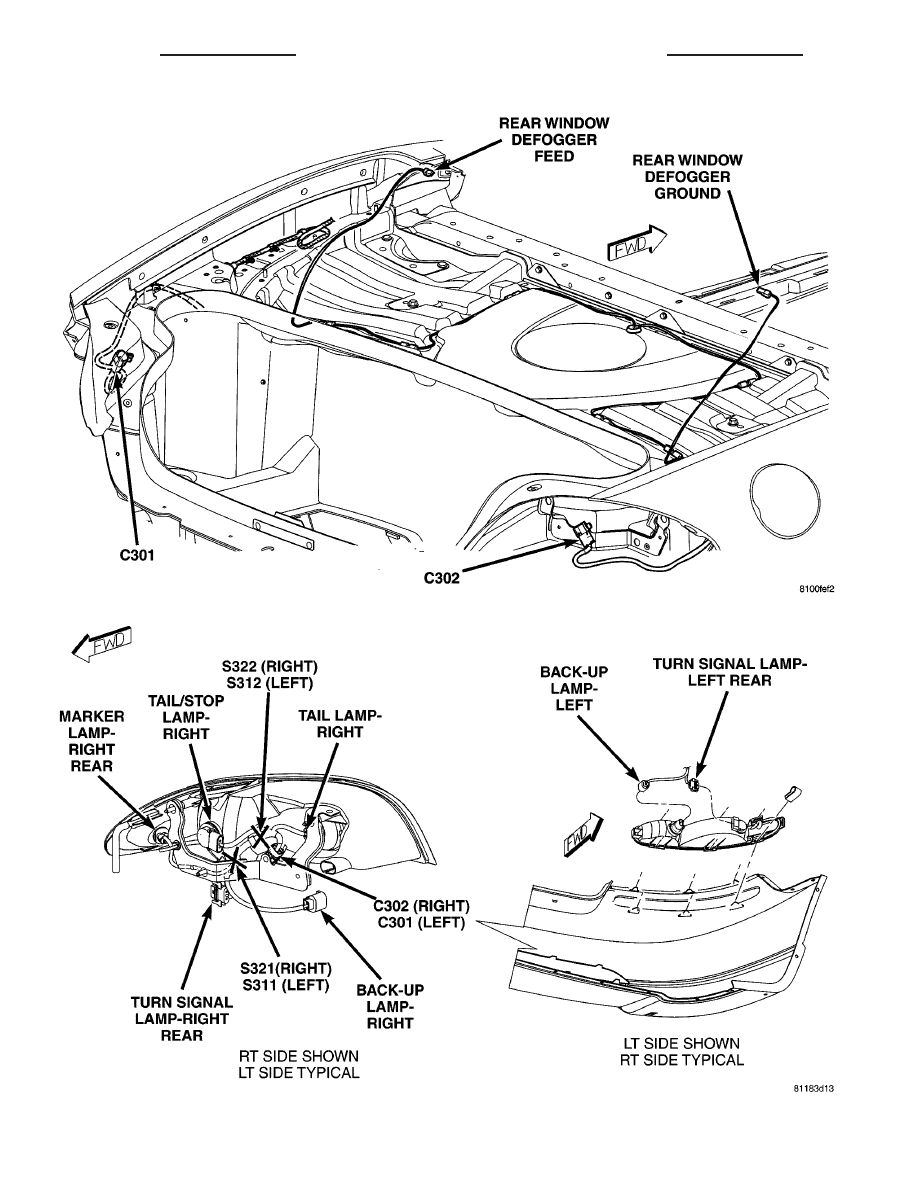

Fig. 30 RIGHT REAR BODY

Fig. 31 REAR LIGHTING

8W - 91 - 32

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

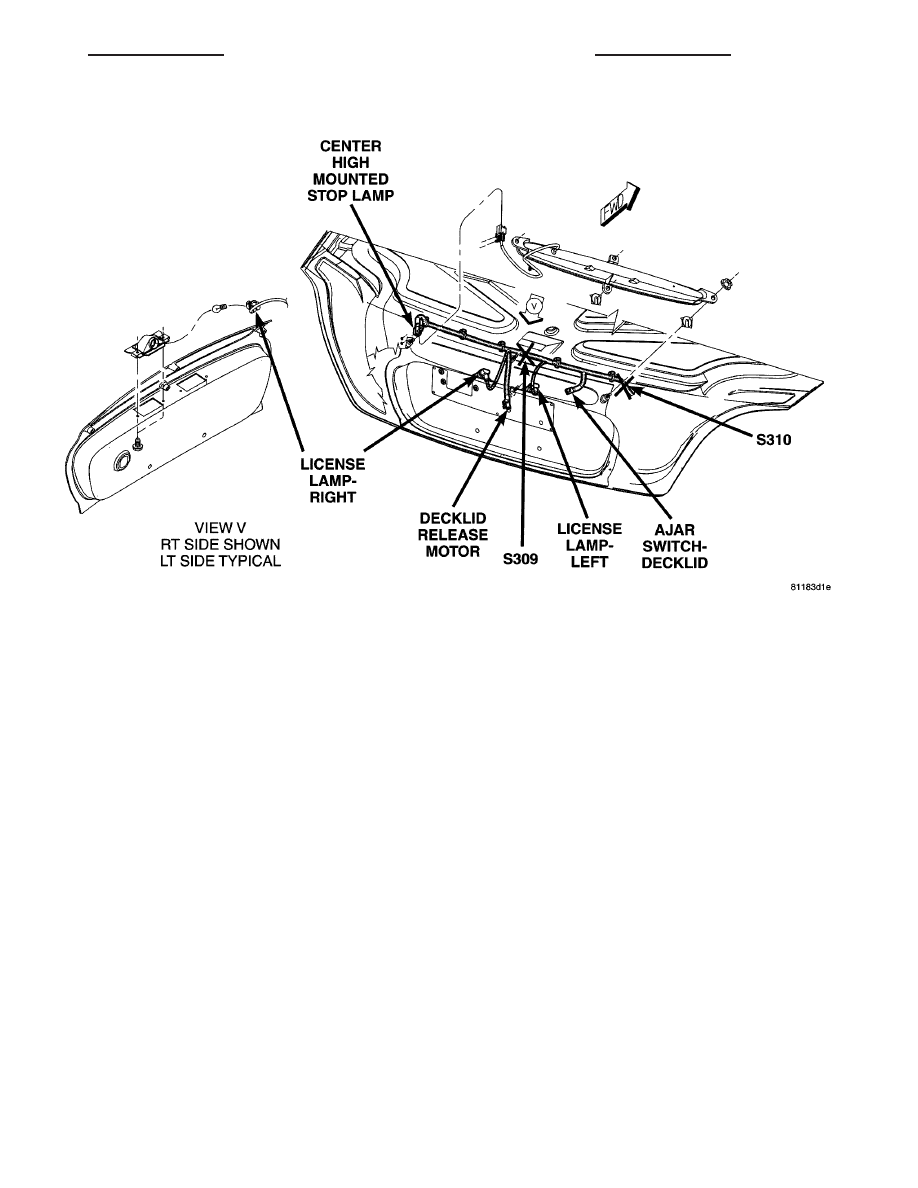

Fig. 32 DECKLID

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 33

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
