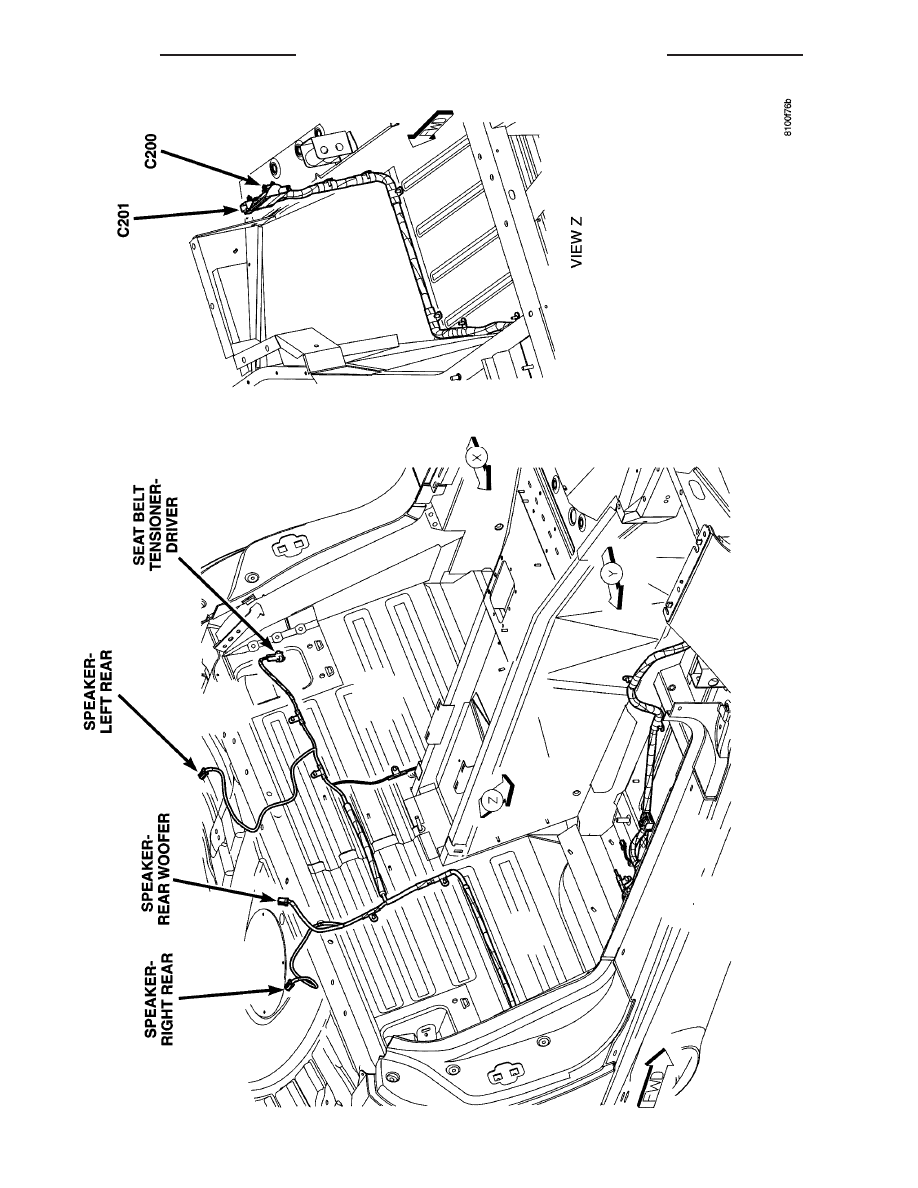

Fig.

24

REAR

BODY

8W - 91 - 26

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

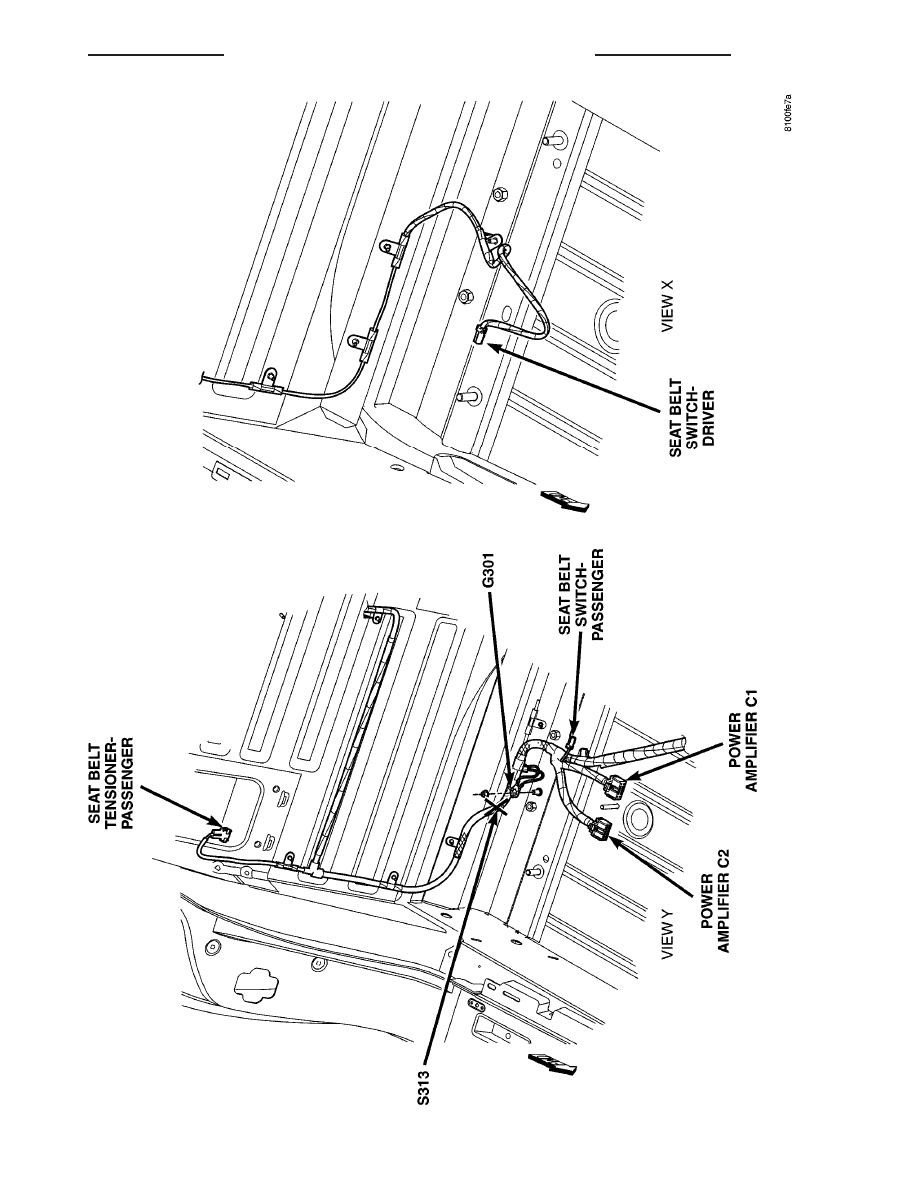

Fig.

25

BODY

-

UNDER

SEA

TS

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 27

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

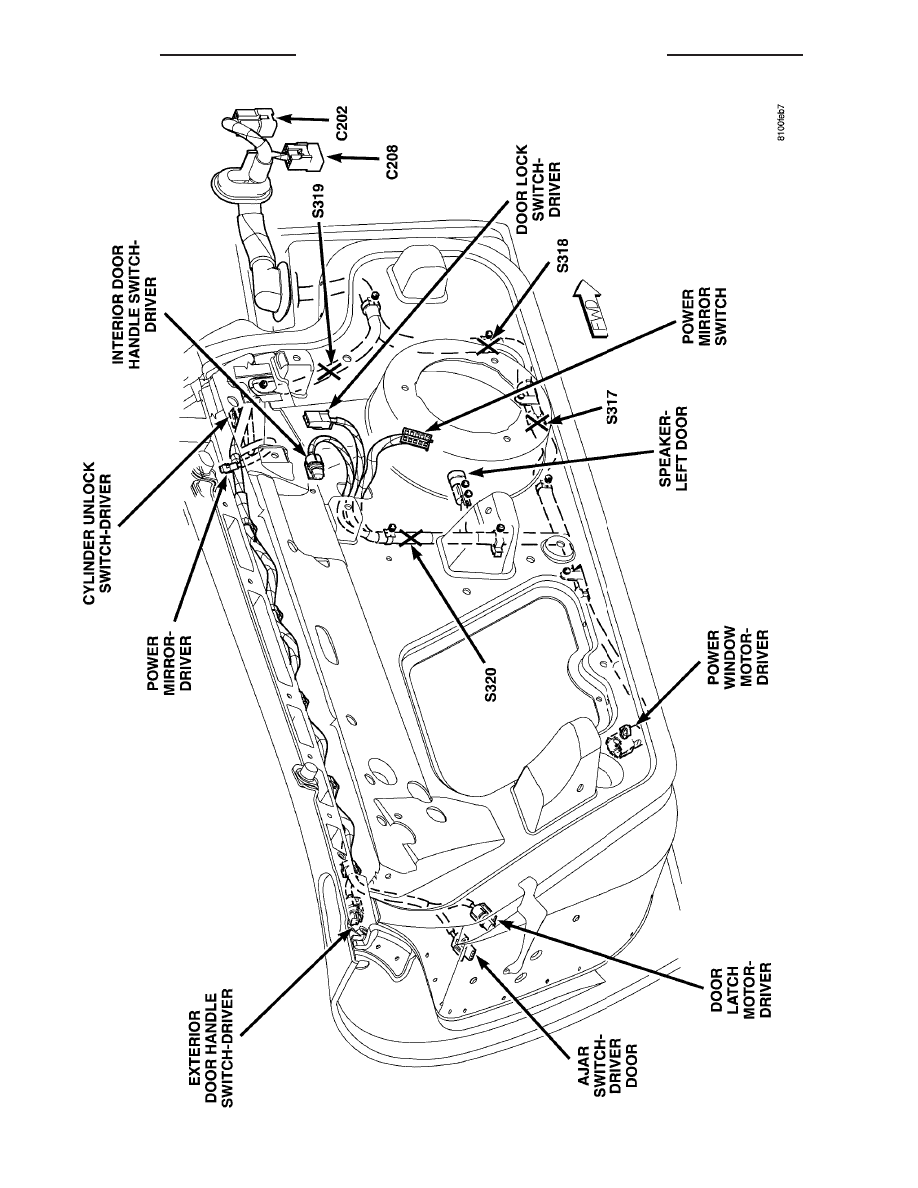

Fig.

26

LEFT

DOOR

8W - 91 - 28

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

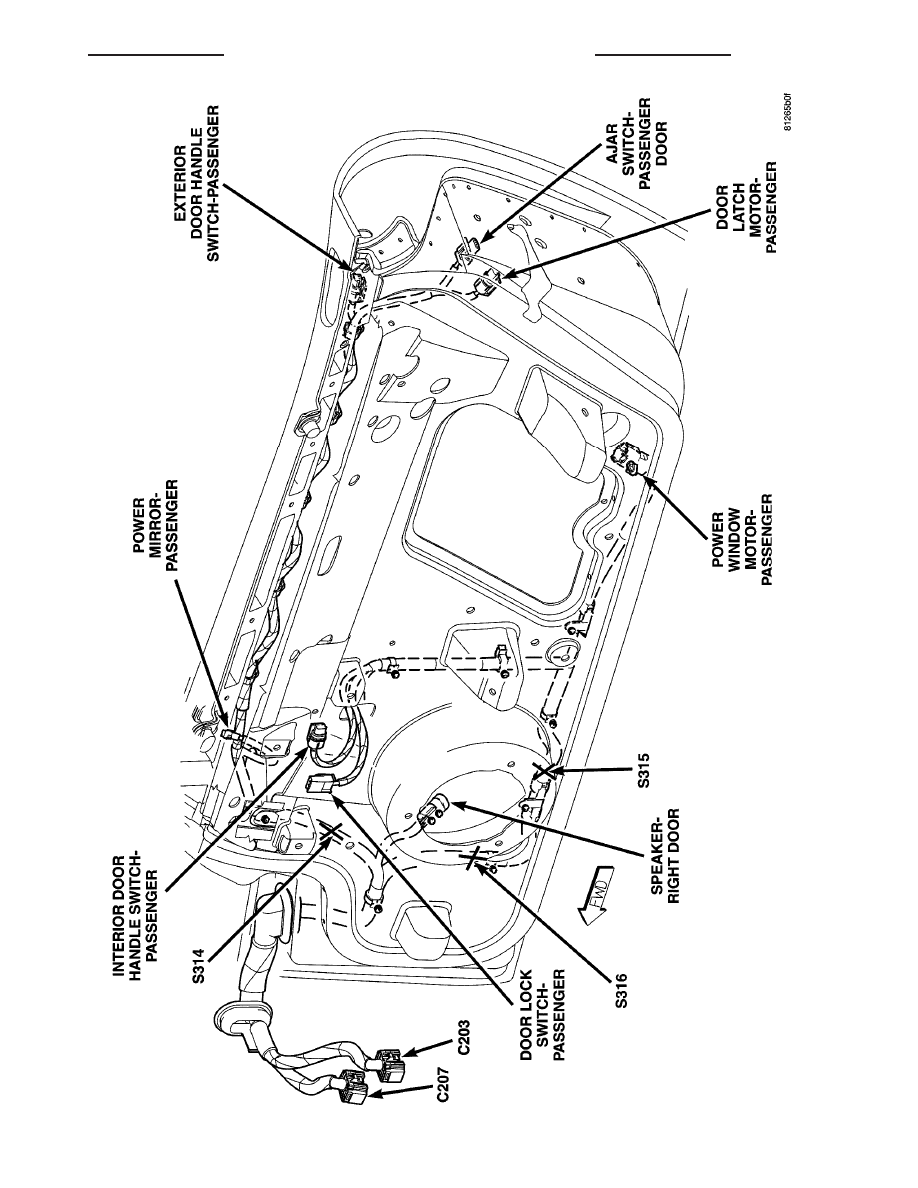

Fig.

27

RIGHT

DOOR

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 29

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
