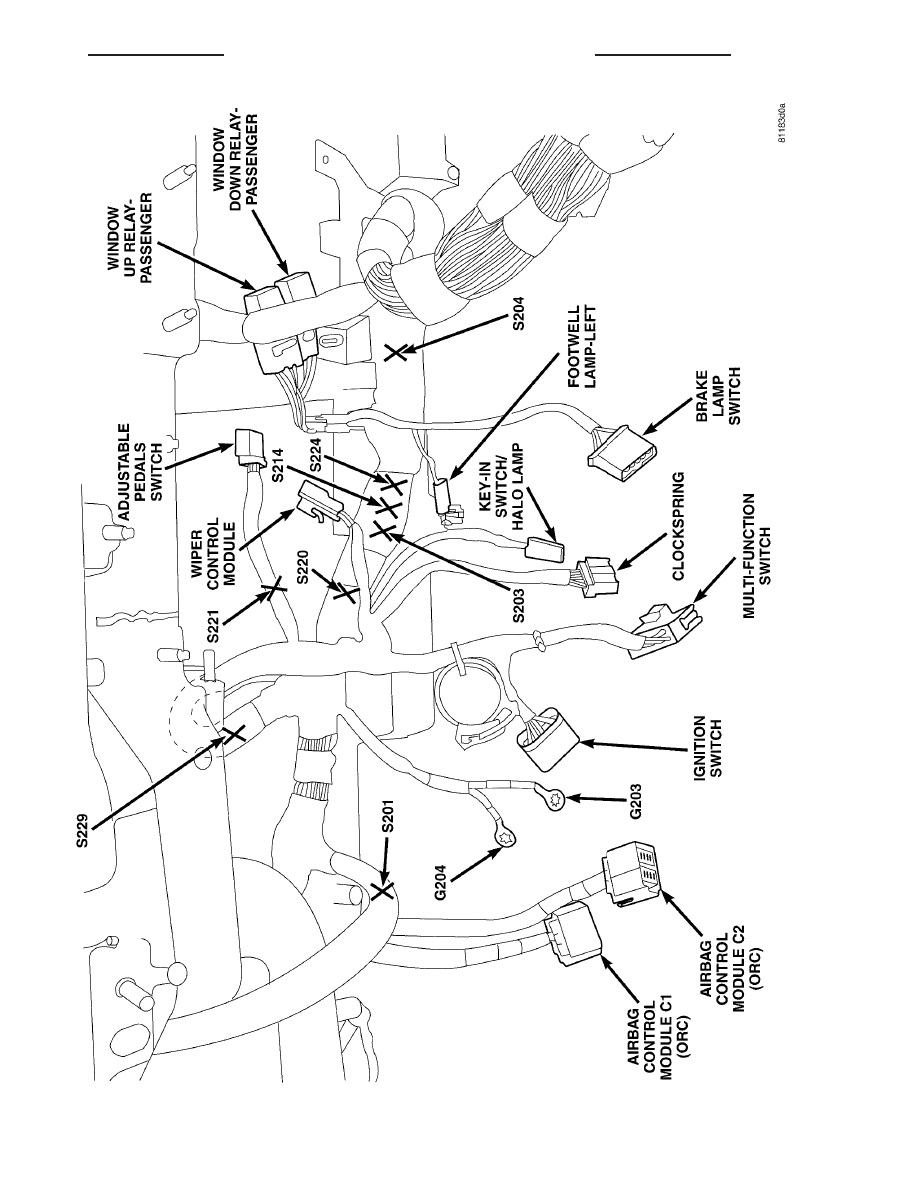

Fig.

18

REAR

INSTRUMENT

P

ANEL

8W - 91 - 22

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

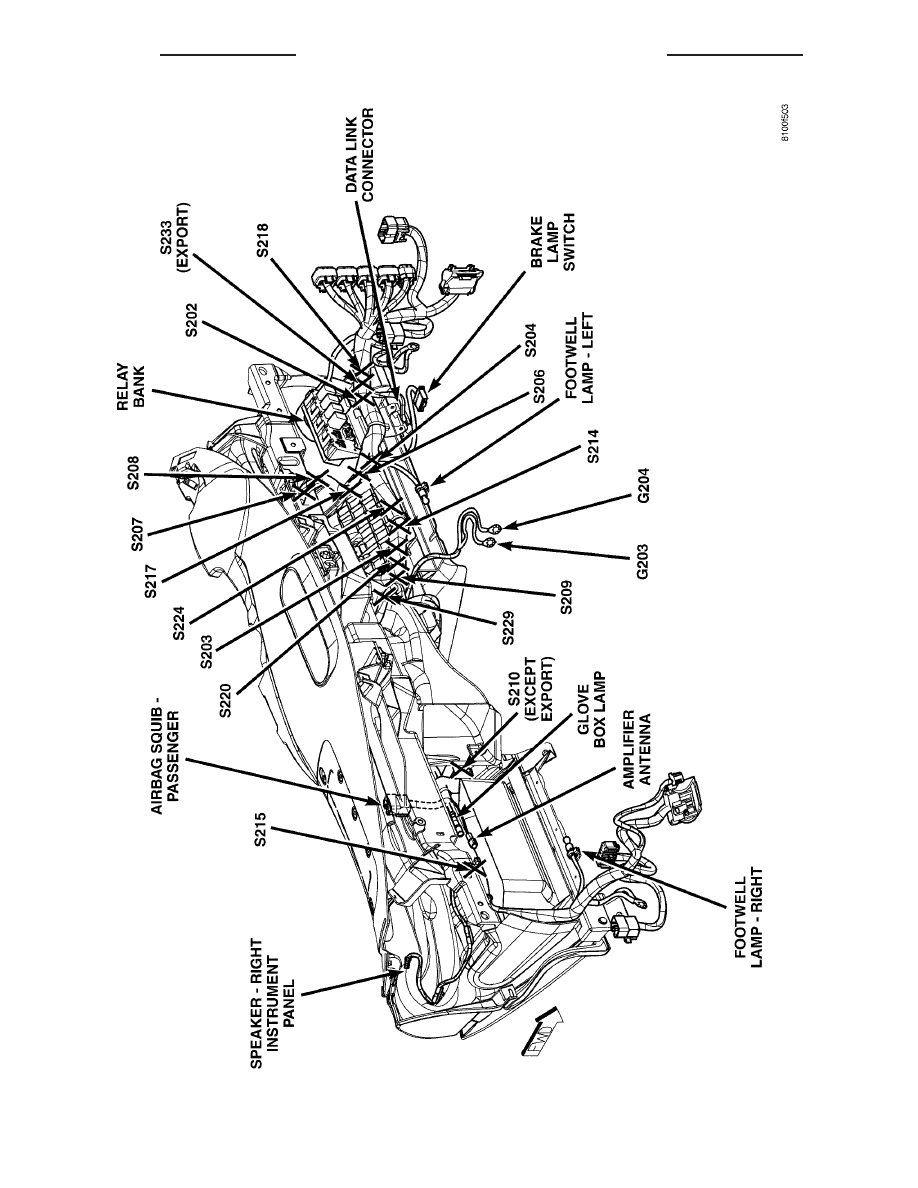

Fig.

19

CENTER

INSTRUMENT

P

ANEL

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 23

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

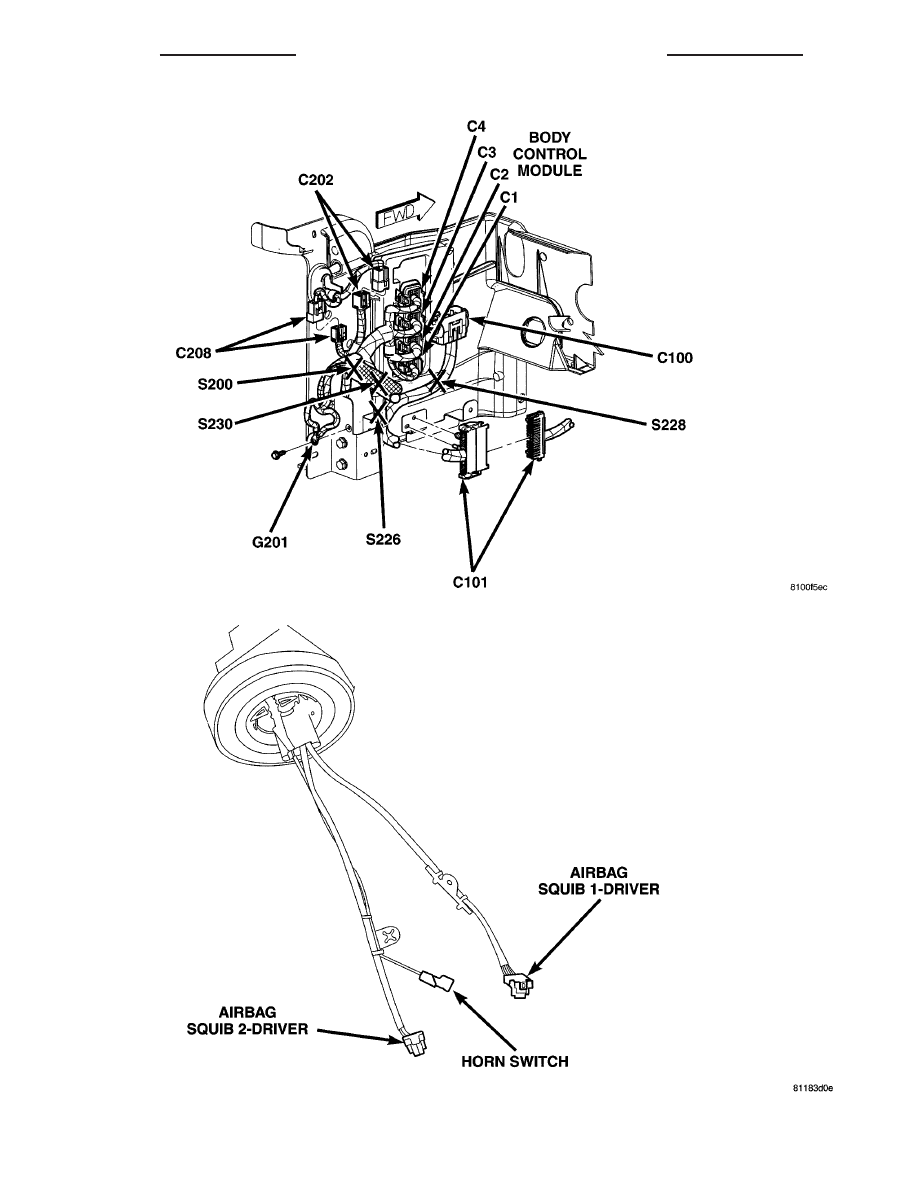

Fig. 20 LEFT KICK PANEL

Fig. 21 CLOCKSPRING

8W - 91 - 24

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

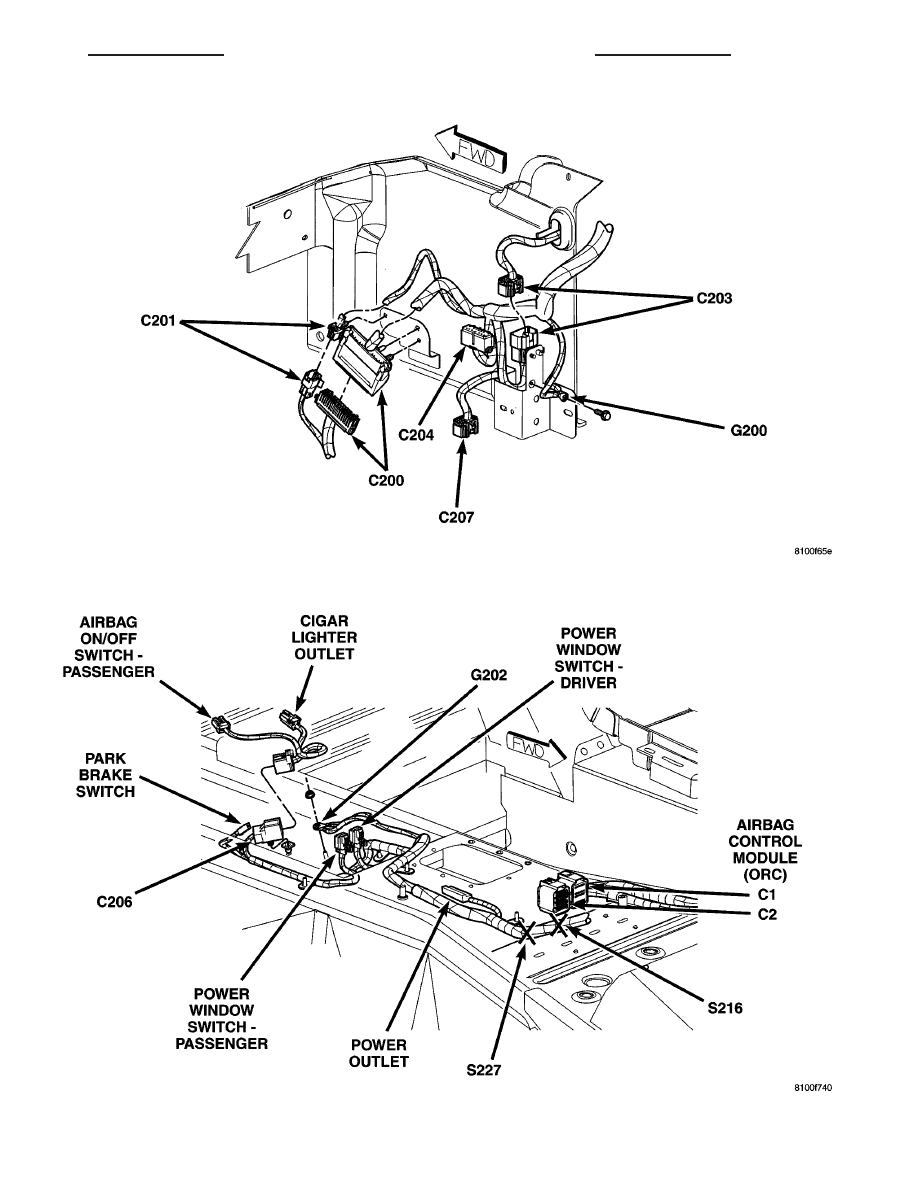

Fig. 22 RIGHT KICK PANEL

Fig. 23 FRONT CENTER BODY

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 25

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
