interrelated front and rear suspension angles. These
angles affect the handling and steering of the vehicle
when it is in motion. Proper wheel alignment is
essential for efficient steering, good directional stabil-
ity, and proper tire wear.

The method of checking a vehicle’s front and rear

wheel alignment varies depending on the manufac-
turer and type of equipment used. The manufactur-
er’s instructions should always be followed to ensure
accuracy

the

alignment,

except

when

DaimlerChrysler Corporation’s wheel alignment spec-
ifications differ.

On this vehicle, the suspension angles that can be

adjusted are as follows:

Front
• Camber

• Caster

• Toe
Rear
• Camber

• Caster

• Toe
Check the wheel alignment and make all wheel

alignment adjustments with the vehicle standing at
its Design Height specification. For information on
design height, (Refer to 2 - SUSPENSION/WHEEL
ALIGNMENT - DESCRIPTION - DESIGN HEIGHT).

Typical wheel alignment angles and measurements

are described in the following paragraphs.

WHEEL ALIGNMENT

2 - 55

CAMBER

Camber is the inward or outward tilt of the top of

the tire and wheel assembly (Fig. 1). Camber is mea-
sured in degrees of angle relative to a true vertical
line. Camber is a tire wearing angle.

• Excessive negative camber will cause tread wear

at the inside of the tire.

• Excessive positive camber will cause tread wear

on the outside of the tire.

CROSS CAMBER

Cross camber is the difference between left and

right camber. To achieve the cross camber reading,
subtract the right side camber reading from the left.
For example, if the left camber is +0.3° and the right
camber is 0.0°, the cross camber would be +0.3°.

CASTER

Caster is the forward or rearward tilt of the steer-

ing knuckle in reference to the position of the upper
and lower ball joints. Caster is measured in degrees
of angle relative to a true vertical center line. This
line is viewed from the side of the tire and wheel
assembly (Fig. 2).

• Forward tilt (upper ball joint ahead of lower)

results in a negative caster angle.

• Rearward tilt (upper ball joint trailing lower)

results in a positive caster angle.

Although caster does not affect tire wear, a caster

imbalance between the two front wheels may cause
the vehicle to lead to the side with the least positive
caster.

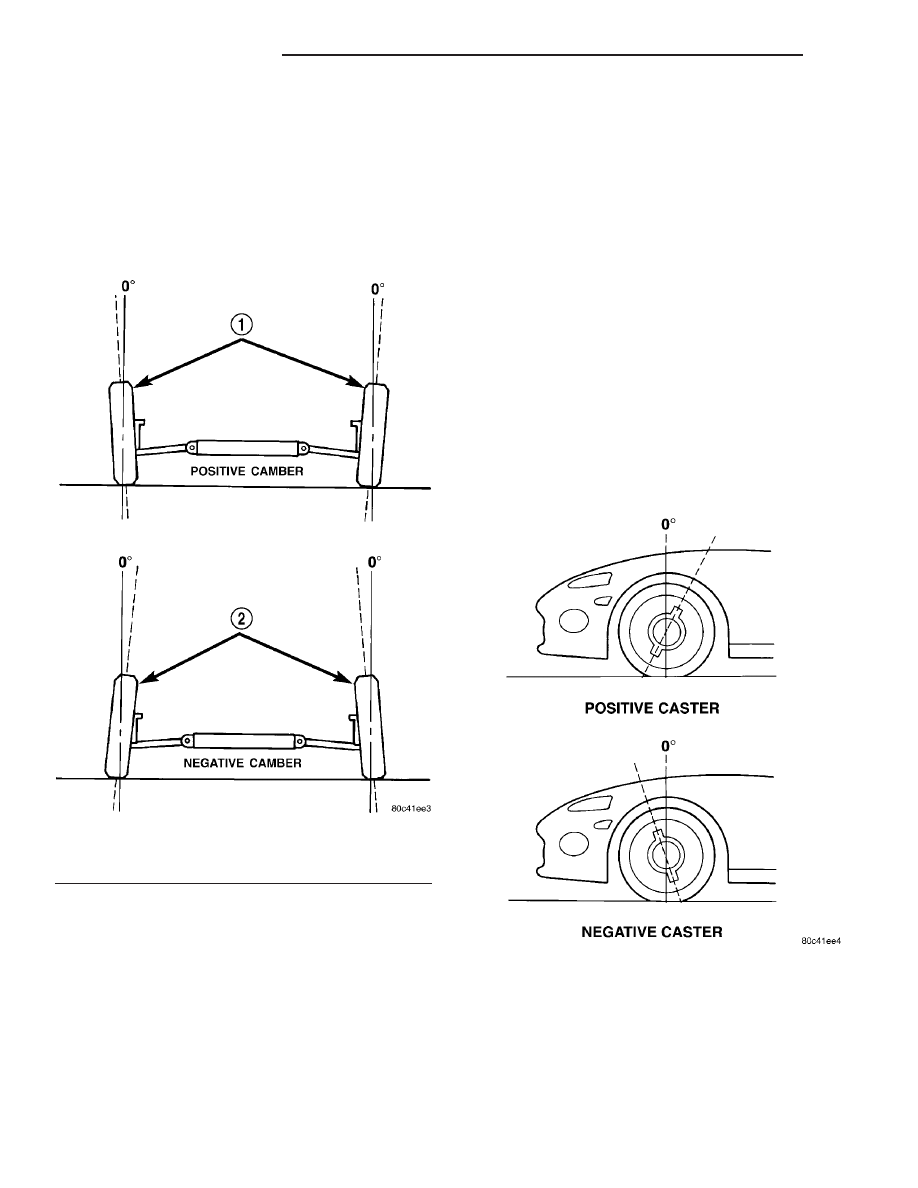

Fig. 1 Camber

1 - WHEELS TILTED OUT AT TOP
2 - WHEELS TILTED IN AT TOP

Fig. 2 Caster

2 - 56

WHEEL ALIGNMENT

WHEEL ALIGNMENT (Continued)

CROSS CASTER

Cross caster is the difference between left and

right caster.

TOE

Toe is the inward or outward angle of the wheels

as viewed from above the vehicle (Fig. 3).

• Toe-in is produced when the front edges of the

wheels on the same axle are closer together than the
rear edges.

• Toe-out is produced when the front edges of the

wheels on the same axle are farther apart than the
rear edges.

Toe-in and toe-out can occur at the front wheels

and the rear wheels.

Toe is measured in degrees or inches. The mea-

surement identifies the amount that the front of the
wheels point inward (toe-in) or outward (toe-out). Toe
is measured at the spindle height. Zero toe means
the front and rear edges of the wheels on the same
axle are equally distant.

TOE-OUT ON TURNS

Toe-out on turns is the relative positioning of the

front wheels while steering through a turn (Fig. 4).
This compensates for each front wheel’s turning
radius. As the vehicle encounters a turn, the out-
board wheel must travel in a larger radius circle
than the inboard wheel. The steering system is
designed to make each wheel follow its particular
radius circle. To accomplish this, the front wheels
must progressively toe outward as the steering is
turned from center. This eliminates tire scrubbing
and undue tire wear when steering a vehicle through
a turn.

DYNAMIC TOE PATTERN

Dynamic toe pattern is the inward and outward toe

movement of the front and rear tires through the
suspension’s jounce and rebound travel. As the vehi-
cle’s suspension moves up and down, the toe pattern
varies. Toe pattern is critical in controlling the direc-
tional stability of the vehicle while in motion. Front
and rear dynamic toe pattern is preset by the factory
at the time the vehicle is assembled.

It is not necessary to check or adjust front or rear

dynamic toe pattern when doing a normal wheel
alignment. The only time dynamic toe pattern needs
to be checked or adjusted is if the frame of the vehi-
cle has been damaged.

STEERING AXIS INCLINATION (S.A.I.)

Steering axis inclination is the angle between a

true vertical line starting at the center of the tire at
the road contact point and a line drawn through the

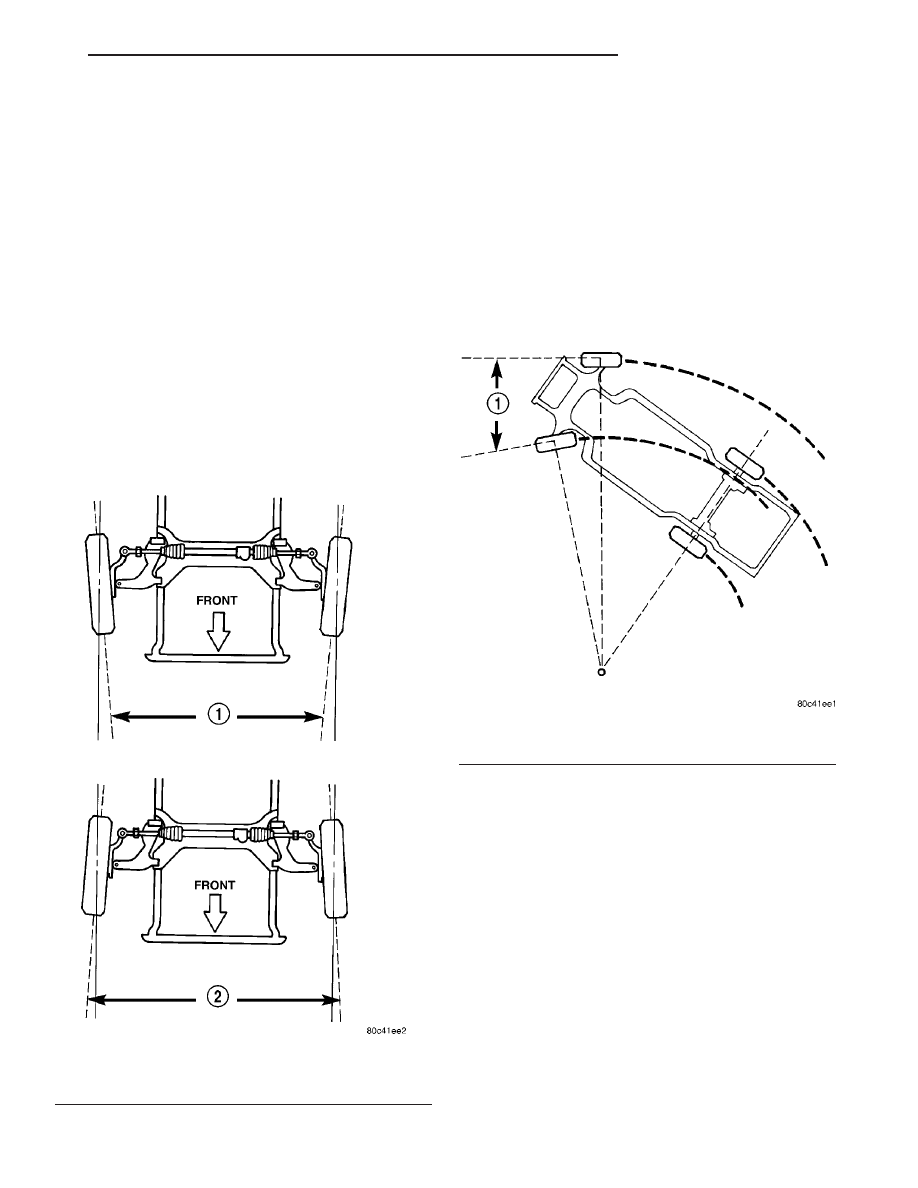

Fig. 3 Toe

1 - TOE-IN
2 - TOE-OUT

Fig. 4 Toe-Out On Turns

1 - TOE-OUT ON TURNS

WHEEL ALIGNMENT

2 - 57

WHEEL ALIGNMENT (Continued)
