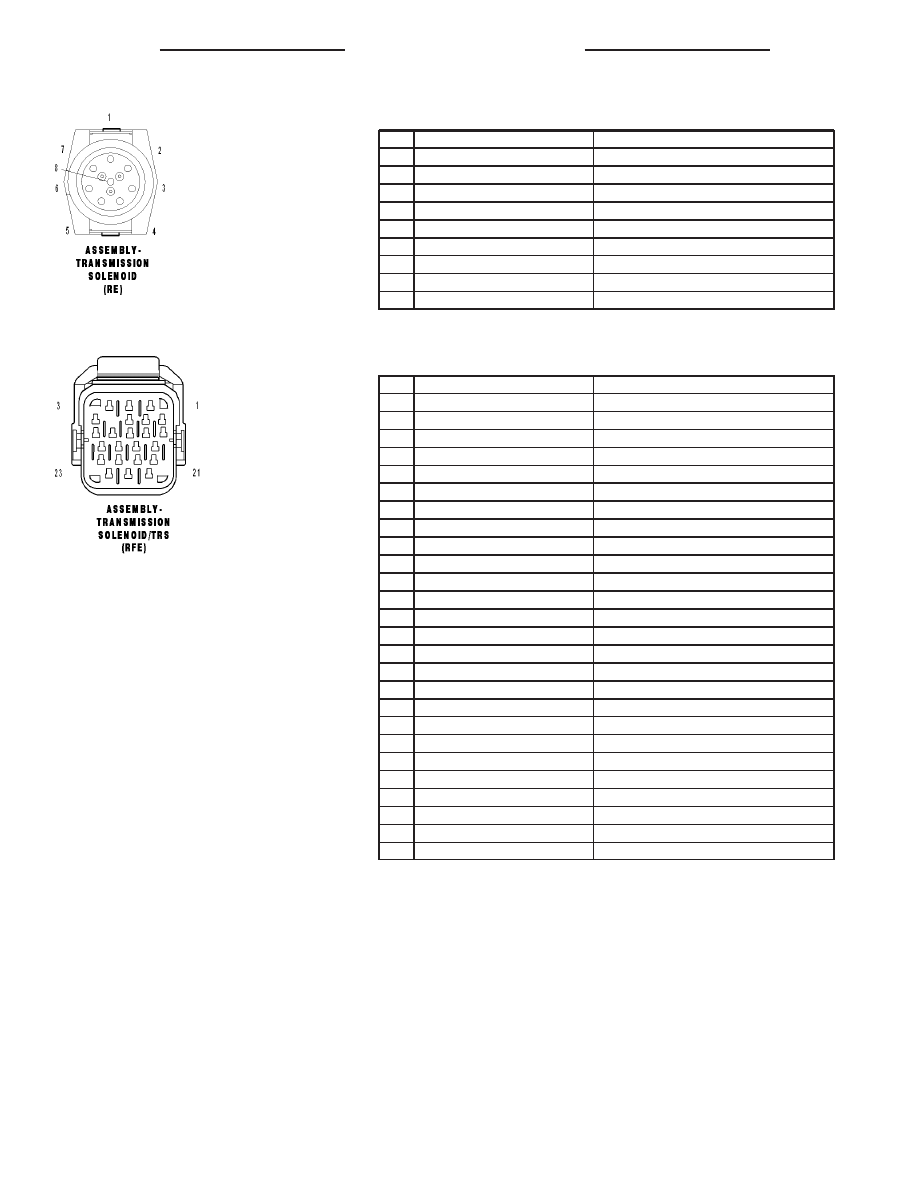

ASSEMBLY-TRANSMISSION SOLENOID (RE) - 8 WAY

CAV

CIRCUIT

FUNCTION

1

T16 18YL/OR

TRANSMISSION CONTROL RELAY OUTPUT

2

F856 18YL/PK

5 VOLT SUPPLY

3

K900 20DB/DG (DIESEL)

SENSOR GROUND

3

K900 18DB/DG (SRT)

SENSOR GROUND

4

T38 18YL/BR

GOVERNOR PRESSURE SENSOR SIGNAL

5

T118 18DG

GOVERNOR PRESSURE SOLENOID CONTROL

6

T9 18DG/TN

3-4 SOLENOID CONTROL

7

T75 18YL/LB

TORQUE CONVERTER CLUTCH SOLENOID CONTROL

8

T54 18DG/OR

TRANSMISSION TEMPERATURE SENSOR SIGNAL

ASSEMBLY-TRANSMISSION SOLENOID/TRS (RFE) - 23 WAY

CAV

CIRCUIT

FUNCTION

1

L10 18WT/GY

FUSED IGNITION SWITCH OUTPUT (RUN)

2

T20 18DG/WT

L/R SOLENOID CONTROL

3

-

-

4

T41 20YL/DB

TRS T41 SENSE

5

T42 18DG/YL

TRS T42 SENSE

6

L1 18WT/LG

BACKUP LAMP FEED

7

T60 18YL/GY

OD SOLENOID CONTROL

8

T3 18DG/DB

TRS T3 SENSE

9

T1 18DG/LB

TRS T1 SENSE

10

T16 18YL/OR

TRANSMISSION CONTROL RELAY OUTPUT

11

T48 18BR/YL

4C PRESSURE SWITCH SENSE

12

T118 18YL/VT (3.7L/4.7L)

PRESSURE CONTROL SOLENOID CONTROL

12

T118 18YL/GY (5.7L)

PRESSURE CONTROL SOLENOID CONTROL

13

T4 18DG/VT (3.7L/4.7L)

TRS T2 SENSE

13

T4 18DG/LB (5.7L)

TRS T2 SENSE

14

T50 18YL/TN

L/R PRESSURE SWITCH SENSE

15

T147 18DG/LG (3.7L/4.7L)

2C PRESSURE SWITCH SENSE

15

T147 18DG/YL (5.7L)

2C PRESSURE SWITCH SENSE

16

T9 18DG/TN

OD PRESSURE SWITCH SENSE

17

T59 18YL/LB

UD SOLENOID CONTROL

18

T29 18YL/WT

UD PRESSURE SWITCH SENSE

19

T259 18YL/DG

4C SOLENOID CONTROL

20

T219 18YL/LG

2C SOLENOID CONTROL

21

T140 18DG

MS SOLENOID CONTROL

22

K900 18DB/DG

SENSOR GROUND

23

T54 18DG/OR

TRANSMISSION TEMPERATURE SENSOR SIGNAL

8W - 80 - 12

8W-80 CONNECTOR PIN-OUTS

DR/DH

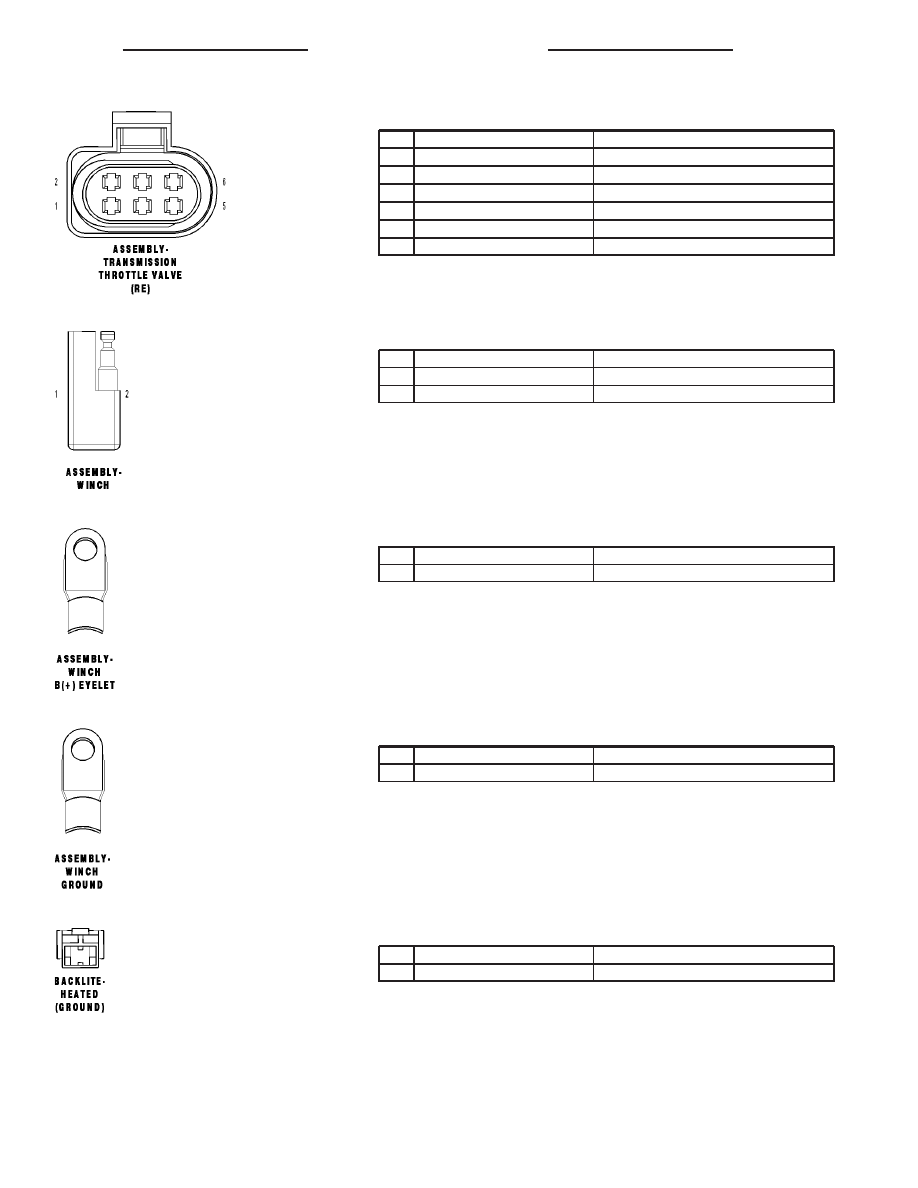

ASSEMBLY-TRANSMISSION THROTTLE VALVE (RE) - 6 WAY

CAV

CIRCUIT

FUNCTION

1

K312 18OR

TTVA POSITION SENSOR SIGNAL

2

F856 18YL/PK

5 VOLT SUPPLY

3

K314 18TN/YL

TTVA MOTOR (+)

4

-

-

5

K315 18TN/OR

TTVA MOTOR (-)

6

K900 18DB/DG

SENSOR GROUND

ASSEMBLY-WINCH - 2 WAY

CAV

CIRCUIT

FUNCTION

1

18OR

B(+)

2

18BK

GROUND

ASSEMBLY-WINCH B(+) EYELET - 1 WAY

CAV

CIRCUIT

FUNCTION

1

10RD

B(+)

ASSEMBLY-WINCH GROUND - 1 WAY

CAV

CIRCUIT

FUNCTION

1

10BK

GROUND

BACKLITE-HEATED (GROUND) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

Z1 16BK

GROUND

DR/DH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 13

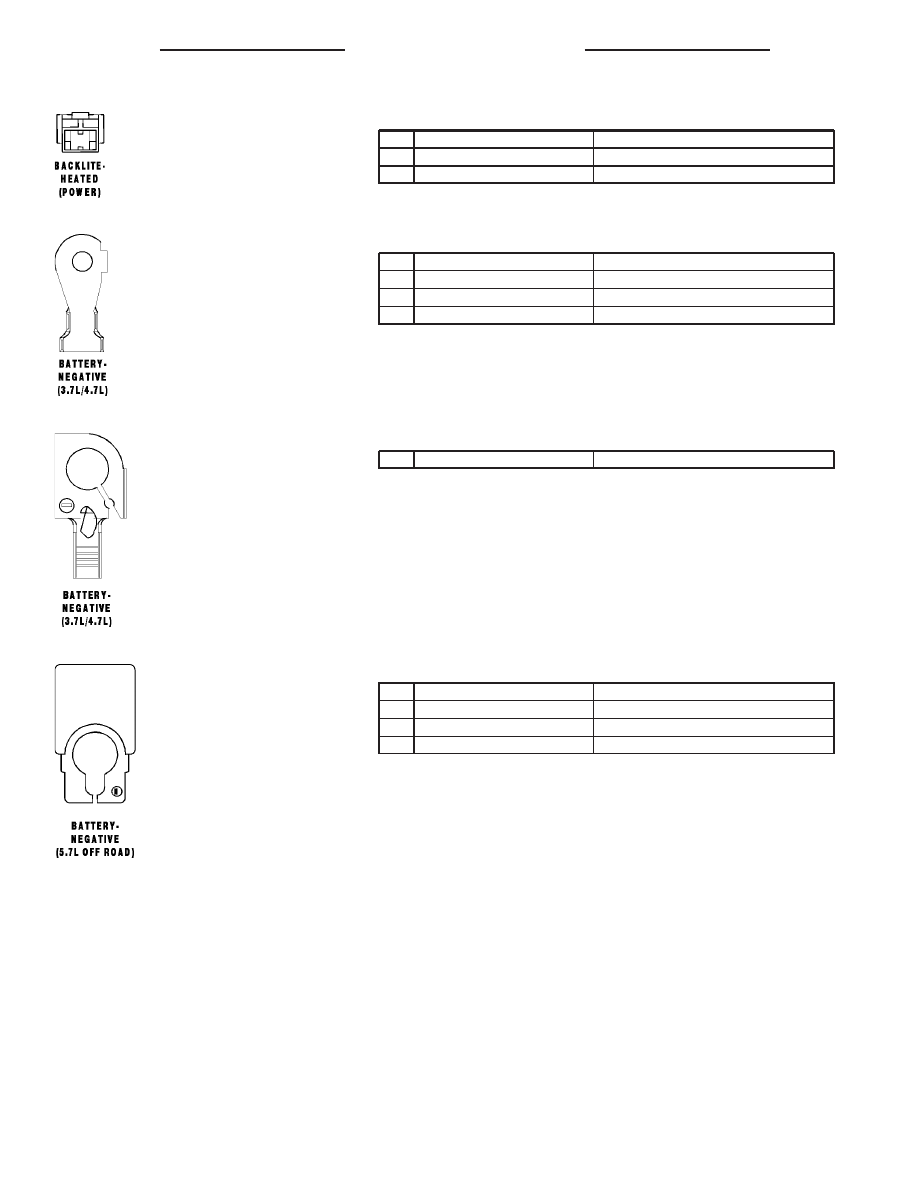

BACKLITE-HEATED (POWER) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

C15 16DB/WT (EXCEPT SAB)

REAR WINDOW DEFOGGER RELAY OUTPUT

1

C15 16BK (SAB)

REAR WINDOW DEFOGGER RELAY OUTPUT

BATTERY-NEGATIVE (3.7L/4.7L) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

Z3 6BK

GROUND

1

Z1 6BK

GROUND

1

Z2 6BK

GROUND

BATTERY-NEGATIVE (3.7L/4.7L) - 1 WAY

CAV

CIRCUIT

FUNCTION

BATTERY-NEGATIVE (5.7L OFF ROAD) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

Z1 6BK

GROUND

1

Z2 6BK

GROUND

1

Z3 6BK

GROUND

8W - 80 - 14

8W-80 CONNECTOR PIN-OUTS

DR/DH

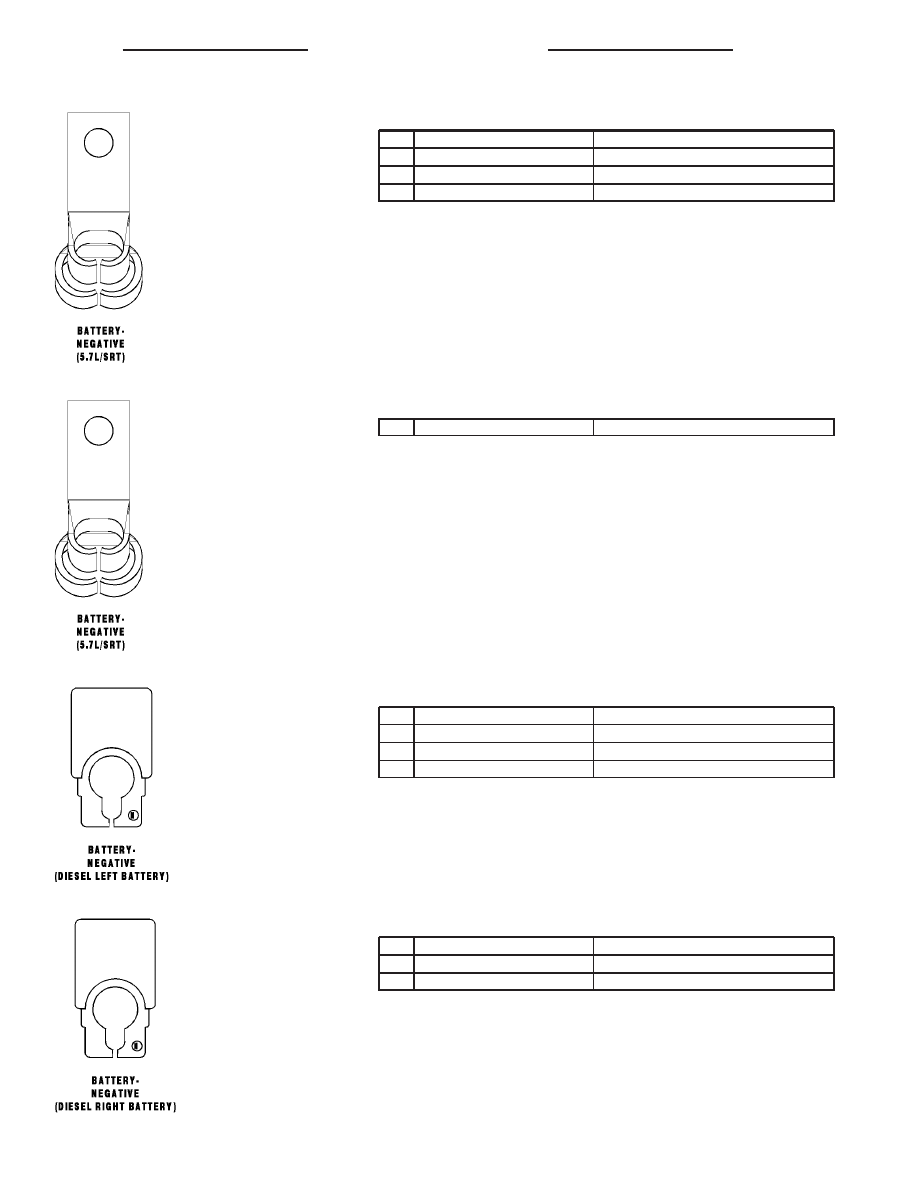

BATTERY-NEGATIVE (5.7L/SRT) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

Z2 6BK

GROUND

1

Z1 6BK

GROUND

1

Z3 6BK

GROUND

BATTERY-NEGATIVE (5.7L/SRT) - 1 WAY

CAV

CIRCUIT

FUNCTION

BATTERY-NEGATIVE (DIESEL LEFT BATTERY) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

Z1 10BK

GROUND

1

Z2 0BK

GROUND

1

Z3 8BK

GROUND

BATTERY-NEGATIVE (DIESEL RIGHT BATTERY) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

Z0 8BK

GROUND

2

Z0 0BK

GROUND

DR/DH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 15
