Dodge Ram Truck 1500-2500-3500. Manual - part 449
MIC-GLOVEBOX-MAP LAMP OUTPUT CIRCUIT SHORTED OR OPEN (CONTINUED)

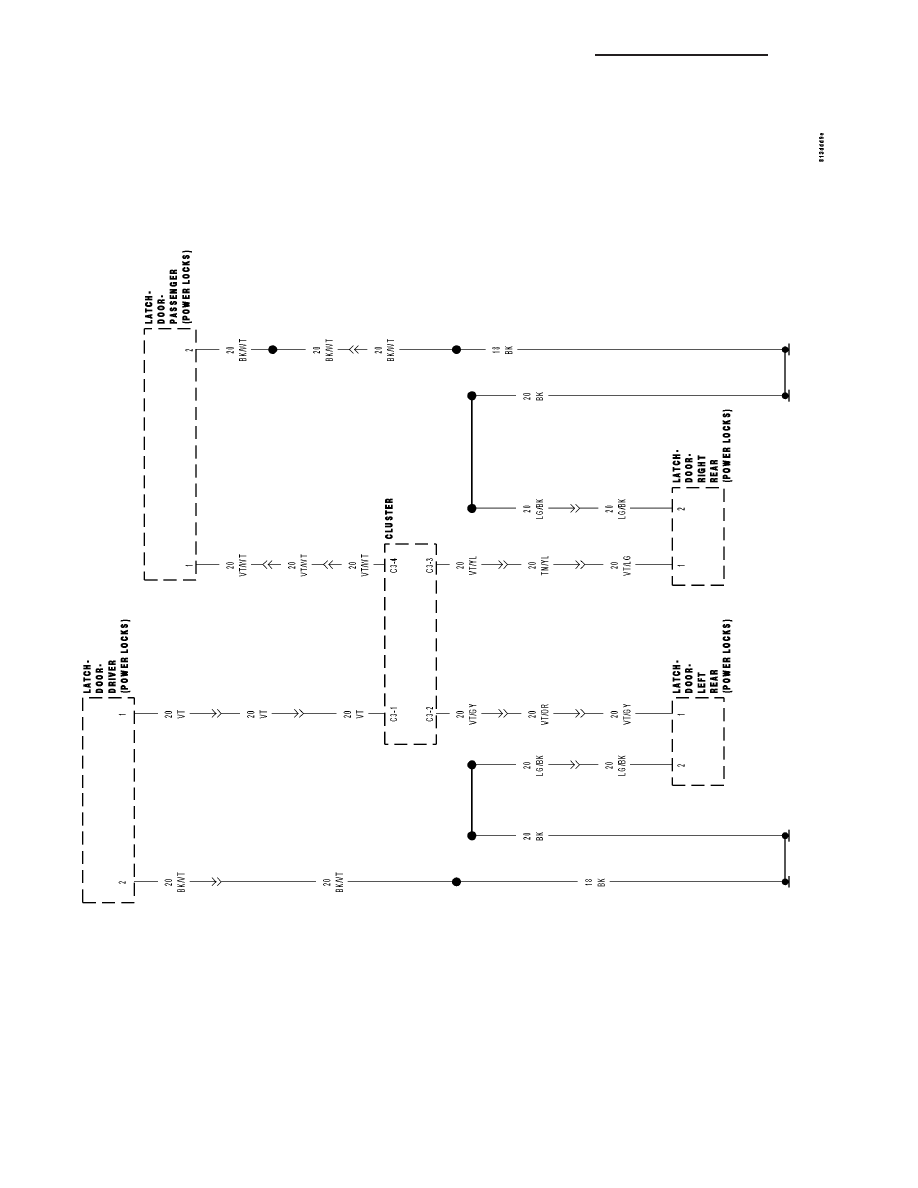

For the Interior Lighting system circuit diagram (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - INTERIOR - SCHE-
MATICS AND DIAGRAMS).
For a complete wiring diagram Refer to Section 8W.
•
When Monitored:
Continuously
•
Set Condition:
The CCN detects a short condition
Possible Causes

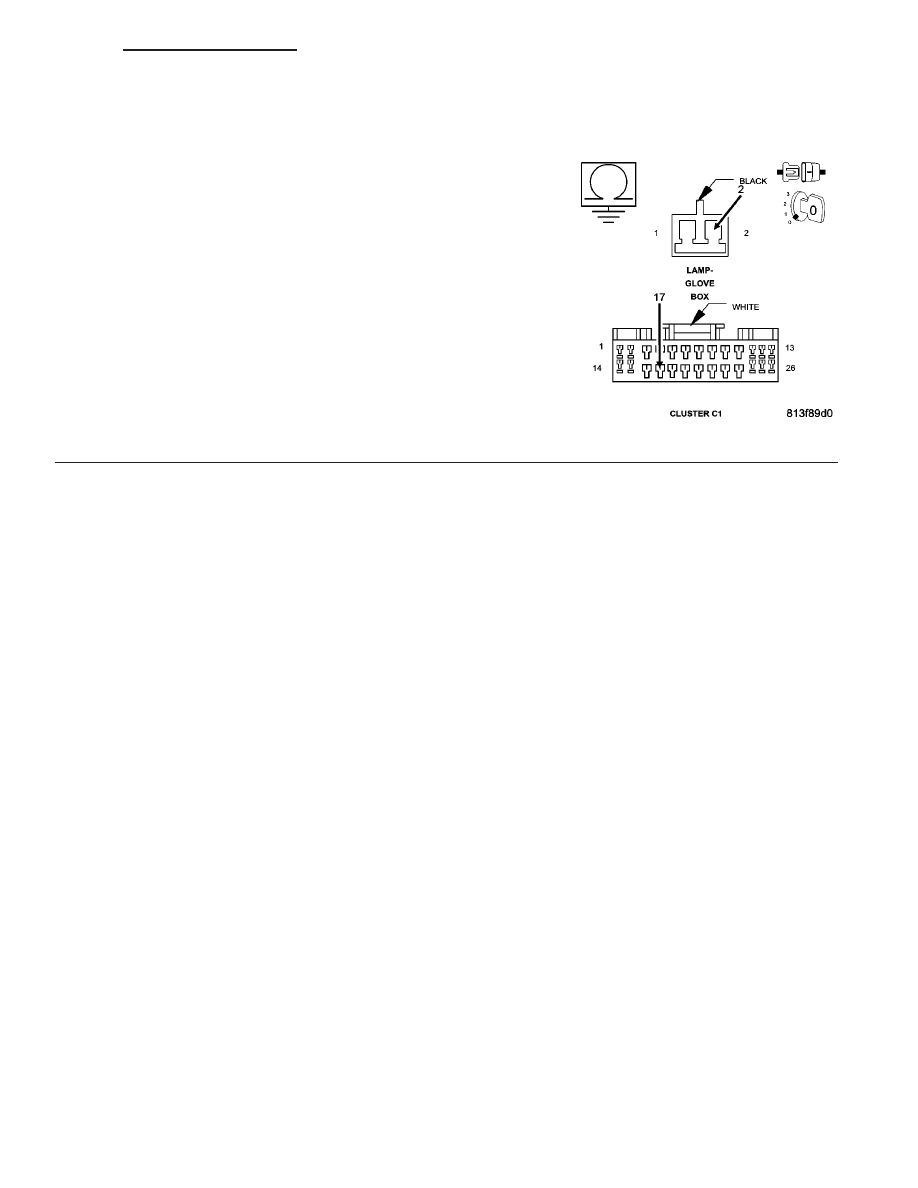

GLOVEBOX-MAP LAMP OUTPUT CIRCUIT SHORT TO GROUND
INSTRUMENT CLUSTER
1.
INTERMITTENT CONDITION
Turn the ignition on.

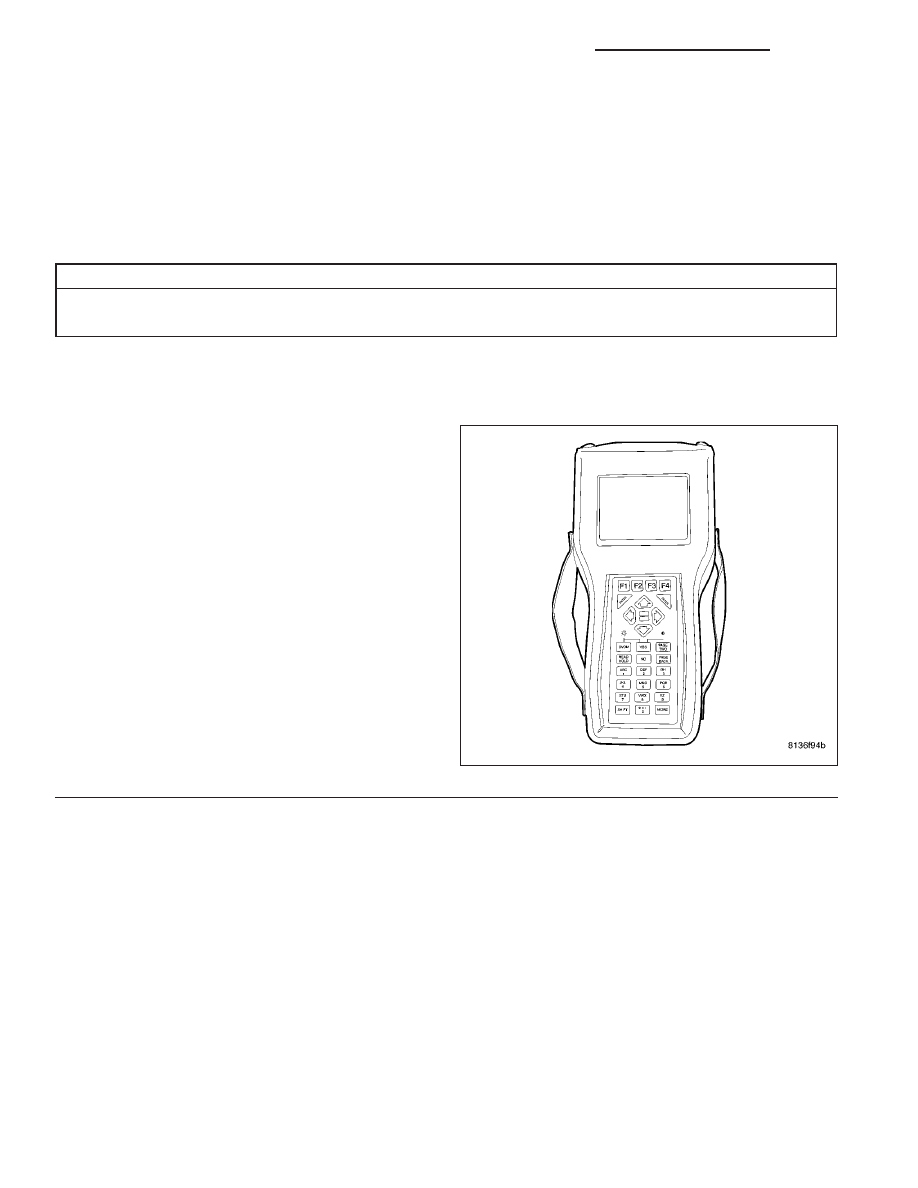

With the DRBIII
T
, clear all MIC DTC’s.
Turn the Glove Box Lamps on.
With the DRBIII
T
, read the DTC information.
Does the DRBIII
T
read: Glove box/Map Lamp
Output Circuit Short/Open?
Yes
>> Go To 2
No
>> The condition that caused the symptom is
currently not present. Inspect the related
wiring for a possible intermittent condition.
Look for any chafed, pierced, pinched, or
partially broken wires.
Perform BODY VERIFICATION TEST -
VER 1.
8L - 202
LAMPS/LIGHTING - INTERIOR - ELECTRICAL DIAGNOSTICS
DR/DH
