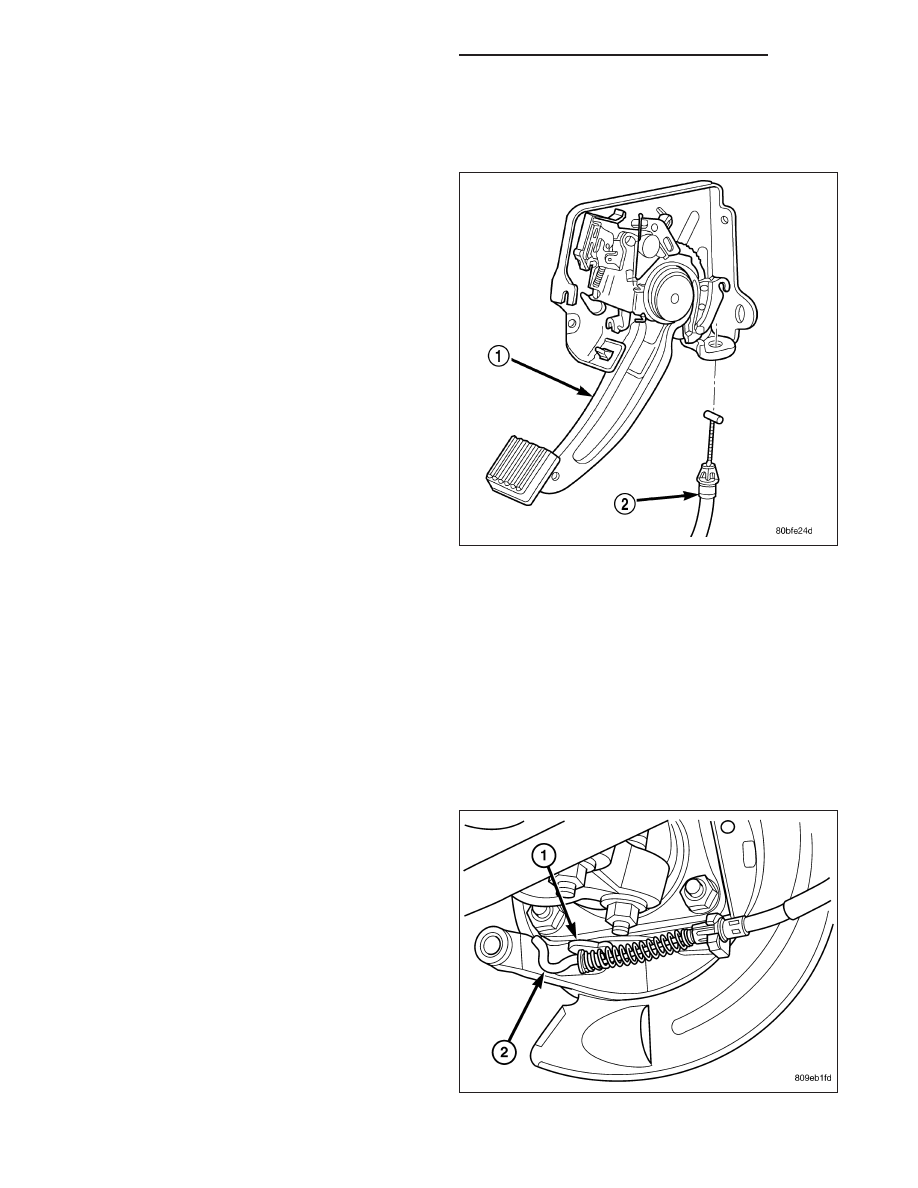

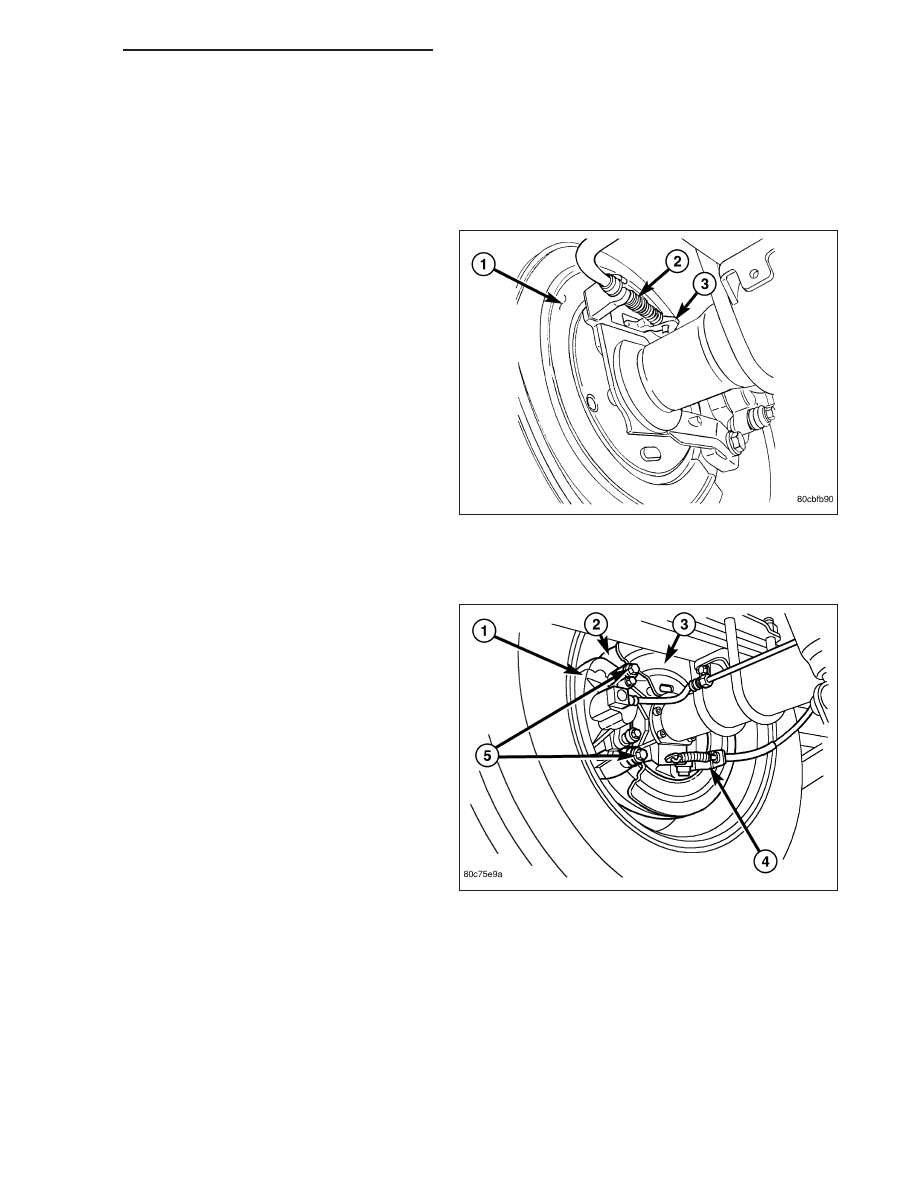

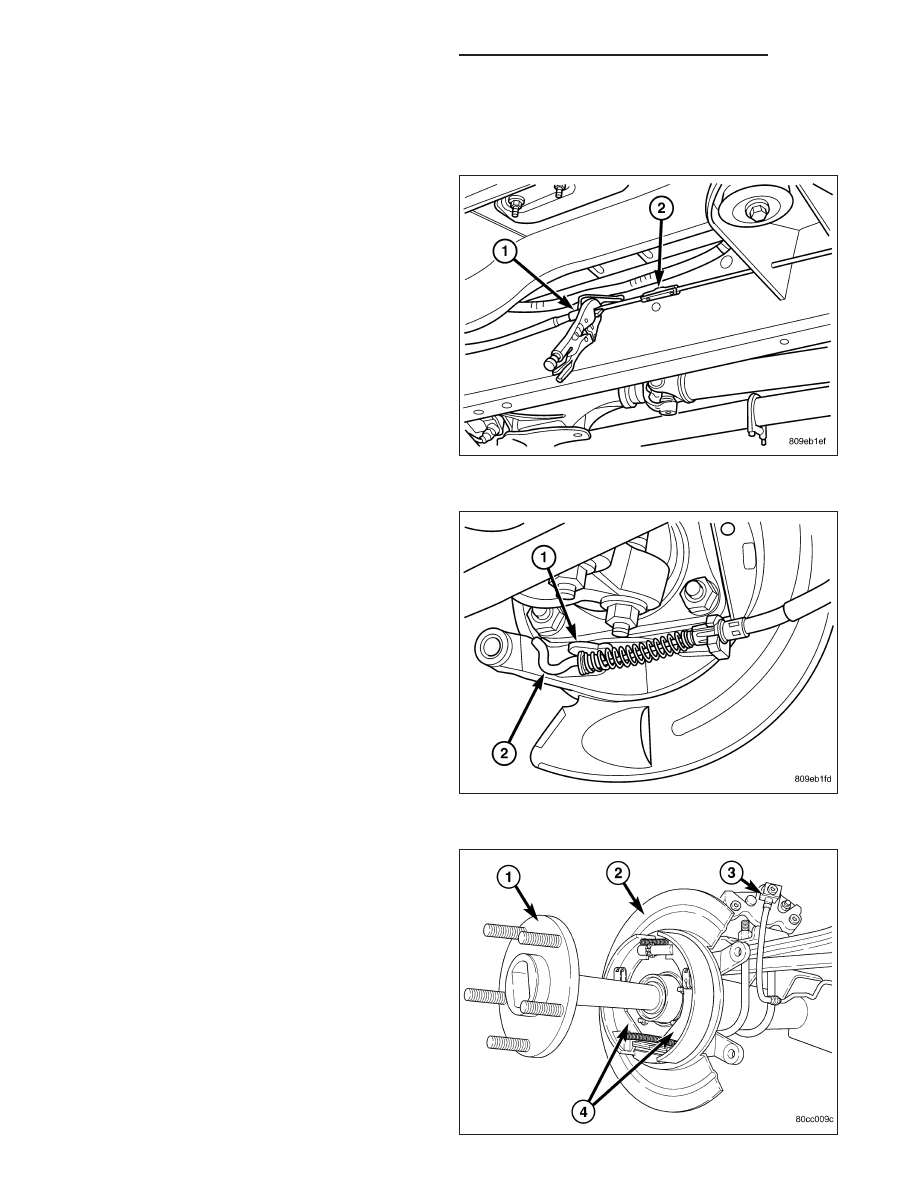

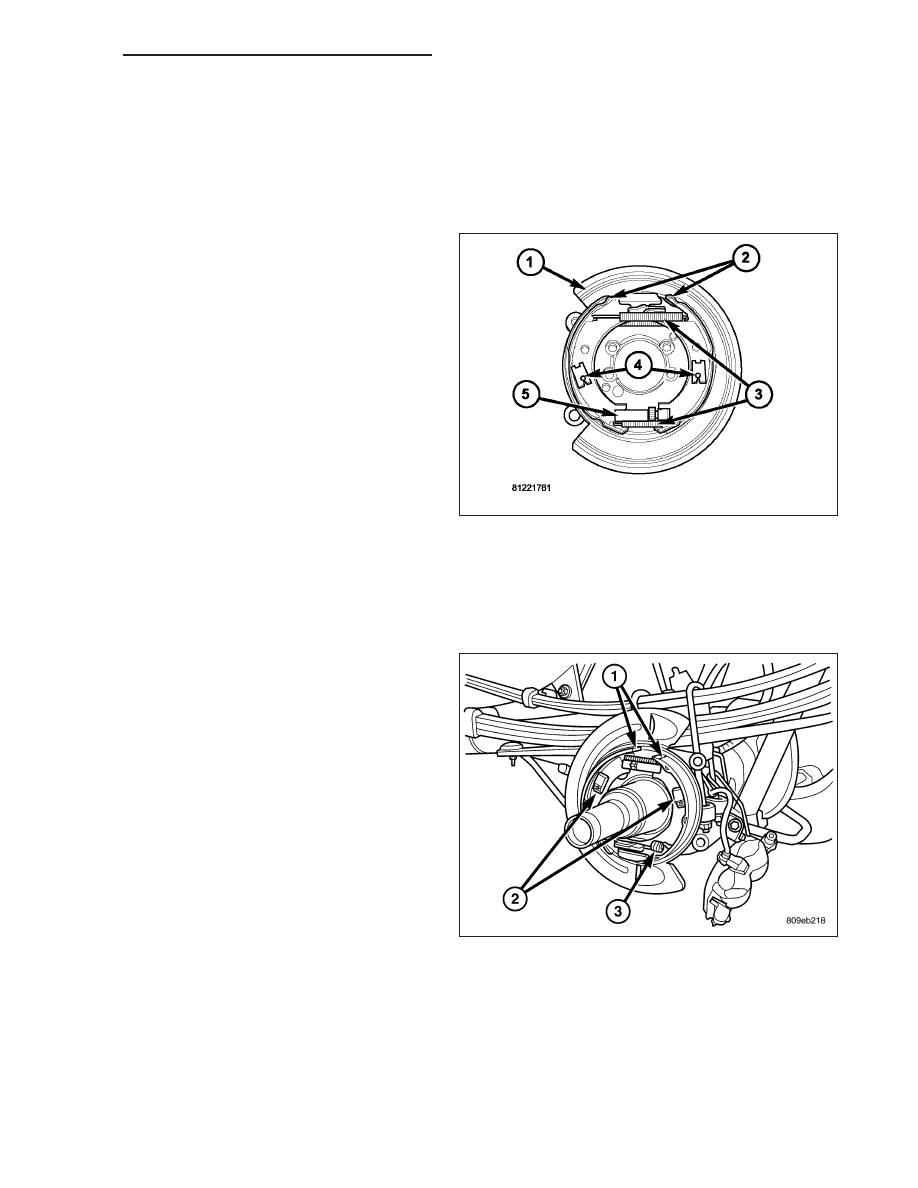

INSTALLATION FRONT PARKING BRAKE CABLE 1. From inside the vehicle, insert the cable end fitting (2) into the hole in the pedal assembly (1). 2. Seat the cable retainer in the pedal assembly (1). 3. Engage the cable ball end in clevis on the pedal assembly. 4. Route the cable through the floorpan and install the body grommet. 5. Place the carpet down and install the left cowl trim and sill plate. 6. Raise and support the vehicle. 7. Route the cable through the underbody bracket and seat the cable end fitting in the bracket. 8. Connect the cable to the cable connector. 9. Perform the park brake adjustment procedure, (Refer to 5 - BRAKES/PARKING BRAKE/CABLE TENSIONER - ADJUSTMENTS). 10. Lower the vehicle. REAR PARK BRAKE CABLE 1. Push each cable end (2) through the brake cable support plate hole until the cable end fitting tabs NOTE: Pull on the cable to ensure it is locked into 2. Push the cable through the frame bracket. 3. Lock the left cable end fitting tabs into the frame bracket hole. 4. Install the rear cables into the tensioner rod behind the rear of the brake assembly. 5. Install the cable to the intermediate cable connector. 5 - 276 BRAKES - BASE - SERVICE INFORMATION DR/DH |
