CONDITION

POSSIBLE CAUSES

CORRECTION

NOISY OPERATION IN
FOURTH GEAR ONLY

1. Overdrive Clutch Discs, Plates or
Snap Rings Damaged.

1. Remove unit and rebuild clutch pack.

2. Overdrive Piston or Planetary Thrust
Bearing Damaged.

2. Remove and disassemble unit. Replace
either thrust bearing if damaged.

3. Output Shaft Bearings Scored/
Damaged.

3. Remove and disassemble unit. Replace
either bearing if damaged.

4. Planetary Gears Worn/Chipped.

4. Remove and overhaul overdrive unit.

5. Overdrive Unit Overrunning Clutch
Rollers Worn/Scored.

5. Remove and overhaul overdrive unit.

STANDARD PROCEDURE - ALUMINUM THREAD REPAIR

Damaged or worn threads in the aluminum transmission case and valve body can be repaired by the use of Heli-
Coils™, or equivalent. This repair consists of drilling out the worn-out damaged threads. Then tap the hole with a
special Heli-Coil™ tap, or equivalent, and installing a Heli-Coil™ insert, or equivalent, into the hole. This brings the
hole back to its original thread size.

Heli-Coil™, or equivalent, tools and inserts are readily available from most automotive parts suppliers.

REMOVAL

NOTE: The overdrive unit can be removed and serviced separately. It is not necessary to remove the entire
transmission assembly to perform overdrive unit repairs.

1. Disconnect battery negative cable.

2. Raise vehicle.

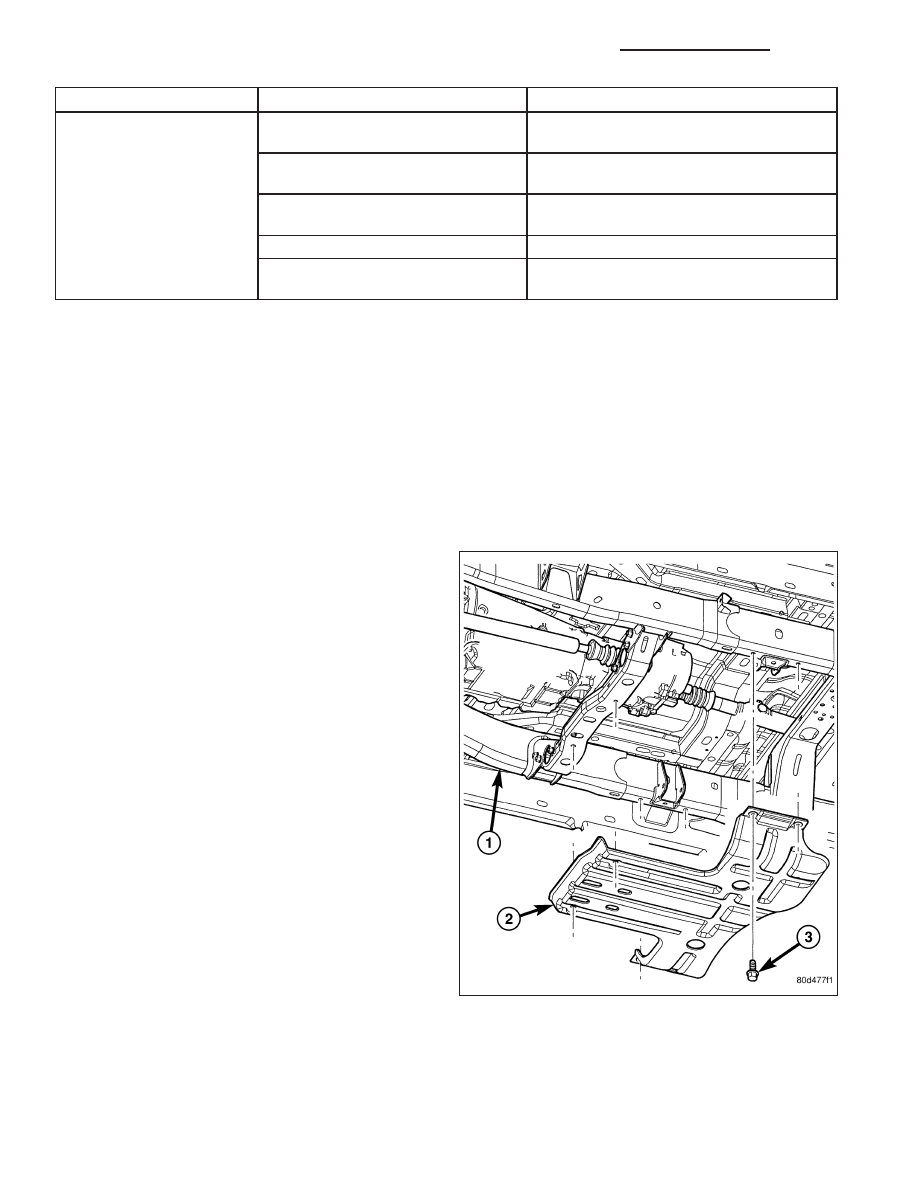

3. Remove

the

transfer

case

skid

plate

(2),

if

equipped.

21 - 992

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

DR/DH

4. Disconnect and lower or remove any necessary

exhaust components.

5. Remove engine-to-transmission struts.

6. Remove starter motor. (Refer to 8 - ELECTRICAL/

STARTING/STARTER MOTOR - REMOVAL)

7. Disconnect and remove the crankshaft position

sensor. (Refer to 14 - FUEL SYSTEM/FUEL
INJECTION/CRANKSHAFT POSITION SENSOR -
REMOVAL) Retain the sensor attaching bolts.

8. If transmission is being removed for overhaul,

remove transmission oil pan, drain fluid and rein-
stall pan.

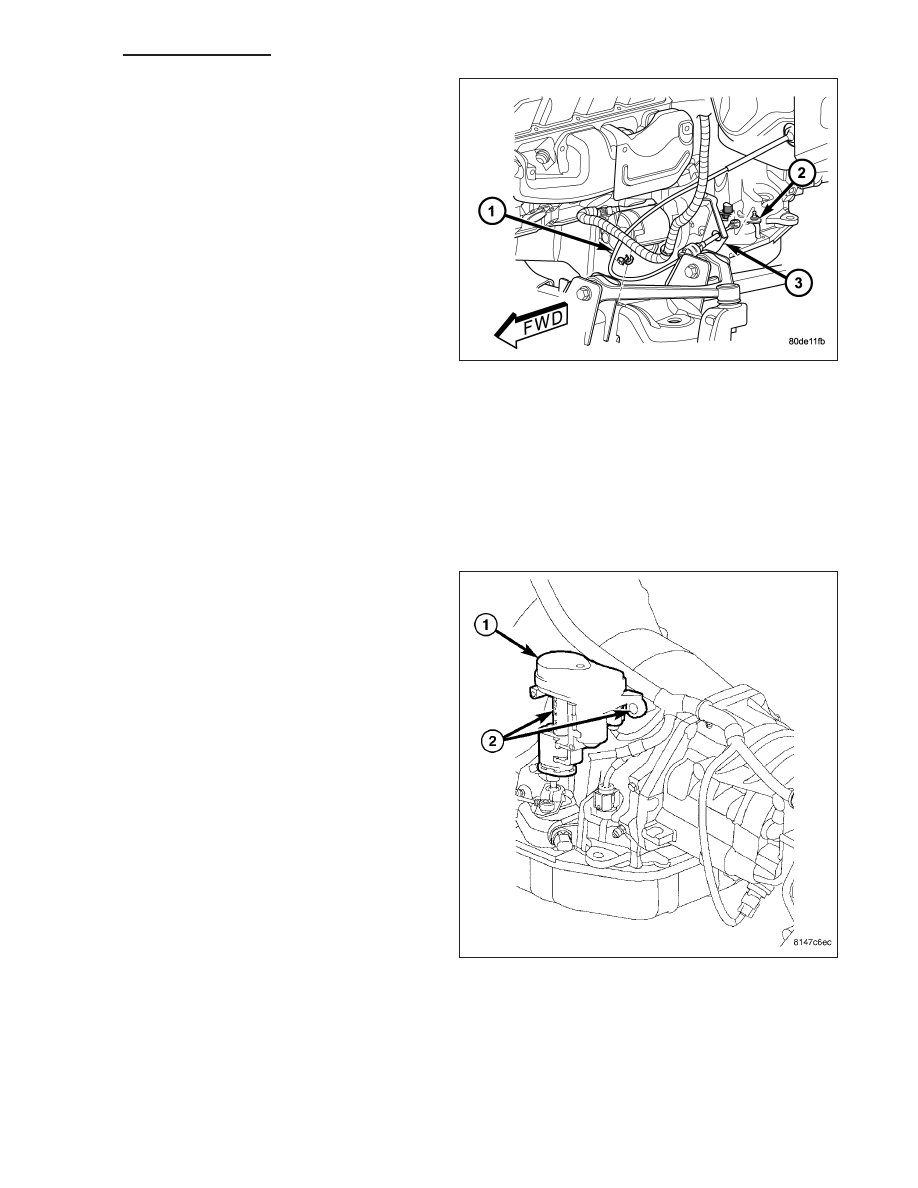

9. Remove torque converter access cover.

10. Rotate crankshaft in clockwise direction until con-

verter bolts are accessible. Then remove bolts
one at a time. Rotate crankshaft with socket wrench on dampener bolt.

11. Mark propeller shaft and axle yokes for assembly alignment. Then disconnect and remove propeller shaft. On 4

x 4 models, remove both propeller shafts. (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/
PROPELLER SHAFT - REMOVAL)

12. Disconnect wires from the transmission range sensor and transmission solenoid connector.

13. Disconnect gearshift cable (1) from the transmission manual lever (2).

14. For vehicles with gas engines, disconnect throttle valve cable from transmission bracket and throttle valve lever.

15. For vehicles with a diesel engine, remove the

bolts (2) holding the transmission throttle valve
actuator (TTVA) (1) to the transmission case.

16. Allow the TTVA (1) to rotate clockwise away from

the transmission.

DR/DH

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

21 - 993

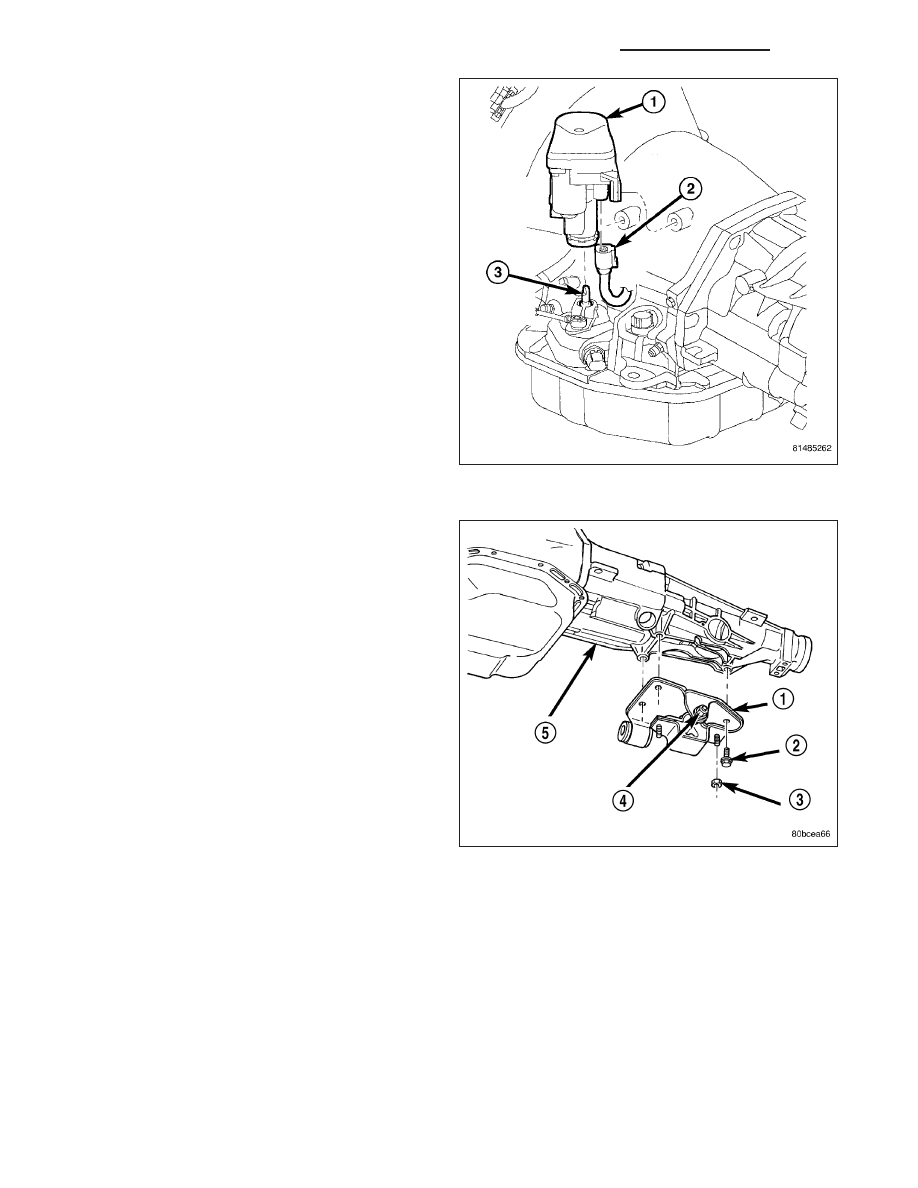

17. Remove the wiring connector (2) from the TTVA

(1).

18. Lift the TTVA (1) straight upward and off the throt-

tle valve shaft (3).

19. On 4X4 models, disconnect shift rod from transfer

case shift lever.

20. Support rear of engine with safety stand or jack.

21. Raise transmission slightly with service jack to

relieve load on crossmember and supports.

22. Remove the nuts (3) securing rear support (1) to

the transmission crossmember.

23. Remove the bolts(2) holding the rear support (1)

to the transmission (5) remove the rear support.

21 - 994

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

DR/DH

24. Remove bolts attaching crossmember to frame

and remove crossmember.

25. On 4X4 models, remove transfer case. (Refer to

21 - TRANSMISSION AND TRANSFER CASE/
TRANSFER CASE - REMOVAL)

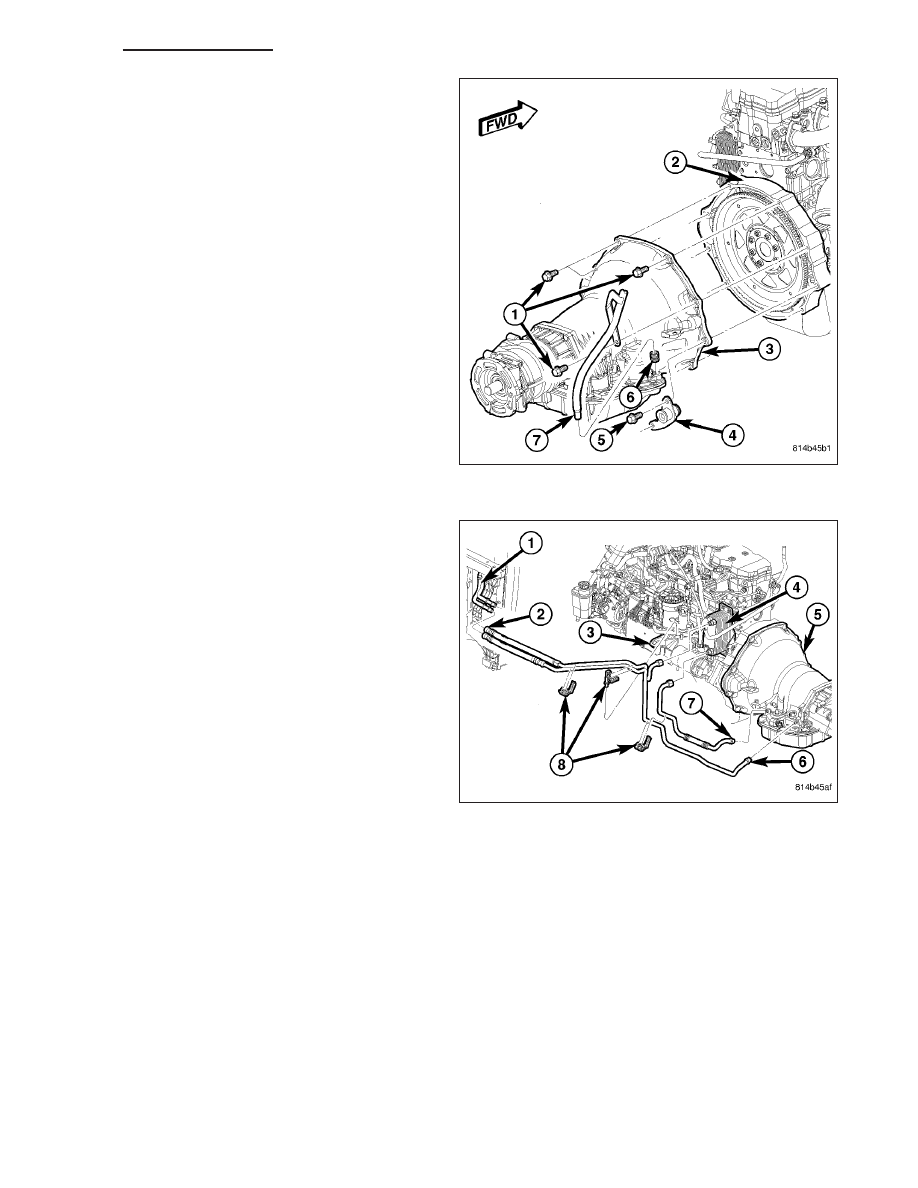

26. Remove fill tube (7) bracket bolts and pull tube

out of transmission. Retain fill tube seal (6). On
4X4 models, it will also be necessary to remove
bolt attaching transfer case vent tube to converter
housing.

27. Disconnect fluid cooler lines (6, 7) at transmission

(5), diesel engines.

DR/DH

AUTOMATIC TRANSMISSION - 48RE - SERVICE INFORMATION

21 - 995
