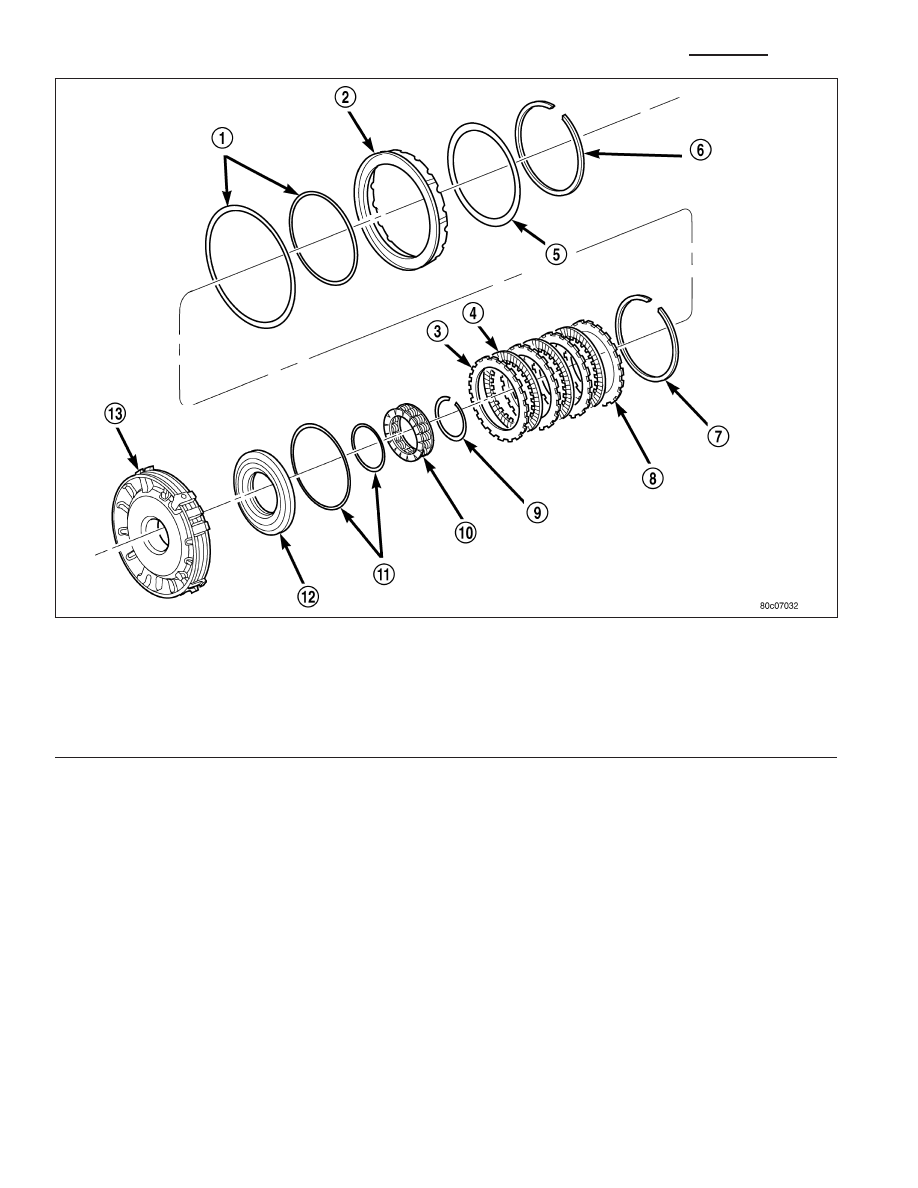

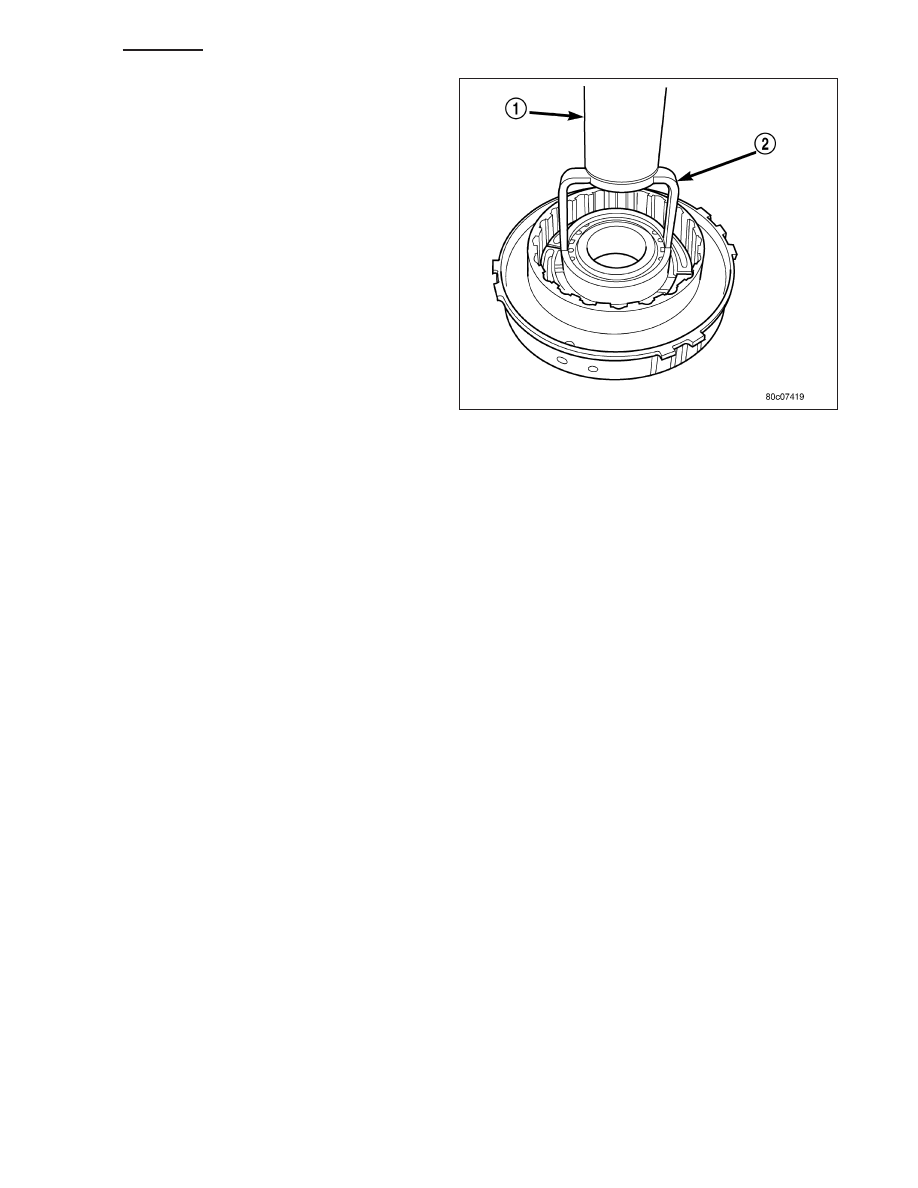

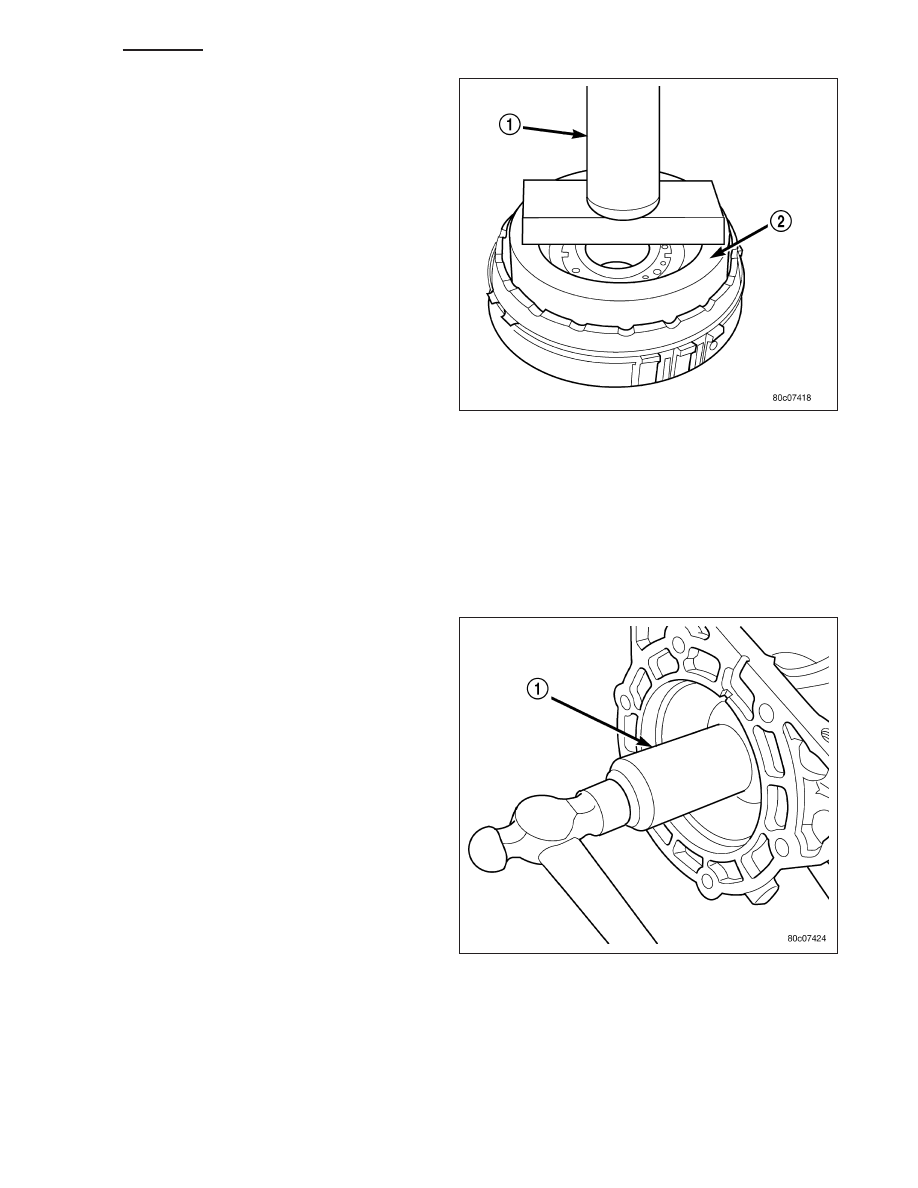

1. Install new seals (1, 11) on the 2C and 4C pistons or in the piston retainers. 2. Lubricate all seals with Mopar T ATF +4 prior to installation. 3. Install the 4C piston (12) into the 4C retainer/bulkhead (13). 4. Position the 4C piston return spring (10) onto the 4C piston (12). 4C Retainer/Bulkhead Components 1 - SEAL 8 - REACTION PLATE 2 - 2C PISTON 9 - SNAP-RING 3 - PLATE 10 - RETURN SPRING 4 - DISC 11 - SEAL 5 - 2C BELLEVILLE SPRING 12 - 4C PISTON 6 - SNAP-RING 13 - 4C RETAINER/BULKHEAD 7 - SNAP-RING (SELECT) 21 - 616 AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION DR/DH |
