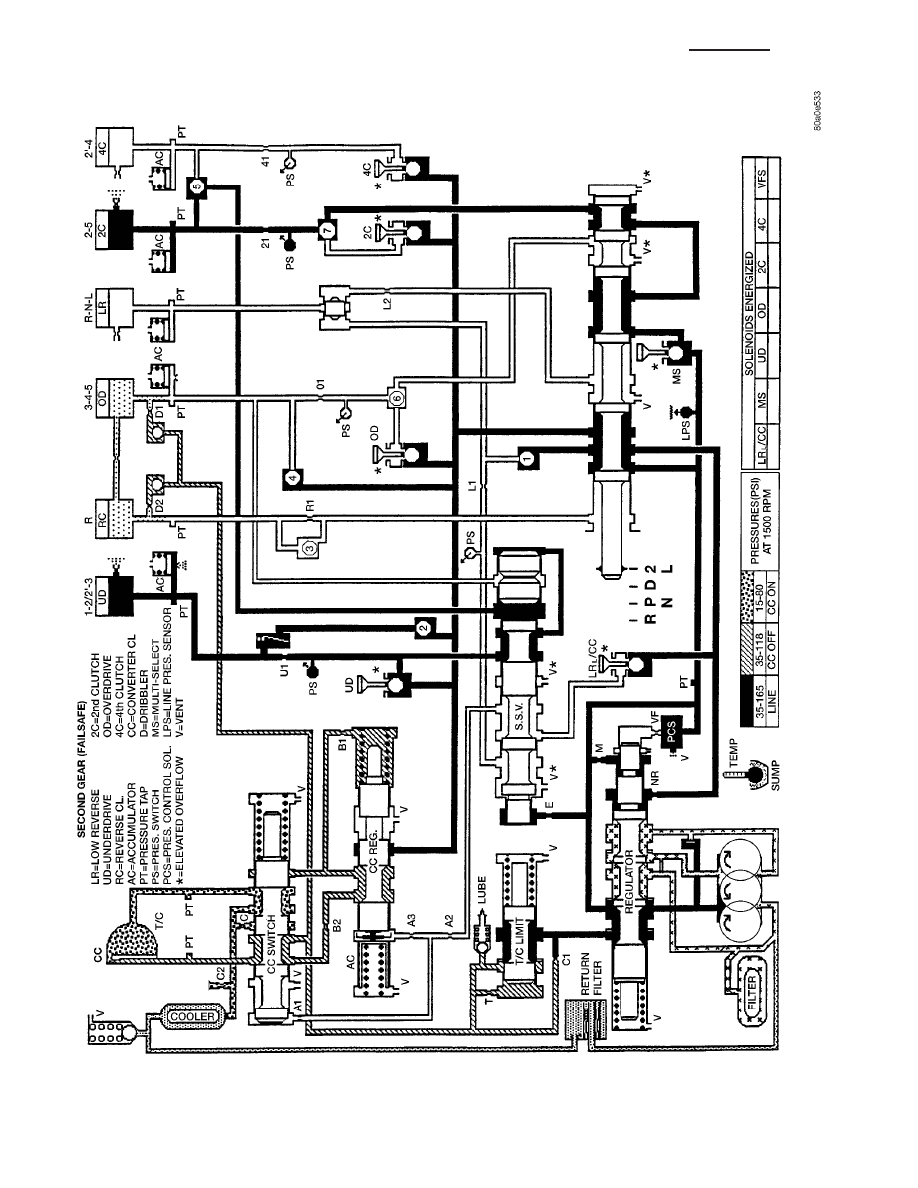

HYDRAULIC

FLOW

IN

MANUAL

SECOND

(F

AILSAFE)

21 - 608

AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION

DR/DH

SPECIFICATIONS

TRANSMISSION

GENERAL

Component

Metric

Inch

Output Shaft End Play

0.22-0.55 mm

0.009-0.021 in.

Input Shaft End Play

0.46-0.89 mm

0.018-0.035 in.

2C Clutch Pack Clearance

0.455-1.335 mm

0.018-0.053 in.

4C Clutch Pack Clearance

0.770-1.390 mm

0.030-0.055 in.

L/R Clutch Pack Clearance

1.00-1.74 mm

0.039-0.069 in.

OD Clutch Pack Clearance

1.103-1.856 mm

0.043-0.073 in.

UD Clutch Pack Clearance

0.84-1.54 mm

0.033-0.061 in.

Reverse Clutch Pack Clearance

0.81-1.24 mm

0.032-0.049 in.

Recommended fluid

Mopar

T

ATF +4

GEAR RATIOS

1ST

3.00:1

2ND

1.67:1

2ND Prime

1.50:1

3RD

1.0:1

4TH

0.75:1

5TH

0.67:1

REVERSE

3.00:1

DR/DH

AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION

21 - 609

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Fitting, cooler line at trans

17.5

-

155

Bolt, torque convertor

31

23

-

Bolt/nut, crossmember

68

50

-

Bolt, driveplate to

crankshaft

75

55

-

Bolt, oil pan

11.8

-

105

Screw, primary fluid filter

4.5

-

40

Bolt, oil pump

28.2

-

250

Bolt, oil pump body to

cover

4.5

-

40

Screw, plate to oil pump

body

4.5

-

40

Bolt, valve body to case

11.8

-

105

Plug, pressure test port

5.1

-

45

Bolt, reaction shaft support

11.8

-

105

Screw, valve body to

transfer plate

5.6

-

50

Screw, solenoid module to

transfer plate

5.7

-

50

Screw, accumulator cover

7

-

60

Screw, detent spring

4.5

-

40

Bolt, input speed sensor

11.8

-

105

Bolt, output speed sensor

11.8

-

105

Bolt, line pressure sensor

11.8

-

105

Bolt, extension housing

54

40

-

Valve, cooler return filter

bypass

4.5

-

40

Screw, manual valve cam

retaining

4.5

-

40

Bolt, manual lever

28.2

-

250

21 - 610

AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION

DR/DH

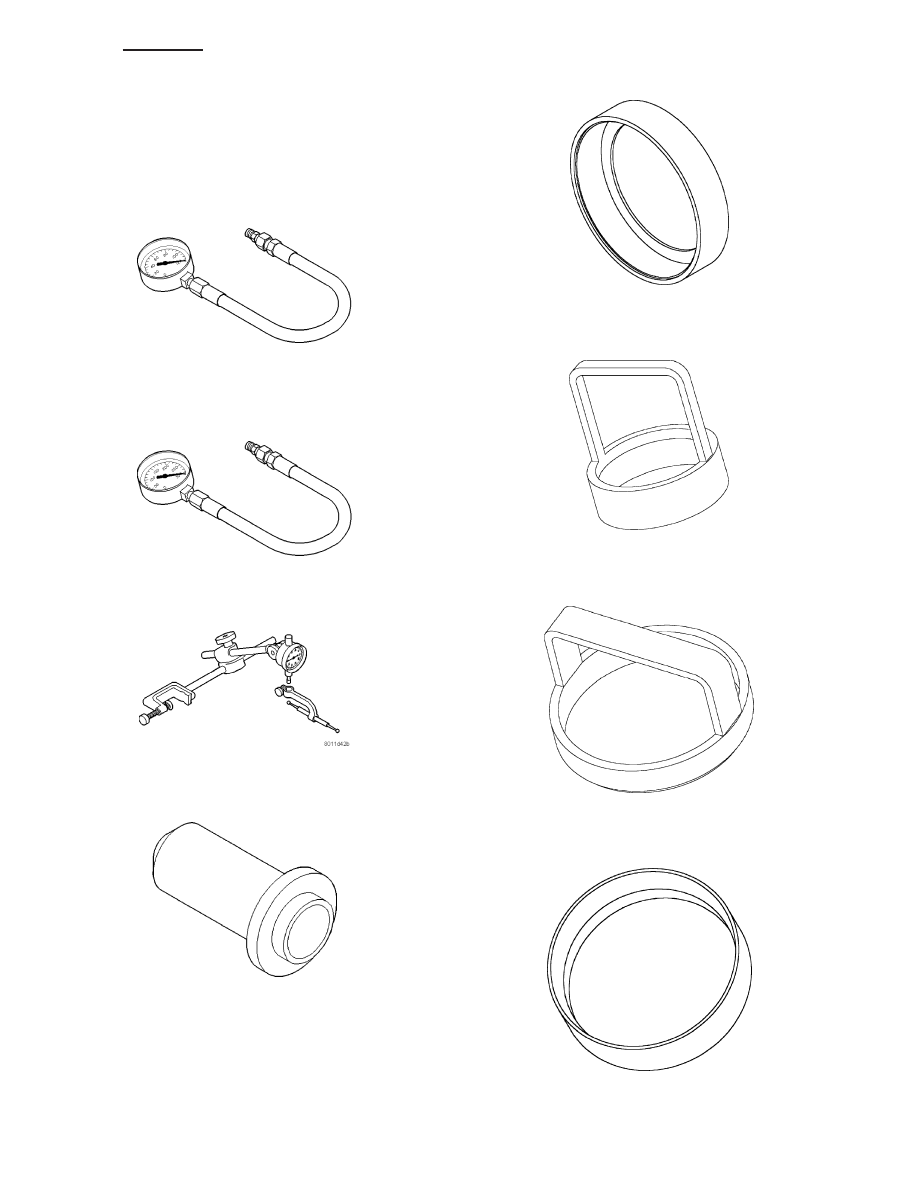

SPECIAL TOOLS

AUTOMATIC TRANSMISSION - RFE

Gauge, Oil Pressure - C-3292

Gauge, Oil Pressure - C-3293SP

Dial Indicator - C-3339

Installer, Seal - C-3860-A

Compressor, Spring - 8249

Compressor, Spring - 8250

Compressor, Spring - 8251

Installer, Piston - 8252
