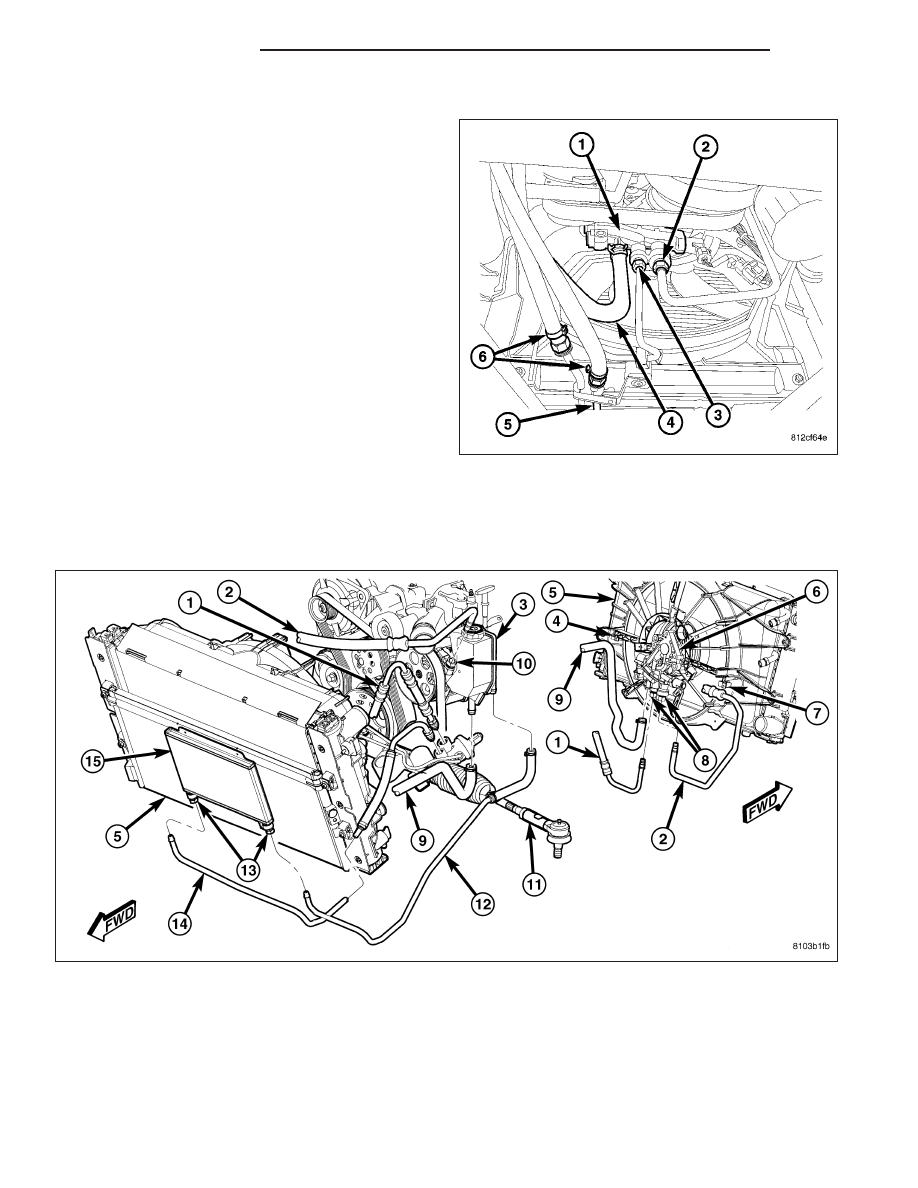

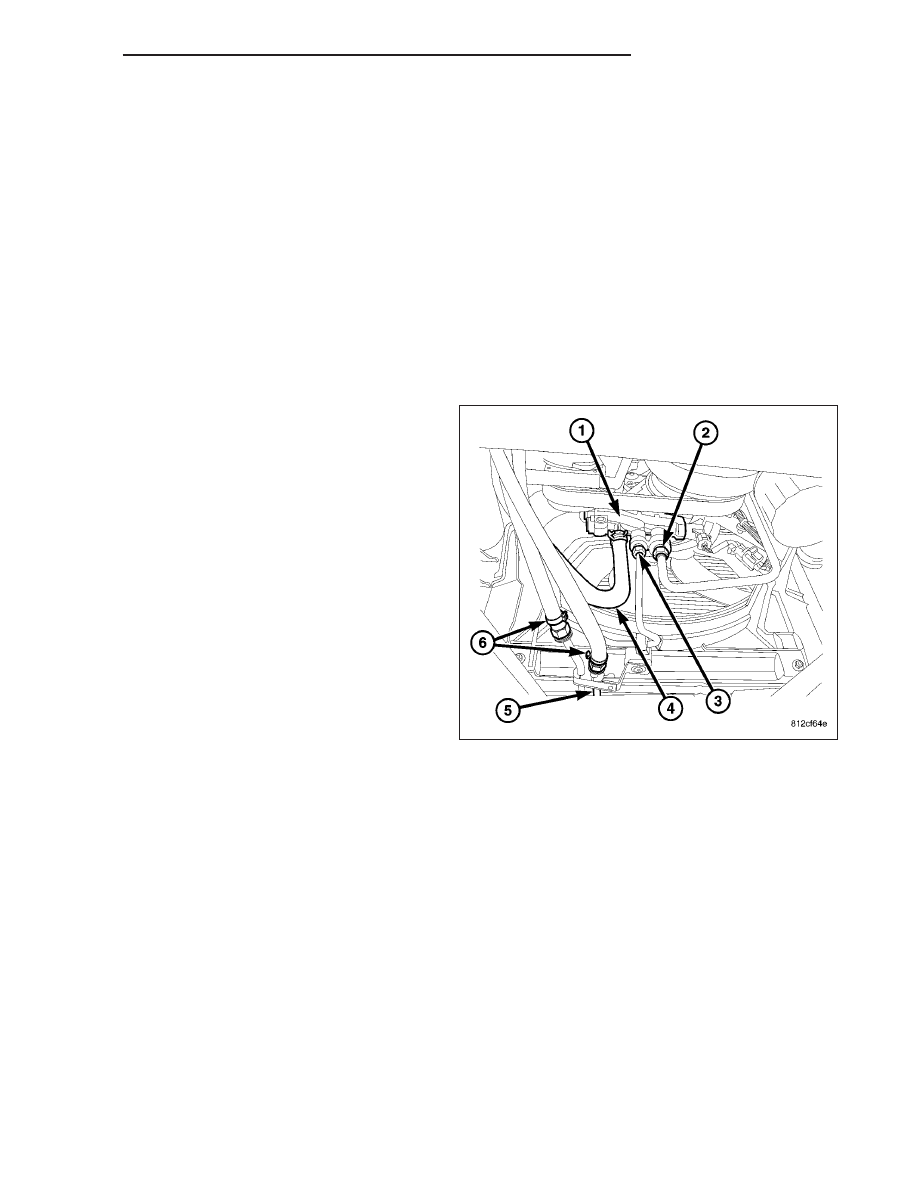

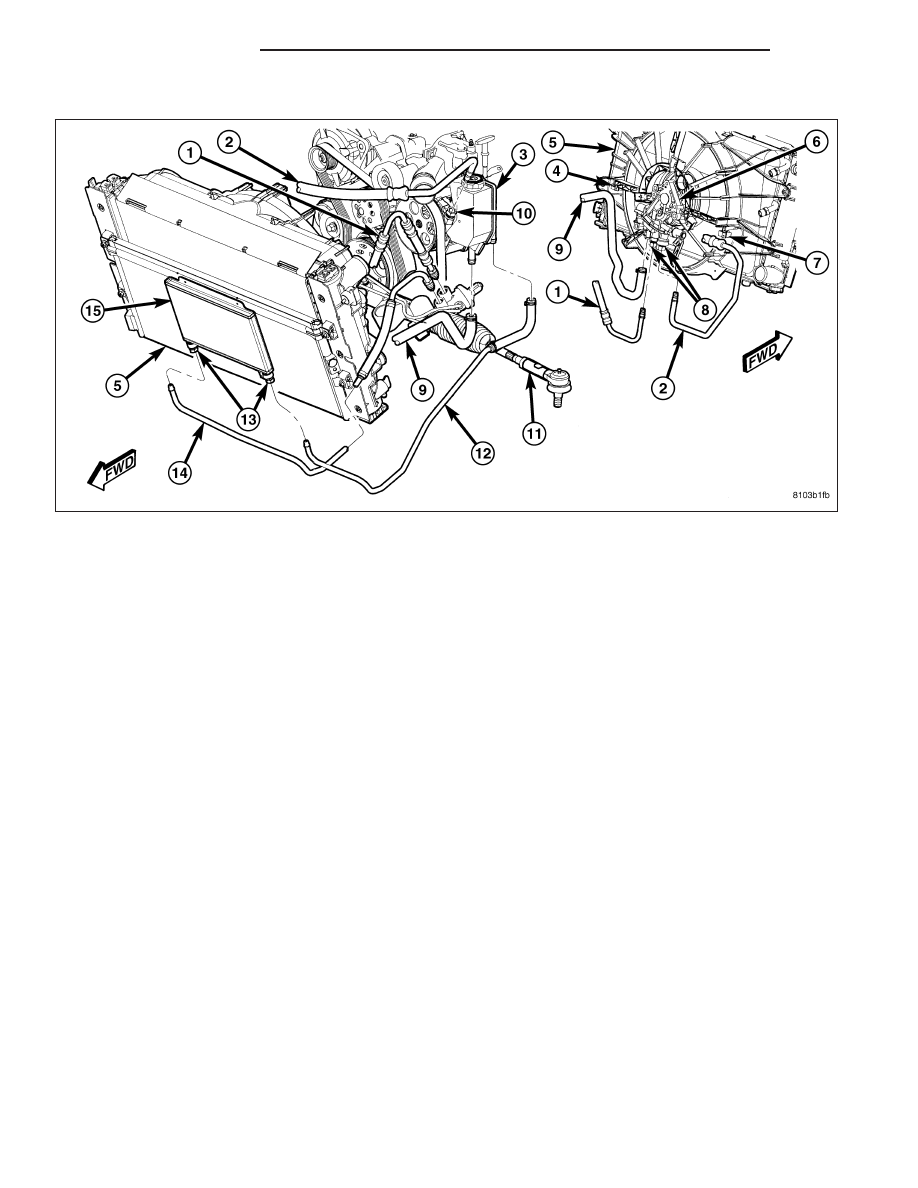

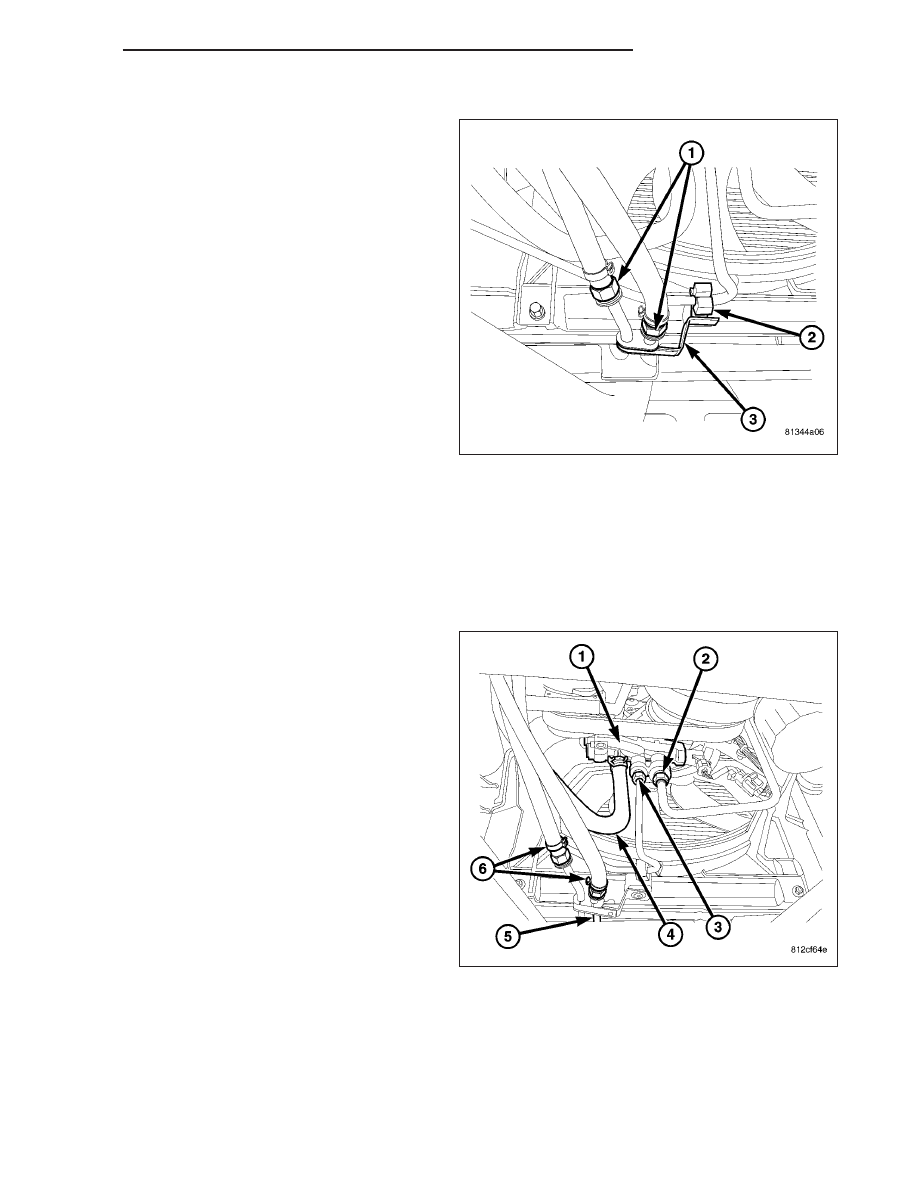

RETURN HOSE - COOLER TO PUMP NOTE: Review all Warnings and Cautions. (Refer CAUTION: Cap all open ends of power steering 1. Siphon power steering fluid from fluid reservoir. 2. Remove clamp, then return hose at reservoir. 3. Raise vehicle. (Refer to LUBRICATION & MAINTE- NANCE/HOISTING - STANDARD PROCEDURE) 4. Remove front air deflector. 5. Disconnect the quick connect fitiing (6) at the return hose from the metal line at the cooler using INSTALLATION PRESSURE HOSE - PUMP TO FAN NOTE: Before installing power steering hose, replace used O-rings as necessary. Clean hose ends and open 1. If pressure hose is separate from quick-connect fittings: a. Thread quick-connect fitting (8) into cooling fan port. Tighten fitting to 28 N·m (21 ft. lbs.) torque. b. Slide fan end of pressure hose tube into quick-connect fitting until it locks into place. 2. If pressure hose has quick-connect fittings installed on ends, thread fan end quick-connect fitting into fan port. Tighten hose fitting to 28 N·m (21 ft. lbs.) torque. 19 - 90 PUMP - SRT-10 DR/DH |
