REMOVAL

REMOVAL/INSTALLATION

The cascade overflow valve is not serviced separately.

SENSOR-WATER IN FUEL

DESCRIPTION

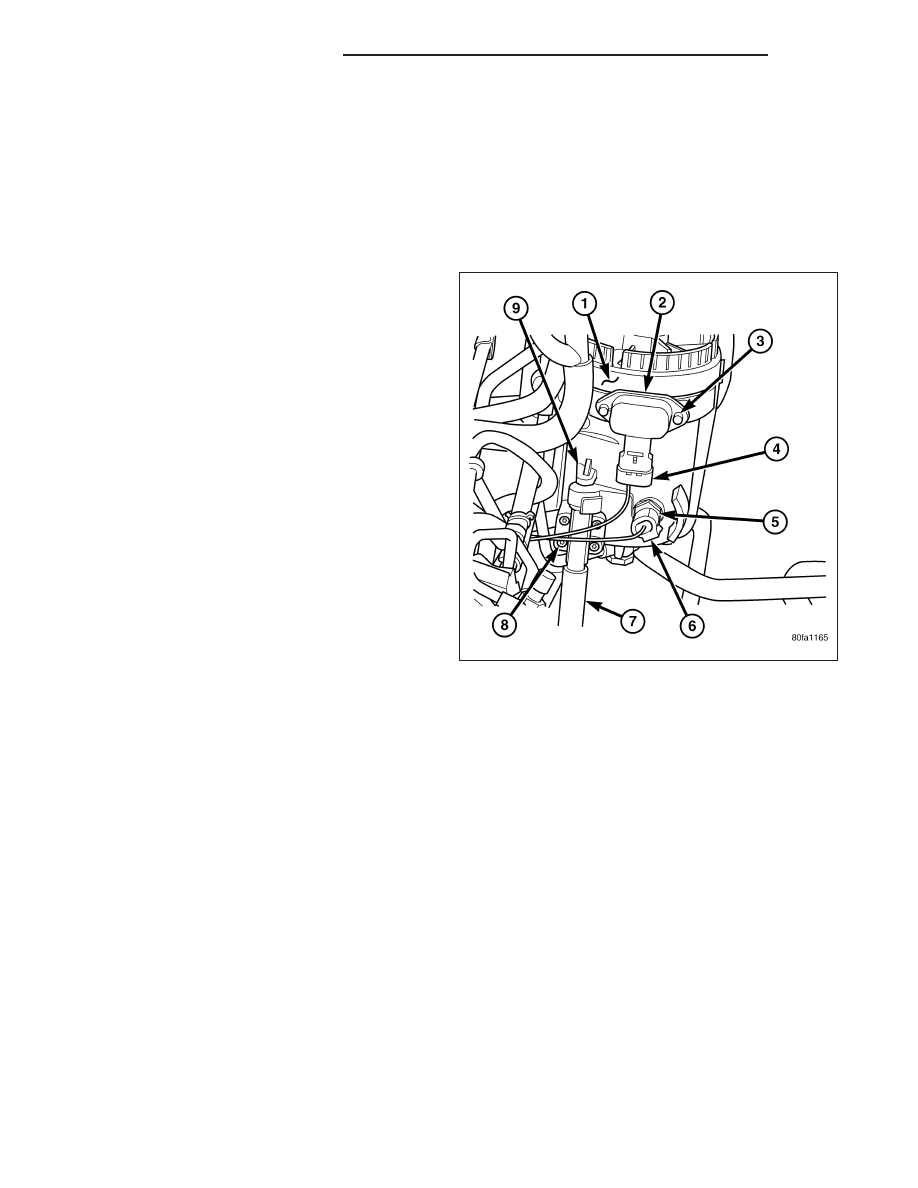

The Water-In-Fuel (WIF) sensor (5) is located on the
side of the fuel filter/water separator canister.

OPERATION

The sensor sends an input to the Engine Control Module (ECM) when it senses water in the fuel filter/water sep-
arator. As the water level in the filter/separator increases, the resistance across the WIF sensor decreases. This
decrease in resistance is sent as a signal to the ECM and compared to a high water standard value. Once the value
reaches 30 to 40 kilohms, the ECM will activate the water-in-fuel warning lamp through CCD bus circuits. This all
takes place when the ignition key is initially put in the ON position. The ECM continues to monitor the input while
the engine is running.

REMOVAL

The Water-In-Fuel (WIF) sensor is located at the side of fuel filter/water separator canister. Refer to Fuel Filter/
Water Separator Removal/Installation for WIF sensor removal/installation procedures.

CIRCUIT - FUEL DRAIN

OPERATION

The Fuel Drain Circuit incorporates several sources of fuel return. Fuel travels from the fuel tank (via the fuel trans-
fer pump) and is forced through the fuel filter. This fuel then travels into the fuel injection pump. It then goes to a
fuel drain line and returns back to the fuel tank.

The fuel that flows to the fuel pump is pressurized by a gear pump and internally transferred to the fuel injection
pump. At this point the fuel is channeled into two passages. One passage sends fuel to the FCA (Fuel Control
Actuator). The other passage sends fuel to the cascade overflow valve. The overflow valve sends some fuel to a
lubrication passage. The rest of the fuel is sent to a drain passage which connects to an external fuel line.

14 - 124

FUEL DELIVERY - DIESEL

DR/DH

Fuel that travels through the FCA is pressurized by the fuel injection pump and sent through an external high pres-
sure fuel line to the fuel rail. At the fuel rail, fuel is sent to the fuel injectors. If fuel pressure in the fuel rail becomes
excessive, the pressure limiting valve opens and sends fuel through an external fuel line.

At the fuel injector, fuel that is not injected is used for lubrication of the fuel injectors. This fuel then travels through
an internal passage that is connected to the rear of the cylinder head, an then into an external fuel line. This line is
connected to the vehicles fuel return line, and returns excess fuel back into the fuel tank.

DR/DH

FUEL DELIVERY - DIESEL

14 - 125

FUEL INJECTION - DIESEL

TABLE OF CONTENTS

page

page

SENSOR-ACCELERATOR PEDAL POSITION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 127

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 127

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 128

SENSOR-CAMSHAFT POSITION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 128

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 128

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 129

SENSOR-CRANKSHAFT POSITION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 129

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 130

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 131

ACTUATOR - FUEL CONTROL

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 131

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 132

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

INJECTOR - FUEL (EARLY)

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 132

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 133

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 137

INJECTOR - FUEL (LATE)

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 138

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 139

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 143

RAIL - FUEL INJECTOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 144

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 144

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 145

SENSOR-TEMPERATURE/PRESSURE-INTAKE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 146

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 146

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 147

HEATER - INTAKE AIR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 148

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 148

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 150

RELAY - INTAKE AIR HEATER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 150

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 151

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 151

SENSOR-TEMPERATURE/PRESSURE-MAP

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 152

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 152

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 153

SENSOR-MAP

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 153

SWITCH - PTO

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 153

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 153

14 - 126

FUEL INJECTION - DIESEL

DR/DH

SENSOR-ACCELERATOR PEDAL POSITION

DESCRIPTION

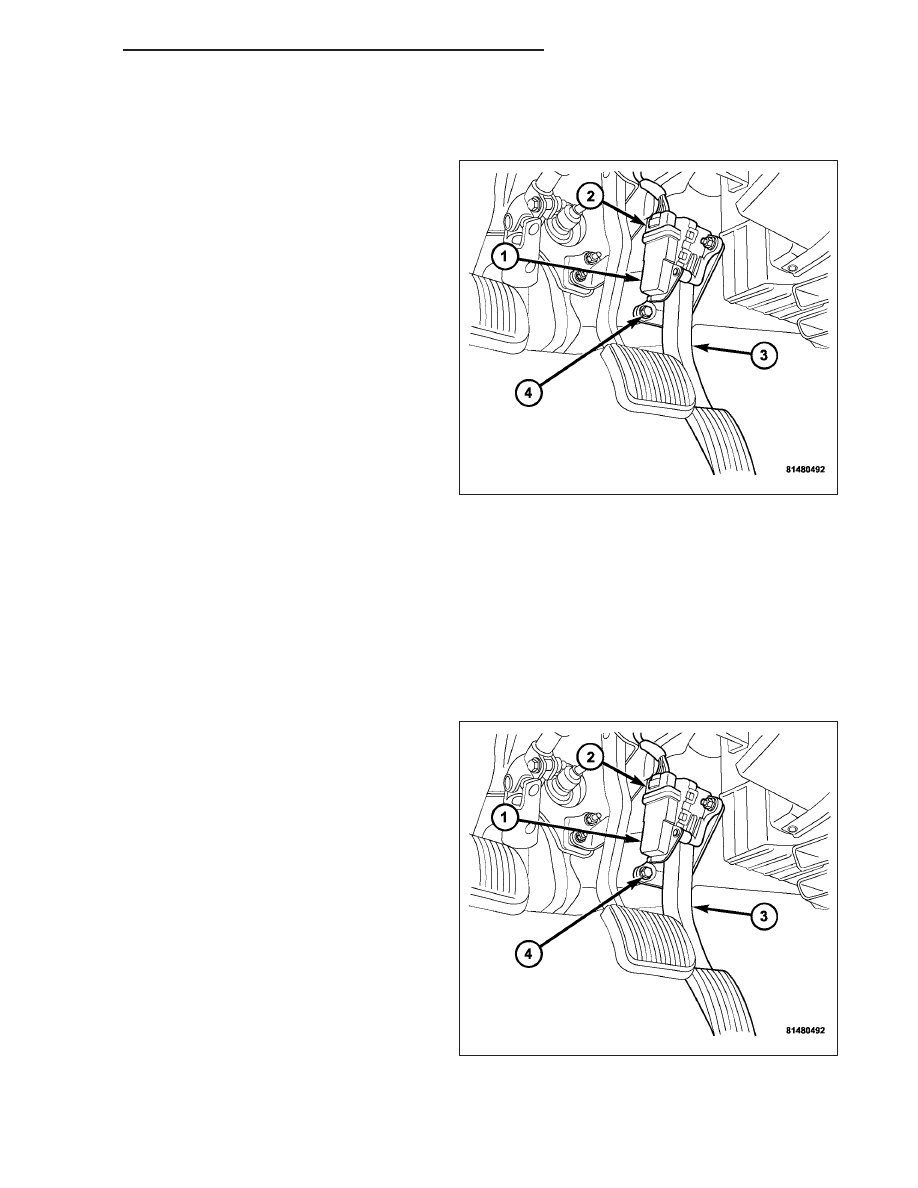

The Accelerator Pedal Position Sensor (APPS) (1) is
located inside the vehicle. It is attached to the accel-
erator pedal assembly (3).

OPERATION

The Accelerator Pedal Position Sensor (APPS) provides the Engine Control Module (ECM) with two DC voltage
signals which change as the position of the accelerator pedal changes. One of the DC voltage signals will be half
the voltage of the other signal.

REMOVAL

CAUTION: Do not attempt to separate or remove the Accelerator Pedal Position Sensor (APPS) from the
accelerator pedal assembly. The APPS is replaced as an assembly along with the pedal. If sensor is
removed from pedal, its electronic calibration may be destroyed.

1. Disconnect 6–way electrical connector at top of

APPS (2).

2. Remove APPS lower mounting bolt (4) and two

mounting nuts.

3. Remove pedal and APPS assembly from vehicle.

DR/DH

FUEL INJECTION - DIESEL

14 - 127
