Dodge Ram Truck 1500-2500-3500. Manual - part 1448

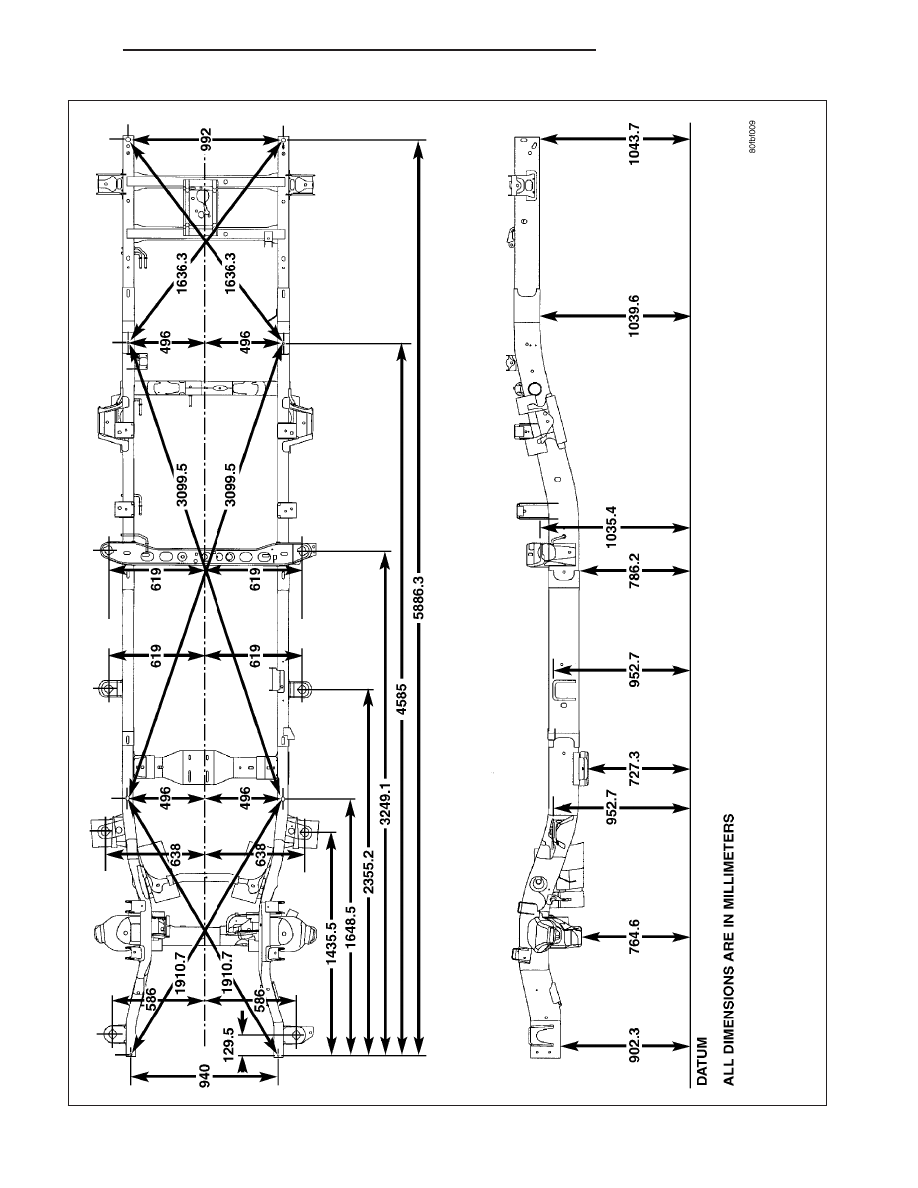

Fig.

3

140.5

IN

WHEELBASE

-

HEA

VY

DUTY

-

4

WHEEL

DRIVE

13 - 42

FRAME & BUMPERS

DR/DH

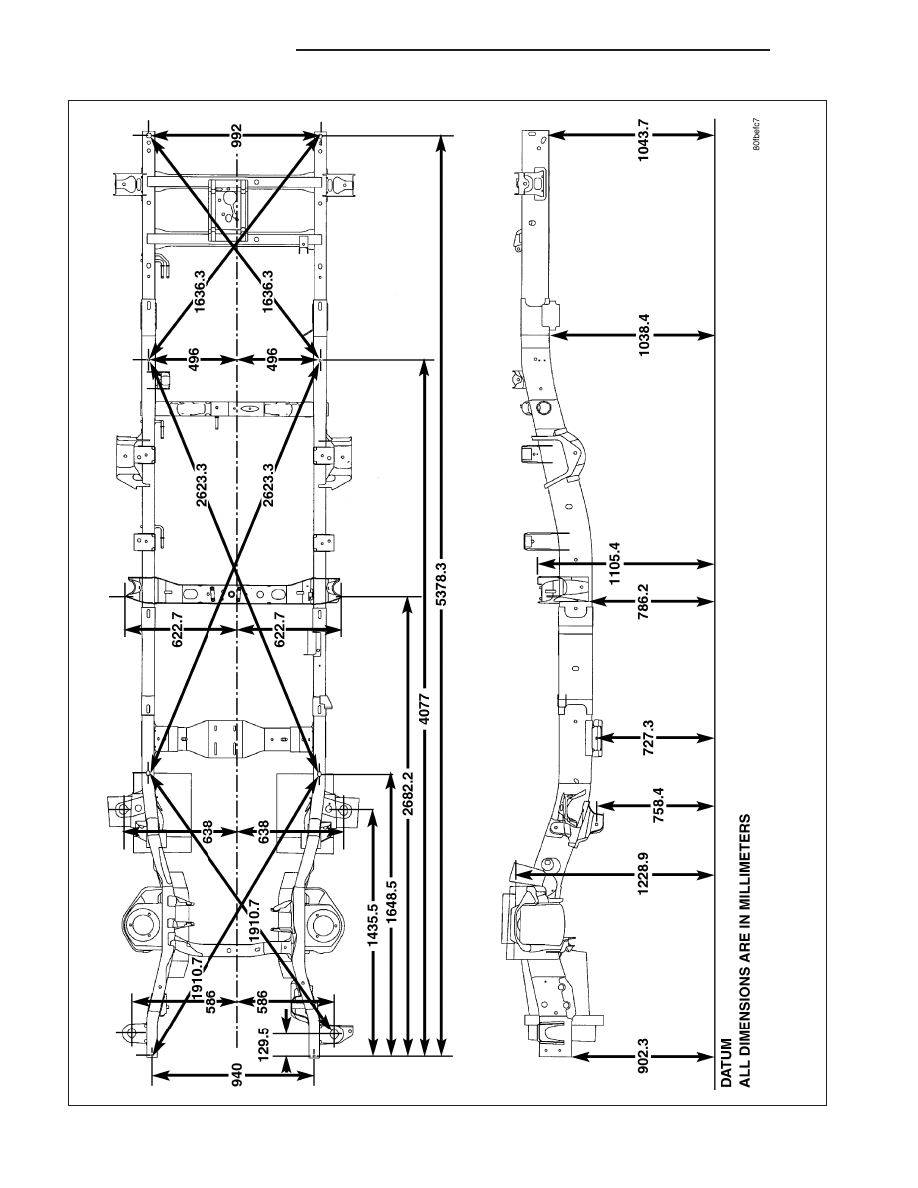

Fig.

4

160.5

IN

WHEELBASE

-

HEA

VY

DUTY

-

2

WHEEL

DRIVE

DR/DH

FRAME & BUMPERS

13 - 43

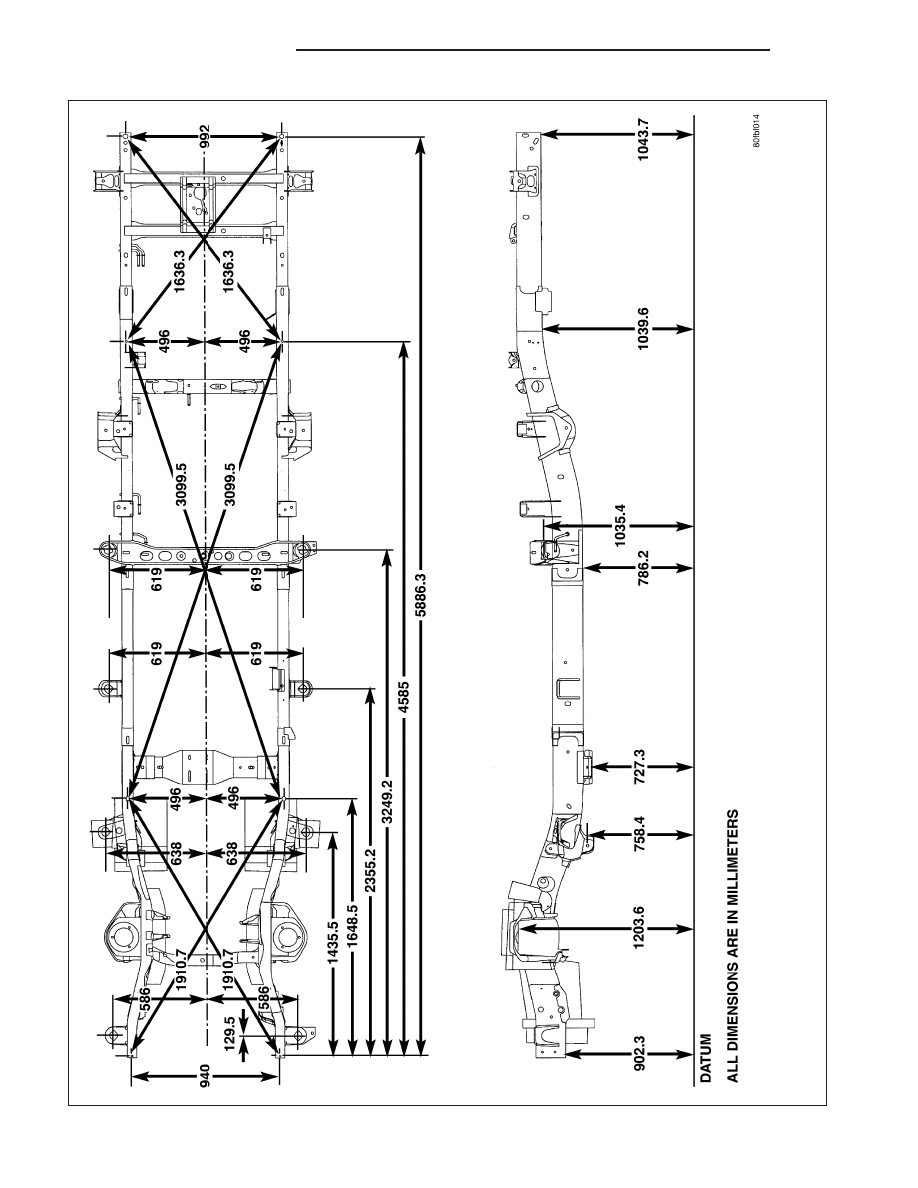

Fig.

5

160.5

IN

WHEELBASE

-

HEA

VY

DUTY

-

4

WHEEL

DRIVE

13 - 44

FRAME & BUMPERS

DR/DH

TORQUE

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

Cab mount bolts

81

60

Cargo box bolts

108

80

Front crossmember bolts - 2WD (light duty only)

61

45

Front crossmember bolts - 2WD (heavy duty only)

75

55

Front crossmember bolts - 4WD (light duty only)

102

75

Front skid plate bolts

34

25

Lower bumper support bracket bolt

54

40

Radiator crossmember bolts - lower

28

21

Radiator crossmember bolts - upper

28

21

Rear crossmember (light duty only)

102

75

Rear crossmember (heavy duty only)

115

85

Rear spring shackle bolts

163

120

Spare tire winch bolts

41

30

Trailer hitch reinforcement bracket bolt

170

125

Transfercase skid plate bolts

34

25

Transercase skid plate crossmember bolts

34

25

Transmission mount to crossmember nuts

54

40
