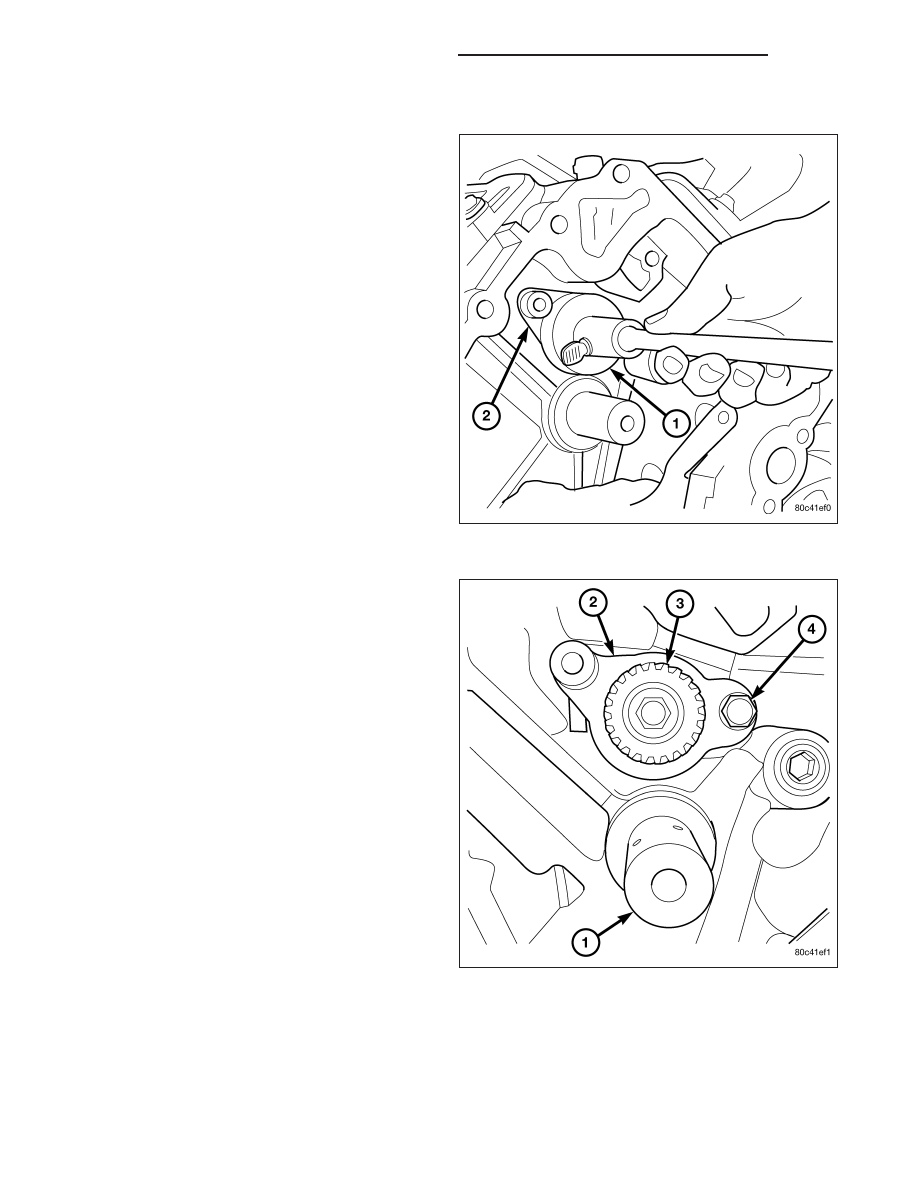

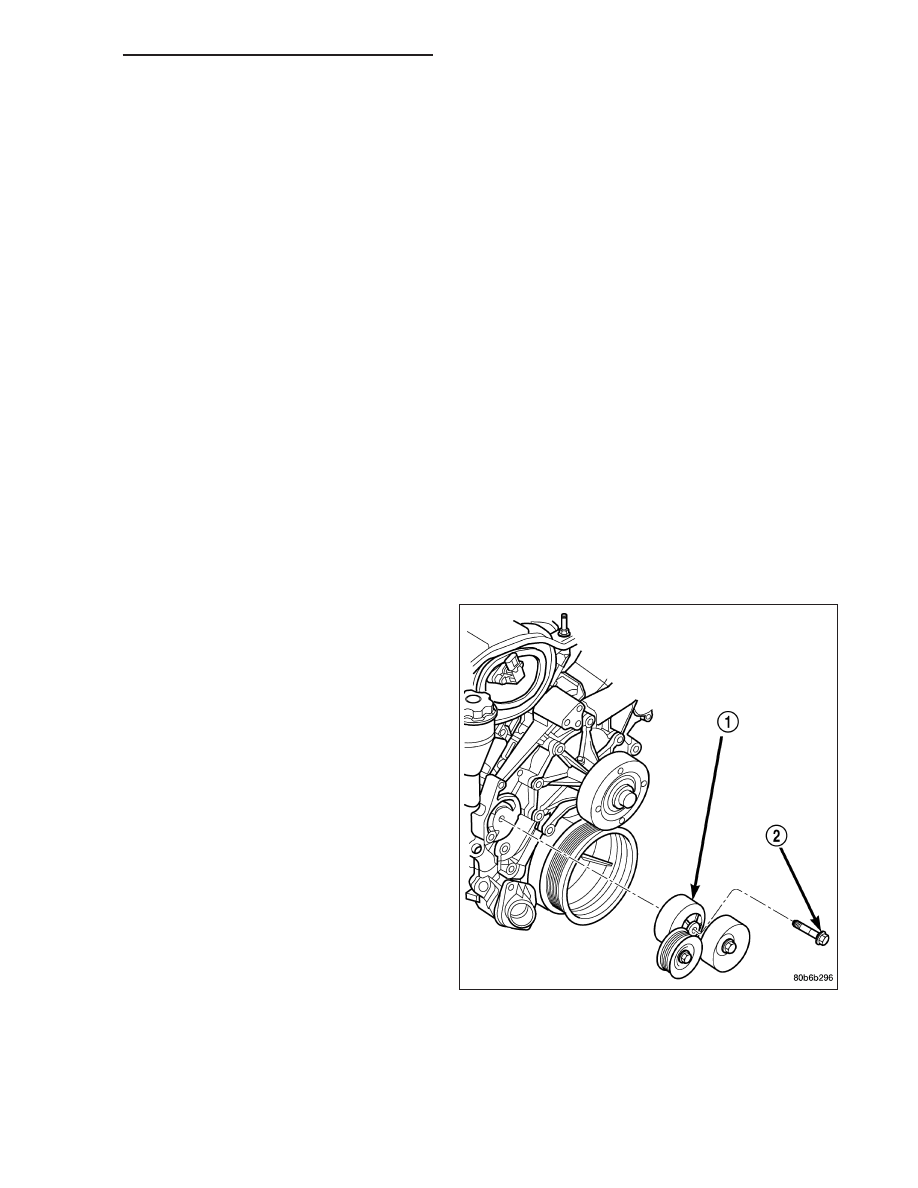

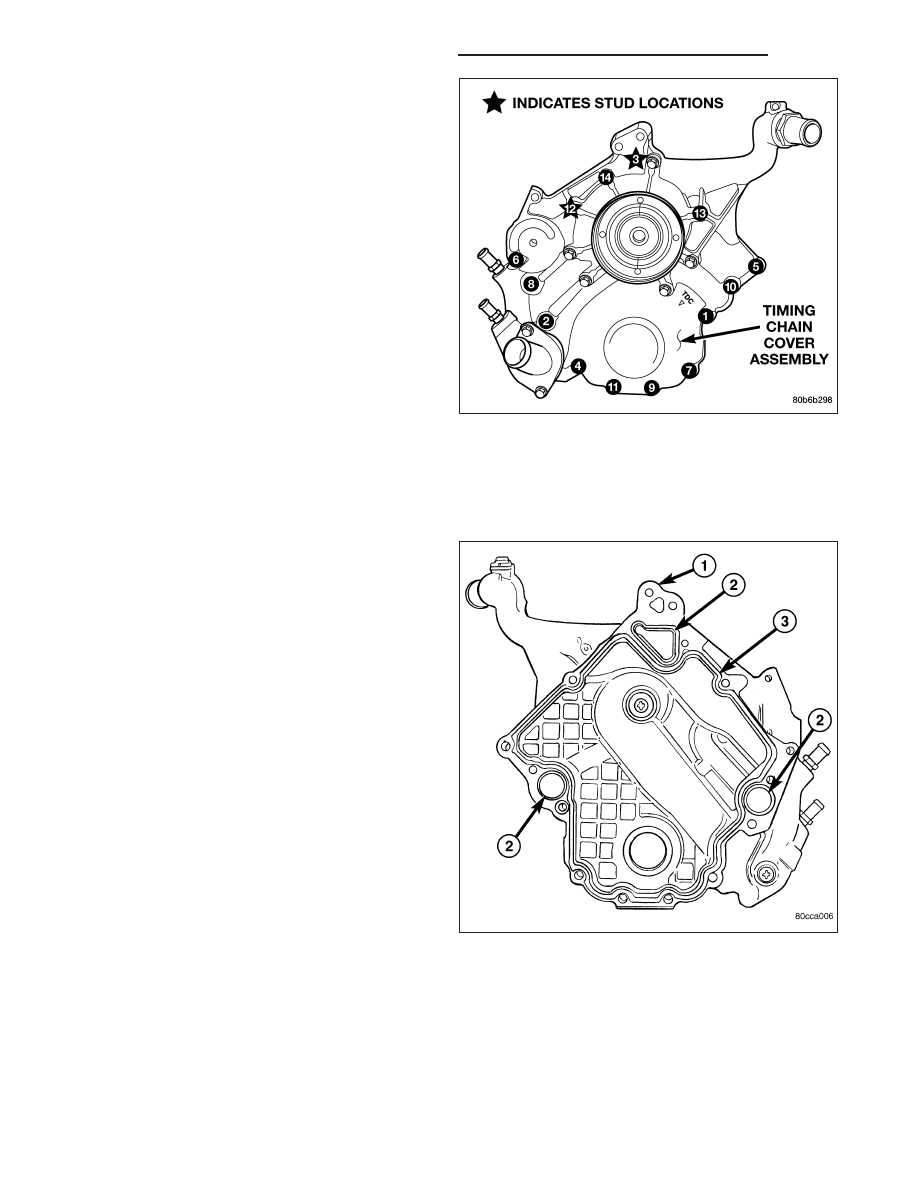

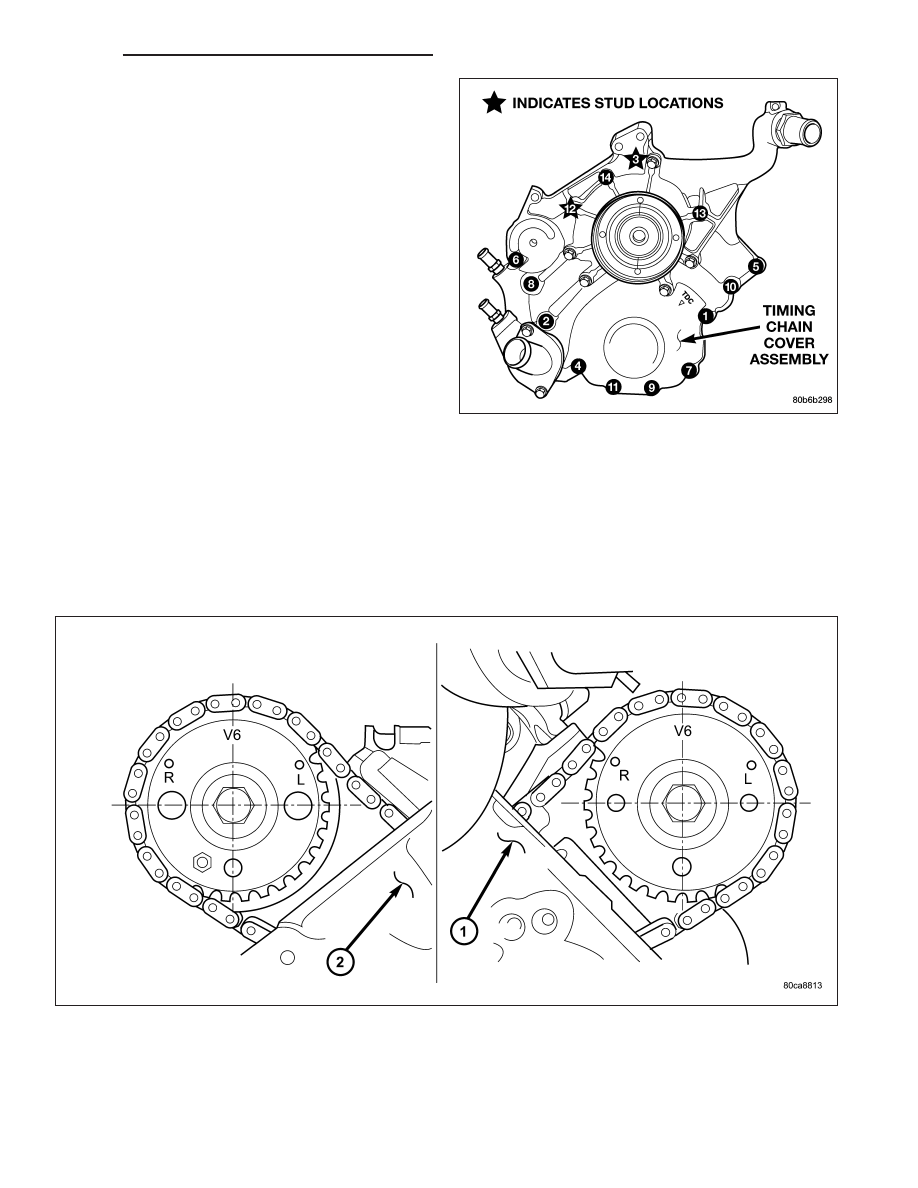

INSTALLATION NOTE: The balance shaft and gear are serviced as 1. Coat counterbalance shaft bearing journals with clean engine oil. NOTE: The balance shaft is heavy, and care 2. Using Special Tool 8641 Counterbalance shaft remover/installer tool (1), carefully install counter- 3. Install Counterbalance shaft thrust plate retaining bolt (4) finger tight.Do not tighten bolt at this time. 4. Position the right side of the thrust plate with the right chain guide bolt, install bolt finger tight. 5. Torque the thrust plate retaining bolt (4) to 28 N·m (250 in. lbs.). 6. Remove the chain guide bolt so that guide can be installed. SHAFT - IDLER REMOVAL 1. Remove the primary and secondary timing chains and sprockets. Refer to procedure in this section. NOTE: To remove the idler shaft, it is necessary to tap threads into the shaft, to install the removal tool. 9 - 2150 ENGINE - 3.7L - SERVICE INFORMATION DR/DH |
