29. Disconnect the oxygen sensor, knock, EGR, injector and ignition coil harness connectors (1) and position

the wiring harness aside.

30. Disconnect the engine wiring harness from the transmission housing and remove the remaining

transmission housing bolts.

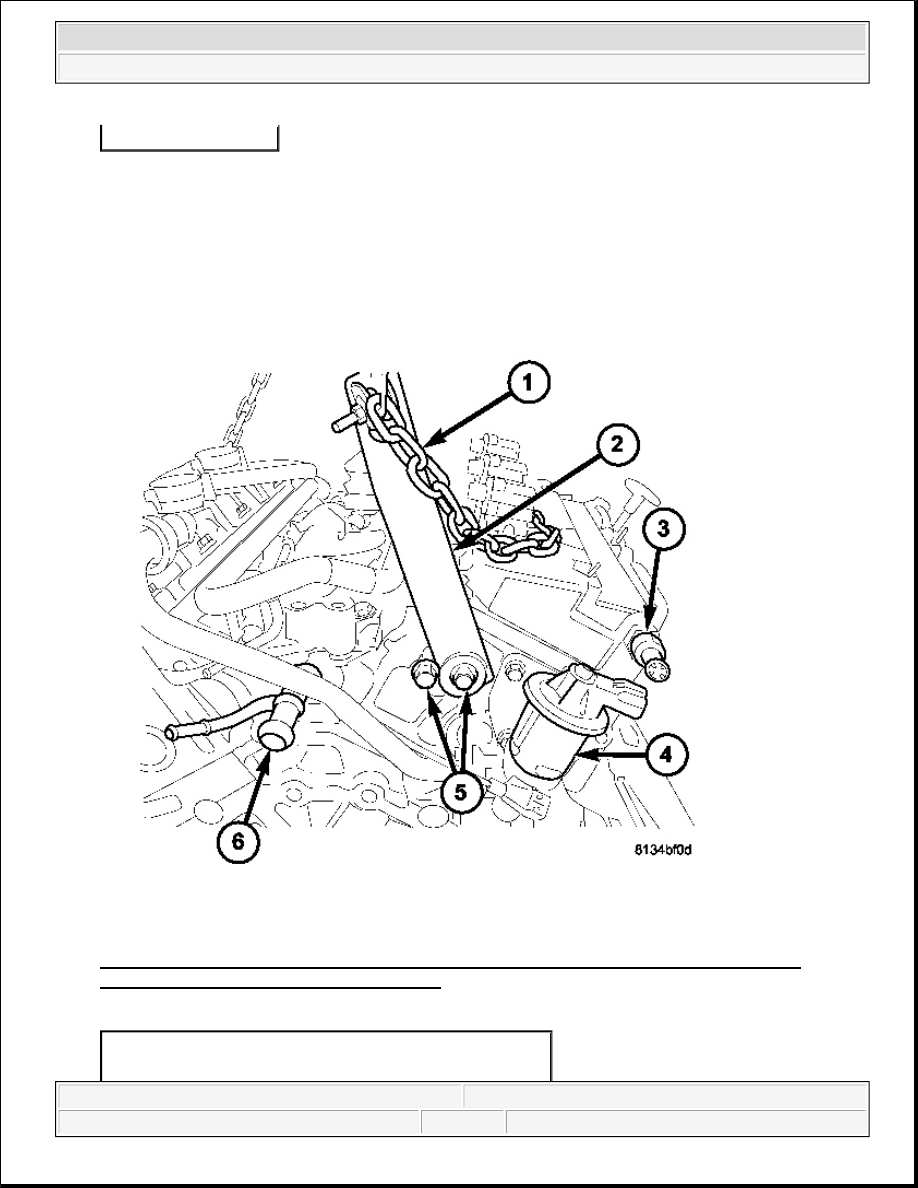

Fig. 24: Connecting Engine Lifting Bracket From Special Tool Kit 8534B To Right Rear Of
Cylinder Head Outer Most Bolt Access Hole
Courtesy of CHRYSLER LLC

3 - Coil

1 - LIFTING CHAIN
2 - ENGINE LIFTING BRACKET #8534



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



31. Connect the engine lifting bracket (2) from special tool kit 8534B to the right rear of the cylinder head

outer most bolt access hole (5). See Fig. 24.

32. Install a bolt into the inner most bolt access hole (5) next to the engine lift bracket to assure lifting bracket

positioning.

3 - CAM POSITION SENSOR
4 - EGR VALVE
5 - BOLTS
6 - COOLANT PIPE



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



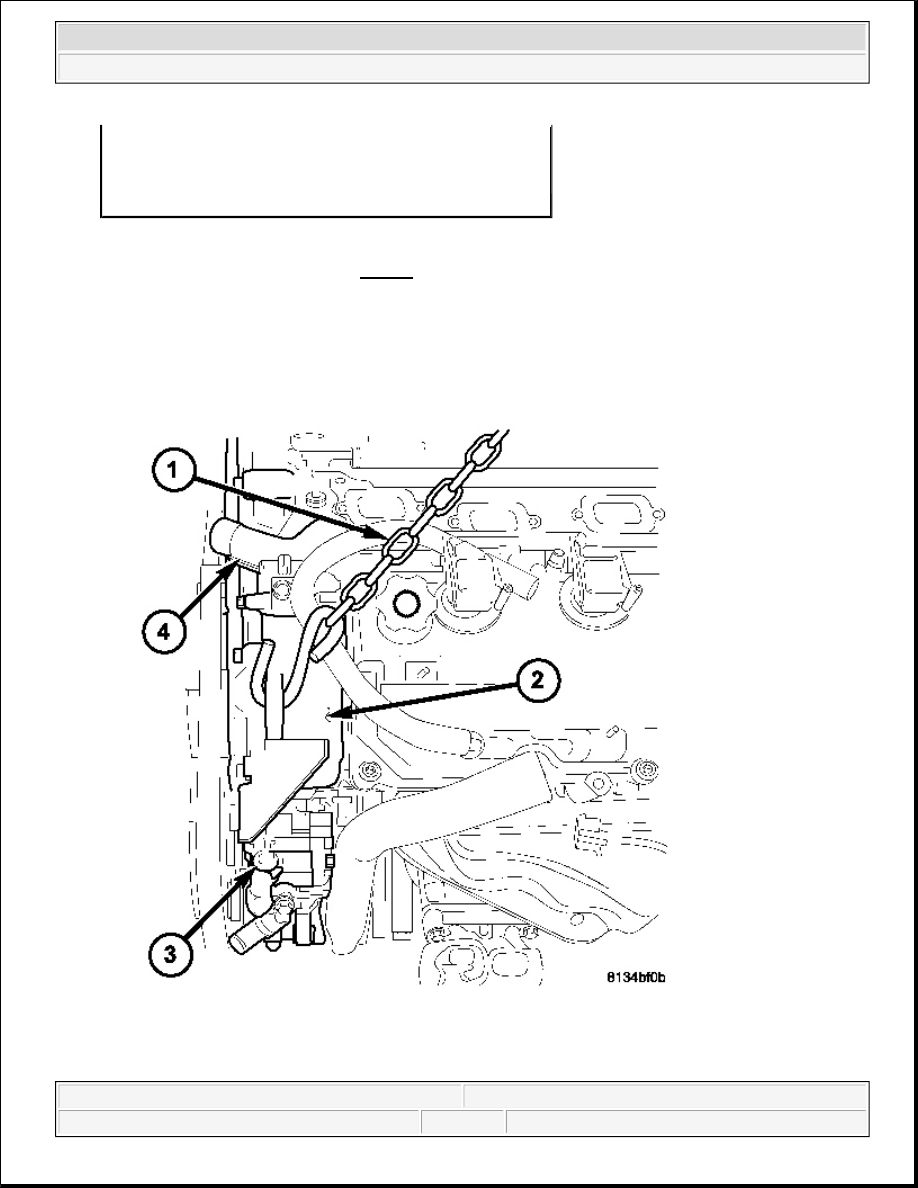

Fig. 25: Connecting Engine Hoisting Chain To Left Timing Chain Cover Engine Lifting Point And
Engine Lift Bracket
Courtesy of CHRYSLER LLC

33. Connect a engine hoisting chain (1) to the left timing chain cover (2) engine lifting point and engine lift

bracket. See Fig. 25.

34. Carefully remove the engine from the engine bay area.

INSTALLATION

ENGINE ASSEMBLY-INSTALLATION

1 - LIFTING CHAIN
2 - UPPER TIMING CHAIN COVER
3 - POWER STEERING PUMP
4 - THERMOSTAT HOUSING

CAUTION: While slowly separating the engine from the vehicle, constant checks

must be made to assure proper positioning and that no damage to
other components or wiring harnesses occur during separation.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



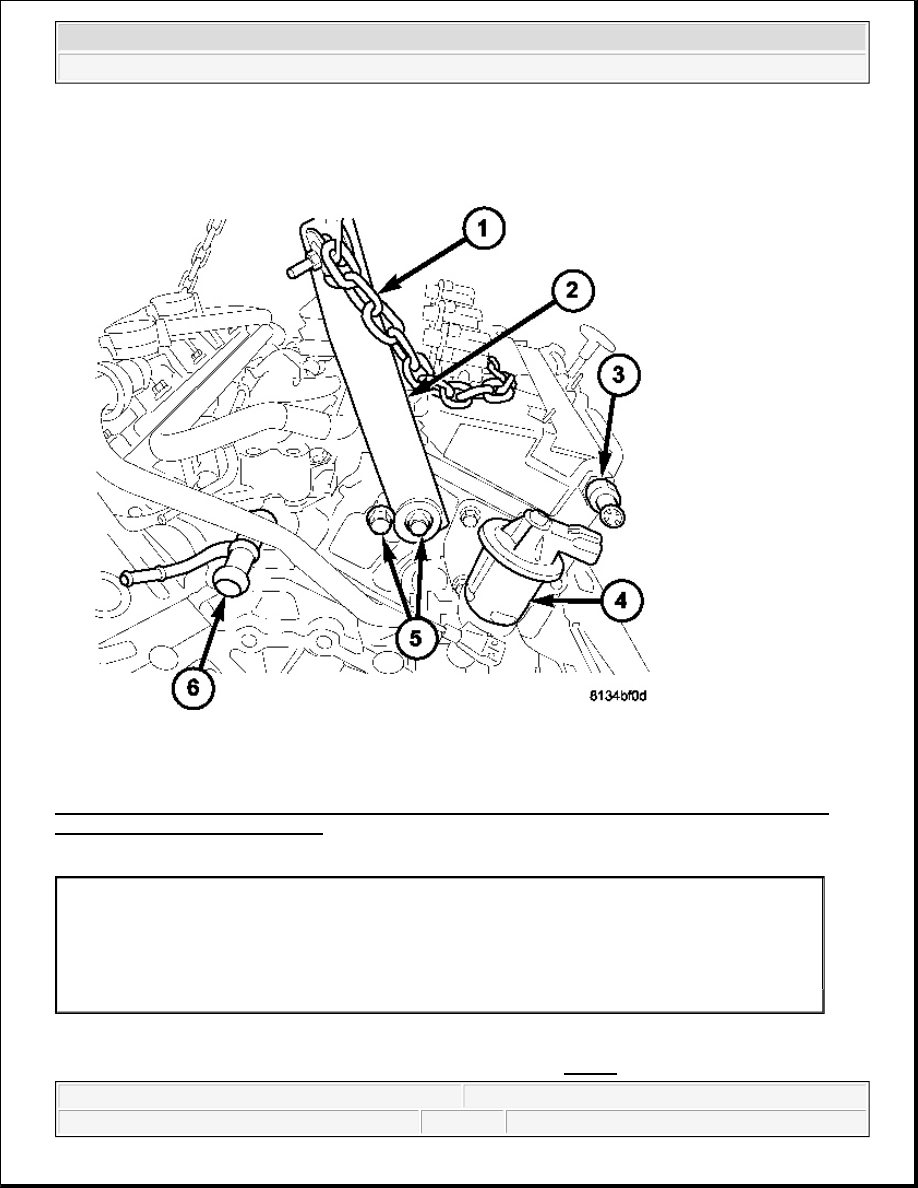

Fig. 26: Connecting Engine Lifting Bracket From Special Tool Kit 8534B To Right Rear Of Cylinder
Head Outer Most Bolt Access Hole
Courtesy of CHRYSLER LLC

1. Install special tool #8534 B, engine lifting bracket (2) to the right rear of the cylinder head and install a

bolt into the inner most bolt hole (5) next to the bracket (5). See Fig. 26.

1 - LIFTING CHAIN
2 - ENGINE LIFTING BRACKET #8534
3 - CAM POSITION SENSOR
4 - EGR VALVE
5 - BOLTS
6 - COOLANT PIPE
