5. Drain the cooling system (Refer to STANDARD PROCEDURE ).

6. Disconnect the lower radiator hose.

7. Disconnect the generator electrical connectors (2) (Refer to REMOVAL ).

Fig. 8: Removing Starter Wiring
Courtesy of CHRYSLER LLC

8. Remove the starter wiring (2).

Fig. 9: Removing Starter And Spacer Plate
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



9. Remove the starter (1) and spacer plate (Refer to REMOVAL ).

Fig. 10: Removing A/C Lines
Courtesy of CHRYSLER LLC

10. Remove the A/C lines (1,3).

Fig. 11: Engine Oil Cooler, Coolant Hose, Filter & Lower Radiator Hose
Courtesy of CHRYSLER LLC

11. Disconnect the oil cooler hose (3) at the oil cooler.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 12: Removing/Installing Oil Cooler & Coolant Hoses
Courtesy of CHRYSLER LLC

12. Disconnect the oil cooler hose (2) at the oil cooler.

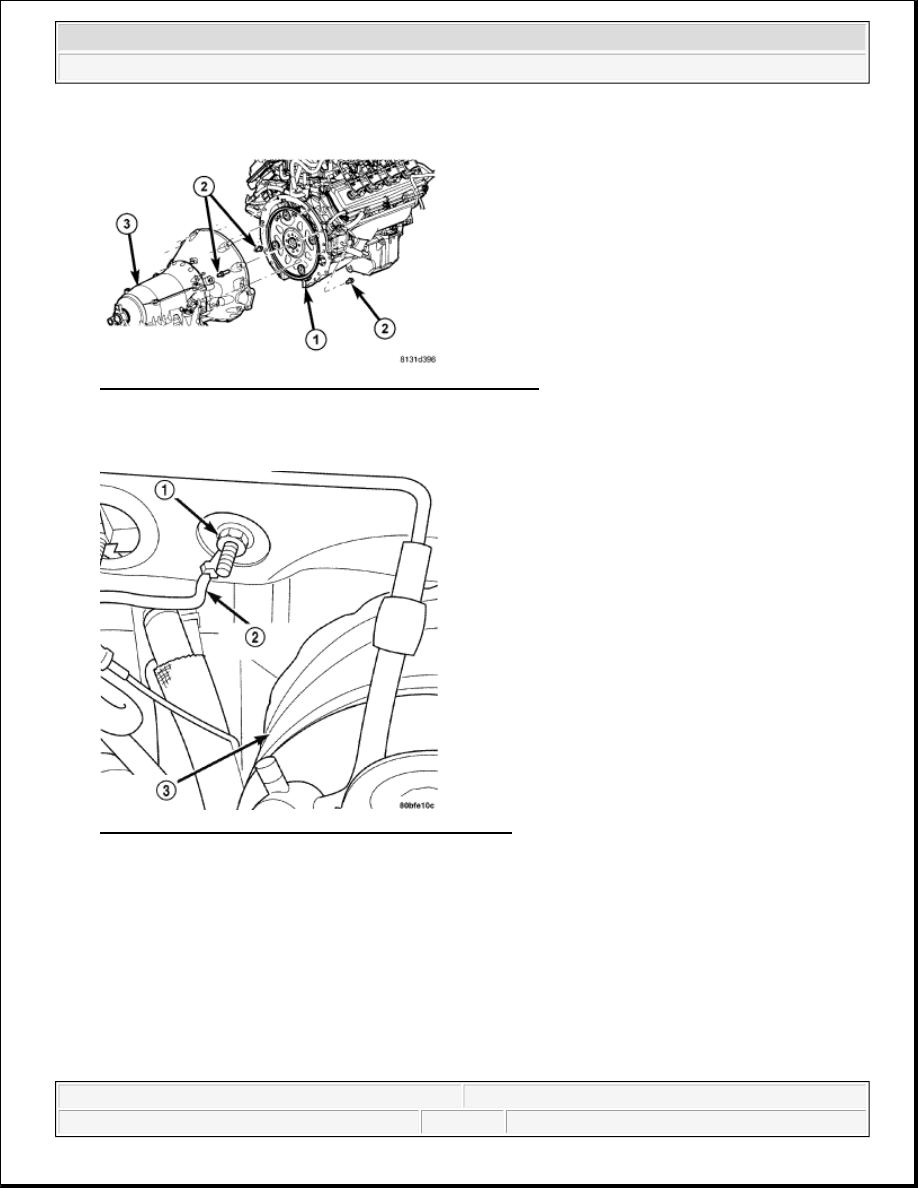

Fig. 13: Ground Strap & Transmission Housing Bolts
Courtesy of CHRYSLER LLC

13. Disconnect the ground strap (1) at the right transmission housing.

14. Disconnect the engine block heater wiring connector and set aside (if equipped).



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 14: CKP/Oxygen Sensors
Courtesy of CHRYSLER LLC

15. Remove the crankshaft position sensor (2) (Refer to REMOVAL ).

Fig. 15: Removing/Installing Exhaust Pipe
Courtesy of CHRYSLER LLC

16. Disconnect the left oxygen sensor electrical connector and separate the exhaust manifold from the left

exhaust pipe (1).

17. Disconnect the right oxygen senor electrical connector and separate the exhaust manifold from the right

exhaust pipe (2).
