2D-6  REAR SUSPENSION

Removal & Installation Procedure

l

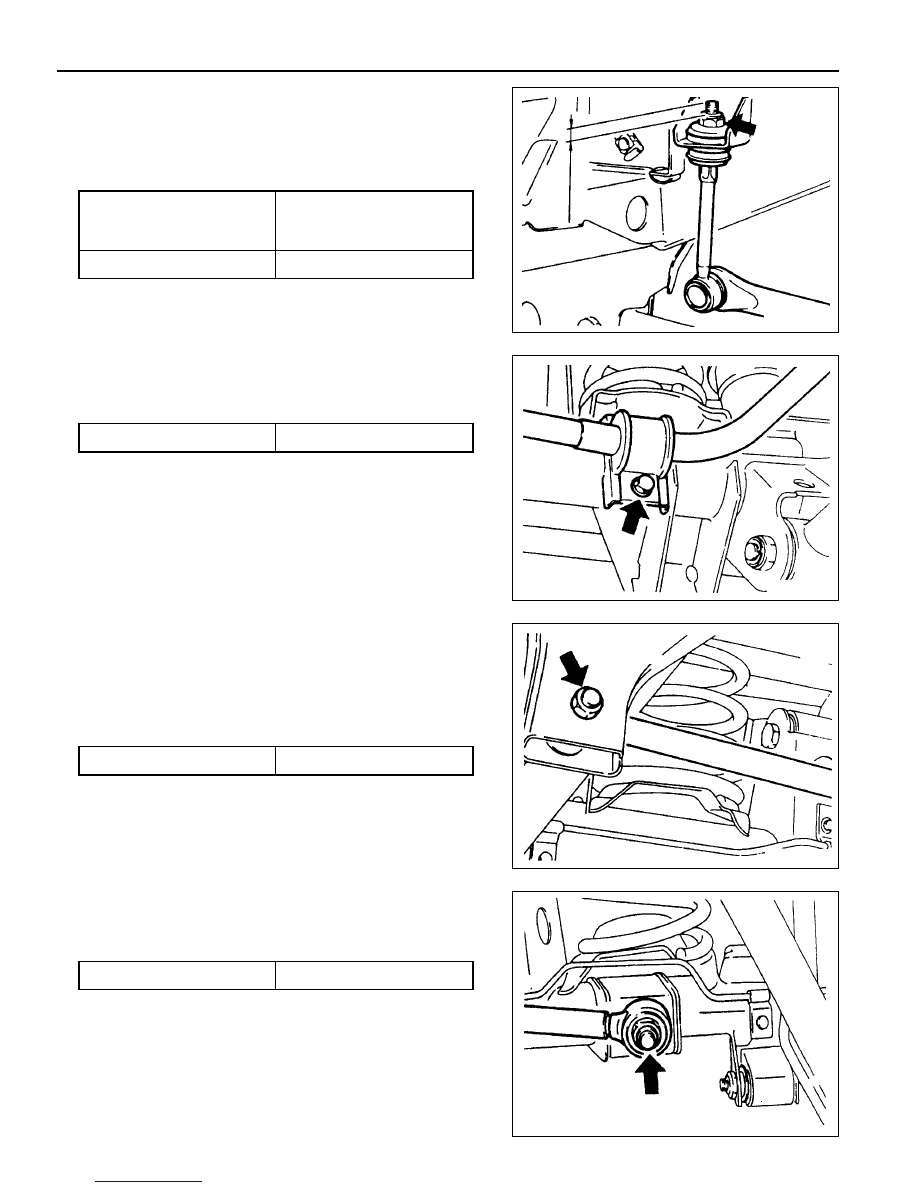

Stabilizer bar

1. Remove the upper nut of the connecting link.

Installation Notice

2. Remove the stabilizer bar cap fixing bolts (arrow) and

remove the stabilizer bar.

Installation Notice

Tightening  Torque

16 - 22 Nm

Distance Between the Nut

end and the Screw end

10 - 13 mm

Tightening  Torque

30 - 45 Nm

l

Lateral Rod

1. Remove the lateral rod fixing nut from the frame.

Notice

Completely press the coil springs.

Installation Notice

2. Remove the lateral rod fixing nut from the rear axle and

remove the lateral rod.

Installation Notice

Tightening  Torque

150 - 180 Nm

Tightening  Torque

150 - 180 Nm

 REAR SUSPENSION  2D-7

l

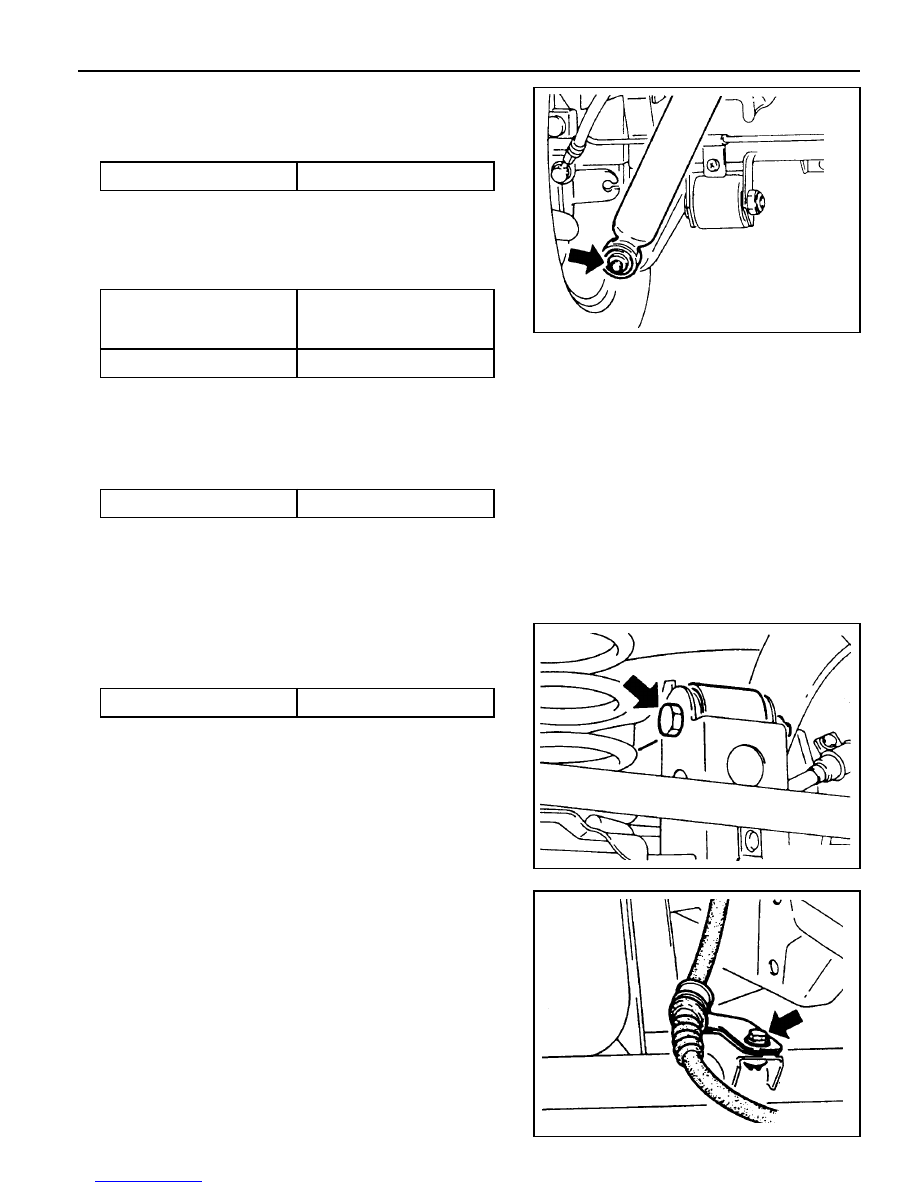

Shock Absorber.

1. Remove the lower mounting nut.

Installation Notice

2. Remove the upper mounting nut and remove the shock

absorber.

Installation Notice

Tightening  Torque

50 - 65 Nm

l

Upper Arm

1. Remove the upper arm fixing nut from the frame.

Installation Notice

2. Remove the upper arm fixing nut from the rear axle and

remove the upper arm.

Installation Notice

Tightening  Torque

150 - 180 Nm

Tightening  Torque

150 - 180 Nm

l

Lower arm

1. Remove the parking brake cable bracket.

Tightening Torque

30 - 45 Nm

Distance between the nut

end and the screw end

6 - 9 mm

2D-8  REAR SUSPENSION

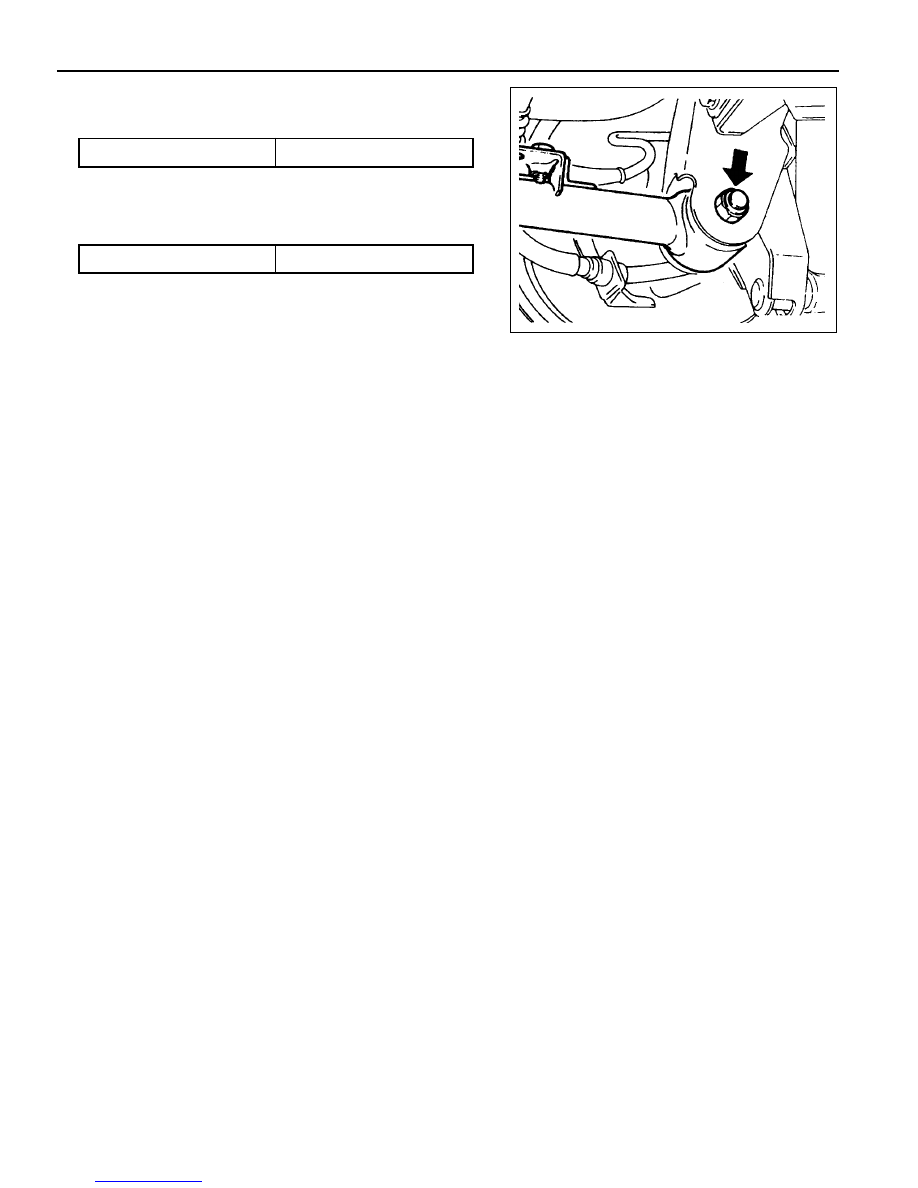

2. Remove the lower arm fixing nut from the frame.

Installation Notice

3. Remove the lower arm fixing nut from the rear axle and

remove the lower arm.

Installation Notice

Tightening  Torque

150 - 180 Nm

Tightening  Torque

150 - 180 Nm

 REAR SUSPENSION  2D-9

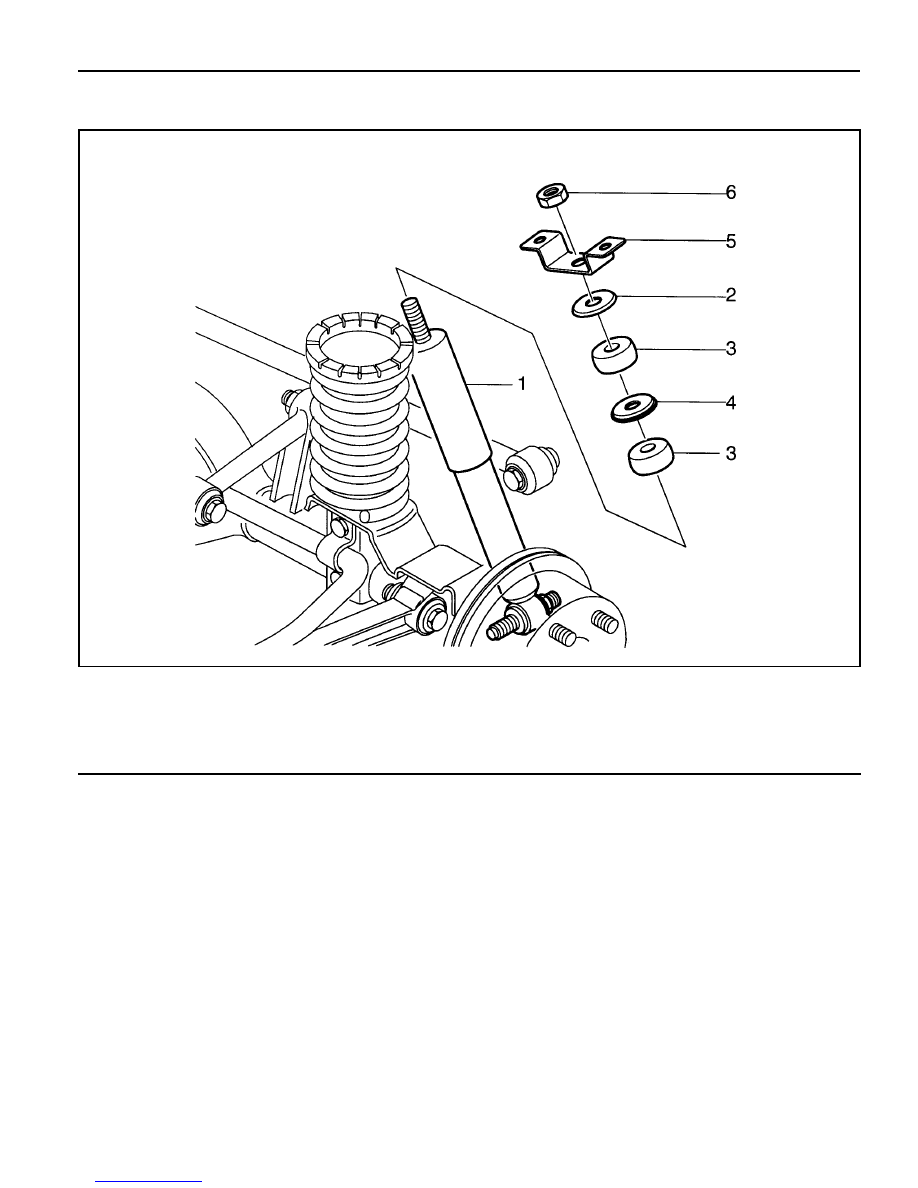

REAR SHOCK ABSORBER

1 Rear Shock Absorber
2 Washer
3 Bush

4 Center Washer
5 Actuator Mounting Bracket
6 Nut (M12 x 1.25) ................................. 40 - 60Nm
