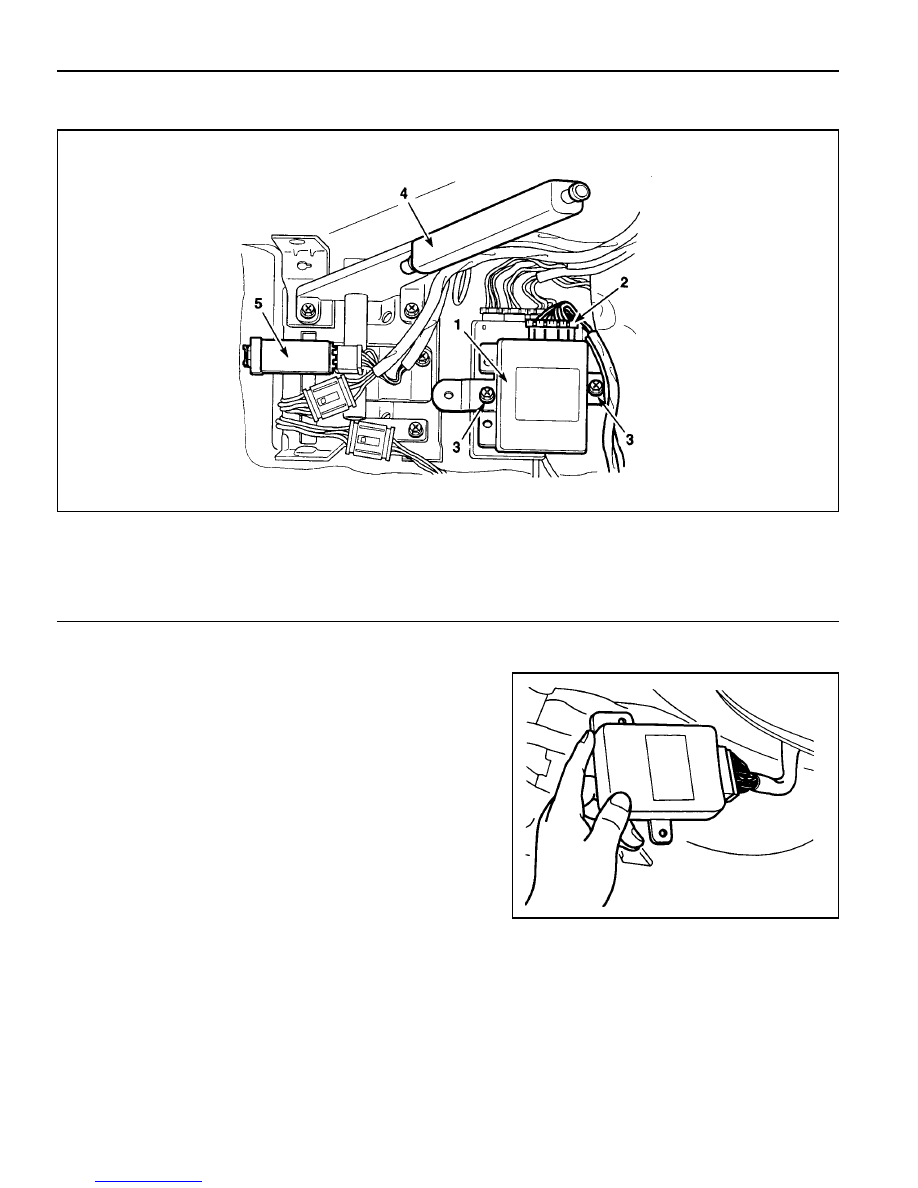

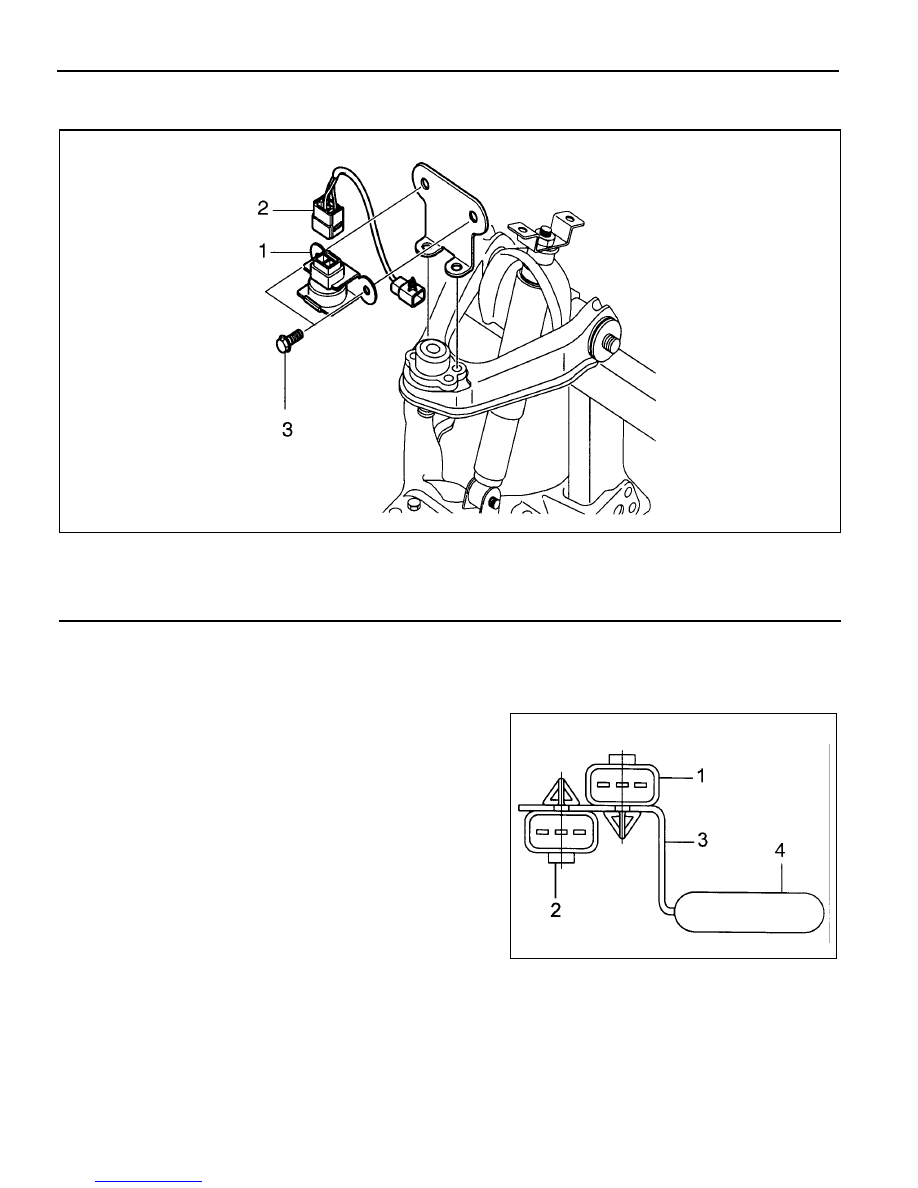

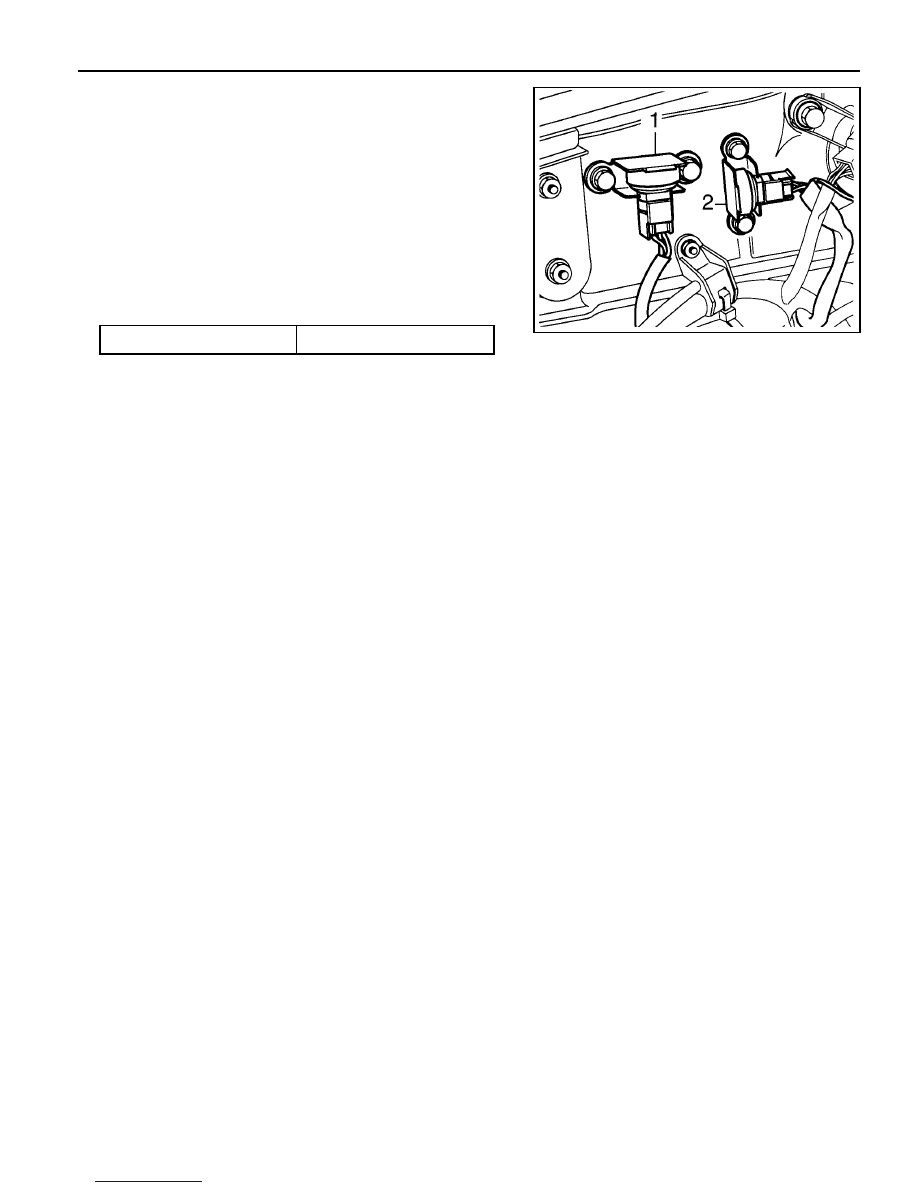

2C-12 FRONT SUSPENSION 1 Axle Vertical Acceleration Sensor (wheel G sensor) Removal & Installation Procedure 1. Disconnect extension wiring connector (2) from the axle vertical acceleration sensor. Notice Installation of wiring connector should be as shown in the 2. Unscrew bolts (3) and remove the axle vertical acceleration sensor (1). Notice When installing the sensor to the bracket, the sensor wiring 3. Installation should follow the removal procedure in the reverse order. 1 Actuator Connector 2 Axle Vertical Acceleration Sensor Connector 3 Front Hose Mounting Bracket 4 Frame Side Member AXLE VERTICAL ACCELERATION SENSOR (WHEEL G SENSOR) 2 Extension Wiring |
