LIGHTING SYSTEMS 9B – 5

STOPLAMPS AND INTERIOR COURTESY LAMP

Condition

Probable Cause

Correction

Stoplamps Do Not Work.

D

Fuse F5 is blown.

D

Replace the fuse F5.

D

The open circuit or a short circuit
between the fuse F11 and the
terminal 2 of the stoplamps switch
connector (For vehicle equipped
with M/T).

D

Repair or Replace the wiring
harness.

D

Faulty stoplamp switch.

D

Replace the stoplamp switch.

D

The open circuit or a short circuit
between the terminal 1 of the
stoplamp switch connector and
the terminal 3 of the stoplamps
connector (For vehicle equipped
with M/T).

D

Repair or Replace the wiring
harness.

D

Stoplamp bulb is blown.

D

Replace the stoplamp bulb.

D

The open ground (G401, G402)
circuits.

D

Repair or Replace the open
ground circuit.

Interior Courtesy Lamp Does
Not Work.

D

The open circuit or a short circuit
in the power supply circuit to the
fuse Ef2.

D

Repair or Replace the wring
harness.

D

Fuse Ef2 is blown.

D

Replace the fuse Ef2.

D

The open circuit or a short circuit
between the fuse Ef2 and the fuse
F11.

D

Repair or Replace the wiring
harness.

D

Fuse F11 is blown.

D

Replace the fuse F11.

D

The open circuit or a short circuit
between the fuse F11 and the
terminal 1 of the interior courtesy
lamp connector.

D

Repair or Replace the wiring
connector.

D

Interior courtesy lamp bulb is
blown.

D

Replace the bulb.

D

Faulty interior courtesy lamp.

D

Replace the interior courtesy
lamp.

9B – 6 LIGHTING SYSTEMS

REAR FOG LAMP

Diagnostic Aids: The rear fog lamp will not operate unless the headlamps are ON. If the headlamps are not operat-
ing, repair that problem before attempting to diagnose the rear fog lamp.

Condition

Probable Cause

Correction

Rear Fog Lamp
Does Not Work.

D

The open circuit or a short circuit
between the terminal 87 of the
headlamp relay and terminal 15,30
of the rear fog lamp relay.

D

Repair or Replace the wiring
harness.

D

Faulty rear fog lamp relay.

D

Replace the rear fog lamp relay.

D

The open circuit or a short circuit
between the terminal 87 of the
rear fog lamp relay and terminal 6
of the rear fog lamp connector.

D

Repair or Replace the wiring
harness.

D

The open circuit or a short circuit
between the terminal E of the rear
fog lamp relay and terminal 6 of
the rear fog lamp switch.

D

Repair or Replace the wiring
harness.

D

Faulty rear fog lamp switch.

D

Replace the rear fog lamp switch.

D

The open grounds (G201, G401)
circuits.

D

Repair or Replace the open
ground circuit.

D

Rear fog lamp bulb is blown.

D

Replace the rear fog lamp bulb.

LIGHTING SYSTEMS 9B – 7

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D209B109

HEADLAMPS

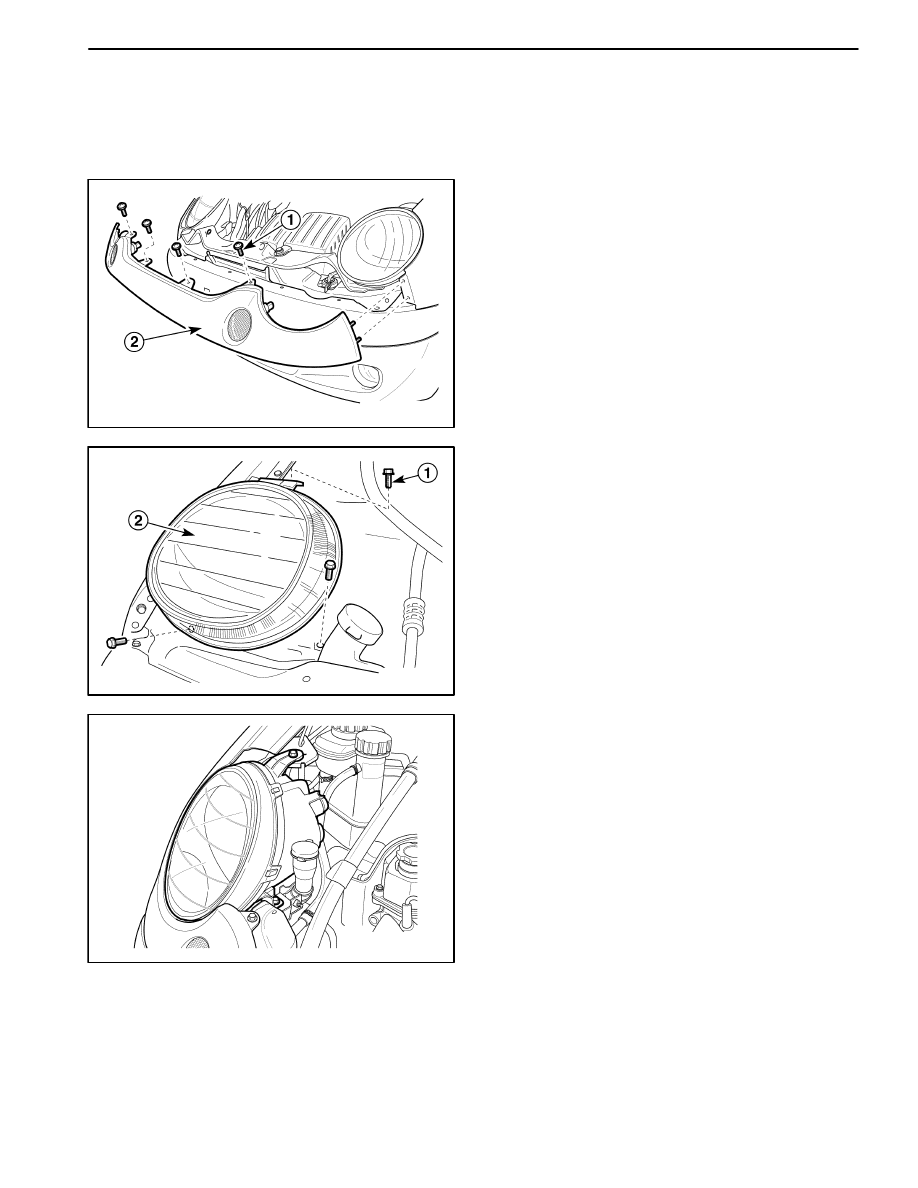

Removal Procedure

1. Support the hood suitably.

2. Disconnect the negative battery cable.

3. Remove the front bumper spacer.

D

Remove the bolts (1).

D

Remove the front bumper spacer from the bumper
fasia (2).

D19D502A

4. Remove the headlamp.

D

Remove the bolts and washer (1).

D

Disconnect the electrical connectors.

D

Remove the headlamp (2) .

D19D503A

Installation Procedure

1. Install the headlamp with the bolts.

2. Connect the headlamp connector and parking lamp

connector.

3. Install the front bumper spacer with the bolts.

4. Connect the negative battery cable.

9B – 8 LIGHTING SYSTEMS

D19D505A

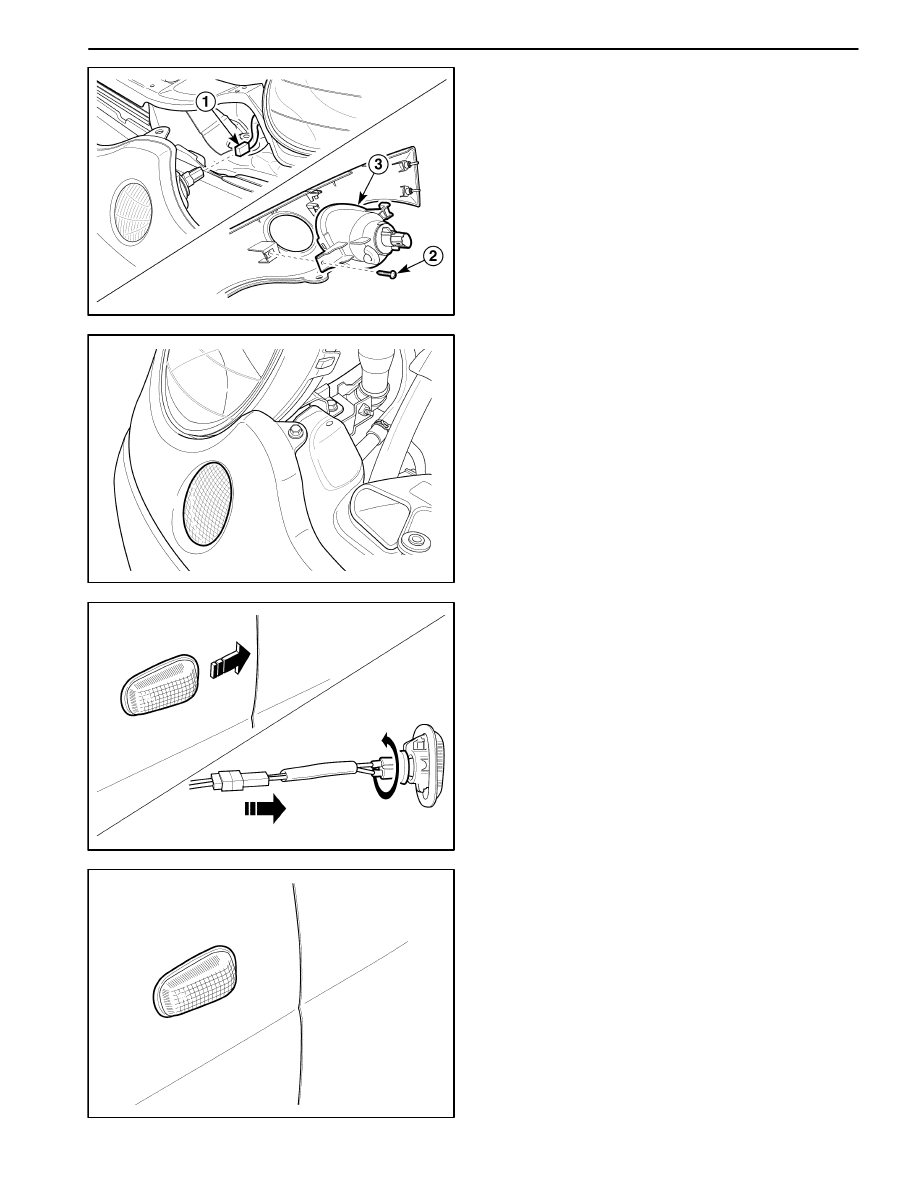

TURN SIGNAL LAMPS

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the front bumper spacer. Refer to Section

9M, Exterior Trim.

3. Remove the turn signal lamps from the front bumper

spacer.

D

Disconnect the electrical connector (1).

D

Remove the screw (2).

D

Remove the turn signal lamp assembly (3).

D19D506A

Installation Procedure

1. Connect the electrical connector.

2. Install the turn signal lamp assembly with the screw.

3. Install the front bumper spacer. Refer to Section 9M,

Exterior Trim.

4. Connect the negative battery cable.

D29B001

SIDE TURN SIGNAL LAMPS

Removal Procedure

1. Disconnect the negative battery cable.

2. Slide the side turn signal lamp rearward.

3. Remove the lamp.

4. Disconnect the electrical connector.

D29B002

Installation Procedure

1. Connect the electrical connector.

2. Install the side turn signal lamp.

3. Connect the negative battery cable.
