LIGHTING SYSTEMS 9B – 9

D109D507

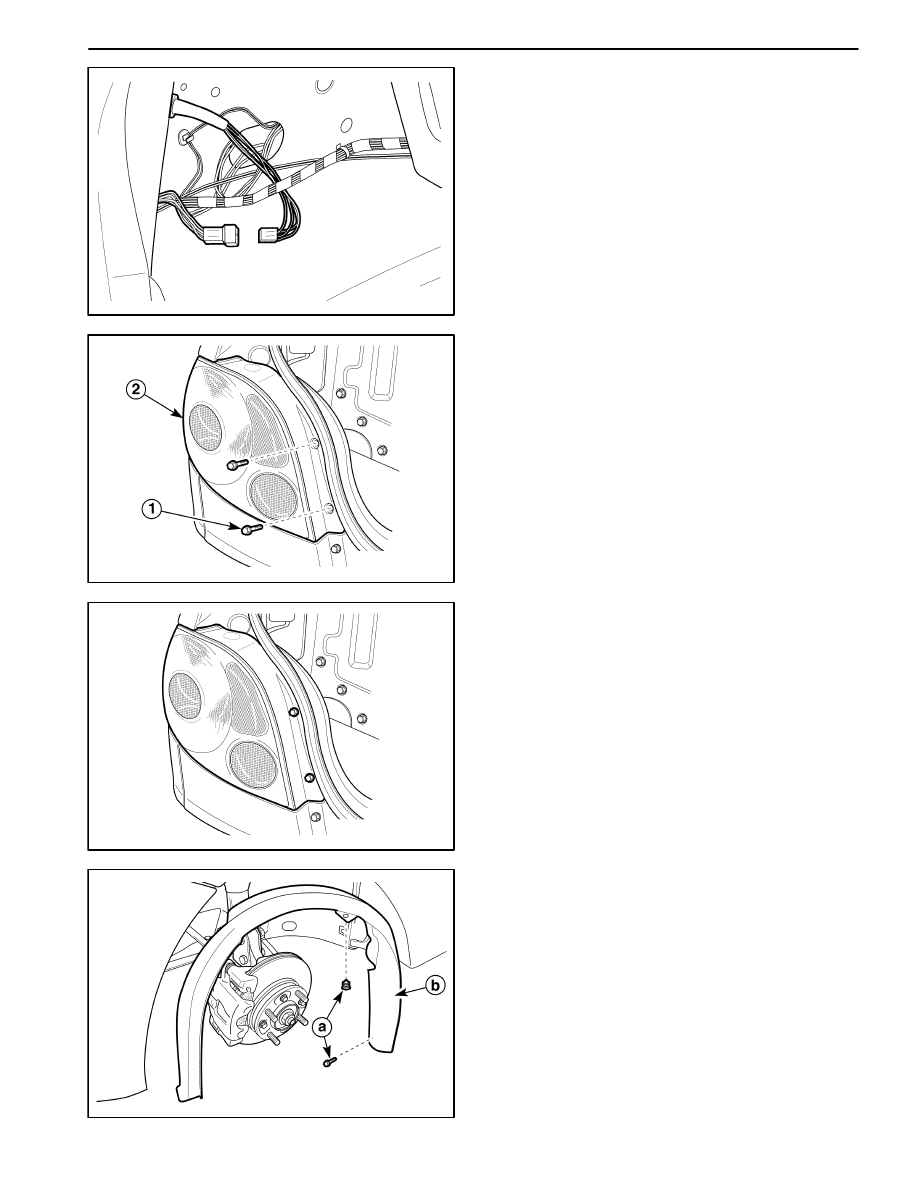

TAILLAMPS ASSEMBLY

Removal Procedure

1. Disconnect the negative battery cable.

2. Open the tailgate.

3. Remove the luggage compartment wheelhouse trim.

Refer to Section 9G, Interior Trim.

4. Disconnect the electrical connector.

D19D508B

5. Remove the taillamp assembly.

D

Remove the screws (1).

D

Remove the taillamp (2).

D19D509A

Installation Procedure

1. Install the taillamp assembly with the screws.

2. Connect the electrical connector.

3. Install the luggage compartment wheelhouse trim.

Refer to Section 9G, Interior Trim.

4. Connect the negative battery cable.

D19C501A

FRONT FOG LAMP

Removal Procedure

1. Disconnect the negative battery cable.

2. Raise and suitably support the vehicle.

3. Remove the front wheels.

4. Remove the front wheel house splash shield.

D

Remove the clip and bolts.

a. Bolt and clips.

D

Remove the wheel house splash shield.

b. Splash shield.

9B – 10 LIGHTING SYSTEMS

D209B100

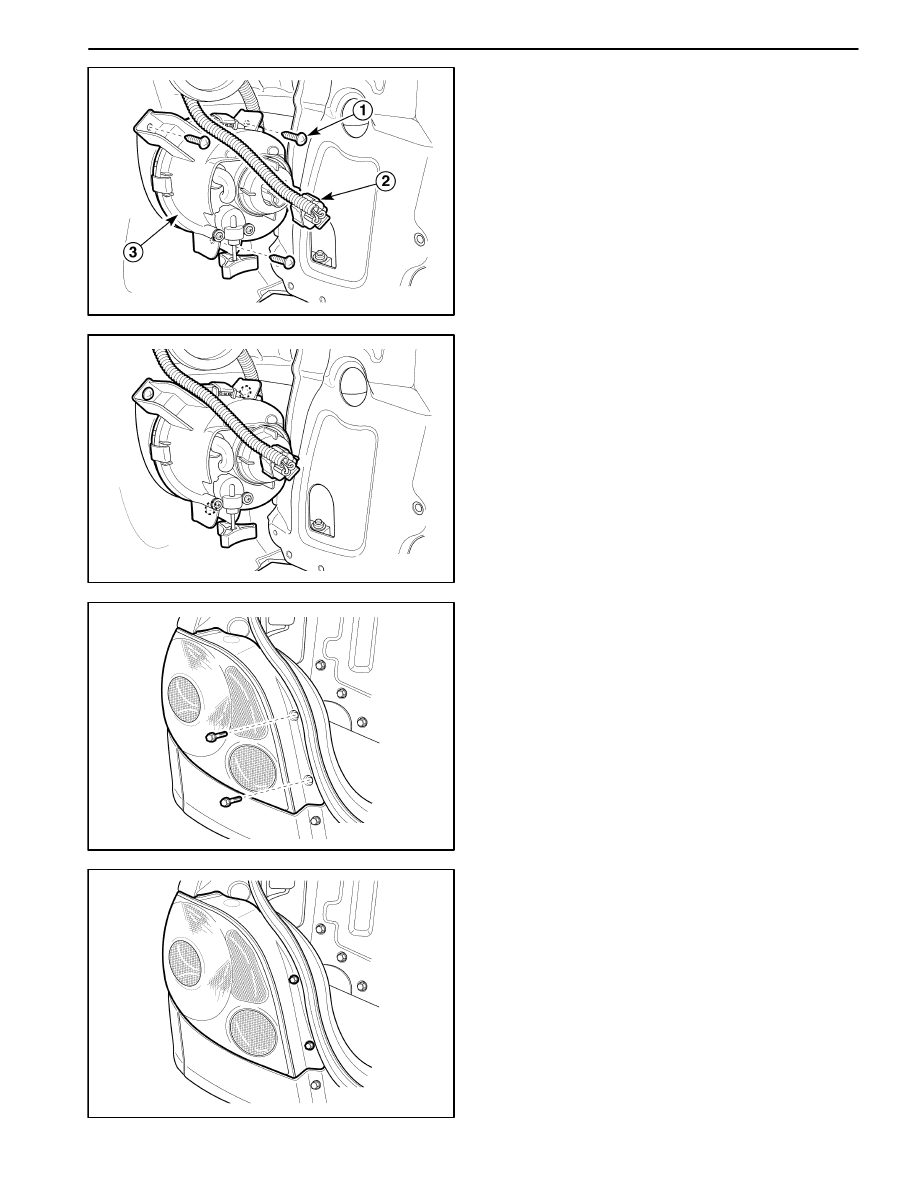

5. Remove the front fog lamp.

D

Remove the screws (1).

D

Disconnect the electrical connector (2).

D

Remove the front fog lamp (3).

D209B101

Installation Procedure

1. Install the front fog lamp with the screws.

2. Connect the front fog lamp connector.

3. Install the front wheelhouse splash shields with the

clips and the bolts.

4. Install the front wheels.

5. Lower the vehicle.

6. Connect the negative battery cable.

D19D508C

REAR FOG/BACKUP LAMP(S)

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the taillamp assembly. Refer to “Taillamps

Assembly” in this section.

3. Remove the bulb(s).

D19D509A

Installation Procedure

1. Install the bulb(s).

2. Install the taillamp assembly. Refer to “Taillamps As-

sembly” in this section.

3. Connect the negative battery cable.

LIGHTING SYSTEMS 9B – 11

D29B003B

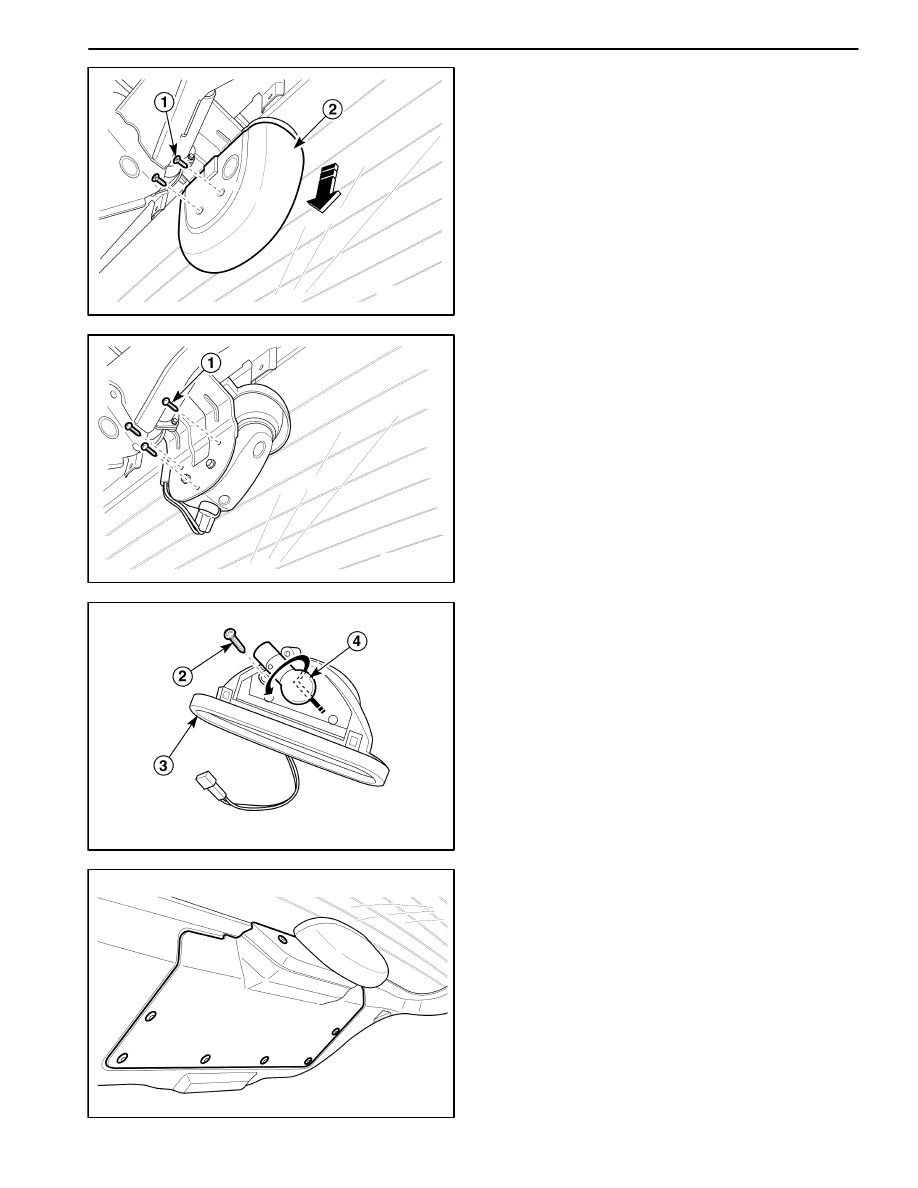

CENTER HIGH-MOUNTED
STOPLAMP (CHMSL)

Removal Procedure

1. Disconnect the negative battery cable.

2. Open the tailgate.

3. Pry off the tailgate trim panel. Refer to Section 9G In-

terior Trim.

4. Remove the CHMSL cover.

D

Remove the screws (1).

D

Remove the CHMSL cover (2).

D29B004A

5. Remove the CHMSL and bulb.

D

Remove the screws (1).

D29B005B

D

Remove the screw from bulb socket (2).

D

Remove the CHMSL (3).

D

Remove the bulb (4).

D19E554A

Installation Procedure

1. Install the CHMSL bulb.

2. Install the CHMSL with the screws.

3. Install the CHMSL cover with the screws.

4. Install the tailgate trim panel. Refer to Section 9G, In-

terior Trim.

5. Connect the negative battery cable.

9B – 12 LIGHTING SYSTEMS

D209B102

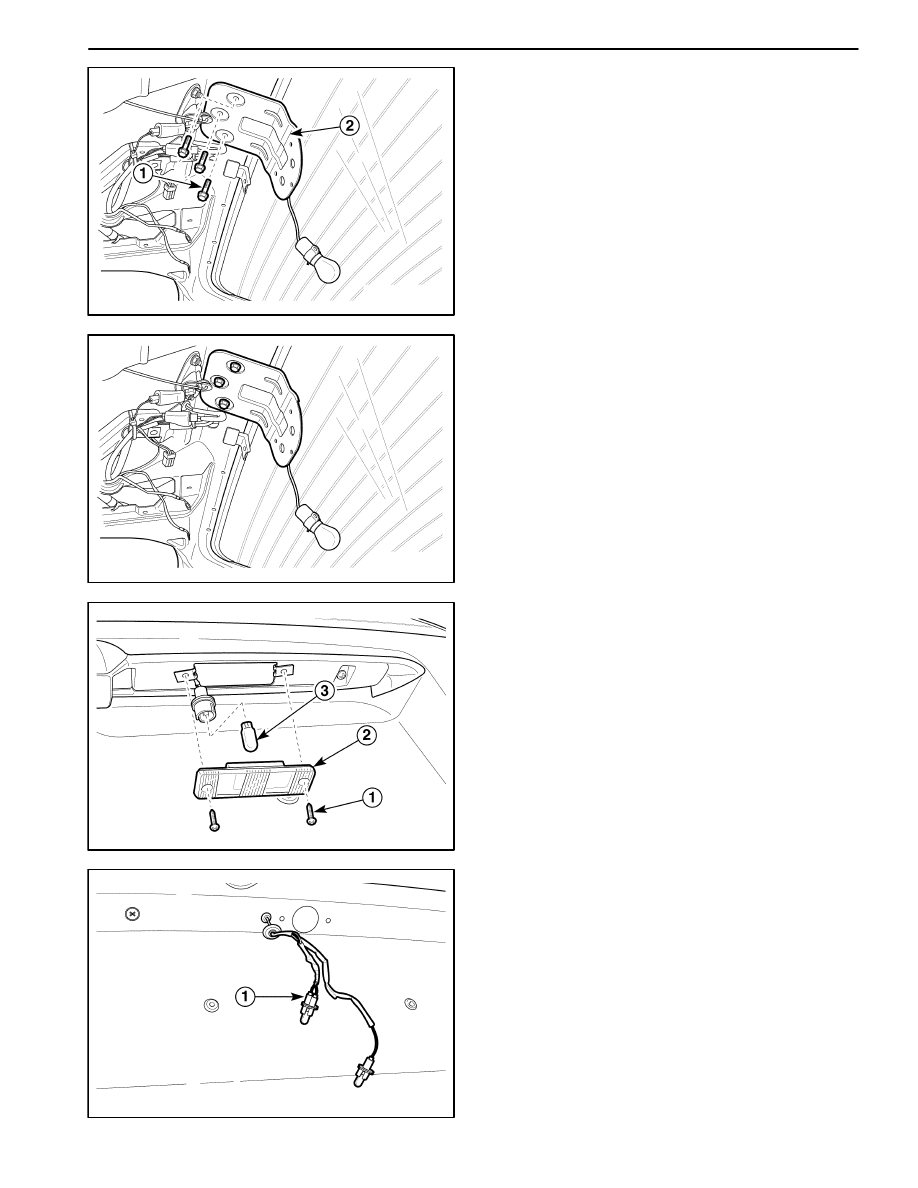

CHMSL MOUNTING BRACKET

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the center high–mounted stoplamp

(CHMSL). Refer to “Center High–Mounted Stoplamp”
in this section.

3. Remove the rear window wiper motor assembly. Re-

fer to Section 9D, Wipers/Washer Systems.

4. Remove the CHMSL mounting bracket.

D

Remove the bolts (1).

D

Remove the CHMSL mounting bracket (2).

D209B103

Installation Procedure

1. Install the CHMSL mounting bracket with the bolts.

2. Install the rear window wiper motor assembly. Refer

to Section 9D, Wipers/Washer Systems.

3 .Install the CHMSL.  Refer to “Center High–Mounted

Stoplamp” in this section.

4. Connect the negative battery cable.

D19D510A

LICENSE PLATE LAMPS

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the license plate lamp from the tailgate han-

dle.

D

Remove the screws (1).

D

Draw out the license plate lamp (2).

D

Remove the license plate lamp bulb (3).

D19D511A

3. Remove the rear window wiper motor assembly. Re-

fer to Section 9D, Wipers/Washer Systems.

4. Disconnect the electrical connector in the tailgate.

5. Remove the tailgate handle. Refer to Section 9M, Ex-

terior Trim.

6. Remove the license plate lamp socket.

D

Remove the socket (1).
