Daewoo Nubira. Manual - part 208

8A – 4

I

SEAT BELTS

DAEWOO V–121 BL4

Step

No

Yes

Value(s)

Action

12

1.  Leave the chime module connector discon-

nected.

2.  Turn the ignition OFF.
3.  Make sure the driver’s seat belt is buckled.
4.  Use an ohmmeter to measure resistance be-

tween ground and terminal 1 of the chime mod-
ule.

Is the resistance equal to the specified value?

[

 0

W

Go to Step 14

Go to Step 13

13

Repair the open circuit between ground and terminal
1 of the chime module connector.
Is the repair complete?

System OK

14

1.  Remove the instrument cluster.
2.  Check the seat belt warning lamp bulb.

Is the bulb OK?

Go to Step 16

Go to Step 15

15

Replace the warning lamp bulb.
Is the repair complete?

System OK

16

1.  If the seat belt switch and the chime module

were disconnected in a previous step, make
sure that they have been reconnected.

2.  Leave the seat belt unbuckled.
3.  Turn the ignition ON.
4.  Check the voltage at terminal A2 of the instru-

ment cluster.

Is the voltage equal to the specified value?

11–14 v

Go to Step 20

Go to Step 17

17

1.  Disconnect the chime module connector.
2.  Use an ohmmeter to check for continuity be-

tween terminal 7 of the chime module connec-
tor and instrument cluster connector B12.

Did the ohmmeter indicate the specified value?

[

 0

W

Go to Step 19

Go to Step 18

18

Repair the open circuit between instrument cluster
terminal A1 and ground.
Is the repair complete?

System OK

19

Replace the chime module.
Is the repair complete?

System OK

Go to Step 14

20

Repair the open circuit between instrument cluster
terminal B4 and ground.
Is the repair complete?

System OK

Go to Step 14

Seat Belt Warning Chime Does Not Work

Step

Action

Value(s)

Yes

No

1

1.  Leave the seat belt unbuckled.
2.  Close the vehicle doors.
3.  Turn the ignition ON.

Is the seat belt warning lamp ON?

Go to Step 2

Go to  ”Seat

Belt Warning

Lamp Does Not

Turn On at Any

Time”

2

Replace the warning chime module.
Is the repair complete?

System OK



SEAT BELTS  8A – 5

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

PRETENSIONER FRONT SEAT BELT

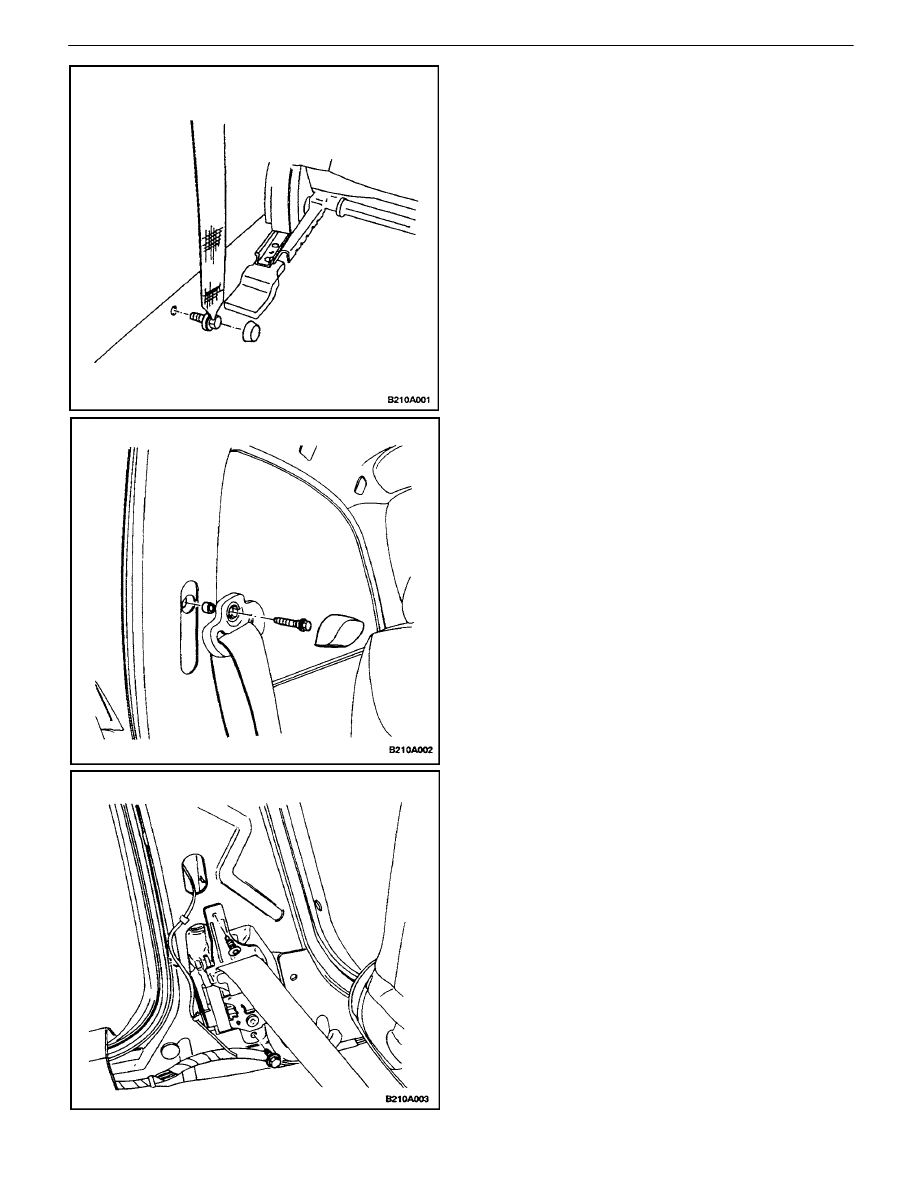

Removal Procedure

1.  Remove the plastic cap to reveal the lower B–pillar

seat belt anchor.

2.  Remove the bolt and the lower B–pillar seat belt

anchor.

3.  Remove the lower B–pillar trim panel. Refer to Sec-

tion 9G, InteriorTrim.

4.  Remove the plastic cap to reveal the upper B–pillar

seat belt anchor.

5.  Remove the bolt and the upper B–pillar seat belt

anchor.

6.  Remove the bolt, the screw, and the seat belt re-

tractor.

8A – 6

I

SEAT BELTS

DAEWOO V–121 BL4

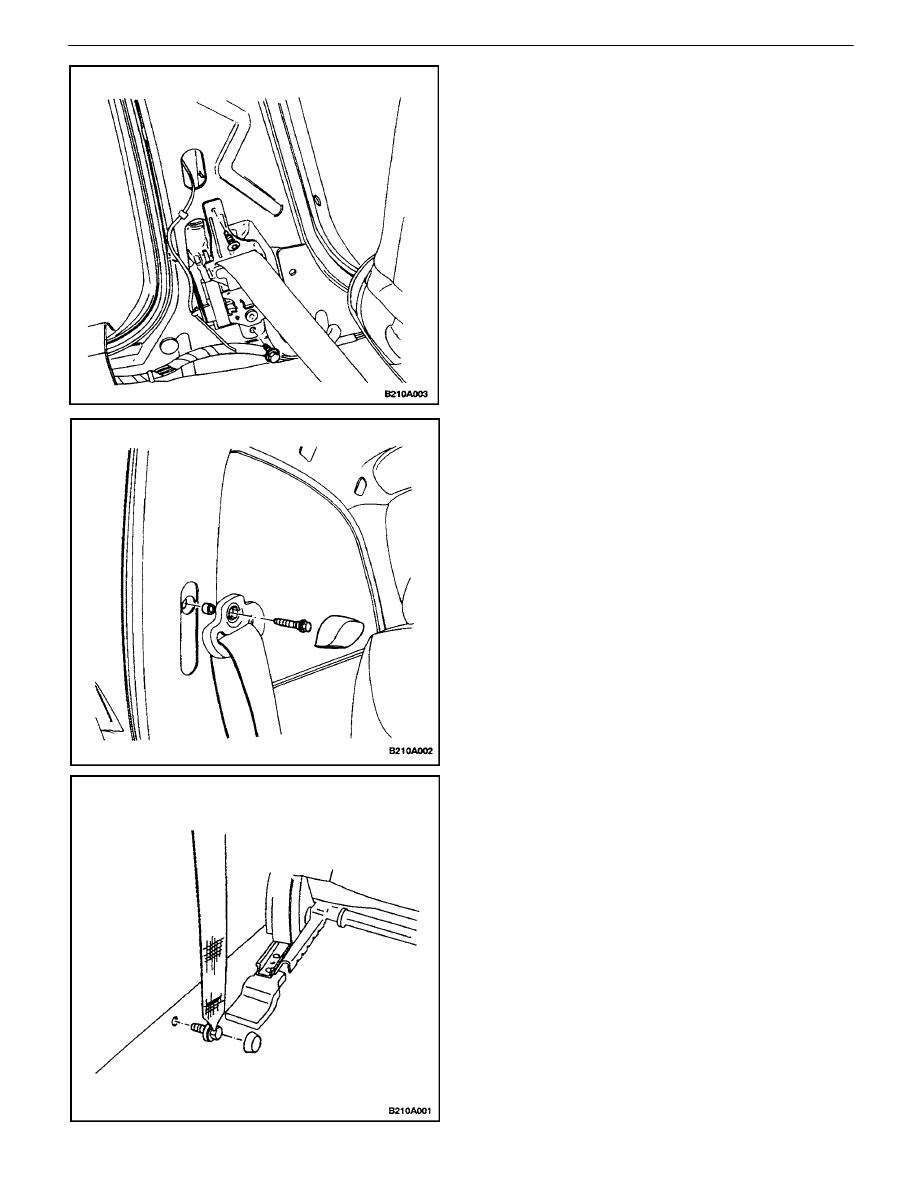

Installation Procedure

CAUTION : Failure to install the correct retractor
screw may cause the pretensioner seat belt to mal-
function, possibly resulting in personal injury.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the seat belt retractor with the bolt and the

screw.

Tighten

Tighten the seat belt retractor bolt to 35 N

S

m (26 lb–

ft).

Tighten

Tighten the seat belt retractor screw to 10 N

S

m (89 lb–

ft).

2.  Install the upper B–pillar seat belt anchor with the

bolt.

Tighten

Tighten the seat belt anchor bolt to 35 N

S

m (26 lb–ft).

3.  Install the seat belt anchor plastic cap.
4.  Install the lower B–pillar trim panel. Refer to Sec-

tion 9G, Interior Trim.

5.  Install the lower B–pillar seat belt anchor with the

bolt.

Tighten

Tighten the seat belt anchor bolt to 35 N

S

m (26 lb–ft).

6.  Install the seat belt anchor plastic cap.

SEAT BELTS  8A – 7

DAEWOO V–121 BL4

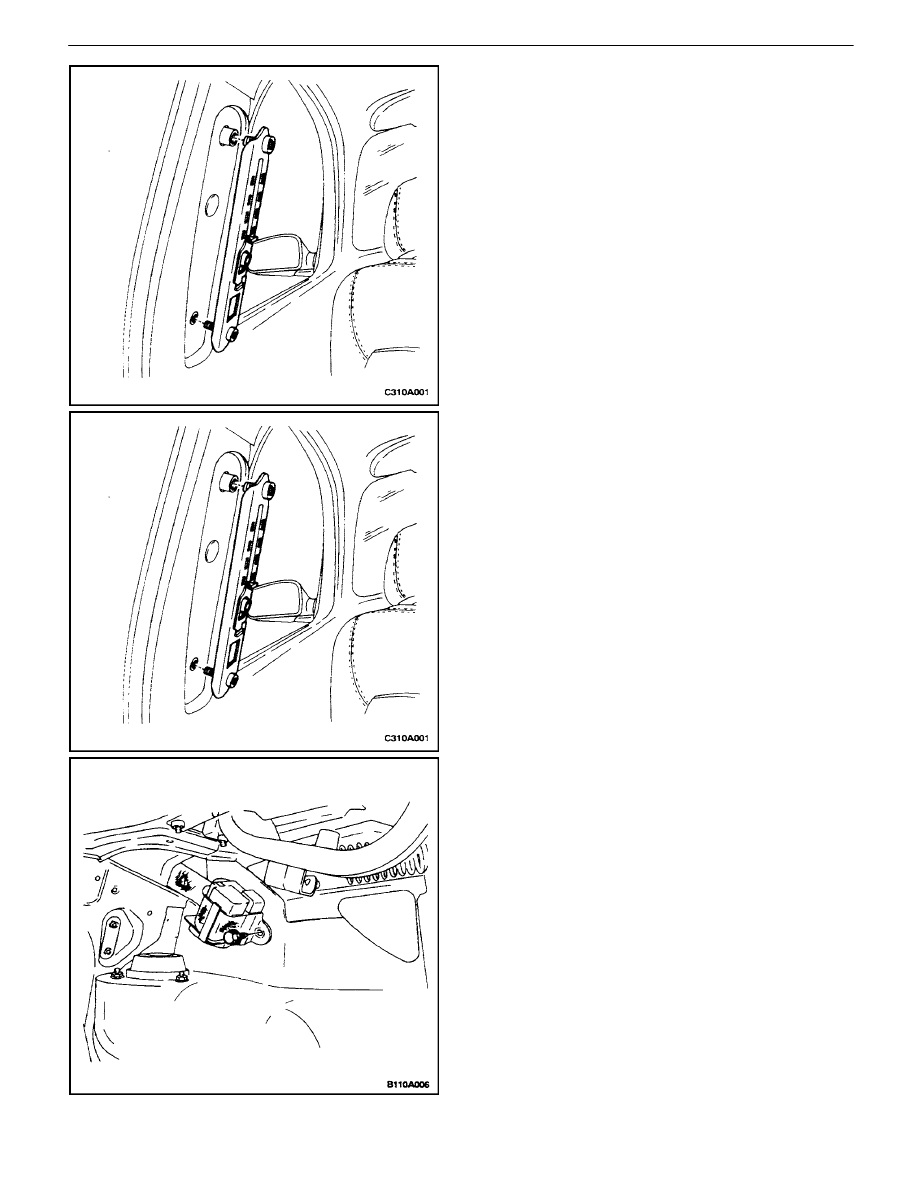

FRONT SEAT BELT HEIGHT
ADJUSTER

Removal Procedure

1.  Remove the upper B–pillar trimpanel. Refer to Sec-

tion 9G, Interior Trim.

2.  Remove the bolts and the seat belt height adjuster.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the seat belt height adjuster with the bolts.

Tighten

Tighten the seat belt height adjuster bolts to 23 N

S

m

(17 lb–ft).

2.  Install the upper B–pillar trim panel. Refer to Sec-

tion 9G, Interior Trim.

THREE–POINT CLR REAR
OUTBOARD SEAT BELT

(Typical)

Removal Procedure

1.  Open the luggage compartment.
2.  Remove the luggage compartment wheelhouse trim

panel. Refer to Section 9G, Interior Trim.

3.  Remove the bolt and the luggage compartment

seat belt retractor.
