SEAT BELTS

DAEWOO V–121 BL4

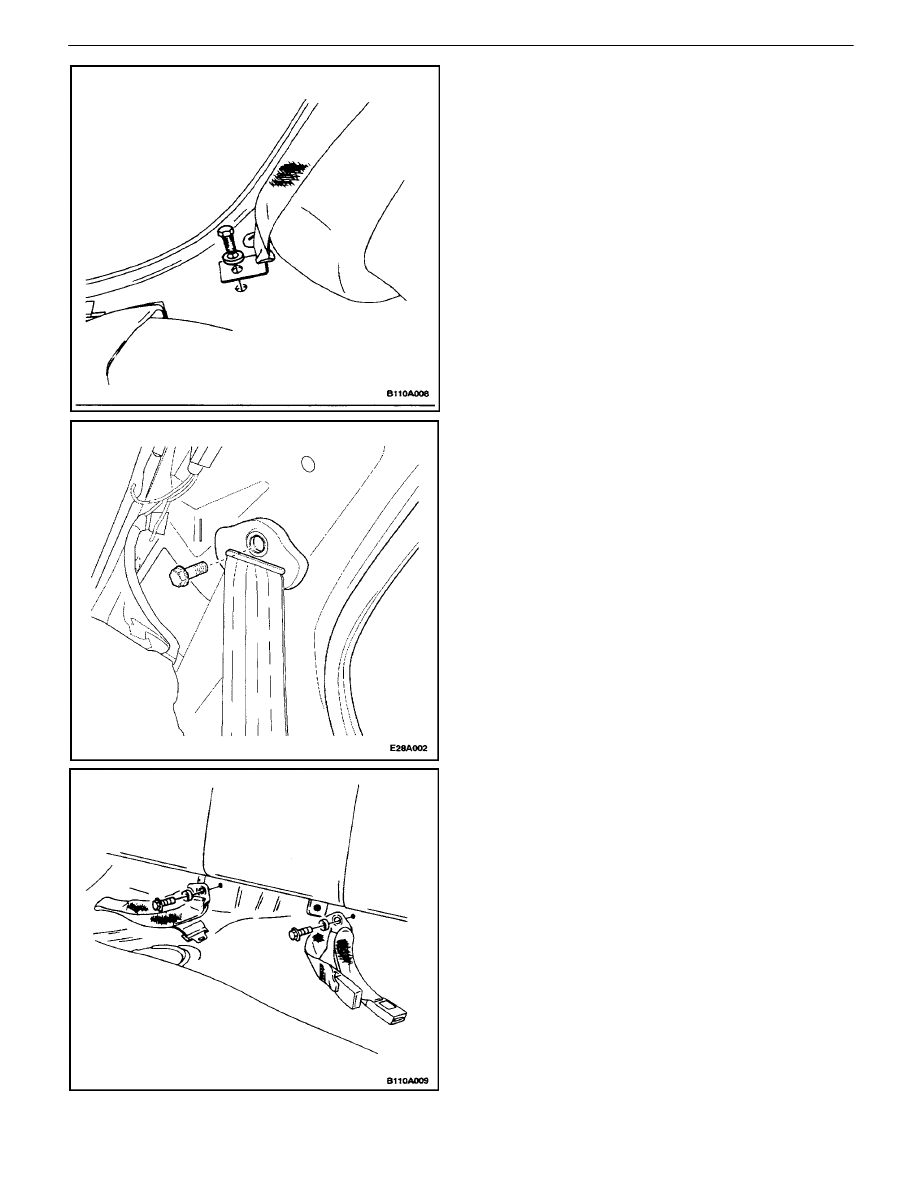

4.  Reposition the plastic cap to reveal the C–pillar

seat belt anchor bolt.

5.  Remove the bolt and the C–pillar seat belt anchor.

6.  Remove the rear seat cushion. Refer to Section 9H,

Seats.

7.  Remove the bolt and the floor seat belt anchor.
8.  Remove the seat belt.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

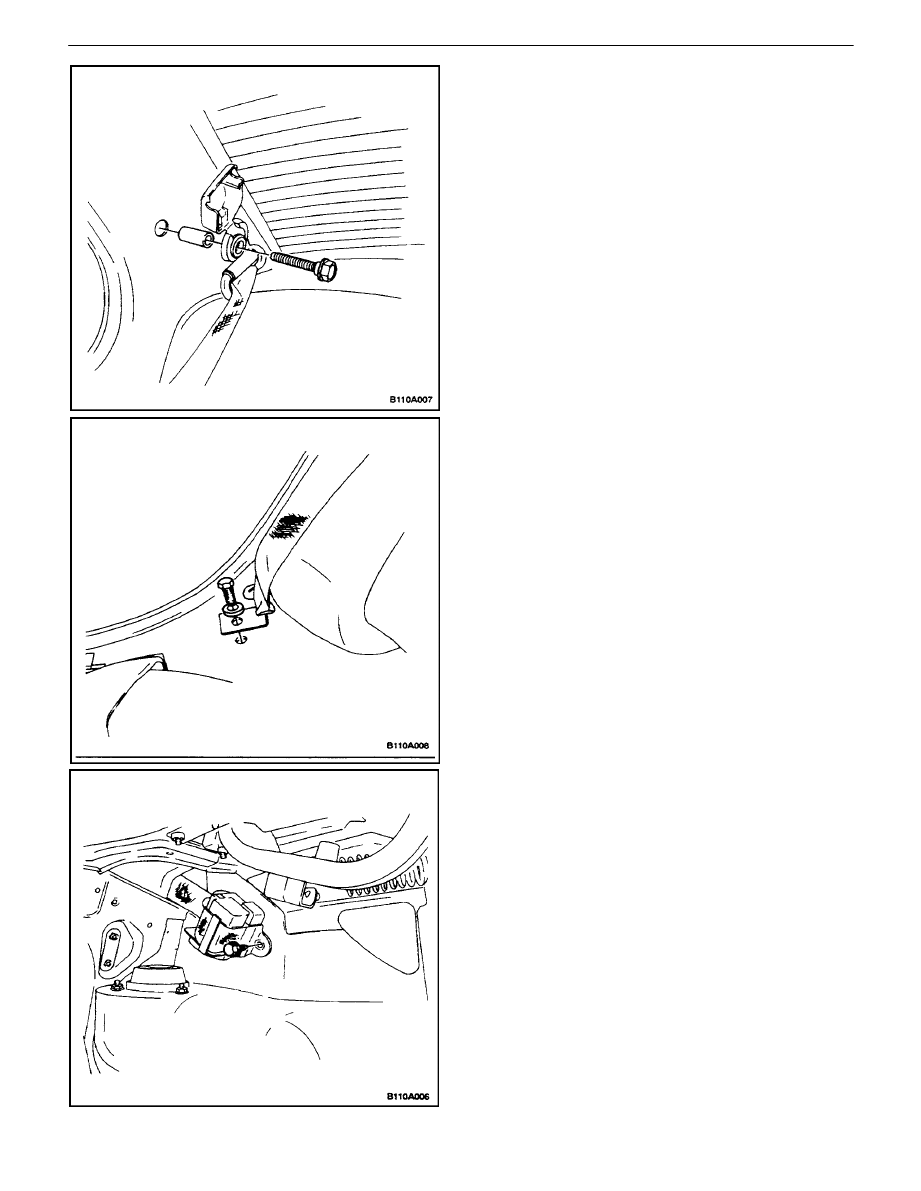

1.  Install the luggage compartment seat belt retractor

with the bolt.

Tighten

Tighten the seat belt retractor bolt to 35 N

S

m (26 lbft).

SEAT BELTS  8A – 9

DAEWOO V–121 BL4

2.  Feed the free end of the seat belt from the luggage

compartment through the deck lid sill plate.

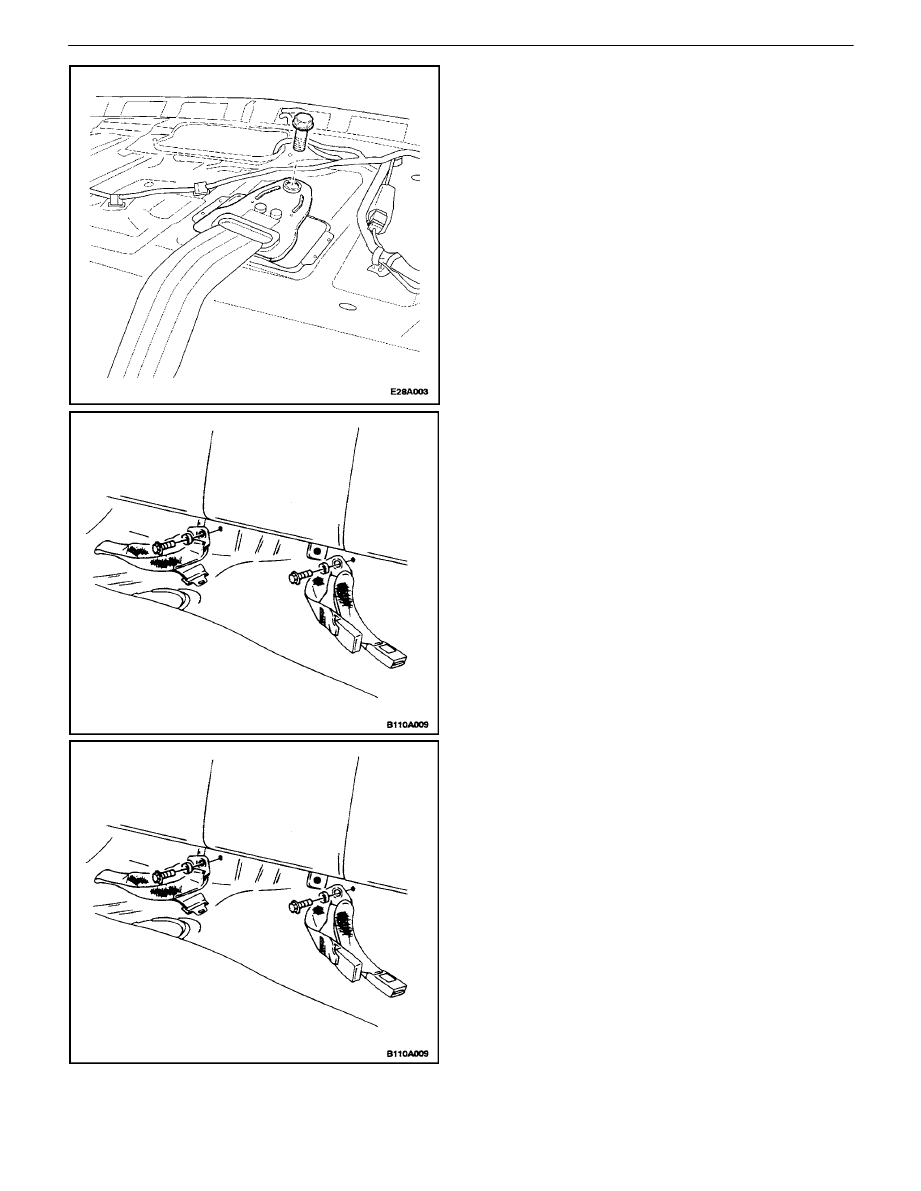

3.  Install the floor seat belt anchor with the bolt.

Tighten

Tighten the seat belt anchor bolt to 35 N

S

m (26 lb–ft).

4.  Remove the rear seat cushion. Refer to Section 9H,

Seats.

5.  Install the C–pillar seat belt anchor with the bolt.

Tighten

Tighten the seat belt anchor bolt to 35 N

S

m (26 lb–ft).

6.  Install the seat belt anchor plastic cover to its origi-

nal position.

7.  Install the luggage compartment wheelhouse trim

panel. Refer to Section 9G, Interior Trim.

THREE–POINT CLR REAR CENTER
SEAT BELT

Removal Procedure

1.  Remove the rear seat cushion. Refer to Section 9H,

Seats.

2.  Remove the bolts and the seat belt anchors.

8A – 10

I

SEAT BELTS

DAEWOO V–121 BL4

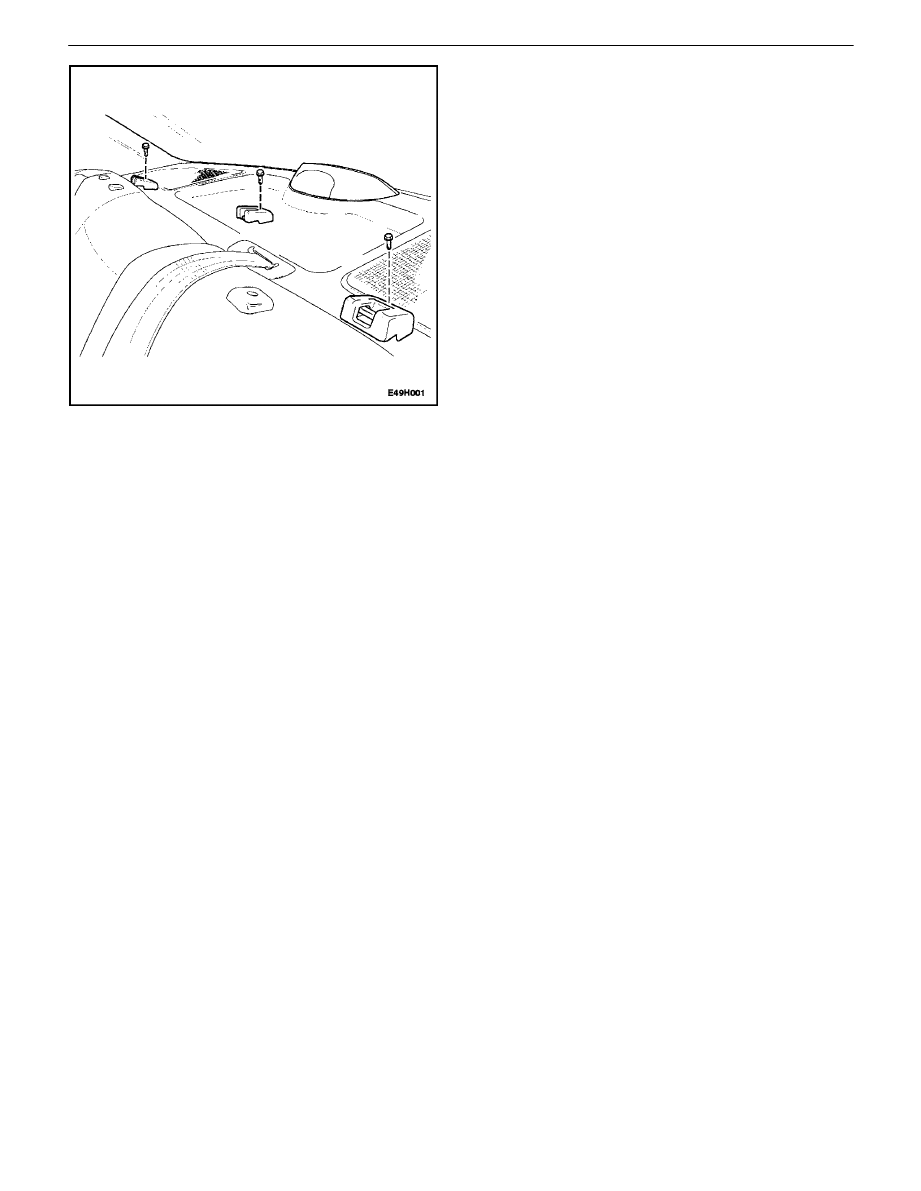

3.  Remove the C–pillar trim. Refer to Section 9G, In-

terior Trim.

4.  Remove the deck lid sill plate cover. Refer to Sec-

tion 9G, Interior Trim.

5.  Remove the center seat belt retractor with the bolt.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the center seat bolts retractor with the bolt.

Tighten

Tighten the center seat belt retractor bolts to 35 N

S

m

(26 lb–ft).

2.  Install the rear seat cushion. Refer to  Section 9H,

Seats.

CHILD SEAT TETHER ANCHOR

Removal Procedure

1.  Open the tether anchor access cap.
2.  Remove the bolt and the tether anchor.

SEAT BELTS  8A – 11

DAEWOO V–121 BL4

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the tether anchor with the bolt.

Tighten

Tighten the child seat tether anchor bolt to 25 N

S

m (18

lb–ft).

2.  Close the tether anchor access cap.
