Daewoo Nubira. Manual - part 19

9O – 10

I

BUMPERS AND FASCIAS

DAEWOO V–121 BL4

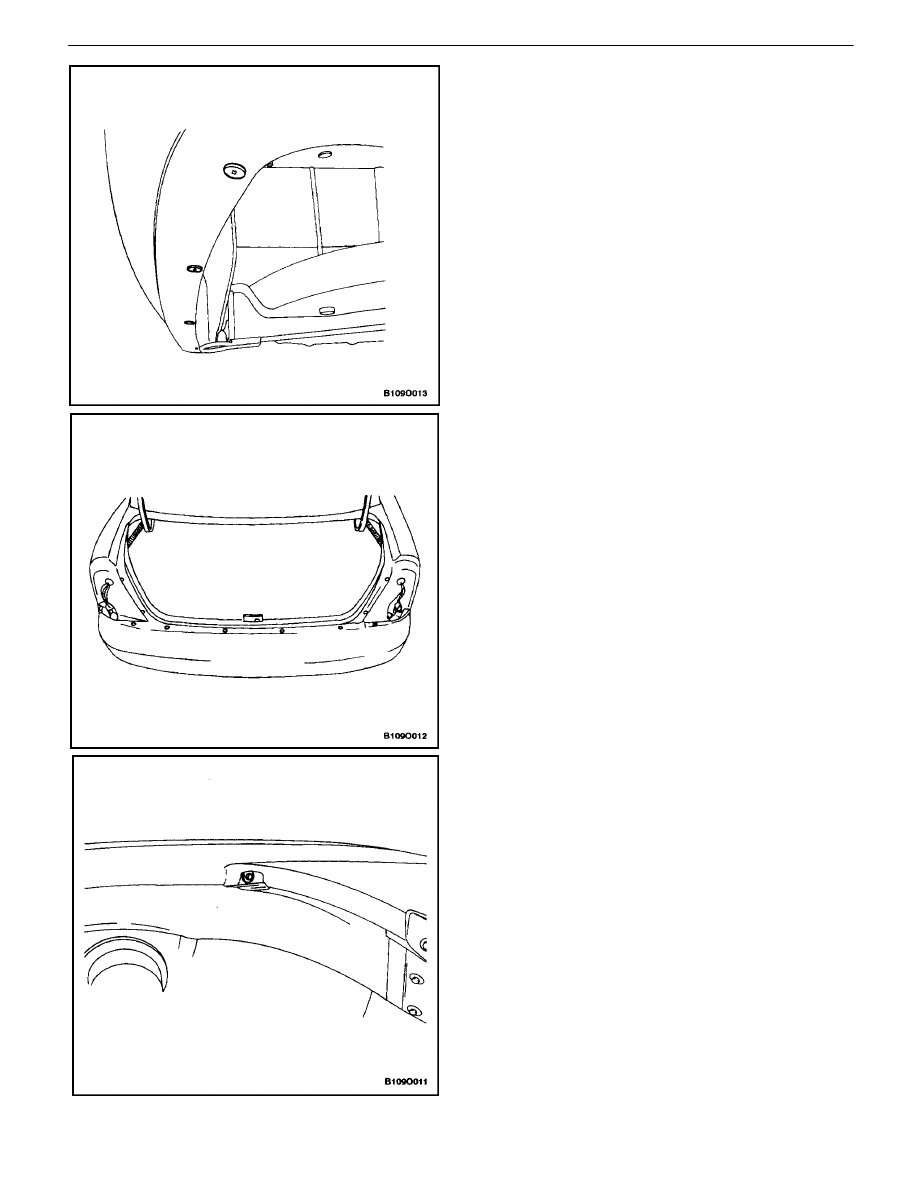

3.  Install the luggage compartment rear quarter trim

panel.

4.  Install the lower fascia screws.

5.  Install the upper fascia screws.

6.  Install the taillamps. Refer to Section 9B, Lighting

Systems.

7.  Install the rear wheel well fascia bolts.

Tighten

Tighten the rear wheel well fascia bolts to 1.5 N

S

m (13

lb–in).

BUMPERS AND FASCIAS  9O – 11

DAEWOO V–121 BL4

8.  Install the rear wheel well splash shields with the

bolts and the screws.

Tighten

Tighten the rear wheel well splash shield bolts to 1.5
N

S

m (13 lb–in).

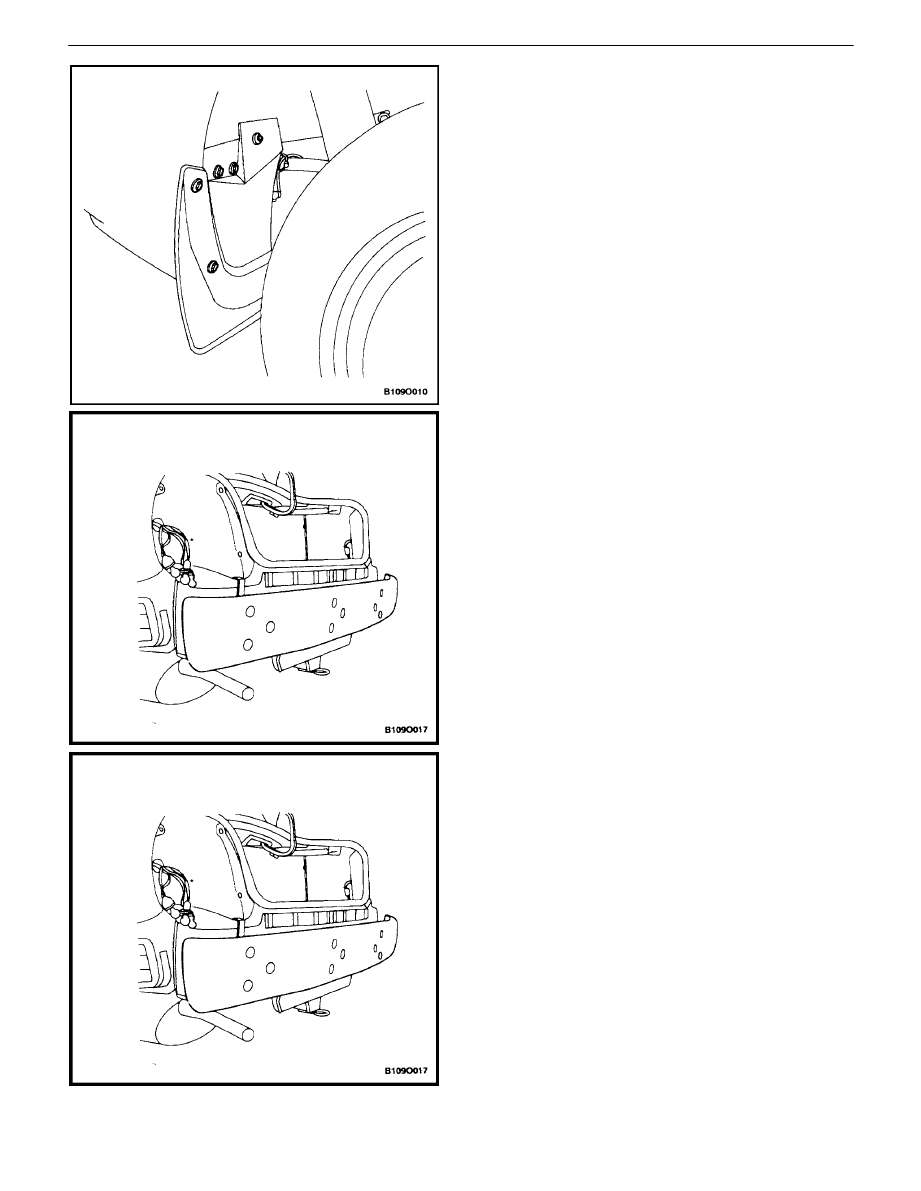

9.  Install the rear wheel mud guards with the bolts.

Tighten

Tighten the rear wheel mud guard bolts to 1.5 N

S

m (13

lb–in).

REAR BUMPER ENERGY
ABSORBER

(Notchback Shown, Hatchback and
Wagon Similar)

Removal Procedure

1.  Remove the rear bumper fascia. Refer to”Rear

Bumper Fascia”  in this section.

2.  Remove the energy absorber.

Installation Procedure

1.  Install the energy absorber.
2.  Install the rear bumper fascia. Refer to”Rear Bump-

er Fascia”  in this section.

9O – 12

I

BUMPERS AND FASCIAS

DAEWOO V–121 BL4

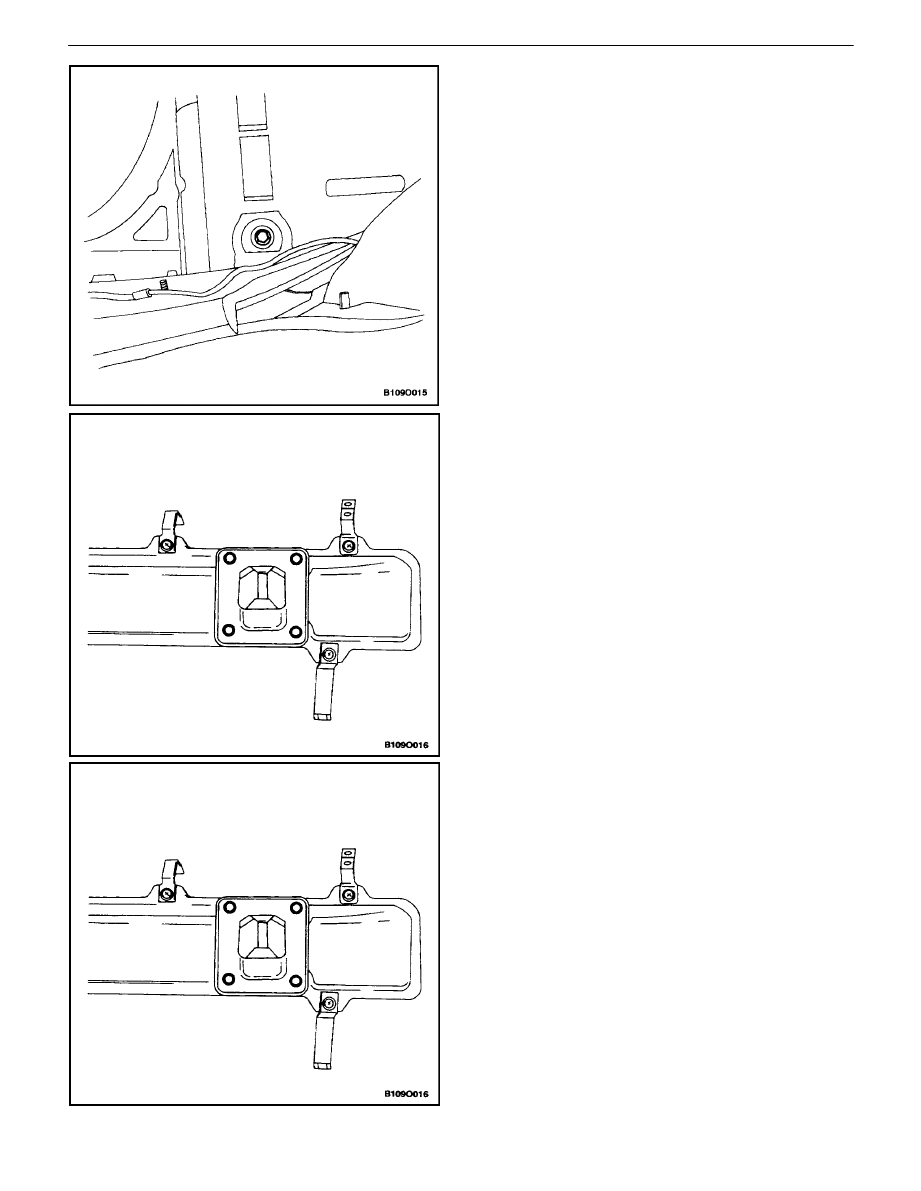

REAR BUMPER IMPACT BAR

(Notchback Shown, Hatchback and
Wagon Similar)

Removal Procedure

1.  Remove the rear bumper fascia. Refer to”Rear

Bumper Fascia” in this section.

2.  Remove the rear bumper energy absorber. Refer

to”Rear Bumper Energy Absorber” in this section.

3.  Reposition the luggage compartment floor carpet.
4.  Remove the plastic caps to reveal the impact bar

bolts.

5.  Remove the bolts securing the impact bar.

6.  Remove the impact bar from the vehicle.
7.  Remove the nuts and the impact bar brackets from

the impact bar.

8.  Remove the screws and the rear fascia brackets

from the impact bar.

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the rear fascia brackets to the impact bar

with the screws.

2.  Install the impact bar brackets to the impact bar

with the nuts.

Tighten

Tighten the rear impact bar bracket nuts to 30 N

S

m

(22 lb–ft).

BUMPERS AND FASCIAS  9O – 13

DAEWOO V–121 BL4

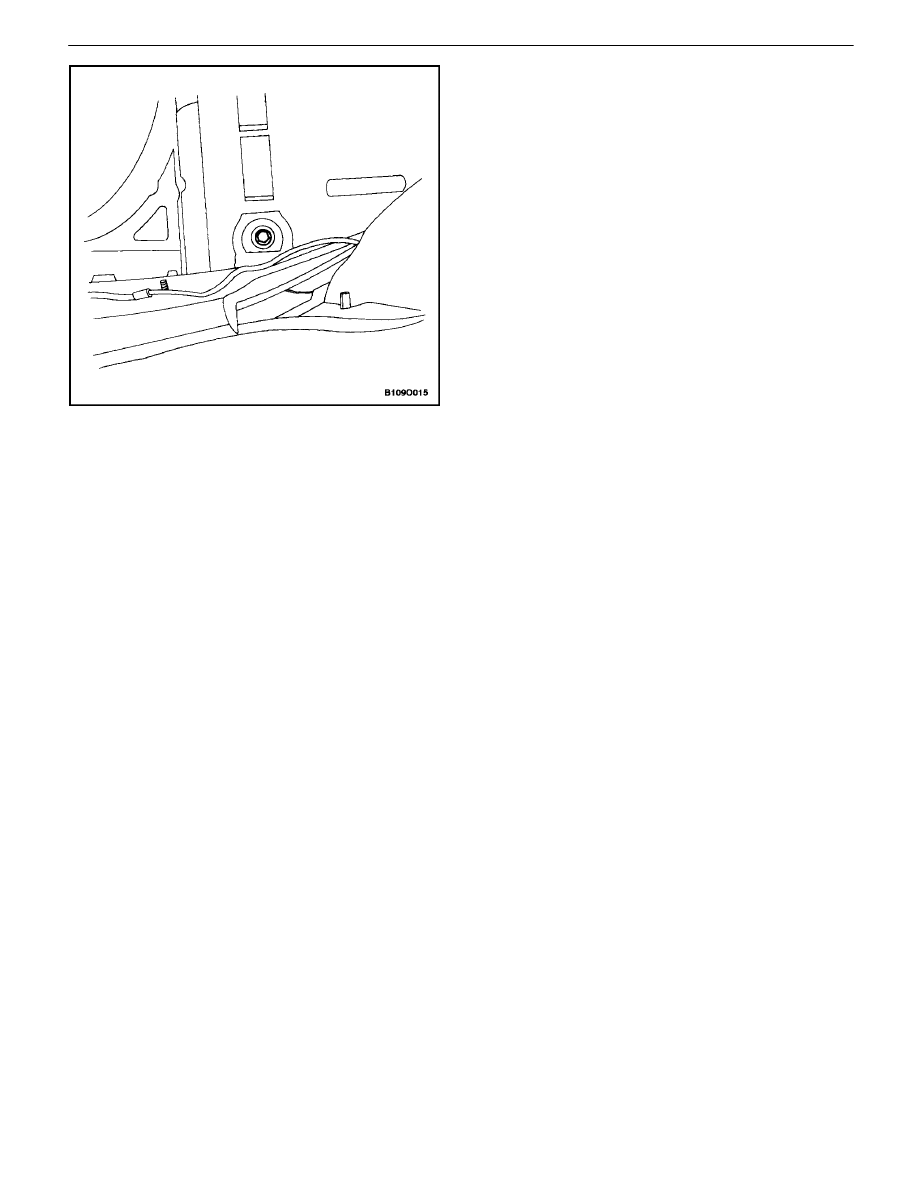

3.  Install the impact bar.
4.  Install the rear impact bar to the vehicle with the

bolts.

Tighten

Tighten the rear impact bar bolts to 35 N

S

m (26 lb–ft).

5.  Install the luggage compartment floor carpet to its

original position.

6.  Install the rear impact bar to the vehicle with the

bolts.

7.  Install the rear bumper energy absorber. Refer

to”Rear Bumper Energy Absorber”  in this section.

8.  Install the rear bumper fascia. Refer to”Rear Bump-

er Fascia” in this section.
