BUMPERS AND FASCIAS

DAEWOO V–121 BL4

FRONT BUMPER ENERGY
ABSORBER

Removal Procedure

1.  Remove the front bumper fascia. Refer to”Front

Bumper Fascia” in this section.

2.  Remove the energy absorber.

Installation Procedure

1.  Install the energy absorber.
2.  Install the front bumper fascia. Refer to”Front

Bumper Fascia”  in this section.

FRONT BUMPER IMPACT BAR

Removal Procedure

1.  Remove the front bumper fascia. Refer to”Front

Bumper Fascia”  in this section.

2.  Remove the front bumper energy absorber. Refer

to”Front Bumper Energy Absorber” in this section.

3.  Remove the front bumper impact bar nuts.

BUMPERS AND FASCIAS  9O – 7

DAEWOO V–121 BL4

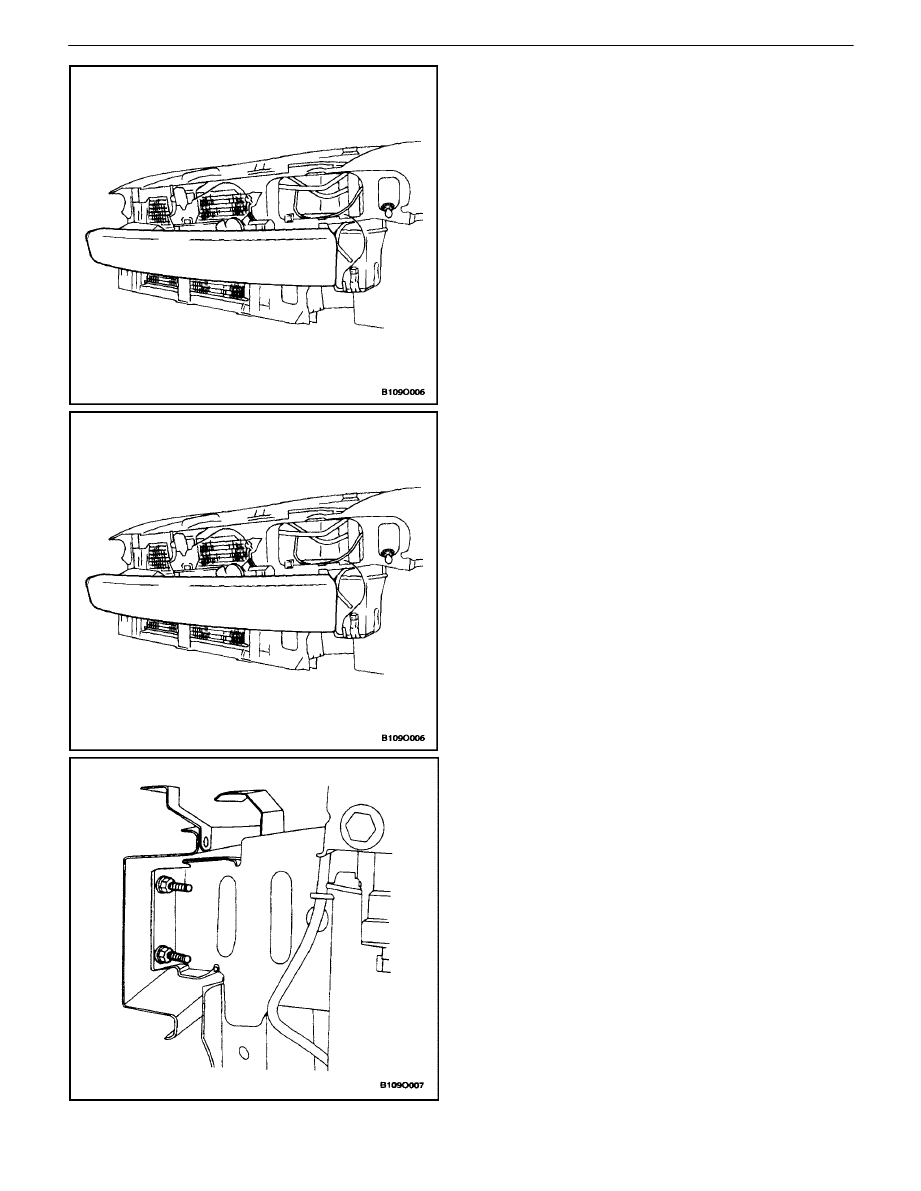

4.  Remove the front impact bar bolts.
5.  Remove the impact bar.

Installation Procedure

1.  Install the impact bar.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the front impact bar bolts.

Tighten

Tighten the front impact bar bolts to 22 N

S

m (16 lb–ft).

3.  Install the front bumper impact bar nuts.

Tighten

Tighten the front impact bar nuts to 30 N

S

m (22 lb–ft).

4.  Install the front bumper energy absorber. Refer

to”Front Bumper Energy Absorber” in this section.

5.  Install the front bumper fascia. Refer to”Front

Bumper Fascia” in this section.

9O – 8

I

BUMPERS AND FASCIAS

DAEWOO V–121 BL4

REAR BUMPER FASCIA

(Notchback Shown, Hatchback and
Wagon Similar)

Removal Procedure

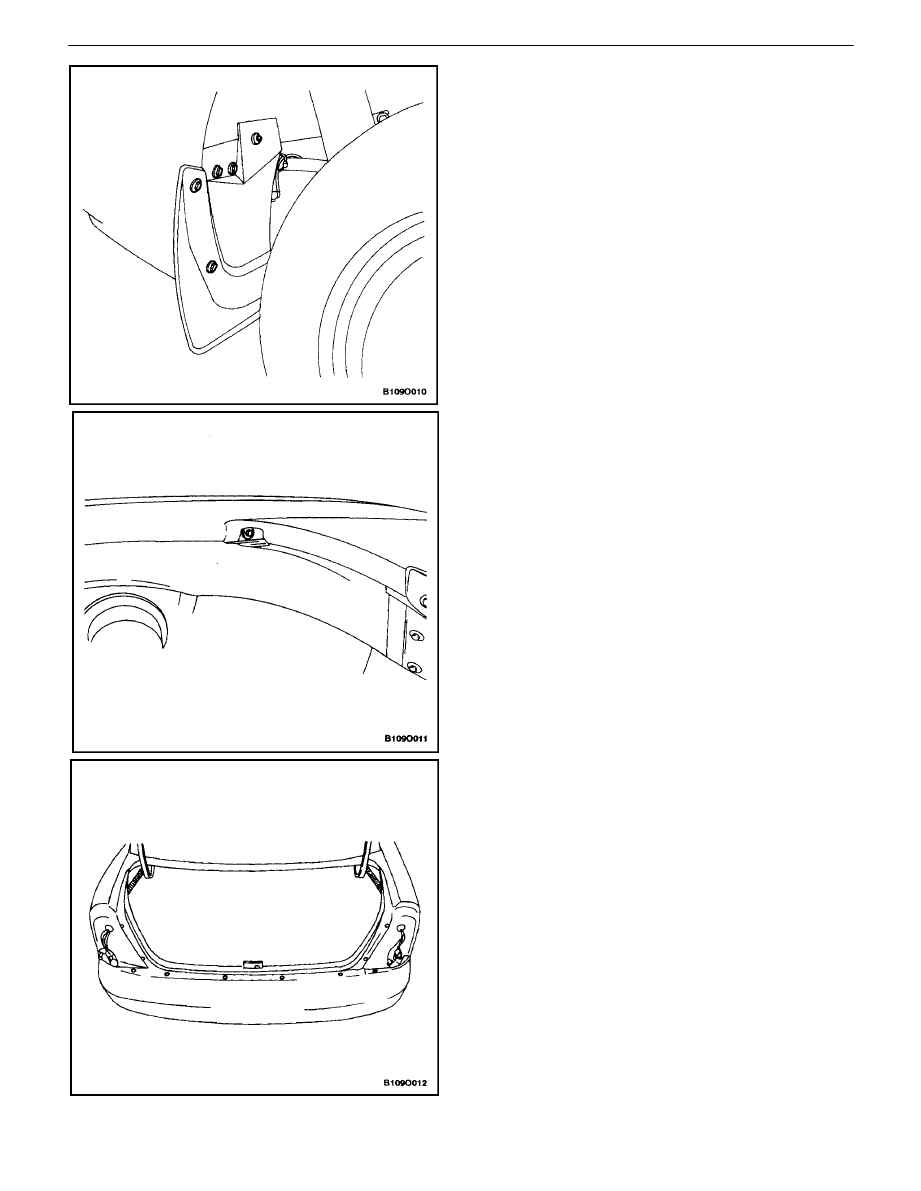

1.  Remove the bolts and the rear wheel mud guards.
2.  Remove the bolts and the screws and the rear

wheel well splash shields.

3.  Remove the fascia bolts at the top of the rear wheel

wells.

4.  Remove the taillamps. Refer to Section 9B, Lighting

Systems.

5.  Remove the upper fascia screws.

BUMPERS AND FASCIAS  9O – 9

DAEWOO V–121 BL4

6.  Remove the lower fascia screws.

7.  Remove the luggage compartment rear quarter trim

panel.

8.  Remove the fascia bolts in the luggage compart-

ment.

9.  Remove the fascia.

Installation Procedure

1.  Install the fascia.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the luggage compartment fascia bolts.

Tighten

Tighten the luggage compartment fascia bolts to 8
N

S

m (71 lb–in).
