BUMPERS AND FASCIAS

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

FRONT BUMPER FASCIA

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the front wheels. Refer to Section 2E,

Tires and Wheels.

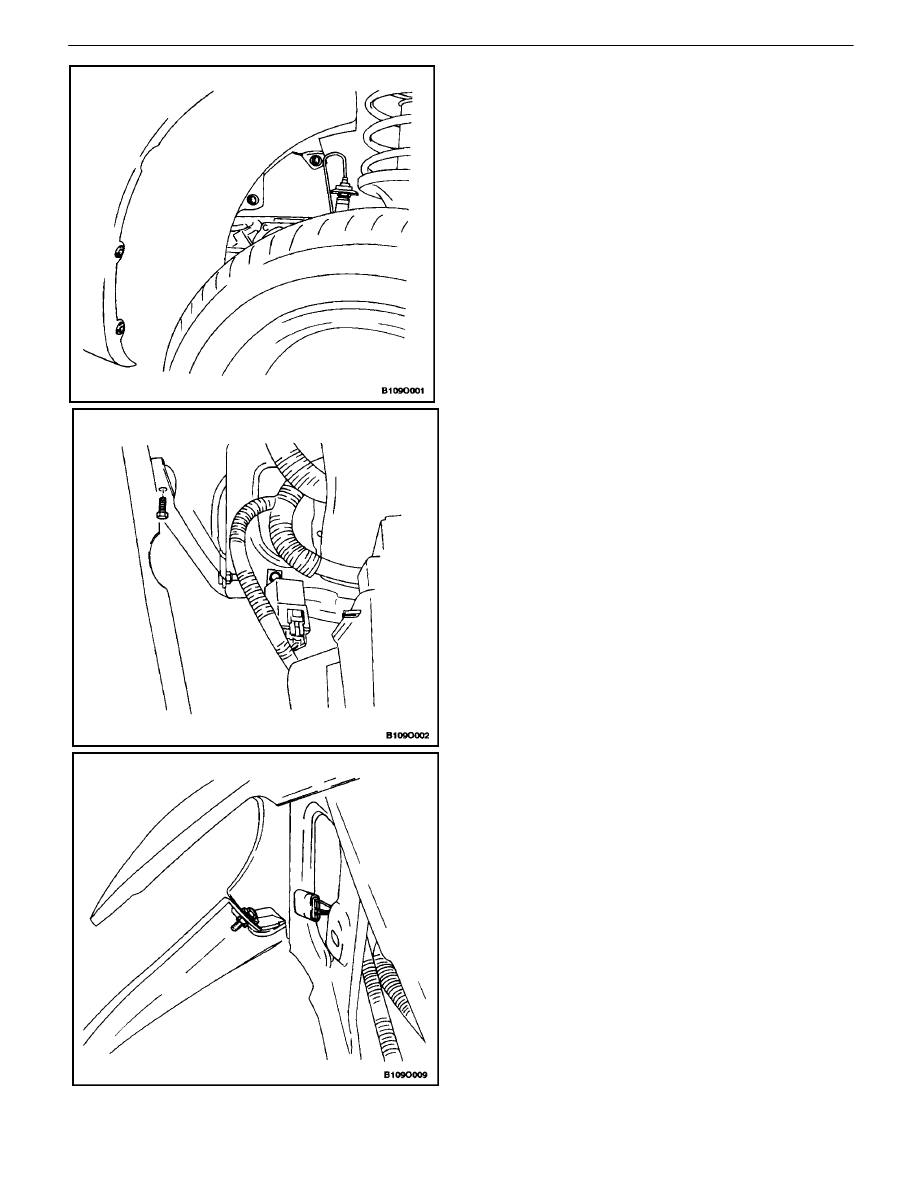

3.  Remove the bolts and the screws and reposition

the front portion of the splash shields.

4.  Remove the fog lamps (if equipped). Refer to Sec-

tion 9B, Lighting Systems.

5.  Remove the headlamps. Refer to Section 9B, Light-

ing Systems.

6.  Remove the front wheel well fascia bolts.

7.  Remove the fender–to–fascia bolts.n.

BUMPERS AND FASCIAS  9O – 3

DAEWOO V–121 BL4

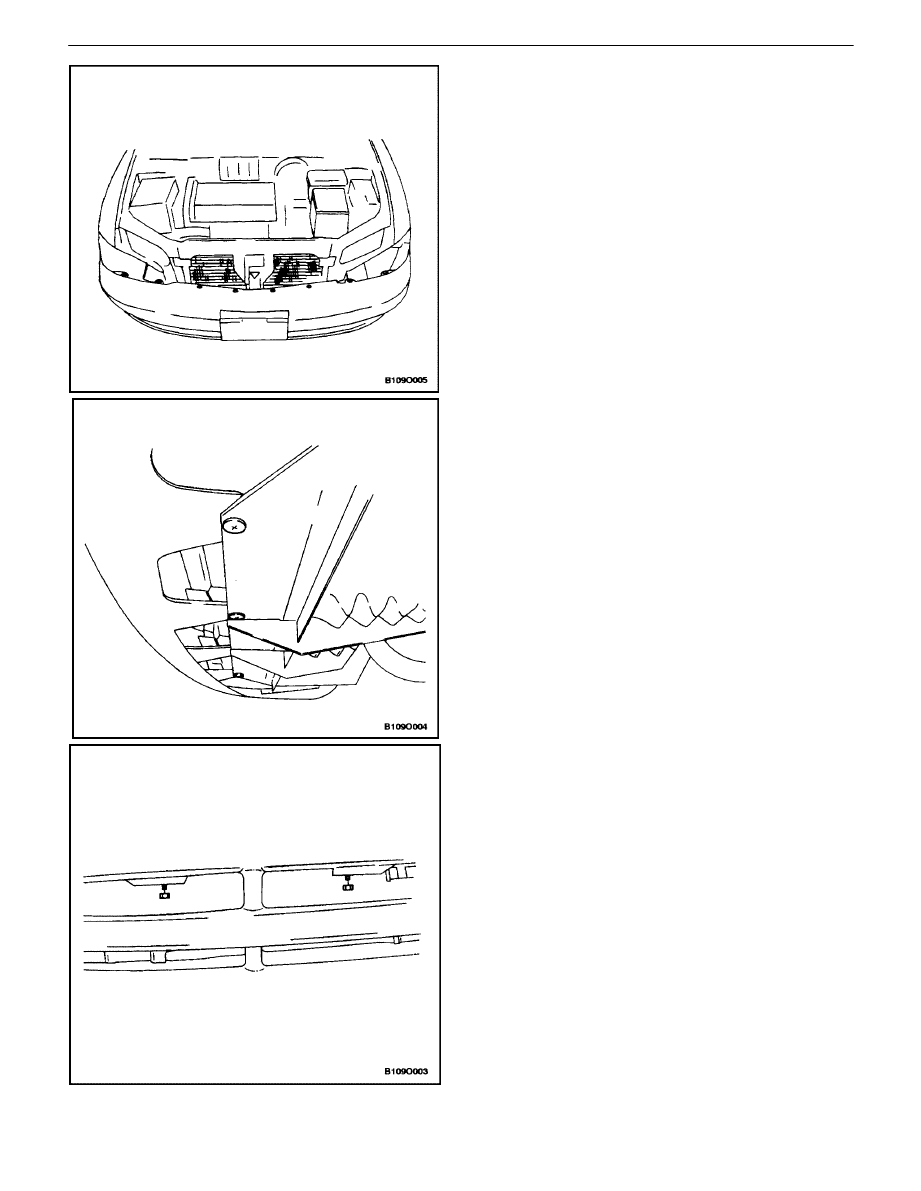

8.  Remove the front fascia screws behind the fascia.

9.  Remove lower fascia screws.

10.  Remove the upper fascia screws.
11.  Remove the front bumper fascia.

9O – 4

I

BUMPERS AND FASCIAS

DAEWOO V–121 BL4

Installation Procedure

1.  Install the front bumper fascia.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

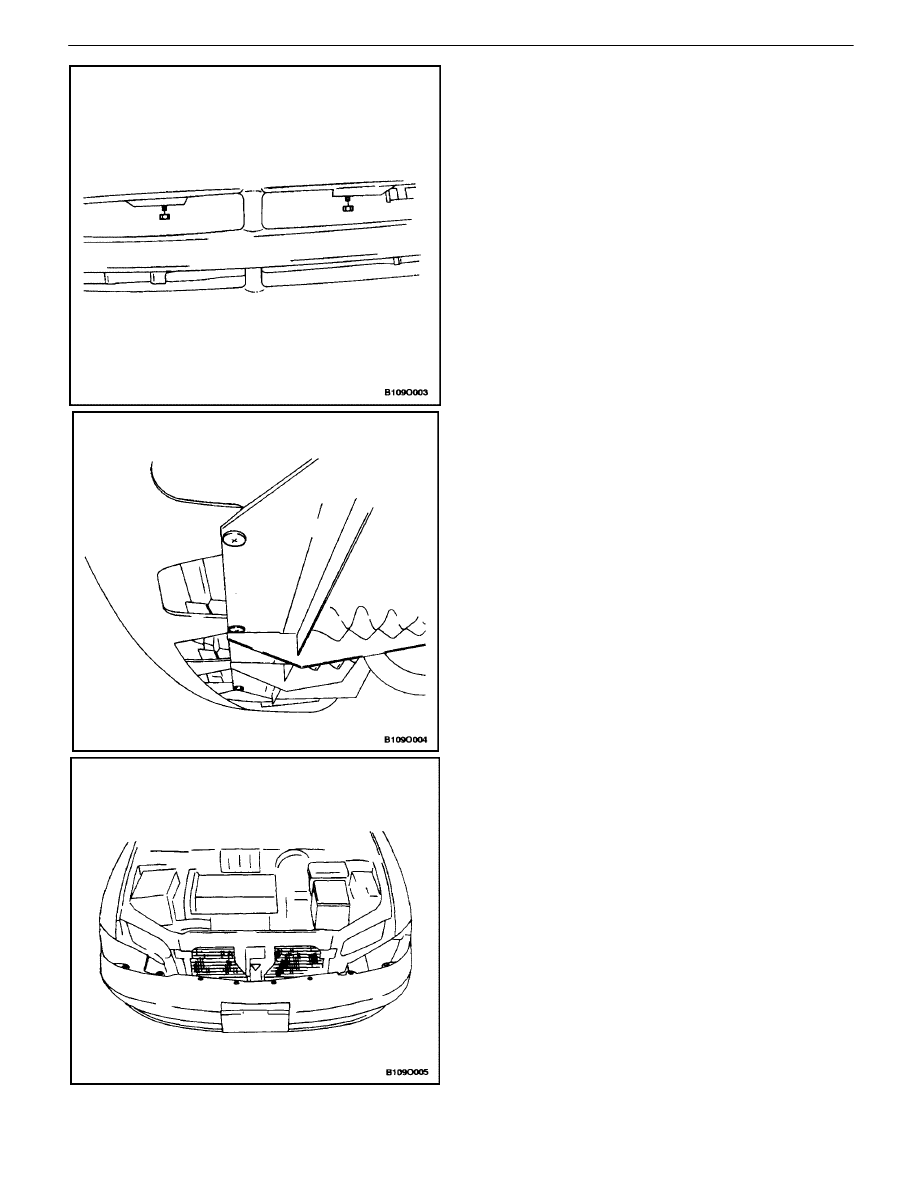

2.  Install the upper fascia screws.

3.  Install the lower fascia screws.

4.  Install the front fascia nuts.

BUMPERS AND FASCIAS  9O – 5

DAEWOO V–121 BL4

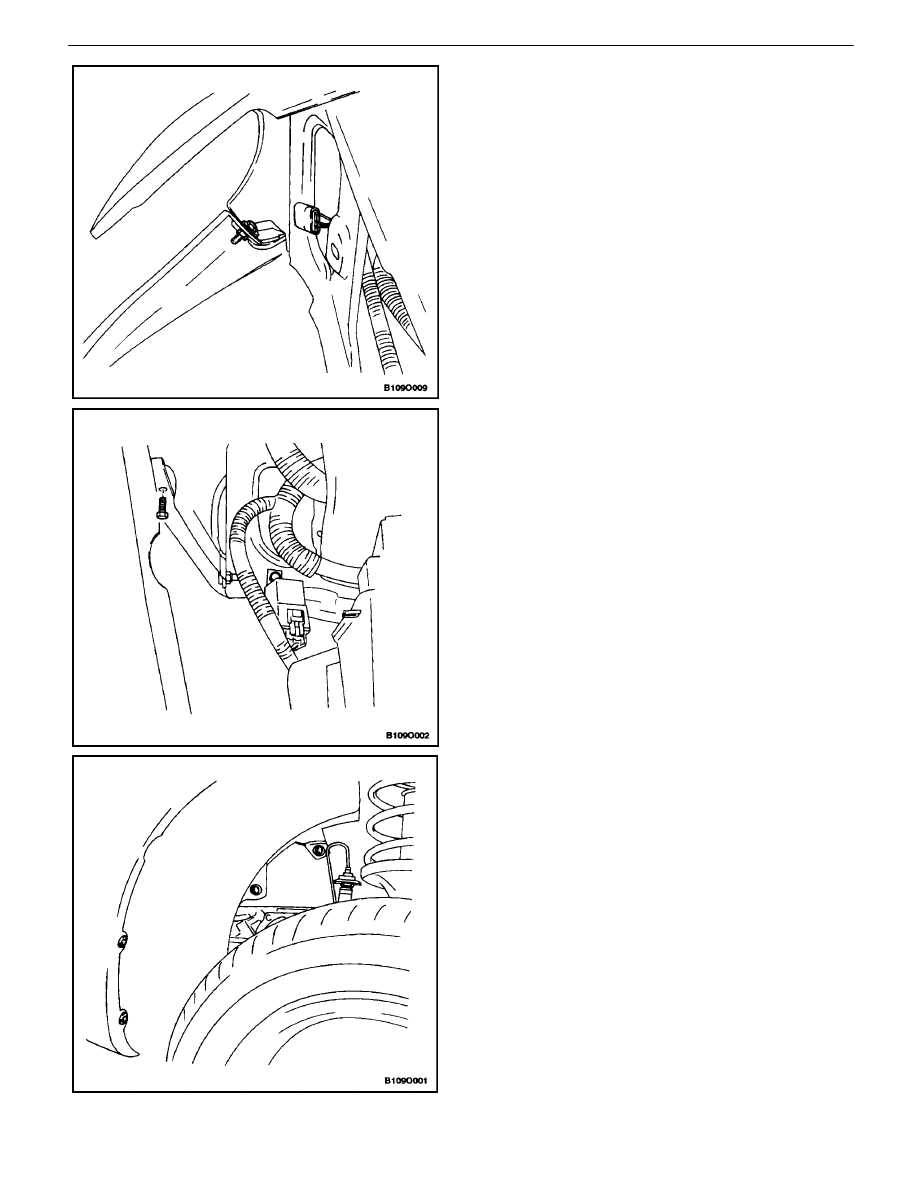

5.  Install the fender–to–fascia bolts.

Tighten

Tighten the fender–to–fascia bolts to 1.5 N

S

m (13

lbin).

6.  Install the front wheel well fascia bolts.

Tighten

Tighten the front wheel well fascia bolts to 1.5 N

S

m (13

lb–in).

7.  Install the headlamps. Refer to Section 9B, Lighting

Systems.

8.  Remove the fog lamps (if equipped). Refer to Sec-

tion 9B, Lighting Systems.

9.  Reposition the front portion of the splash shields

and install the bolts and the screws.

Tighten

Tighten the front wheel well splash shield bolts to 1.5
N

S

m (13 lb–in).

10.  Connect the negative battery cable.
