9S – 14

I

BODY REAR END

DAEWOO V–121 BL4

2.  Install the gas support assembly onto the body with

the bolts.

Tighten

Tighten the gas support assembly bolts to 8 N

S

m (71

lb–in).

3.  Close the tailgate.

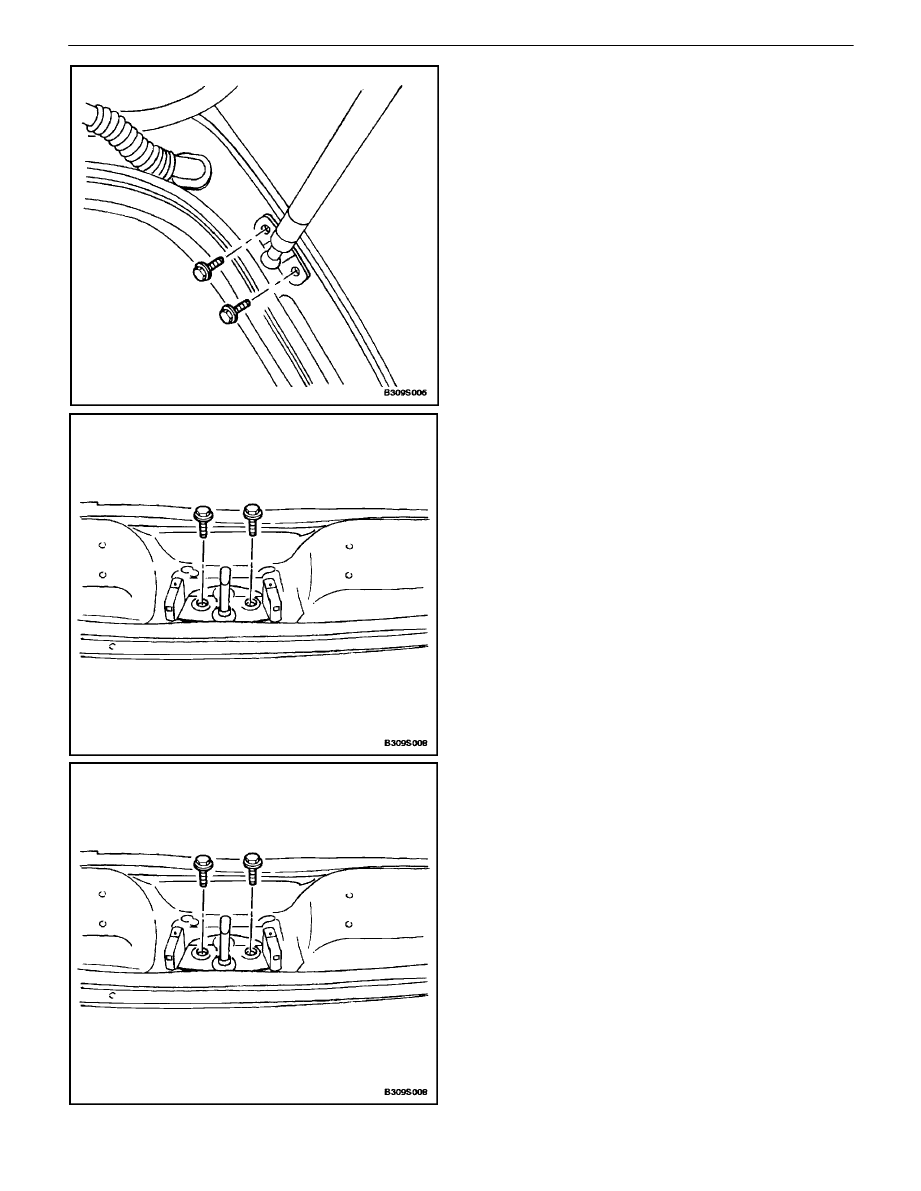

LUGGAGE COMPARTMENT LOCK
STRIKER (WAGON)

Removal Procedure

1.  Open the tailgate.
2.  Remove the luggage compartment rear trim panel.

Refer to Section 9G, Interior Trim.

3.  Remove the bolts that secure the lock striker.

Installation Procedure

1.  Install the lock striker with the screws.

Tighten

Tighten the tailgate lock striker bolts to 10 N

S

m (89

lbin).

2.  Install the luggage compartment rear trim panel.

Refer to Section 9G, Interior Trim.

3.  Close the tailgate.

BODY REAR END  9S – 15

DAEWOO V–121 BL4

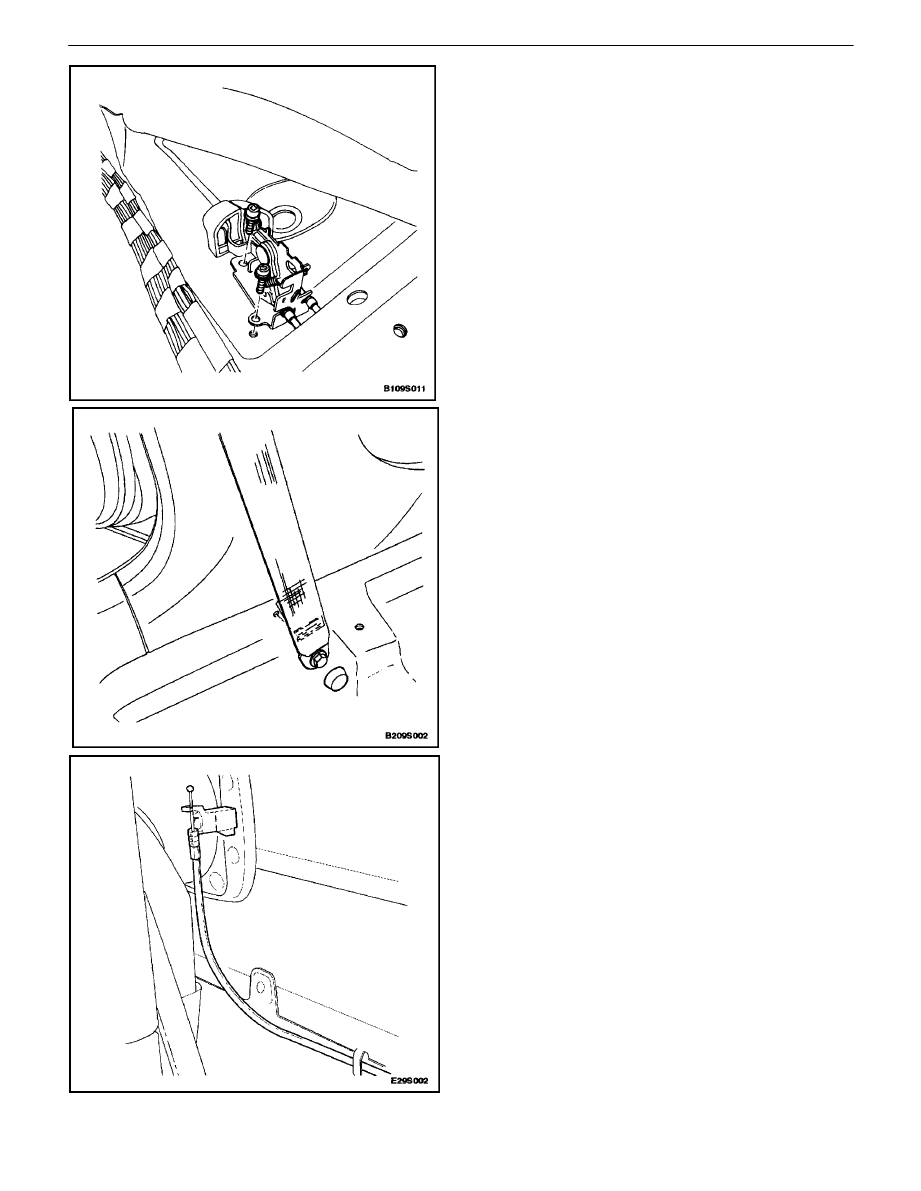

REAR DECK LID/HATCHBACK DOOR
REMOTE CABLE AND HANDLE
(NOTCHBACK)

(Notchback Shown, Hatchback
Similar)

(Left–Hand Drive Shown, Right–Hand Drive Similar)

Removal Procedure

1.  Open the luggage compartment.
2.  Remove the luggage compartment left side wheel-

house trim panel. Refer to Section 9G, Interior
Trim.

3.  Remove the lock striker. Refer to ”Luggage

Compartment Lock Striker (Notchback)” or”Lug-
gage Compartment Lock Striker (Hatchback)” in
this section.

4.  Remove the driver’s seat and the rear seat. Refer

to Section 9H, Seats.

5.  Remove the lower B–pillar seat belt bolt and the

anchor.

6.  Remove the rear deck lid remote handle cover.
7.  Reposition the floor carpet on the left side of the

vehicle.

8.  Remove the screws and the rear deck lid remote

handle.

9.  Disconnect the cable from the handle.
10.  Remove the cable.

9S – 16

I

BODY REAR END

DAEWOO V–121 BL4

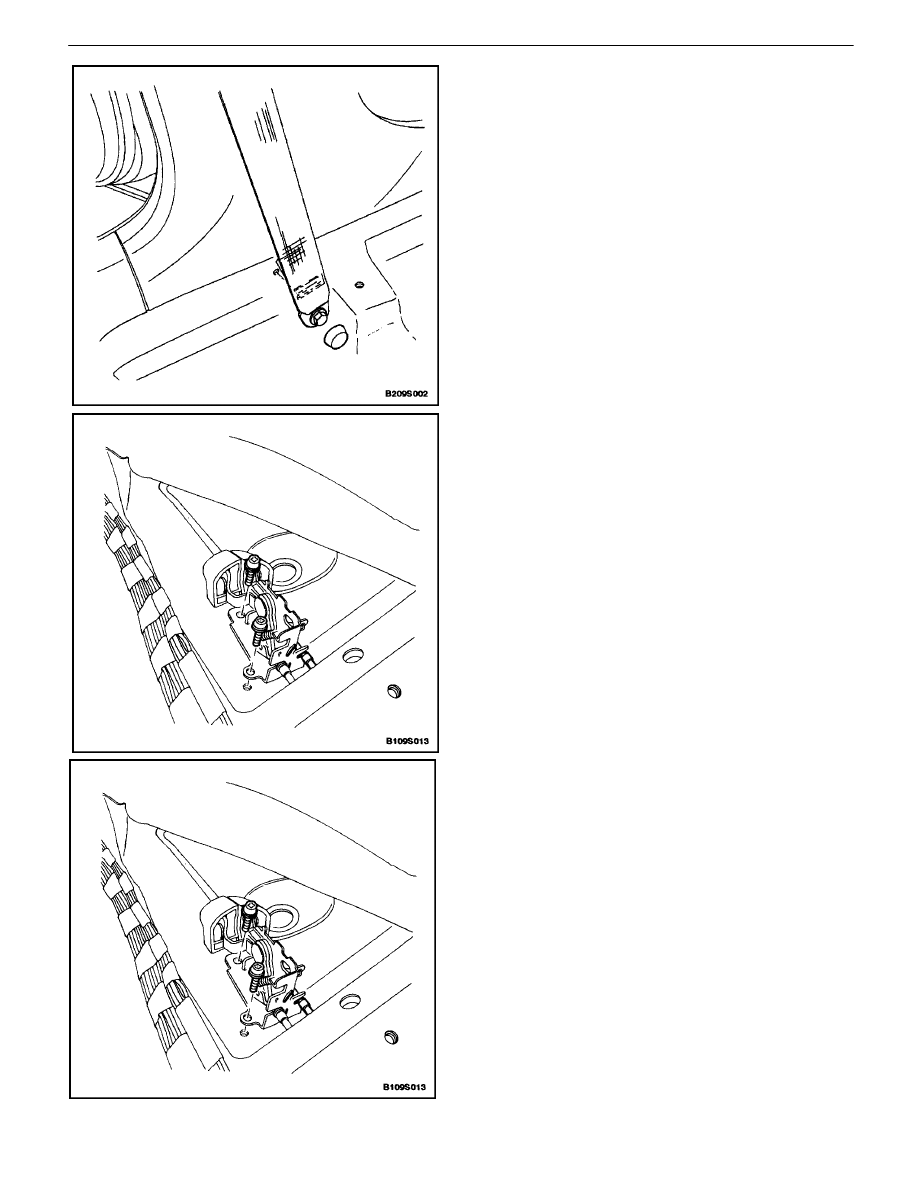

Installation Procedure

1.  Feed the cable from the luggage compartment to

the passenger compartment.

2.  Connect the cable to the handle.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

3.  Install the handle with the screws.

Tighten

Tighten the rear deck lid remote cable handle screws
to 8 N

S

m (71 lb–in).

4.  Install the rear deck lid remote handle cover.

5.  Install the floor carpet to its original position.
6.  Install the lower B–pillar seat belt anchor with the

bolt.

Tighten

Tighten the lower B–pillar seat belt bolt to 35 N

S

m (26

lb–ft).

7.  Install the driver’s seat and the rear seat. Refer to

Section 9H, Seats.

8.  Install the lock striker. Refer to ”Luggage Compart-

ment Lock Striker (Notchback)” or”Luggage
Compartment Lock Striker (Hatchback)” in this sec-
tion.

9.  Install the luggage compartment left side wheel-

house trim panel. Refer to Section 9G, Interior
Trim.

FUEL FILLER DOOR REMOTE CABLE
AND HANDLE

(Notchback Shown, Hatchback and
Wagon Similar)

(Left–Hand Drive Shown, Right–Hand Drive Similar)

Removal Procedure

1.  Open the luggage compartment.
2.  Remove the luggage compartment wheelhouse trim

panels. Refer to Section 9G, Interior Trim.

3.  Disconnect the cable from the fuel filler door.

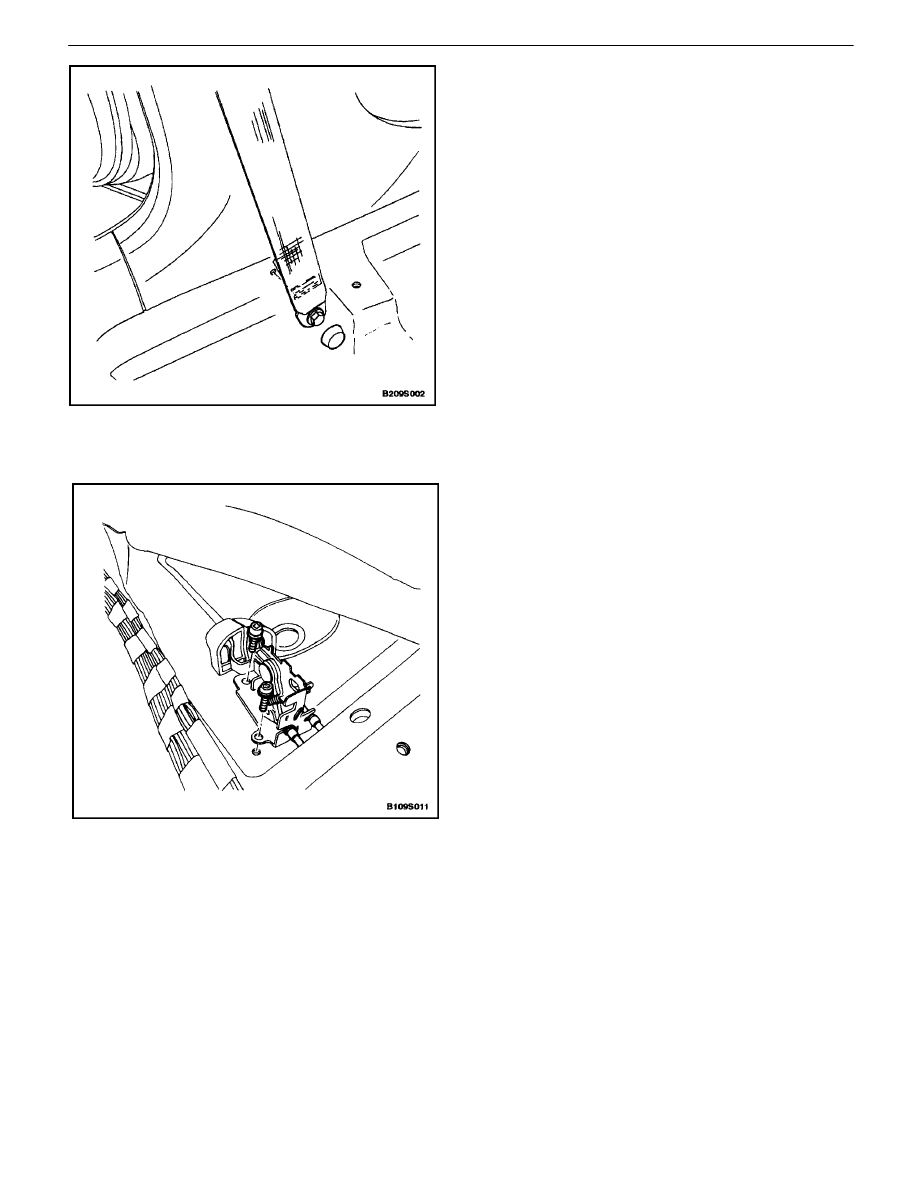

BODY REAR END  9S – 17

DAEWOO V–121 BL4

4.  Remove the front seat and the rear seats. Refer to

Section 9H, Seats.

5.  Remove the lower B–pillar seat belt bolt and the

anchor.

6.  Remove the rear deck lid remote handle cover.
7.  Reposition the floor carpet on the left side of the

vehicle.

8.  Remove the screws and the fuel filler door remote

handle.

9.  Disconnect the cable from the handle.
10.  Remove the cable.

Installation Procedure

1.  Feed the cable from the luggage compartment to

the passenger compartment.

2.  Connect the cable to the handle.
3.  Install the handle with the screws.

Tighten

Tighten the fuel filler door remote cable handle screws
to 8 N

S

m (71 lb–in).
