9S – 10

I

BODY REAR END

DAEWOO V–121 BL4

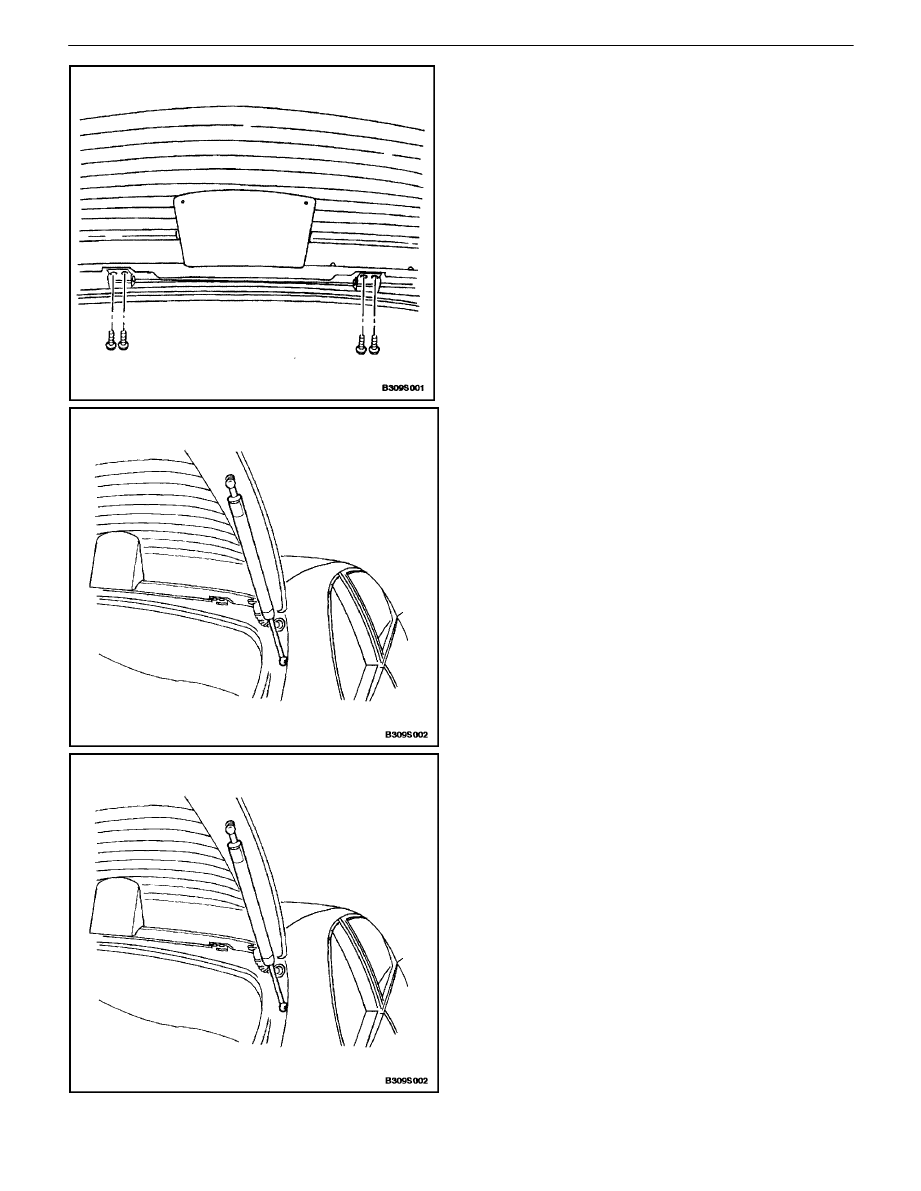

Installation Procedure

1.  With the aid of another technician, install the hatch-

back door to the hinges with the bolts.

Tighten

Tighten the hatchback hinge bolts to 20 N

S

m (15 lbft).

2.  Install the gas support assemblies to the hatchback

door. Refer to”Gas Support Assemblies (Hatch-
back)”  in this section.

3.  Connect the hatchback door electrical connectors,

washer hose, and grommets.

4.  Close the hatchback door.

GAS SUPPORT ASSEMBLIES
(HATCHBACK)

Removal Procedure

1.  Open and suitably support the hatchback door.
2.  Unscrew and remove the gas support assembly

from the hatchback door and the body.

Installation Procedure

1.  Install the gas support assembly onto the hatch-

back door and the body.

Tighten

Tighten the gas support assembly studs to 20 N

S

m

(15 lb–ft).

2.  Close the hatchback door.

BODY REAR END  9S – 11

DAEWOO V–121 BL4

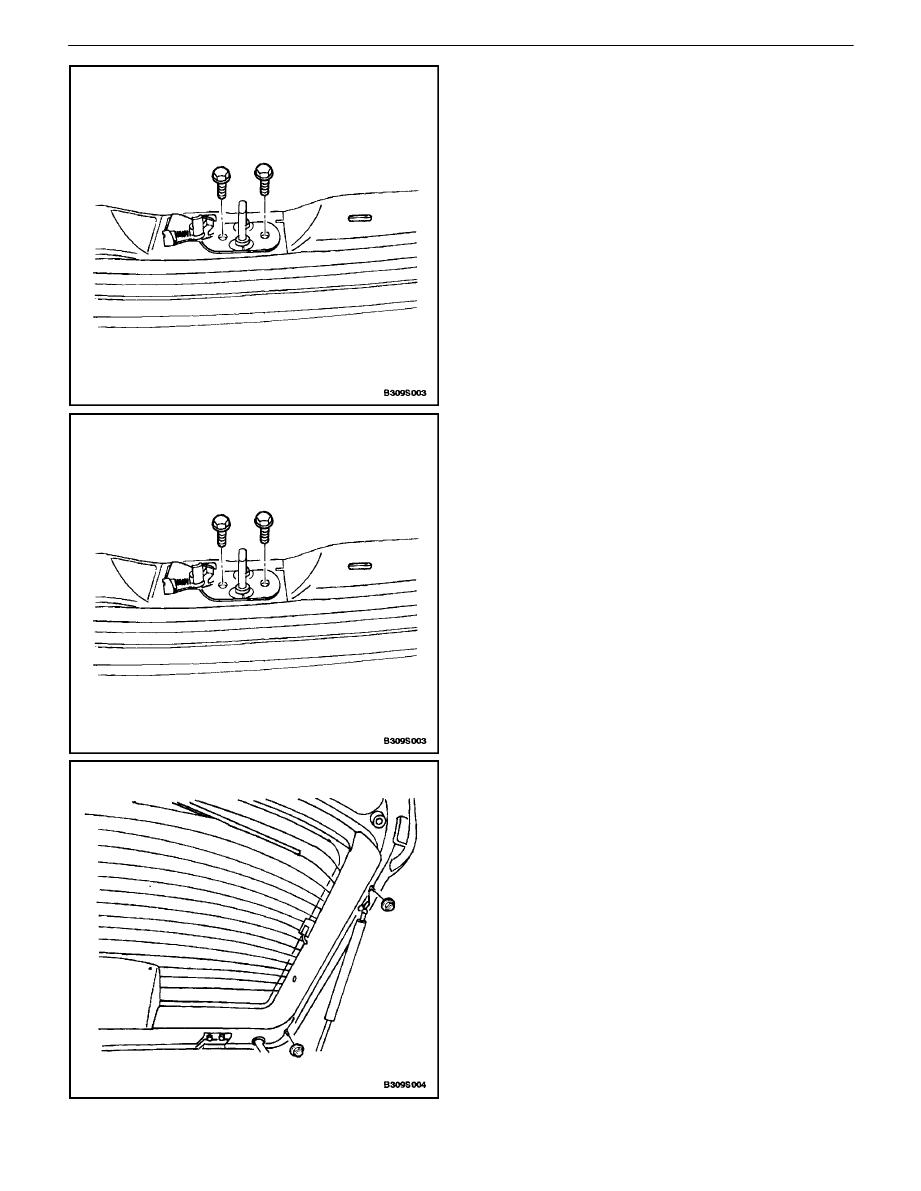

LUGGAGE COMPARTMENT LOCK
STRIKER (HATCHBACK)

Removal Procedure

1.  Open the hatchback door.
2.  Remove the luggage compartment rear trim panel.

Refer to Section 9G, Interior Trim.

3.  Remove the screws that secure the lock striker.

Installation Procedure

1.  Install the lock striker with the screws.

Tighten

Tighten the hatchback door lock striker screws to 8
N

S

m (71 lb–in).

2.  Install the luggage compartment rear trim panel.

Refer to Section 9G, Interior Trim.

3.  Close the hatchback door.

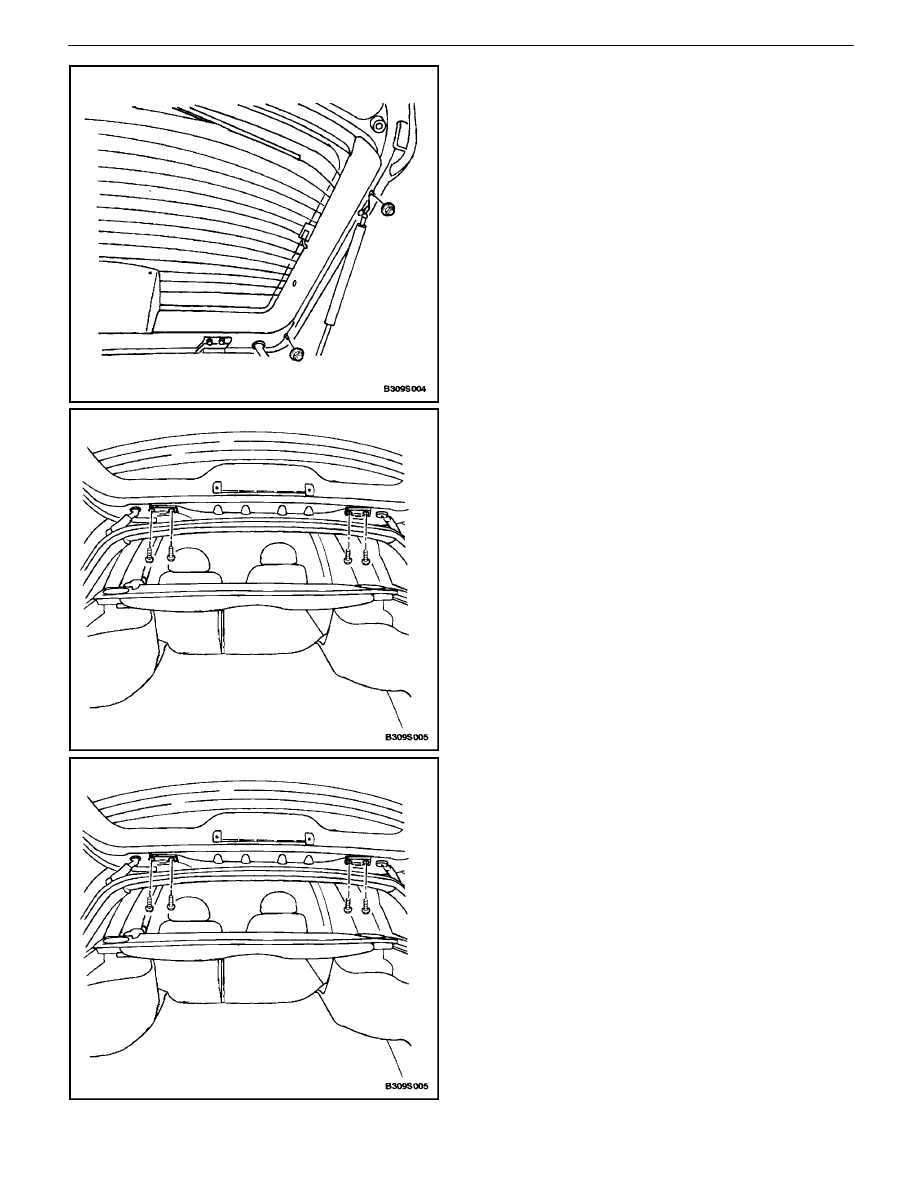

REAR SPOILER (HATCHBACK)

Removal Procedure

1.  Open the hatchback door.
2.  Remove the nuts and the rear spoiler.

9S – 12

I

BODY REAR END

DAEWOO V–121 BL4

Installation Procedure

1.  Install the rear spoiler with the nuts.

Tighten

Tighten the rear spoiler nuts to 4 N

S

m (35 lb–in).

2.  Close the hatchback door.

TAILGATE (WAGON)

Removal Procedure

1.  Open and suitably support the tailgate.
2.  Disconnect the tailgate grommets, electrical con-

nectors, and washer hose.

3.  Remove the gas support assemblies from the tail-

gate. Refer to”Gas Support Assemblies (Hatch-
back)” in this section

4.  With the aid of another technician, remove the bolts

and the tailgate from the hinges.

Installation Procedure

1.  With the aid of another technician, install the tail-

gate to the hinges with the bolts.

Tighten

Tighten the tailgate hinge bolts to 20 N

S

m (15 lb–ft).

2.  Install the gas support assemblies to the tailgate.

Refer to”Gas Support Assemblies (Hatchback)” in
this section.

3.  Connect the tailgate electrical connectors, washer

hose, and grommets..

4.  Close the tailgate.

BODY REAR END  9S – 13

DAEWOO V–121 BL4

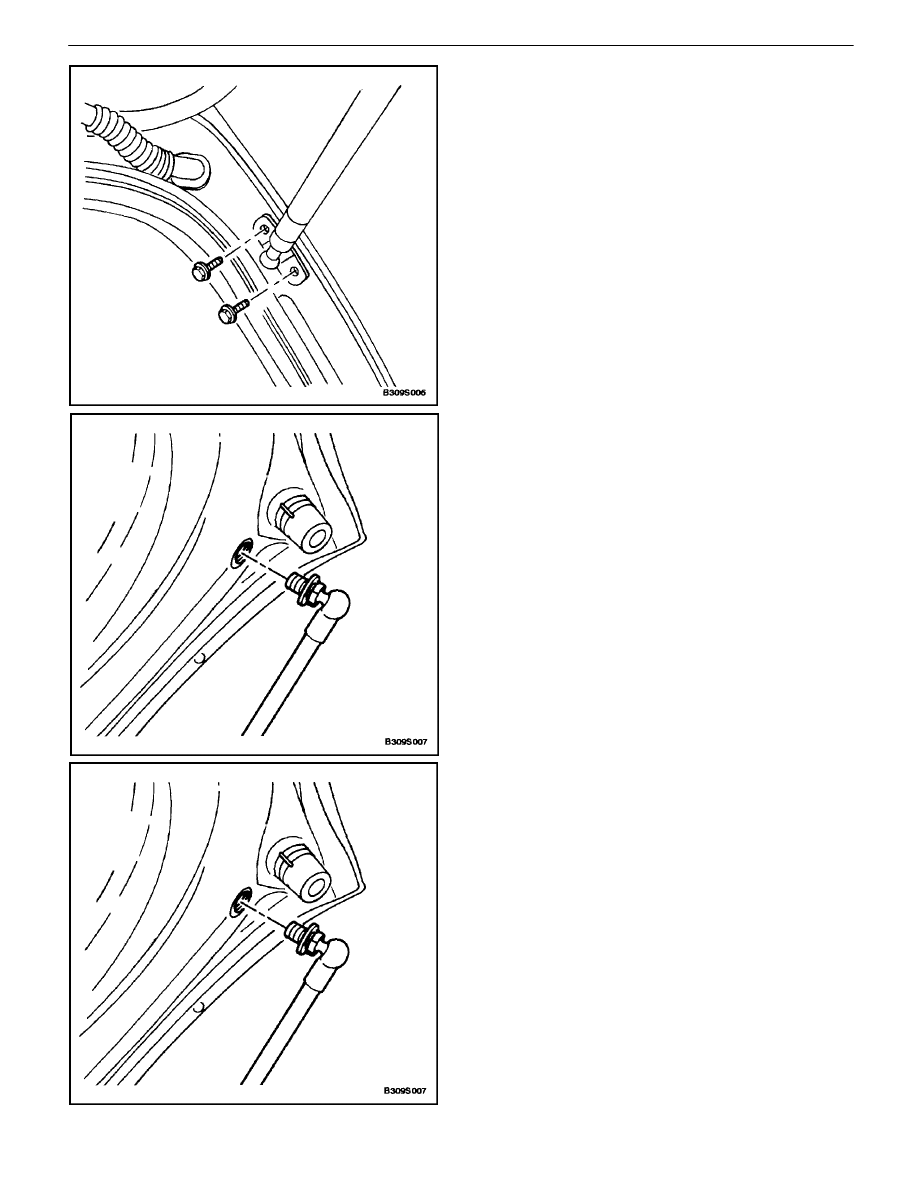

GAS SUPPORT ASSEMBLIES
(WAGON)

Removal Procedure

1.  Open and suitably support the tailgate.
2.  Remove the bolts and the gas support assembly

from the body.

3.  Unscrew and remove the gas support assembly

from the tailgate.

Installation Procedure

1.  Install the gas support assembly onto the tailgate.

Tighten

Tighten the gas support assembly studs to 20 N

S

m

(15 lb–ft).
