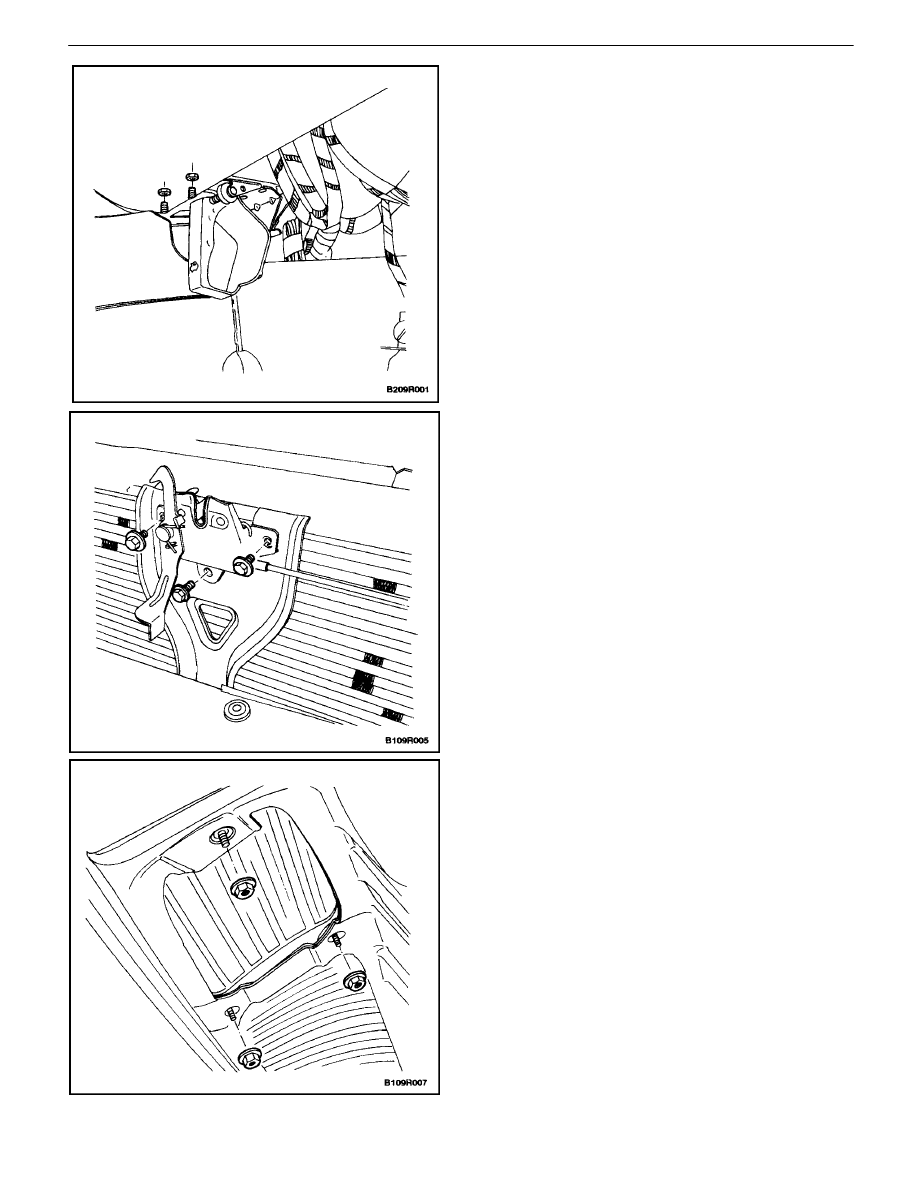

9R – 8

I

BODY FRONT END

DAEWOO V–121 BL4

4.  Install the hood release handle on the instrument

panel with the nuts.

Tighten

Tighten the hood latch bolts to 8 N

S

m (71 lb–in).

5.  Install the cable to the hood latch release assembly.
6.  Install the hood latch release assembly with the

bolts.

Tighten

Tighten the hood latch bolts to 8 N

S

m (71 lb–in).

RADIATOR GRILLE

Removal Procedure

1.  Open the hood.
2.  Remove the nuts and the radiator grille.

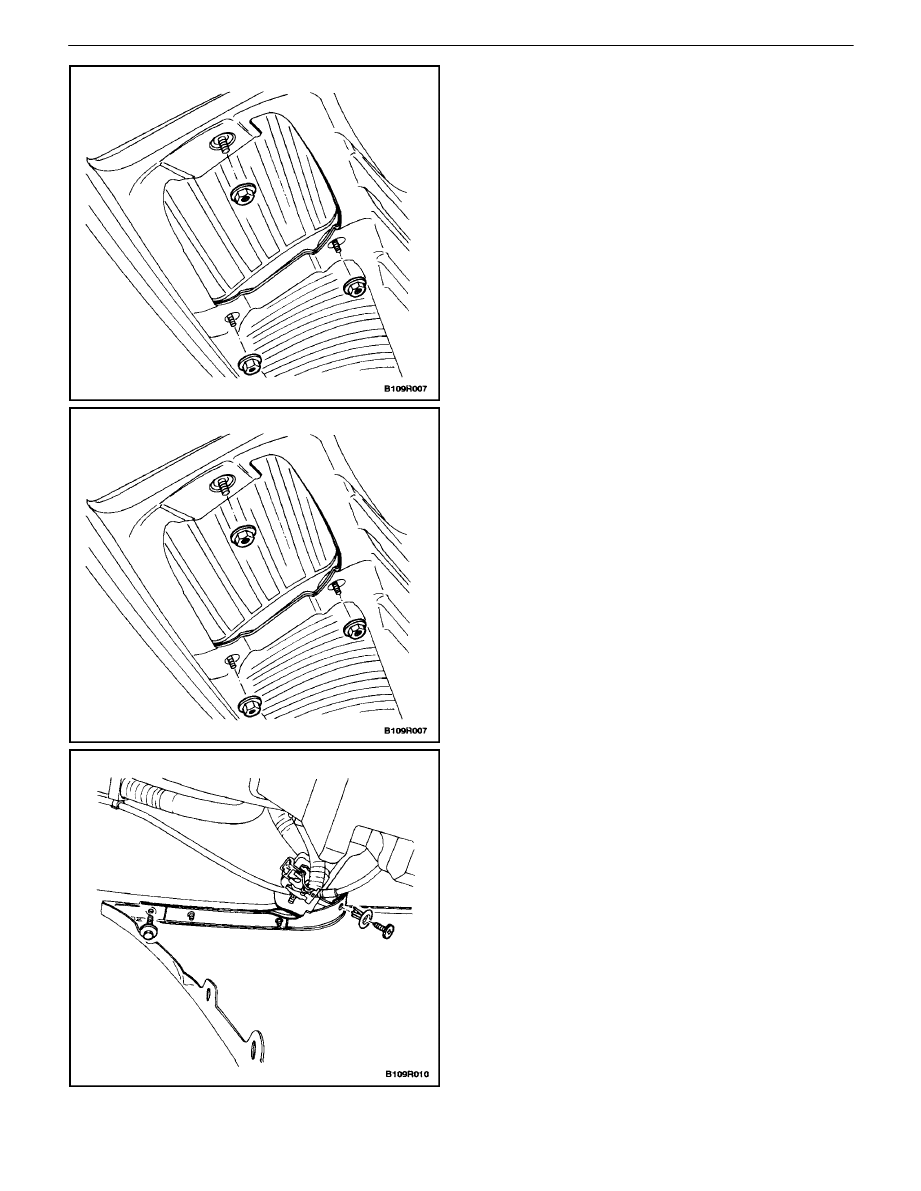

BODY FRONT END  9R – 9

DAEWOO V–121 BL4

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the radiator grille with the nuts.

Tighten

Tighten the radiator grille nuts to 4 N

S

m (35 lb–in).

FENDER

Removal Procedure

1.  Raise and suitably support the vehicle.
2.  Remove the front wheel. Refer toSection 2E, Tires

and Wheels.

3.  Remove the screws, the bolts, and the front wheel

well splash shield.

4.  Remove the side turn signal lamp. Refer to Section

9B, Lighting Systems.

5.  Remove the screw and the bolt that secure the

front bumper fascia to the fender.

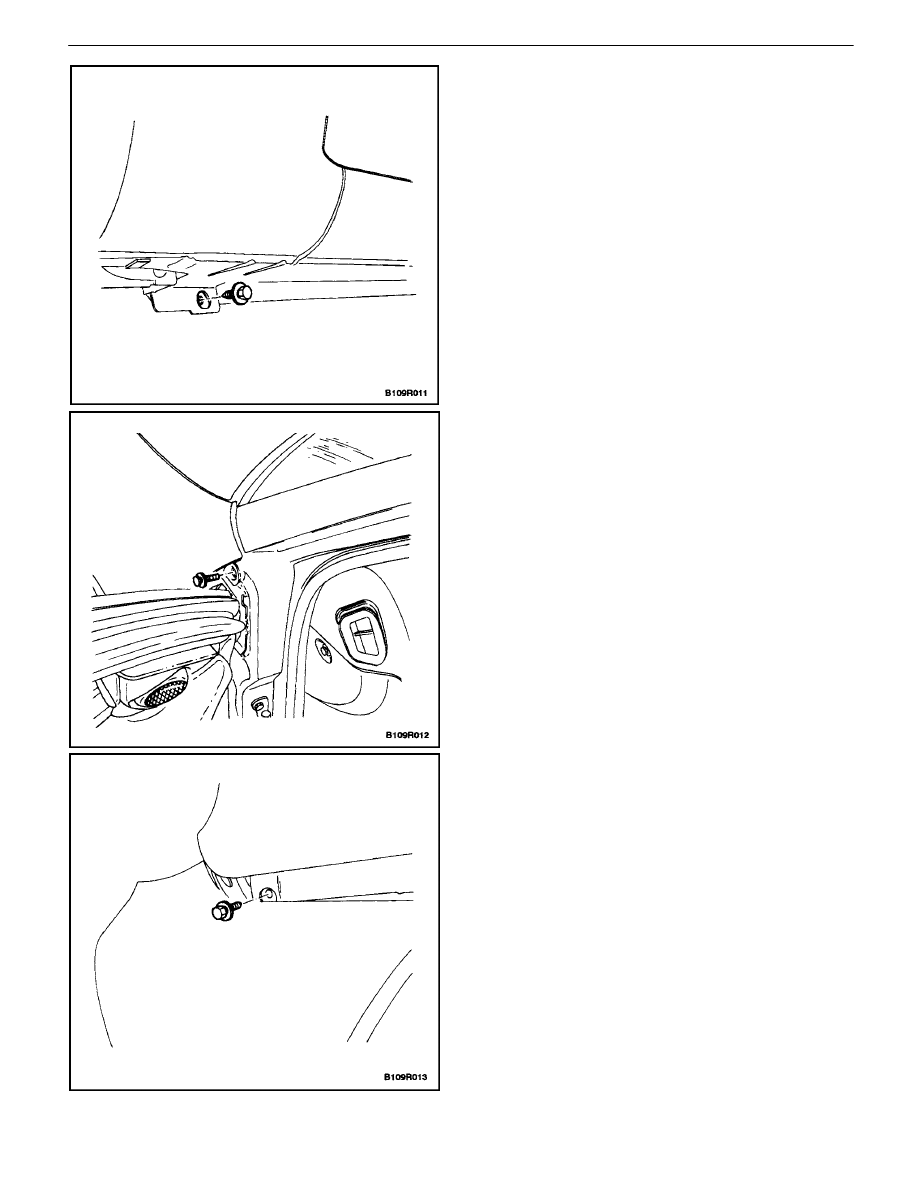

9R – 10

I

BODY FRONT END

DAEWOO V–121 BL4

6.  Remove the bolt at the base of the fender.

7.  Open the front door.
8.  Remove the bolt at the base of the A–pillar.

9.  Open the hood.
10.  Remove the headlamp. Refer to Section 9B, Light-

ing Systems.

11.  Remove the bolt between the bumper fascia and

the fender.

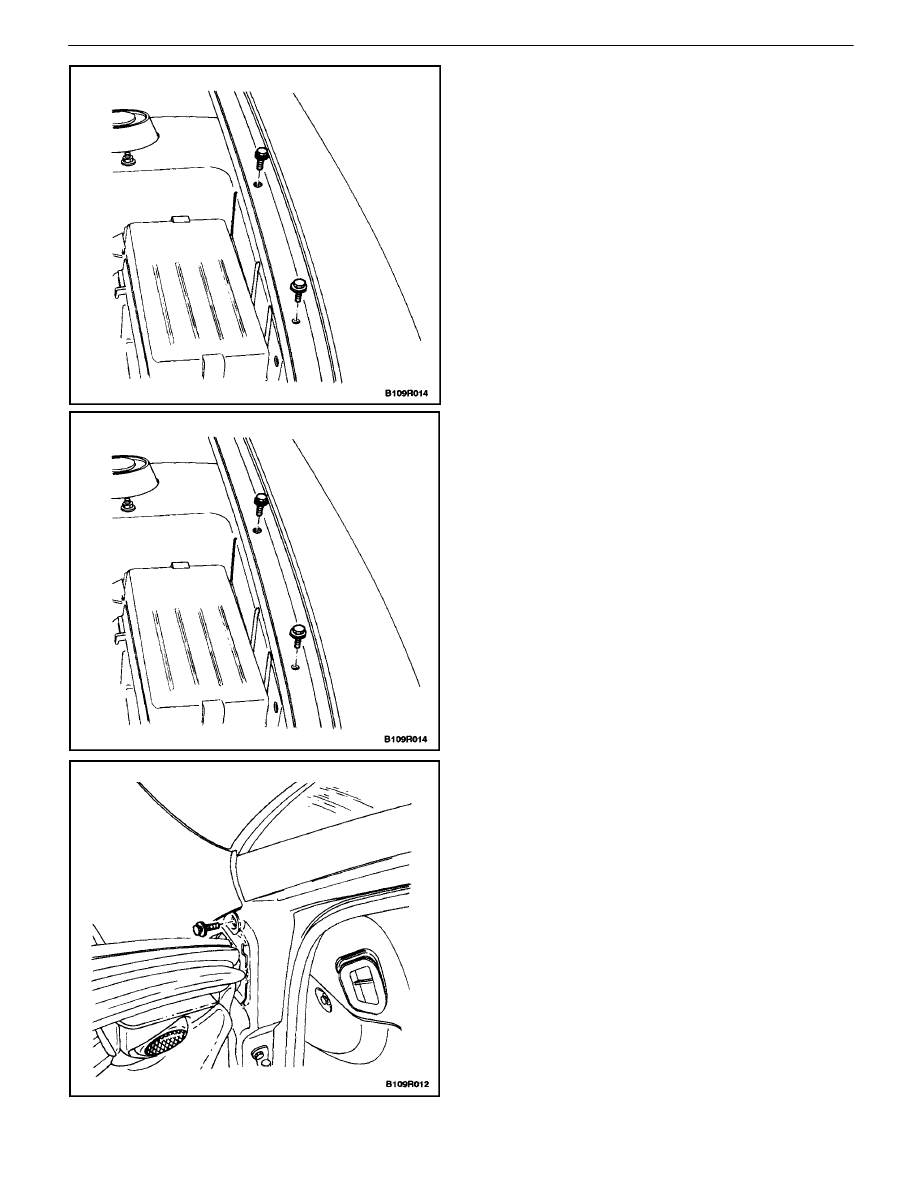

BODY FRONT END  9R – 11

DAEWOO V–121 BL4

12.  Remove the bolts along the top of the fender.
13.  Remove the fender.

Installation Procedure

1.  Install the headlamp. Refer to Section 9B, Lighting

Systems.

2.  Install the fender.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

3.   Install the bolts along the top of the fender.

Tighten

Tighten the upper fender bolts to 8 N

S

m (71 lb–in).

4.  Install the bolt at the base of the A–pillar.

Tighten

Tighten the A–pillar fender bolt to 8 N

S

m (71 lb–in).
