9R – 4

I

BODY FRONT END

DAEWOO V–121 BL4

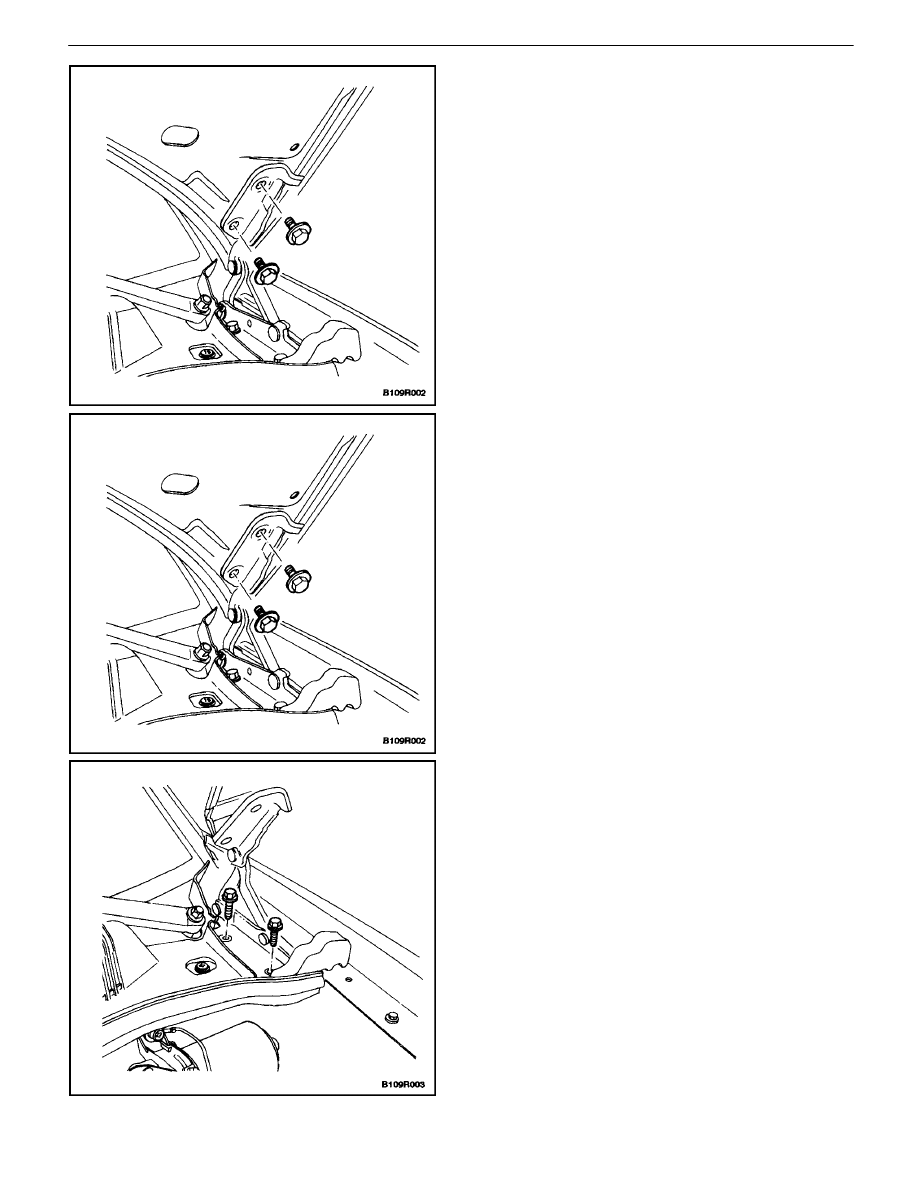

HOOD

Removal Procedure

Notice :  Install protective coverings over the fenders and
the windshield in order to prevent damage to the paint, the
glass and the moldings when you are removing and instal-
ling the hood.

1.  Raise and support the hood.
2.  Mark the position of the hinge to the hood to facili-

tate alignment during installation.

3.  Remove the bolts that retain the hood to both

hinges.

4.  With the aid of another technician, remove the hood

from the hinges.

Installation Procedure

1.  With the aid of another technician, position the

hood in the location marked during removal.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the two bolts securing the hood to each

hinge.

Tighten

Tighten the hood–to–hinge bolts to 27 N

S

m (20 lb–ft).

3.  Inspect the hood for proper alignment.

HOOD HINGES

Removal Procedure

1.  Remove the hood. Refer to”Hood”  in this section.
2.  Remove the bolts and the hinge.

BODY FRONT END  9R – 5

DAEWOO V–121 BL4

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the hinge with the bolts.

Tighten

Tighten the hinge bolts to 27 N

S

m (20 lb–ft).

2.  Install the hood. Refer to”Hood” in this section.

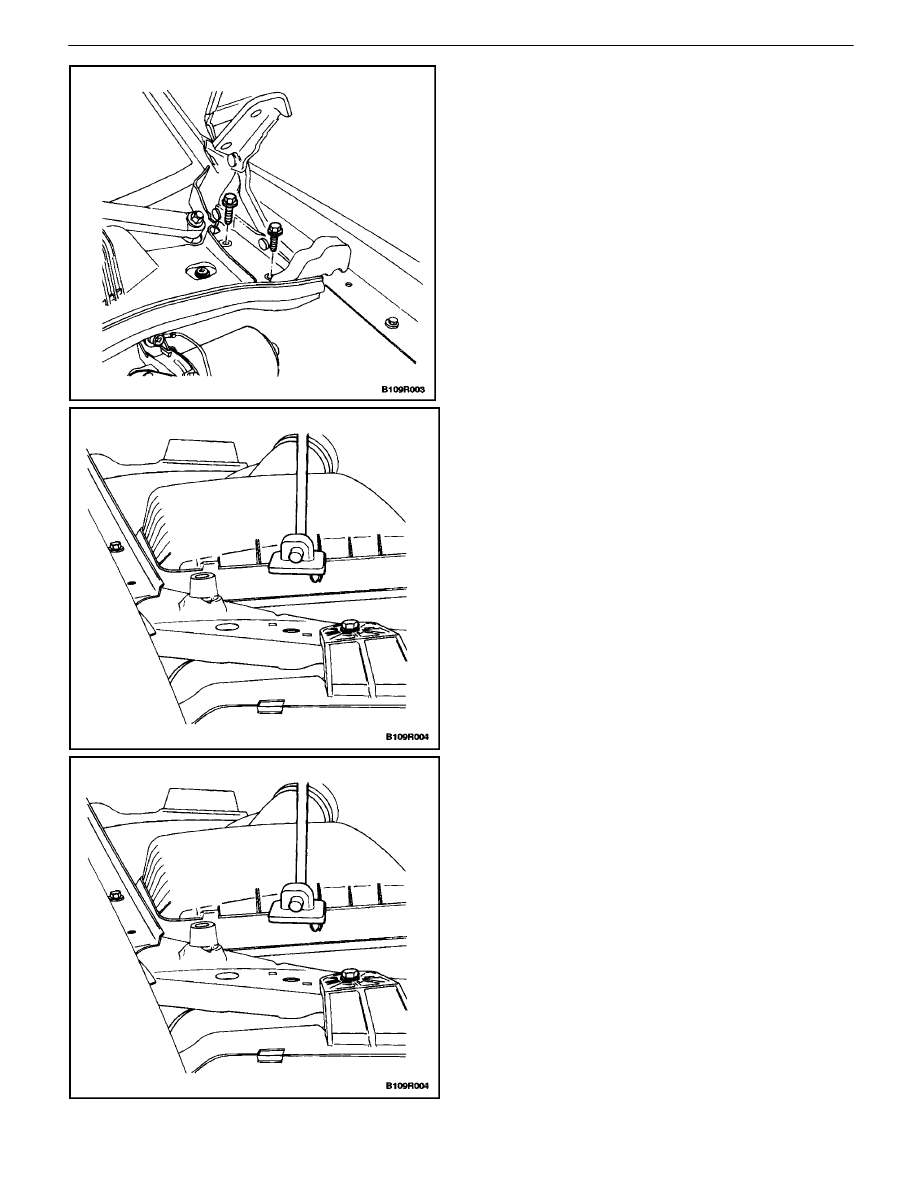

HOOD PROP ROD

Removal Procedure

1.  Support the hood in the open position.
2.  Remove the hood prop rod by gently prying the

base from the radiator support.

Installation Procedure

1.  Install the hood prop rod by snapping the base back

into the radiator support.

9R – 6

I

BODY FRONT END

DAEWOO V–121 BL4

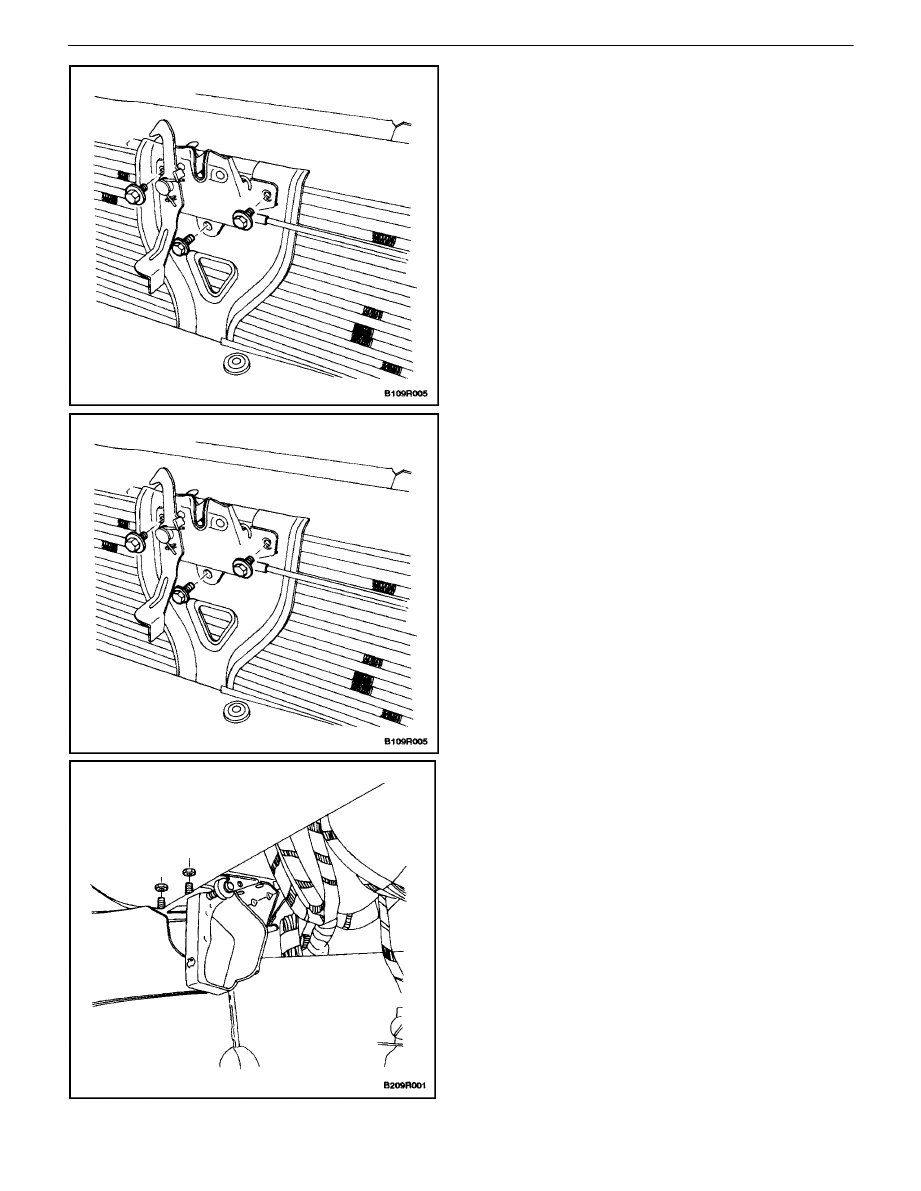

HOOD SECONDARY LATCH

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1.  Open the hood.
2.  Mark the position of the hood latch on the radiator

support to facilitate alignment during installation.

3.  Remove the bolts and the hood latch.
4.  Disconnect the hood release cable.

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Connect the hood release cable to the latch.
2.  Position the hood latch in the location marked dur-

ing removal.

3.  Install the hood latch with the bolts.

Tighten

Tighten the hood latch bolts to 8 N

S

m (71 lb–in).

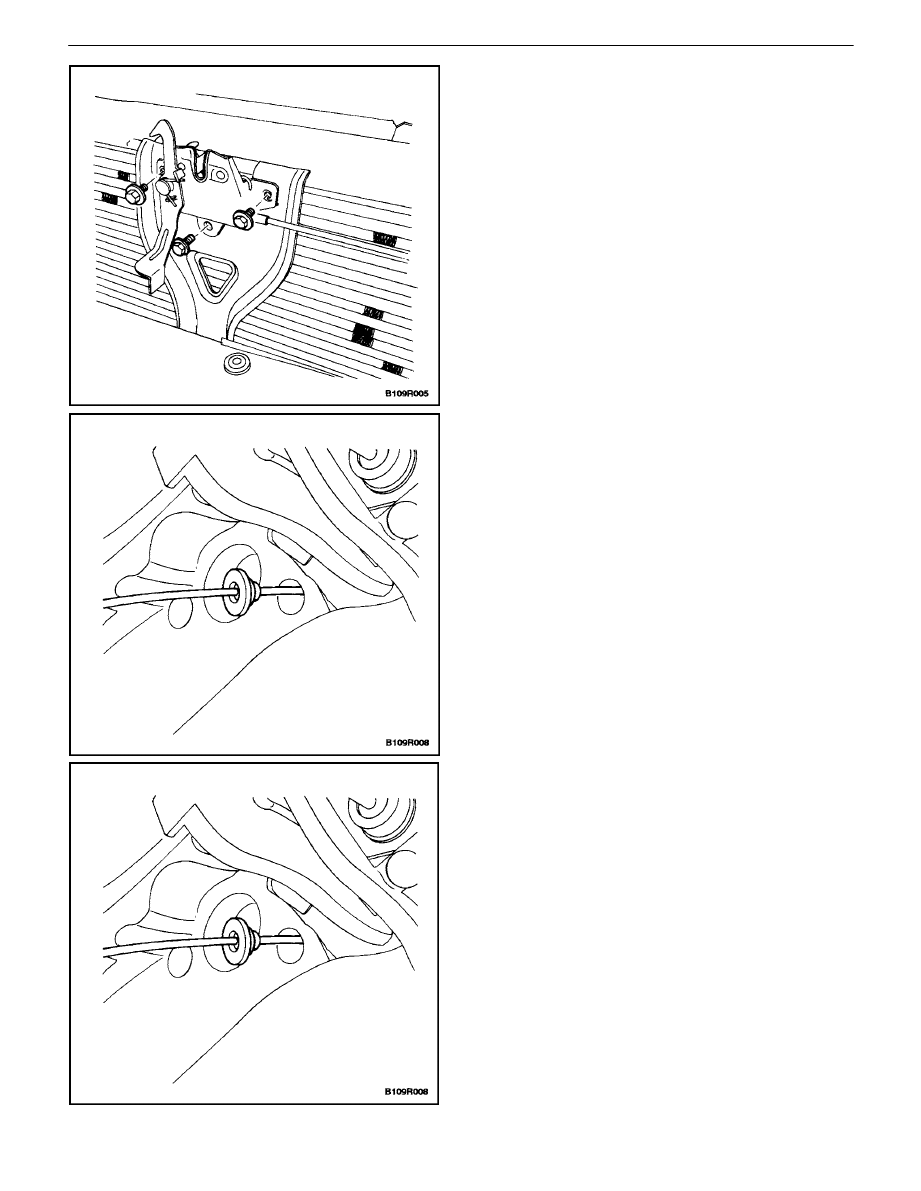

HOOD LATCH RELEASE CABLE

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1.  Remove the nuts and the hood release handle from

the instrument panel.

BODY FRONT END  9R – 7

DAEWOO V–121 BL4

2.  Open the hood.
3.  Remove the bolts and the hood latch release.
4.  Remove the cable from the hood latch release as-

sembly.

5.  Remove the cable and the grommet from inside the

vehicle.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the cable through the engine compartment.
2.  Install the cable into the hood latch release handle.
3.  Install the grommet in the fire wall.
