DAF CF65, CF75, CF85 Series . Manual - part 145

©

 200346

4-1

Removal and installation

CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

4. REMOVAL AND INSTALLATION

4.1 REMOVAL AND INSTALLATION, CAB TILTING PUMP

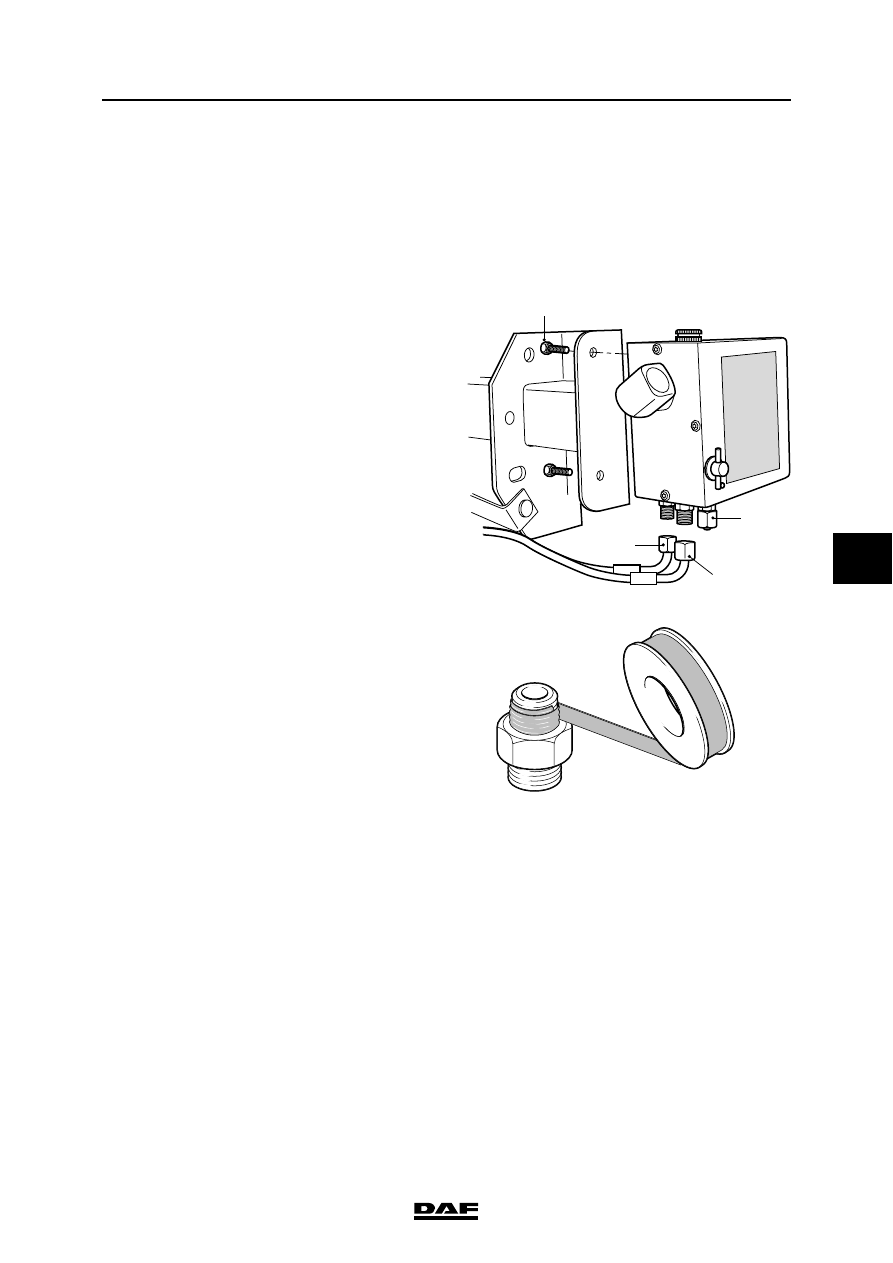

Removing cab tilting pump
1.

Disconnect the pipes and collect the oil in a
container.

2.

Remove the attachment bolts (1) and
remove the pump. Collect any remaining oil
from the pump in a container.

3.

Thoroughly clean the threaded holes if the
nipples have been or will be removed from
the pump housing, and make sure that any
Teflon tape is removed.

Installing cab tilting pump

1.

Install the pump with the attachment
bolts (1).

2.

Connect the pipes.
A = pressure pipe (thick pipe, M14)
B = return pipe (thin pipe, M12)
C = not used

Note:
Use Teflon tape to install the nipples in the pump
housing. Note: Do not apply Teflon tape to the
first turn of the nipples. This will prevent the
system from being soiled with Teflon tape.

3.

For filling and bleeding the system, see
chapter "Draining and filling".

1

C

B

A

K1 01 641

K1 01 502

CAB TILTING MECHANISM

4-2

©

 200346

Removal and installation

6

ΧΦ65/75/85 series

1

4.2 REMOVAL AND INSTALLATION, LIFTING CYLINDER

}

Do not remove the lifting cylinder
while the cab is in the tilted position.

Note:
Mark the piping before removing it.

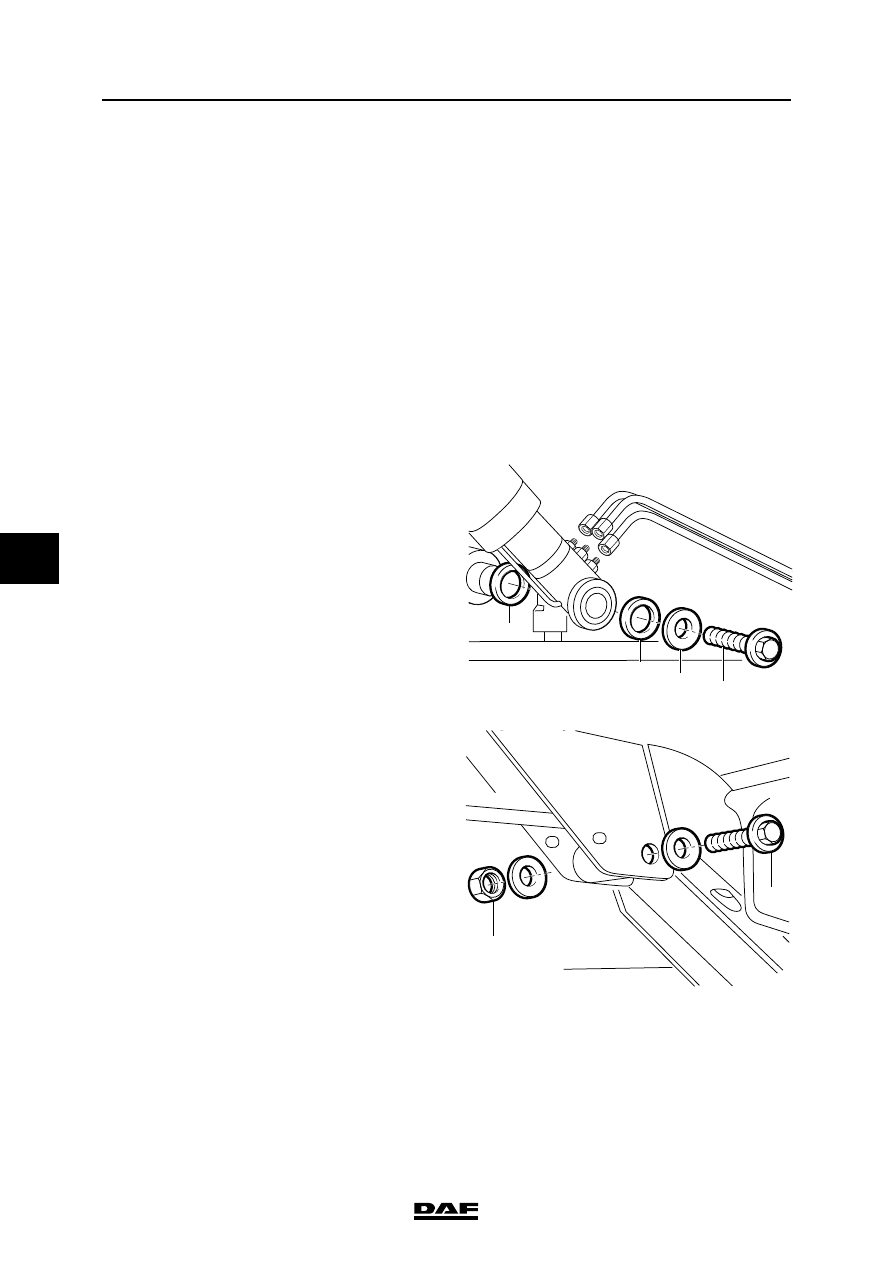

Removing lifting cylinder
1.

If necessary, remove the cable gutter.

2.

Disconnect the pipes from the lifting cylinder
and collect the oil in a container. Plug off the
pipes and connections.

3.

Remove the compressor pipe.

4.

Remove the attachment bolt (1) and
washer (2) and take the lifting cylinder from
the axle journal.

5.

Remove the attachment nut (3) and
attachment bolt (4), which attach the lifting
cylinder to the cab.

6.

Remove the lifting cylinder and remove the
plastic rings (5).

5

5

2

1

K1 00 710

4

K1 00 711

3

©

 200346

4-3

Removal and installation

CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

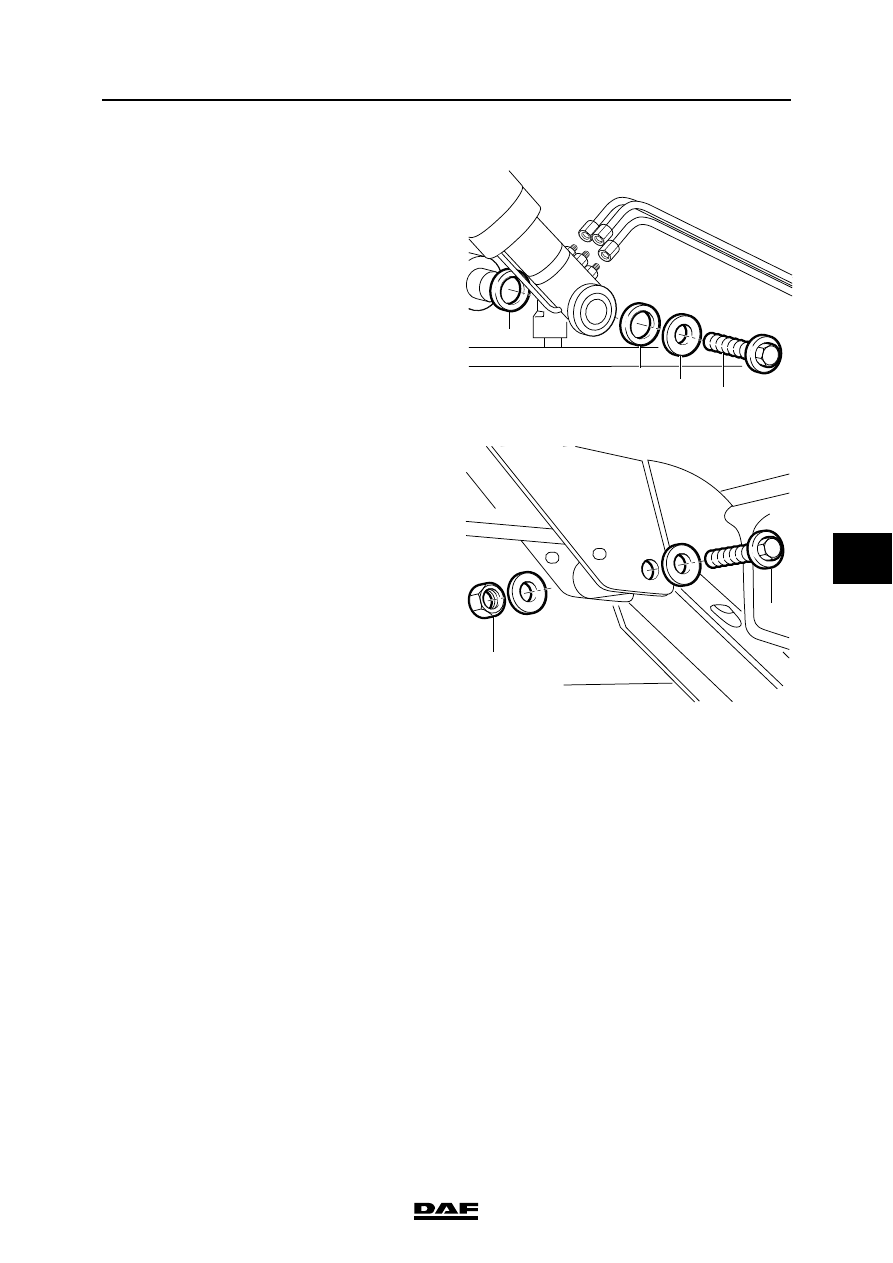

Installing lifting cylinder
1.

Fit the plastic rings (5) on both sides of the
lifting cylinder, with the flat sides in the
recesses.

2.

Fit the lifting cylinder to the axle journal and
fit the washer (2) and attachment bolt (1).

3.

Use the attachment bolt (4) and attachment
nut (3) to attach the lifting cylinder to the cab.
Do not yet tighten the attachment bolt (4) to
the specified tightening torque, see
"Technical data".

5

5

2

1

K1 00 710

4

K1 00 711

3

CAB TILTING MECHANISM

4-4

©

 200346

Removal and installation

6

ΧΦ65/75/85 series

1

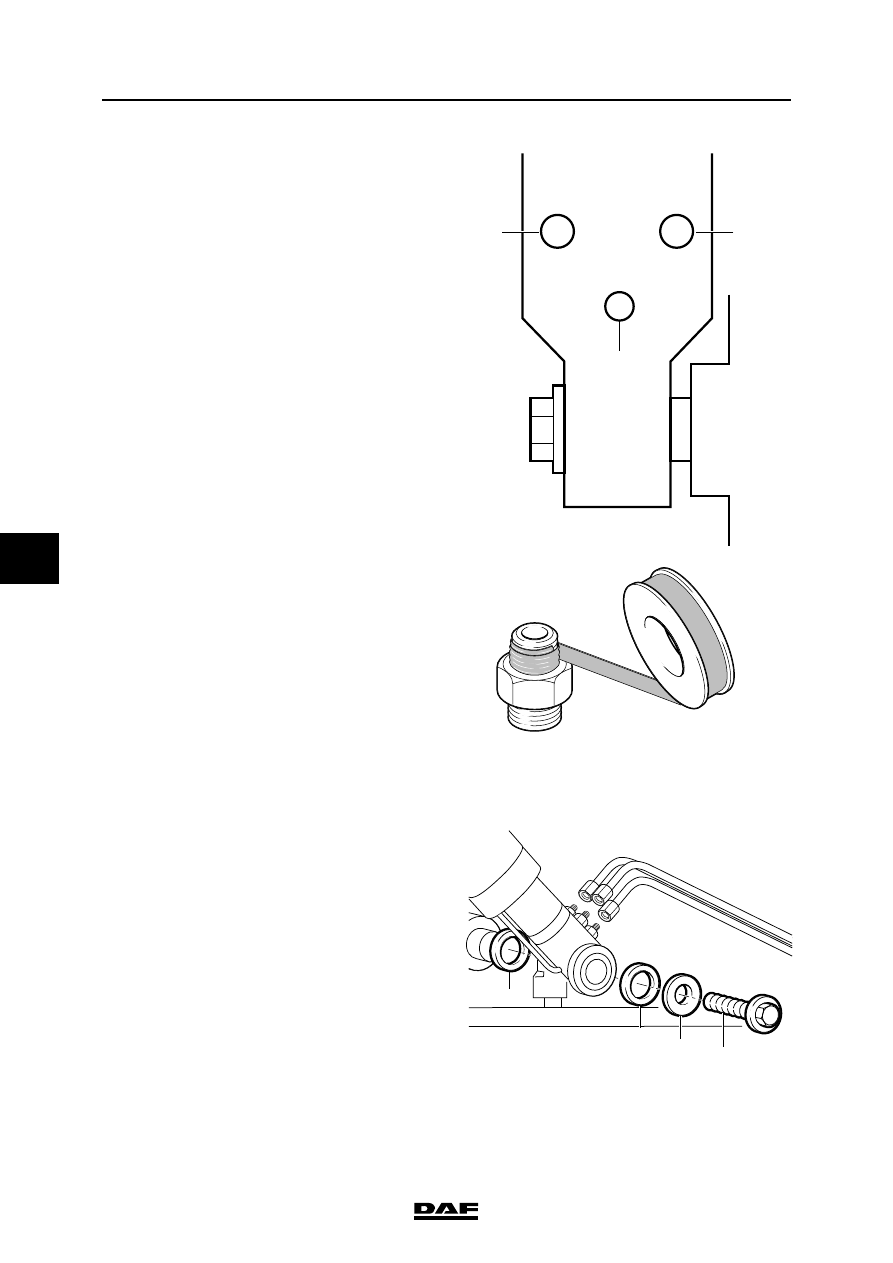

4.

Connect the pipes to the lifting cylinder.
A= pressure pipe
B = cab locks
C = return pipe

Note:
Use Teflon tape to install the nipples in the
pump housing. Note: Do not apply Teflon
tape to the first turn of the nipples. This will
prevent the system from being soiled with
Teflon tape.

5.

Tilt the cab forwards.

6.

Fit the compressor pipe.

7.

If necessary, install the cable gutter.

8.

Secure the attachment bolt (1).

A

B

C

M14

M12

K1 00 712

K1 01 502

5

5

2

1

K1 00 710
