DAF CF65, CF75, CF85 Series . Manual - part 146

©

 200346

4-5

Removal and installation

CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

9.

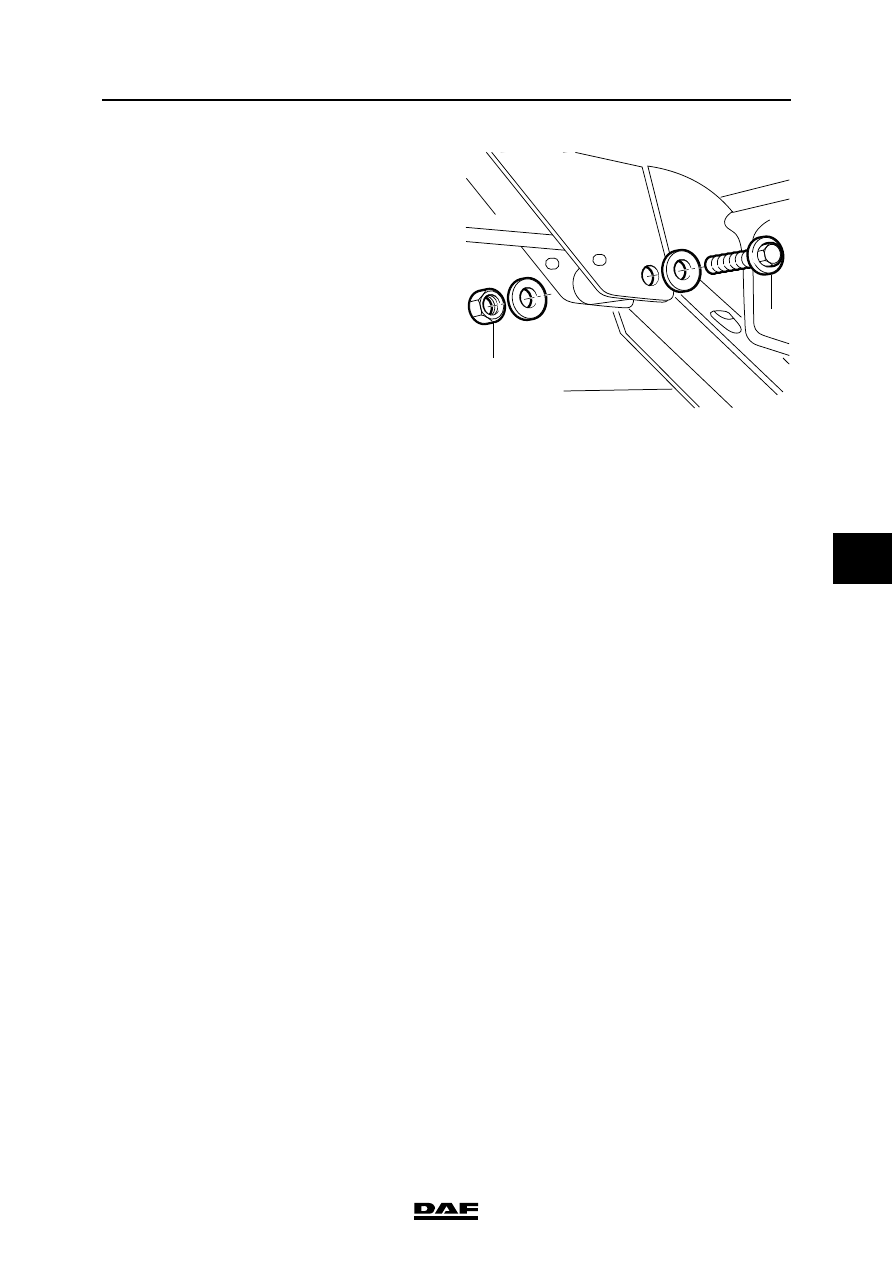

Tighten the attachment bolt (4) to the
specified torque. See "Technical data".

10. Tilt the cab back.

11. For filling and bleeding the system, see

chapter "Draining and filling".

4

K1 00 711

3

CAB TILTING MECHANISM

4-6

©

 200346

Removal and installation

6

ΧΦ65/75/85 series

1

4.3 REMOVAL AND INSTALLATION, CAB TILTING PUMP SEALS

Note:
-

Use a repair kit to replace the seals.

-

Disassembling any other parts of the tilting
pump than those described in this chapter is
not permitted. A defective cab tilting
mechanism is often the result of incorrect
disassembly and/or assembly of the cab
tilting pump.

-

Clean the outside of the cab tilting pump.

-

Work in a clean environment.

Removing cab tilting pump seals
1.

Remove the cab tilting pump.

2.

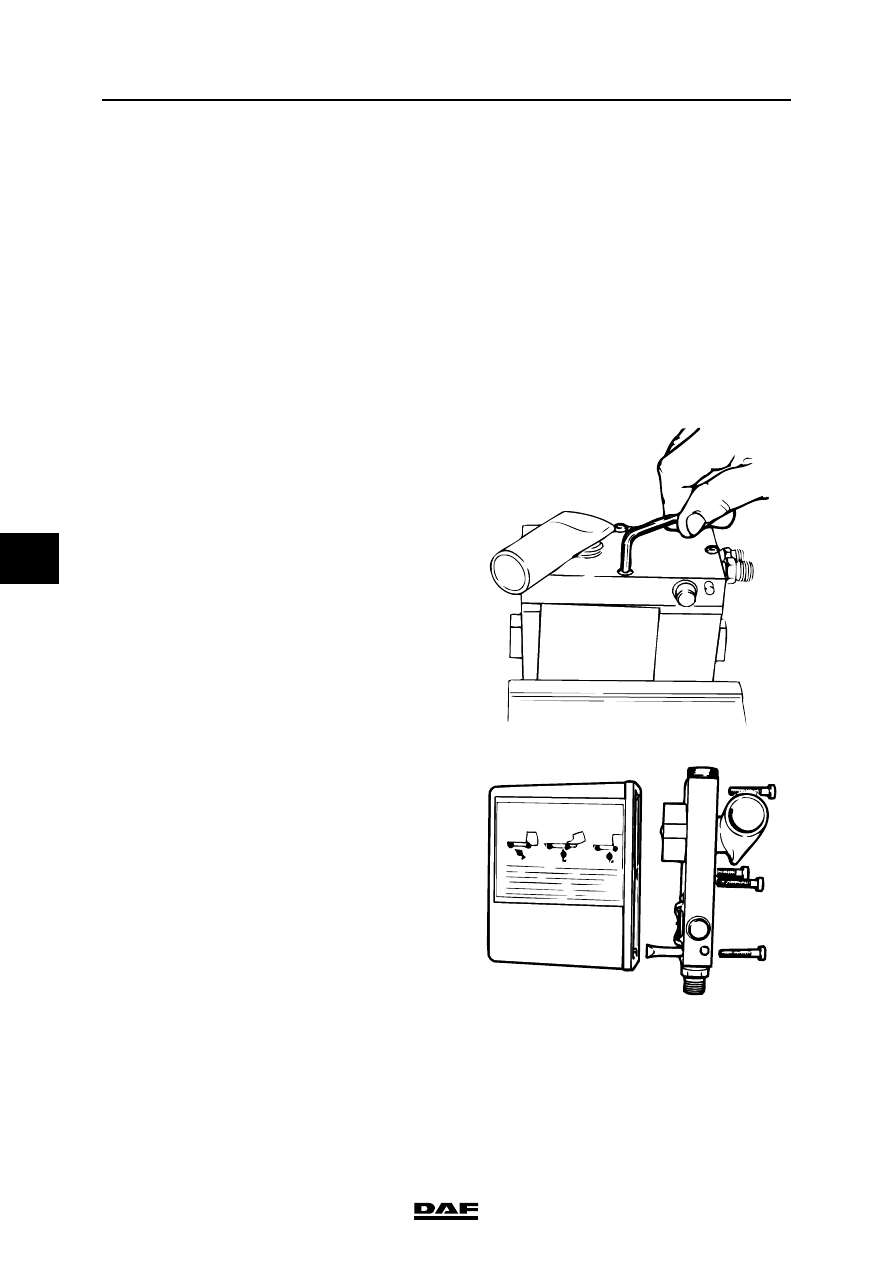

Loosen the 4 Torx screws used to attach the
reservoir to the pump housing. Collect the oil
in a container.

3.

Remove the pump housing from the
reservoir and remove the gasket.

4.

Remove the filter and the magnet from the
pump housing.

K100136

K100137

©

 200346

4-7

Removal and installation

CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

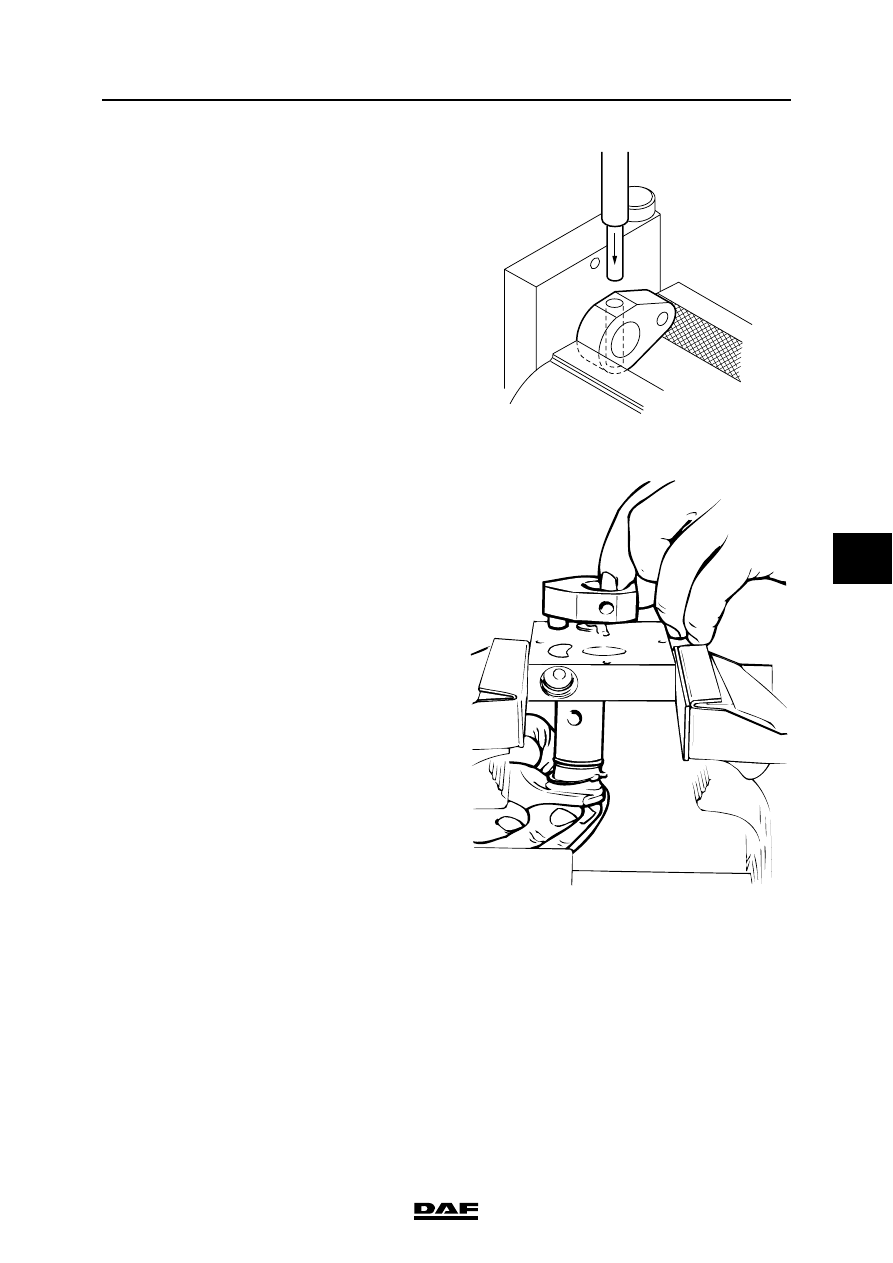

5.

Secure the pump housing in a vice according
to the adjacent figure and tap the pin out of
the holder and the lever axle.

6.

Remove the holder and the lever axle.
Remove the O-ring from the lever axle.

7.

Clean the reservoir, the filter, the magnet
and the contact surfaces of the gasket.

Installing cab tilting pump seals
1.

Fit a new O-ring to the lever axle.

K1 01 499

K100139

CAB TILTING MECHANISM

4-8

©

 200346

Removal and installation

6

ΧΦ65/75/85 series

1

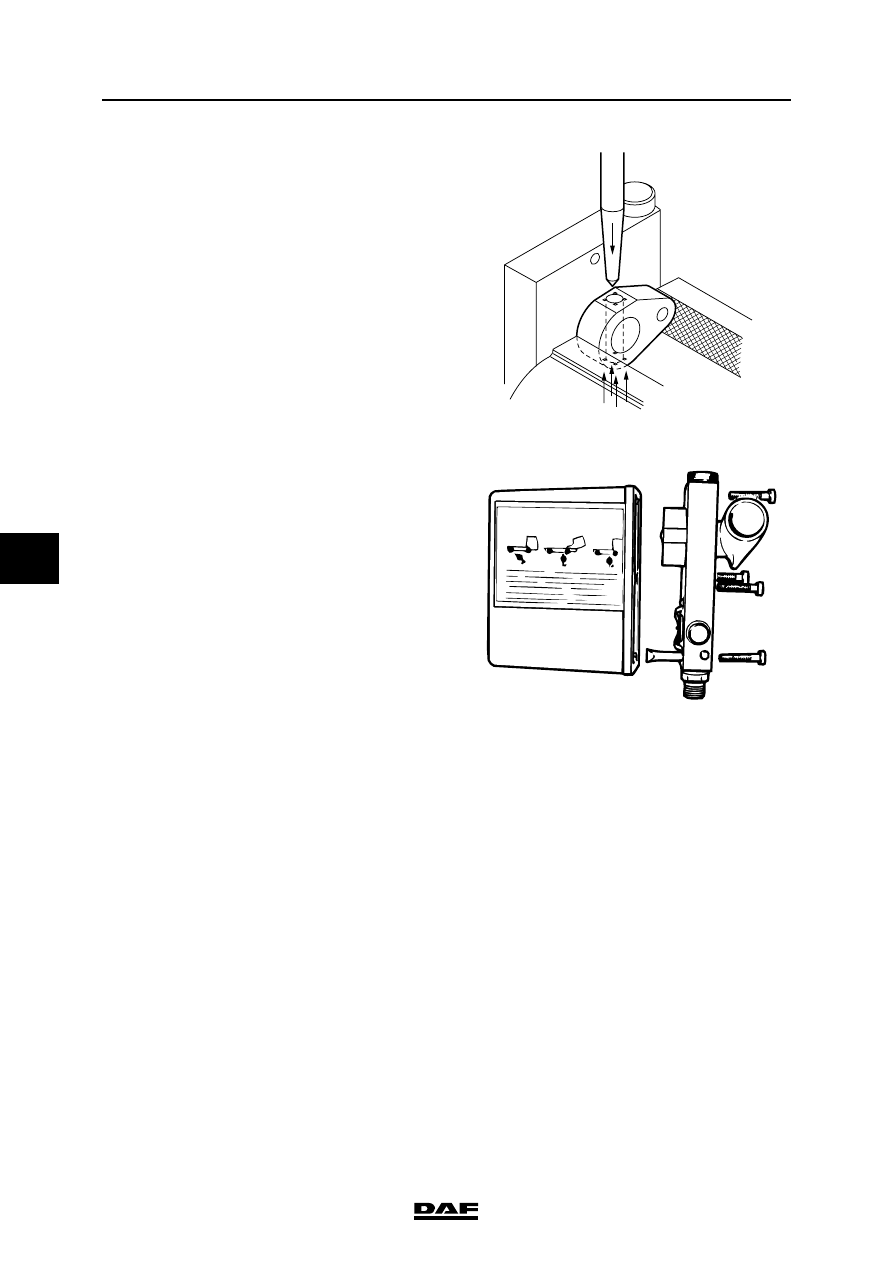

2.

Fit the holder to the lever axle. Tap the pin
into its holder and the lever axle. Secure the
pin as shown in the adjacent figure.

3.

Fit the filter and the magnet to the pump
housing.

4.

Fit the reservoir with a new gasket onto the
pump housing using the 4 Torx bolts.

5.

Install the cab tilting pump.

K1 01 498

K100137
