CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

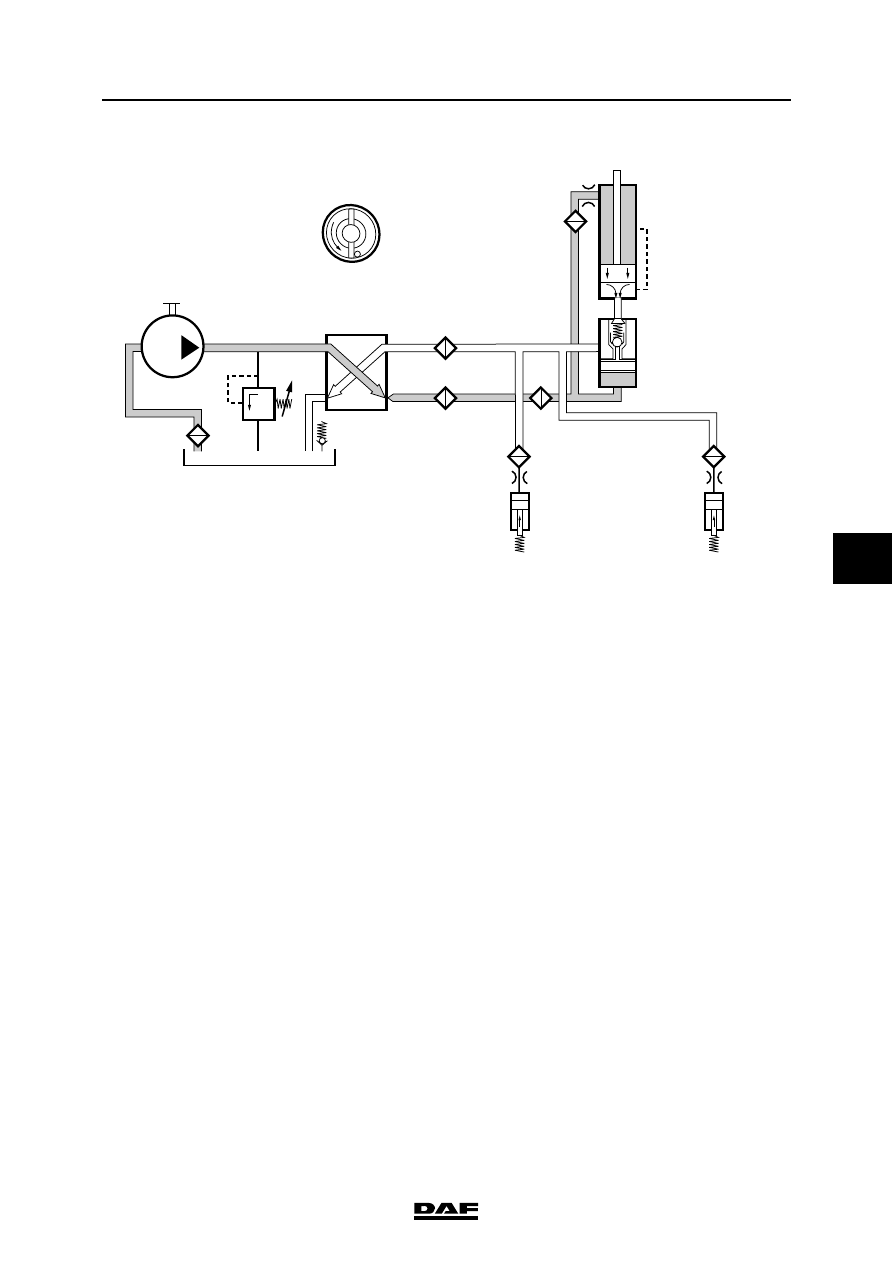

Tilting the cab back

Turn the two-way valve (2) on the pump (1)
counterclockwise (position B).
While pumping, the pressure which has built up in
the pump will be passed on to the pressure side
of the cylinder (3) and the non-return valve (5) in
the cylinder (3) will be activated simultaneously.
Each stroke of the pump (1) opens the non-return
valve (5).
When the non-return valve (5) in the cylinder
opens, oil can flow back into the pump reservoir
from the cylinder return side.
The cab will move only when the pump is being
operated.
The pressure in the pump and the pipes
consequently drops back to zero at the end of
each pump stroke. The non-return valve (5) will
now close.
The cab will fall downwards on its own a few
centimetres before it is completely secured in the
locks.
This is due to the fact that the piston of the
cylinder is in a position which allows a leak-off
connection (4) between the areas above and
below the cylinder piston.
The warning symbol "cab lock open" on the
instrument panel goes out as soon as the cab
locks are engaged.

K1 00 707

B

1

2

3

4

5

6

6

7

8

CAB TILTING MECHANISM

2-4

©

 200346

General

6

ΧΦ65/75/85 series

1

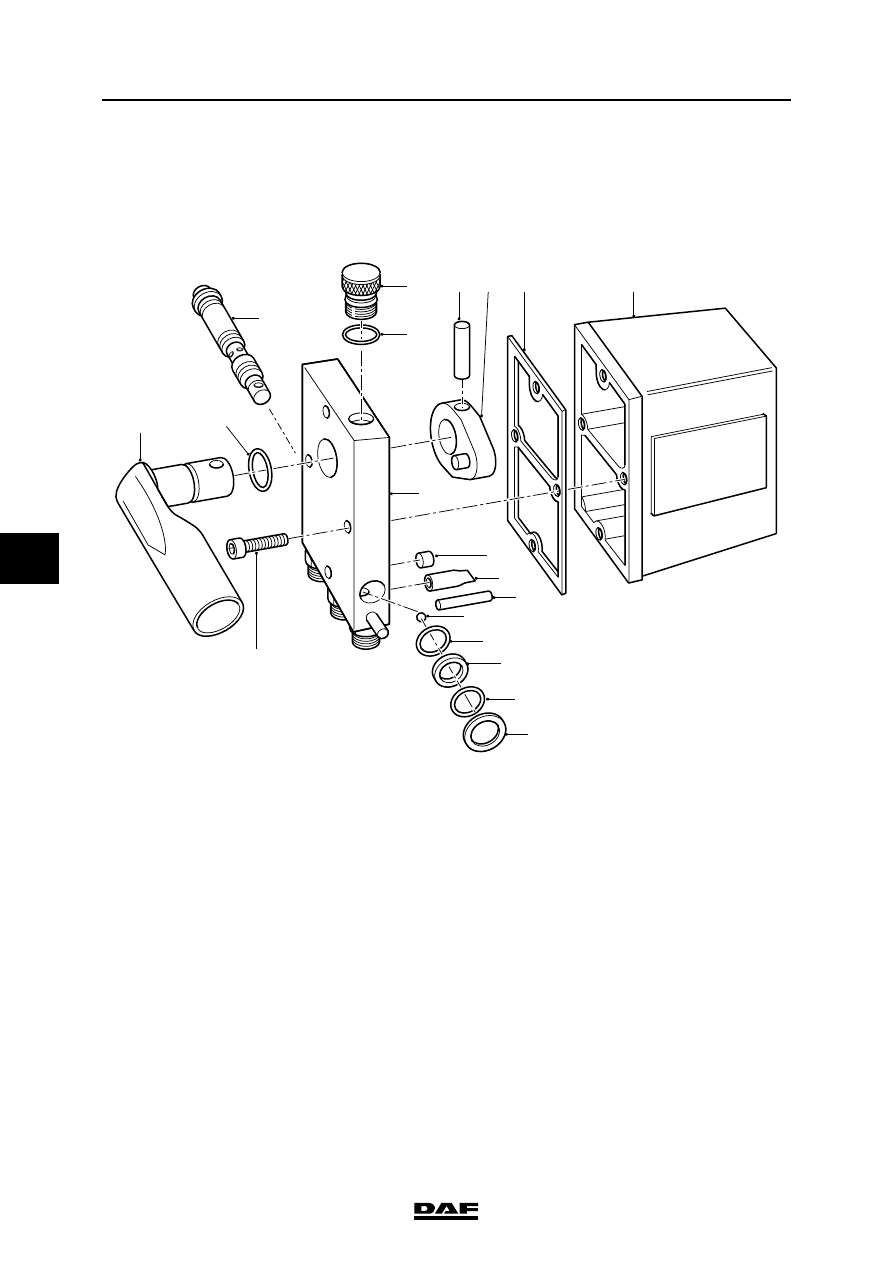

2.2 OVERVIEW DRAWING, CAB TILTING PUMP

Note:
This drawing gives a general view and may differ
from the actual situation.

Legend

1

2

3

9

10

11

12

13

14

15

16

8

17

4

18

19

6

7

5

K1 01 553

1.

Two-way valve

2.

Filler plug

3.

O-ring

4.

Pin

5.

Holder

6.

Gasket

7.

Reservoir

8.

Pump housing

9.

Magnet

10. Filter
11. Notched pin
12. Inlet ball
13. O-ring
14. Teflon ring
15. O-ring
16. Ring
17. Torx bolt
18. Lever
19. O-ring

©

 200346

2-5

General

CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

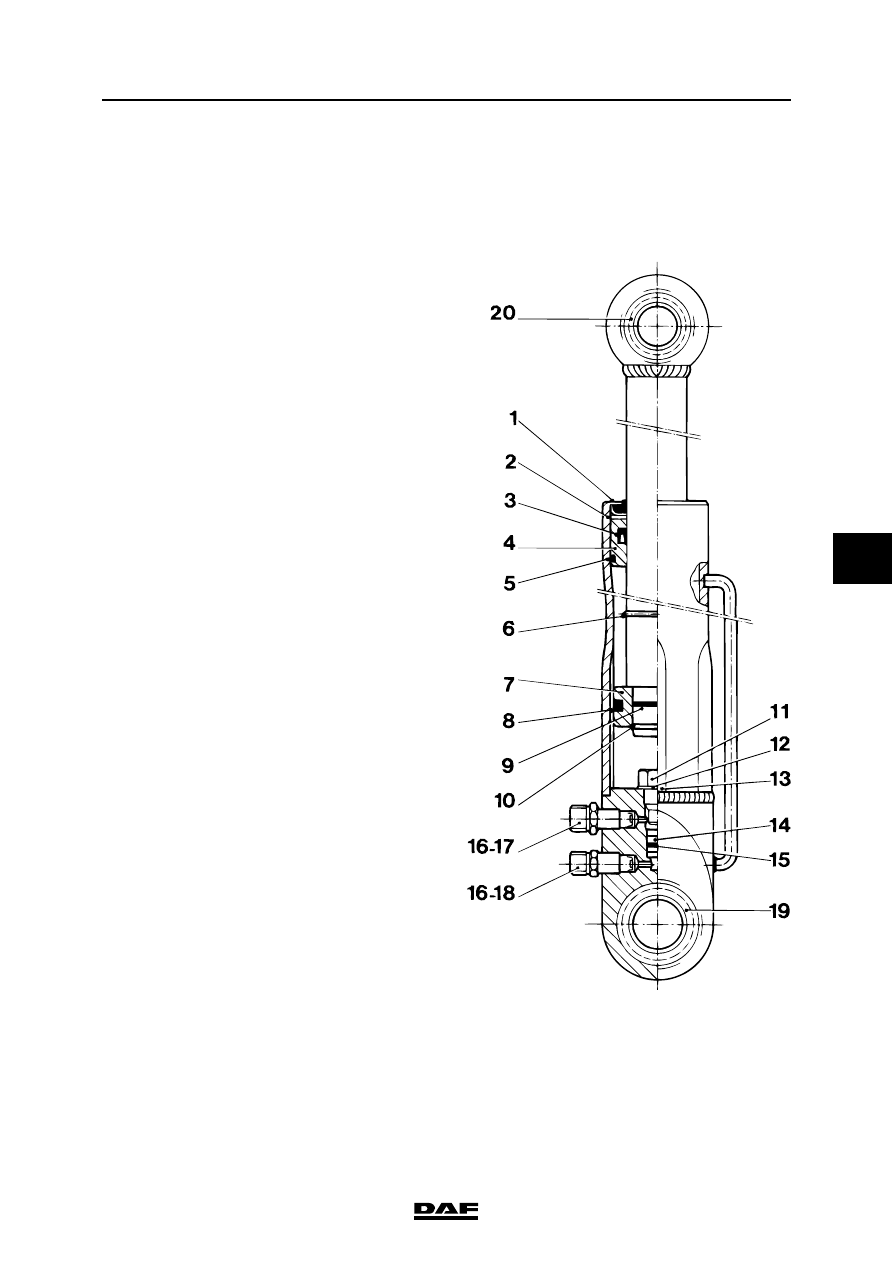

2.3 OVERVIEW DRAWING, LIFTING CYLINDER

Note:
This drawing gives a general view and may differ
from the actual situation.

Legend

K100127

1.

Dirt scraper

2.

Circlip

3.

U-cup

4.

Upper bearing

5.

O-ring

6.

Circlip/stop collar

7.

Piston

8.

O-ring

9.

O-ring

10. Circlip
11. Non-return valve seat
12. Ring
13. O-ring
14. Non-return valve
15. O-ring
16. Seal
17. Clutch
18. Clutch
19. Plastic ring
20. Plastic ring

CAB TILTING MECHANISM

2-6

©

 200346

General

6

ΧΦ65/75/85 series

1
