34

Access

located in the corner, then clip the cover onto

the unit.

►  Reinitialise the remote control.

For more information on

Reinitialising the

remote control

, refer to the corresponding

section.

Do not throw remote control batteries

away, as they contain metals that are

harmful to the environment. Take them to an

approved disposal point.

This equipment contains a button type

battery.

Do not swallow the battery. Risk of chemical

burns!

Swallowing the battery can cause serious

internal burning in only 2 hours and can be

fatal.

If batteries have been swallowed or inserted

into a part of the body, seek immediate

medical advice.

Keep new and used batteries out of the reach

of children.

If the battery compartment does not close

properly, stop using the product and keep it

out of the reach of children.

Risk of explosion if the battery is

replaced with an incorrect type!

Replace the battery with the same type.

Risk of explosion or leaking of

inflammable liquid or gas!

Do not use in/store in/place in an environment

where the temperature is extremely high or

where the pressure is extremely low due to

very high altitude.

Do not try to burn, crush or cut a used battery.

Reinitialising the remote

control

Following replacement of the battery or in

the event of a fault, it may be necessary to

reinitialise the remote control.

To reinitialise the remote control, visit a

CITROËN dealer or a qualified workshop.

Without Keyless Entry and Start





►  Switch the ignition off.

►  Turn the key to position

2 (Ignition on)

.

►  Immediately press the closed padlock button

for a few seconds.

►  Switch off the ignition and remove the key

from the ignition switch.

The remote control is now fully operational

again.

With Keyless Entry and Start





►  Insert the mechanical key (incorporated into

the remote control) into the lock to open the

vehicle.

►  Place the electronic key against the back-up

reader on the steering column and hold it there

until the ignition is switched on.

►

With a manual gearbox,

 place the gear lever

in neutral then fully depress the clutch pedal.

►

With an automatic gearbox or drive

selector

, while in mode

P

, depress the brake

pedal.

►  Switch on the ignition by pressing the

"

START/STOP

" button.

35

Access

2

If the fault persists after reinitialisation, contact a

CITROËN dealer or a qualified workshop without

delay.

Doors

Opening

From outside

►  After unlocking the vehicle or with the

"Keyless Entry and Start" system electronic key

in the recognition zone, pull the door handle.

From inside

►  Pull the interior opening control of a door; this

unlocks the vehicle completely.

With selective unlocking activated:

–  Opening the driver's door unlocks

the driver's door only (if the vehicle has not

already been completely unlocked).

–  Opening one of the passenger doors

unlocks the rest of the vehicle.

Closing

If a door is not properly closed, this

warning lamp comes on accompanied by

a message if the engine is running, and an

audible signal when the vehicle is travelling at

more than 6 mph (10 km/h).

Boot

Opening





►  After unlocking the vehicle, press the opening

control and then lift the tailgate.

Closing

►  Lower the tailgate using one of the interior

grab handles.

In the event of a malfunction or if you

experience difficulty opening or closing

the tailgate, have it checked by a CITROËN

dealer or a qualified workshop without delay,

to avoid the issue deteriorating and prevent

any risk of the tailgate dropping, potentially

causing serious injury.

Back-up release

To manually unlock the boot in the event of a

battery or central locking failure.

Unlocking

►  Fold the rear seats to gain access to the lock

from inside the boot.





►  Insert a small screwdriver into hole

A

 of the

lock to unlock the boot.

►  Move the latch to the left.

Locking after closing

If the fault persists after closing again, the boot

will remain locked.

In the event of a fault with the central

locking system, it is essential to

disconnect the battery to lock the boot and so

ensure complete locking of the vehicle.

Alarm

(Depending on version)

36

Access









System which protects and provides a deterrent

against theft and break-ins.

Exterior perimeter monitoring

The system checks for opening of the vehicle.

The alarm is triggered if anyone tries to open a

door, the boot or the bonnet, for example.

Interior volumetric monitoring

The system checks for any variation in volume in

the passenger compartment.

The alarm is triggered if anyone breaks a

window, enters the passenger compartment or

moves inside the vehicle.

Self-protection function

The system checks whether any of its

components are out of service.

The alarm is triggered if the battery, the central

control or the siren wiring is put out of service or

damaged.

Work on the alarm system

Contact a CITROËN dealer or a qualified

workshop.

Locking the vehicle with full

alarm system

Activation

►  Switch off the ignition and exit the vehicle.

►  Lock or deadlock the vehicle using the

remote control or by pressing on the driver's

door handle.

When the monitoring system is active, the red

indicator lamp in the button flashes once per

second and the direction indicators come on for

about 2 seconds.

The exterior perimeter monitoring is activated

after 5 seconds and the interior volumetric

monitoring after 45 seconds.

The alarm does not activate when

locking automatically from a distance.

If an opening (door, boot or bonnet) is not

properly closed, the vehicle is not locked,

but the exterior perimeter monitoring will be

activated after 45 seconds, at the same time

as the interior volumetric monitoring.

Deactivation

►  Press the remote control unlocking

button.

or

►  Unlock the vehicle by pressing the driver’s

door handle.

The monitoring system is deactivated: the

indicator lamp in the button goes off and the

direction indicators flash for about 2 seconds.

After unlocking using the remote

control

If the vehicle automatically locks itself again

(as happens if a door or the boot is not

opened within 30 seconds of unlocking), the

monitoring system is automatically activated.

Locking the vehicle

with exterior perimeter

monitoring only

Deactivate the interior volumetric monitoring to

avoid the unwanted triggering of the alarm, in

certain cases such as:

–  Slightly open window.

–  Washing the vehicle.

–  Changing a wheel.

–  Towing the vehicle.

–  Transport on a ship or ferry.

Deactivating interior volumetric

monitoring

►  Switch off the ignition and within 10 seconds

press the alarm button until the indicator lamp is

on fixed.

►  Exit the vehicle.

►  Immediately lock the vehicle using the remote

control or by pressing on the driver's door

handle.

37

Access

2

Only exterior perimeter monitoring is activated;

the red indicator lamp in the button flashes every

second.

To take effect, this deactivation must be

performed whenever the ignition is switched

off.

Reactivating interior volumetric

monitoring

►  Deactivate exterior perimeter monitoring by

unlocking the vehicle using the remote control or

the "Keyless Entry and Start" system.

The indicator lamp in the button goes off.

►  Reactivate the full alarm system by locking

the vehicle using the remote control or by

pressing the driver’s door handle.

The red indicator lamp in the button once again

flashes every second.

Triggering of the alarm

This is indicated by sounding of the siren

and flashing of the direction indicators for 30

seconds.

Depending on the country of sale, certain

monitoring functions remain active until the alarm

has been triggered eleven times consecutively.

When the vehicle is unlocked using the remote

control or the Keyless Entry and Start system,

rapid flashing of the red indicator lamp in the

button informs you that the alarm was triggered

during your absence. When the ignition is

switched on, this flashing stops.

Failure of the remote control

To deactivate the monitoring functions:

►  Unlock the vehicle using the key in the front

left-hand door lock.

►  Open the door; the alarm is triggered.

►  Switch on the ignition; this stops the alarm.

The indicator lamp in the button goes off.

Locking the vehicle without

activating the alarm

►  Lock the vehicle using the key (built-in the

remote control) in the front left-hand door lock.

Malfunction

When the ignition is switched on, the fixed

lighting of the red indicator lamp in the button

indicates a system malfunction.

Have it checked by a CITROËN dealer or a

qualified workshop.

Automatic activation

(Depending on version)

The system is activated automatically 2 minutes

after the last door or the boot is closed.

►  To avoid triggering the alarm on entering the

vehicle, first press the unlocking button on the

remote control or unlock the vehicle using the

"Keyless Entry and Start" system.

Electric windows

1.

Left-hand front

2.

Right-hand front

3.

Right-hand rear

4.

Left-hand rear

5.

Deactivation of electric window controls

located by rear seats

Manual operation

►  To open/close the window, press/pull the

switch without passing the point of resistance;

the window stops as soon as the switch is

released.

Automatic operation

►  To open/close the window, press/pull the

switch past its resistance point: the window

opens/closes completely when the switch is

released.

Operating the switch again stops the movement

of the window.

38

Access

The electric window controls remain

operational for approximately 45 seconds

after switching off the ignition.

After that time, the controls are disabled. To

reactivate them, switch the ignition on again.

Anti-pinch

If the window meets an obstacle while rising, it

stops and immediately partially lowers again.

Deactivating the rear

controls for the rear electric

windows





For your children's safety, press control

5

 to

deactivate the controls for the rear electric

windows, irrespective of their positions.

The red indicator lamp in the button comes on.

The rear electric windows can still be controlled

using the driver's controls.

In the event of a serious impact, use of

the rear electric window controls is

re-enabled, if they had been deactivated.

Reinitialising the electric

windows

After reconnecting the battery, or in the event

of abnormal window movement, the anti-pinch

function must be reinitialised.

The anti-pinch function is disabled during the

following sequence of operations.

For each window:

►  Lower the window fully, then raise it; it will

rise in steps of a few centimetres each time the

control is pressed. Repeat the operation until the

window is fully closed.

►  Continue to pull the control for at least one

second after the window reaches the closed

position.

If an electric window meets an obstacle

during operation, the movement of the

window must be reversed. To do this, press

the relevant control.

When the driver operates the passengers’

electric window controls, it is important to

ensure that nothing can prevent the window

from closing properly.

It is important to ensure that passengers use

the electric windows correctly.

Pay particular attention to children when

operating the windows.

Be aware of passengers and/or other persons

present when closing windows using the key

or the "Keyless Entry and Start" system.

Do not put your head or arms through the

open windows when the vehicle is moving -

risk of serious injury!

Sunroof

The sunroof consists of a movable glass panel

that slides over the roof and a blind that can

be opened independently. Opening the sunroof

automatically opens the blind.

►  To operate the panoramic sunroof, use the

button in the roof console.









The sunroof can be operated when the ignition

is turned on (if the battery is charged enough),

with the engine running, in STOP mode of Stop

& Start, and up to 45 seconds after turning off

the ignition.

Precautions

Do not put your head or arms through the

sunroof while the vehicle is moving - risk

of serious injury!

39

Access

2

Ensure that any luggage or accessories

carried on the roof bars do not interfere

with the movement of the sunroof.

Do not place heavy loads on the movable

glass panel of the sunroof.

If the sunroof is wet, following a shower

or washing the vehicle, wait until it is

completely dry before opening.

Do not operate the sunroof if it is covered by

snow or ice - risk of damage!

Use only plastic scrapers to remove snow or

ice from the sunroof.

Regularly check the condition of the

sunroof seals (e.g. presence of dust,

dead leaves).

If using a car wash, check first that the roof is

correctly closed and keep the high-pressure

jet at least 30 centimetres from the seals.

Never leave the vehicle with the sunroof

open.

Operation

When opening the sunroof fully, the movable

glass moves to a partially open position, then

slides over the roof. Any intermediate position is

possible.

Before operating the sunroof control

button, ensure that no object or person

might prevent the movement.

Pay particular attention to children when

operating the sunroof.

If something is trapped when operating the

sunroof, reverse the movement of the sunroof

by pressing the control button in question.

The driver must ensure that passengers use

the sunroof correctly.

Any manual intervention on the position of

the sunroof may disturb the anti-pinch device.

Perform a reinitialisation.

Anti-pinch system

If the sunroof encounters an obstacle when

closing, the movement is automatically reversed.

Opening/closing the sunroof

►  To open the sunroof, use the part of the

button located towards the rear.

►  To close the sunroof, use the part of the

button located towards the front.

Operating the button

►  Pressing the button beyond its point of

resistance opens or closes the sunroof fully.

►  Pressing the button again stops the

movement in progress.

►  By keeping the button pressed (without going

beyond the point of resistance), the movement of

the glass stops when this button is released.

►  When the sunroof is closed: pressing once

without passing the point of resistance moves it

to the partially open position.

►  When the sunroof is partially open: pressing

once on the front part of the button, without

going beyond the point of resistance, closes it

completely.

The sunroof and windows can be closed

by holding down the remote control

locking button.

Opening/closing the blind

►  To open the blind, pull its handle backwards

until the desired position is reached.

►  To close the blind, push its handle forwards

until the desired position is reached.

Reinitialisation

Reinitialisation is required after reconnecting the

battery, or if the sunroof malfunctions or moves

in a jerky manner.

►  Check that nothing is affecting the movement

of the sunroof and that the seals are clean.

►  With the ignition on, press and hold

the front part of the button to close the

sunroof.

The sunroof closes step by step. When fully

closed, it performs a slight opening/closing

movement.

►  Release the button 1 second after the end of

the movement.

40

Ease of use and comfort

Correct driving position

For safety reasons, adjustments must

only be made when the vehicle is

stationary.

Before taking to the road and to make the most

of the ergonomic layout of the instruments and

controls, carry out these adjustments in the

following order:

–  head restraint height.

–  seat backrest angle.

–  seat cushion height.

–  longitudinal seat position.

–  steering wheel height and reach.

–  rear view mirror and door mirrors.





Once these adjustments have been

made, check that the instrument panel

can be viewed correctly from your driving

position.

Front head restraints

Adjusting the height





Upwards:

►  Pull the head restraint up to the desired

position; you can feel the head restraint clicking

into position.

Downwards:

►  Press lug

A

 to lower the head restraint.

The head restraint is correctly adjusted

when its upper edge is level with the top

of the head.

Removing a head restraint

►  Tilt the backrest to the rear to make it easier

to remove the head restraint.

►  Pull the head restraint fully up.

►  Press lug

A

 to release the head restraint and

raise it fully.

►  Stow the head restraint securely.

Refitting a head restraint

►  Insert the head restraint rods into the guides

in the corresponding seat backrest.

►  Push the head restraint fully down.

►  Press the lug

A

 to release the head restraint

and push it down.

►  Adjust the height of the head restraint.

Never drive with the head restraints

removed; they should be in place and

adjusted for the occupant of the seat.

Front seats

Before moving the seat backwards,

ensure that there is no person or object

that might prevent the full travel of the seat.

There is a risk of trapping or pinching

passengers if present in the rear seats or of

jamming the seat if large objects are placed

on the floor behind the seat.

Manual adjustments

Longitudinal





41

Ease of use and comfort

3

►  Raise the control bar and slide the seat

forwards or backwards.

►  Release the control bar to lock the seat in

position on one of the notches.

Backrest angle





►  Turn the knob to obtain the desired angle.

Height





►  Pull the control upwards to raise or push it

downwards to lower, until you obtain the position

required.

Lumbar

(driver only)





►  Turn the knob to obtain the desired level of

lumbar support.

Electric adjustments

Backrest angle





►  Tilt the control forwards or rearwards.

Cushion height





►  Tilt the rear of the control upwards or

downwards to obtain the required height.

Lumbar





►  Press one of the controls to obtain the

desired lumbar support.

Massage function

This function provides lumbar massage; it only

operates when the engine is running as well as

in STOP mode of the Stop & Start system.

Activation/Deactivation

►  Press this button to activate/deactivate

the function.

Upon activation, the indicator lamp comes on.

The massage function is activated for a period

of one hour.

During this time, massage is performed in

6 cycles of 10 minutes (6 minutes of massage

followed by a 4-minute break).

After one hour, the function is deactivated; the

indicator lamp goes off.

42

Ease of use and comfort

Heated seats









The function is active only with the engine

running and when the outside temperature is

below 20°C.

►  Press the button corresponding to the seat.

►  Each press changes the heating level; the

corresponding number of indicator lamps come

on.

►  To switch off the heating, press the button

until all of the indicator lamps are off.

The system status is memorised when the

ignition is switched off.

Do not use the function when the seat

is not occupied.

Reduce the heating intensity as soon as

possible.

When the seat and passenger compartment

have reached a satisfactory temperature,

switch the function off; reducing electrical

consumption in turn decreases energy

consumption.

Prolonged use of heated seats is not

recommended for people with sensitive

skin.

There is a risk of burns for people whose

perception of heat is impaired (e.g. illness,

taking medication).

To keep the heated pad intact and to prevent

a short circuit:

–  Do not place heavy or sharp objects on the

seat.

–  Do not kneel or stand on the seat.

–  Do not spill liquids onto the seat.

–  Never use the heating function if the seat

is damp.

Steering wheel

adjustment





►  When stationary, pull the control to release

the steering wheel.

►  Adjust the height and reach to suit your

driving position.

►  Push the control to lock the steering wheel.

For safety reasons, these adjustments

must only be carried out with the vehicle

stationary.

Heated steering wheel

(Depending on country of sale)

In cold weather, this function heats the circular

part of the steering wheel.

It can be activated when the outside temperature

is below 20°C.









►  With the engine running, press this button to

activate/deactivate the function (confirmed by the

indicator lamp coming on/going out).

The system is automatically deactivated every

time the engine is switched off.

43

Ease of use and comfort

3

Mirrors

Door mirrors

As a safety measure, the mirrors should

be adjusted to reduce the "blind spots".

The objects that you see in the mirrors are

in fact closer than they appear. Take this

into account in order to correctly judge the

distance of vehicles approaching from behind.

Adjustment





►  Move control

A

 to the right or to the left to

select the corresponding mirror.

►  Move control

B

 in any of the four directions

to adjust.

►  Return control

A

 to its central position.

Manual folding

The mirrors can be folded manually (parking

obstruction, narrow garage, etc.).

►  Turn the mirror towards the vehicle.

Electric folding

Depending on equipment, the door mirrors can

be folded electrically.

►  From the inside, with the

ignition on, place control

A

 in the

central position.

►  Pull control

A

 backwards.

►  Lock the vehicle from the outside.

If the mirrors are folded using control

A

,

they will not unfold when the vehicle is

unlocked.

Electric unfolding

►  From outside: unlock the vehicle.

►  From inside: with the ignition on, place

control

A

 in the central position and then pull it

rearwards.

The remote-controlled automatic door

mirror folding/unfolding function is

configured via the

Driving

 /

Vehicle

 touch

screen menu.

Demisting/Defrosting

The demisting/defrosting of the door

mirrors works with the demisting/

defrosting of the rear screen.

For more information on

Rear screen

demisting/defrosting

, refer to the

corresponding section.

Interior rear view mirror

Equipped with an anti-dazzle system, which

darkens the mirror glass and reduces the

nuisance to the driver caused by the sun,

headlamps of other vehicles, etc.

Manual model

Day/night position





►  Pull the lever to change to the anti-dazzle

"night" position.

►  Push the lever to change to the normal "day"

position.

Adjustment

►  Adjust the mirror to the normal "day" position.

44

Ease of use and comfort

Automatic "electrochrome" model





The electrochrome system uses a sensor that

detects the level of exterior brightness and that

coming from the rear of the vehicle, in order to

automatically and gradually switch between day

and night usage.

To ensure optimum visibility while

manoeuvring, the mirror automatically

brightens when reverse gear is engaged.

The system is deactivated if the load in the

boot exceeds the height of the load space

cover or if the load space cover has items

placed on it.

Rear bench seat

Bench seat with fixed cushions and split folding

backrests (2/3-1/3) to adapt the boot load space.

The rear seat cushion remains fixed. To

increase the boot loading volume, tilt the

bench seat backrest.

Rear head restraints





They have two positions:

– A

high position

, for when the seat is in use:

►  Pull the head restraint fully up.

– A

low position

, for stowing, when the seat is

not in use:

►  Press the lug

A

 to release the head

restraint and push it down.

The rear head restraints can be removed.

Removing a head restraint

►  Release the backrest using control

1

.

►  Tilt the backrest slightly forwards.

►  Pull the head restraint fully up.

►  Press the lug

A

 to release the head restraint

and remove it completely.

Refitting a head restraint

►  Insert the head restraint rods into the guides

in the corresponding backrest.

►  Push the head restraint fully down.

►  Press the lug

A

 to release the head restraint

and push it down.

Never drive with passengers seated at

the rear when the head restraints are

removed; the head restraints should be in

place and in the high position.

The head restraint for the centre seat

and those for the outer seats are not

interchangeable.

Folding the backrests

Manoeuvring the backrests should only

be done when the vehicle is stationary.

First steps:

►  Lower the head restraints.

►  If necessary, move the front seats forward.

►  Check that no person or object might interfere

with the folding of the backrests (e.g. clothing,

luggage).





►  Press the backrest release grip

1

.

45

Ease of use and comfort

3

►  Guide the backrest

2

 down to the horizontal

position.

When the backrest is released, the red

indicator in the release grip is visible.

Repositioning the backrests

First check that the outer seat belts are

lying vertically flat alongside the backrest

latching rings.





►  Put the backrest

2

 in the upright position and

push it firmly to latch it home.

►  Check that the red indicator is no longer

visible in the release grip

1

.

►  Ensure that the outer seat belts were not

trapped during the operation.

Please note: an incorrectly latched

backrest compromises the safety of

passengers in the event of sudden braking or

an accident.

The contents of the boot may be thrown

forwards - risk of serious injury!

Heated seats





The control knobs for each side seat are located

at the rear of the centre console.

►  Turn the corresponding knob to switch on and

select a setting:

•  0 = off.

•  1 = low.

•  2 = medium.

•  3 = high.

The function is active only with the engine

running and when the outside temperature is

below 20°C.

Do not use the function when the seat

is not occupied.

Reduce the heating intensity as soon as

possible.

When the seat and passenger compartment

have reached a satisfactory temperature,

switch the function off; reducing electrical

consumption in turn decreases energy

consumption.

Prolonged use of heated seats is not

recommended for people with sensitive

skin.

There is a risk of burns for people whose

perception of heat is impaired (e.g. illness,

taking medication).

To keep the heated pad intact and to prevent

a short circuit:

–  Do not place heavy or sharp objects on the

seat.

–  Do not kneel or stand on the seat.

–  Do not spill liquids onto the seat.

–  Never use the heating function if the seat

is damp.

Heating and Ventilation

Air intake

The air circulating in the passenger compartment

is filtered and originates either from the

exterior, via the grille located at the base of the

46

Ease of use and comfort

windscreen, or from the inside in air recirculation

mode.

Controls

Depending on version, the controls are

accessible in the

Climate

 touch screen menu

or are grouped together on the centre console

panel.

Air distribution





1.

Windscreen demisting/de-icing vents

2.

Front side window demisting/de-icing vents

3.

Adjustable and closable side air vents

4.

Adjustable and closable central air vents

5.

Air outlets to the front footwells

6.

Air outlets to the rear footwells

7.

Adjustable and closable air vents

Advice

Using the ventilation and air

conditioning system

►  To ensure that air is distributed evenly,

keep the external air intake grilles at the base

of the windscreen, the nozzles, the vents, the

air outlets and the air extractor in the boot

free from obstructions.

►  Do not cover the sunshine sensor located

on the dashboard; this sensor is used to

regulate the automatic air conditioning

system.

►  Operate the air conditioning system for at

least 5 to 10 minutes once or twice a month to

keep it in good working order.

►  If the system does not produce cold air,

switch it off and contact a CITROËN dealer or

a qualified workshop.

When towing a large load on a steep gradient

in high temperatures, switching off the air

conditioning increases the available engine

power, enhancing the towing capacity.

Avoid driving for too long with the

ventilation off or with prolonged operation

of interior air recirculation. Risk of misting and

deterioration of the air quality!

If the interior temperature is very high

after the vehicle has stood for a long

time in the sunshine, air the passenger

compartment for a few moments.

Put the air flow control at a setting high

enough to quickly change the air in the

passenger compartment.

Condensation created by the air

conditioning results in a discharge of

water underneath the vehicle. This is perfectly

normal.

Servicing the ventilation and air

conditioning system

►  Ensure that the passenger compartment

filter is in good condition and have the filter

elements replaced regularly.

We recommend using a composite passenger

compartment filter. Its specific active additive

helps protect against polluting gases and bad

smells.

►  To ensure correct operation of the

air conditioning system, have it checked

according to the recommendations in the

Manufacturer’s service schedule.

Stop & Start

The heating and air conditioning systems

only operate when the engine is running.

Temporarily deactivate the Stop & Start

system to maintain a comfortable temperature

in the passenger compartment.

47

Ease of use and comfort

3

For more information on the

Stop &

Start

 system, refer to the corresponding

section.

ECO driving mode

Selecting this mode reduces electrical

energy consumption, but restricts the

performance of the heating and air

conditioning systems, although it does not

deactivate them.

Manual air conditioning





1.

Adjusting the temperature

Air conditioning on/off

2.

Adjusting the air flow

System switch-off

3.

Adjusting the air distribution

4.

Interior air recirculation

5.

Rear screen demisting/de-icing

The air conditioning system only operates with

the engine running.

Adjusting the temperature

►  Turn the knob

1

 from blue (cold) to red (hot).

Air

flow

 adjustment

►  Turn the thumbwheel

2

 to obtain a sufficient

air flow to ensure your comfort.

If the air flow control is in

the

minimum

 position (system

deactivated), the temperature in the vehicle

will no longer be controlled. A slight flow of air

can still be felt, due to the forward movement

of the vehicle.

Adjusting the air distribution

Windscreen and side windows

Central and side air vents

Footwells

►  Press one of the buttons

3

 to adjust the air

distribution inside the passenger compartment.

The lighting of the button indicates that air

is being blown in the specified direction. It

is possible to activate the following buttons

simultaneously:

–  Central and side air vents + footwells.

–  Windscreen and side windows + footwells.

Air conditioning on/off

The air conditioning system is designed to

operate effectively in all seasons, with the

windows closed.

It is used to:

–  lower the temperature in summer,

–  increase the effectiveness of demisting in

winter, above 3°C.

►  Press knob

1

 to turn the air conditioning on/

off.

When the system is activated, the indicator lamp

comes on.

Air conditioning does not operate when

the air flow is disabled.

To obtain cool air more quickly, enable interior

air recirculation for a brief period. Then return

to the intake of exterior air.

Switching off the air conditioning may result in

some discomfort (humidity or misting).

Switching the system off

►  Press knob

2

; all the indicator lamps of the

system go out.

This action deactivates all of the functions of the

air conditioning system.

The temperature is no longer regulated. A slight

flow of air can still be felt, due to the forward

movement of the vehicle.

Dual-zone automatic air

conditioning

This system automatically controls the activation

of the air conditioning system, regulating the

temperature, air flow and air distribution inside

the passenger compartment.

48

Ease of use and comfort

To adjust the system, use the central controls

or press the button in the

Climate

 menu on the

touch screen to display the controls page.

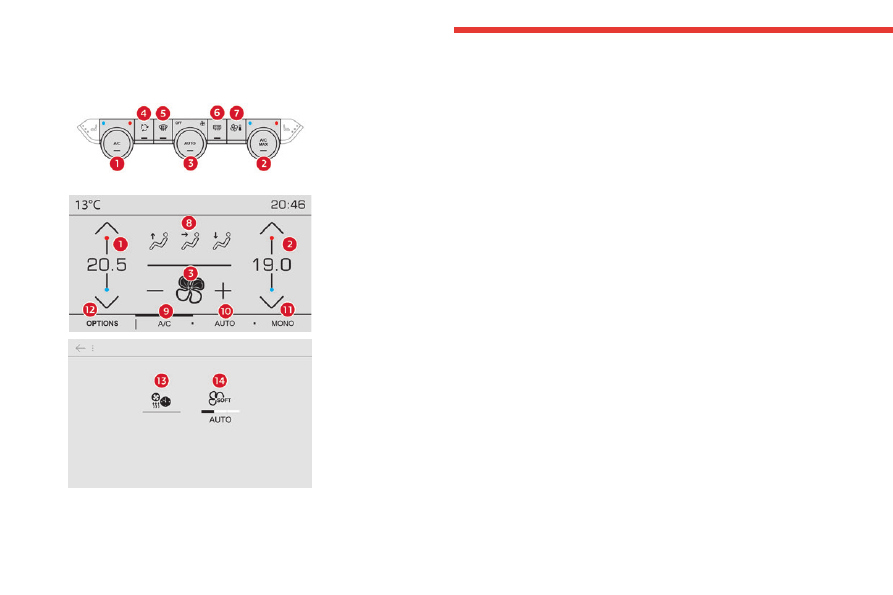

Central controls









Touch screen

1.

Left-hand side temperature adjustment

Air conditioning on/off (central controls)

2.

Right-hand side temperature adjustment

Maximum air conditioning (central controls)

3.

Adjusting the air flow

Automatic Comfort programme (central

controls)

4.

Interior air recirculation

5.

Automatic Visibility programme

6.

Rear screen demisting/de-icing

7.

Direct access to the

Climate

 menu

8.

Adjusting the air distribution

9.

Air conditioning on/off

10.

Automatic Comfort programme

11.

Mono-zone/Dual-zone

12.

Access to the secondary page

13.

Temperature conditioning (depending on

version)

14.

Selection of setting for the Automatic

Comfort programme (Soft/Normal/Fast).

This system works with the engine running but

access to the ventilation and its controls remains

possible with the ignition on.

Adjusting the temperature

The driver and front passenger can each choose

their own temperature setting.

The value indicated corresponds to a level of

comfort and not to a precise temperature.

►  Turn the knob

1

 or

2

 or press one of the

buttons

1

 or

2

 on the touch screen to increase

(red) or decrease (blue) the value.

It is recommended that you avoid a difference of

more than 3°C in the settings for left and right.

Automatic Comfort

programme

This automatic mode ensures optimum

management of the passenger compartment

temperature, air flow and air distribution, based

on the selected comfort level.

►  Press knob

3

 on the central controls or button

10

 on the touch screen to activate/deactivate the

air conditioning system's automatic mode.

The indicator lamp in the button lights up

when the air conditioning system is operating

automatically.

You can adjust the intensity of the

automatic Comfort programme by using the

"

OPTIONS

" button to select one of the available

settings:

– "

Soft

": provides soft and quiet operation by

limiting air flow.

– "

Normal

": offers the best compromise

between a comfortable temperature and quiet

operation (default setting).

– "

Fast

": provides strong and effective air flow.

To change the current setting (shown by the

corresponding indicator lamp), press button

14



repeatedly until the desired setting is displayed.

To ensure passenger comfort in the rear seats,

favour "

Normal

" and "

Fast

" settings.

This setting is associated with automatic mode

only. However, on deactivation of

AUTO

 mode,

the indicator lamp for the most recently selected

setting remains on.

49

Ease of use and comfort

3

Changing the setting does not reactivate

AUTO



mode if it was deactivated.

In cold weather with the engine cold, the

air flow is increased gradually until the

comfort setting has been reached, in order to

limit the delivery of cold air into the passenger

compartment.

On entering the vehicle, if the interior

temperature is much colder or warmer than

the comfort setting requested, there is no

need to alter the value displayed to more

quickly reach the required level of comfort.

The system automatically corrects the

temperature difference as quickly as possible.

Manual control

It is possible to manually adjust one or more

of these functions, while the system retains

automatic control of the other functions:

–  air flow.

–  air distribution.

The indicator lamp in the "

AUTO

” button goes

out if a setting is changed.

►  Press knob

3

 or button

10

 of the touch

screen again to reactivate the automatic Comfort

programme.

Adjusting the air

flow

►  Turn the knob

3

 or press one of the buttons

3

 on the touch screen to increase or decrease

the air flow.

The air flow symbol (a fan) is filled in according

to the request.

When the air flow is reduced to a minimum,

ventilation stops.

"

OFF

" is displayed alongside the fan.

Adjusting the air distribution

►  Press the buttons

8

 on the touch screen

to adjust the air flow distribution inside the

passenger compartment.

Windscreen and side windows

Central and side air vents

Footwells

The lighting of the button indicates that air is

being blown in the specified direction.

It is possible to activate the following buttons

simultaneously:

–  Central and side air vents + footwells

–  Windscreen and side windows + footwells

Air conditioning on/off

The air conditioning system is designed to

operate effectively in all seasons, with the

windows closed.

It is used to:

–  lower the temperature in summer,

–  increase the effectiveness of demisting in

winter, above 3°C.

►  Press knob

1

 or button

9

 on the touch screen

to activate/deactivate the air conditioning.

When the system is activated, the indicator lamp

comes on.

Air conditioning does not operate when

the air flow is disabled.

To obtain cool air more quickly, enable interior

air recirculation for a brief period. Then return

to the intake of exterior air.

Switching off the air conditioning may result in

some discomfort (humidity or misting).

Maximum air conditioning

This function automatically adjusts the

temperature setting to the lowest possible, the

air distribution towards the central and side air

vents, the air flow to maximum and activates

interior air recirculation.

►  Press knob

2

 to activate/deactivate the

function (confirmed by the indicator lamp coming

on/switching off).

Once the function is deactivated, the system

returns to the previous settings.

Mono-zone/Dual-zone

The passenger temperature setting can be linked

to the driver's setting (mono-zone function).

►  Press button

11

 to activate the "

MONO

"

function.

The function is automatically deactivated if the

passenger uses their temperature adjustment

buttons (dual-zone function).
