194

Technical data

Engines and towed loads - Petrol

Engines

THP 150

THP 165

PureTech 130 S&S Euro 6.3

PureTech 180 S&S

Euro 6.3

Gearboxes

EAT6

(Automatic 6-speed)

BVM6

(Manual 6-speed)

EAT8

(Automatic

8-speed)

EAT8

(Automatic

8-speed)

Codes

EP6FDTMD AT6III

EB2ADTS STTd

MB6E

EB2ADTS STTd

ATN8

EP6FADTXD STTd

ATN8

Model codes

J...

5GL / EGR

HNS

5GF

Cubic capacity (cc)

1,598

1,199

1,598

Max. power: EC standard (kW)

110

96

133

Fuel

Unleaded

Unleaded

Unleaded

Braked trailer (within the GTW

limit) (kg)

on a 10% or 12% gradient

900

1,000

1,350

1,300

1,500

Unbraked trailer (kg)

750

750

740

750

Maximum authorised nose weight

(kg)

48

65

65

195

Technical data

9

Engines and towed loads - Diesel

Engines

BlueHDi 130 S&S Euro 6.3

BlueHDi 180 S&S

Gearboxes

BVM6

(Manual 6-speed)

EAT8

(Automatic 8-speed)

EAT8

(Automatic 8-speed)

Codes

DV5RC STTd ML6C

DV5RC STTd ATN8

DW10FC STTa AMN8

Model codes

J...

YHZ

EHX/AHW

Cubic capacity (cc)

1,499

1,997

Max. power: EC standard (kW)

96

130

Fuel

Diesel

Diesel

Braked trailer (within the GTW limit) (kg)

on a 10% or 12% gradient

1,450

1,250

1,650

Unbraked trailer (kg)

750

750

750

Maximum authorised nose weight (kg)

58

65

66

196

Technical data

Engine and towed loads - Rechargeable hybrid

Hybrid 225 e-EAT8

Code

EP6FADTX

Model code

J...

DGZ

Braked trailer (within the GTW limit) (kg)

on a 10% or 12% gradient

1,300

Unbraked trailer (kg)

750

Maximum authorised nose weight (kg)

65

Petrol engine

PureTech 180

Gearbox

Electric automatic 8-speed

Cubic capacity (cc)

1,598

Max. power: EC standard (kW)

132

Fuel

Unleaded

Electric motor

Technology

Synchronous with permanent magnets

Max. power: EC standard (kW)

80

Battery

Technology

Lithium-Ion

Voltage (Volts AC)

240-400

Max. consumption  (kWh)

13.2

Combined power (kW)

165

197

Technical data

9

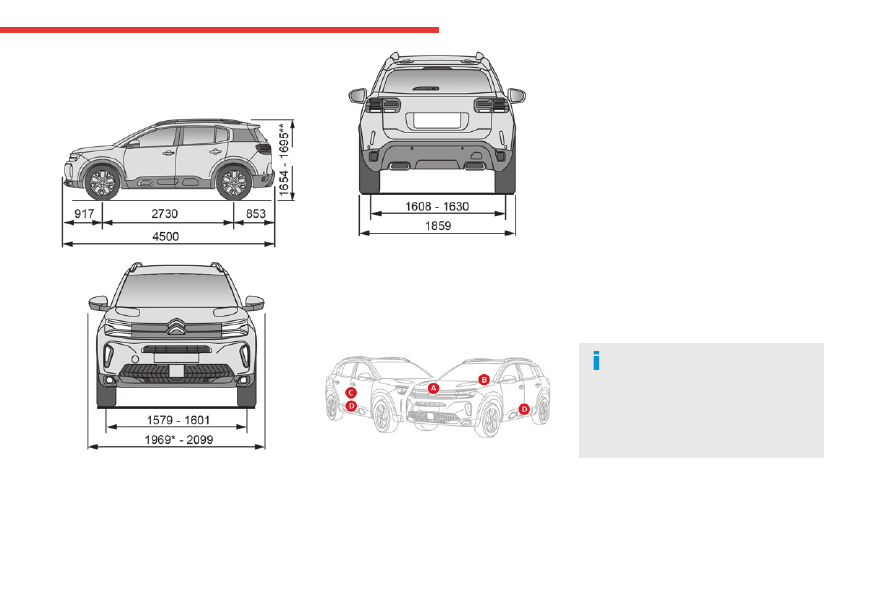

Dimensions (mm)

These dimensions have been measured on an

unladen vehicle.













* Mirrors folded in.

** Version with longitudinal bars.

Identification

markings

Various visible markings for vehicle identification

and vehicle search.





A. Vehicle Identification Number (VIN), under

the bonnet.

Stamped on the chassis.

B. Vehicle Identification Number (VIN), on the

dashboard.

Printed on an adhesive label visible through the

windscreen.

C. Manufacturer's label.

Affixed to the right-hand door.

Bears the following information:

–  Manufacturer’s name.

–  European whole vehicle type approval

number.

–  Vehicle Identification number (VIN).

–  Gross vehicle weight (GVW).

–  Gross train weight (GTW).

–  Maximum weight on the front axle.

–  Maximum weight on the rear axle.

D. Tyres/paint code label.

Affixed to the driver's door.

Bears the following information about the tyres:

–  Tyre pressures, unladen and laden.

–  Tyre specification, made up of the dimensions

and type as well as the load and speed indices.

–  Spare tyre inflation pressure.

Also indicates the paint colour code.

The vehicle may be originally equipped

with tyres with higher load and speed

indices than those indicated on the label,

without affecting tyre pressure (on cold tyres).

In the event of a change in the type of tyres,

contact a CITROËN dealer for the tyre fits

approved for the vehicle.

198

CITROËN Connect Radio

CITROËN Connect Radio

Multimedia audio system -

Applications - Bluetooth

®



telephone

The functions and settings described

vary according to the vehicle version and

configuration, as well as the country of sale.

For safety reasons and because they

require sustained attention by the driver,

the following operations must be carried out

with the

vehicle stationary

 and the ignition

on:

–  Pairing the smartphone with the system via

Bluetooth.

–  Using the smartphone.

–  Connecting to the CarPlay

®

 or Android

Auto applications (certain applications stop

displaying when the vehicle is moving).

–  Changing the system settings and

configuration.

The system is protected so that it only

operates in the vehicle.

The message

Energy economy mode

 is

displayed when the system is about to go into

standby.

The system’s Open Source Software

(OSS) source codes are available at the

following addresses:

https://www.groupe-psa.com/fr/oss/

https://www.groupe-psa.com/en/oss/

First steps

With the engine running, a press mutes

the sound.

With the ignition off, a press turns the system on.

Increase or decrease the volume using

the wheel or the "plus" or "minus" buttons

(depending on the equipment).

Use the buttons on either side of or below the

touch screen to access the menus, then press

the virtual buttons on the touch screen.

Depending on the model, use the "Source" and

"Menu" buttons on the left of the touch screen to

access the menus, then press the virtual buttons

on the touch screen.

At all times it is possible to display the rolling

menus by pressing the screen briefly with three

fingers.

All touch-sensitive areas on the screen are

white.

On pages with multiple tabs at the bottom of the

screen, you can switch between pages either

by tapping the tab for the desired page or by

swiping the pages to the left or right with your

finger.

Press in the shaded area to go back up a level

or confirm.

Press the back arrow to go back a level or

confirm.

The touch screen is of the "capacitive"

type.

To clean the screen, use a soft, non-abrasive

cloth (e.g. spectacles cloth) with no additional

product.

Do not use sharp objects on the screen.

Do not touch the screen with wet hands.

Certain information is displayed permanently in

the upper bar of the touch screen:

–  Air conditioning status information (depending

on version), and direct access to the

corresponding menu.

–  Radio Media and Telephone menu status

information.

–  Privacy status information.

–  Access to the touch screen and digital

instrument panel settings.

Audio source selection (depending on

equipment):

–  FM/DAB/AM radio stations (depending on

equipment).

–  Telephone connected via Bluetooth and

Bluetooth multimedia broadcast (streaming).

–  USB Memory stick.

–  Media player connected via the auxiliary

socket (depending on equipment).



199

CITROËN Connect Radio

10



In the "Settings" menu, it is possible to

create a profile for an individual or for a

group of people with shared interests, and

configure a wide range of settings (radio

presets, audio settings, ambiences, etc.).

Settings are applied automatically.

In very hot conditions, the volume may

be limited to protect the system. It may

enter standby mode (with the screen and

sound off) for 5 minutes or more.

The system will resume normal operation

when the temperature in the passenger

compartment has dropped.

Steering mounted controls

Steering mounted controls -

Type 1





Radio:

Select the previous/next preset radio

station.

Select the previous/next item in a menu or a list.

Media:

Select the previous/next track.

Select the previous/next item in a menu or a list.

Radio:

Short press: display the list of radio

stations.

Long press: update the list.

Media:

Short press: display the list of folders.

Long press: display the available sorting options.

Change audio source (radio; USB; AUX if

equipment connected; CD; streaming).

Confirm a selection.



Increase volume.

Decrease volume.

Mute/restore sound by simultaneously

pressing the increase and decrease

volume buttons.

Steering mounted controls -

Type 2





Voice commands

:

This control is located on the steering

wheel or at the end of the lighting control stalk

(depending on equipment).

Short press, smartphone voice commands via

the system.

Increase volume.

Decrease volume.

Mute by pressing the volume increase

and decrease buttons simultaneously

(depending on equipment).

Restore the sound by pressing one of the two

volume buttons.

Media

 (short press): change the

multimedia source.

Telephone

 (short press): start telephone

call.

Call in progress

 (short press): access

telephone menu.

Telephone

 (long press): reject an incoming call,

end call; when no call is in progress, access

telephone menu.

Radio

 (rotate): automatic search for the

previous/next station.

Media

 (rotate): previous/next track, move in a

list.

200

CITROËN Connect Radio

Short press

: confirm a selection; if nothing

selected, access to presets.

Radio

: display the list of stations.

Media

: display the list of tracks.

Radio

 (press and hold): update the list of

stations received.

Menus

Applications





Access configurable equipment.



Radio Media





Select an audio source or radio station.

Telephone





Connect a mobile phone via Bluetooth

®

.

Run certain applications from a

smartphone connected via CarPlay

®

 or Android

Auto.

Settings





Configure a personal profile and/or

configure the sound (balance, ambience,

etc.) and the display (language, units, date, time,

etc.).

Driving





Activate, deactivate or configure certain

vehicle functions.

201

CITROËN Connect Radio

10

Navigation





Configure the navigation and select your

destination via CarPlay

®

 or Android Auto.

Air conditioning



21,5

18,5



Manage various temperature and air flow

settings.

Applications

Viewing photos

Insert a USB memory stick in the USB port.

To protect the system, do not use a USB

hub.

The system can read folders and image files in

the formats: .tiff; .gif; .jpg/jpeg; .bmp and .png.

Press

Applications

 to display the main

page.

Press "

Photos

".

Select a folder.

Select an image to view.

Press this button to display the details of

the photo.

Press the back arrow to go back a level.

Managing messages

Press

Applications

 to display the main

page.

Press "SMS".

Select the "SMS” tab.

Press this button to select the display

settings for messages.

Press this button to search and select a

recipient.

Select the "Quick messages” tab.

Press this button to select the display

settings for messages.

Press this button to write a new message.

Press the bin alongside the selected

message to delete it.

Press this button alongside the selected

message to display the secondary page.

Press this button to edit and modify the

existing text.

Press this button to write a new message.

Press the bin to delete the message.

Radio

Selecting a station

Press

Radio Media

 to display the main

page.

Press one of the buttons to perform an

automatic search for radio stations.

Or

Move the slider to manually search for

frequencies up or down.

Or

Press the frequency.

202

CITROËN Connect Radio

Enter the FM and AM waveband values

using the virtual keypad.

Press "

OK

" to confirm.



Radio reception may be affected by the

use of electrical equipment not approved

by the Brand, such as a USB charger

connected to the 12 V socket.

The exterior environment (hills, buildings,

tunnels, basement car parks, etc.) may

block reception, including in RDS mode.

This phenomenon is perfectly normal in the

context of radio wave transmission, and

in no way indicative of an audio system

malfunction.

Changing the waveband

Press

Radio Media

 to display the main

page.

Press the "

OPTIONS

" button to access the

secondary page.

Press "

Band

" to change waveband.

Press in the shaded area to confirm.



Presetting a station

Select a radio station or frequency.

Make a short press on the star outline. If

the star is solid, the radio station is

already preset.

Or

Select a radio station or frequency.

Press "

Preset

".

Make a long press on one of the buttons

to preset the station.

Activating/Deactivating RDS

RDS, if activated, allows you to continue

listening to the same station by automatically

retuning to alternative frequencies.

Press

Radio Media

 to display the main

page.

Press the "

OPTIONS

" button to access the

secondary page.

Activate/deactivate "

RDS

".

Press in the shaded area to confirm.



RDS station tracking may not be

available nationwide, as many radio

stations do not cover 100 % of the country.

This explains the loss of reception of the

station during a journey.

Displaying text information

The "Radio Text" function displays information

transmitted by the radio station relating to the

station or the currently playing song.

Press

Radio Media

 to display the main

page.

Press the "

OPTIONS

" button to access the

secondary page.

Activate/deactivate "

News

".

Press in the shaded area to confirm.



Playing TA messages

The TA (Traffic Announcement) function gives

priority to TA alert messages. To operate, this

function needs good reception of a radio station

that transmits this type of message. While traffic

information is being broadcast, the current

media is automatically interrupted so that the

TA message can be heard. Normal play of the

previously playing media resumes at the end of

the message.

Press

Radio Media

 to display the main

page.

Press the "

OPTIONS

" button to access the

secondary page.

Activate/deactivate "

TA

".

Press in the shaded area to confirm.



Audio settings

Press

Radio Media

 to display the main

page.

Press the "

OPTIONS

" button to access the

secondary page.

Press "

Audio settings

".

203

CITROËN Connect Radio

10

Select the "

Tone

", "

Balance

", "

Sound

",

"

Voice

" or "

Ringtones

" tab to configure

the sound settings.

Press the back arrow to confirm.



In the "

Tone

" tab, the

Ambience

,

Bass

,

Medium

 and

Treble

 sound settings are

different and independent for each audio

source.

In the "

Balance

” tab, the

All passengers

,

Driver

 and

Front only

 settings are common

to all sources.

In the "

Sound

” tab, activate or deactivate

"

Volume linked to speed

", "

Auxiliary input

"

and "

Touch tones

".

The balance/distribution (or spatialisation

with the Arkamys

 system) uses audio

processing to adjust the sound quality

according to the number of passengers in the

vehicle.

Onboard audio: Arkamys Sound Staging



optimises the sound distribution inside

the passenger compartment.

DAB (Digital Audio

Broadcasting) radio

Terrestrial Digital Radio

Digital radio provides higher quality sound.

The various "multiplexes/ensembles" offer a

choice of radio stations organised in alphabetical

order.

Press

Radio Media

 to display the main

page.

Press the "

OPTIONS

" button to access the

secondary page.

Press "

Band

" to select "

DAB band

".

Press in the shaded area to confirm.



FM-DAB Follow-up

"DAB" does not cover 100% of the territory.

When the digital radio signal is poor, the

"FM-DAB Follow-up" enables you to continue

listening to the same station by automatically

switching to the corresponding "FM" analogue

station (if there is one).

Press

Radio Media

 to display the main

page.

Press the "

OPTIONS

" button to go to the

secondary page.

Activate/deactivate "

FM-DAB Follow-up

".

Press in the shaded area to confirm.



If "FM-DAB Follow-up" is activated, there

may be a time offset of a few seconds

when the system switches to "FM" analogue

radio, and in some cases a change in volume.

When the digital signal quality is restored, the

system automatically changes back to "DAB".

To minimise this time lag, storing radio

stations in the "DAB" band is recommended.

If the "DAB" station being listened to is

not available on "FM", or if "FM-DAB

Follow-up" is not activated, the sound will cut

out when the digital signal becomes too weak.

Media

USB port

Insert the USB memory stick into the USB

port or connect the USB device to the

USB port using a suitable cable (not supplied).

To protect the system, do not use a USB

hub.

The system builds playlists (in temporary

memory); this operation can take from a

few seconds to several minutes at the first

connection.

204

CITROËN Connect Radio

Reduce the number of non-music files and the

number of folders to reduce the waiting time.

Playlists are updated whenever the ignition

is switched off or a USB memory stick is

connected. The audio system memorises these

lists, which will subsequently load faster if they

have not been changed.

Auxiliary (AUX) jack socket

Depending on equipment

Connect a portable device (MP3 player,

etc.) to the auxiliary jack socket using an

audio cable (not supplied).

This source is only available if "Auxiliary input"

has been selected in the audio settings.

First adjust the volume on the portable device

(to a high level). Then adjust the volume of the

audio system.

Controls are managed via the portable device.

Selecting the source

Press

Radio Media

 to display the main

page.

Press the "

SOURCES

" button.

Select the source.

BluetoothStreaming

®

Streaming allows you to listen to the audio feed

from your smartphone.

The Bluetooth profile must be activated.

First adjust the volume on the portable device

(to a high level). Then adjust the volume of the

system.

If play does not start automatically, it may be

necessary to start the audio playback from the

smartphone.

Control is from the portable device or by using

the system's touch buttons.

Once connected in Streaming mode, the

smartphone is considered to be a media

source.

Connecting Apple

®

 players

Connect the Apple

®

 player to the USB socket

using a suitable cable (not supplied).

Play starts automatically.

Control is via the audio system.

The classifications available are those of

the portable device connected (artists/

albums/genres/playlists/audio books/

podcasts). It is also possible to use a

classification structured in the form of a

library.

The default classification used is by artist. To

modify the classification used, return to the

first level of the menu then select the desired

classification (playlists for example) and

confirm to go down through the menu to the

desired track.

The version of software in the audio system may

not be compatible with the generation of the

Apple

®

 player.

Information and advice

The system supports USB mass storage

devices, BlackBerry

®

 devices or Apple

®

 players

via the USB ports. The adapter cable is not

supplied.

Devices are managed using the audio system

controls.

Other devices, not recognised on connection,

must be connected to the auxiliary socket using

a jack cable (not supplied) or via Bluetooth

streaming, if compatible.

To protect the system, do not use a USB

hub.

The audio system will only play audio files with

".wav", ".wma", ".aac", ".ogg" and ".mp3" file

extensions, at bit rates between 32 Kbps and

320 Kbps.

It also supports VBR (Variable Bit Rate) mode.

No other file types (".mp4", etc.) can be read.

All ".wma" files must be standard WMA 9 files.

The supported sampling rates are 11, 22, 44 and

48 KHz.

To avoid reading and display problems, we

recommend choosing file names less than 20

characters long that do not contain any special

characters (e.g. “ ? . ; ù).

Use only USB memory sticks in FAT32 format

(File Allocation Table).

We recommend using the original USB

cable for the portable device.

205

CITROËN Connect Radio

10

Telephone

USB sockets

Depending on equipment, for more information

on the USB sockets compatible with

CarPlay

®

 or

Android Auto

 applications, refer to the "Ease of

use and comfort" section.

For the list of compatible smartphones,

visit the Manufacturer's website in your

country.

Synchronising a smartphone enables

users to display applications that support

the smartphone’s CarPlay

®

 or Android Auto

technology on the vehicle’s screen. For

CarPlay

®

 technology, the CarPlay

®

 function

must first be activated on the smartphone.

Unlock the smartphone for the communication

process between the smartphone and the

system to work.

As principles and standards are constantly

changing,

we recommend keeping the

smartphone's operating system up-to-

date, together with the date and time on

the smartphone and the system

.

CarPlay

®

 smartphone

connection

Depending on country.

On connecting the USB cable, the

CarPlay

®

 function deactivates the

system's Bluetooth

®

 mode.

The "

CarPlay

" function requires the use of

a compatible smartphone and compatible

applications.

Connect the USB cable. The smartphone

charges when connected by the USB

cable.

From the system, press

Telephone

 to

display the CarPlay

®

 interface.

Or

If the smartphone has already connected

by Bluetooth

®

.

Connect the USB cable. The smartphone

charges when connected by the USB

cable.

From the system, press "

Telephone

" to

display the main page.

Press the "

PHONE

" button to go to the

secondary page.

Press "

CarPlay

" to display the CarPlay

®



interface.

When the USB cable is disconnected

and the ignition is switched off then back

on, the system will not automatically switch to

Radio Media mode; the source must be

changed manually.

The CarPlay

®

 navigation can be accessed

at any time by pressing the system's

Navigation

 button.

Android Auto smartphone

connection

Depending on country.

On the smartphone, download the

Android Auto application.

The "Android Auto" function requires the

use of a compatible smartphone and

applications.

Telephone not connected by

Bluetooth

®

Connect a USB cable. The smartphone

charges when connected by a USB cable.

From the system, press "

Telephone

" to

display the main page.

Press "

Android Auto

" to start the

application in the system.

Depending on the smartphone, it may be

necessary to activate the "

Android Auto

"

function.

During the procedure, several screen

pages relating to certain features are

displayed.

Accept to start and complete the connection.

When connecting a smartphone to the

system, we recommend enabling

Bluetooth

®

 on the smartphone.

Telephone connected by Bluetooth

®

From the system, press "

Telephone

" to

display the main page.

206

CITROËN Connect Radio

Press the "

PHONE

" button to display the

secondary page.

Press "

Android Auto

" to start the

application in the system.

Access to the different audio sources remains

available in the margin of the Android Auto

display, using the touch buttons located in the

upper bar.

Access to the menus for the system is possible

at any time using the dedicated buttons.

There may be a pause before

applications become available,

depending on the quality of the network.

Pairing a Bluetooth

®



telephone

The services available depend on the

network, the SIM card and the

compatibility of the Bluetooth devices used.

Consult the telephone user guide and the

service provider to check which services are

available.

The Bluetooth function must be activated

and the telephone configured as "Visible

to all” (in the telphone settings).

To complete the pairing, whichever procedure is

used (from the telephone or from the system),

ensure that the code is the same in the system

and in the telephone.

If the pairing procedure fails, we

recommend deactivating and then

reactivating the Bluetooth function on the

telephone.

Procedure from the telephone

Select the name of the system in the list

of detected devices.

In the system, accept the connection request

from the telephone.

Procedure from the system

Press

Telephone

 to display the main

page.

Press "

Bluetooth search

".

The list of detected telephones is

displayed.

Select the name of the chosen telephone

in the list.

Connection sharing

The system offers to connect the telephone with

3 profiles:

– "

Telephone

" (hands-free kit, telephone only),

– “

Streaming

" (streaming: wireless playing of

audio files on the telephone),

– "

Mobile internet data

".

Select one or more profiles.



Press "

OK

" to confirm.



Depending on the type of telephone, you may by

prompted to accept the transfer of contacts and

messages.

The ability of the system to connect just

one profile depends on the telephone.

All three profiles may connect by default.

The profiles compatible with the system

are: HFP, OPP, PBAP, A2DP, AVRCP,

MAP and PAN.

Visit the Brand's website for more information

(compatibility, additional help, etc.).

Automatic reconnection

On returning to the vehicle, if the last telephone

connected is present again, it is automatically

recognised and within about 30 seconds

after switching on the ignition, the pairing is

established automatically (Bluetooth activated).

To modify the connection profile:

Press

Telephone

 to display the main

page.

Press the "

PHONE

" button to access the

secondary page.

Press "

Bluetooth connection" to

display the list of paired devices.

Press the "Details" button for a paired

device.

Select one or more profiles.



207

CITROËN Connect Radio

10

Press "

OK

" to confirm.



Managing paired telephones

This function lets you connect or disconnect a

device or delete a pairing.

Press

Telephone

 to display the main

page.

Press the "

PHONE

" button to access the

secondary page.

Press "

Bluetooth connection" to

display the list of paired devices.

Press on the name of the telephone

selected in the list to disconnect it.

Press again to connect it.

Deleting a telephone

Press the basket at the top right of the

screen to display a basket alongside the

telephone chosen.

Press the basket alongside the telephone

chosen to delete it.

Receiving a call

An incoming call is announced by a ring and a

superimposed display in the screen.

Make a short press on the steering

mounted

PHONE

 button to accept an

incoming call.

And

Make a long press

on the steering mounted

PHONE

 button

to reject the call.

Or

Press "

End call

".

Making a call

Using the telephone is not recommended

while driving.

Parking the vehicle.

Make the call using the steering mounted

controls.

Calling a new number

Press

Telephone

 to display the main

page.

Enter the phone number using the digital

keypad.

Press "

Call" to start the call.



Calling a contact

Press

Telephone

 to display the main

page.

Or press and hold

the steering mounted

PHONE

 button.

Press "

Contacts

".

Select the desired contact from the displayed list.

Press "

Call

".

Calling a recently used

number

Press

Telephone

 to display the main

page.

Or

Press and hold

the steering mounted button.

Press "

Recent calls

".

Select the desired contact from the displayed list.

It is always possible to make a call

directly from the telephone; as a safety

measure, first park the vehicle.

Setting the ringtone

Press

Telephone

 to display the main

page.

Press the "

OPTIONS

" button to access the

secondary page.

Press "

Ring volume

" to display the

volume bar.

Press the arrows or move the slider to set

the ring volume.

208

CITROËN Connect Radio

Settings

Configuring profiles

Press

Settings

 to display the main page.

Press "

Profiles

".

Select "

Profile 1

", "

Profile 2

", "

Profile 3

” or

"

Common profile

".

Press this button to enter a name for the

profile using the virtual keypad.

Press "

OK

" to save.

Press the back arrow to confirm.



Press this button to activate the profile.



Press the back arrow again to confirm.



Press this button to reset the selected

profile.

Adjusting the brightness

Press

Settings

 to display the main page.

Press

Brightness

.

Move the slider to adjust the brightness of

the screen and/or the instrument panel

(depending on version).

Press in the shaded area to confirm.



Modifying system settings

Press

Settings

 to display the main page.

Press "

Configuration

" to access the

secondary page.

Press "

System configuration

".

Press the "

Units

" tab to change the units of

distance, fuel consumption and temperature.

Press the "

Factory settings

" tab to restore the

initial settings.

Returning the system to factory settings

activates the English language by default

(depending on version).

Press the "

System info

" tab to display the

versions of the various modules installed in the

system.

Press the "

Privacy

" tab,

or

Press

Settings

 to display the main page.

Press "

Privacy

" to activate or deactivate

the private data mode.

Activate or deactivate:

– "

No sharing (data, vehicle position)

".

– "

Only data sharing

”

– "

Data and vehicle position sharing

"

Press the back arrow to confirm.



Press

Settings

 to display the main page.

Press "

Configuration

" to access the

secondary page.

Press "

Screen configuration

".

Press "

Brightness

".

Move the slider to adjust the brightness of

the screen and/or the instrument panel

(depending on version).

Press the back arrow to confirm.



Press "

Animation

".

Activate or deactivate: “

Automatic

scrolling

”.

Select "

Animated transitions

".

Press the back arrow to confirm.



Selecting the language

Press

Settings

 to display the main page.

Press "

Configuration

" to access the

secondary page.

Select "

Language

" to change the

language.

Press the back arrow to confirm.



Setting the time

Press

Settings

 to display the main page.

209

CITROËN Connect Radio

10

Press "

Configuration

" to access the

secondary page.

Press "

Date and time

".

Select "

Time

".

Press this button to set the time using the

virtual keypad.

Press "

OK

" to save the time.

Press this button to set the time zone.

Select the display format for the time

(12h/24h).

Activate or deactivate summer time (+1

hour).

Activate or deactivate GPS

synchronisation (UTC).

Press the back arrow to save the settings.

The system may not automatically

manage the change between winter and

summer time (depending on the country of

sale).

Setting the date

Press

Settings

 to display the main page.

Press "

Configuration

" to access the

secondary page.

Press "

Date and time

".

Select "

Date

".

Press this button to set the date.

Press the back arrow to save the date.

Select the display format for the date.

Press the back arrow again to confirm.



Time and date setting is only available if

"GPS Synchronisation:" is deactivated.

Frequently asked

questions

The following information groups together the

answers to the most frequently asked questions

concerning the system.

Radio

The reception quality of the tuned radio

station gradually deteriorates or the station

presets are not working (no sound, 87.5 MHz

is displayed, etc.).

The vehicle is too far from the selected station’s

transmitter, or no transmitter is present in the

geographical area.

►  Activate the "RDS" function in the upper bar

to enable the system to check whether there is

a more powerful transmitter in the geographical

area.

The environment (hills, buildings, tunnels,

basement car parks, etc.) is blocking reception,

including in RDS mode.

This is a perfectly normal phenomenon, and is

not indicative of an audio system malfunction.

The aerial is missing or has been damaged

(for example while entering a car wash or

underground car park).

►  Have the aerial checked by a dealer.

I cannot find some radio stations in the list of

received stations.

The name of the radio station changes.

The station is no longer received or its name has

changed in the list.

►  Press the round arrow on the "List" tab on the

"Radio" page.

Some radio stations send other information

in place of their name (the title of the song for

example).

The system interprets these details as the station

name.

►  Press the round arrow on the "List" tab on the

"Radio" page.

Media

Playback of my USB memory stick starts only

after a very long wait (around 2 to 3 minutes).

Some files supplied with the memory stick may

greatly slow down access to reading the memory

stick (multiplication by 10 of the cataloguing

time).
