Practical information



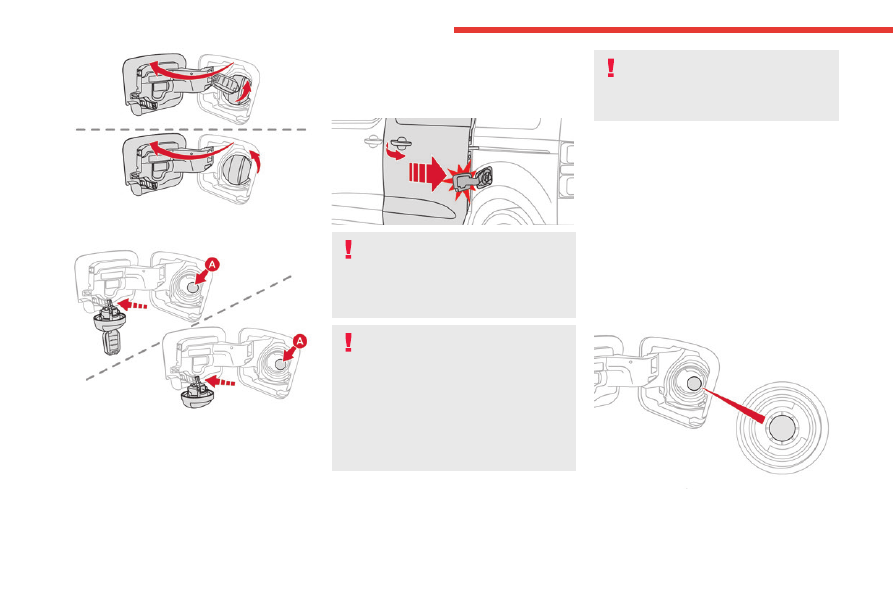

►  With a conventional key, insert the key into

the filler cap, then turn the key to the left.





►  Unscrew and remove the filler cap, then

place it on the holder located on the fuel filler

flap.

►  Insert the nozzle and push it in fully (while

pushing on the metal valve

A

).

►  Fill the tank. Do not continue past the

third cut-off of the nozzle, as this may cause

malfunctions.

►  Put the filler cap back in place and close it by

turning to the right.

►  Push the fuel filler flap to close it (your

vehicle must be unlocked).





If the vehicle is equipped with a sliding

door on its left-hand side, do not open it

while the fuel filler flap is open (risk of

damaging the fuel filler flap and the sliding

door and risk of injuring the person filling up).

If the fuel filler flap is open and you try to

open the left-hand side door, a

mechanism prevents it from being opened.

The door can be opened half-way, however.

With a mechanical door, close the fuel filler

flap to regain use of the door.

With an electric door, to be able to use it

correctly, close the fuel filler flap and then

press an opening control.

The vehicle is fitted with a catalytic converter,

which helps to reduce the level of harmful

emissions in the exhaust gases.

If you have put in the wrong fuel for

your vehicle, you must have the fuel

tank drained and filled with the correct fuel

before starting the engine.

Fuel cut-off

Your vehicle is fitted with a safety system that

cuts off the supply of fuel in the event of an

impact.

Diesel misfuel prevention

Mechanical device which prevents filling the tank

of a Diesel vehicle with petrol. It helps avoid the

risk of engine damage that can result from filling

with the wrong fuel.

Located in the filler neck, the misfuel prevention

device appears when the filler cap is removed.





When a petrol filler nozzle is introduced into the

fuel filler neck of your Diesel vehicle, it comes

into contact with the flap. The system remains

closed and prevents filling.

179

Practical information

7

Do not persist but introduce a Diesel type

filler nozzle.

It is still possible to use a fuel can to fill

the tank slowly.

In order to ensure a good flow of fuel, do

not place the nozzle of the fuel can in direct

contact with the flap of the misfuel prevention

device.

Travelling abroad

As Diesel fuel pump nozzles may be

different in other countries, the presence

of the misfuel prevention device may make

refuelling impossible.

Before travelling abroad, it is advisable to

check with a CITROËN dealer if the vehicle is

suitable for the distribution equipment of the

countries visited.

Charging system

(Electric)

400 V electrical system

The electric drive system, which operates at a

voltage of approximately 400 V, is identified by

orange cables and its components are marked

with this symbol:





An electric vehicle’s power train can

become hot during use and after

switching off the ignition.

Comply with the warning messages shown

on the labels, particularly inside the charging

flap.

High voltage system voltage is

dangerous and can cause burns or other

injuries or even fatal electric shock.

Since damage to high voltage components is

not visible, CITROËN recommends that you:

–  Never touch the components, damaged

or not, and never let your jewelry or other

metallic objects come into contact with these

components.

–  Never work on the orange high voltage

cables or on any other high voltage

component marked with the Electric risk label.

Any intervention on the high voltage system

must be carried out by qualified persons in

workshops qualified and approved to carry

out this type of work.

–  Never damage, modify or remove the

orange high voltage cables or disconnect

them from the high voltage network.

–  Never open, modify or remove the cover of

the traction battery.

–  Never work with cutting and forming

tools or heat sources near high voltage

components and cables.

In case of low level of fluid in the cooling

tank, the refilling shall only be performed in a

qualified and trained workshop to verify that

the leakage is not in the traction battery.

Any intervention on the high voltage system

must be carried out by qualified persons in

workshops qualified and approved to carry

out this type of work.

Damage to the vehicle or the traction battery

could result in the leakage of toxic gases or

fluids either immediately or later. CITROËN

recommends that you:

–  Always inform the fire and emergency

services in the event of an incident, warning

that the vehicle is equipped with a traction

battery.

–  Never touch the liquids leaking from the

traction battery.

–  Do not inhale the gases emitted by the

traction battery which are toxic.

–  Move away from the vehicle in the event of

incident or accident, the gases emitted being

flammable and could cause a fire.



180

Practical information



This label is intended solely for use by

firefighters and maintenance services in

the event of any work on the vehicle.

No other person must touch the device shown

on this label.

In the event of an accident or impact

to the vehicle’s underbody

In these situations, the electrical circuit or the

traction battery can be seriously damaged.

Stop as soon as it is safe to do so and switch

off the ignition.

Contact a CITROËN dealer or a qualified

workshop.

In the event of exposure to a fire

Immediately exit and evacuate all

passengers from the vehicle. Never attempt

to fight the fire yourself - risk of electrocution!

You must immediately contact the emergency

services, informing them that the incident

involves an electric vehicle.

When washing

Before washing the vehicle, always

check that the charging flap is closed

correctly.

Never wash the vehicle while the battery is

on charge.

High-pressure washing

To avoid damaging the electrical

components, it is expressly prohibited to

use high-pressure washing in the engine

compartment or under the body.

Do not use a pressure greater than 80 bar

when washing the bodywork.

Never allow water or dust to enter the

connector or charging nozzle - risk of

electrocution or fire!

Never connect / disconnect the charging

nozzle or cable with wet hands - risk of

electrocution!

Traction battery

This battery stores the energy that powers

the electric motor and the thermal comfort

equipment in the passenger compartment. It is

discharged during use, and must therefore be

regularly recharged. There is no need to wait

for the traction battery to fall to its reserve level

before recharging.

The range of the battery may vary according

to the type of driving, the route, the use of

thermal comfort equipment and the ageing of its

components.

The lifespan of the traction battery

depends on multiple factors, such as

climatic conditions, distance travelled and

how often it has been fast-charged.

To preserve the mileage of your vehicle

and the durability of your traction battery,

CITROËN recommends that you:

–  Do not fully charge the battery of your

electric vehicle daily (charge the traction

battery below 80% as often as possible).

–  Do not completely discharge the battery.

–  Do not store the vehicle for a long period

of non-use (more than 12 hours) when the

traction battery has a low or high charge level.

Prefer a charge level between 20 and 40%.

–  Limit the use of fast charging.

–  Do not expose the vehicle to temperatures

below -30°C and above +60°C for more than

24 hours.

–  Avoid charging the vehicle at negative

temperatures (except if the vehicle ran more

than 20 minutes) or above +30°C.

–  Do not use the vehicle's traction battery as

a generator of energy.

–  Do not use a generator to recharge your

vehicle's traction battery.

181

Practical information

7

In the event of damage to the traction

battery

It is strictly prohibited to work on the vehicle

yourself.

Do not touch liquids coming from the battery,

and in the event of skin contact with these

products, wash abundantly with water and

contact a doctor as soon as possible.

Contact a CITROËN dealer or a qualified

workshop to have the system checked.

Disposal of the traction battery

The traction battery is designed for the life of the

vehicle if the recommendations of CITROËN are

followed.

If it becomes necessary to replace the battery,

contact the CITROËN dealer for instructions on

its disposal. Improper disposal carries the risk of

severe burns, electric shock, and damage to the

environment.

In accordance with regulations, CITROËN

ensures a second life or recycling of this

component in collaboration with qualified

operators.

Charging connectors and

indicator lamps





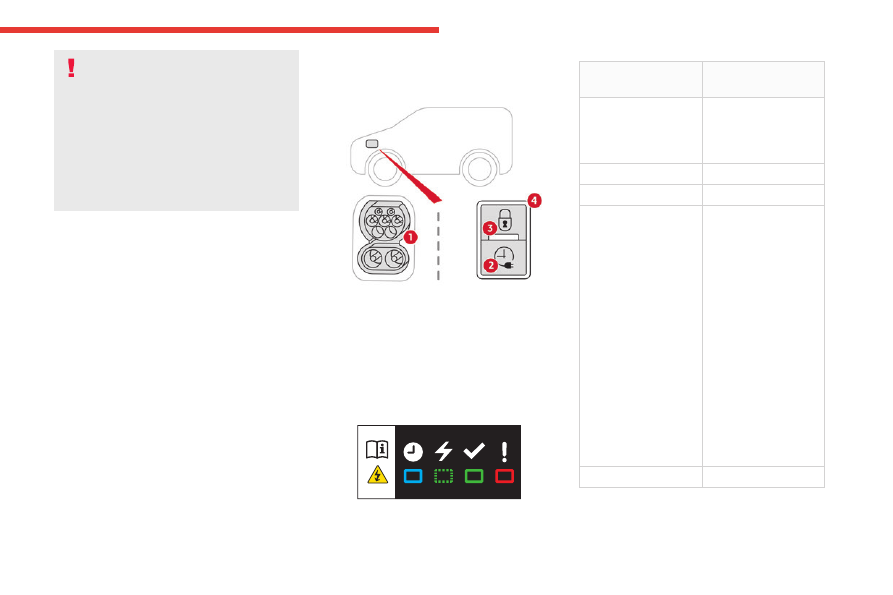

1.

Charging connectors (Electric)

2.

Deferred charging activation button

3.

Nozzle locking indicator lamp

Fixed red: nozzle positioned correctly and

locked in the connector.

Flashing red: nozzle incorrectly positioned or

locking not possible.

4.

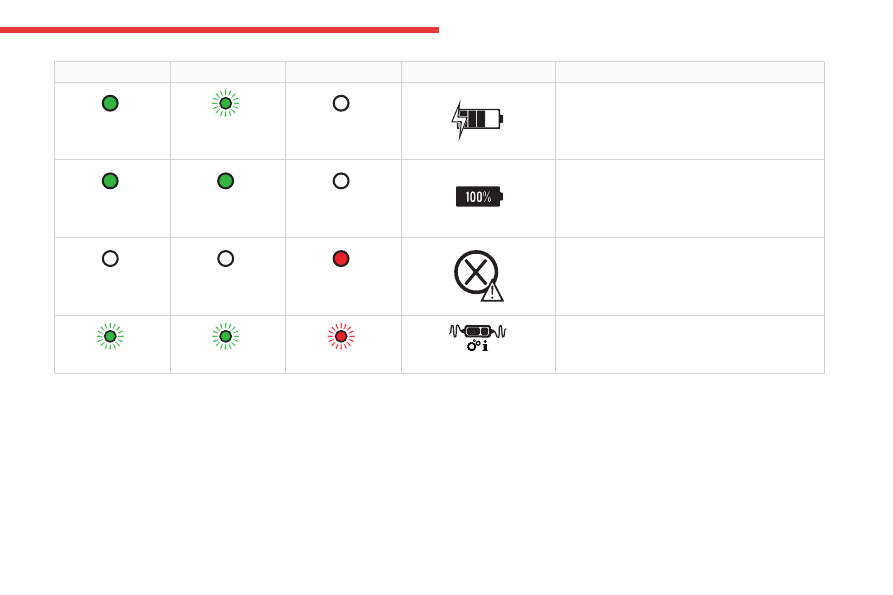

Charging indicator lamp





State of charging

indicator lamp

Meaning

Fixed white

Welcome lighting on

opening the flap and

disconnecting the

charging cable.

Fixed blue

Deferred charging.

Flashing green

Charging.

Fixed green

Charging complete.

The charging

indicator lamp goes

off after about 2

minutes as the

vehicle's functions go

into standby.

The indicator lamp

comes on again

when the vehicle is

unlocked with the

Keyless Entry and

Start system or when

a door is opened

to indicate that

the battery is fully

charged.

Fixed red

Malfunction.

182

Practical information

In case of impact, even light, against the

charging flap, do not use it.

Do not dismantle or modify the charging

connector - risk of electrocution and/or fire!

Contact a CITROËN dealer or a qualified

workshop.

Charging cables, sockets

and chargers

The charging cable supplied with the vehicle

(depending on version) is compatible with the

electrical systems in the country of sale. When

travelling abroad, check the compatibility of local

electrical systems with the charging cable.

A full range of charging cables is available from

your dealer.

Contact a CITROËN dealer or a qualified

workshop for more information and to obtain

suitable charging cables.

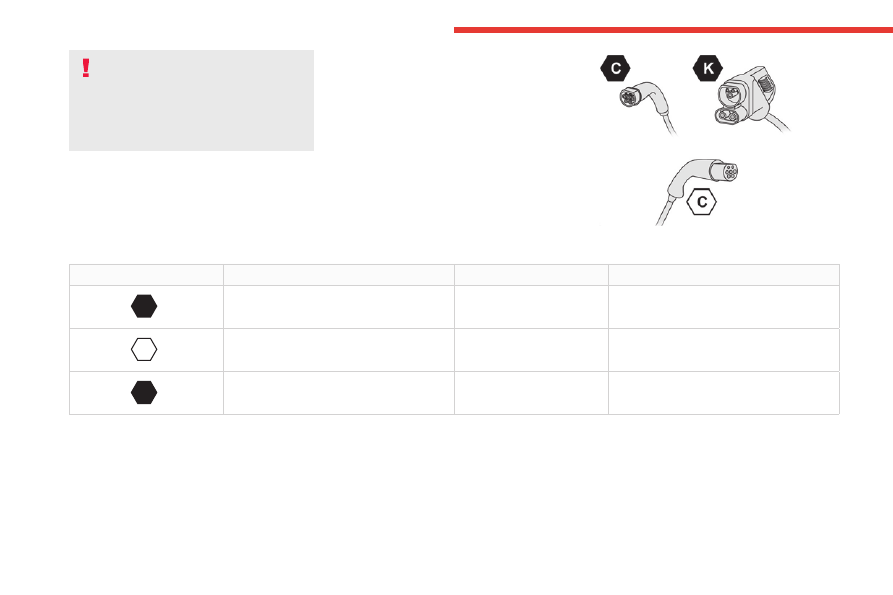

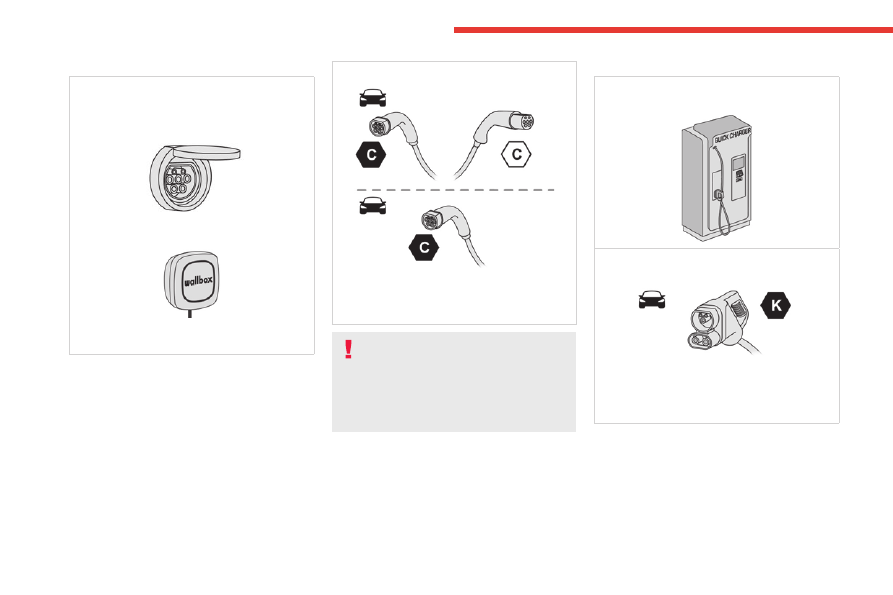

Identification labels on charging

sockets/connectors

Identification labels are affixed to the vehicle,

charging cable and charger to inform the user

about which device needs to be used.









The meaning of each identification label is as

follows:

Identification label

Location

Configuration

Power type/Voltage range



C



Charging connector (vehicle side)

TYPE 2

AC

< 480 Vrms



C



Charging socket (charger side)

TYPE 2

AC

< 480 Vrms



K



Charging connector (vehicle side)

COMBO 2 (FF)

DC

50 V – 500 V

183

Practical information

7

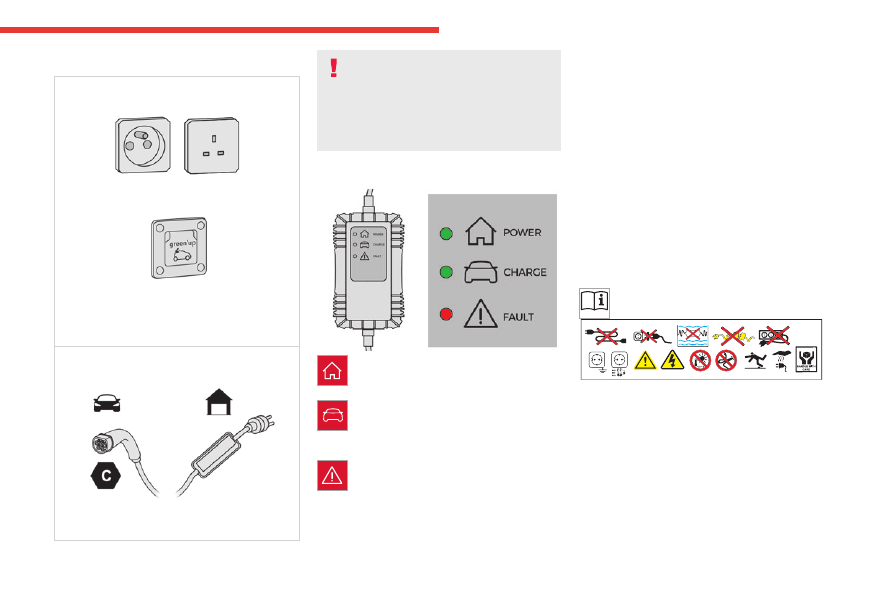

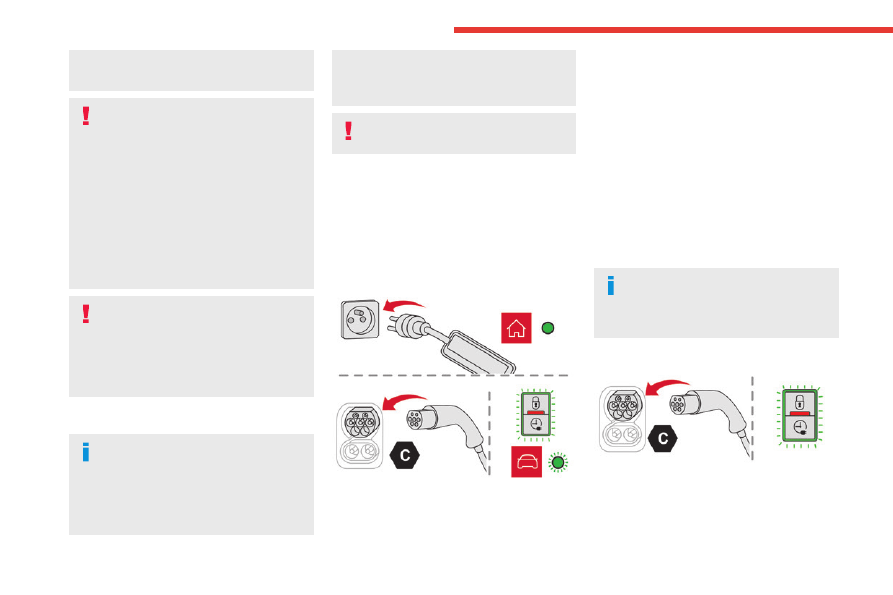

Standard charging, mode 2

Domestic socket

(standard charging - alternating current (AC))





Mode 2 with a standard socket: 8 A maximum

charging current.





Mode 2 with a Green'Up socket: 16 A

maximum charging current.

To have this type of socket installed, call a

professional installer.

Specific domestic charging cable - mode

2 (AC)





Identification label

C

 on the charging

connector (vehicle side).

Specific domestic charging cable

(mode 2)

You must not damage the cable.

In the event of damage, do not use it and

contact a CITROËN dealer or a qualified

workshop to replace it.

Control unit (mode 2)





POWER

Green: electrical connection established;

charging can begin.

CHARGE

Flashing green: charging in progress or

temperature pre-conditioning activated.

Fixed green: charging complete.

FAULT

Red: fault; charging not permitted or must

be stopped immediately. Check that everything

is connected correctly and that the electrical

system is not faulty.

If the indicator lamp does not go off, contact a

CITROËN dealer or a qualified workshop.

Upon plugging the charging cable into a

domestic socket, all of the indicator lamps come

on briefly.

If no indicator lamps come on, check the

domestic socket's circuit-breaker:

–  If the circuit-breaker has tripped, contact a

professional to check that the electrical system

is compatible and/or carry out any necessary

repairs.

–  If the circuit-breaker has not tripped, stop

using the charging cable and contact a

CITROËN dealer or a qualified workshop.

Control unit label - Recommendations

Refer to the handbook before use.

1.

Incorrect use of this charging cable may

result in fire, property damage and serious

injury or death by electrocution!

2.

Always use a correctly earthed power

socket, protected by a 30 mA residual

current device.

3.

Always use an electrical socket protected

by a circuit-breaker appropriate for the

electrical circuit’s current rating.

184

Practical information

4.

The weight of the control unit must not be

borne by the electrical socket, plug and

cables.

5.

Never use this charging cable if it is

defective or in any way damaged.

6.

Never attempt to repair or open this

charging cable. It contains no repairable

parts - replace the charging cable if it is

damaged.

7.

Never immerse this charging cable in water.

8.

Never use this charging cable with an

extension cable, a multi-plug socket, a

conversion adaptor or on a damaged

electrical socket.

9.

Do not unplug the plug from the wall as a

means of stopping charging.

10.

Immediately stop charging, by locking and

then unlocking the vehicle using the remote

control key, if the charging cable or wall

socket feel burning hot to the touch.

11.

This charging cable includes components

liable to cause electrical arcing or sparks.

Do not expose to flammable vapours.

12.

Only use this charging cable with CITROËN

vehicles.

13.

Never plug the cable into the wall socket (or

unplug it) with wet hands.

14.

Do not force the connector if it is locked into

the vehicle.

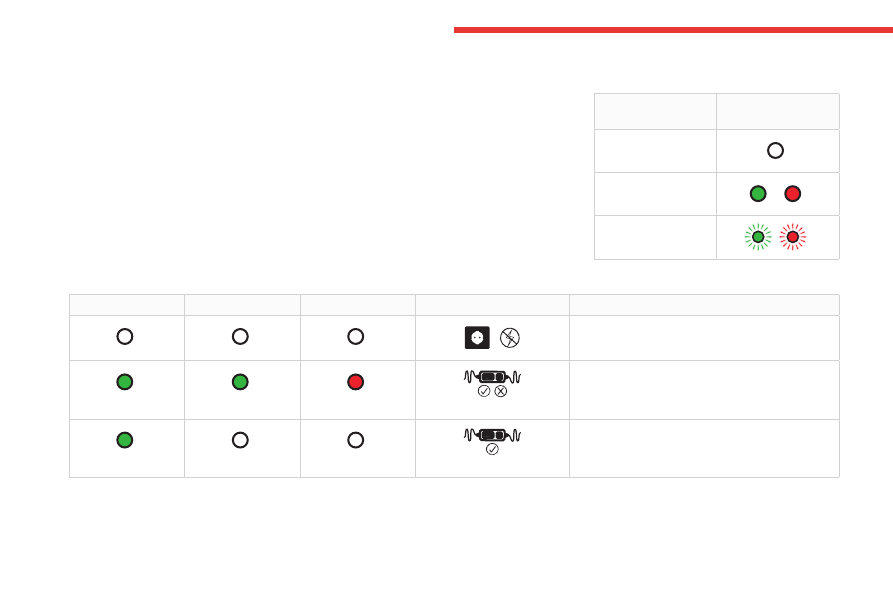

Control unit label - State of indicator

lamps

State of the

indicator lamp

Off





On







Flashing







POWER

CHARGE

FAULT

Symbol

Description

















Not connected to the power supply or power is not

available from the infrastructure.





(green)





(green)





(red)





The control unit is currently performing a self-test.





(green)













Connected only to the infrastructure or to the

infrastructure and to the Electric Vehicle (EV) but

no charging in progress.

185

Practical information

7

POWER

CHARGE

FAULT

Symbol

Description





(green)





(green)









Connected to the power supply and to the Electric

Vehicle (EV).

The EV is on charge or in a temperature pre-

conditioning sequence.





(green)





(green)









Connected to the power supply and to the Electric

Vehicle (EV).

The EV is waiting for charging or the charging of

the EV is completed.













(red)





Control unit malfunction. No charging allowed.

If an error indicator reappears after a manual reset,

the control unit must be checked by a CITROËN

dealer before the next charge.





(green)





(green)





(red)





The control unit is in diagnostic mode.

Manual reset procedure

The control unit can be reset by simultaneously disconnecting the charging connector and the wall socket.

Then, reconnect the wall socket first. For more information, refer to the handbook.

186

Practical information

Accelerated charging, mode 3

Accelerated charging unit (depending on

version)

(accelerated charging - single-phase or three-

phase alternating current (AC))





In mode 3 with an accelerated charging unit:

32 A maximum charging current.





In mode 3 with an accelerated charging unit

(Wallbox): 32 A maximum charging current.

Charging cable, mode 3 (AC)





Identification labels

C

 on the charging

connector (vehicle side) and on the socket

(charger side).

Accelerated charging unit

Do not disassemble or modify the

charging unit - Risk of electrocution and/or

fire!

Refer to the charging unit manufacturer's user

manual for the operating instructions.

Superfast charging, mode 4

Fast public charger

(superfast charging - direct current (DC))





Charging cable, mode 4 (DC)

(integrated into the fast public charger)





Identification label

K

 on the charging

connector (vehicle side).

Only use fast public chargers where the cable

length does not exceed 30 metres.

Charging the traction

battery (Electric)

To recharge, connect the vehicle to a domestic

electricity supply (domestic or accelerated

charging) or to a fast public charger (superfast

charging).

187

Practical information

7

For a full charge, follow the desired charging

procedure without pausing it, until it ends

automatically. Charging can be either immediate

or deferred (except fast public charger, mode 4).

You can stop domestic or accelerated charging

at any time by unlocking the vehicle and

removing the nozzle. For superfast charging,

refer to the fast public charger.

For more information on the charging displays

on the

Instrument panel

 and the

Touch screen

,

refer to the corresponding section.

It is also possible to monitor the charging

progress using the

MyCitroën App



application.

For more information on

Remote functions

,

refer to the corresponding section.

As a safety measure, the engine will not

start if the charging cable is plugged into

the connector on the vehicle. A warning is

displayed on the instrument panel.

Cooling the traction battery

The cooling fan in the engine

compartment comes on during charging to

cool the on-board charger and the traction

battery.

Low load / Driving

Driving when the charge level of the

traction battery is too low can lead to the

vehicle breaking down and can lead to

accidents or serious injuries. ALWAYS make

sure the traction battery has a sufficient

charge level.

Low load / Parking

If the outside temperature is negative,

it is recommended not to park your vehicle

outside for several hours at a low load (less

than 20%).

Vehicle immobilised for 1 to 12

months

Discharge the traction battery down to 2 or

3 bars on the charge level indicator on the

instrument panel.

Do not connect the charging cable.

Always park the vehicle in a place with

temperatures between -10°C and 30°C

(parking in a place with extreme temperatures

can damage the traction battery).

Disconnect the cable from the (+) terminal

of the accessory battery in the engine

compartment.

Connect a 12 V battery charger to the (+)

and (-) terminals of the accessory battery

about every 3 months in order to recharge the

accessory battery and maintain an operating

voltage.

Precautions

Our electric vehicles have been developed in

accordance with the recommendations on the

maximum limits for electromagnetic fields, as

issued by the International Commission on Non-

Ionizing Radiation Protection (ICNIRP - 1998

Guidelines).

Wearers of pacemakers or equivalent

devices

Ask your doctor about what precautions

you should take, or ask the manufacturer

of your implanted electro-medical device about

whether its operation is guaranteed in an

environment which complies with the ICNIRP

recommendations.

If in doubt

Domestic or accelerated charging

: do

not remain inside or near the vehicle, or near

the charging cable or charging unit, even for

a short time.

For domestic or accelerated charging

Before charging

Depending on the context:

►  Have a professional check that the

electrical system to be used complies with

applicable standards and is compatible with

the vehicle.

►  Have a professional electrician install

a dedicated domestic power socket or

accelerated charging unit (Wallbox)

compatible with the vehicle.

You should preferably use the charging cable

available as an accessory.

188

Practical information

For more information, contact a CITROËN

dealer or a qualified workshop.

During charging

While charging is in progress, unlocking

the vehicle will cause the charging to stop.

If no action is taken on one of the openings

(door or boot) or on the charging nozzle, the

vehicle will lock again after 30 seconds and

charging will resume automatically.

Never work under the bonnet:

–  Some areas remain very hot, even an hour

after charging ends - risk of burns!

–  The fan may start at any time - risk of cuts

or strangulation!

After charging

Check that the charging flap is closed.

Do not leave the cable connected to the

domestic power socket - risk of short-circuit

or electrocution in the event of contact with or

immersion in water!

For superfast charging

Before charging

Check that the fast public charging

station and its charging cable are compatible

with the vehicle.

If the exterior temperature is below:

–  0°C, charging times may be extended.

–  -20°C, charging is still possible, but

charging times may be extended even further

(the battery has to be heated first).

After charging

Check that the charging flap is closed.

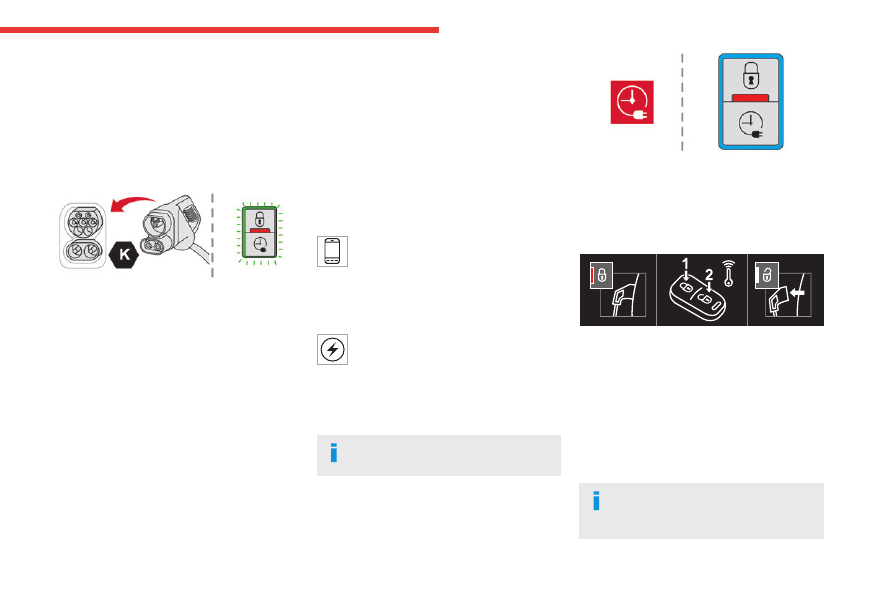

Connection

►  Before

charging, check that the drive selector

is in mode

P

, otherwise charging is not possible.

►  Open the charging flap by pressing the

push-button, and check that there are no foreign

bodies on the charging connector.

Domestic charging, mode 2









►  Connect the charging cable from the control

unit to the domestic socket.

When the connection is made, all of the indicator

lamps on the control unit light up, then only the

POWER

 indicator lamp remains on in green.

►  Remove the protective cover from the

charging nozzle.

►  Insert the nozzle into the charging connector.

The start of charging is confirmed by the flashing

green

CHARGE

 indicator lamps in the flap, then

those on the control unit.

If this is not the case, charging has not

started; restart the procedure, ensuring that all

connections are properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

When charging is complete and while the

charging cable is still connected, opening

the driver's door will display the charge level

on the instrument panel for about 20 seconds.

Accelerated charging, mode 3





►  Follow the accelerated charging unit

(Wallbox) user instructions.

►  Remove the protective cover from the

charging nozzle.

►  Insert the nozzle into the charging connector.

189

Practical information

7

The start of charging is confirmed when the

charging indicator lamp in the flap flashes green.

If this is not the case, charging has not started;

restart the procedure, ensuring that the

connection has been properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

Superfast charging, mode 4





►  Depending on version, remove the protective

cover from the lower part of the connector.

►  Follow the instructions for use of the fast

public charger and connect the cable from the

fast public charger to the vehicle's connector.

The start of charging is confirmed by the flashing

green charging indicator lamp in the flap.

If this is not the case, charging has not started;

restart the procedure, ensuring that the

connection is properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

Deferred charging

Settings

At a CITROËN dealer or qualified

workshop, with Bluetooth

®

 audio system

By default, the deferred charging start time is set

to midnight (vehicle time).

You can have the deferred charging start time

modified.

Visit a CITROËN dealer or a qualified workshop.

On a smartphone or tablet

You can programme the deferred

charging function at any time via the

MyCitroën App

 application.

For more information on

Remote functions

,

refer to the corresponding section.

In the vehicle, with MyCitroën Drive

►  In the

Energy

 touch screen menu,

select the

Charge

 page.

►  Set the charging start time.

►  Press

OK

.

The setting is saved in the system.

Activation

Deferred charging is only possible with

modes 2 and 3.

►  After programming the deferred charging,

connect your vehicle to the desired charging

equipment.





►  Lock the vehicle.

►  Press this button in the flap within one

minute to activate the system (confirmed by the

charging indicator lamp coming on in blue).

Disconnection





Before disconnecting the nozzle from the

charging connector:

►  If the vehicle is unlocked,

lock it and then

unlock it

.

►  If the vehicle is locked, unlock it.

The red indicator lamp in the flap goes out to

confirm that the charging nozzle is unlocked.

►  In modes 2 and 3, remove the charging

nozzle within

30 seconds

.

The charging indicator lamp comes on in white.

With selective door unlocking activated,

press the unlocking button twice to

disconnect the charging nozzle.

190

Practical information

When charging is complete, the green

charging indicator lamp in the flap goes

out after about 2 minutes.

Domestic charging, mode 2

The end of charging is confirmed when the green

CHARGE

 indicator lamp on the control unit and

the green charging indicator lamp in the flap

come on fixed.

►  Replace the protective cover on the charging

nozzle and close the charging flap.

►  Disconnect the control unit end of the

charging cable from the domestic socket.

Accelerated charging, mode 3

The end of charging is indicated by the charging

control unit and by the fixed lighting of the green

indicator lamp in the flap.

►  Hang up the nozzle on the charging unit and

close the charging flap.

Superfast charging, mode 4

The end of charging is indicated by the charger

and by the fixed lighting of the green indicator

lamp in the flap.

►  You can also pause charging by

pressing this button in the flap (in mode 4

only).

►  Hang up the nozzle on the charger.

►  Depending on version, replace the protective

cover on the lower section and close the

charging flap.

When the charging nozzle is

disconnected, a message on the

instrument panel indicates that charging is

complete, even if the charging nozzle was

disconnected before full charging was

completed.

Energy economy mode

This system manages the duration of use of

certain functions, in order to conserve a sufficient

level of charge in the battery with the ignition off.

After switching off the engine and for a maximum

cumulative period of around 30 minutes, you can

continue to use functions such as the audio and

telematics system, dipped beam headlamps or

courtesy lamps.

Selecting the mode

A confirmation message is displayed when

energy economy mode is entered, and the active

functions are placed on standby.

If a telephone call is in progress at the

time, it will be maintained for around 10

minutes via the audio system’s hands-free

system.

Exiting the mode

These functions are automatically reactivated the

next time the vehicle is used.

To restore the use of these functions

immediately, start the engine and let it run:

–  For less than 10 minutes, to use the

equipment for approximately 5 minutes.

–  For more than 10 minutes, to use the

equipment for approximately 30 minutes.

Let the engine run for the specified duration to

ensure that the battery charge is sufficient.

To recharge the battery, avoid repeatedly or

continuously restarting the engine.

A flat battery prevents the engine from

starting.

For more information on the

12 V battery

,

refer to the corresponding section.

Load reduction mode

This system manages the use of certain

functions according to the level of charge

remaining in the battery.

When the vehicle is being driven, the load

reduction function temporarily deactivates certain

functions, such as the air conditioning and the

heated rear screen.

The deactivated functions are reactivated

automatically as soon as conditions permit.

Snow chains

In wintry conditions, snow chains improve

traction as well as the behaviour of the vehicle

when braking.

191

Practical information

7

Snow chains must be fitted only to the

front wheels. They must never be fitted to

"space-saver" type spare wheels.

Observe the legislation in force in your

country relating to the use of snow

chains and maximum authorised speeds.

Only use chains that have been designed for the

type of wheel fitted to your vehicle.

Original tyre size

Type of chain

215/65 R16

12 mm link

215/60 R17

KONIG K-SUMMIT

VAN K84

225/55 R17

You can also use snow socks.

For more information, contact a CITROËN dealer

or a qualified workshop.

Installation tips

►  To fit the snow chains during a journey, stop

the vehicle on a flat surface at the side of the

road.

►  Apply the parking brake and position any

wheel chocks under the wheels to prevent

movement of the vehicle.

►  Fit the snow chains following the instructions

provided by the manufacturer.

►  Move off gently and drive for a few moments,

without exceeding 31 mph (50 km/h).

►  Stop the vehicle and check that the snow

chains are correctly tightened.

It is strongly recommended that you

practise fitting the snow chains on a level

and dry surface before setting off.

Avoid driving with snow chains on roads

that have been cleared of snow to avoid

damaging the vehicle's tyres and the road

surface. If the vehicle is fitted with alloy

wheels, check that no part of the chain or its

fixings is in contact with the wheel rim.

Towing device

Load distribution

►  Distribute the load in the trailer so that the

heaviest items are as close as possible to the

axle, and the nose weight approaches the

maximum permitted without exceeding it.

Air density decreases with altitude, thus reducing

engine performance. The maximum towable load

must be reduced by 10% per 1,000 metres of

altitude.

Use genuine towing devices and wiring

harnesses approved by CITROËN. We

recommend having them fitted by a CITROËN

dealer or a qualified workshop.

If not fitted by a CITROËN dealer, they must

still be fitted in accordance with the vehicle

manufacturer's instructions.

Certain driving or manoeuvring aid functions

are automatically deactivated while an

approved towing system is in use.

Comply with the maximum authorised

towable weight, as indicated on your

vehicle's registration certificate, on the

manufacturer's label and in the

Technical

data

 section of this guide.

Complying with the maximum authorised

nose weight (towball weight) also includes

the use of accessories (bicycle carriers,

tow boxes, etc.).

Observe the legislation in force in the

country where you are driving.

Electric motor

An electric

vehicle may be fitted with a

towing device.

It is therefore possible to tow a trailer or

caravan.

Contact a CITROËN dealer or qualified

workshop for more information and to obtain a

suitable towing device.

Roof bars/Roof rack

As a safety measure and to avoid

damaging the roof, it is essential to use

the roof bars and roof racks approved for your

vehicle.

Observe the instructions on fitting and use

contained in the guide supplied with the roof

bars and racks.

192

Practical information

Recommendations

Distribute the load uniformly, taking care

to avoid overloading one of the sides.

Arrange the heaviest part of the load as close

as possible to the roof.

Secure the load firmly.

Drive gently: the vehicle will be more

susceptible to the effects of side winds and its

stability may be affected.

Regularly check the security and tight

fastening of the roof bars, at least before each

trip.

Remove the roof bars once they are no longer

needed.

As this value may change, please verify

the maximum load quoted in the guide

supplied with the roof bars.

If the height exceeds 40 cm, adapt the speed

of the vehicle to the profile of the road to

avoid damaging the roof bars and the fixings

on the vehicle.

Be sure to refer to national legislation in order

to comply with the regulations for transporting

objects that are longer than the vehicle.

Roof bars

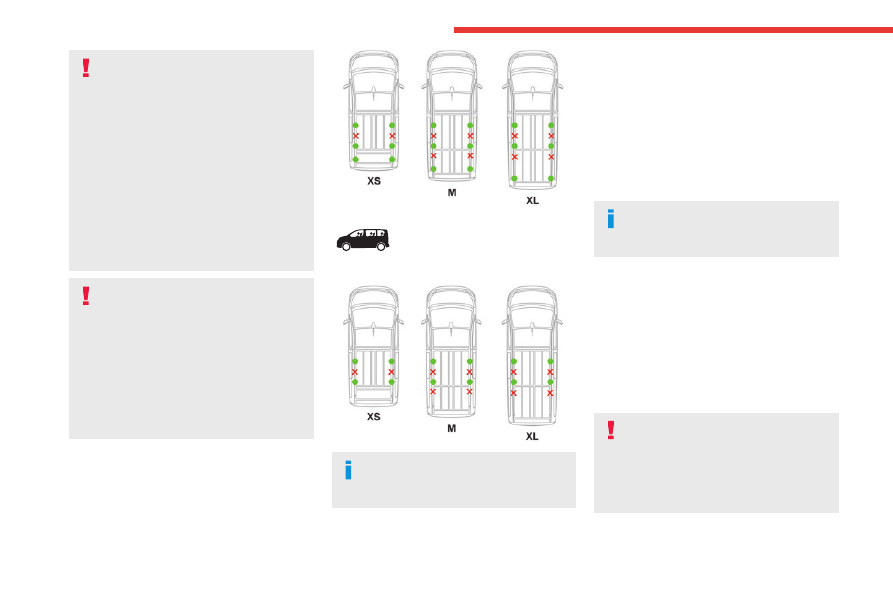

A maximum of 3 roof bars (or 2 bars for the

version with panoramic sunroof) can be installed

- use the positions marked in green.









With panoramic sunroof





Max.

 authorised load weight:

–  over 2 roof bars: 100 kg,

–  distributed over 3 roof bars: 150 kg.

To install the transverse roof bars, use the fixing

points provided for this purpose:

►  Open the fixing covers on each bar.

►  Put each fixing point in place and lock them

to the roof one by one.

►  Ensure that the roof bars are correctly fitted

(by shaking them).

►  Close the fixing covers on each bar.

The bars can be interchanged and are adaptable

to each pair of fixing points.

Roof racks

Max.

 authorised load weight:

–  XS: 140 kg,

–  M and XL: 170 kg.

To fit a roof rack, use the fixing points provided

for this purpose:

►  Place the roof rack on the roof aligned with

the fixing points and secure each one to the roof

in turn.

►  Ensure that the roof rack is correctly fitted (by

shaking it).

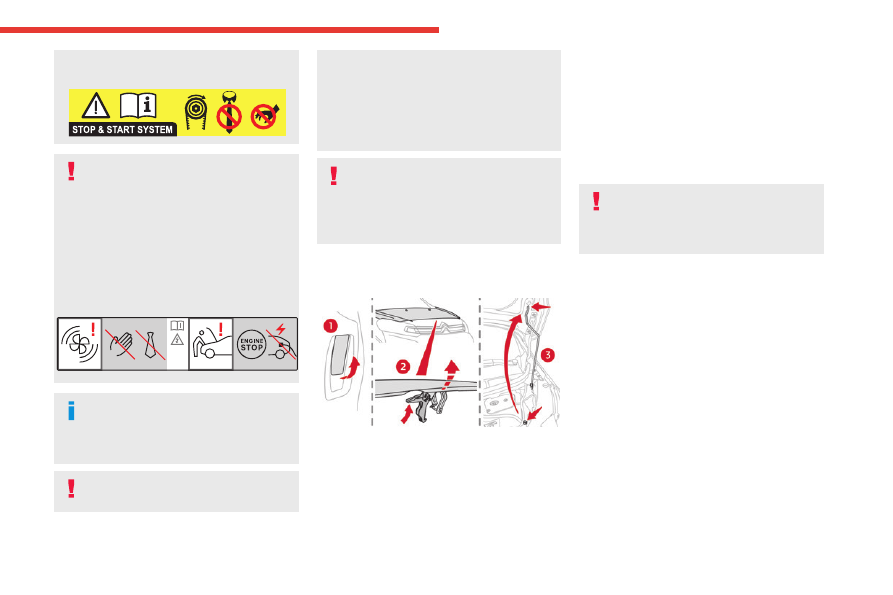

Bonnet

Stop & Start

Before doing anything under the bonnet,

you must switch off the ignition to avoid any

risk of the engine restarting automatically.

Take care with objects or clothing that could

be caught in the blades of the cooling fan

193

Practical information

7

or in certain moving components - risk of

strangulation and serious injury!

Electric motor

Take care with objects or clothing that

could be caught in the blades of the cooling

fan or in certain moving components - risk of

strangulation and serious injury!

Before carrying out any work under the

bonnet, you must switch off the ignition, check

that the

READY

 indicator lamp is off on the

instrument panel and disconnect the nozzle

from the charging connector if it is connected.

The location of the interior bonnet

release lever prevents the bonnet being

opened when the left-hand front door is

closed.

When the engine is hot, handle the

exterior safety catch and the bonnet stay

with care (risk of burns), using the protected

area.

When the bonnet is open, take care not to

damage the safety catch.

Do not open the bonnet under very windy

conditions.

Cooling of the engine when stopped

The engine cooling fan may start after

the engine has been switched off.

Take care with objects or clothing that

could be caught in the blades of the fan!

Opening

►  Open the door.





►  Pull the release lever

1

, located at the bottom

of the door frame, towards you.

►  Tilt the safety catch

2

 upwards, then raise the

bonnet.

►  Unclip the stay

3

 from its housing and place it

in the support slot to hold the bonnet open.

Closing

►  Hold the bonnet and

 pull out the stay from the

support slot.

►  Clip the stay in its housing.

►  Lower the bonnet and release it near the end

of its travel.

►  Pull on the bonnet to check that it is locked

correctly.

Because of the presence of electrical

equipment under the bonnet, it is strongly

recommended that exposure to water (rain,

washing, etc.) be limited.

Engine compartment

The engine shown here is an example for

illustrative purposes only.

The locations of the following components may

vary:

–  Air filter.

–  Engine oil dipstick.

–  Engine oil filler cap.

–  Priming pump.
