Citroen C4 (2016 year). Instruction

Audio and Telematics

303

C4-2_en_Chap10b_SMEGplus_ed02-2015

Level 1

Level 2

Comments

Radio Media

List

List of FM stations

Press on a radio station to select it.

Radio Media

Source

FM Radio

Select change of source

DAB Radio

AM Radio

USB

MirrorLink

CarPlay

iPod

Bluetooth

AUX

Jukebox

Radio Media

Preset

Press an empty location to Preset it.

Audio and Telematics

305

C4-2_en_Chap10b_SMEGplus_ed02-2015

Level 1

Level 2

Level 3

Comments

Radio Media

Secondary page

Radio list

Preset

Press a radio station to select it.

Update list

Update the list of stations received.

Frequency

Enter the desired radio frequency.

Confirm

Save the settings.

Radio Media

Secondary page

Photos

Home screen

Display the selected photo in the home page.

Rotate

Rotate the photo 90°.

Select all

Select all the photos in the list.
Press again to deselect.

Slideshow

Previous photo.

Display the photos in sequence, full screen.
The system supports the following image
formats: .gif, .jpg, .bmp, .png.

Pause / Play.

Next photo.

Full screen

Display the selected photo full-screen.

Radio Media

Secondary page

Manage Jukebox

Sort by folder

Choose a selection mode.

Sort by album

Select all

Copy

Copy files to the Jukebox.

Magnifying glass

Create folder

Choose the desired function.

Rename

Delete

Select all

Confirm

Save the settings.

Audio and Telematics

307

C4-2_en_Chap10b_SMEGplus_ed02-2015

Level 1

Level 2

Level 3

Comments

Radio Media

Secondary page

Media list

Presentation of the last media used.

Radio Media

Secondary page

Settings

Media

Settings

Random (all tracks):

Choose the play settings.

Random (current album):

Loop:

Aux. amplification

Radio

Settings

RDS options

Activate or deactivate the settings.

DAB/FM options

Display Radio Text

Digital radio slideshow
display

Announcements

Settings

Traffic announcements (TA)

Activate or deactivate the settings.

News - Weather

Sport - Programm info

Flash - Unforeseen
events

Confirm

Save the settings.

Audio and Telematics

308

C4-2_en_Chap10b_SMEGplus_ed02-2015

Press on Radio Media to display the
primary page.

Select "Preset

If necessary, select change of
source.

Press on Radio Media to display the
primary page.

Select change source.

"AM Radio

By automatic frequency search

Select "FM Radio

"AM Radio

Press on the secondary page.

Select a preset radio station
in the list.

Select "FM Radio

Select a radio station from
the list offered.

Select "Update list" to refresh the
list.

Select "List

" in the primary page.

Press on Radio Media to display the
primary page.

Radio

Changing a radio frequency

Selecting a station

To select a preset radio station.

THEN

Radio reception may be affected by
the use of electrical equipment not
approved by CITROËN, such as a USB
charger connected to the 12 V socket.
The exterior environment (hills,
buildings, tunnel, car park, below
ground...) may prevent reception,
even in RDS station tracking mode.
This phenomenon is normal in the
propagation of radio waves and is in no
way indicative of a fault with the audio
system.

Select "Radio list" in the secondary
page.

Press 3 or 4

to move the cursor for an

automatic search down or up for a radio
frequency.

Audio and Telematics

309

C4-2_en_Chap10b_SMEGplus_ed02-2015

Select a radio station or frequency (refer to the
corresponding section).

Press on Radio Media to display the
primary page.

Press on the secondary page.

Select "Settings

Select "Radio

Activate/deactivate "RDS
options

Press on Radio Media to display the
primary page.

Press on the secondary page.

Press on "Preset

Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.

Press on Frequency

Enter the frequency in full (e.g.:
92.10 MHz) using the keypad then
"Confirm

Changing radio station
Pressing the name of the current radio station
brings up a list.
To change radio station press the name of the
desired station.

Press on Radio Media to display the
primary page.

Select "Save

Preset a station

Activate/ Deactivate RDS

THEN

A press on this button presets all of
the stations one after the other.

Recall pre-set stations

RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.

Audio and Telematics

310

C4-2_en_Chap10b_SMEGplus_ed02-2015

Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.

Display of "Radiotext" for
the current station.

Manage the Jukebox.
Display current action.

Select the audio source.
Display the "DAB" band.

Display of the name of the
current station.

Short-cut: access to the choice of audio
source and the list of stations (or titles,
depending on the source).

Select the radio station.

Any thumbnail broadcast by
the station.

Preset stations,
buttons 1 to 15.
Short press: select the
preset radio station.
Long press: preset a radio
station.

Next "Multiplex".
Next radio station.

Secondary page.

Display the name and
number of the multiplex
service being used.

Previous "Multiplex".
Previous radio station.

DAB (Digital Audio Broadcasting) radio

If the "DAB" radio station being listened to is not
available on "FM", the "DAB FM" option is greyed out.

Journaline

is a text-based information service designed for digital radio systems.

It provides text-based information structured around topics and sub-topics.
This service is available from the "LIST OF DAB STATIONS" page.

Audio and Telematics

311

C4-2_en_Chap10b_SMEGplus_ed02-2015

Select change of source.

Press on Radio Media to display the
primary page.

Select "DAB Radio

Select "List

" in the primary page.

Select the radio station from the list offered.

Press on Radio Media to display the
primary page.

Press on the secondary page.

Select "Settings

Select "RADIO

Select "Digital/FM auto
tracking" then "Confirm

DAB / FM auto tracking

Digital radio

"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
"DAB / FM auto tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).

If "DAB / FM auto tracking" is activated,
there is a difference of a few seconds
when the system switches to "FM"
analogue radio with sometimes a
variation in volume.
When the digital signal is restored,
the system automatically changes back
to "DAB".

Digital radio provides higher quality
reception and also the graphical display
of current information on the radio
station being listened to. Select "List" in
the primary page.
The range of multiplexes available is
displayed in alphabetical order.

If the "DAB" station being listened to
is not available on "FM" ("DAB/FM"
option greyed out), or "DAB / FM auto
tracking" is not activated, the sound
will cut out while the digital signal is too
weak.

Select "Radio list" in the secondary
page.

Audio and Telematics

312

C4-2_en_Chap10b_SMEGplus_ed02-2015

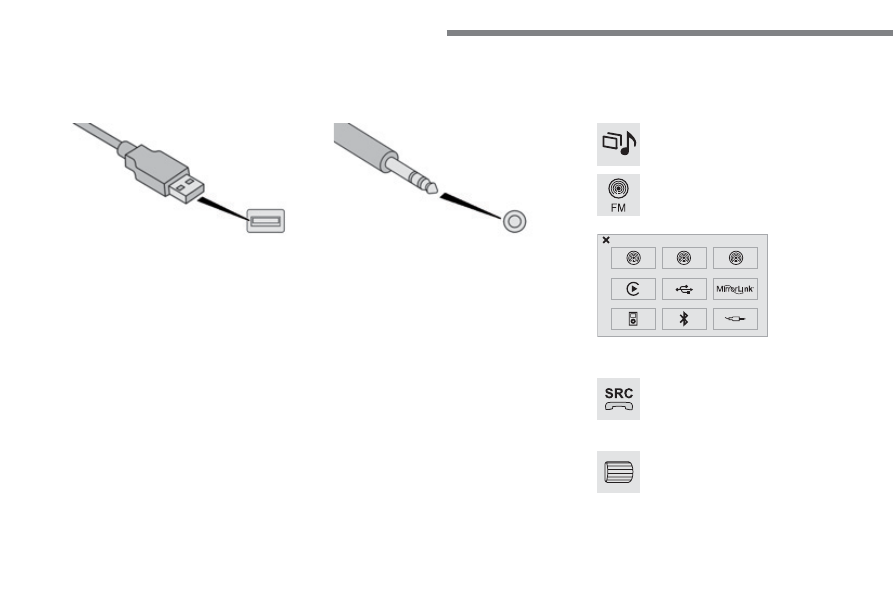

Media

USB player

Selecting the source

The steering mounted SRC (source)
button can be used to go to the next
media source, available if the source
is active.

Select change of source.

Press on Radio Media to display the
primary page.

The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a USB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.

Insert the USB memory stick into the USB port
or connect the USB device to the USB port
using a suitable cable (not supplied).

Auxiliary socket (AUX)

Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).

First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.

Choose the source.

Press OK

to confirm the selection.

CD player

Insert the CD in the player.

Audio and Telematics

313

C4-2_en_Chap10b_SMEGplus_ed02-2015

The audio equipment will only play audio files
with ".wma, .aac, .flac, .ogg and. mp3" file
extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
".wma" files must be of the standard wma 9 type.
The sampling rates supported are 32, 44 and
48 KHz.

It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.

Information and advice

Use only USB memory sticks formatted FAT32
(file allocation table).

The system supports USB mass
storage devices, BlackBerry

devices

or Apple

players via USB ports. The

adaptor cable not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied).

It is recommended that the USB cable
for the portable device is used.

The system does not support the
simultaneous connection of two
identical devices (two memory sticks,
two Apple

players) but it is possible

to connect one memory stick and one
Apple

player at the same time.

In order to be able to play a recorded CDR or
CDRW, when recording it is preferable to select
the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it may
not be played correctly.
It is recommended that the same recording
standard is always used for an individual disc,
with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.

Audio and Telematics

314

C4-2_en_Chap10b_SMEGplus_ed02-2015

Bluetooth

audio streaming

Streaming allows audio files on your telephone
to be played through the vehicle's speakers.

Connect the telephone: see the "Telephone"
section, then "Bluetooth

Choose the "Audio" or "All

" profile.

If play does not start automatically, it may be
necessary to start the audio playback from the
telephone.
Control is from the peripheral device or by
using the audio system buttons.

Once connected in streaming mode,
the telephone is considered to be a
media source.
It is recommended that you activate
"Repeat

" on the Bluetooth peripheral.

Connecting Apple

players

Connect the Apple

player to the USB port

using a suitable cable (not supplied).
Play starts automatically.

Control is via the audio system.

The classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts).
The default classification used is by
artist. To modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.

The version of software in the audio system
may not be compatible with the generation of
your Apple

player.

Audio and Telematics

315

C4-2_en_Chap10b_SMEGplus_ed02-2015

Managing the Jukebox

Connect the device (MP3 player...) to the USB
port or auxiliary Jack socket using a suitable
audio cable.

When no audio file is copied to the
system, which has a capacity of 8 GB,
all of the Jukebox function symbols are
greyed and are not available.

Select "Media list

Select the magnifying glass to enter
the folder or album and select audio
file by audio file.

Select copy "Copy Jukebox

Select "Confirm" then "Copy

Select "Sort by folder

Select "New folder" to create a
folder structure in the Jukebox.

"Sort by album

Select "Keep structure" to retain the
structure from the device.

While copying the system returns
to the primary page; you can go
back to the copy view at any time by
selecting this button.

Audio and Telematics

316

C4-2_en_Chap10b_SMEGplus_ed02-2015

Level 1

Settings

Level 2

Level 3

Audio settings

Choice of color scheme

Audio settings

Audio and Telematics

317

C4-2_en_Chap10b_SMEGplus_ed02-2015

Level 1

Level 2

Level 3

Comments

Settings

Audio settings

Ambience

Choose the sound ambience.

Balance

Sound distribution using the Arkamys

system.

Sound effects

Set the volume or activate the link to vehicle
speed.

Ringtones

Set the telephone ringtone and volume.

Voice

Set the volume and voice for speaking street
names

Confirm

Save your settings.

Settings

Turn off screen

Function that turns off the display.
Pressing the screen reactivates it.

Settings

Color schemes

Confirm

Choose the color scheme, then confirm to save
the setting.

Citroen C4 (2016 year). Instruction - part 20
