Technical data

271

C4-2_en_Chap09_caracteristiques_ed02-2015

Petrol engines and gearboxes

Petrol engine

PureTech 110

VTi 120

PureTech 130 S&S

Gearbox

Manual

(5-speed)

Manual

(5-speed)

Manual

(6-speed)

EAT6

automatic

(6-speed)

Model code:
NC...

HNZ6

HNZ6/1
HNZ6/2

5FS0

HNYM/S

HNYM/1S

HNYT/S

HNYT/1S
HNYT/2S

Cubic capacity (cc)

1 199

1 598

1 199

Bore x stroke (mm)

75 x 90.5

77 x 85.8

75 x 90.5

Max power*: EU standard (kW)

Max power engine speed (rpm)

5 500

6 000

5 500

Max torque: EU standard (Nm)

205

160

230

Max torque engine speed (rpm)

1 500

4 250

1 750

Fuel

Unleaded

Catalytic converter

Yes

Oil capacity in litres
(with filter replacement)

3.5

4.25

3.5

.../S:

model fitted with Stop & Start.

.../1:

model fitted with low rolling resistance tyres.

.../2:

model fitted with very low rolling resistance tyres.

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Technical data

272

C4-2_en_Chap09_caracteristiques_ed02-2015

Petrol weights and towed loads (in kg)

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Petrol engine

PureTech 110

VTi 120

PureTech 130 S&S

Gearbox

Manual

(5-speed)

Manual

(5-speed)

Manual

(6-speed)

EAT6 automatic

(6-speed)

Model code:
NC...

HNZ6

HNZ6/1 -/2

5FS0

HNYM/S

HNYM/1S

HNYT/S

HNYT/1S -/2S

- Unladen weight

1 200

1 205

1 240

- Kerb weight*

1 275

1 280

1 315

- Gross vehicle weight (GVW)

1 770

1 765

1 790

1 810

- Gross train weight (GTW)

on a 12 % gradient

2 970

3 065

3 090

3 110

- Braked trailer (within the GTW limit)

on a 12 % gradient

1 200

1 300

- Braked trailer** (with load transfer within the

GTW limit)

1 450

1 550

- Unbraked trailer

635

640

655

- Recommended nose weight

* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Technical data

273

C4-2_en_Chap09_caracteristiques_ed02-2015

Diesel engines and gearboxes

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Diesel engine

HDi 90

HDi 90 FAP

BlueHDi 100

e-HDi 115

Gearbox

Manual

(5-speed)

Manual

(5-speed)

Manual

(5-speed)

Manual

(6-speed)

Model code:
NC...

9HJC

9HJC/1

9HP0

BHY6

BHY6/1

BHY6/2S

9HD8/S

9HD8/1S
9HD8/2S

Cubic capacity (cc)

1 560

Bore x stroke (mm)

75 x 88.3

Max power*: EU standard (kW)

Max power engine speed (rpm)

4 000

3 750

3 600

Max torque: EU standard (Nm)

230

254

270

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle filter (FAP)

Yes

Oil capacity in litres
(with filter replacement)

3.75

.../S:

model fitted with Stop & Start.

.../1:

model fitted with low rolling resistance tyres (for example: MICHELIN Energy Saver).

.../2:

model fitted with very low rolling resistance tyres.

Technical data

274

C4-2_en_Chap09_caracteristiques_ed02-2015

.../S:

model fitted with Stop & Start.

.../1:

model fitted with low rolling resistance tyres (for example: MICHELIN Energy Saver).

.../2:

model fitted with very low rolling resistance tyres.

Diesel engine

BlueHDi 115 S&S

BlueHDi 120 S&S

BlueHDi 150

S&S

Gearbox

Manual

(6-speed)

EAT6

automatic

(6-speed)

Manual

(6-speed)

EAT6

automatic

(6-speed)

Manual

(6-speed)

Model code:
NC...

BHXM/S

BHXM/1S
BHXM/2S

BHXT/S

BHXT/1S
BHXT/2S

BHZM/S

BHZM/1S
BHZM/2S

BHZT/S

BHZT/1S
BHZT/2S

AHRM/S

AHRM/1S
AHRM/2S

Cubic capacity (cc)

1 560

1 997

Bore x stroke (mm)

75 x 88.3

85 x 88

Max power*: EU standard (kW)

110

Max power engine speed (rpm)

3 500

4 000

Max torque: EU standard (Nm)

300

370

Max torque engine speed (rpm)

1 750

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle filter (FAP)

Yes

Oil capacity in litres
(with filter replacement)

3.75

6.1

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Technical data

275

C4-2_en_Chap09_caracteristiques_ed02-2015

Diesel weights and towed loads (in kg)

Diesel engine

HDi 90

HDi 90 FAP

BlueHDi 100

e-HDi 115

Gearbox

Manual

(5-speed)

Manual

(5-speed)

Manual

(5-speed)

Manual

(6-speed)

Model code:
NC...

9HJC

9HJC/1

9HP0

BHY6

BHY6/1

BHY6/2S

9HD8/S

9HD8/1S

9HD8/2S

- Unladen weight

1 248

1 205

1 200

1 205

1 280

- Kerb weight*

1 323

1 280

1 275

1 280

1 355

- Gross vehicle weight (GVW)

1 745

1 790

1 830

1 840

1 820

- Gross train weight (GTW)

on a 12 % gradient

2 545

2 890

3 130

3 140

3 120

2 220

- Braked trailer (within GTW limit)

on 12 % gradient

800

1 100

1 300

400

- Braked trailer** (with load transfer within the

GTW limit)

1 050

1 350

1 550

600

- Unbraked trailer

640

635

640

670

400

- Recommended nose weight

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Technical data

276

C4-2_en_Chap09_caracteristiques_ed02-2015

Diesel engine

BlueHDi 115 S&S

BlueHDi 120 S&S

BlueHDi 150

S&S

Gearbox

Manual

(6-speed)

EAT6

automatic

(6-speed)

Manual

(6-speed)

EAT6

automatic

(6-speed)

Manual

(6-speed)

Model code:
NC...

BHXM/S

BHXM/1S -/2S

BHXT/S

BHXT/1S -/2S

BHZM/S

BHZM/1S -/2S

BHZT/S

BHZT/1S -/2S

AHRM/S

AHRM/1S -/2S

- Unladen weight

1 280

1 300

1 280

1 300

1 360

- Kerb weight*

1 355

1 375

1 355

1 375

1 435

- Gross vehicle weight (GVW)

1 860

1 880

1 860

1 880

1 925

- Gross train weight (GTW)

on 12 % gradient

3 160

3 080

3 160

3 080

3 425

- Braked trailer (within GTW limit)

on a 12 % gradient

1 300

1 200

1 300

1 200

1 500

- Braked trailer** (with load transfer within the

GTW limit)

1 550

1 450

1 550

1 450

1 750

- Unbraked trailer

675

685

675

685

715

- Recommended nose weight

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Technical data

277

C4-2_en_Chap09_caracteristiques_ed02-2015

Weights and towed loads (in kg)

C4 Enterprise versions (2-seat)

Diesel engine

HDi 90 FAP

HDi 115

e-HDi 115

BlueHDi 100

BlueHDi 120

S&S

Gearbox

Manual

(5-speed)

Manual

(6-speed)

Manual

(6-speed)

Manual

(5-speed)

Manual

(6-speed)

Model code:
NR...

9HP0

9HP0/1

9HD8

9HD8/1

9HD8/1S
9HD7/1S

BHY6/1

BHZM/1S

- Unladen weight

1 313

1 283

1 326

1 389

- Gross vehicle weight (GVW)

1 745

1 810

1 775

1 840

- Payload (including the driver)

432

527

449

451

- Gross train weight (GTW)

on a 12 % gradient

2 845

3 110

3 075

3 090

- Braked trailer (within the GTW limit)

on a 12 % gradient

1 100

1 300

1 250

- Unbraked trailer

635

670

650

685

- Recommended nose weight

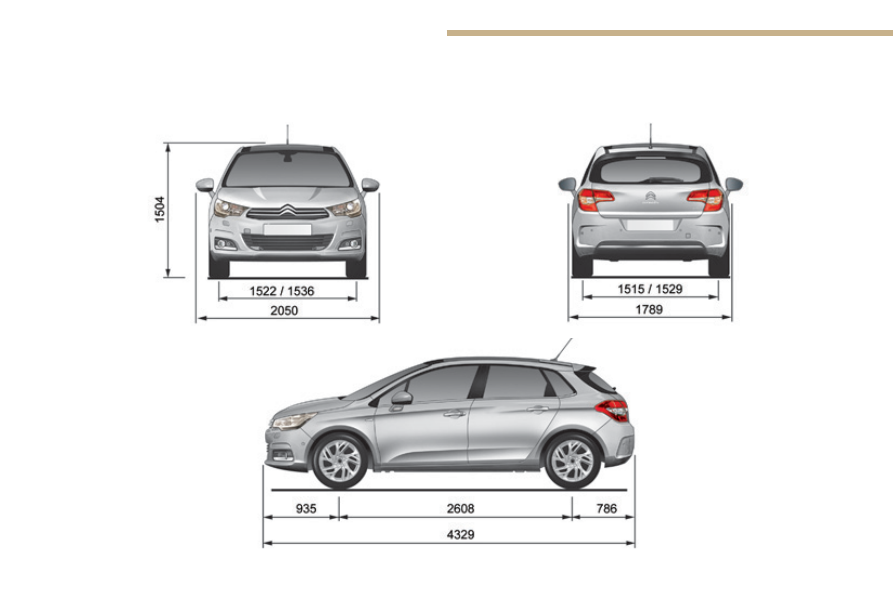

Technical data

279

C4-2_en_Chap09_caracteristiques_ed02-2015

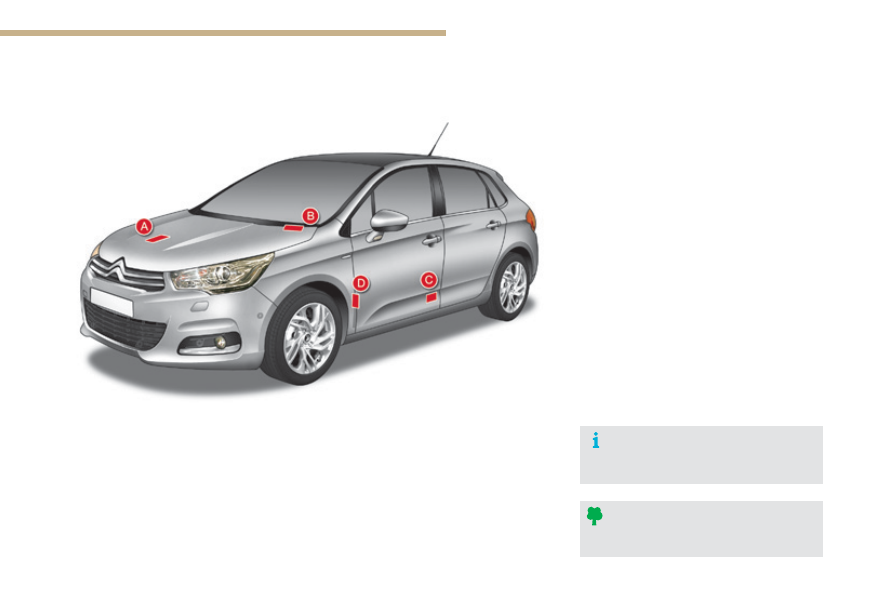

Identification markings

A. Vehicle identification number (VIN) under

the bonnet.

This number is engraved on the bodywork near
the suspension damper mounting.

B. Vehicle identification number on the

dashboard.

This number is indicated on a self-adhesive
label which is visible through the windscreen.

D. Tyre/paint label.
This label is affixed to the driver's front pillar.

C. Manufacturer's label.
The VIN is indicated on a self-destroying label
affixed to the driver's centre pillar.

It bears the following information:
-

the tyre pressures, for unladen and laden
conditions,

- the tyre sizes (including the load index and

speed rating),

the spare tyre inflation pressure,

- the paint colour code.

The tyre pressures must be checked
when the tyres are cold, at least once
a month.

Low tyre pressures increase fuel
consumption.

Various visible markings for the identification of your vehicle.

Audio and Telematics

280

C4-2_en_Chap10a_BTA_ed02-2015

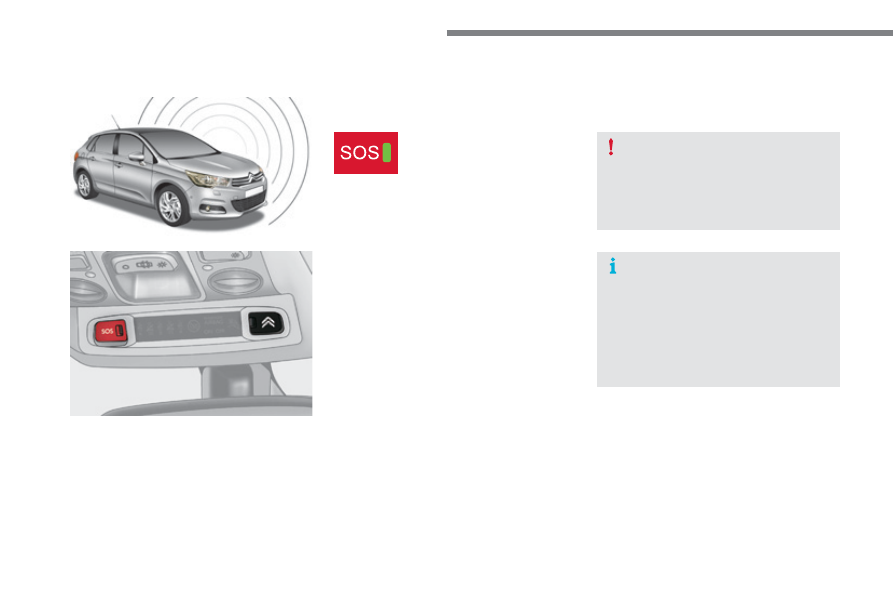

Emergency or assistance call

Localised Emergency Call

In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.

Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.
At any time, pressing this button for more than
8 seconds cancels the call.

The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call.

This call is dealt with by the "Localised
Emergency Call" centre, which receives
locating information from the vehicle and
can send a detailed alert to the appropriate
emergency services.
In countries in which a centre is not
operational, or when the locating service
has been expressly declined, the call is dealt
with directly by the emergency services (112)
without the vehicle location.

If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.

If you benefit from the CITROËN
Connect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyCITROËN personal space, via
the CITROËN Internet website in your
country, accessible on www.citroen.com.

* These services are subject to conditions and

availability.

Consult a CITROËN dealer.

Audio and Telematics

281

C4-2_en_Chap10a_BTA_ed02-2015

Operation of the system

When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.

The orange indicator lamp
flashes then goes off: the system
has a fault.

The orange indicator lamp is on fixed: the back-
up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
Contact a qualified repairer as soon as
possible.

The fault with the system does not
prevent the vehicle being driven.

Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been started*.

* These services are subject to conditions and

availability.

Consult a CITROËN dealer.

Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.

If you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.

For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to carry
out updates to the vehicle's on-board
telematic system.

Localised Assistance Call

Audio and Telematics

283

C4-2_en_Chap10b_SMEGplus_ed02-2015

7-inch touch screen tablet

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

284

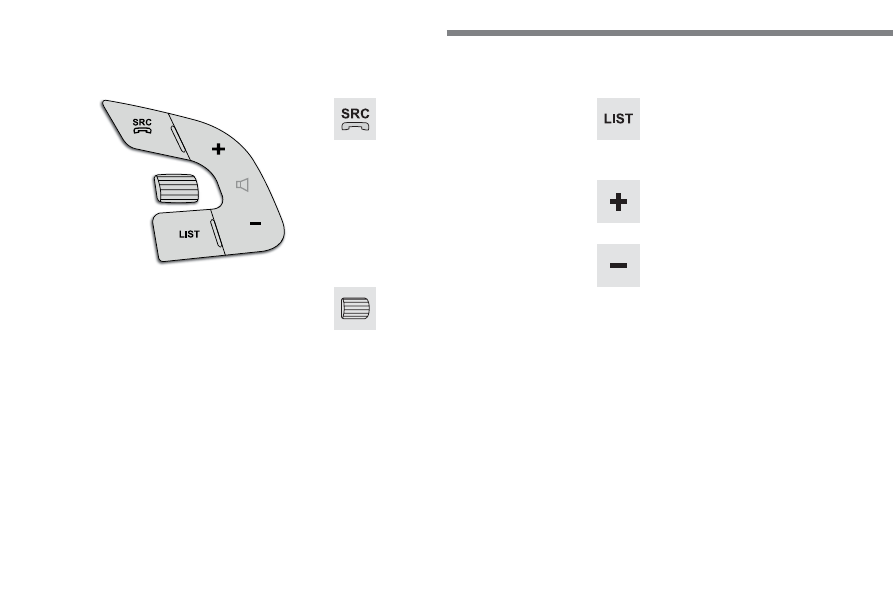

Steering mounted controls

Navigation - Guidance

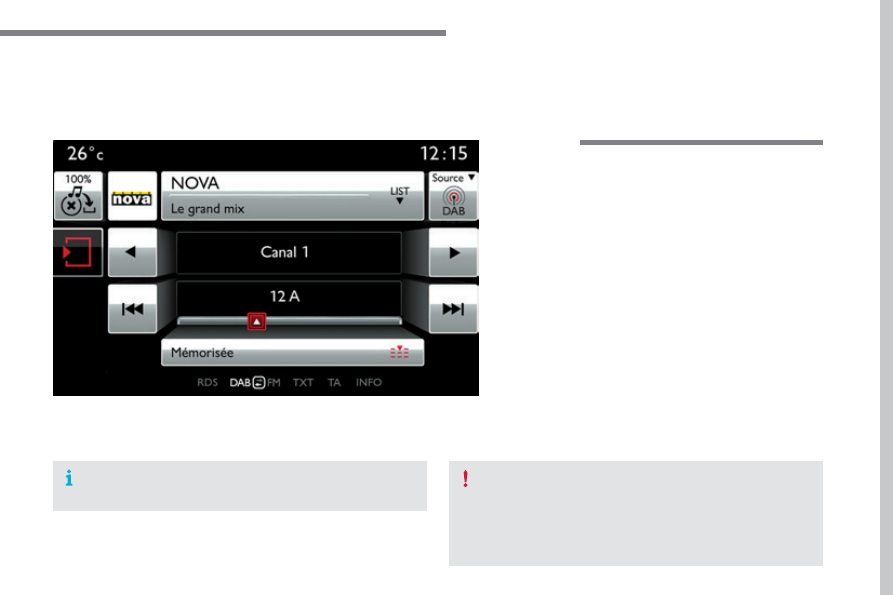

DAB (Digital Audio Broadcasting) radio

Frequently asked questions

344

The system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of the energy economy mode message signals
that the system is about to go into standby. Refer to the energy
economy mode section.

Audio and Telematics

285

C4-2_en_Chap10b_SMEGplus_ed02-2015

With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.

Volume adjustment (each source
is independent, including traffic
announcements (TA) and navigation
instructions).

Select the audio source (depending on
version):
-  FM / DAB / AM* stations.
-  USB memory stick.
-  CD player (located in front panel).
-  Smartphone via MirrorLink

or CarPlay

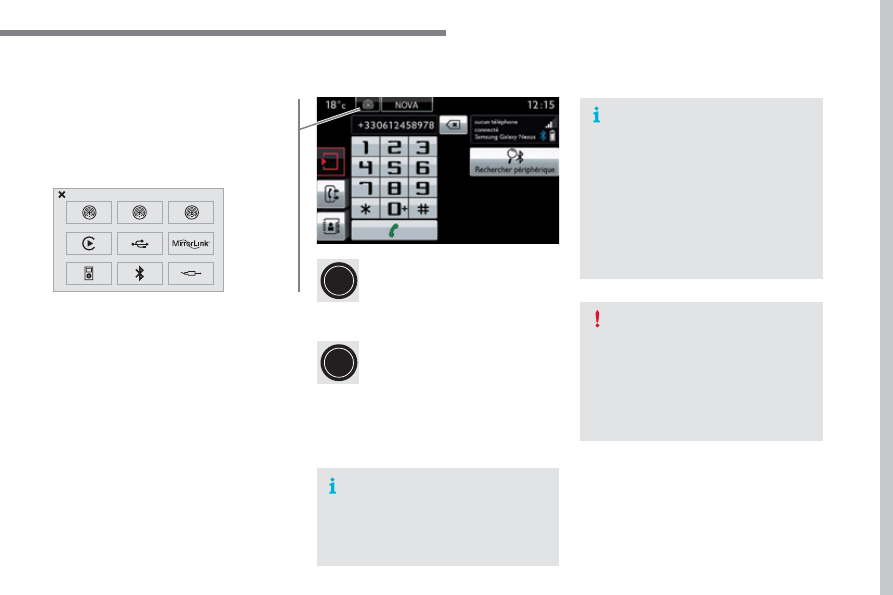

Telephone connected by Bluetooth* and
using Bluetooth* audio streaming.

- Media player connected to the auxiliary

socket (jack, cable not supplied).

- Jukebox*, after first copying audio files to

the internal memory of the system.

* Depending on equipment.

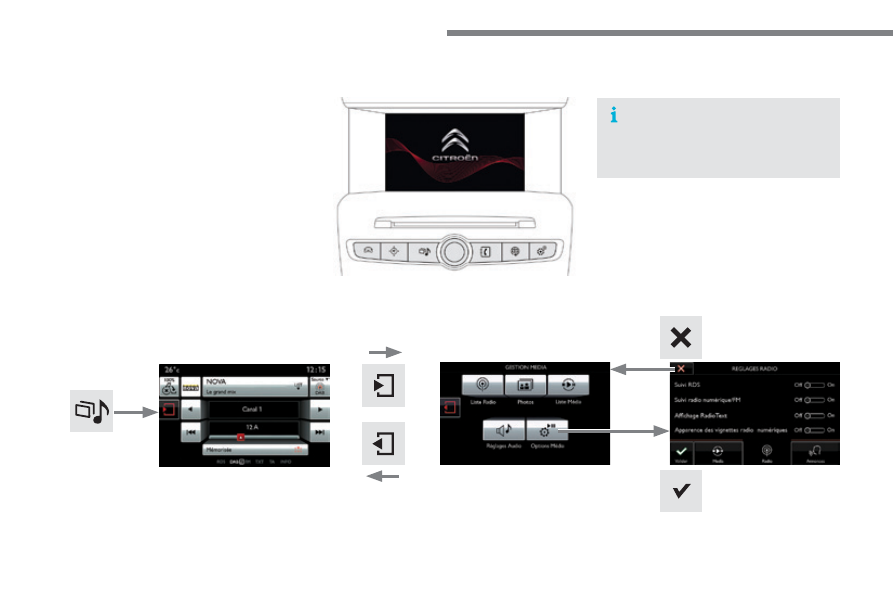

Short-cuts: using the virtual buttons in the
upper band of the touch screen tablet, it is
possible to go directly to the selection of audio
source, the list of stations (or titles, depending
on the source).

The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.

In very hot conditions, the volume may
be limited to protect the system. The
return to normal takes place when
the temperature in the passenger
compartment drops.

To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

Citroen C4 (2016 year). Instruction - part 18
