Citroen C4 (2016 year). Instruction - part 17





8

In the event of a breakdown

255

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

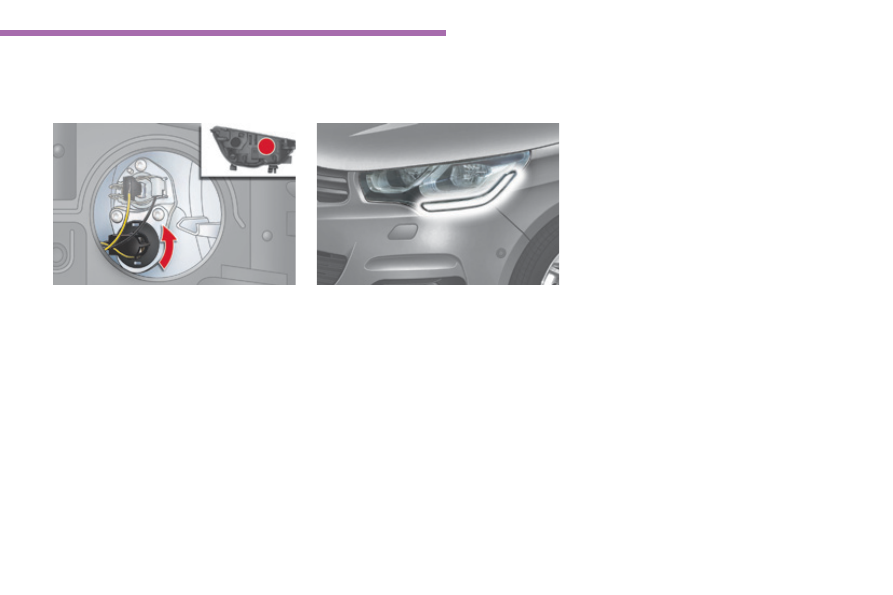

Changing daytime running lamp /
sidelamp bulbs (on models
with xenon or type 1 halogen
headlamps)

F

  Remove the protective cover by pulling

the tab.

F

  Disconnect the bulb connector.

F

  Turn the bulb holder a quarter of a turn and

pull it out

F

  Pull the bulb out and change it.

To refit, carry out these operations in reverse
order.

Changing daytime running
lamps / sidelamps (on models
with type 2 halogen headlamps)

For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

In the event of a breakdown

256

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

Changing foglamp bulbs

F  Introduce a flat screwdriver in the hole in

the finisher.

F

  Pull and lever to unclip the bumper finisher

(the parking sensor stays with the finisher).

F

  Remove the two module fixing screws and

remove it from its housing.

F

  Disconnect the bulb holder connector.

F

  Turn the bulb holder a quarter of a turn and

extract it.

F

  Pull the bulb and change it.

To refit, carry out these operations in reverse
order.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

Changing the side spotlamps
(LEDs)

For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.

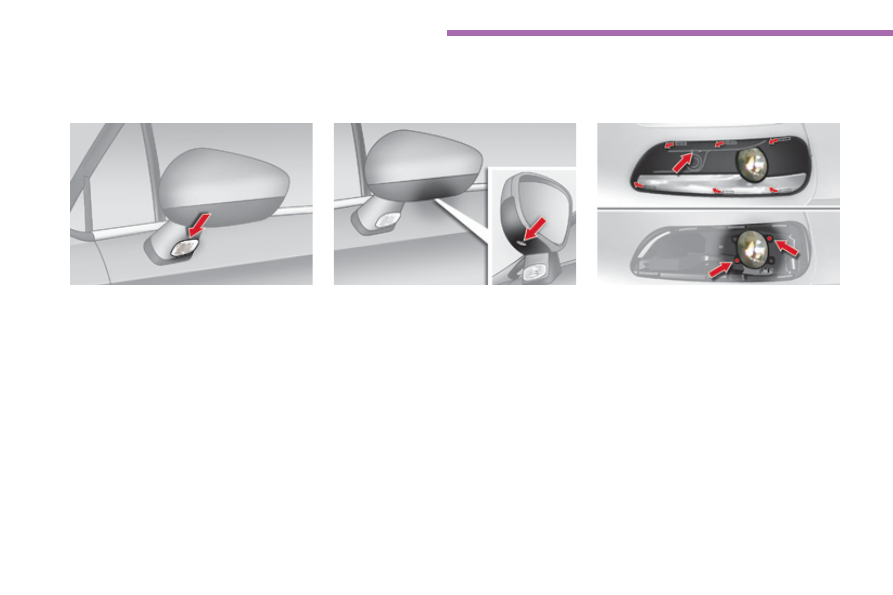

Changing integrated direction
indicator side repeaters

F  Insert a flat screwdriver towards the centre

of the repeater between the repeater and
the base of the mirror.

F

  Tilt the flat screwdriver to extract the

repeater and remove it.

F

  Disconnect the repeater connector.

To reassemble, carry out these operations in
reverse order.
Contact a CITROËN dealer or a qualified
workshop to obtain replacement repeaters.

8

In the event of a breakdown

257

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

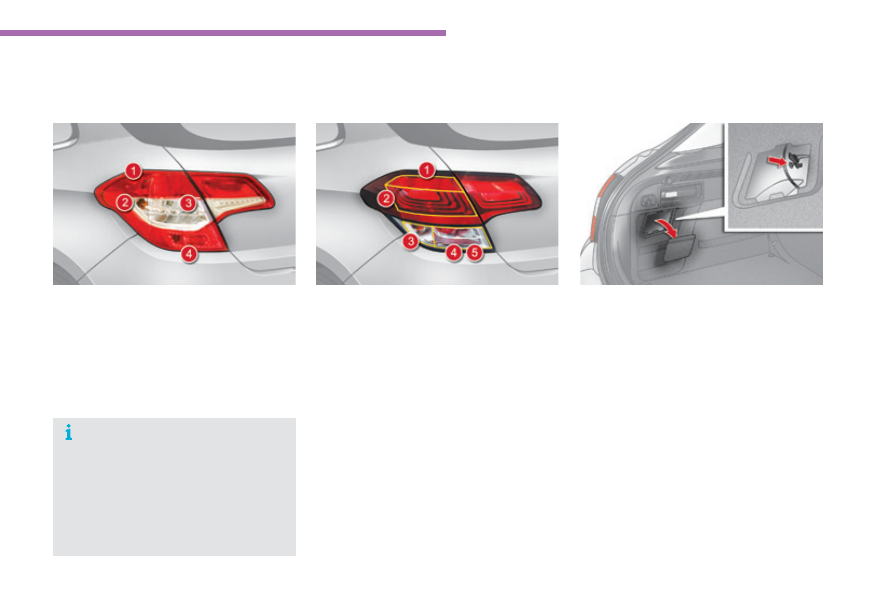

Model with 3D rear lamps

1.  Brake lamp (P21W).
2.
  Sidelamp (R10W).
3.
  Direction indicator (PY21W amber)

.

4.  Rear foglamp, offside (P21W).
5.
  Reversing lamp, nearside (P21W).

Access to rear lamps

Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate are dummy
units. They are there for aesthetic
purposes only.

Rear lamps

Model with conventional lamps
(type 1)

1.  Brake lamp / sidelamp (P21/5W).
2.
  Direction indicator (PY21W amber)

.

3.  Reversing lamp (P21W).
4.
  Rear foglamp (P21W).

You will need a flat screwdriver and a 10 mm
box spanner.
The four bulbs are changed from inside the
boot:
F  open the boot,
F

  remove the access flap from the

corresponding side trim panel,

F

  unclip the lamp unit connector,

F

  as a precaution, place a cloth in the bottom

of the housing to catch the nut if it is
dropped on removal,

F

  slacken the hexagonal nut using a 10 mm

box spanner then remove the nut by hand,

F

  carefully remove the lamp unit by pulling

out it straight out towards the rear.

In the event of a breakdown

258

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

After removing the lamp unit, carry out the
following operations to replace the failed bulb:
F

  remove the two bulb holder fixing screws,

F

  spread the four tabs and remove the bulb

holder,

F

  turn the bulb a quarter of a turn and change it.

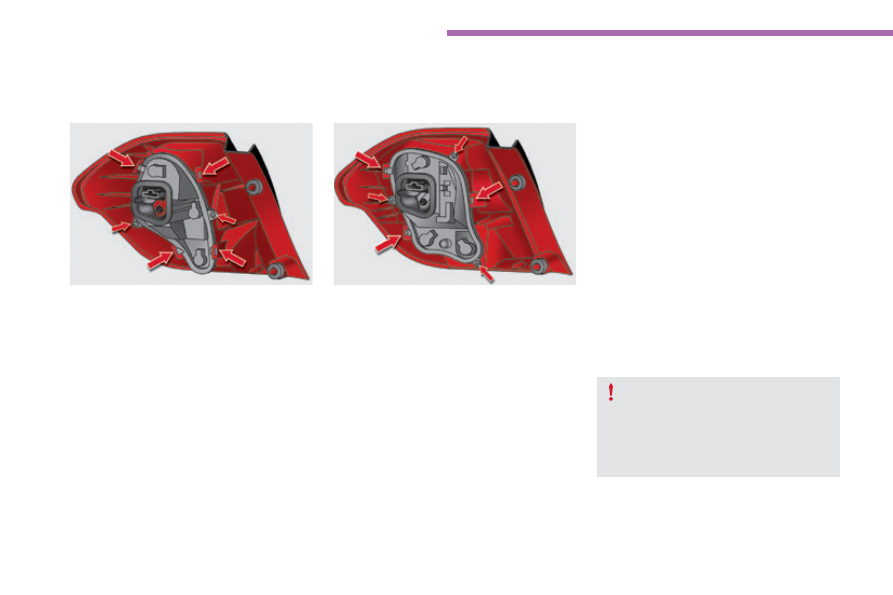

Changing rear lamp bulbs
(type 1)

After removing the lamp unit, carry out the
following operations to replace the failed bulb:
F

  remove the three bulb holder fixing screws,

F

  spread the three tabs and remove the bulb

holder,

F

  turn the bulb a quarter of a turn and change it.

To refit, carry out these operations in reverse
order.

Changing rear lamp bulbs
(type 2)

Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten sufficiently to ensure sealing,
but without forcing, so as to avoid
damaging the lamp.

8

In the event of a breakdown

259

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F  Insert a thin screwdriver into the lens

cutout.

F

  Push it outwards.

F

  Remove the lens.

F

  Change the faulty bulb.

To refit, press on the lens to clip it in place.

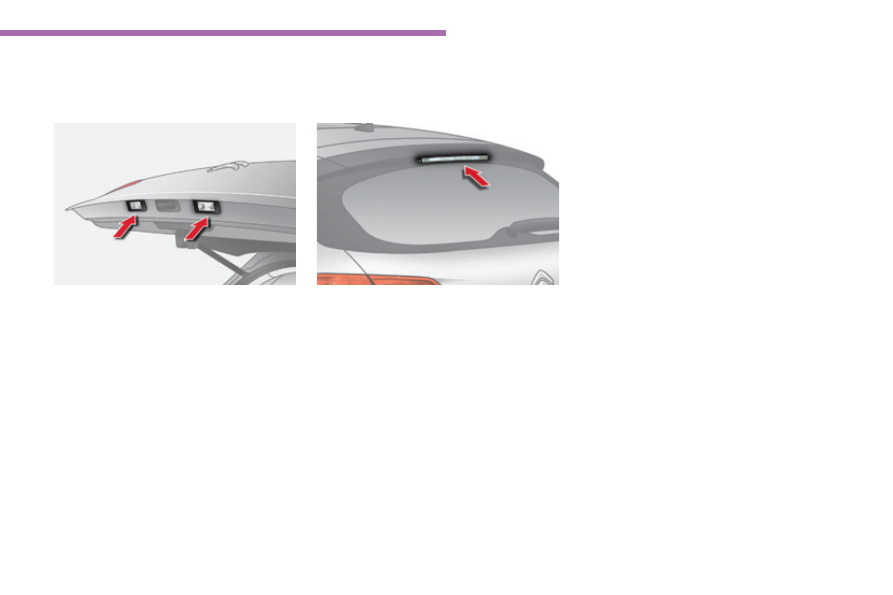

Third brake lamp (LEDs)

For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.

Number plate lamps (W5W)

In the event of a breakdown

260

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

Changing a fuse

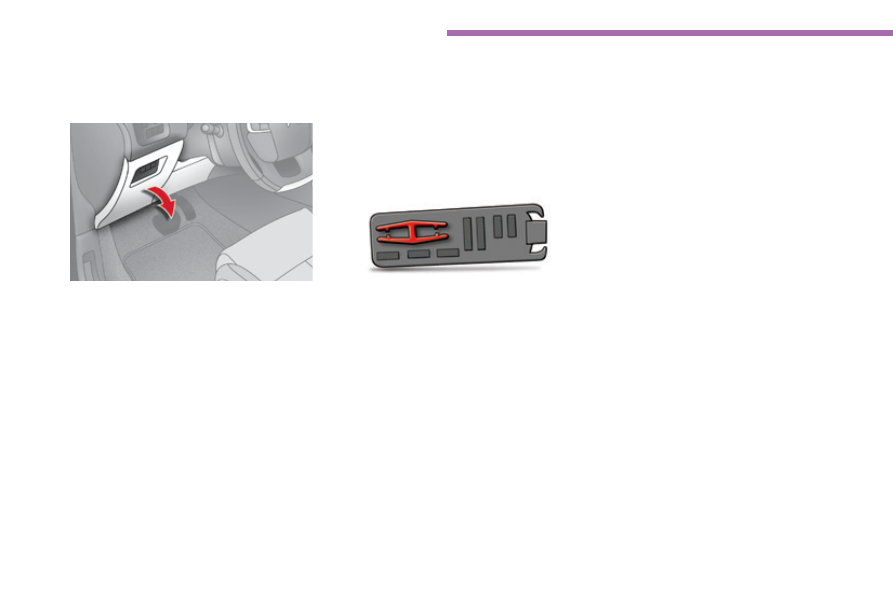

The extraction tweezer is attached to the back
of the dashboard fusebox cover.
For access to it:
F

  unclip the cover by pulling at the top right,

then left,

F

  disengage the cover completely and turn it

over,

Access to the tools

F

  remove the carrier, on the back of which

the tweezer is fitted.

8

In the event of a breakdown

261

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

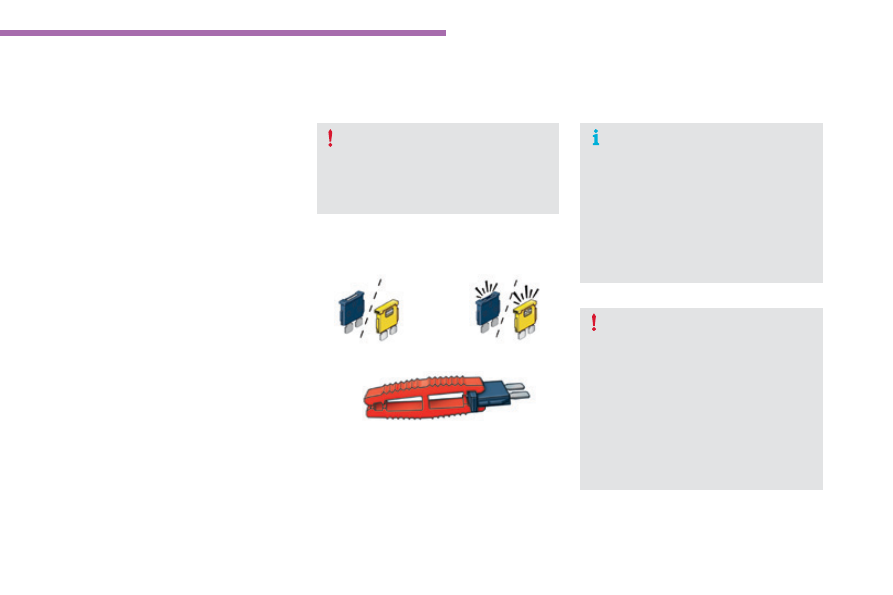

Changing a fuse

Good

Failed

To replace a fuse, you must:
F

  use the special tweezer to extract the fuse

from its housing and check the condition of
its filament.

F  always replace the failed fuse with a fuse

of the same rating (same colour); the use
of a fuse of different rating fuse may cause
malfunctions (risk of fire).

If the fault recurs soon after replacing the
fuse, have the electrical system checked by a
CITROËN dealer or a qualified workshop.

Tweezer

The replacement of a fuse not
mentioned in the tables below may
cause a serious malfunction of your
vehicle. Contact a CITROËN dealer or a
qualified workshop.

CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.

Installing electrical
accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.

Before changing a fuse:
F

  the cause of the failure must be identified

and rectified,

F

  all electrical consumers must be switched

off,

F

  the vehicle must be immobilised with the

ignition off,

F

  identify the failed fuse using the tables and

diagrams in the following pages.

In the event of a breakdown

262

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

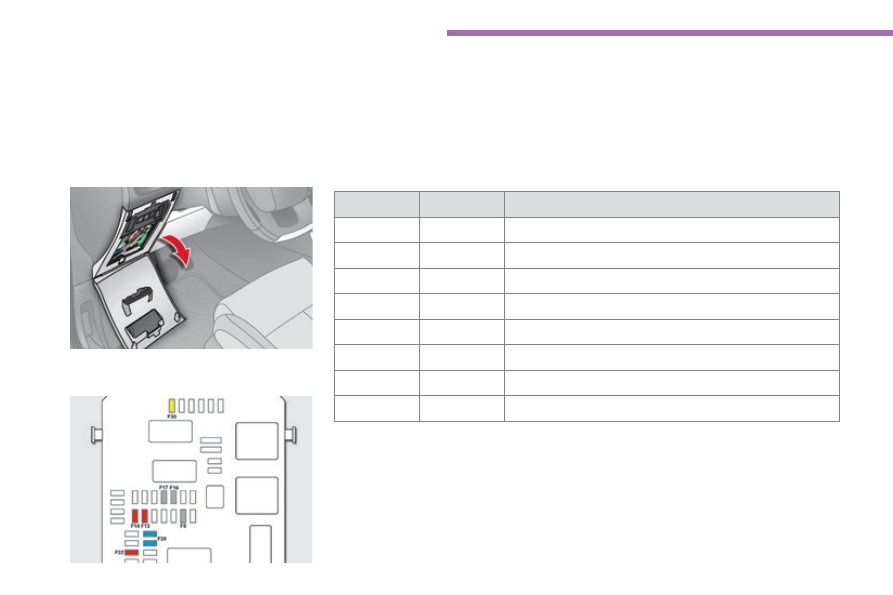

Dashboard fuses

Access to the fuses

F

  Refer to the paragraph "Access to the tools".

Fuse tables

Fusebox 1

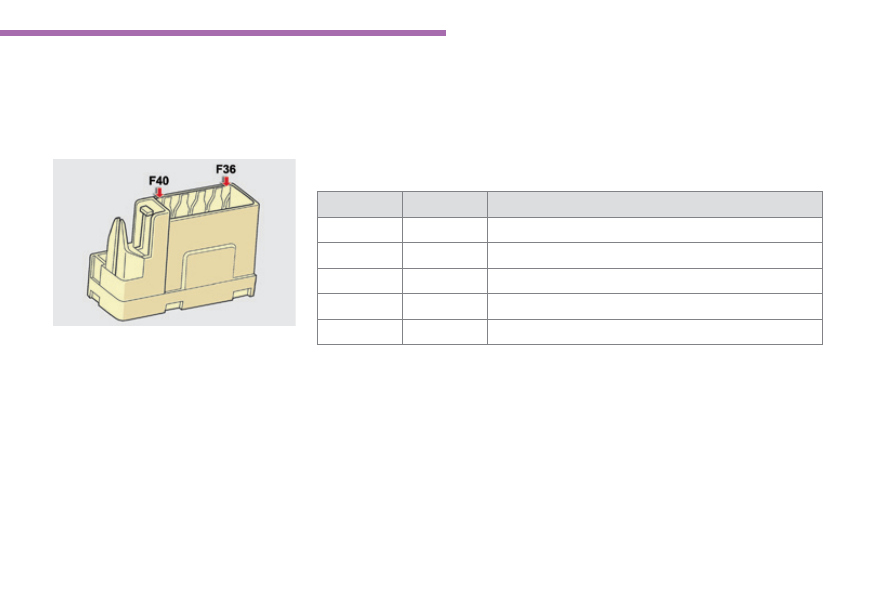

Fuse N°

Rating

Functions

F8

3 A

Alarm siren, alarm ECU.

F13

10 A

Front 12 V socket.

F14

10 A

12 V socket in boot.

F16

3 A

Rear map reading lamps, glove box illumination.

F17

3 A

Sun visor illumination, front map reading lamps.

F28

15 A

Audio system, radio (after-market).

F30

20 A

Rear wiper.

F32

10 A

Hi-Fi amplifier.

The fuseboxes are located in the lower
dashboard (left-hand side).

8

In the event of a breakdown

263

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

Fuse N°

Rating

Functions

F36

15 A

Rear 12 V socket.

F37

-

Not used.

F38

-

Not used.

F39

-

Not used.

F40

25 A

230 V / 50 Hz socket.

Fusebox 2

In the event of a breakdown

264

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

Fuse N°

Rating

Functions

F19

30 A

Windscreen wipers slow / fast speed.

F20

15 A

Front and rear screenwash pump.

F21

20 A

Headlamp wash pump.

F22

15 A

Horn.

F23

15 A

Right-hand main beam headlamp.

F24

15 A

Left-hand main beam headlamp.

F27

5 A

Left-hand dipped headlamp.

F28

5 A

Right-hand dipped headlamp.

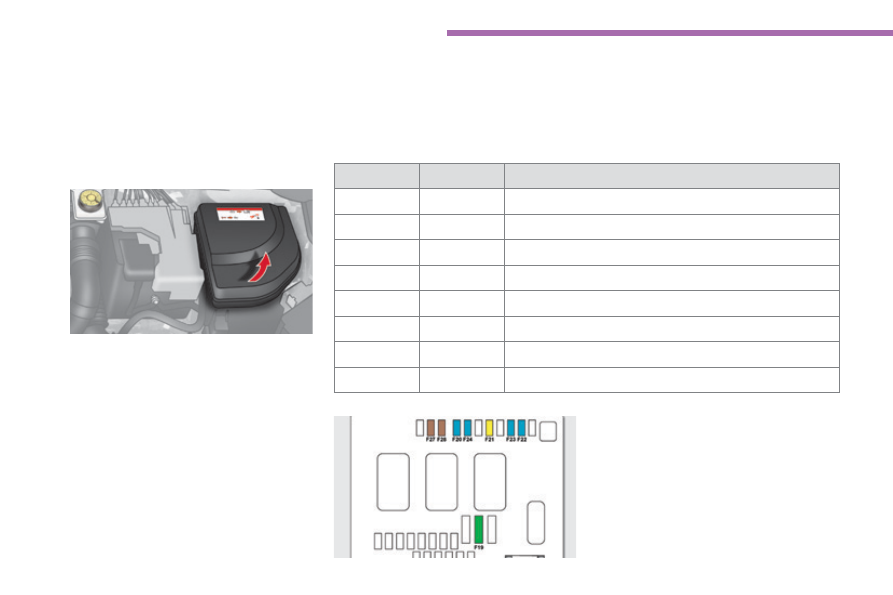

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand side).

Access to the fuses

F

  Unclip the cover.

F

  Change the fuse.

For information on the special requirements
and precautions to take before changing a fuse,
refer to the start of this section.
F  When you have finished, close the cover

carefully to ensure sealing of the fusebox.

Fuse table

8

In the event of a breakdown

265

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

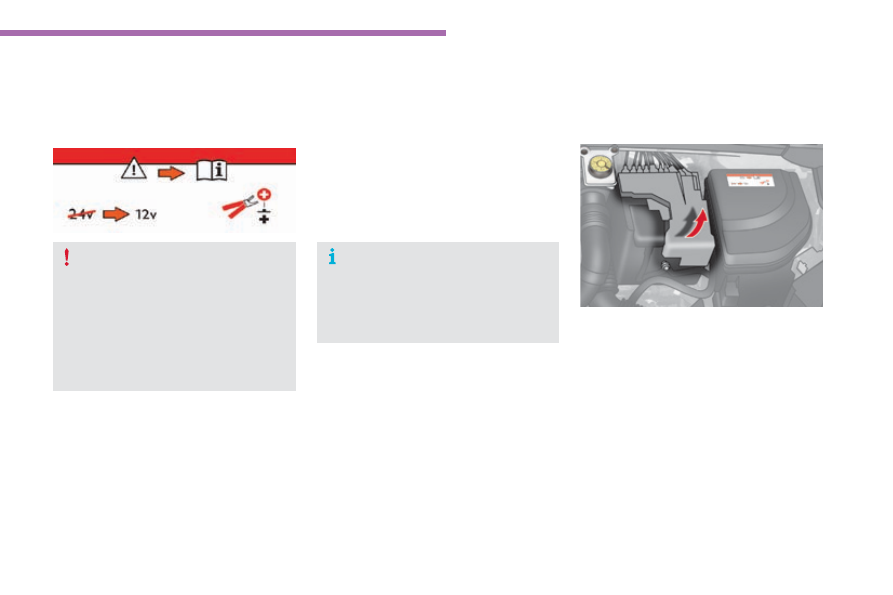

12 V battery

The battery is located under the  bonnet.
For access to the (+) terminal:
F

  release the bonnet using the interior lever,

then the exterior safety catch,

F  raise the bonnet and secure it with its stay,
F  lift the plastic cover for access to

the (+) terminal.

Access to the battery

Procedure for starting the engine  using another
battery or charging a discharged battery.

The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer or
a qualified workshop is essential when
replacing or disconnecting the battery.

After refitting the battery, the Stop & Start
system will only be active after a continuous
period of immobilisation of the vehicle,
a period which depends on the climatic
conditions and the state of charge of the
battery (up to about 8 hours).

In the event of a breakdown

266

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables.

Starting using another
battery

First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
Do not try to start the engine by
connecting a battery charger.
Do not disconnect the (+) terminal when
the engine is running.

F

  Start the engine of the vehicle with the

good battery and leave it running for a few
minutes.

F

  Operate the starter on the broken down

vehicle and let the engine run.



If the engine does not start straight away,
switch off the ignition and wait a few
moments before trying again.

F

  Remove the plastic cover from

the (+) terminal, if your vehicle has one.

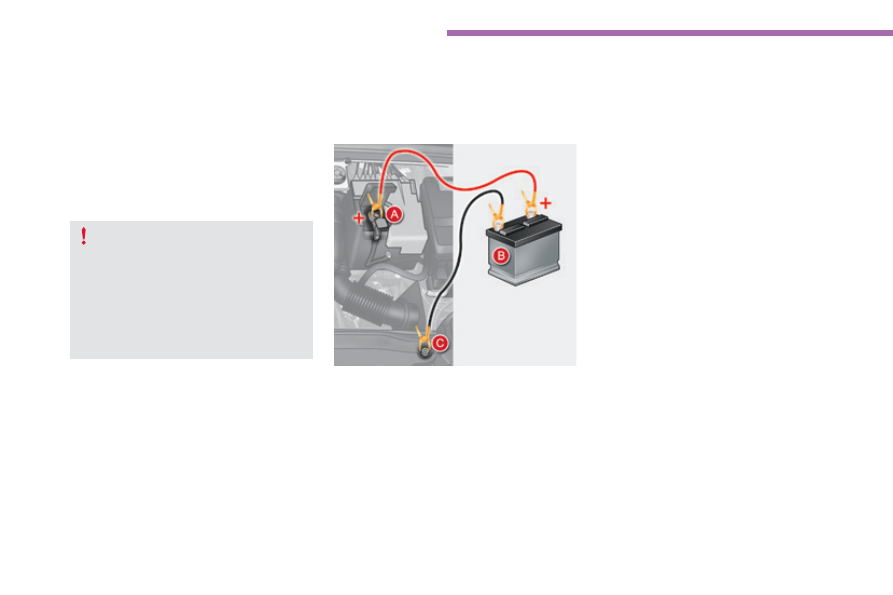

F  Connect the red cable to the positive

terminal (+) of the flat battery A, then to the
positive terminal (+) of the slave battery B.

F

  Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B

 (or earth point on the other

vehicle).

F

  Connect the other end of the green or black

cable to the earth point C

 on the broken

down vehicle (or on the engine mounting).

F

  Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

F

  Refit the plastic cover to the (+) terminal, if

your vehicle has one.

8

In the event of a breakdown

267

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

Charging the battery using
a battery charger

F

  Disconnect the battery from the vehicle.

F  Follow the instructions for use provided by

the manufacturer of the charger.

F

  Connect the battery starting with the

negative terminal (-).

F

  Check that the terminals and connectors

are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.

Reinitialisation after
reconnection

After any reconnection of the battery, switch on
the ignition and wait at least one minute before
starting, to allow time for the initialisation of the
electronic systems.
By referring to the corresponding sections, you
should set or initialise the following systems
yourself:

one-touch electric windows,

-  time and date,
-  audio and navigation system settings.
Check that no alert message or warning lamp
comes on after switching on the ignition.
However, if minor problems persist after
carrying out these operations, contact a
CITROËN dealer or a qualified workshop.

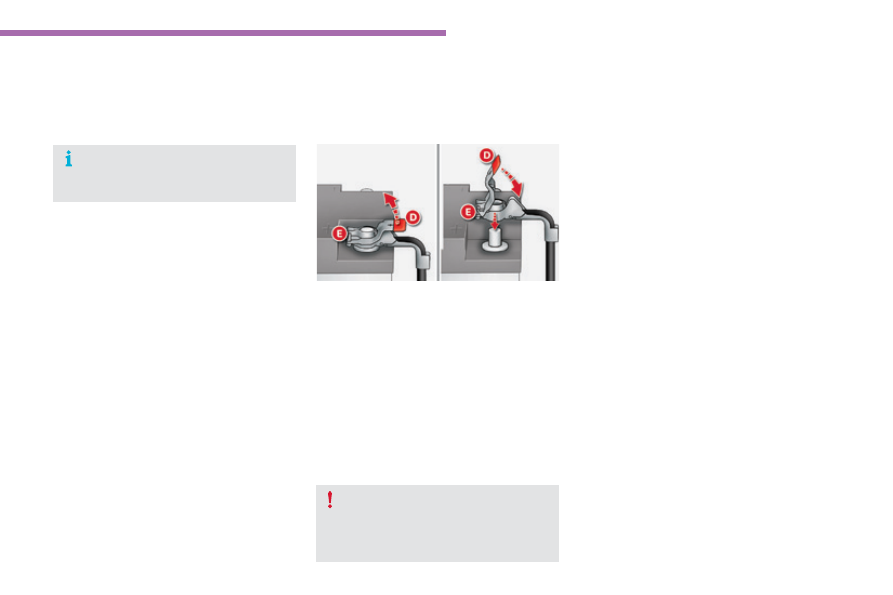

Reconnecting the (+) cable

F

  Position the open clamp E of the cable on

the positive post (+) of the battery.

F

  Press vertically on the clamp E to position

it correctly on the battery.

F

  Lock the clamp by spreading the

positioning lug and then lowering the tab D.

Disconnecting the (+) cable

F

  Raise the locking tab D fully to release the

cable terminal clamp E.

Do not apply excessive force on the
tab as locking will not be possible if the
clamp is not positioned correctly; start
the procedure again.

With Stop & Start, the battery does not
have to be disconnected for charging.

Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

In the event of a breakdown

268

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a CITROËN dealer or a
qualified workshop who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands afterwards.

Do not push the vehicle to start the
engine if your vehicle has an automatic
gearbox.

Some functions are not available if the
battery is not sufficiently charged.

It is advisable to disconnect the battery if
the vehicle is to be left unused for more
than one month.

The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.

8

In the event of a breakdown

269

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

Towing the vehicle

The towing eye is installed in the boot under
the floor.
To gain access to it:
F  open the boot,
F  raise the floor,
F

  secure it by hooking its cord on the hook

on the rear parcel shelf support,

F

  remove the towing eye from the holder.

Access to the tools

General recommendations

In the following cases, you must always call
on a professional recovery service:
-  vehicle broken down on a motorway or

fast road,

four-wheel drive vehicle,

when it is not possible to put the
gearbox into neutral, unlock the
 steering, or release the parking brake,

-  towing with only two wheels on the

ground,

-  where there is no approved towing arm

available...

Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.

In the event of a breakdown

270

C4-2_en_Chap08_en-cas-de-panne_ed02-2015

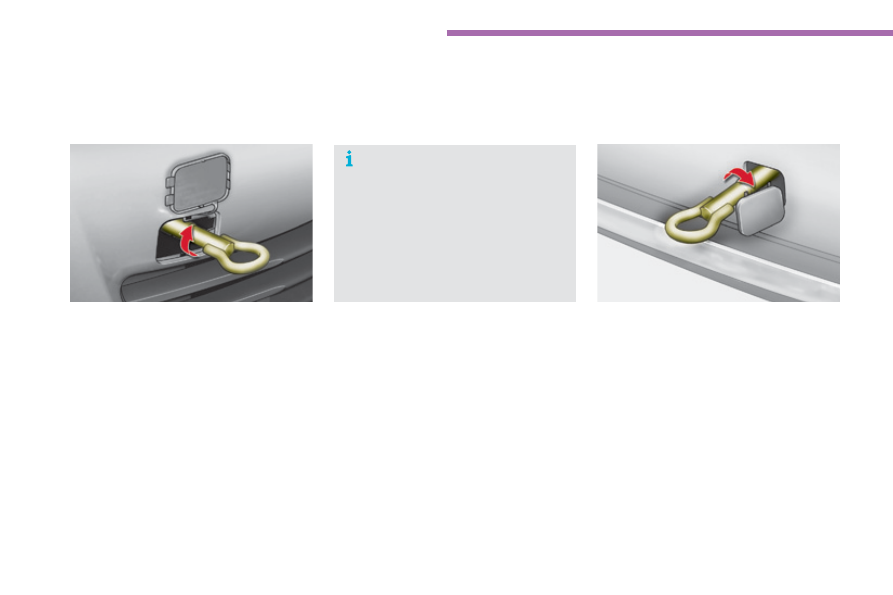

F

  On the front bumper, unclip the cover by

pressing at the bottom.

F

  Screw the towing eye in fully.

F

  Install the towing arm.

Towing your vehicle

F

  On the rear bumper, unclip the cover by

pressing at the bottom.

F

  Screw the towing eye in fully.

F

  Install the towing arm.

F

  Switch on the hazard warning lamps on

both vehicles.

F

  Move off gently, drive slowly and for a short

distance.

Towing another vehicle

F

  Unlock the steering and release the parking

brake.

F

  Switch on the hazard warning lamps on

both vehicles.

F

  Move off gently, drive slowly and for a short

distance.

F

  Place the gear lever in neutral

(position N on an automatic
gearbox).



Failure to observe this instruction
could result in damage to
certain components (braking,
transmission...) and the absence
of braking assistance the next time
the engine is started.















Content   ..  15  16  17  18   ..
